Villeroy & Boch Toilet Support Frame + Vitra Sento Rimless Bowl + White Flush Plate + Cladding Set (ViConnectSento-2-sabo)
- Product reference: ViConnectSento-2-sabo
- EAN: 0750122359660
- Colour:White
- Material:Ceramic
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Vitra
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Villeroy & Boch
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- Weight:35.00
- Depth:66
- Invisible fixings:Yes
- Product type:Toilet pack + wall cladding

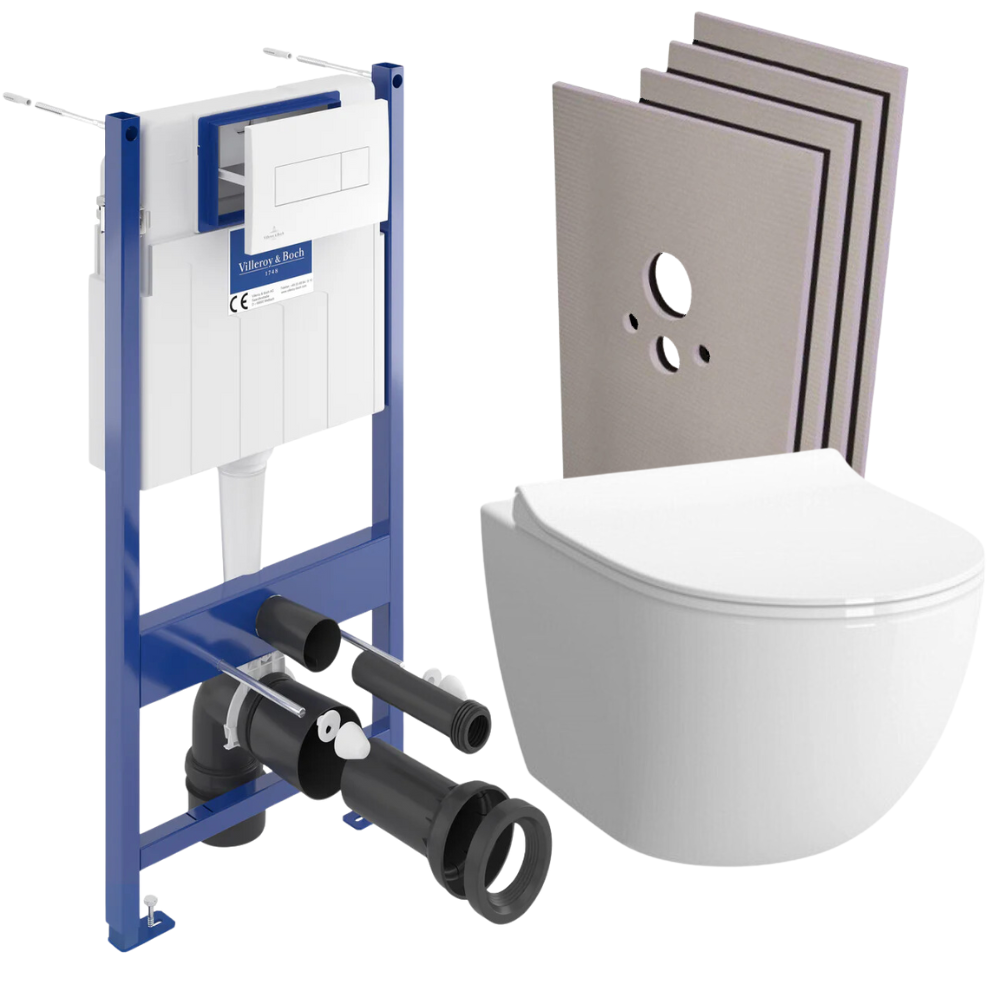

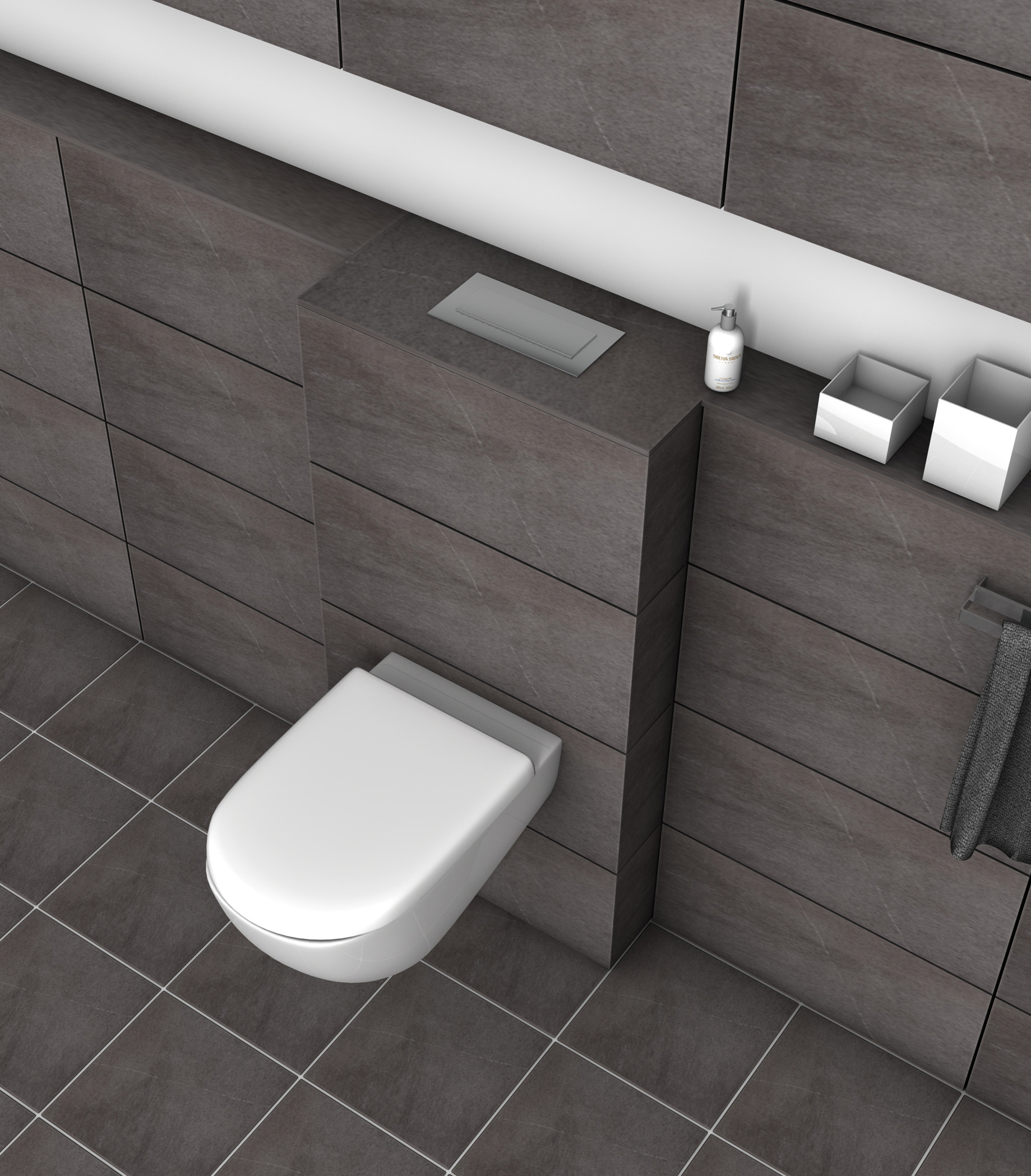

Features of the WC Pack: Wall-mounted Frame + Vitra Sento Rimless WC with Invisible Fixings + White Flush Plate + Cladding Set (ViConnectSento-2-sabo):
- Vitra Sento Rimless WC SmoothFlush + Soft-Close Seat, White (7848-003-6147)
- Villeroy & Boch Floor-Wall Mounted Support Frame with White Flush Plate (92122868)
- Jackoboard Mounting Set for WC Frame Cladding (4521871)

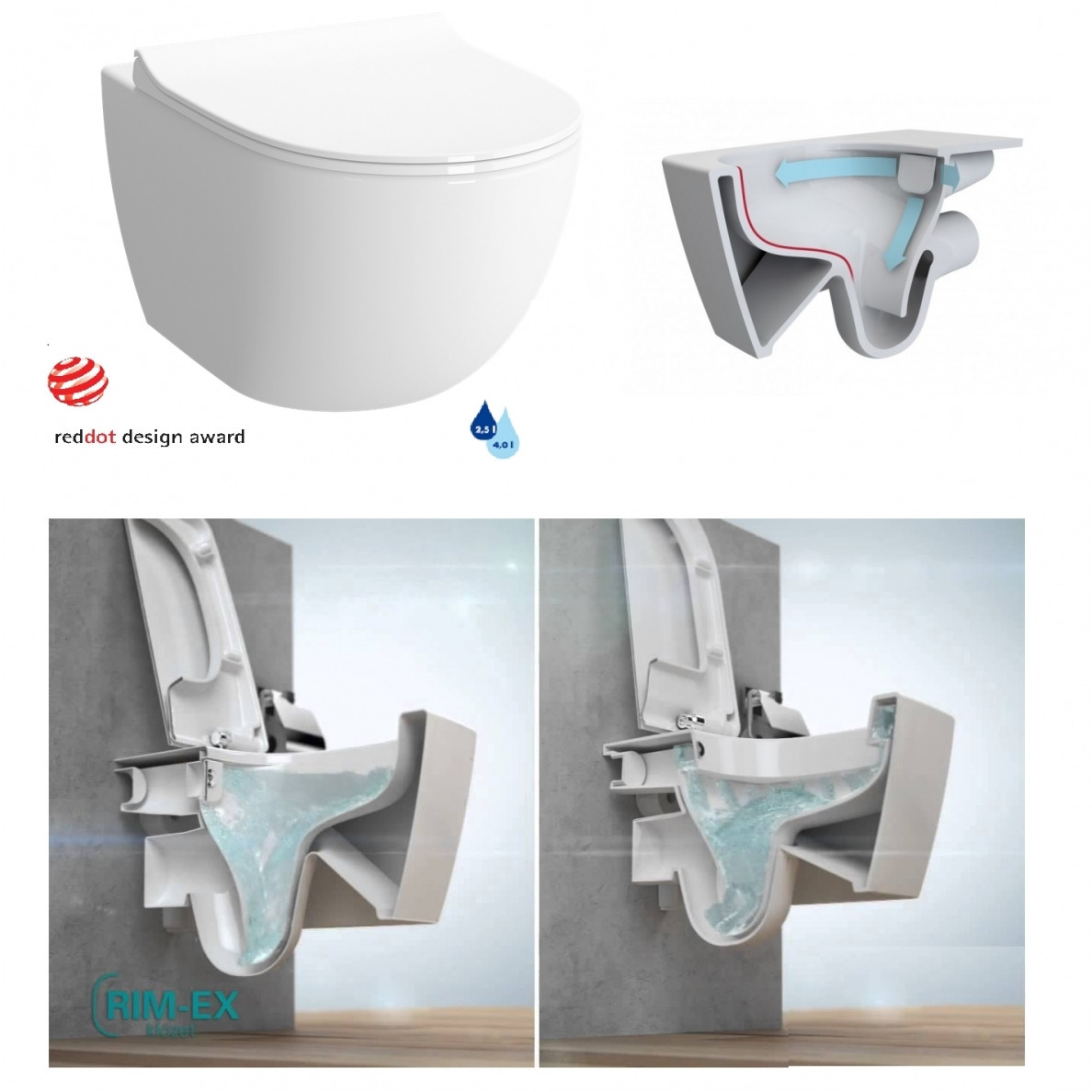

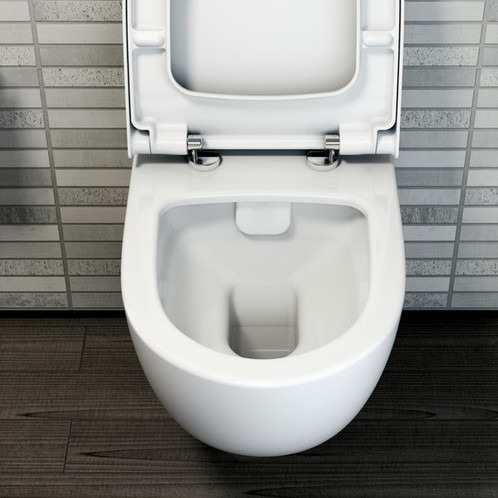

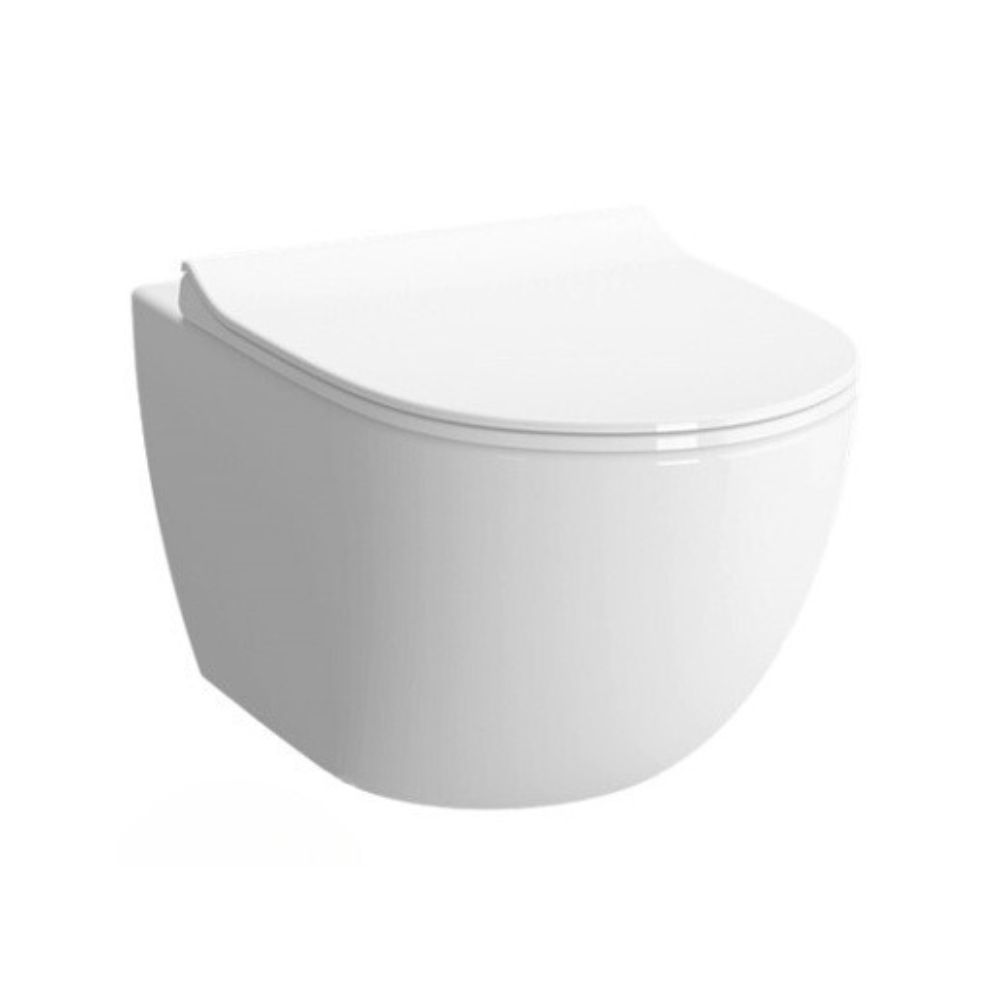

Vitra Sento Rimless WC SmoothFlush + Soft-Close Seat, White (7848-003-6147):
- Wall-mounted rimless toilet (VitrAflush 2.0) in white VITRA ceramic
- Water-saving
- Brand: Vitra

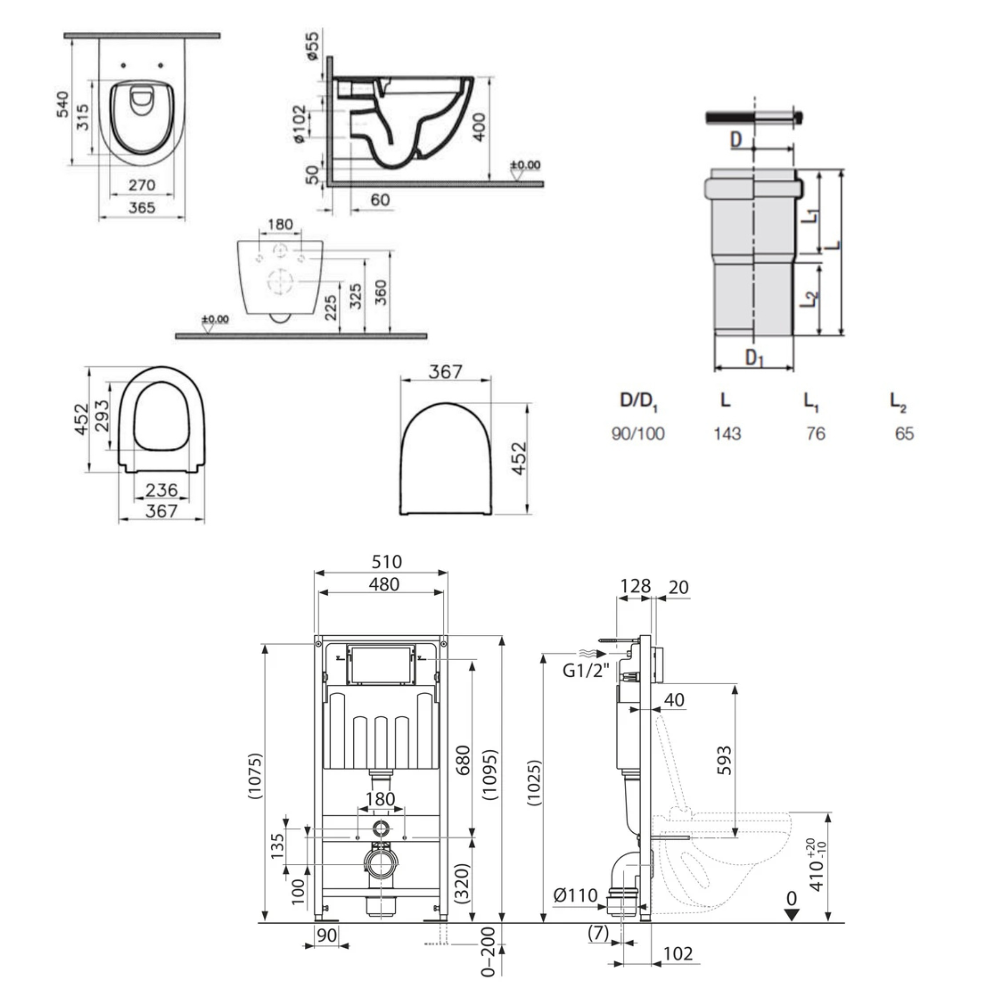

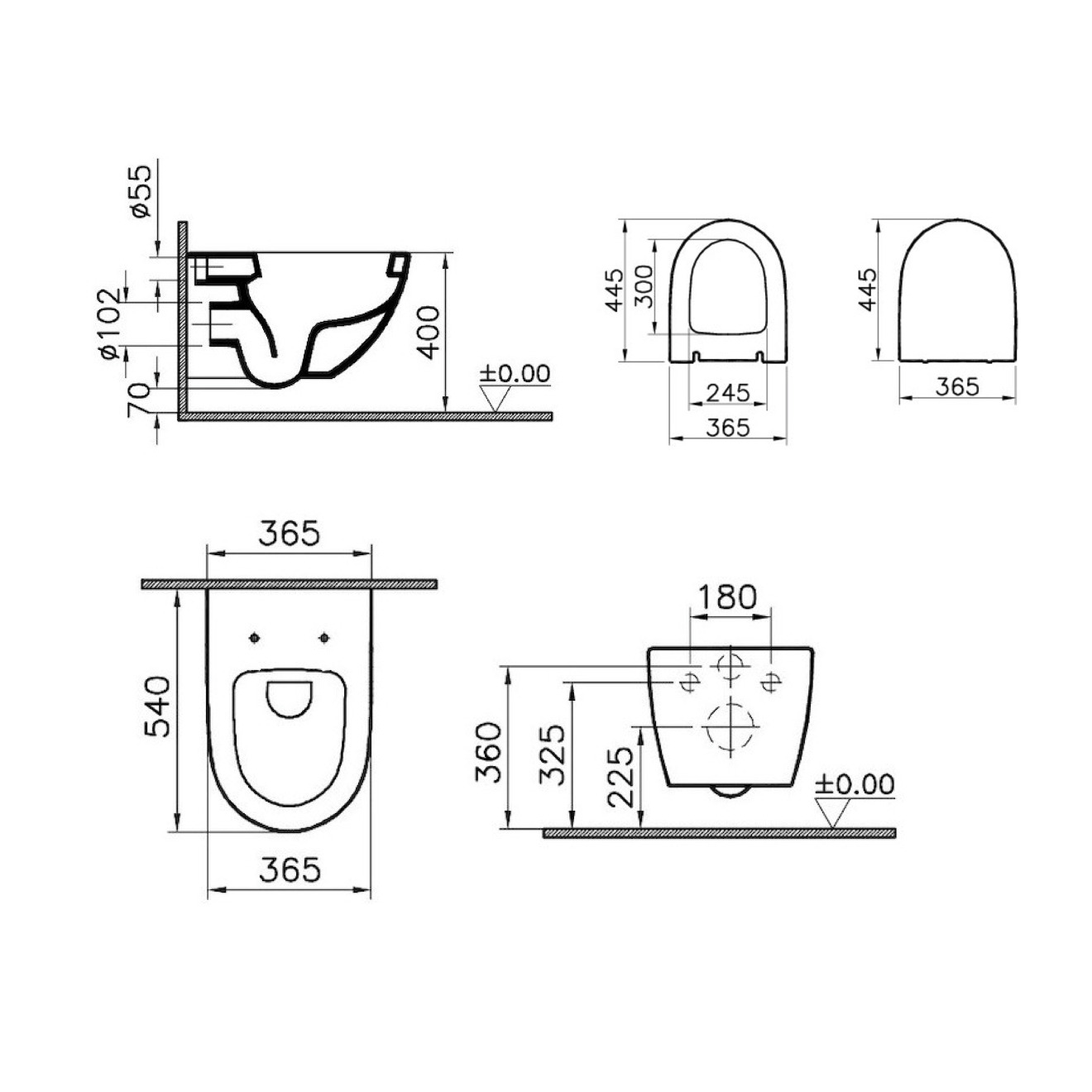

- Dimensions: 36.5 x 54 x 40 cm
- Horizontal outlet
- Hidden top fixation (V-Fit 2.0)
- Flush capacity: 3/6 liters
- Ultra-thin high-quality Duroplast toilet seat with soft-close function (1120-003R009)

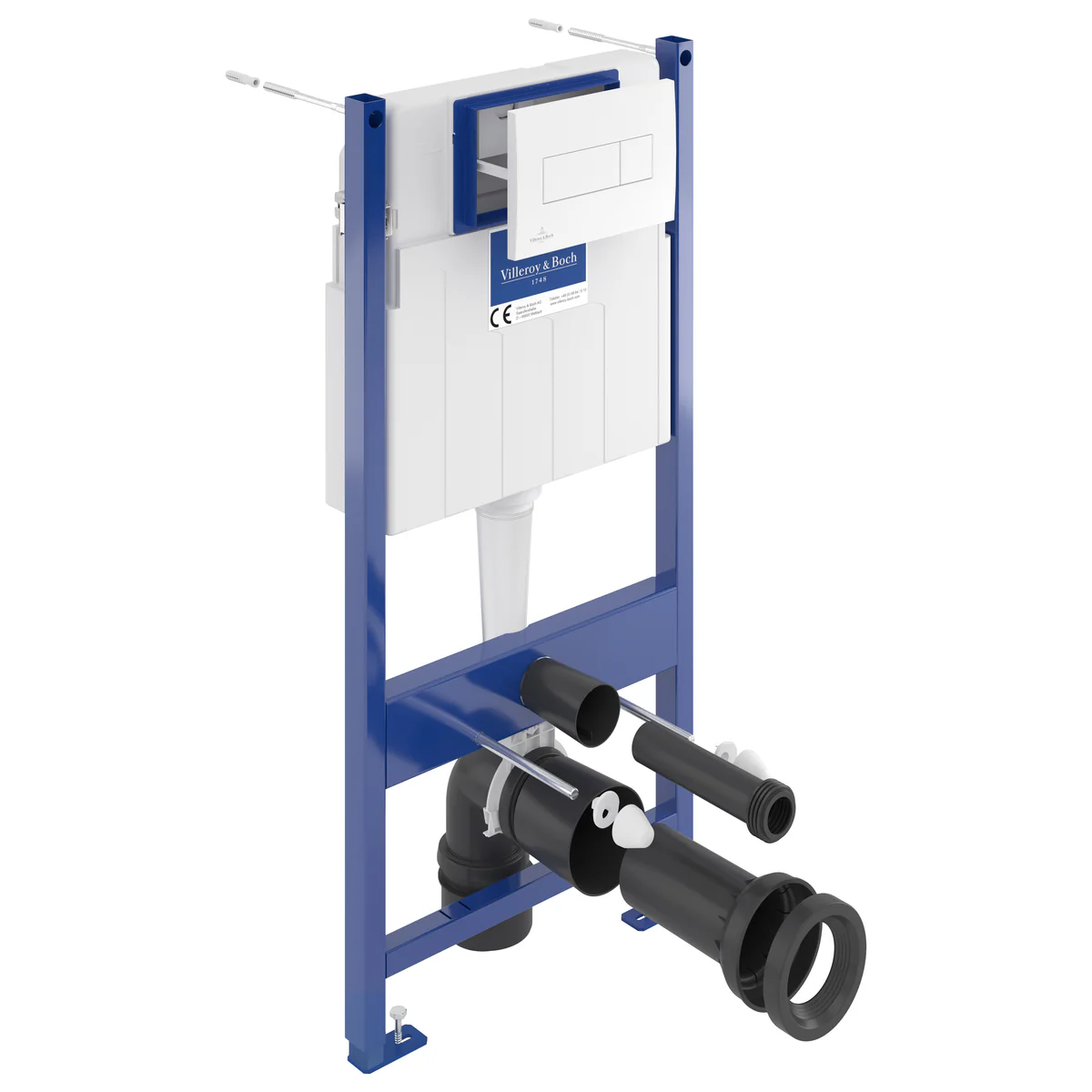

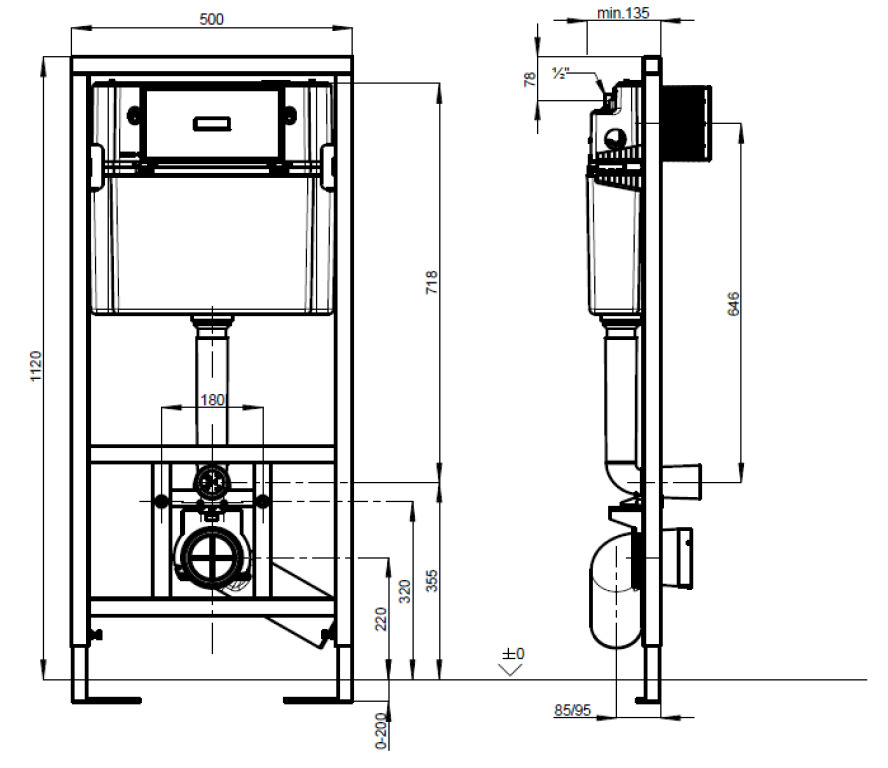

Villeroy & Boch Floor-Wall Mounted Support Frame with White Flush Plate (92122868):
- Suitable for drywall constructions
- Must be installed against a load-bearing wall
- Load capacity: 400 kg
- Adjustable foot range: 0-200mm
- Distance from the wall: 135-205mm (when mounted on wall brackets)
- Four-point fixation with wall brackets
- Includes support legs and fixing materials for installation in front of a wall, on the side, or in corners
- Protective cap for the flush pipe
- Adjustable WC mounting bolts at 180mm with protective caps and nuts
- Installation instructions included
- Compatible with wall-hung toilets
- Concealed cistern with anti-condensation insulation
- Dual-flush system: 3/6L (adjustable to 2.5/4.5L)
- Built-in flush tank: Noise class I

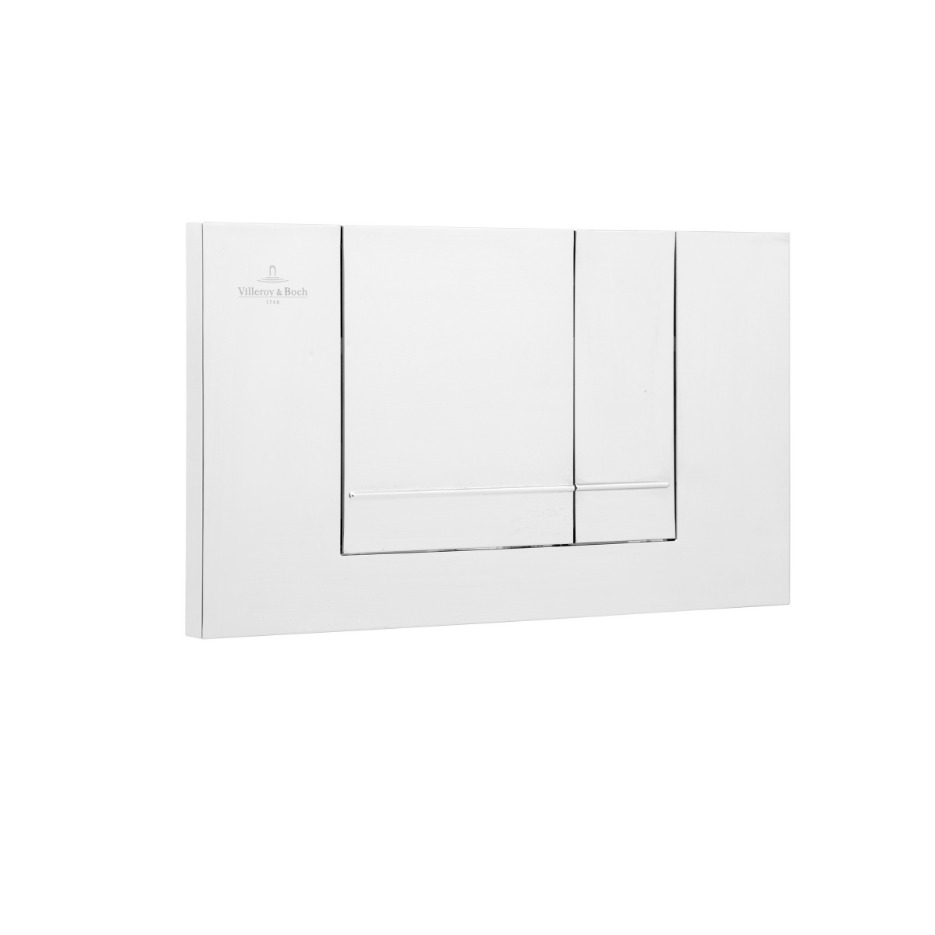

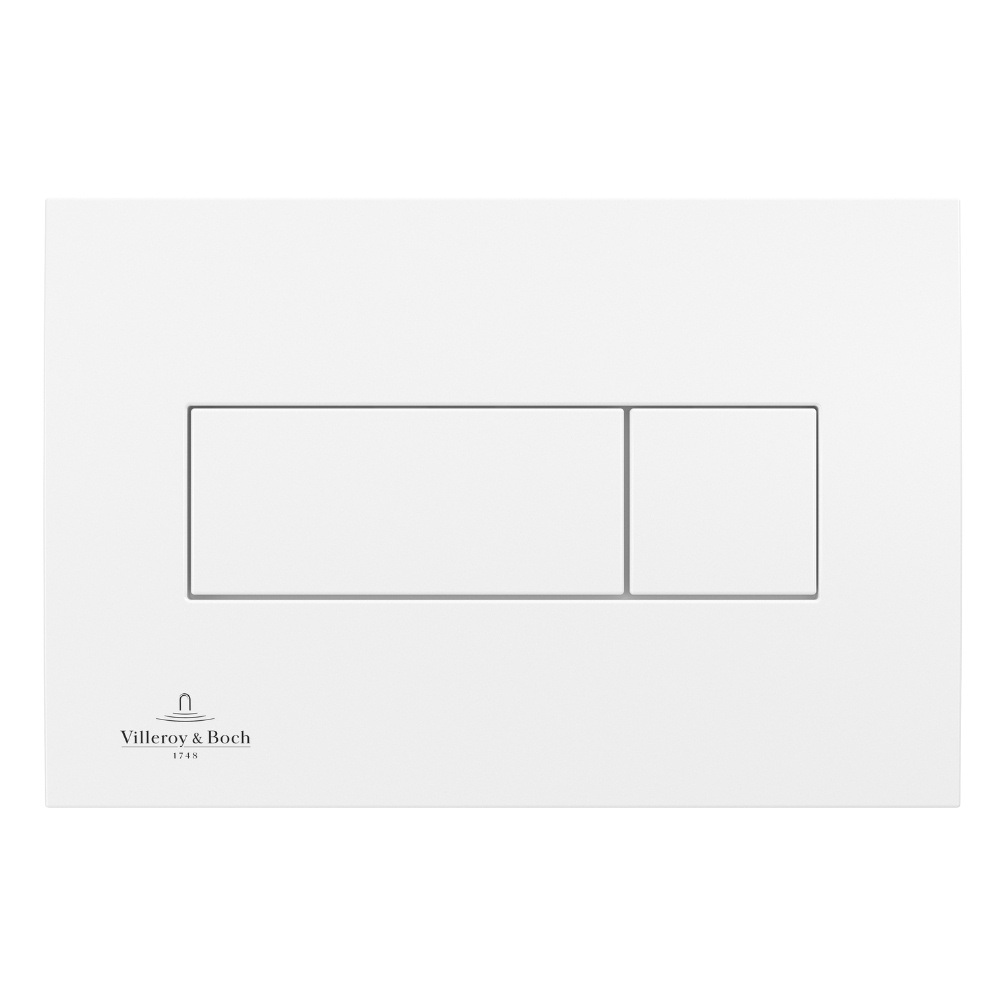

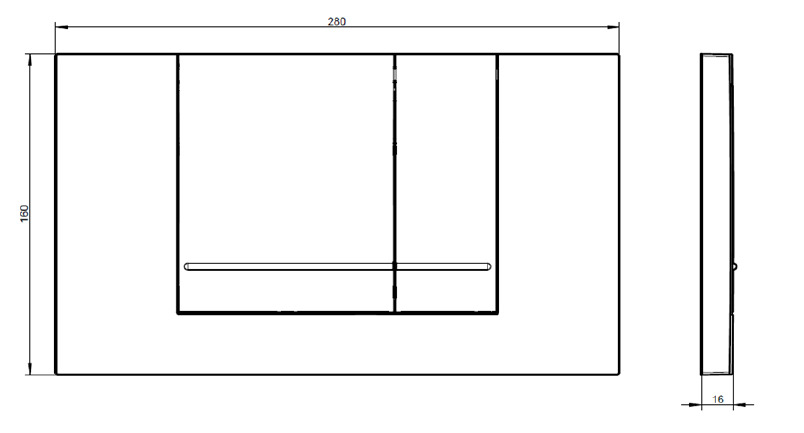

- White dual-flush plate
- Mechanical flushing activation
Jackoboard Mounting Set for WC Frame Cladding (4521871):
The complete solution for an aesthetically finished WC installation.

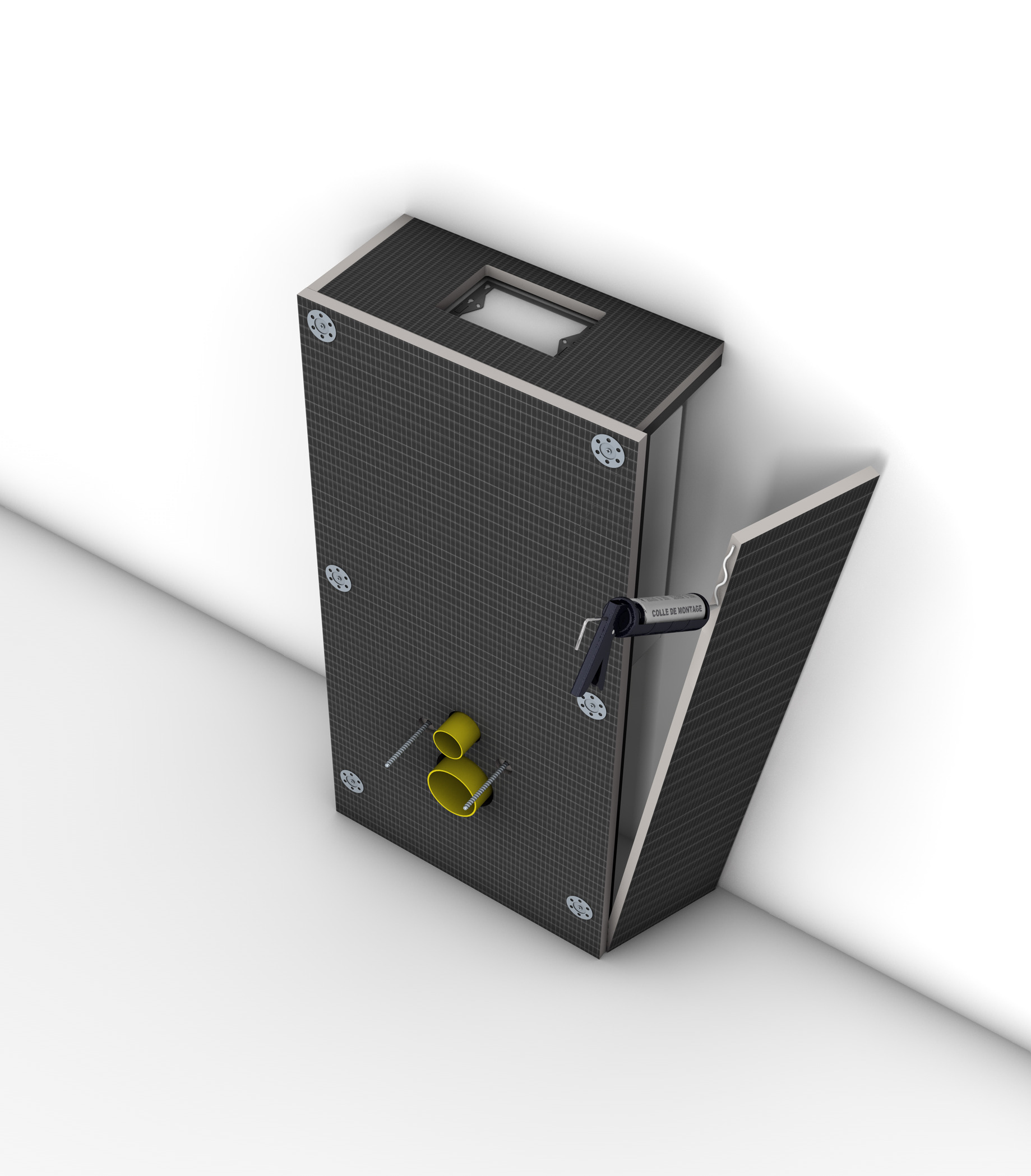

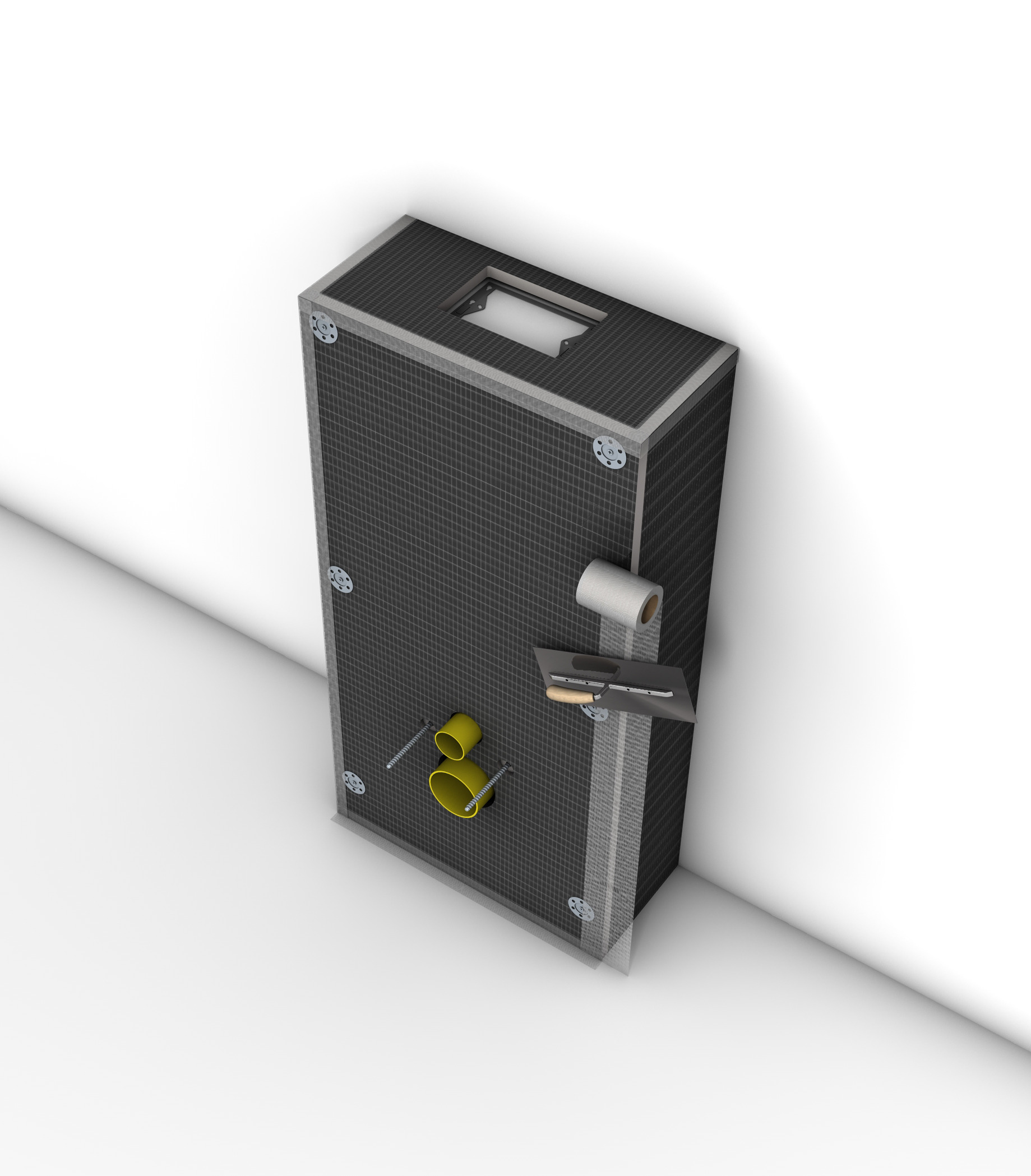

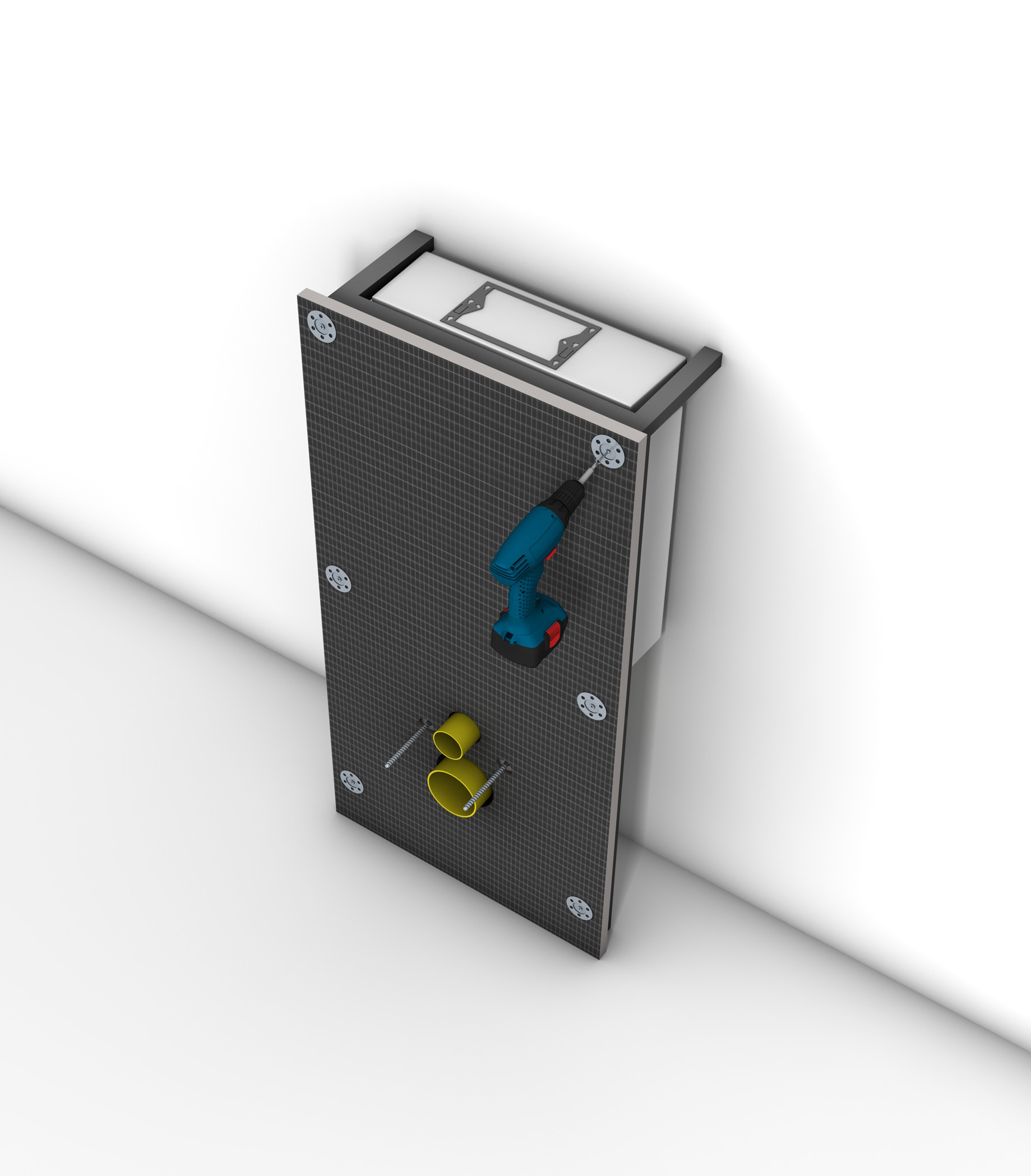

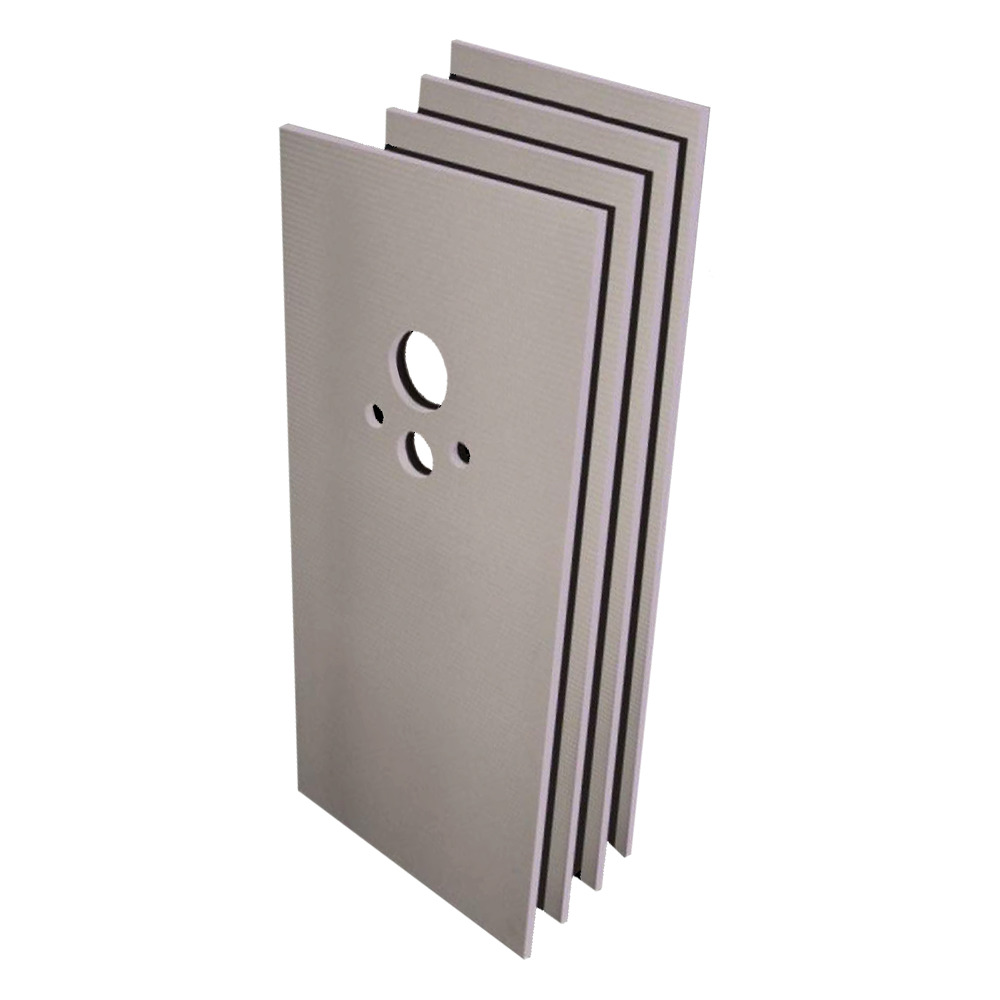

The Jackoboard mounting kit by Jackon allows for quick and easy cladding of all standard WC frames. The special set includes four pre-cut panels made of waterproof extruded polystyrene foam (XPS), designed to fit all standard WC connections. It is highly compression-resistant and can be tiled directly thanks to its special coating on both sides.
Technical Features:
- Waterproof
- Special coating on both sides
- Lightweight: approx. 3–6 kg/m²
- Thickness: 20 mm
- Panel dimensions:
- 1 panel: 1300 x 600 x 20 mm (pre-cut for pipe passages)
- 3 panels: 1300 x 450 x 20 mm
- Excellent insulation capacity: λD = 0.035 W/(m·K)
- High compression resistance: > 300 kPa
- Certified and approved
- Suitable for high-humidity areas (EB/EB+/EV certified)
Advantages:
- Fits all standard WC connections
- Easy to install
- Directly tileable, plasterable, and renderable
Ideal Solution For:
- Quick and easy cladding of all standard WC frames with tiles, without preliminary work
Required Accessories (Not Included):
- Mounting adhesive
- Reinforcement tape
- Self-drilling metal screws
- Perforated washers
Made in Germany
10-Year Warranty
