Alca Fit and go shower channel with double-sided grate, stainless steel or Alca custom coating (APZ13-DOUBLE9-550)

Fit and go shower channel with double-sided grate, stainless steel or Alca custom coating (APZ13-DOUBLE9-550) features :

• Stainless steel linear channel (hardened by pickling, passivation and electrochemical polishing)
• Slope in the inner part of the channel body
• Installation height: 81 mm
• Adjustable height
• Self-adhesive tape for quality sealing
• Channel made of one piece of stainless steel sheet
• The channel body is protected by a polystyrene insert

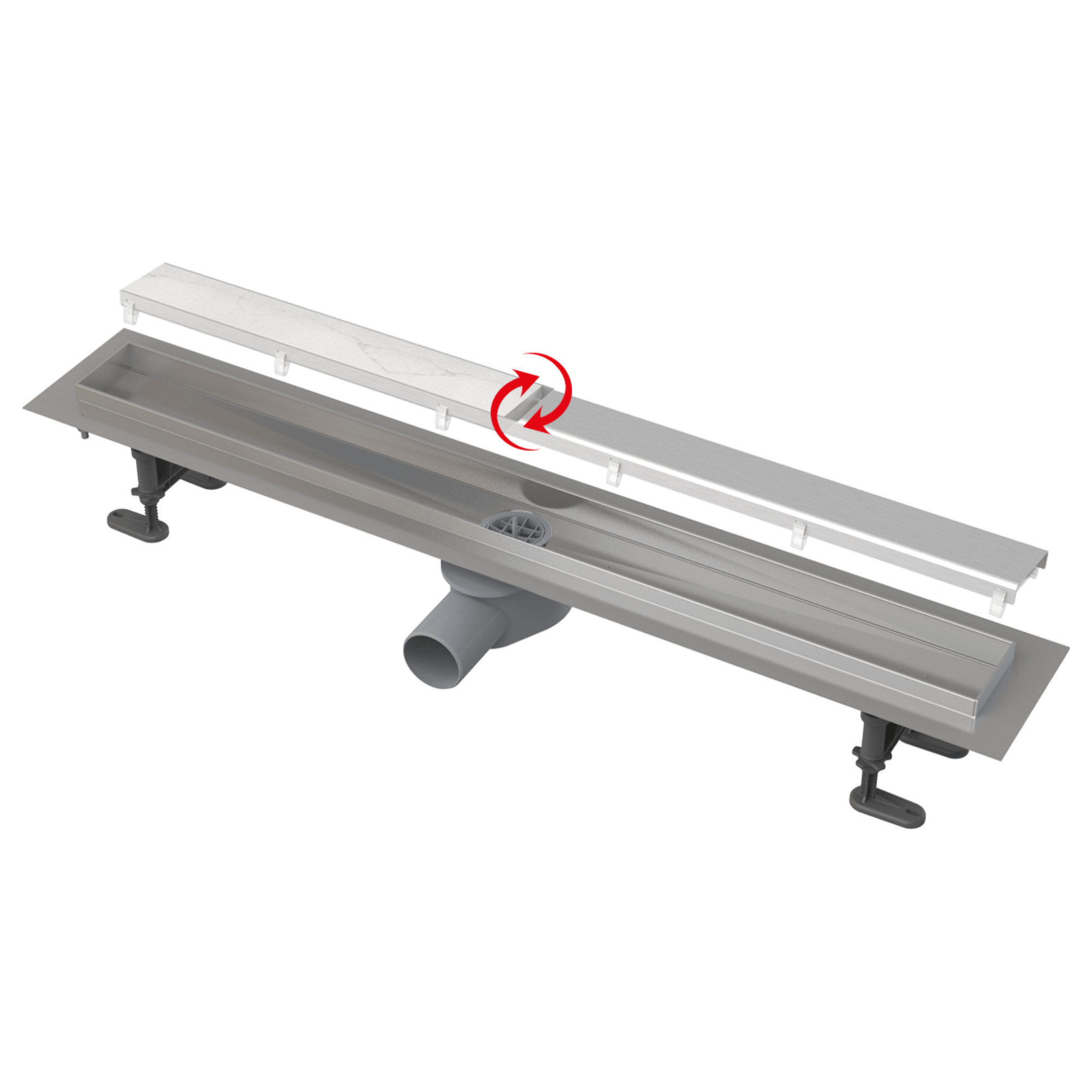

• The design is determined by the double-sided DOUBLE grate - on one side it is a complete stainless steel grate and on the other side there is an option to integrate tiles or waterproof wood up to 12 mm thick
• 25 years warranty
• Material: Stainless steel 1.5 mm, AISI 304, DIN 1.4301

Technical parameters :

• Odor trap: 30 mm
• Flow rate: 50 l / min
• Resistance of the odor trap against pressure: 380 Pa
• Diameter of the drain pipe: 50 mm
• Minimum thickness of concrete: 81 mm

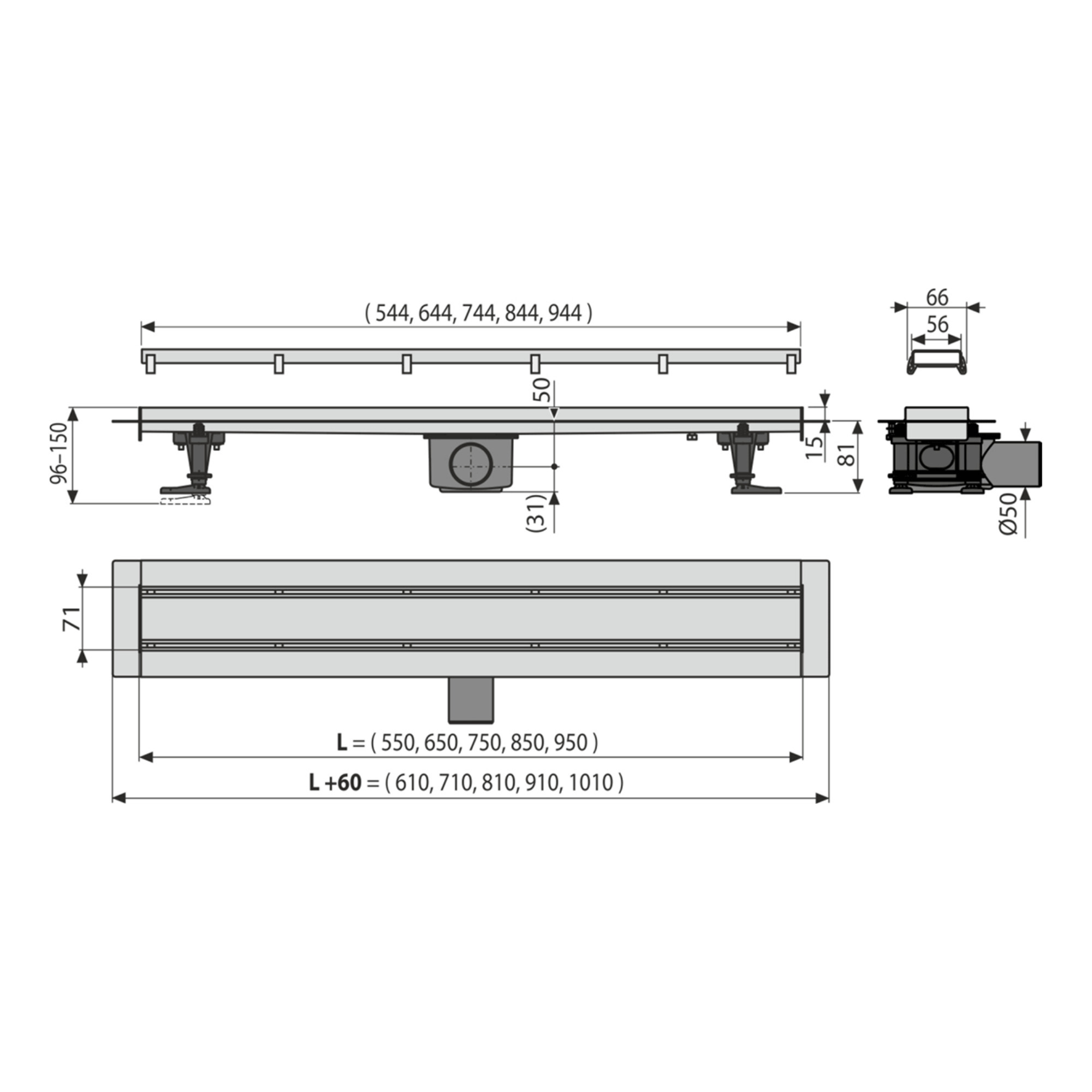

• Total installation height 96 to 150 mm
• Load class K3: 300 kg

Scope of delivery :

• Linear channel
• Double-sided grate DOUBLE (complete grate or grate for tile inlay)
• Trap for shower channel (APZ-S9)
• Combined odor trap SMART
• Adjustable feet 4 pieces
• Self-adhesive sealing tape
• Protective film for the edges of the channel and the trap
• Protective film for the trap inlet
• Installation trough cover - polystyrene
• Comb to apply glue in the frame of the trap
• Dismantling hook
• Fixing kit for fixing the adjustable feet: screw 4.2 × 38-4 pieces, anchor - 4 pieces
