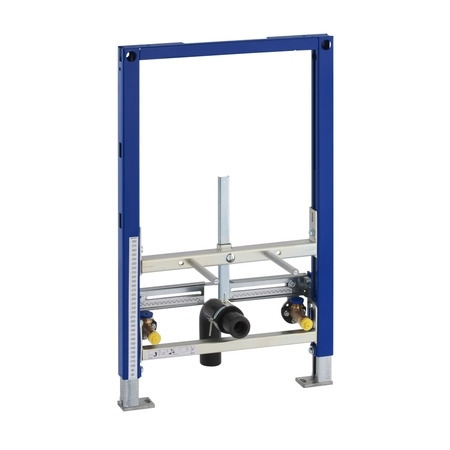

Geberit DuoFix frame for Hanging Bidet (111.515.00.1)
- Product reference: 111.515.00.1
- EAN: 4025416445494
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features
- Supporting frame for drywall or reinforced wall
- Frame with C-profile 4/4 cm
- Powder-coated frame surface, Geberit colour blue
- 5 cm sliding support
- Reversible plates for mounting on UW50 and UW75 profiles

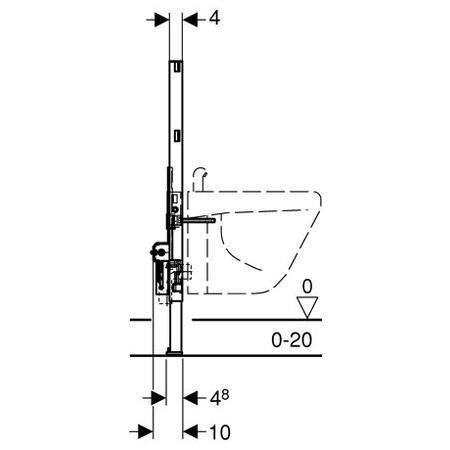

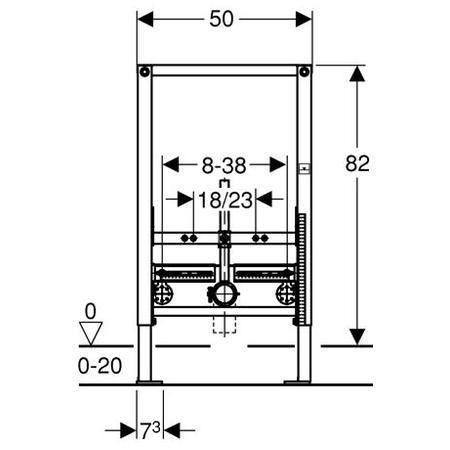

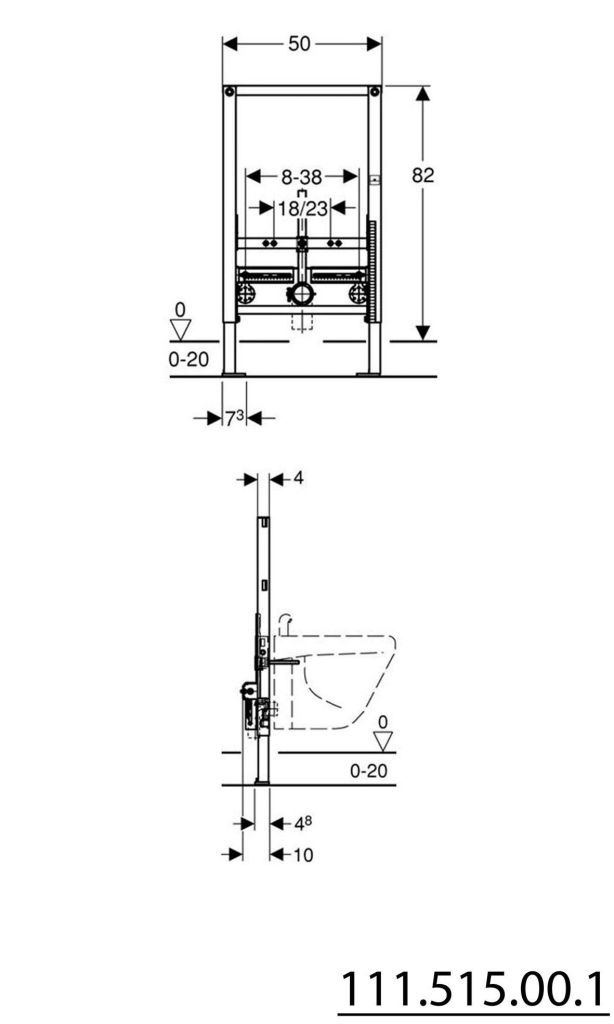

- Distance to bidet fixing 18 cm or 23 cm
- Frame with ø 9 mm holes for fixing to wooden structures
- Zinc-plated supports, adjustable 0-20 cm
- Element height 82 cm
- Brackets with brakes for tool alignment
.
Scope of delivery
- Outlet ø 50 mm
- Seal ø 44/32 mm
- 2 threaded rods M12 for ceramic fixing
- Mounting material
- Not included: Pre-assembled assembly kit
.
Purpose of use
- For floor thickness 0 - 20 cm
- For installation in the wall of the Duofix system partially high before
a solid wall or a wall made by a dry process
- For installation in the wall of the Duofix system at full height
room
- For installation in a light room at full height
- For installation in partial or full height room
GIS walls in front of a solid wall or a dry wall
process
- For installation in front of a solid wall or a dry wall
process
- For installation in a partial or full front wall installation
the height of the room in front of a solid wall or wall
dry process
- For bidet with mounting bracket
- Material:Metal
- Length (cm):82 cm
- Width (cm):50 cm
- Height (cm):10 cm
- Constructor warranty:2 years
