Geberit UP320 Toilet Frame + Lucco Avva rimless bowl+ Softclose seat + White plate (GebAvva-K)
- Product reference: GebAvva-K
- EAN: 0750122370269
- Line:
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Toilet bowl brand:Lucco
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:Yes

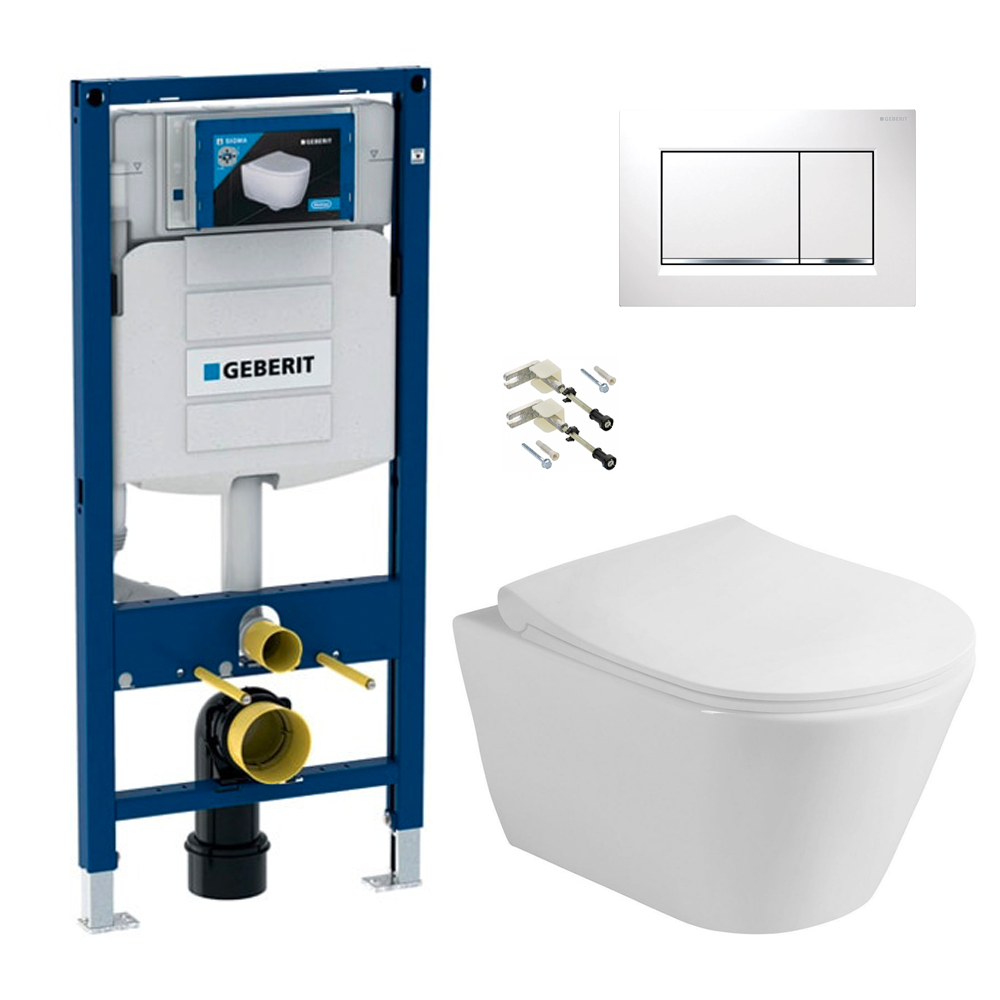

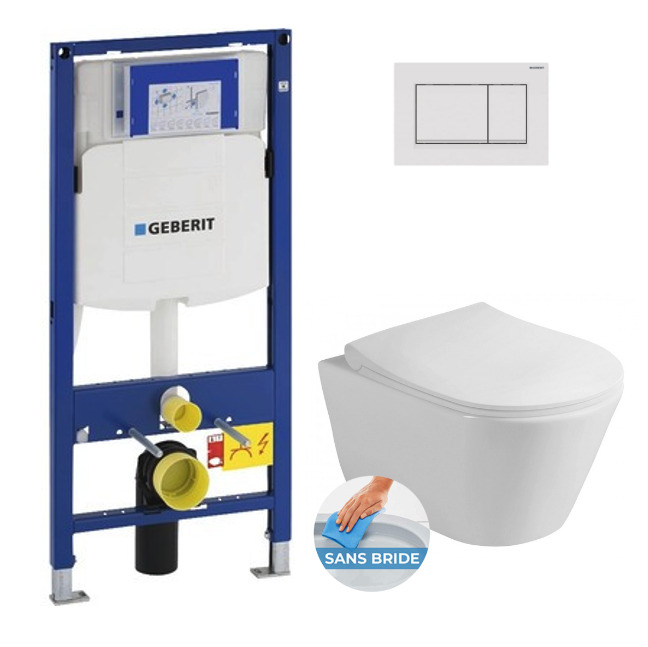

Features of Geberit Toilet Pack UP320 Frame + Avva Rimless Toilet + Soft-Close Seat + Matt/Gloss White Flush Plate (GebAvva-K):
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Sapho Avva Wall-Hung Rimless Pan, White (100314)
- Geberit Sigma30 Dual Flush Plate, Gloss/Matt White (115.883.11.1)
- Geberit Duofix Wall Anchoring Set (111.815.00.1)
.

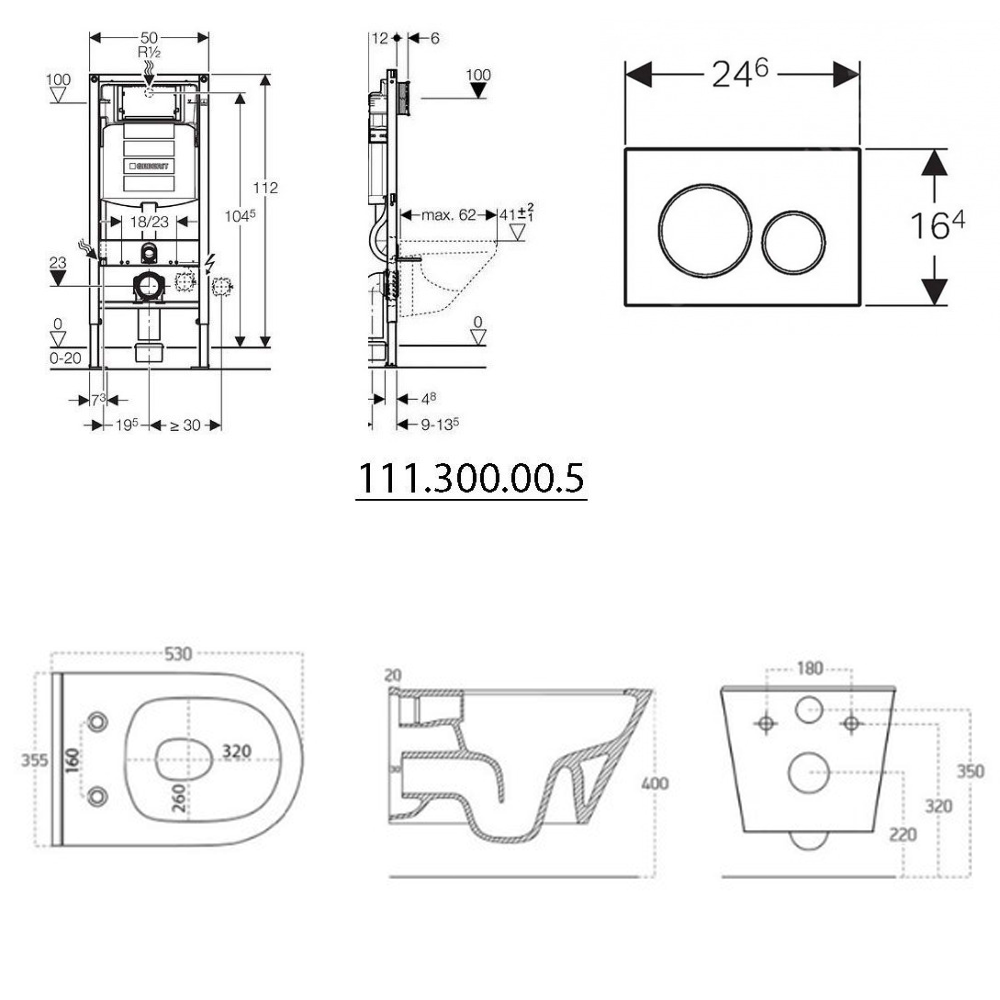

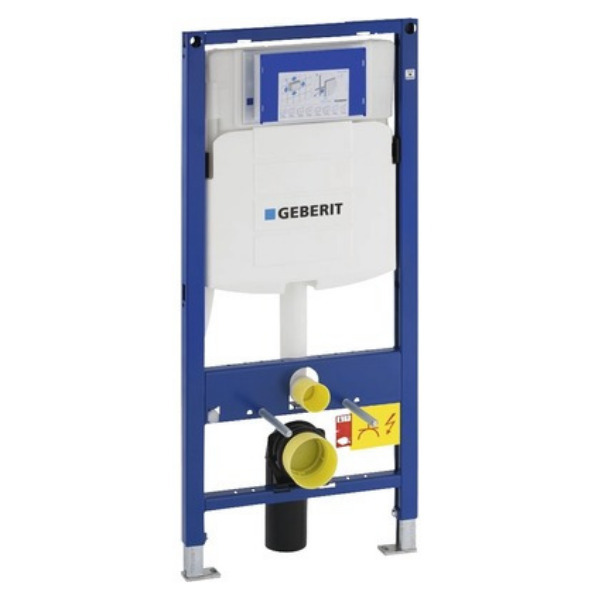

Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):
- Geberit Duofix support frame with concealed cistern
- Front actuation
- Self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for Sigma flush plates
Use:
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung toilets with connection dimensions in accordance with EN 33:2011
- For wall-hung toilets with projection up to 62 cm
- For single flush, dual flush or stop-and-go flush
- For floor constructions 0–20 cm
Technical information:
- Self-supporting frame, powder-coated
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for ceramic toilets with small contact surfaces
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
Included:
- Water supply connection R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 protection plugs
- Connection set for toilets, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adapter socket made of PE-HD, ø 90 / 110 mm
- 2 threaded M12 rods
- Fixing material
.

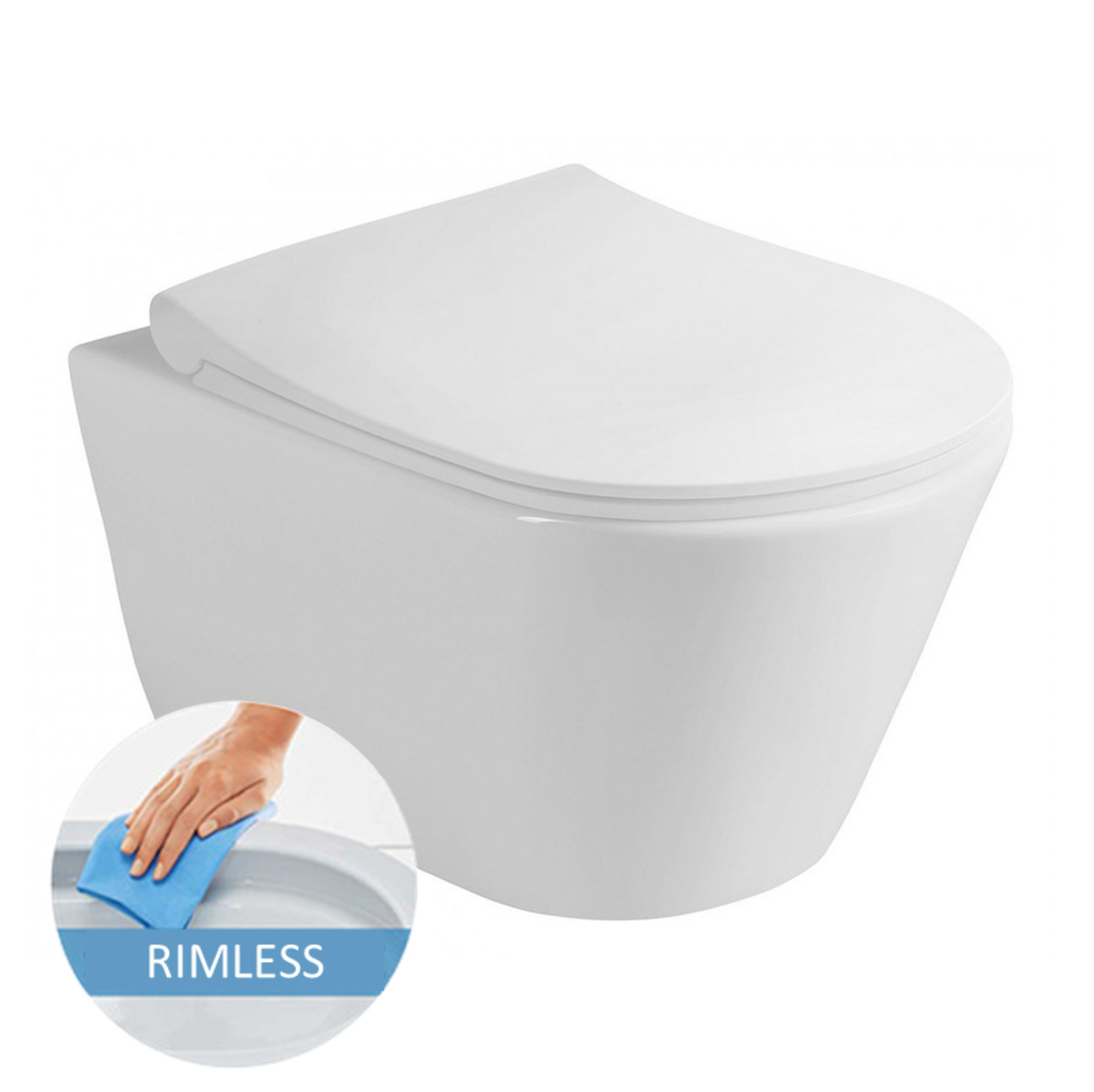

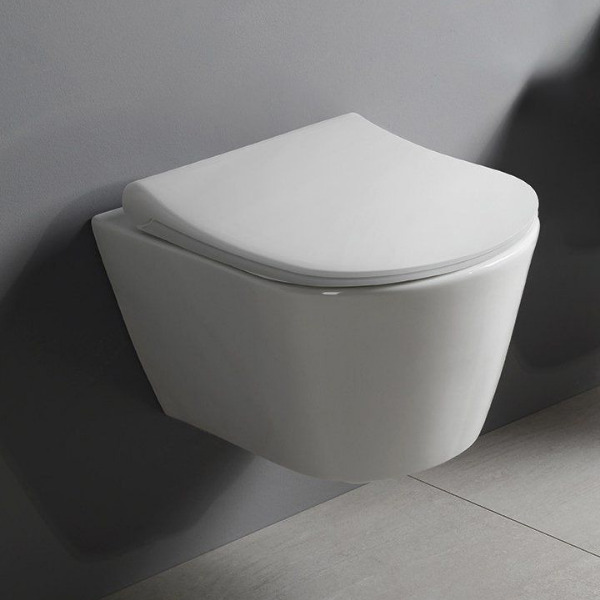

Sapho Avva Wall-Hung Rimless Toilet with Soft-Close Seat, White (100314):
- Brand: Lucco
- Material: Ceramic
- Stylish
- Rimless
- Invisible fixings
- Easy to clean
- Quick installation
- 53x36cm
- Slim seat

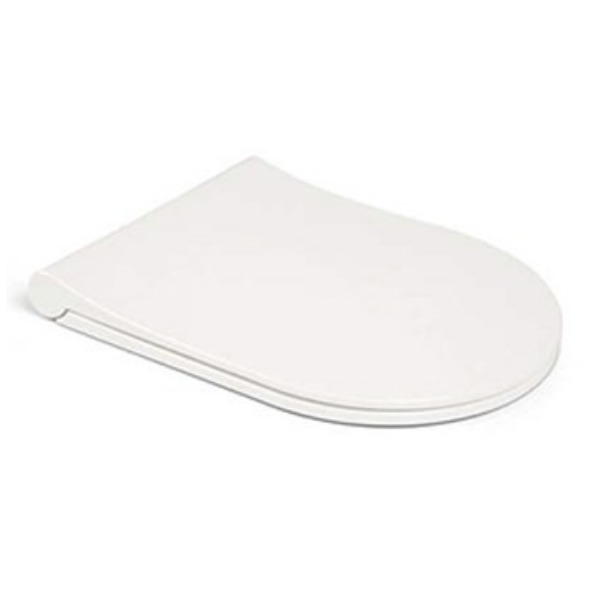

- Soft-close seat
- Quick Release: quick removal and installation of the seat
.

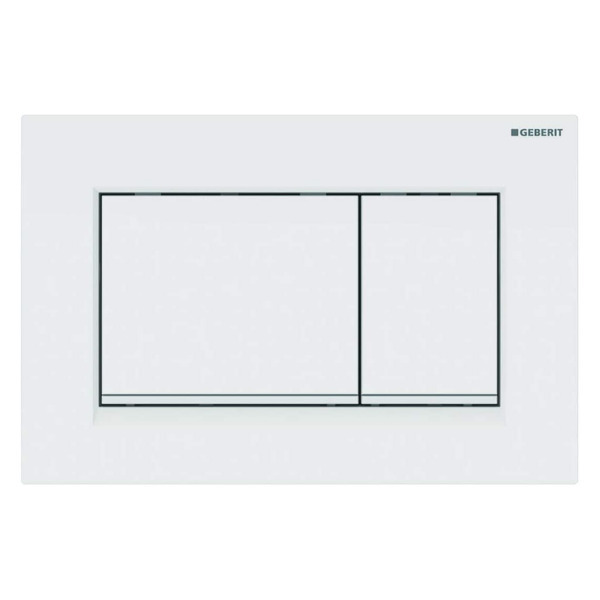

Geberit Sigma30 Dual Flush Plate, Gloss/Matt White (115.883.11.1):
- Designed to maintain appearance push after push
- Moving parts are accessible behind actuator flush plate
- Made of molded plastic, zinc die cast and plated
- Includes mounting frame and hardware
- For use with 8cm and 12cm Sigma Concealed Cisterns
- Actuation force < 20 N
-
Front actuation
-
Sound-absorbing actuator rods, tool-free fast adjustment
- Material: Plastic
- Design :
- Plate/buttons: Gloss White
- Accent: Matt White
- Dimensions: Width: 246mm
- Height: 164mm
- Depth: 14mm
.
Included:
- Mounting frame
- 2 distance bolts
- 2 actuator rods
.

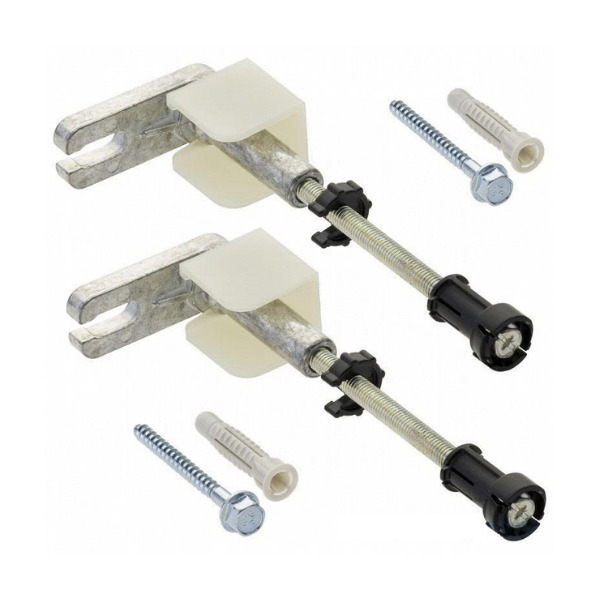

Geberit Duofix Wall Anchoring Set (111.815.00.1):
- For fastening Geberit Duofix installation elements in front of drywalls and solid walls
- For fastening panelling in part-height prewall installations
- Can be adjusted in depth from the front, infinitely variable, with fast adjustment
- Wall inlet rotatable by 360°
- Threaded rod M10, zinc-plated
