Geberit Toilet Frame + Swiss Aqua Technologies rimless bowl + soft close seat + plate (BLINFIGEB10)
- Product reference: BLINFIGEB10
- EAN: 0734077017318
- Line:
Brand:
Product warranty:
2 years
£
42990
TAX INCL.
£
48990
Prix hors black friday
£
69310
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Only 4 left In stock
Shipped before
the 12 December
Quantity:

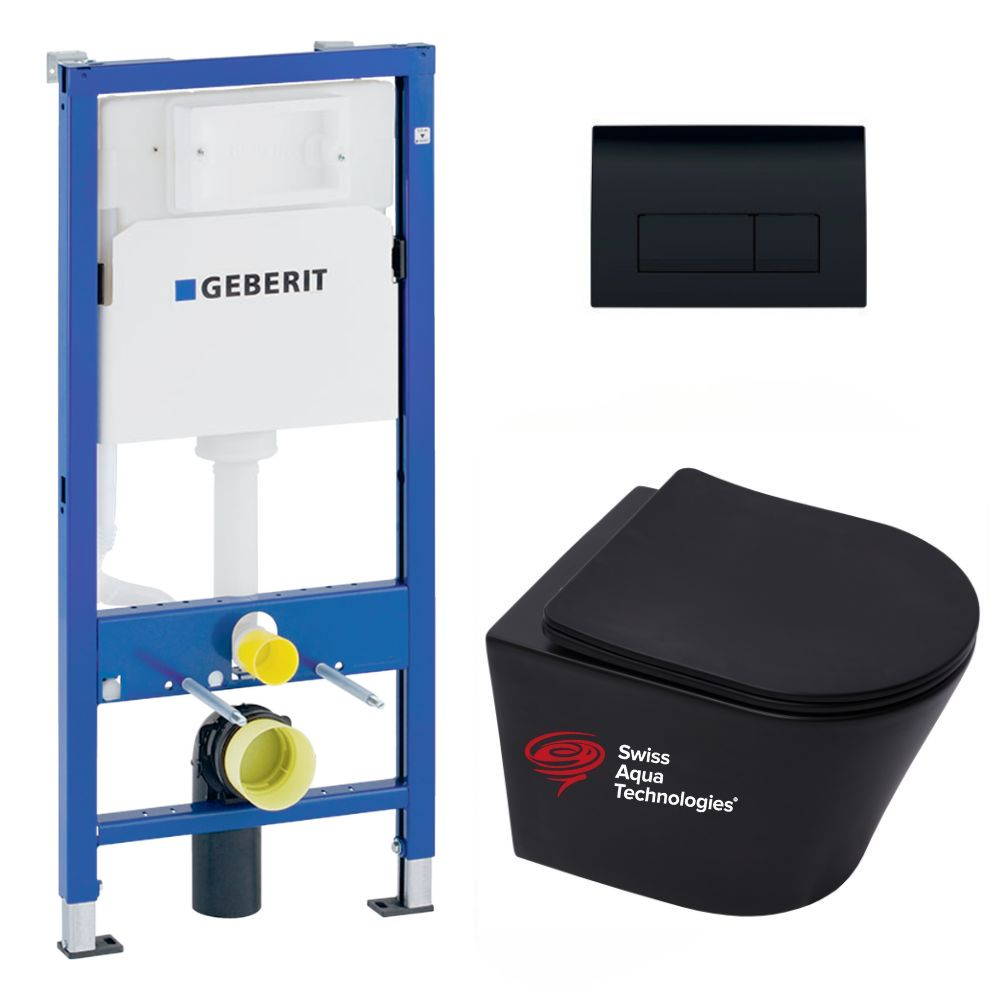

Features of the Duofix UP100 Frame + SAT Infinitio Rimless bowl + Soft-Close Seat + Matt Black Delta 50 Flush Plate (BLINFIGEB10):
- Geberit Duofix UP100 Toilet Support Frame for Wall-Hung Toilets + Toilet Cistern 112 cm (458.103.00.1)
- Swiss Aqua Technologies Rimless Infinitio Matt Black Wall-Hung Toilet with Concealed Fixings + Soft-Close Seat (SATINF010RREXPBKM)
- Geberit Delta 50 Dual Flush Control Plate, Matt Black (115.119.14.1)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
.
see detailed descriptionProduct technical properties
- Colour:Black
- Material:Ceramic
- Length (cm):80
- Width (cm):120
- Height (cm):130
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Matt black
- Constructor warranty:2 years
- New:New
- Weight:45.69
- Depth:80
- Bowl colour:Matt black
- Invisible fixings:Yes
- Product type:Toilet pack

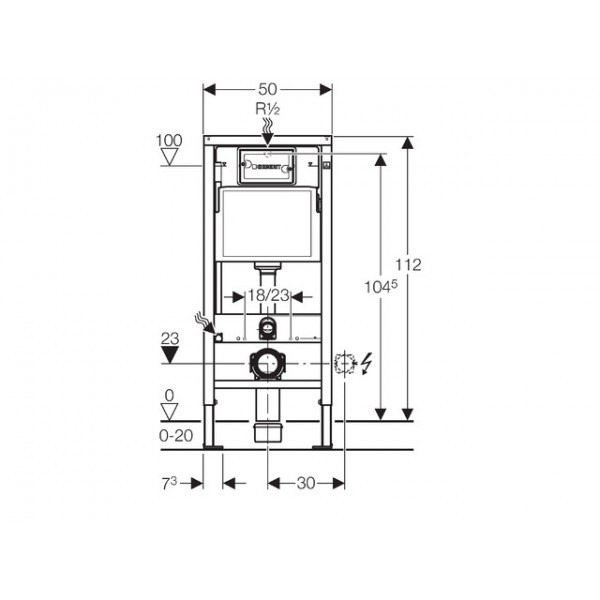

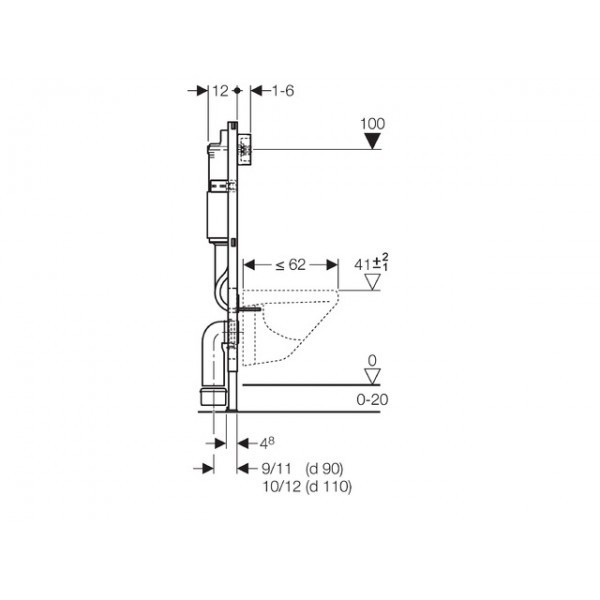

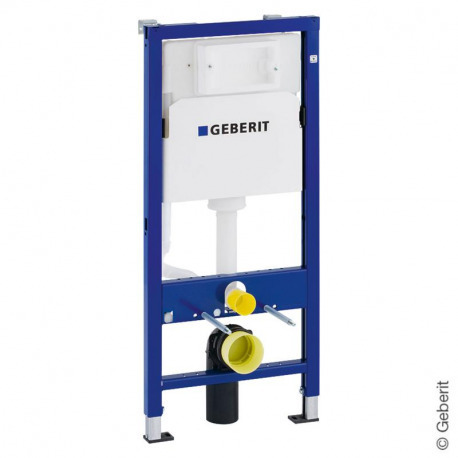

Geberit Duofix UP100 Toilet Support Frame for Wall-Hung Toilets + Cistern 112 cm (458.103.00.1):
Usage
- For installation on a partial or full wall height, in a solid wall or in drywall.
- For mounting a wall-hung toilet bowl with 18 cm or 23 cm fixing centers
- For a floor thickness of 0 to 20 cm
- For front flush actuation.
- For use with Geberit Delta flush plates.
- For connection to Geberit AquaClean.
- Not suitable for concrete.
Features
- Geberit Delta 12 cm Concealed Cistern (UP100) with front actuation.
- Insulated cistern to prevent condensation.
- Adjustable volume for full flush.
- Fixed volume for half flush.
- Immediate flush adjustment possible.
- Water supply from the middle of the back/top.
- Manually screw the R 1/2" angle valve connection hose.
- 1 flush volume with Geberit Delta15 flush plate.
- 2 flush volumes with Geberit Delta20, Delta 21, and Delta 50 flush plates.
- Frame surface treated with powder coating in Ultramarine blue.
- Frame with ø 9 mm holes for wood construction fastening.
- Continuously adjustable galvanized support legs from 0 to 20 cm.
- Plastic support plate depth suitable for UW50 mounting.
- Installation depth: 12 cm.
Technical Information
- Flush volume - factory setting: 6 and 3.5 liters.
- Full flush volume - adjustment range: 4.5 / 6 / 7.5 liters.
Delivery Contents
- 2 M12 threaded rods for ceramic bowl attachment.
- Discharge valve for 2 flush volumes.
- Reserve access opening foam box.
- 2 protective caps.
- R 1/2" angle valve with adapter ring.
- Insulating sleeve for Geberit AquaClean water supply.
- Flush elbow attachment.
- 90 mm diameter connection kit.
- WC flush elbow, PE-HD, ø 90/90 mm.
- Reducer, Ø 90/110 mm.
- Fixing materials.
- Kit for wall-mounted installation.

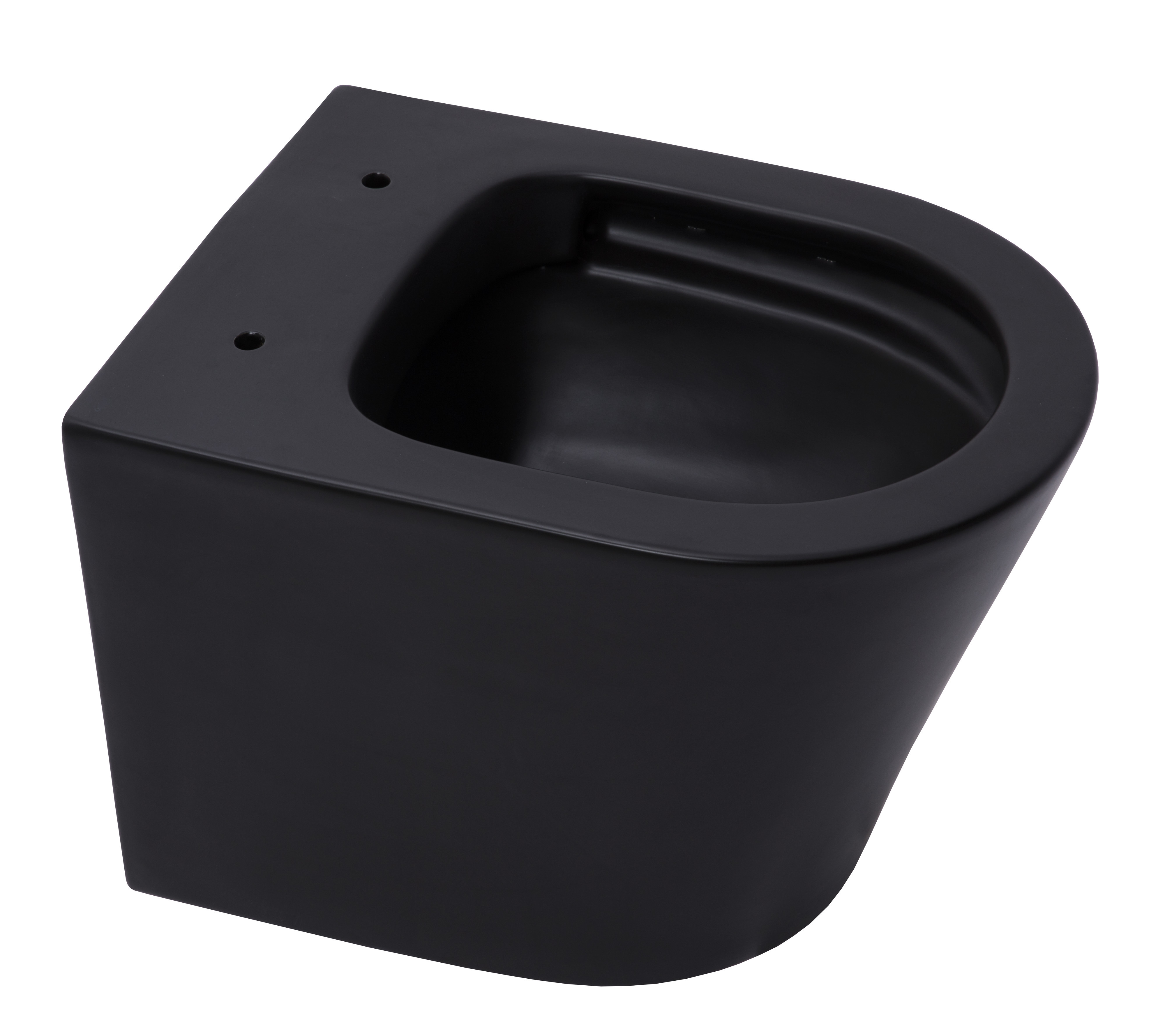

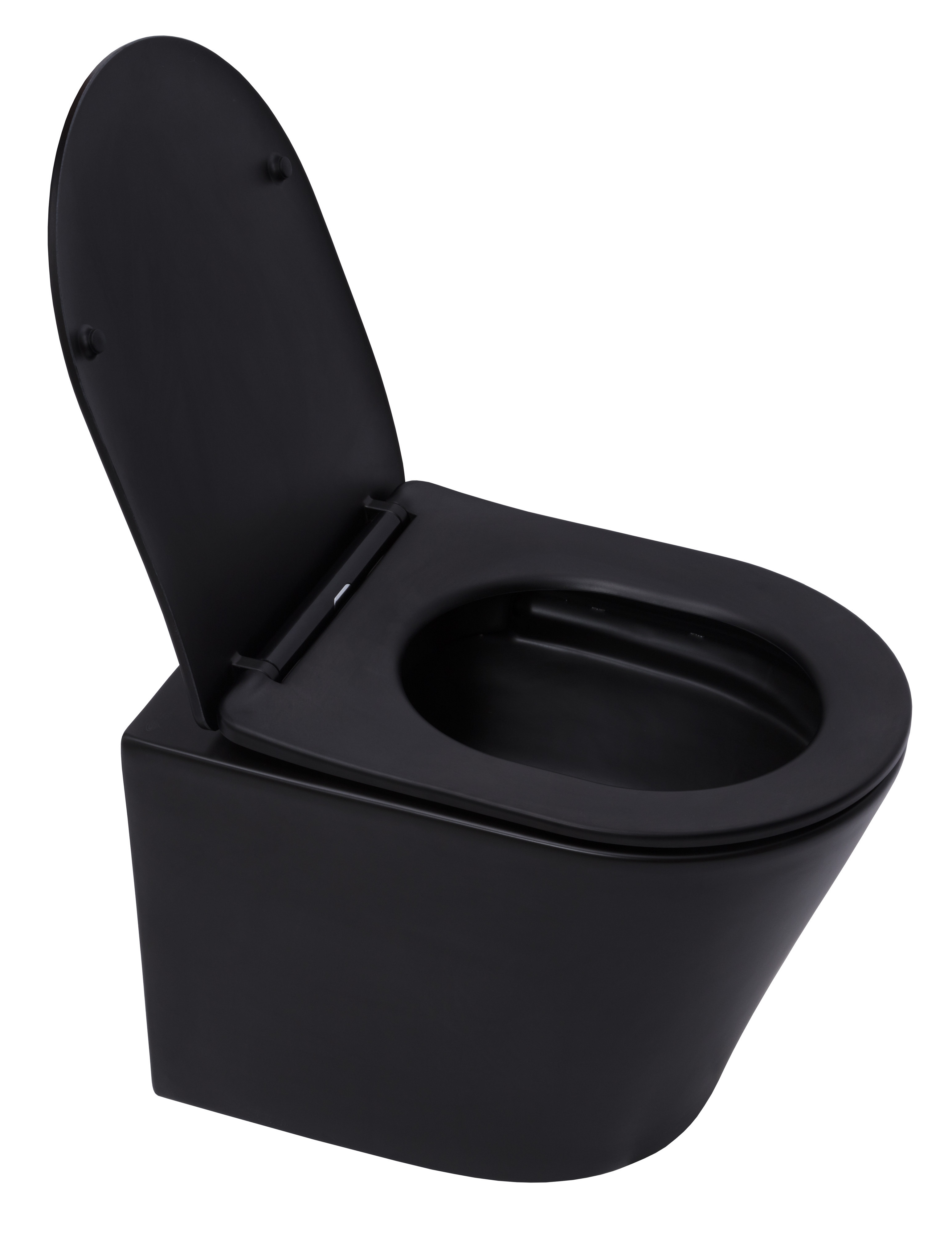

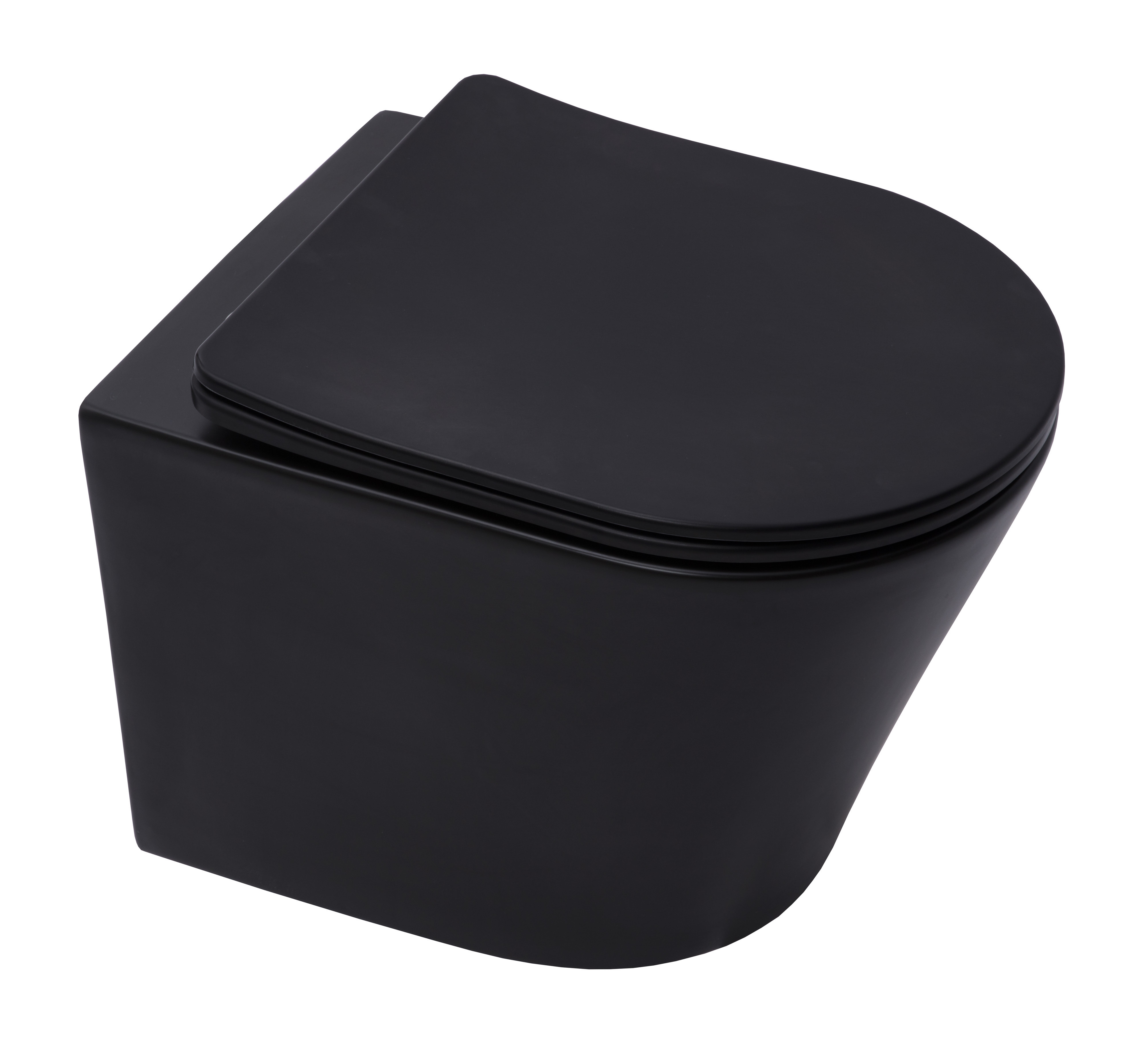

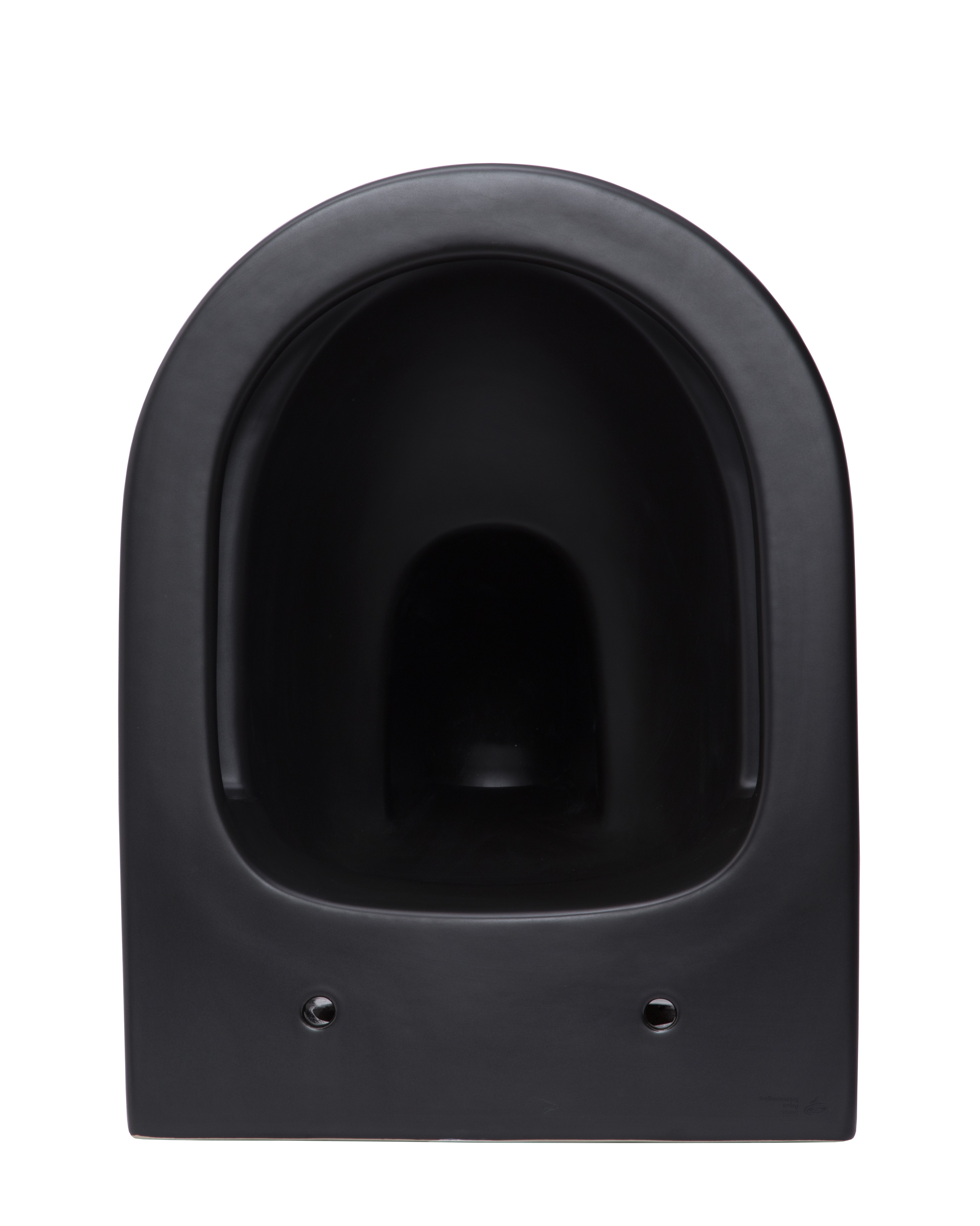

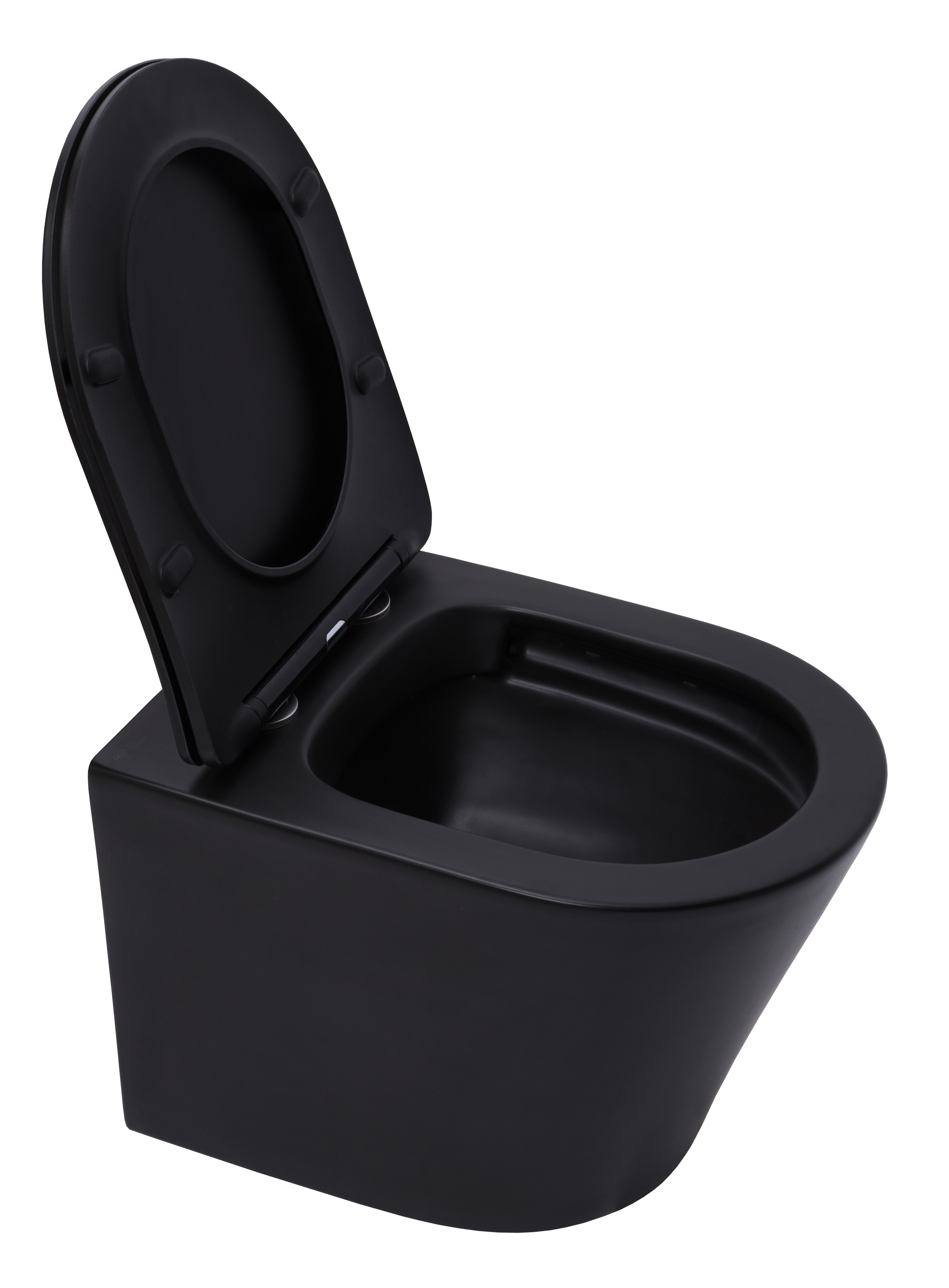

Swiss Aqua Technologies Rimless Infinitio Matt Black Wall-Hung Toilet with Concealed Fixings + Soft-Close Seat (SATINF010RREXPBKM):
- Brand: Swiss Aqua Technologies.
- Material: Ceramic.
- Colour: Matt Black.
- Compact toilet suitable for small spaces.
- Simple and sleek toilet design.
- Rimless toilet bowl.
- Hidden fixings.
- 48 cm depth.
- 3/6 L flush.
- Soft-close seat with quick-release feature.
- Easy to clean thanks to the rimless design and removable seat.
- Quick installation.

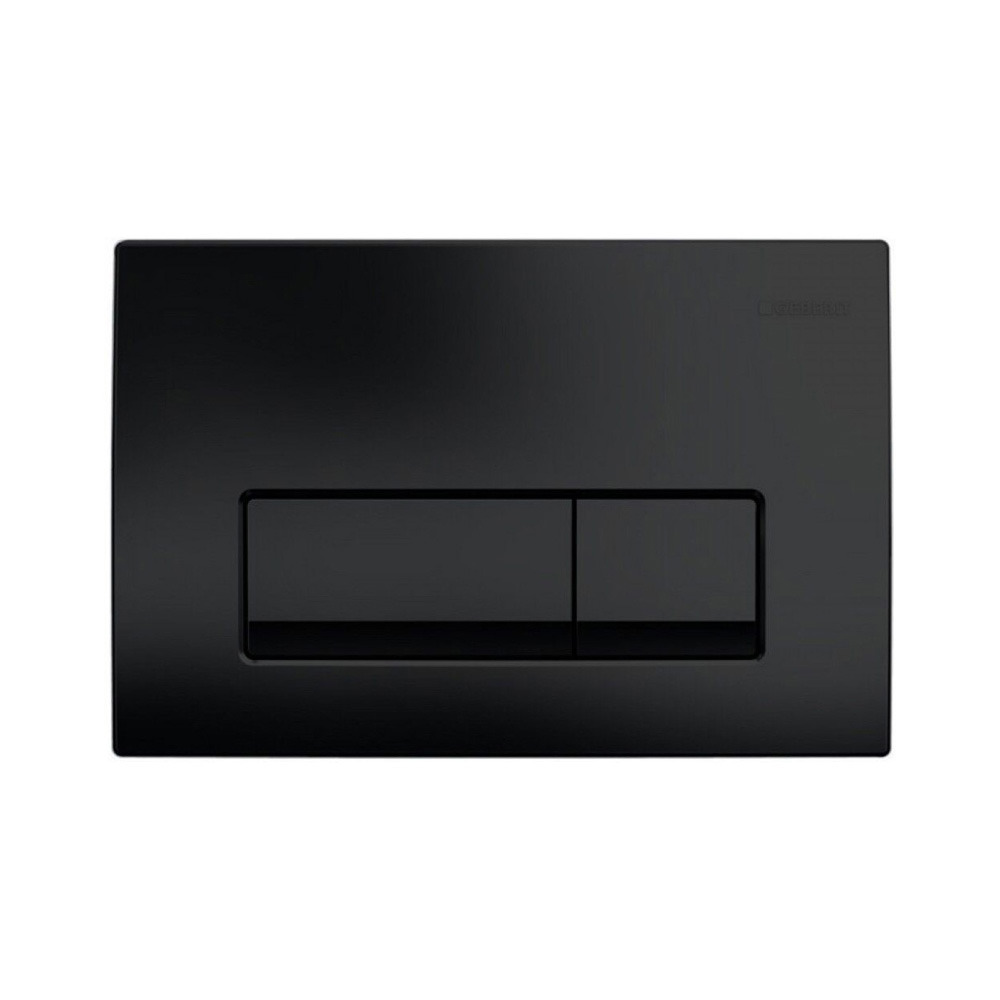

Geberit Delta 50 Dual Flush Control Plate, Matt Black (115.119.14.1):
- Dual flush control.
- Mounting frame.
- Mounting materials.
- DELTA 50 series.
- Dimensions: 24.6x16.4 cm.
- Colour: Matt Black.
Attention! It is imperative to inspect the products upon receipt. Any damage must be noted precisely for each product on the delivery receipt in the presence of the delivery personnel. No claims can be accepted afterwards, as carriers are very strict about this. Thank you for your understanding.
£
