Jackon JACKOBOARD® Sabo WC wall clad self assembly set (4521871)
- Product reference: WCSTAVEBNICE
- EAN: 4025345148749
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

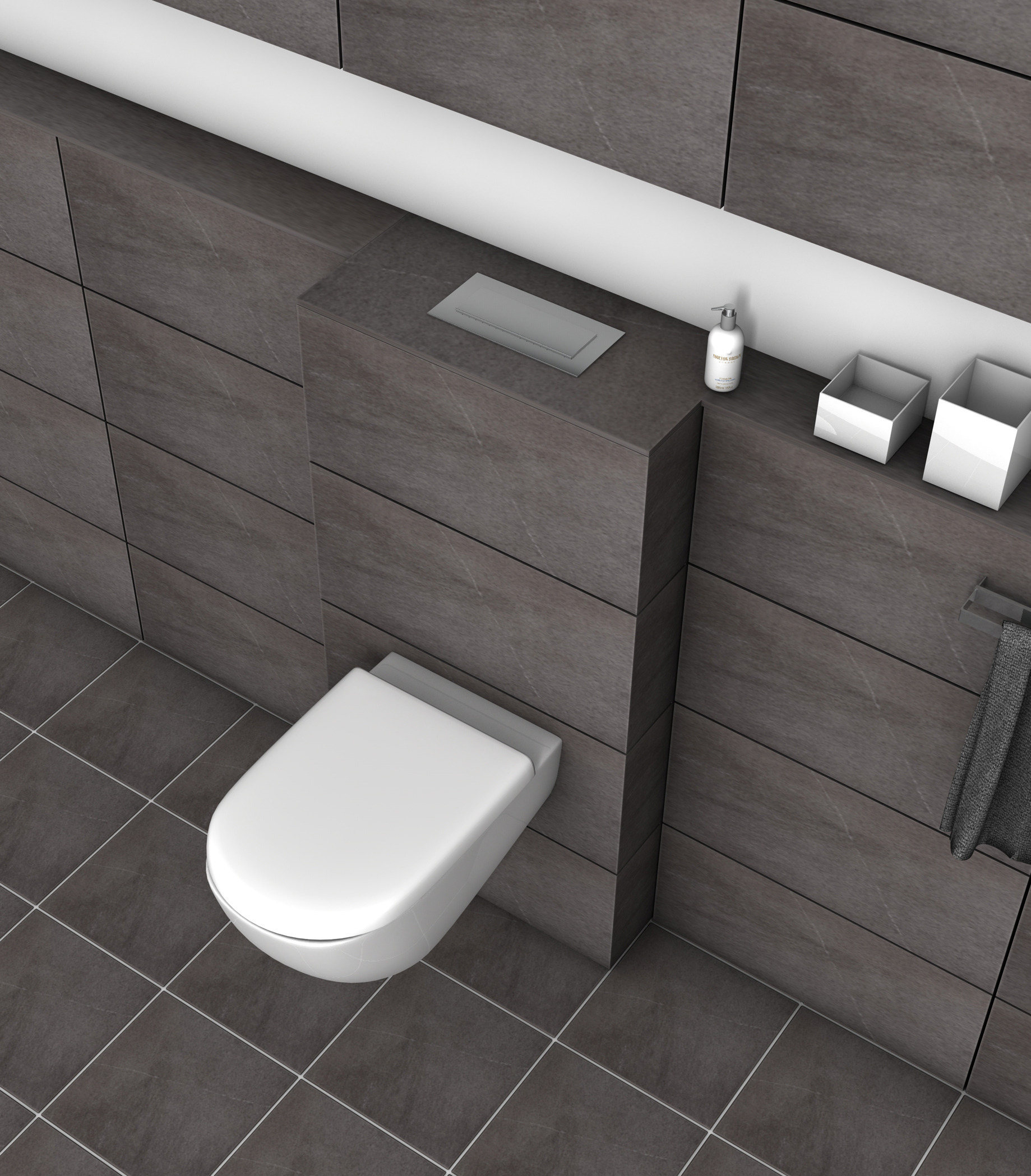

The complete solution for finishing concealed WC systems

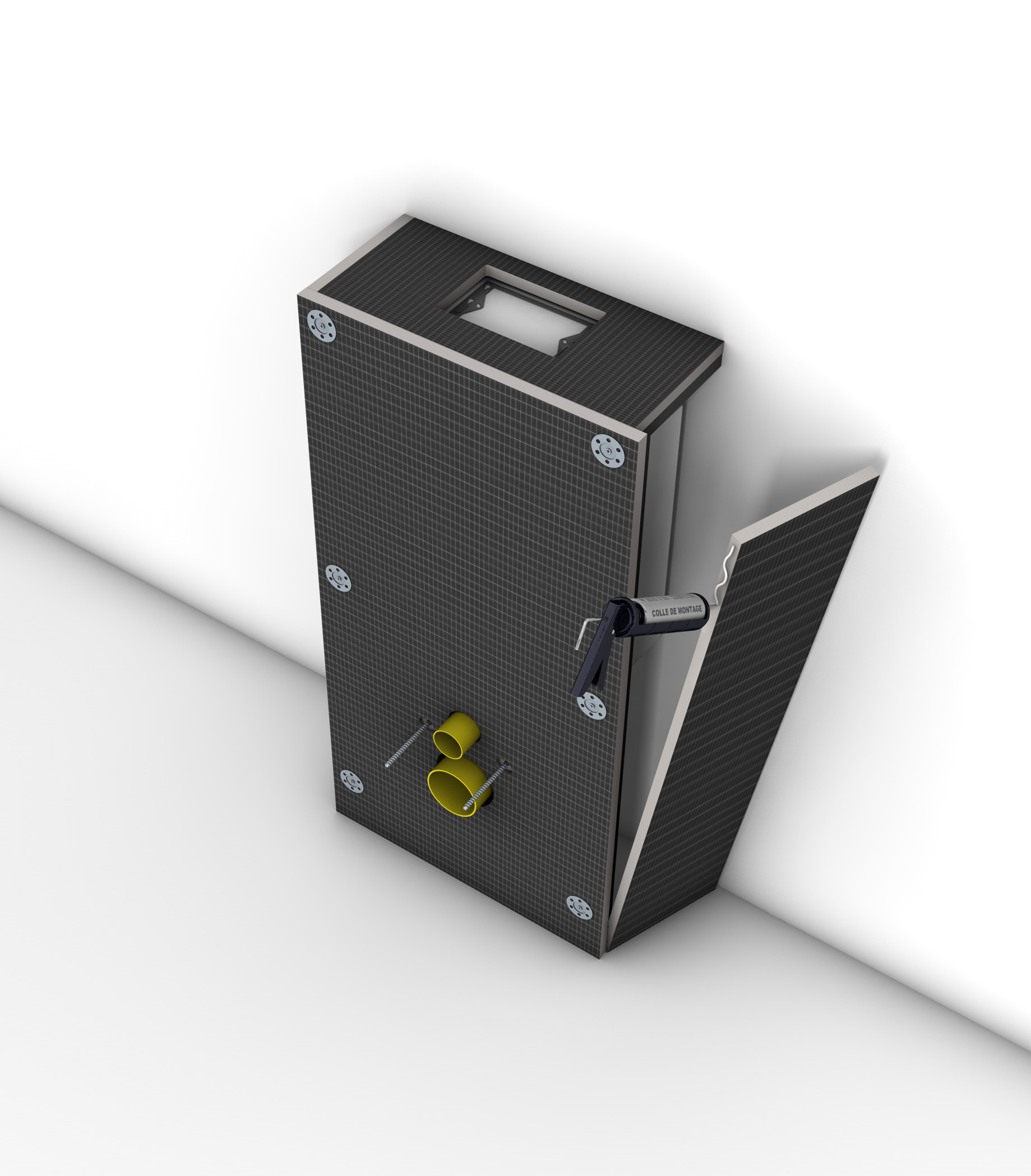

The JACKOBOARD® Sabo installation kit enables fast and easy cladding of all standard WC elements. This two-piece special element made of water-repellent extruded polystyrene foam (XPS) has machined holes to accommodate all standard toilet connections. With extremely high compressive strength, its special coating on both sides also permits the time-saving direct application of tiles.
Why Choose the Jackon Jackoboard Mounting Set for WC Support Frame Cladding (4521871)?

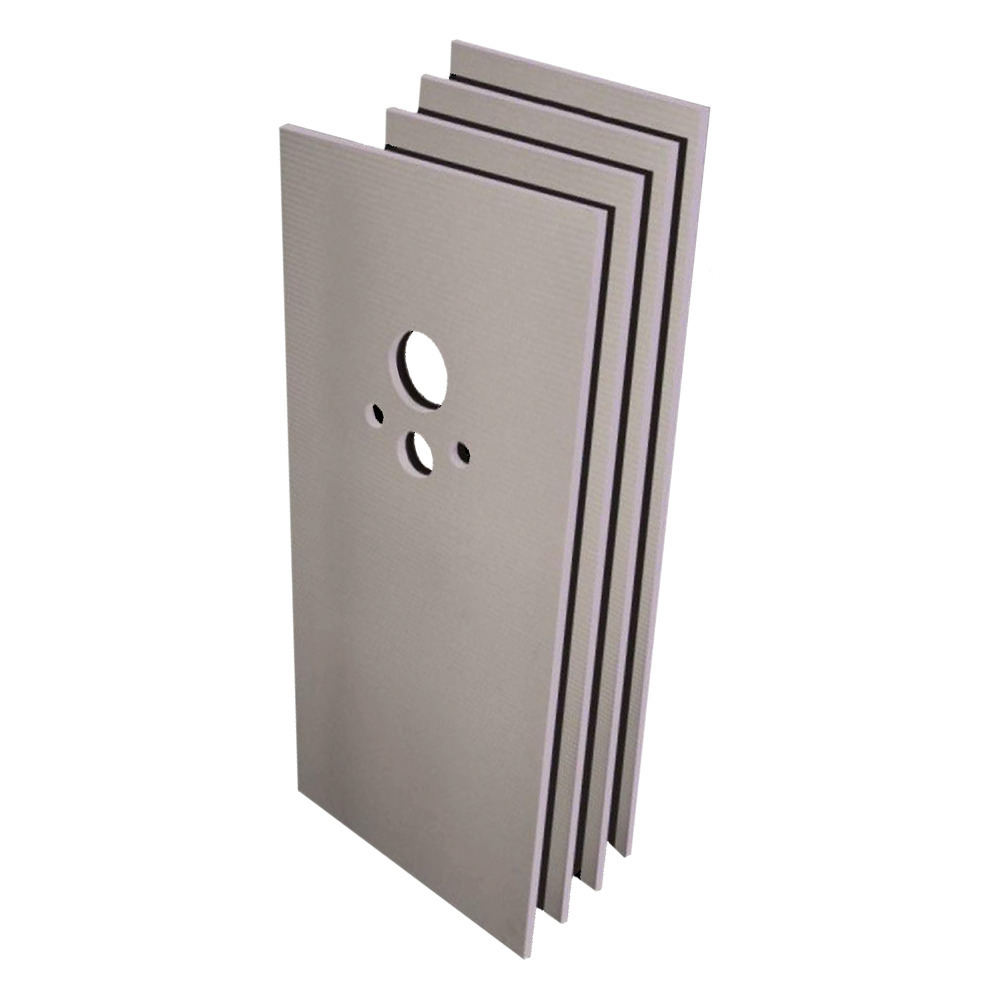

Do you want to clad your WC support frame quickly and easily? What better option than the Jackon Jackoboard mounting set? Consisting of one panel measuring 1300 x 600 x 20 mm and three construction panels measuring 1300 x 450 x 20 mm, this Jackon Jackoboard mounting set allows you to clad your equipment in no time.

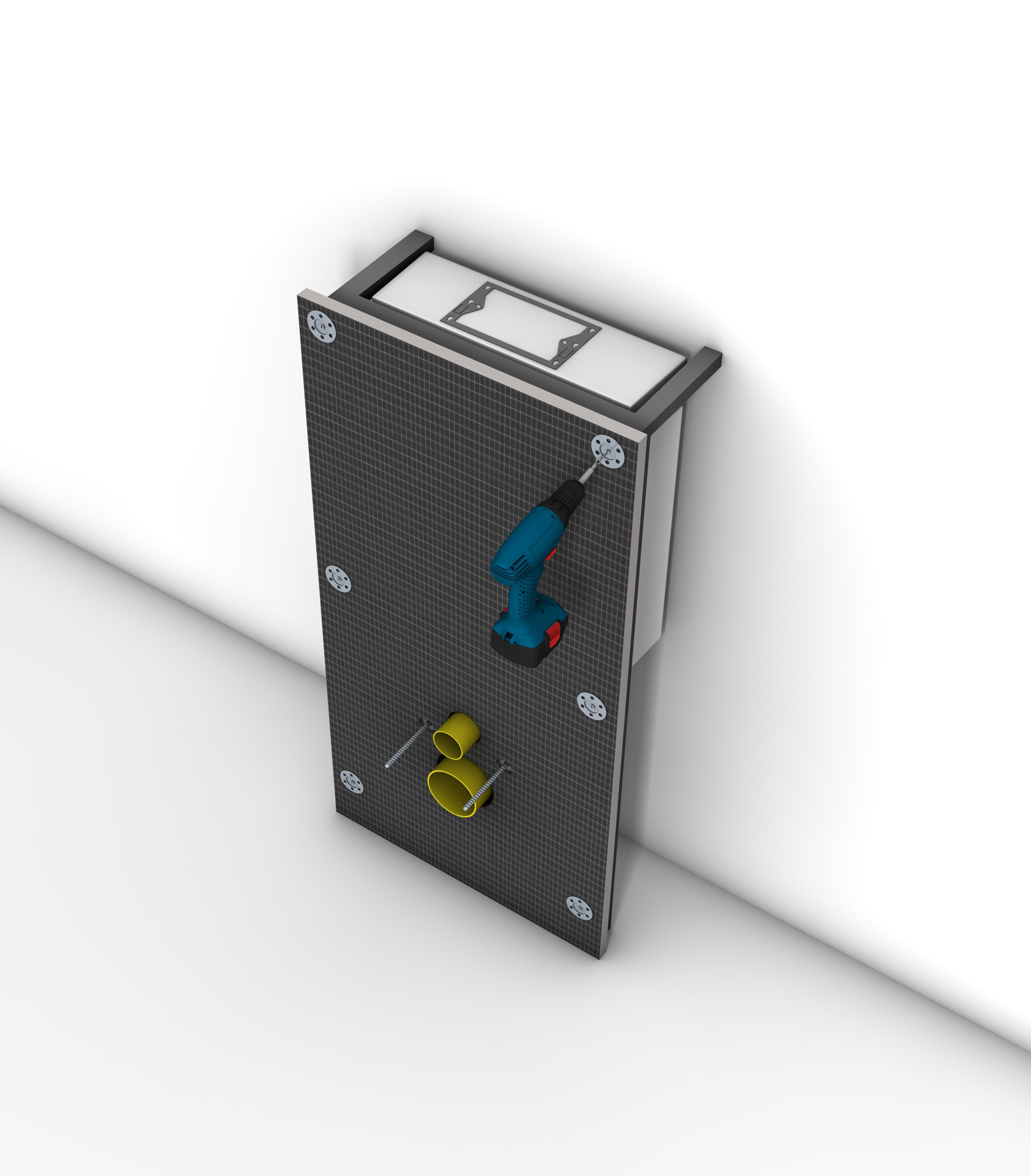

For optimal time savings, the WC support frame cladding set 4521871 is pre-cut to easily fit all standard WC connections. Additionally, thanks to a special coating on both sides, the Jackon Jackoboard 4521871 mounting set can be directly covered with all types of materials. This means the Jackon Jackoboard panels can be tiled, plastered, or coated—without requiring any preparation work.
see detailed description- Colour:Grey
- Material:Polystyrene (PS)
- Length (cm):130
- Width (cm):60
- Height (cm):20
- Weight:6
Features of the JACKOBOARD® Sabo Installation kit for cladding WC frame systems (4521871):
Product characteristics JACKOBOARD® Sabo:
- Made of extruded polystyrene foam
- Water-repellent
- With special coating on both sides
- Low weight, approx. 3–6 kg/m2
- Thickness: 20 mm
- Board dimensions: 1300 x 600 mm and 1300 x 900 mm
- Excellent thermal insulation properties with λD = 0.035 W/(m·K)
- High compressive strength > 300 kPa
- For rooms subject to high moisture loads
Benefits JACKOBOARD® Sabo:
- For all standard toilet frame systems
- Easy to install
- Tiles can be applied directly
- Includes 10 self-tapping screws and 10 insulation board discs
Ideal application:
- For the fast and easy cladding and installation of all standard WC elements with and for direct tiling without preparatory work.

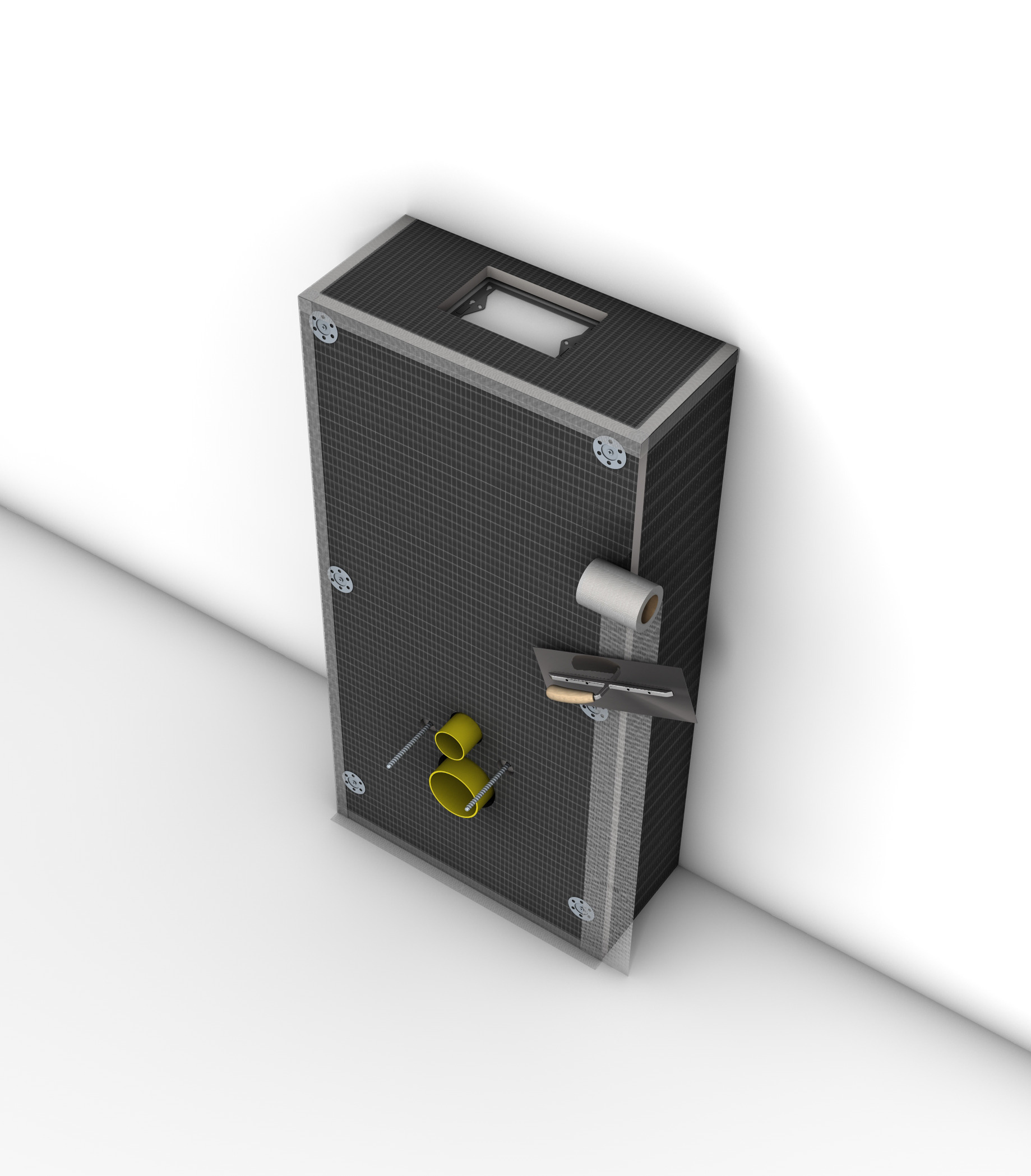

The following (not included) accessories are necessary:
- Mounting glue
- Reinforcement band
- Self-drilling metal screws
- Perforated washers
Made in Germany
10 years warranty
Fixings : 4501171
