Geberit Toilet Pack Duofix UP320 Frame + Sento SmoothFlush Rimless Toilet + Soft-Close seat + White Flush Plate (GebSento-B)
- Product reference: GebSento-B
- EAN: 0734077011354
- Line:
Brand:
Product warranty:
2
years
£
51990
TAX INCL.
£
1 09737
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
52.62%
saving)
12 In stock
Shipped before
the 10 December
Quantity:

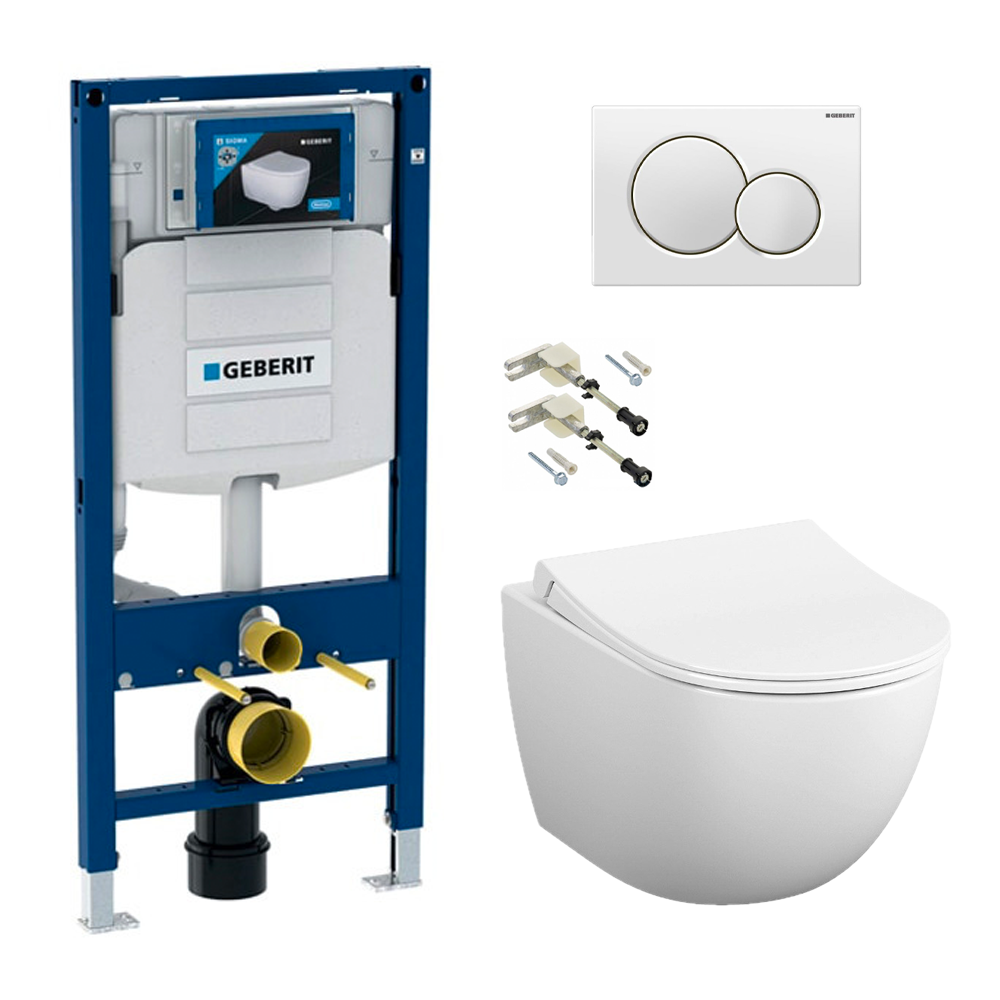

Features of Geberit Toilet Pack Duofix UP320 Frame + Sento SmoothFlush Rimless Toilet + Soft-Close seat + White Flush Plate (GebSento-B):
- Vitra Sento SmoothFlush Rimless Toilet with soft-close seat, White (7848-003-6147)
- Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):
- Geberit SIGMA 01 Dual Flush Plate, White (115.770.11.5)
- Geberit Duofix Wall Anchoring Set (111.815.00.1)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed description
Product technical properties
- Colour:White
- Material:Ceramic
- Length (cm):54
- Width (cm):36.5
- Height (cm):34
- Toilet bowl brand:Vitra
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Weight:47.32
- Bowl colour:White
- Invisible fixings:Yes

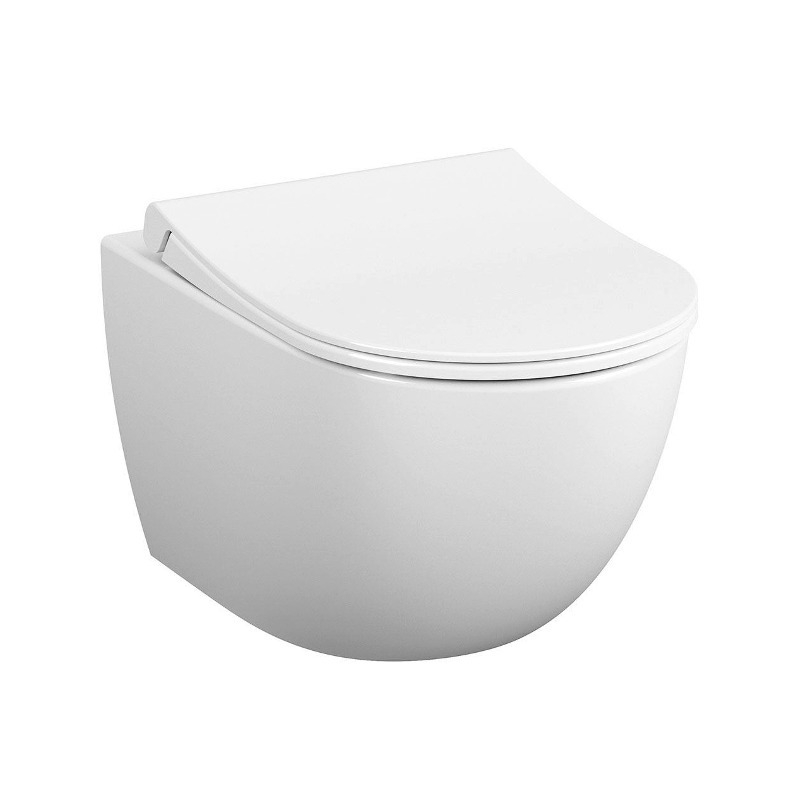

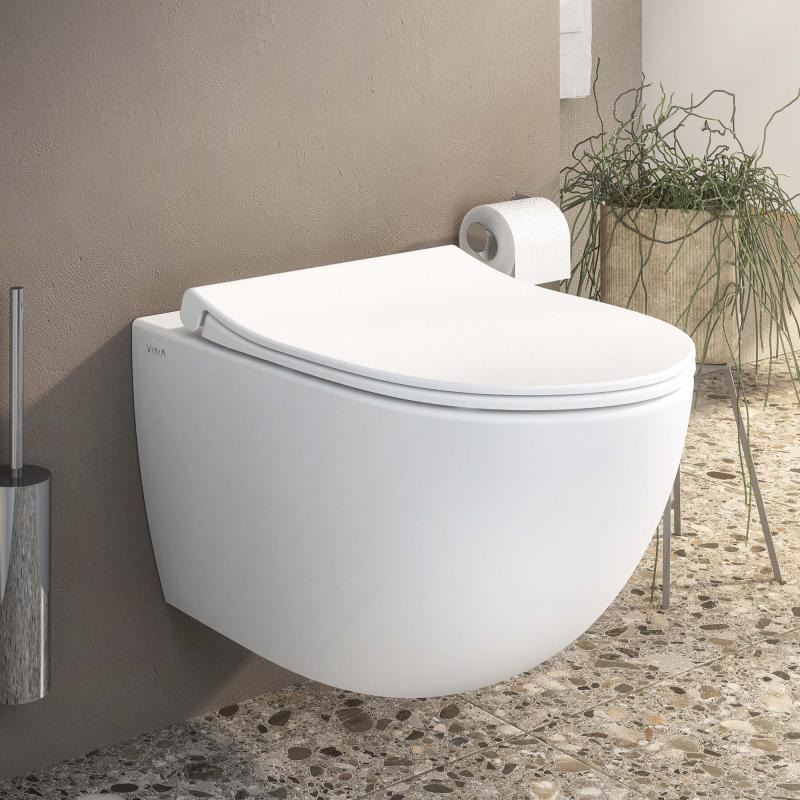

Vitra Sento SmoothFlush Rimless toilet with softclose seat, White (7848-003-6147):
- Brand: Vitra
- Series: Sento
- Product type: Wall-hung toilet
- Material: Ceramic
- Colour: White
- Soft-close seat
- With invisible fixings
- SmoothFlush technology
- Width: 36.5cm
- Height: 34cm
- Depth: 54cm

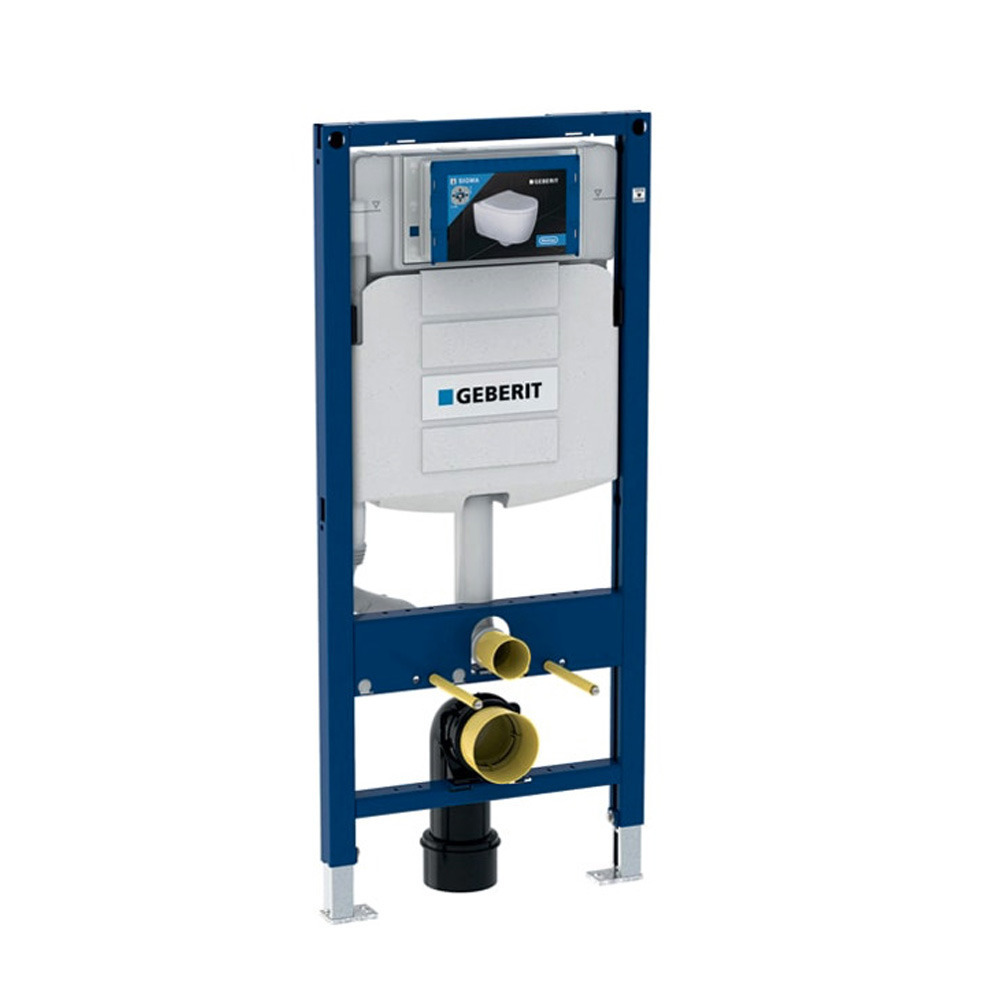

Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):
- Geberit Duofix support frame with concealed cistern
- Front actuation
- Self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for Sigma flush plates
Use:
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung toilets with connection dimensions in accordance with EN 33:2011
- For wall-hung toilets with projection up to 62 cm
- For single flush, dual flush or stop-and-go flush
- For floor constructions 0–20 cm
Technical information:
- Self-supporting frame, powder-coated
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for ceramic toilets with small contact surfaces
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
Included:
- Water supply connection R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 protection plugs
- Connection set for toilets, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adapter socket made of PE-HD, ø 90 / 110 mm
- 2 threaded M12 rods
- Fixing material

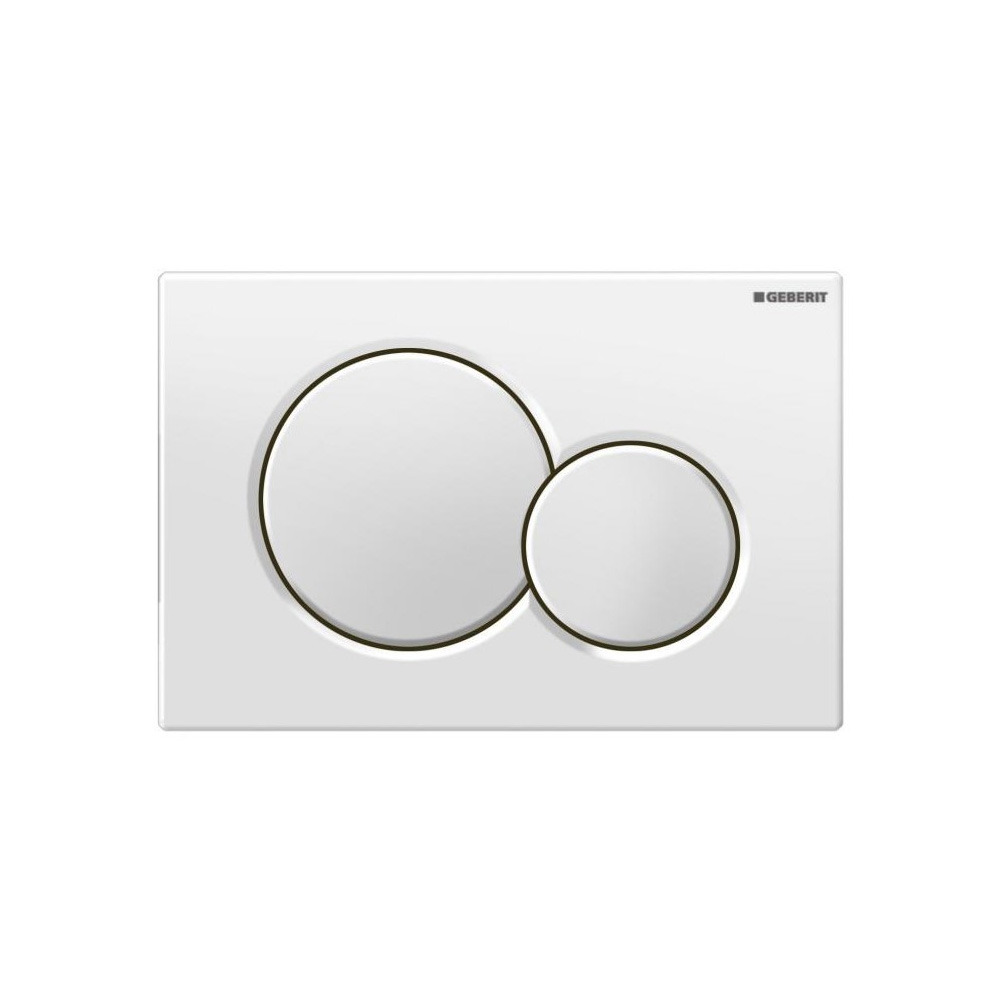

Geberit SIGMA 01 Dual Flush Plate, White (115.770.11.5):
- Dual water-saving flush 3/6 L
- Made of high quality synthetic material
- Compatible with DuoFresh filtration system
- Dimensions: 246 x 164 mm
Geberit Duofix Wall Anchoring Set (111.815.00.1):
- For fastening Geberit Duofix installation elements in front of drywalls and solid walls
- For fastening panelling in part-height prewall installations
- Can be adjusted in depth from the front, infinitely variable, with fast adjustment
- Wall inlet rotatable by 360°
- Threaded rod M10, zinc-plated
IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
£
