Geberit Duofix Toilet Frame + Ideal Standard Tesi Aquablade Rimless + Slim softclose seat + Plate + Iso set (TESIGEB3SET)
- Product reference: TESIGEB3SET
- EAN: 0633710858151
- Line:
Brand:
Product warranty:
2 years
£
44990
TAX INCL.
£
69110
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
34.90%
saving)
24 In stock
Shipped before
the 29 December
Quantity:

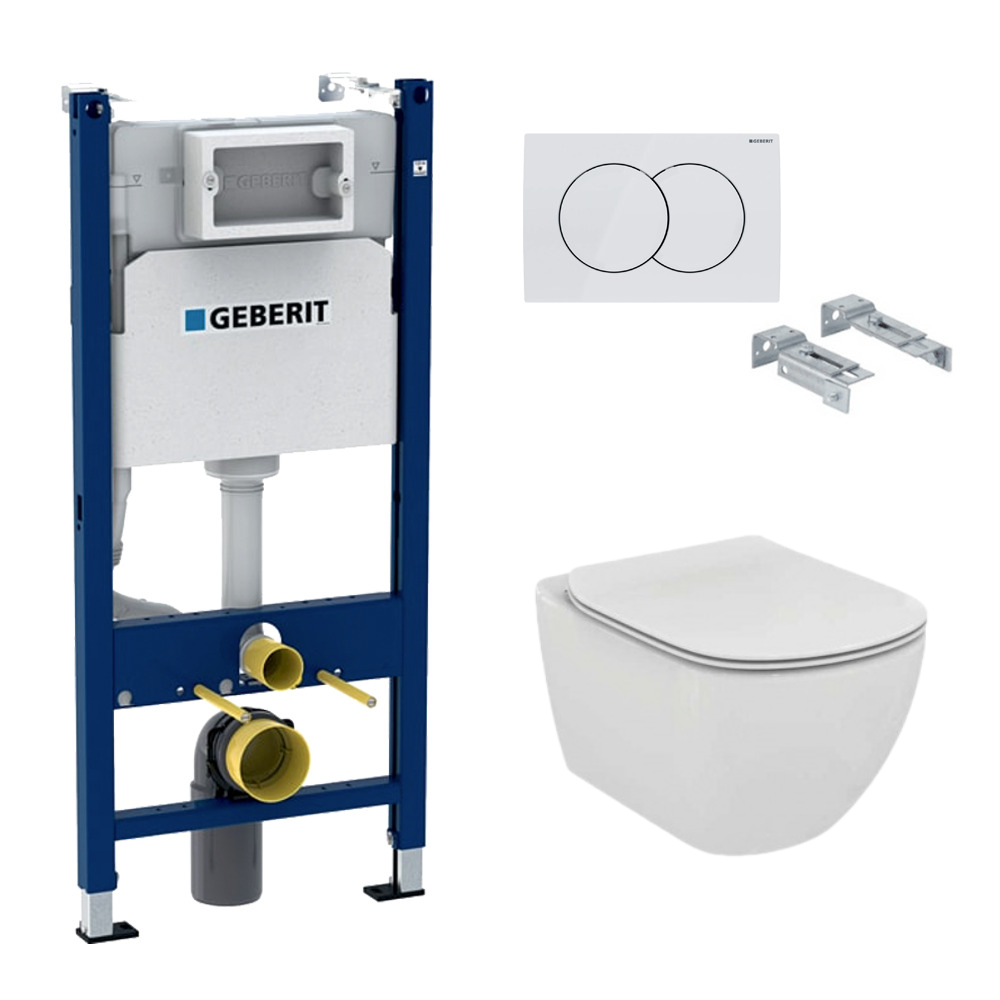

Opt for the quality and ease of installation of the Duofix frame toilet pack + Tesi Aquablade rimless toilet + Softclose seat + White plate + Soundproofing set (TesiGeb3SET).
The quality of the items in this pack is well known and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed descriptionProduct technical properties
- Colour:White
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35.00
- Depth:66
- Bowl colour:White
- Invisible fixings:Yes
- Product type:Toilet pack

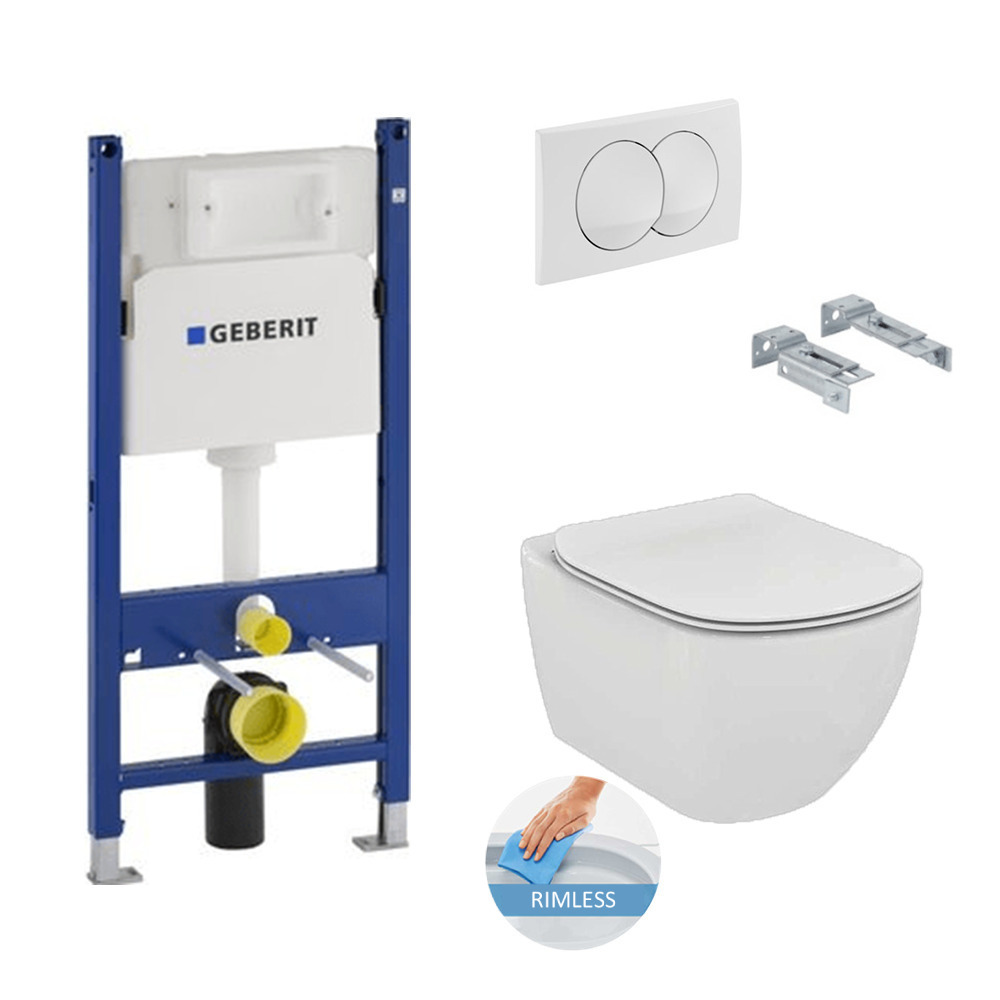

Features of the Toilet set Duofix frame + Tesi Aquablade rimless WC + slim softclose seat + White flush plate + Sound insulation (TesiGeb3SET) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Sound insulation set (SP 156SET)
- Geberit DELTA20 white flush plate (115.107.11.1)
- Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
Purpose of use :
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information :
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery :
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
Geberit DuofixBasic pre-wall mounting set (111.839.00.1) :
- Material: Steel
- For fixing Geberit Duofix frames to partitions and load-bearing walls
- For Geberit Duofix frames with open top
- Adjustable depth
- Galvanised

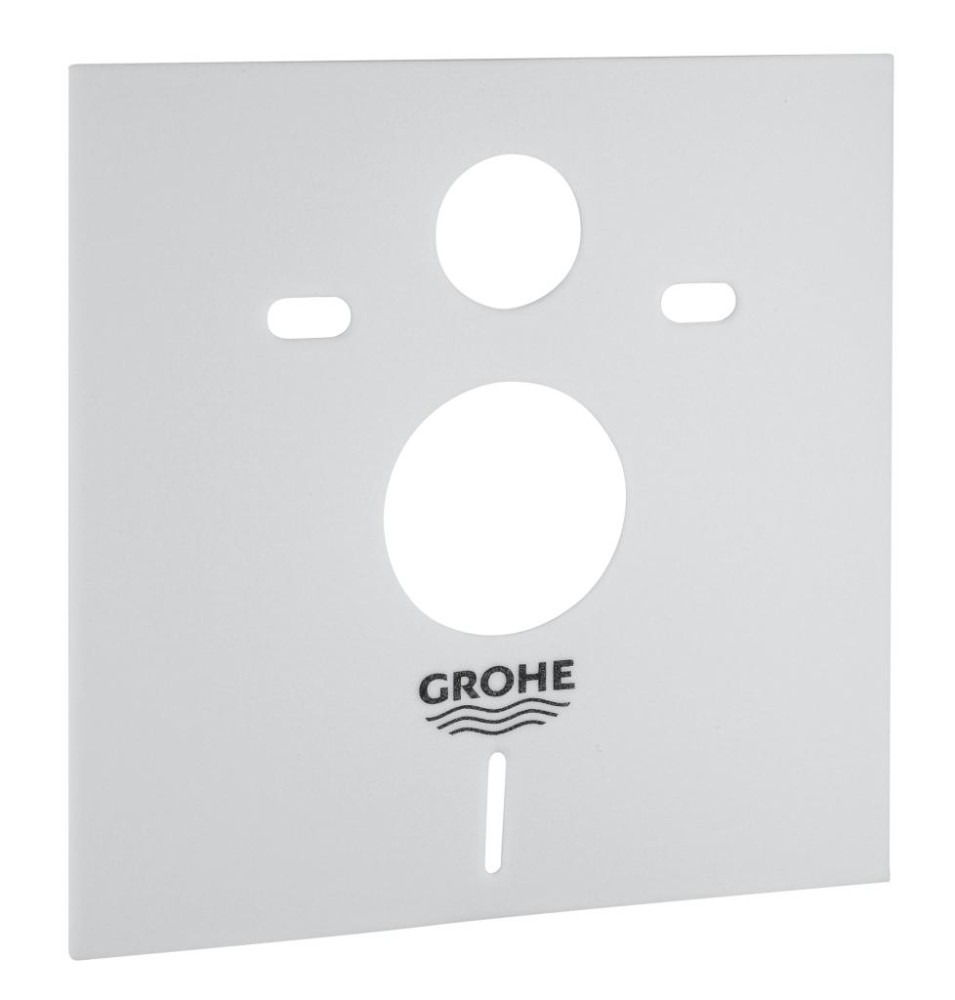

Grohe Sound insulation set (SP 156SET) :
- for WC
- 2 rubber bushes

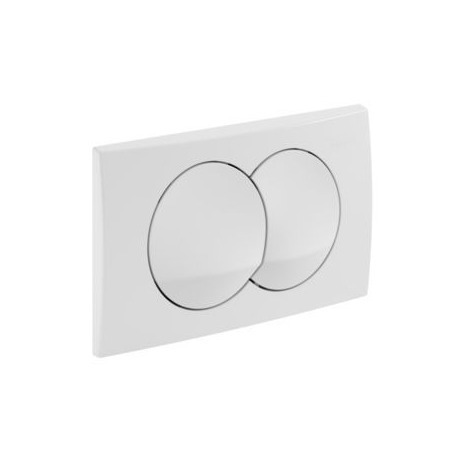

Geberit DELTA20 white flush plate (115.107.11.1) :
Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush, allowing you to save water. For the Basic frame with the Delta plate, the release is done from the front.

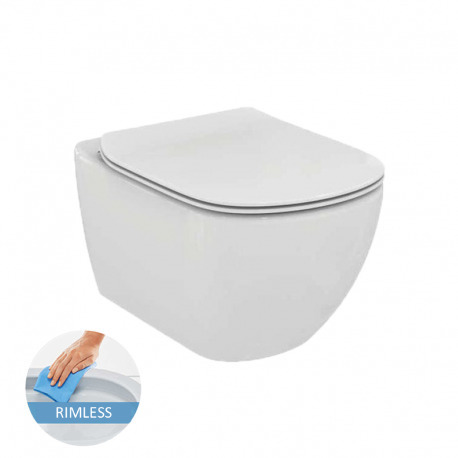

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601) :
- Rimless porcelain sanitary ware toilet bowl (T007901)

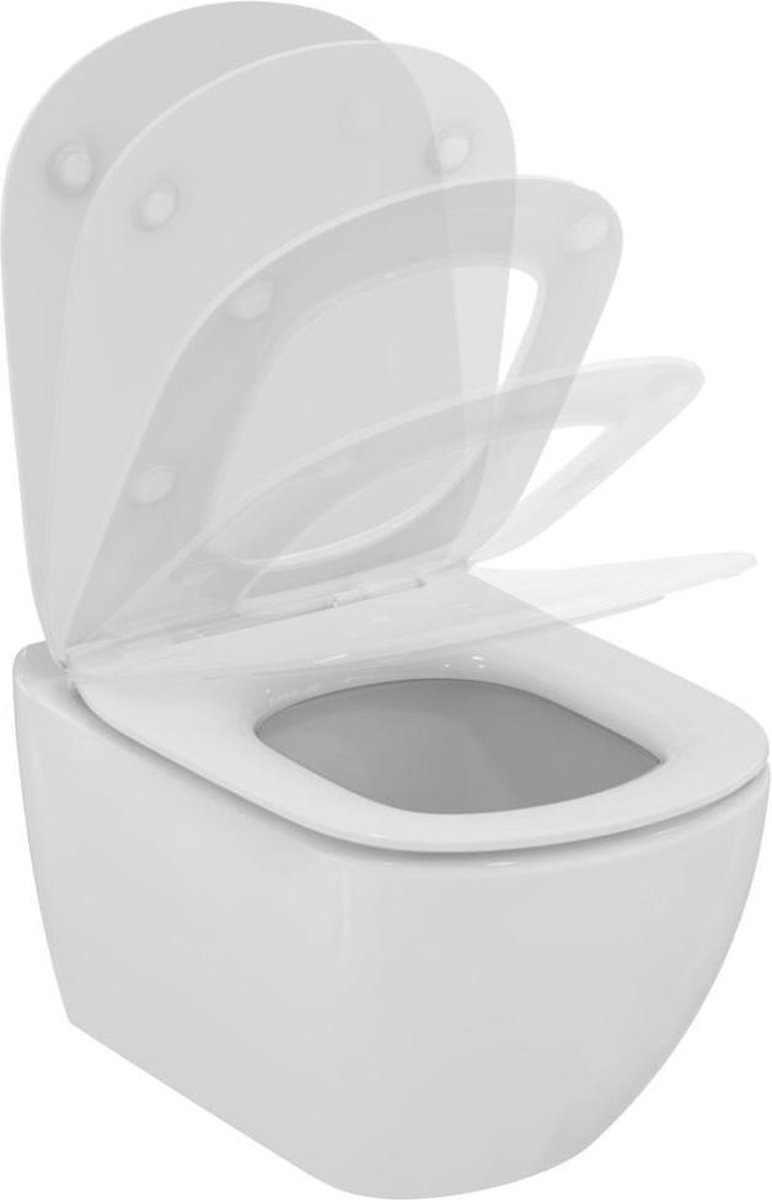

- Toilet seat with soft close system (T352701)
Features:

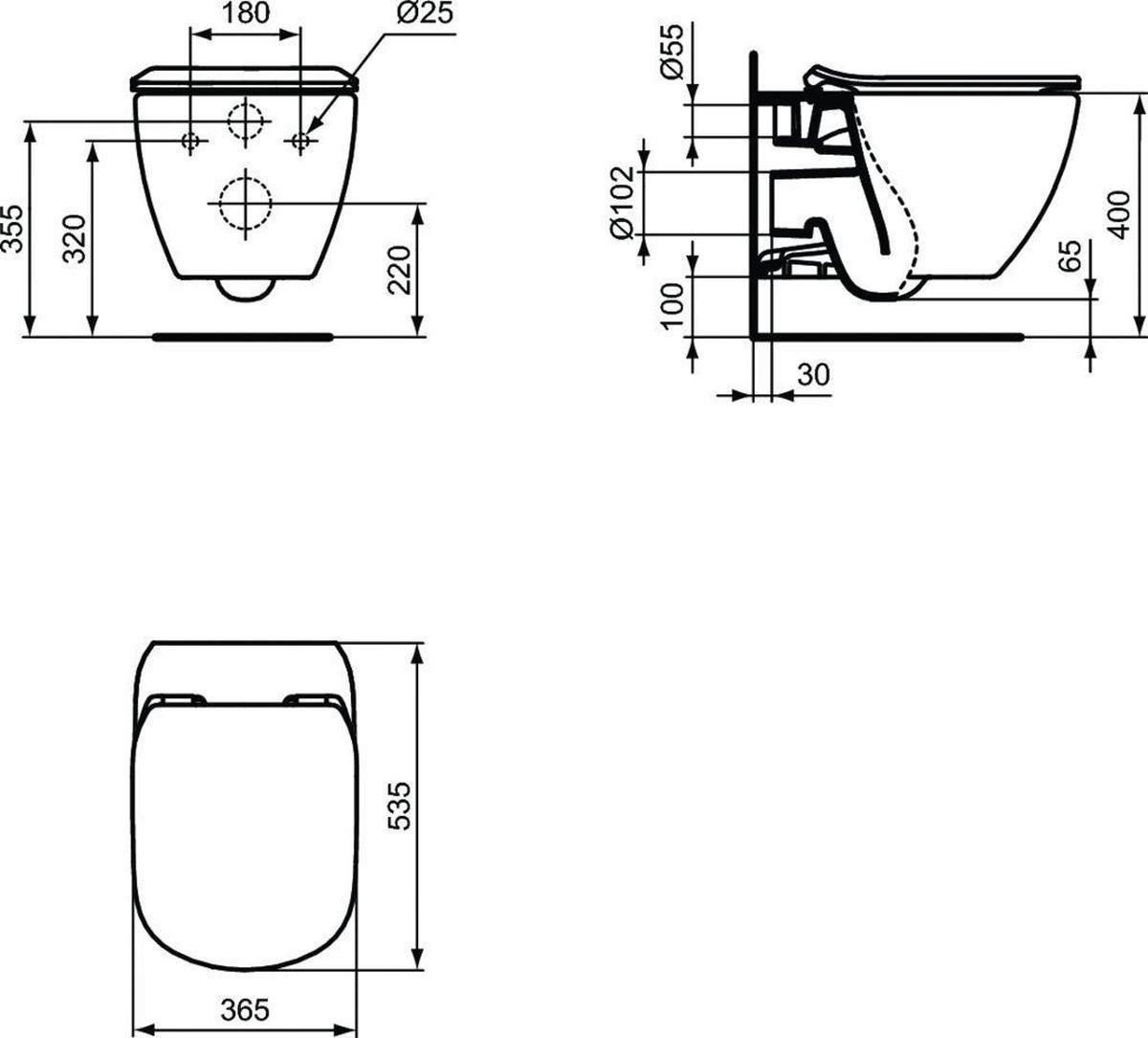

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning
- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
£
