Geberit Duofix Frame + Ideal Standard Tesi Aquablade bowl + White plate (TESIGEB3)
- Product reference: TESIGEB3
- EAN: 0034966358202
- Line:
Brand:
Product warranty:
2 years
£
49990
TAX INCL.
£
58622
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
14.72%
saving)
Only 6 left In stock
Shipped before
the 4 December
Quantity:

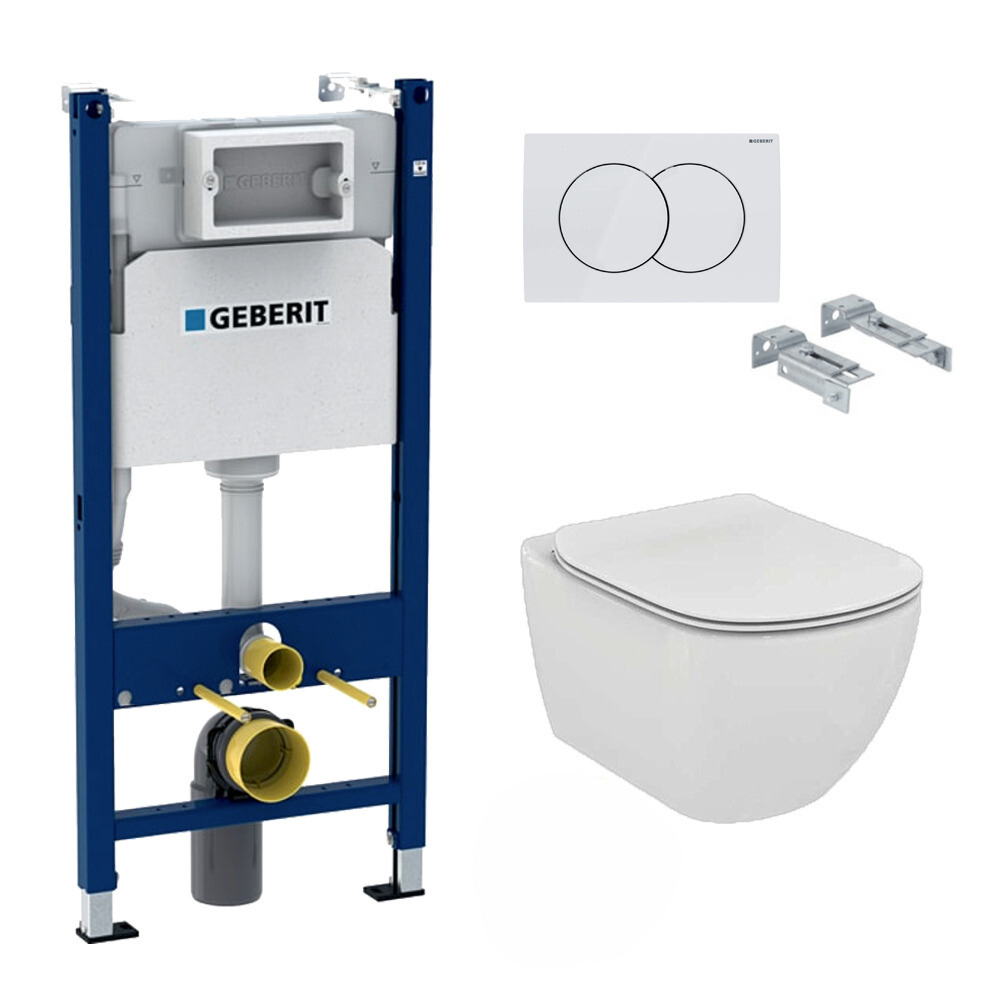

Features of the Toilet set Duofix frame + Ideal Standard Bowl Tesi Aquablade + White flush Plate (TesiGeb3) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit DELTA20 white flush plate (115.100.11.1)
- Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed descriptionProduct technical properties
- Colour:White
- Material:Ceramic
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- Weight:35.00
- Depth:66
- Bowl colour:White
- Invisible fixings:Yes
- Product type:Toilet pack

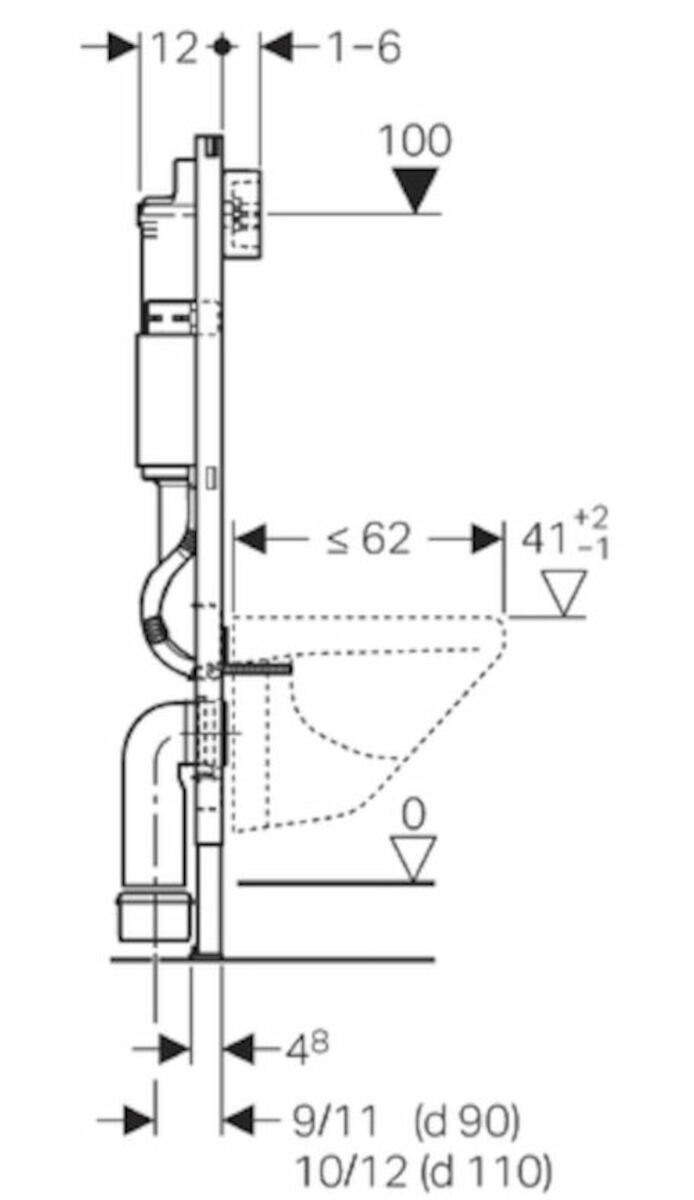

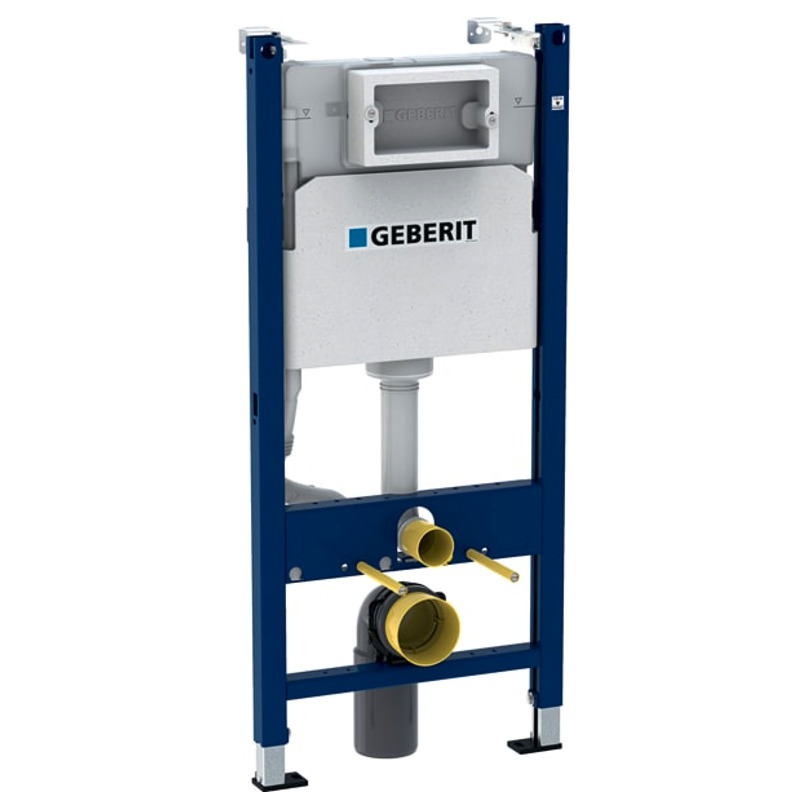

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

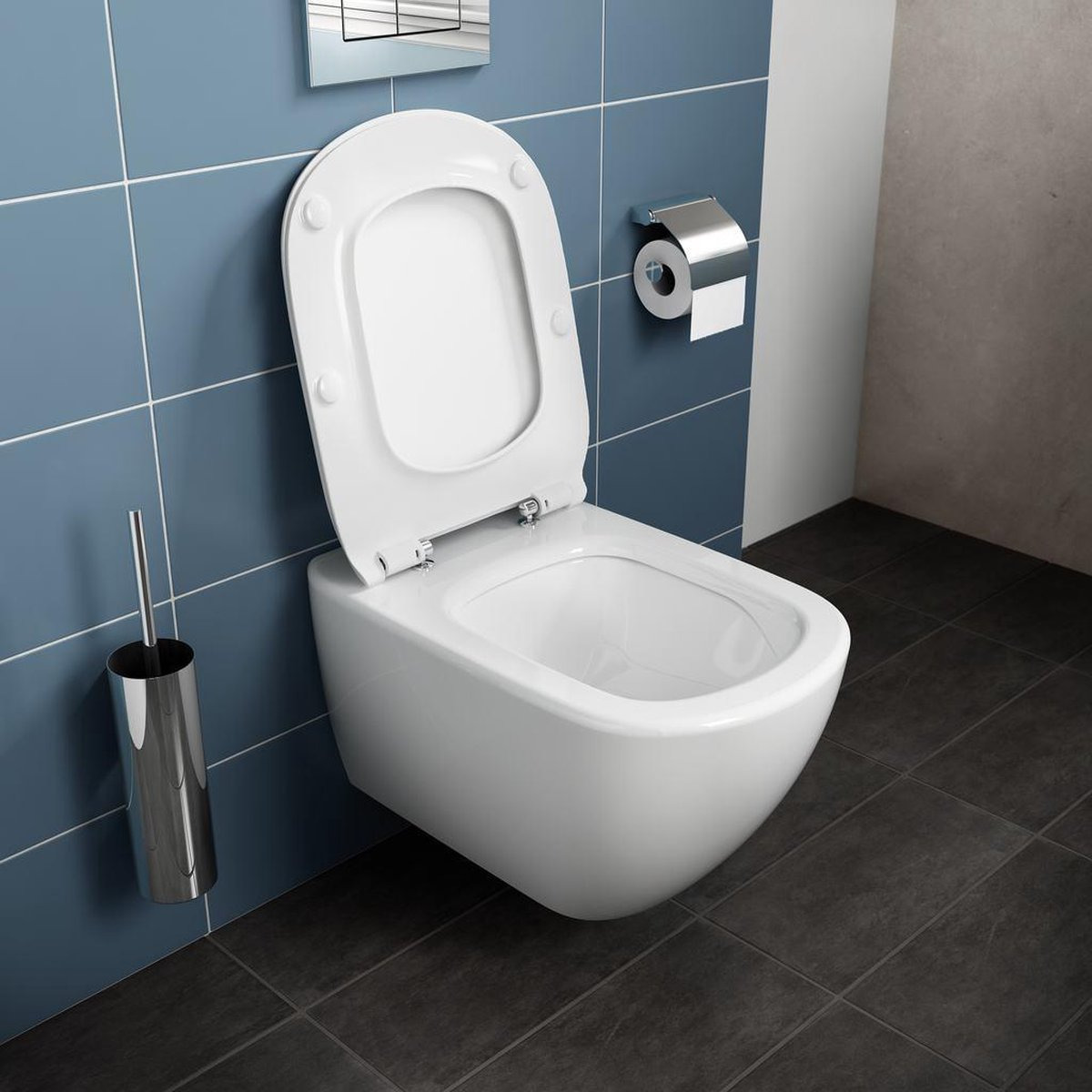

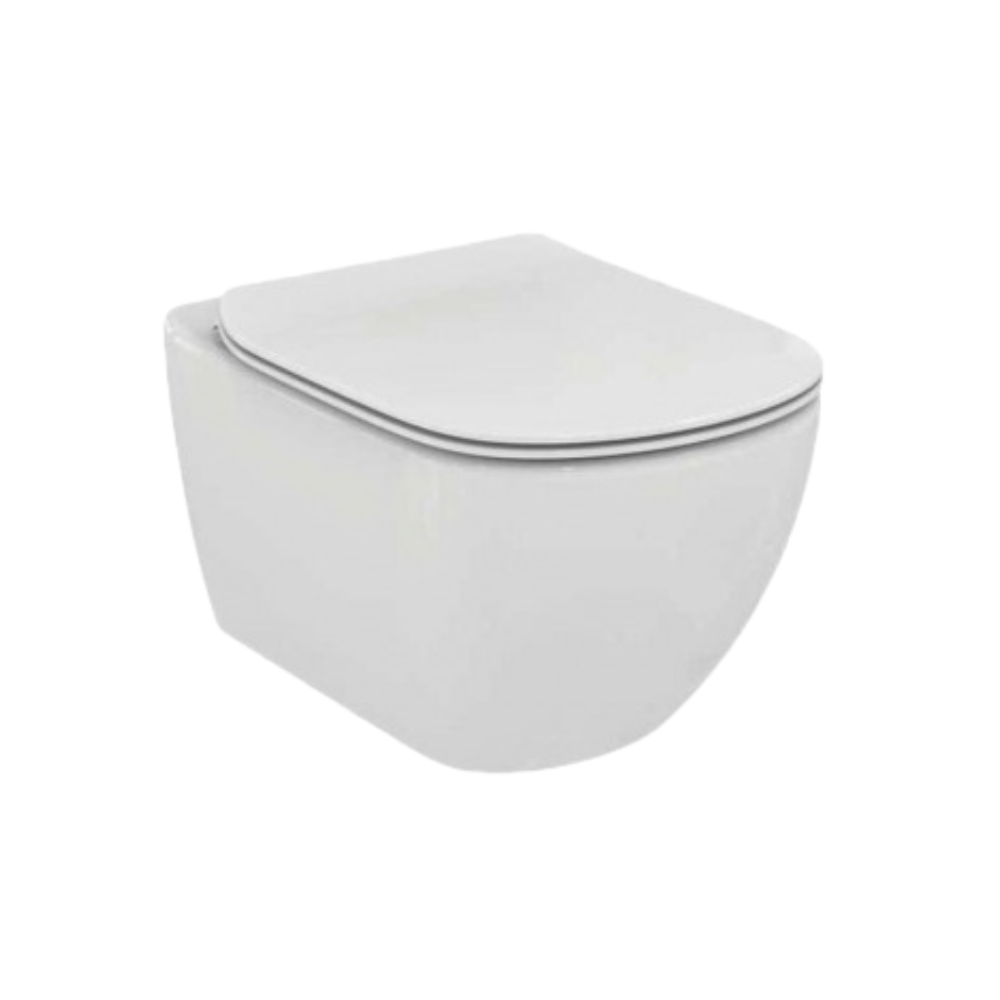

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
- Ideal Standard TESI Rimless porcelain sanitary ware toilet bowl (T007901)

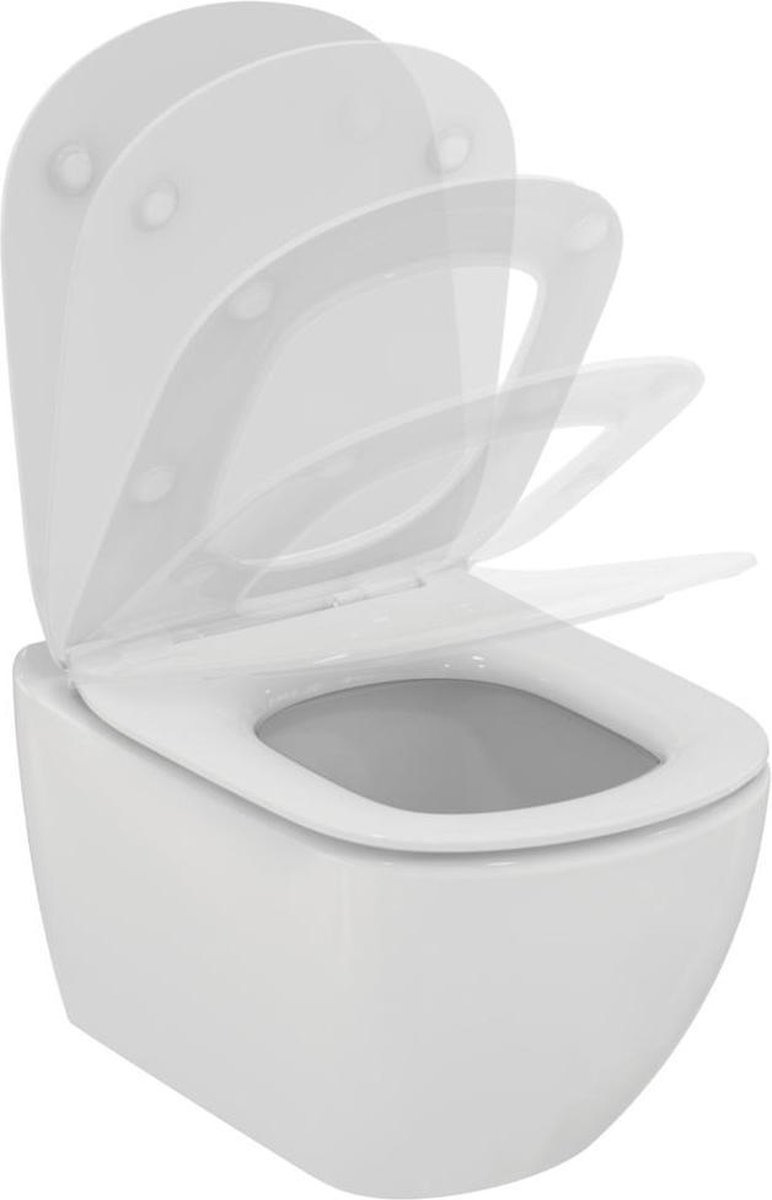

- Ideal Standard TESI Toilet seat with soft close system (T352701)
Features:

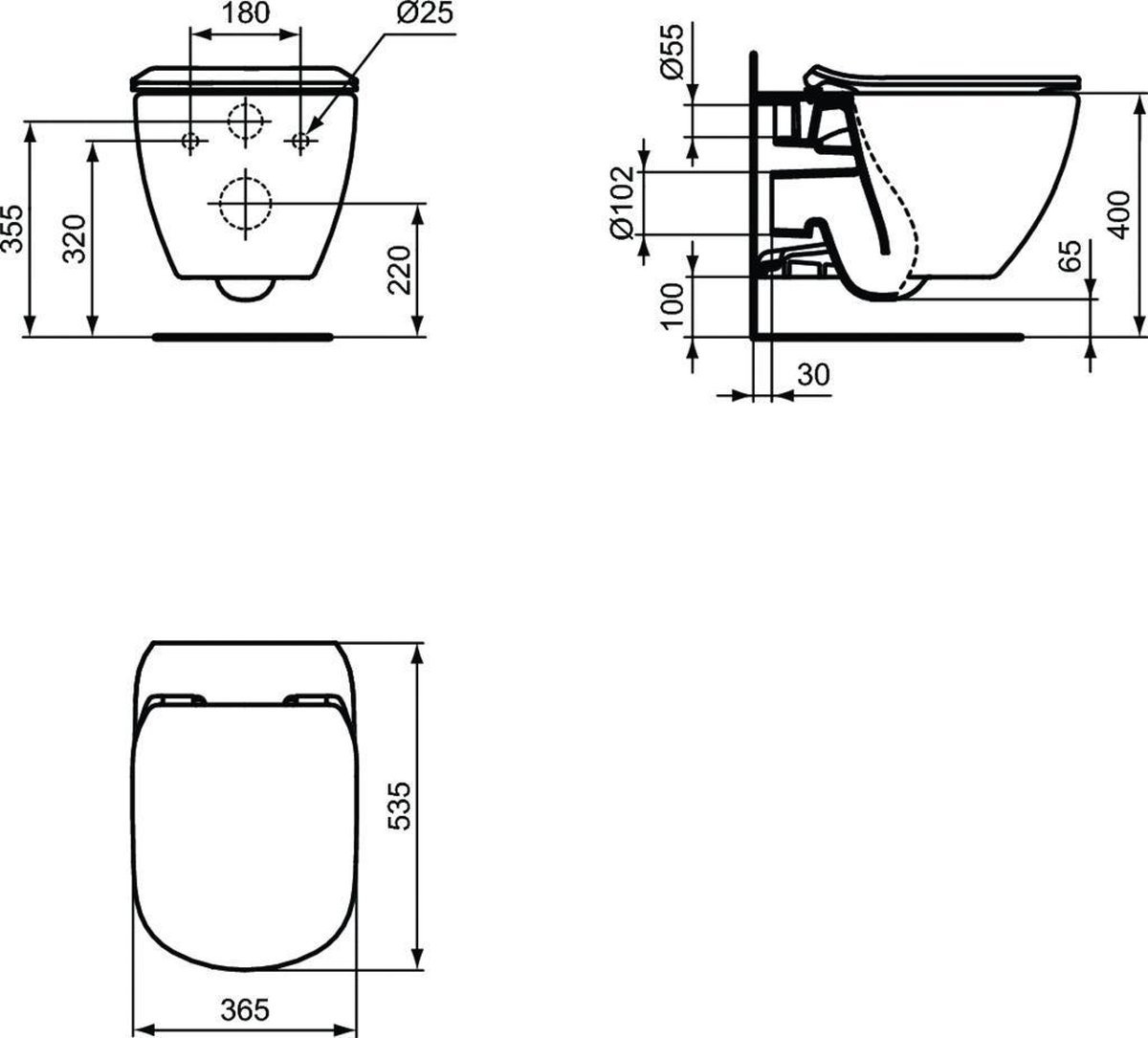

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning
- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33

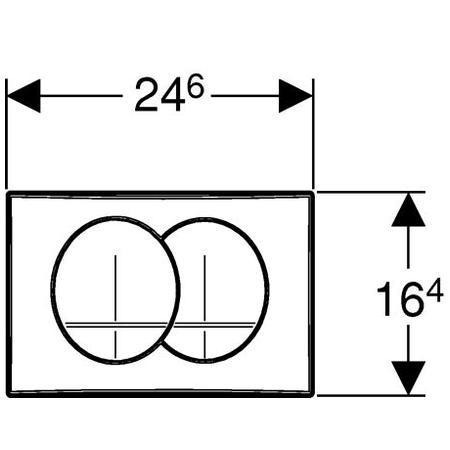

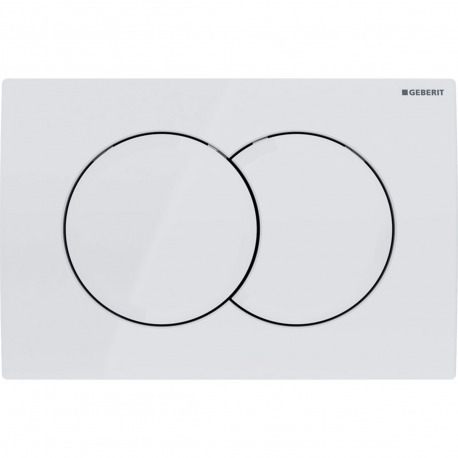

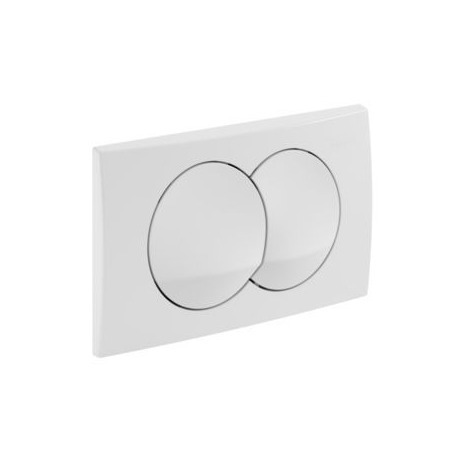

Geberit Trigger plate DELTA20 (115.107.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation
Attention! It is imperative to check the products upon receipt. Any damage must be noted in front of the deliveryman and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, the carriers being very strict on this subject. We thank you for your understanding.
£
