Geberit Frame System + Vitra Sento Rim-Ex Toilet Bowl + Soft-Close Seat + White Flush Plate + CladdingSet (HSentorimlessGeb3)
- Product reference: HSENTORIMLESSGEB3
- EAN: 0750122358403
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Treat yourself to the quality and easy installation of the WC Pack: Frame System + Vitra Sento Rim-Ex Toilet Bowl + Soft-Close Seat + White Flush Plate + Casing Set (HSentorimlessGeb3).
This WC set combines the reliability of Geberit with the Sento range by Vitra. The products in this pack are of unquestionable quality and are sure to meet your needs by offering solutions perfectly suited to your projects.
Additionally, the Jackoboard by Jackon casing set included allows you to quickly and efficiently cover the Geberit frame.
- Colour:White
- Material:Ceramic
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Vitra
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- Weight:35.00
- Depth:66
- Invisible fixings:Yes
- Product type:Toilet pack + wall cladding
Features of the WC Pack: Frame System + Vitra Sento Rim-Ex Toilet Bowl + Soft-Close Seat + White Flush Plate + Cladding Set (HSentorimlessGeb3):

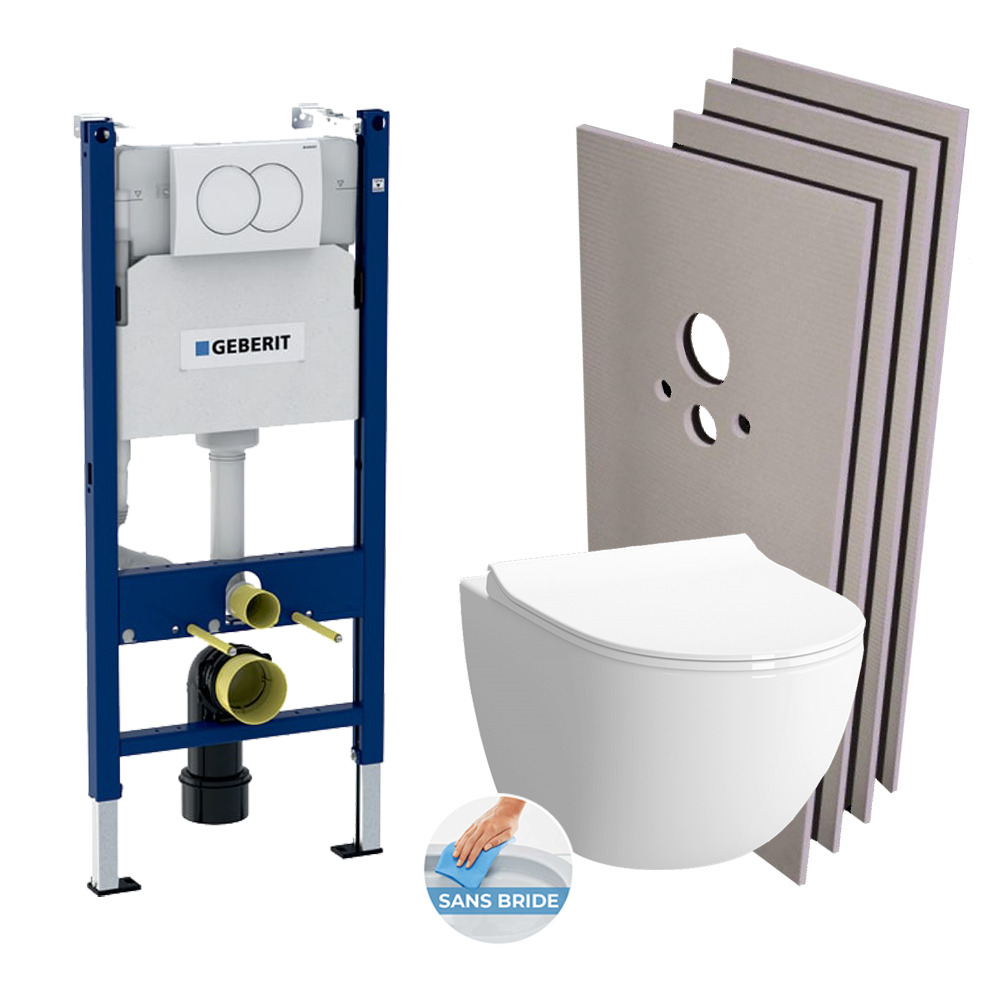

Includes:
- Geberit DUOFIXBasic frame for wall-hung toilets with Delta cistern (111.153.00.1)
- Geberit Duofix wall fixing kit for self-assembly (111.839.00.1)
- Geberit Delta01 white flush plate (115.107.11.1)
- Vitra Sento SmoothFlush Rimless Wall-Hung WC + Soft-Close Seat, White (7848-003-6147)
- Jackoboard Mounting Set for WC Frame Casing (4521871)

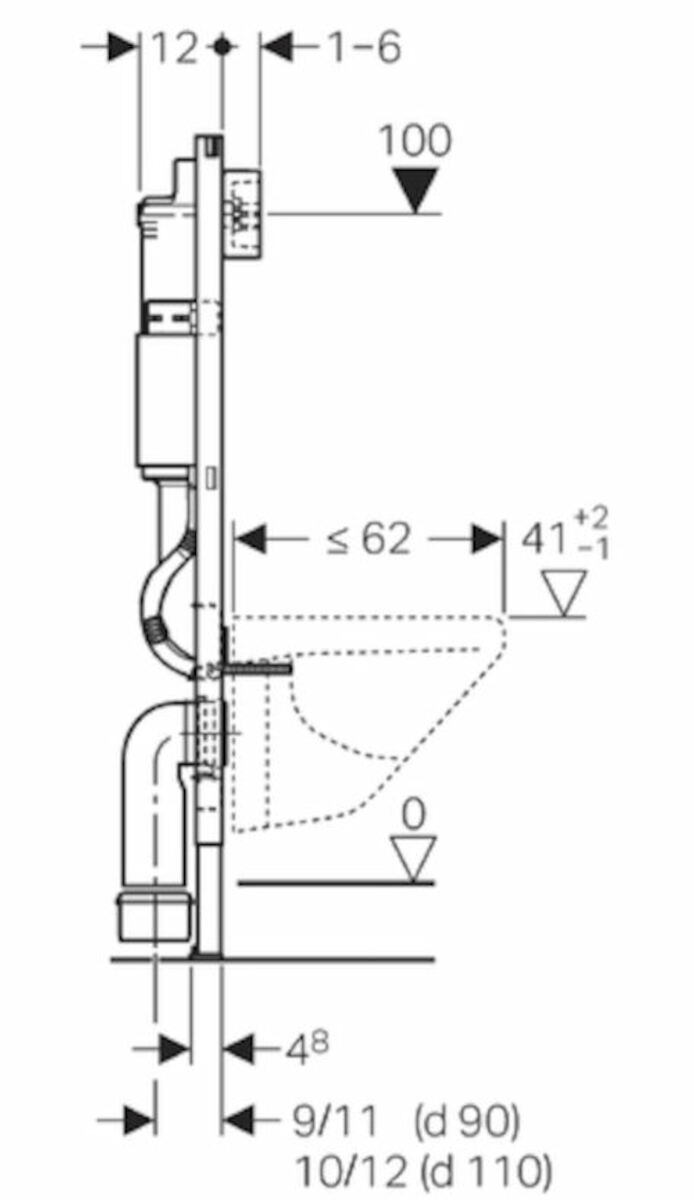

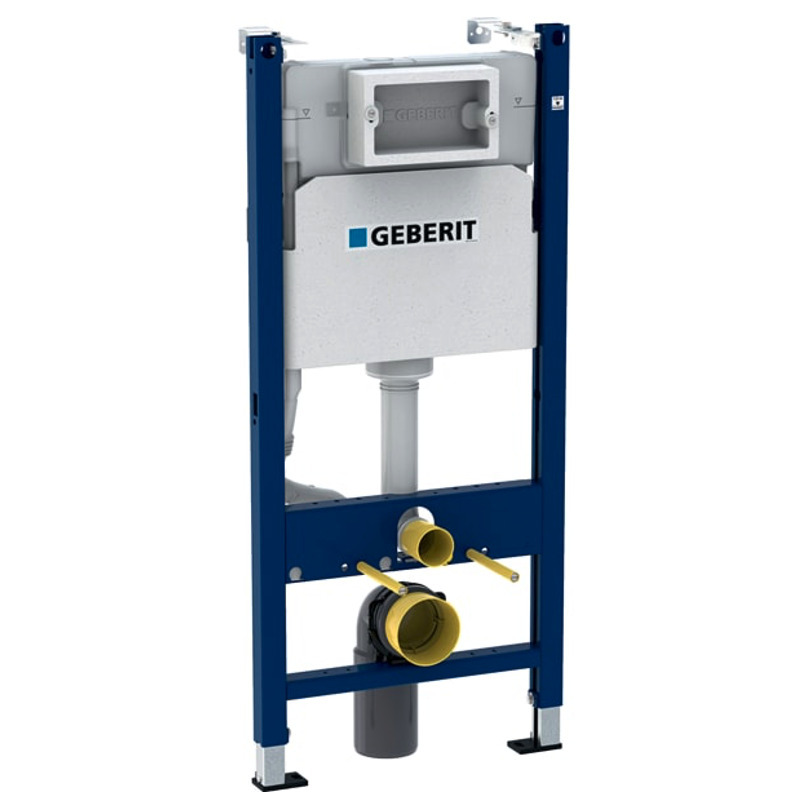

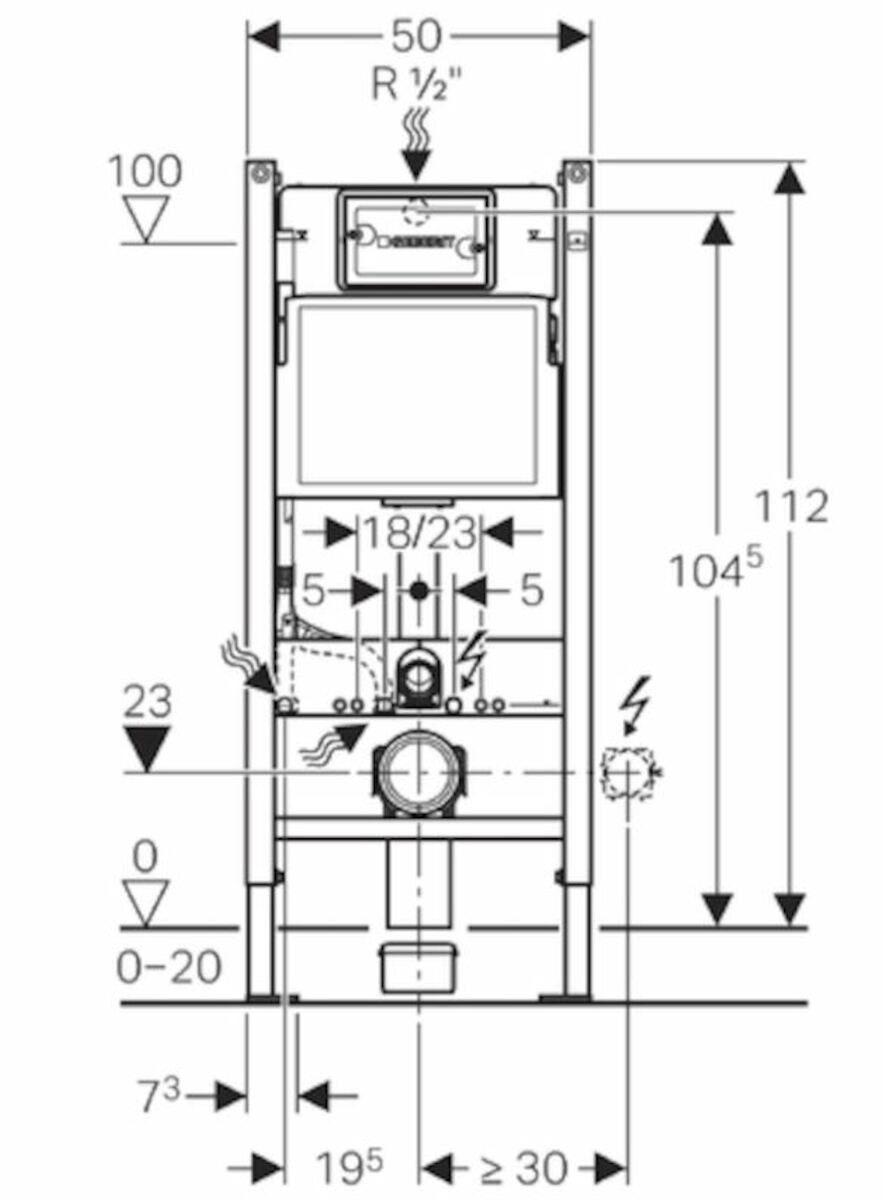

Geberit DUOFIXBasic Frame for Wall-Hung Toilets with Delta Cistern (111.153.00.1):
Use:
- For installation in front of solid or drywall constructions (partial or full height)
- Suitable for installing wall-hung toilets with a fixing distance of 18 cm or 23 cm
- Floor thickness 0–20 cm
- For front actuation
- Compatible with Geberit AquaClean
- Not suitable for concrete embedding
Features:
- Delta flush cistern, 12 cm (UP100) with front actuation, insulated against condensation
- Adjustable flush flow
- Fixed small flush volume
- Adjustable immediate flush option
- Water supply connection at center rear/top
- Connection pipe to angle valve can be screwed by hand
- Dual flush with Geberit Delta20 buttons
- Frame with ø 9 mm holes for fixing to wooden structures
- Galvanized supports, continuously adjustable from 0 to 20 cm
- Plastic base plates, suitable for UW50 profiles
- Installation depth: 12 cm
Technical Data:
- Factory-set flush volume: 6 and 3.5 liters
- Large flush adjustment range: 4.5 / 6 / 7.5 liters
Included:
- 2 threaded rods M12 for ceramic attachment
- Dual flush outlet valve
- Rough-in protective cover for service opening, made of expanded polystyrene
- 2 protection plugs
- Angle stop valve R 1/2" with adapter ring
- Geberit AquaClean water supply pipe
- Ø 90 mm connection set
- Ø 90/110 mm adapter
- Waste bend for WC, PE-HD, Ø 90/90 mm
- Fixing material
- Wall fixing kit (111.839.00.1)

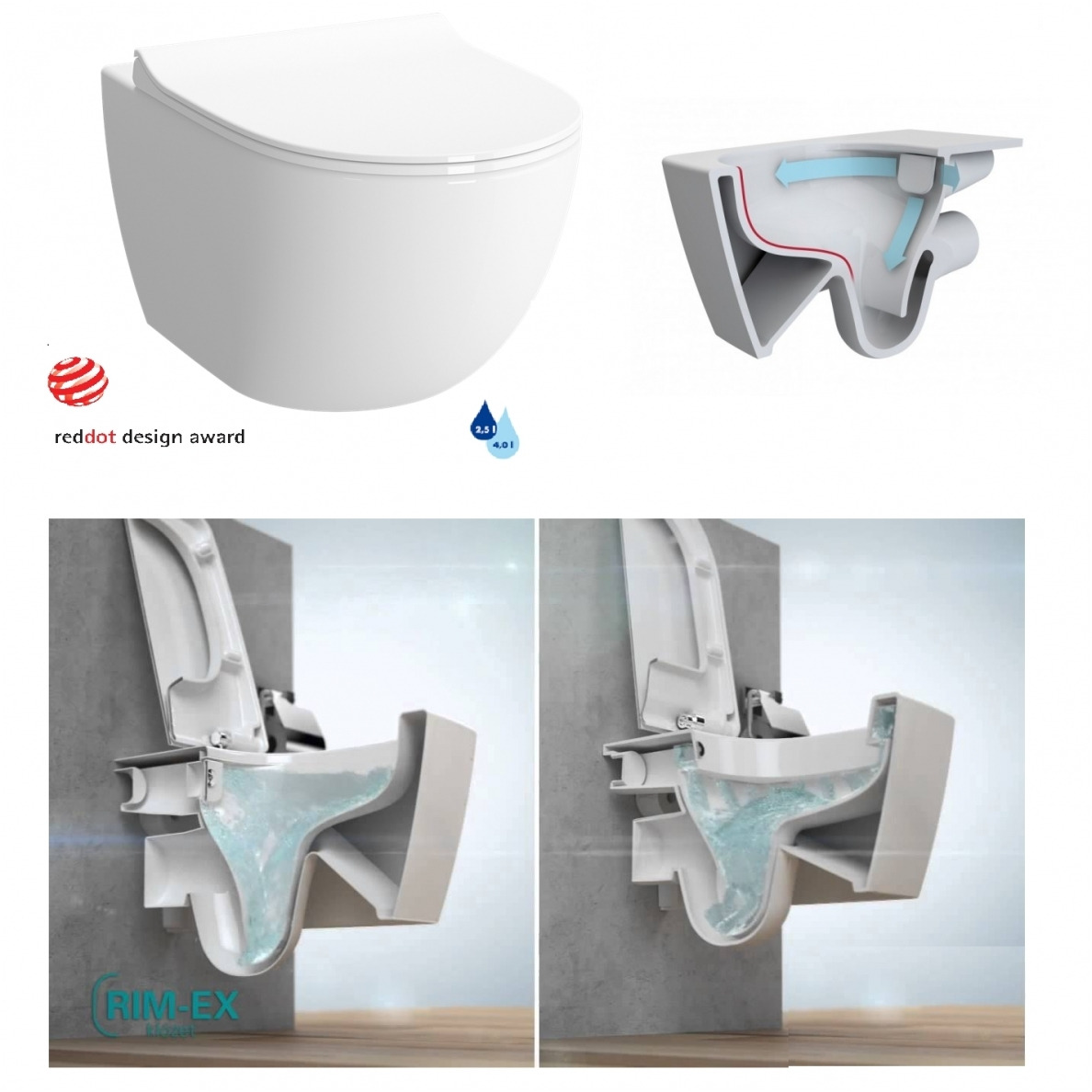

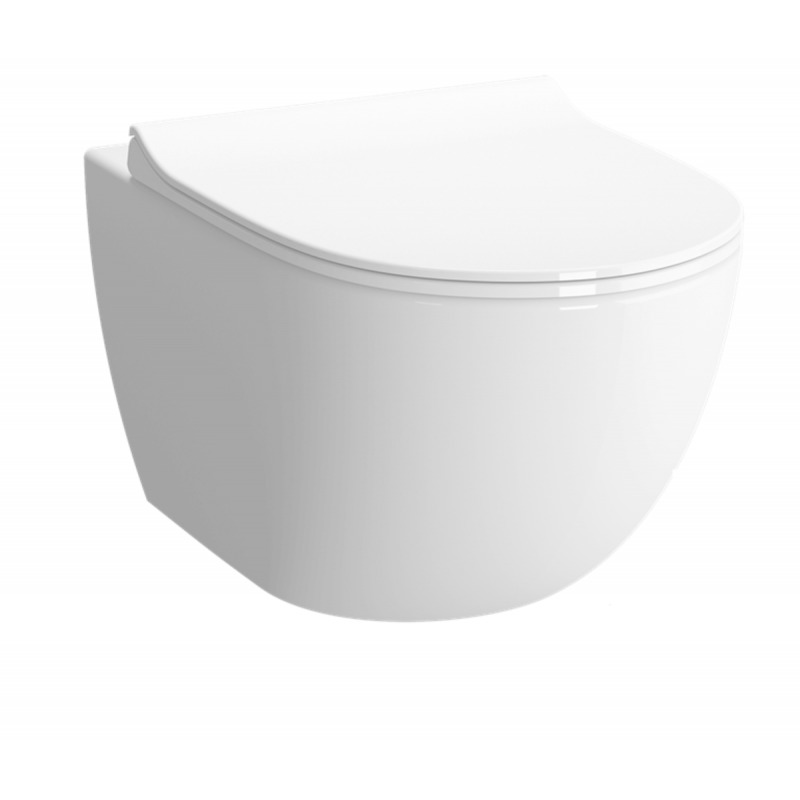

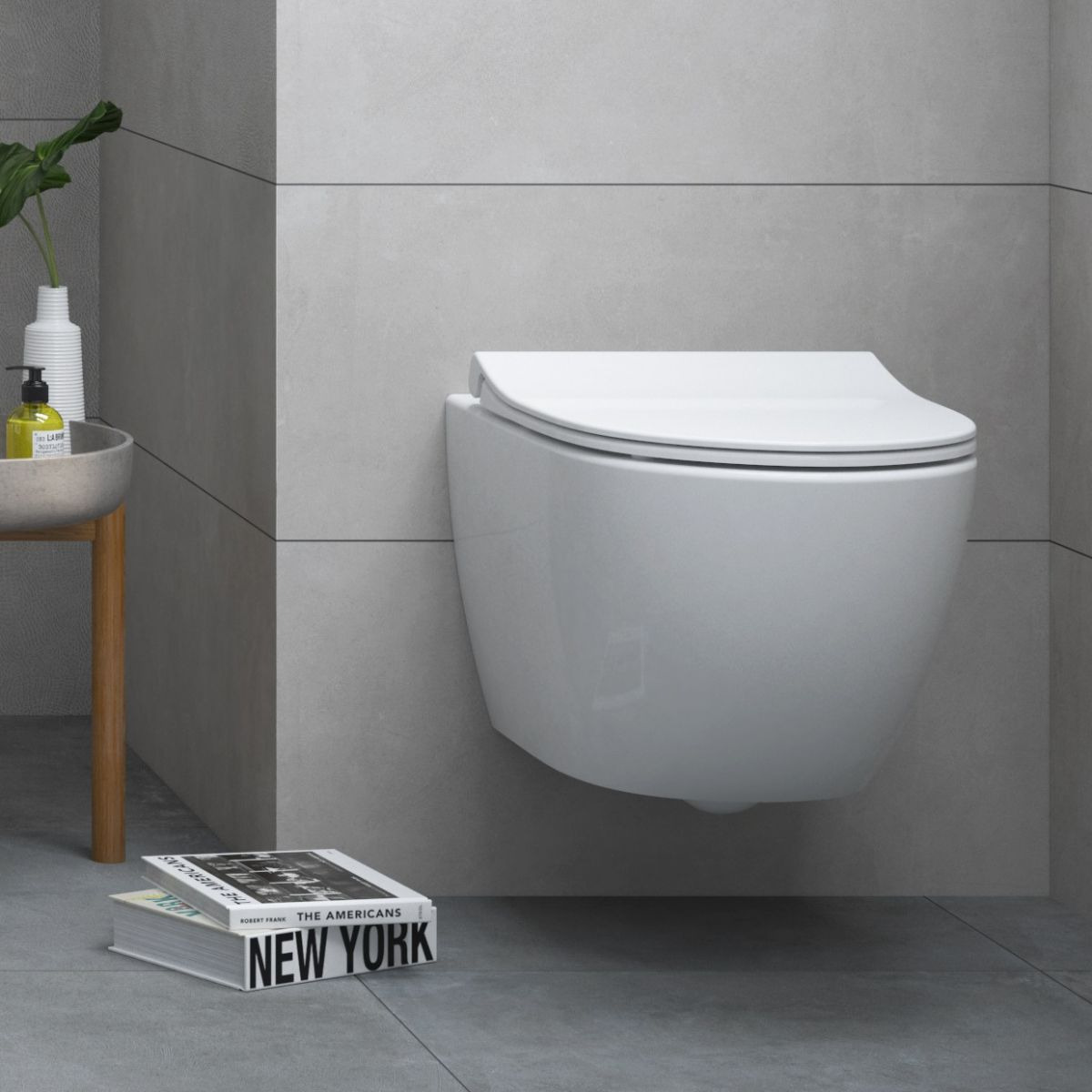

Vitra Sento Rimless WC SmoothFlush + Soft-Close Seat, White (7848-003-6147):
Toilet Bowl:
- Wall-hung, rimless toilet (VitrAflush 2.0) made of Vitra white ceramic
- Water-saving
- Color: White

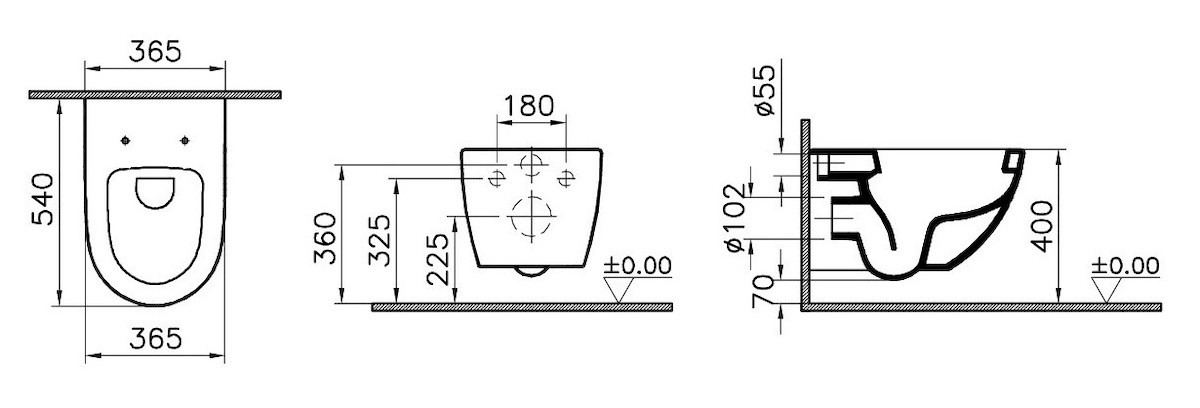

- Dimensions: 36.5 x 54 x 40 cm
- Horizontal outlet
- Dual flush capacity: 3/6 liters
- Top-fix concealed attachment (V-Fit 2.0)
Soft-Close Seat (120-003R009):
- Slow-close mechanism
- Material: Duroplast
- Color: White
- Ultra-thin design

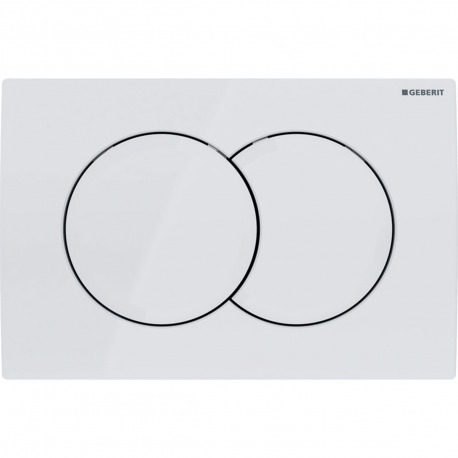

Geberit Delta01 Flush Plate (115.107.11.1):
- Dual flush with two buttons: 3L for small flush, 6L for large flush
- Water-saving
- Front actuation

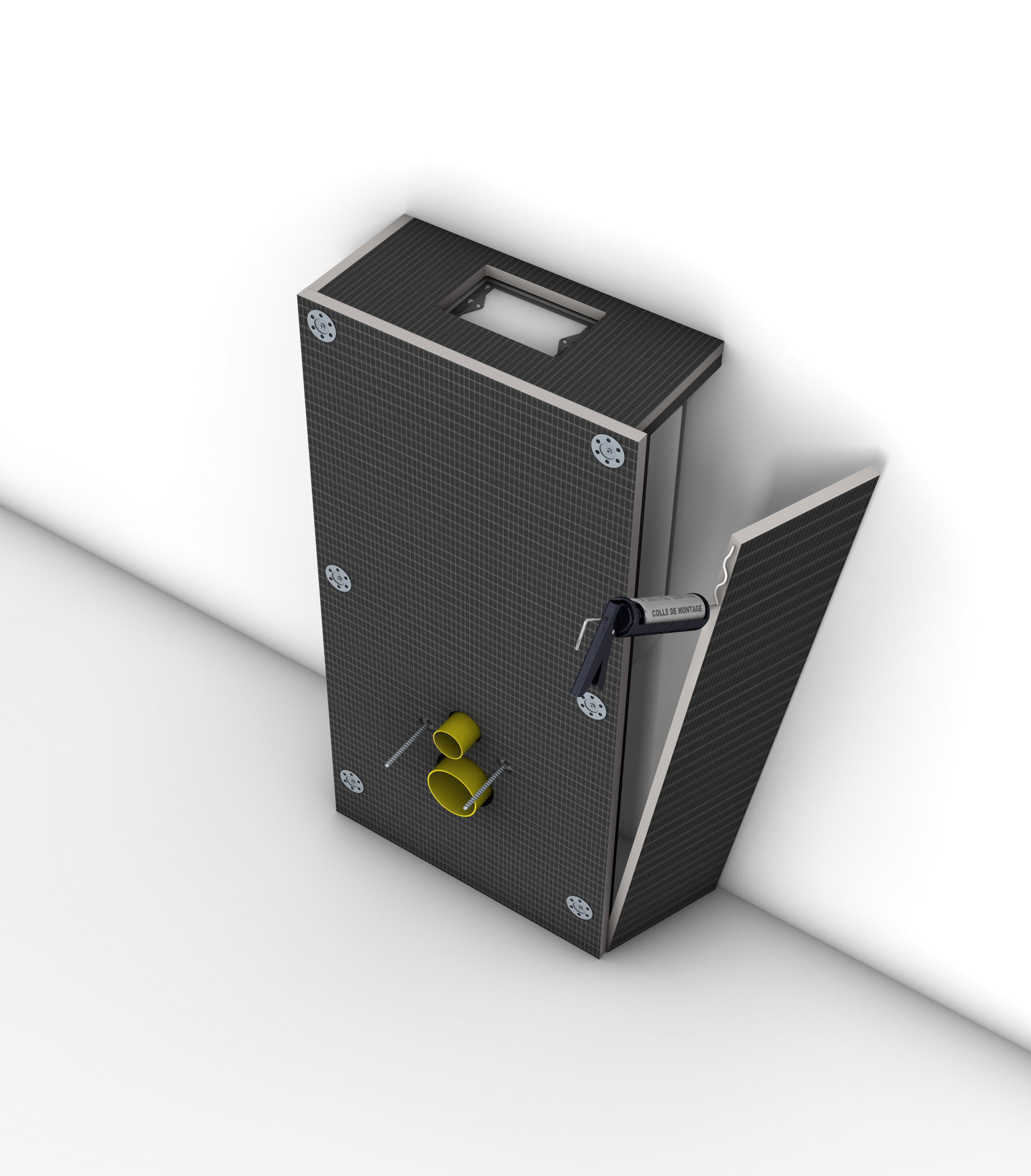

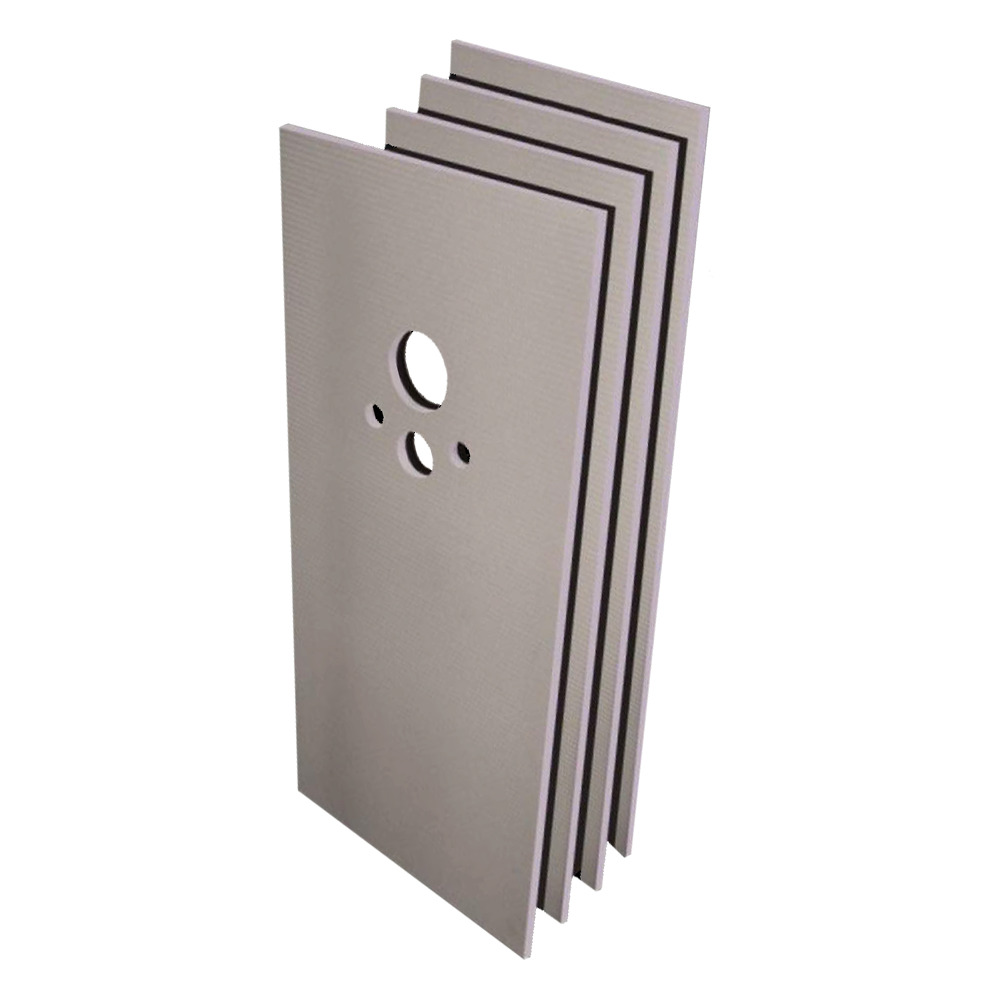

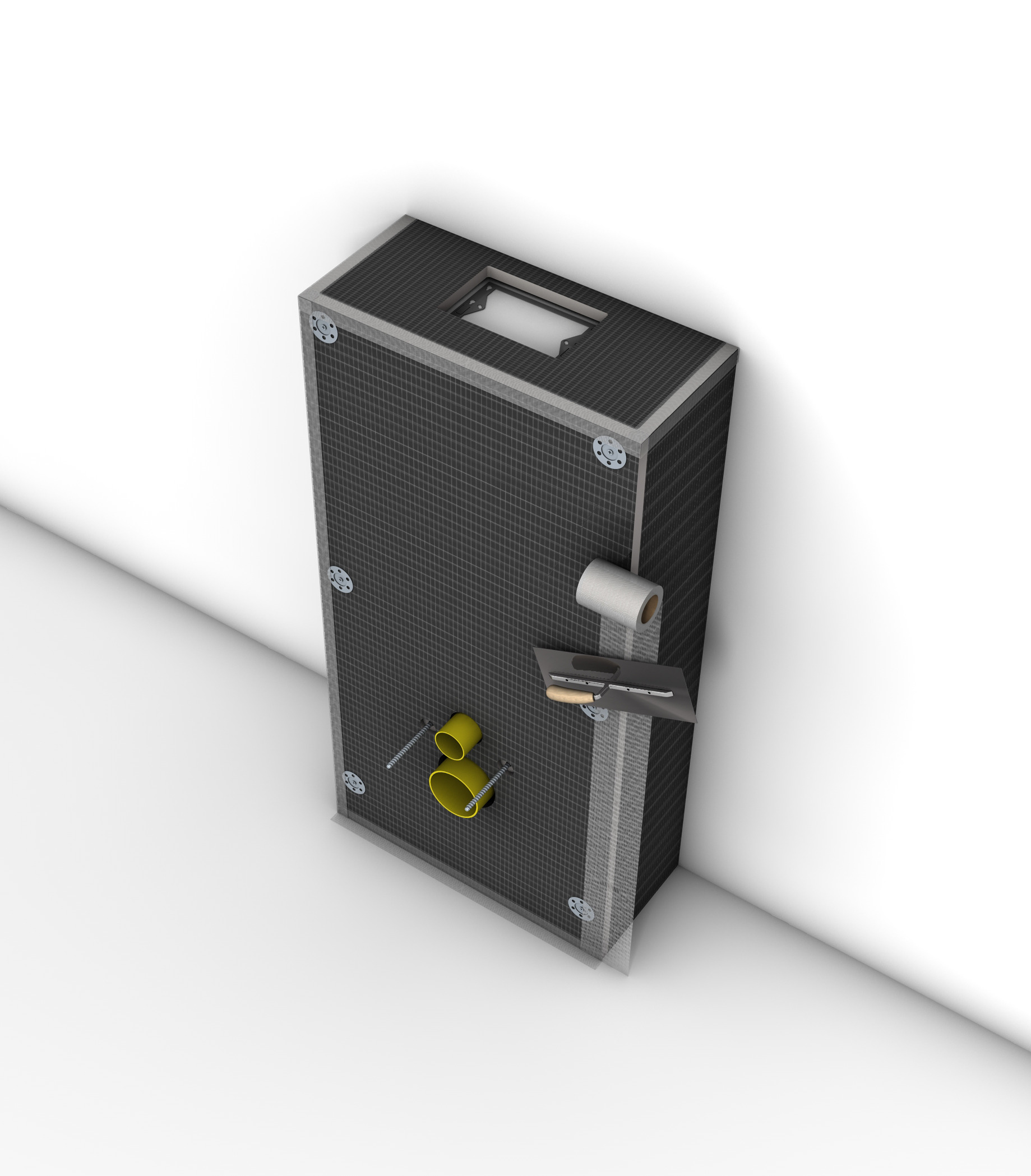

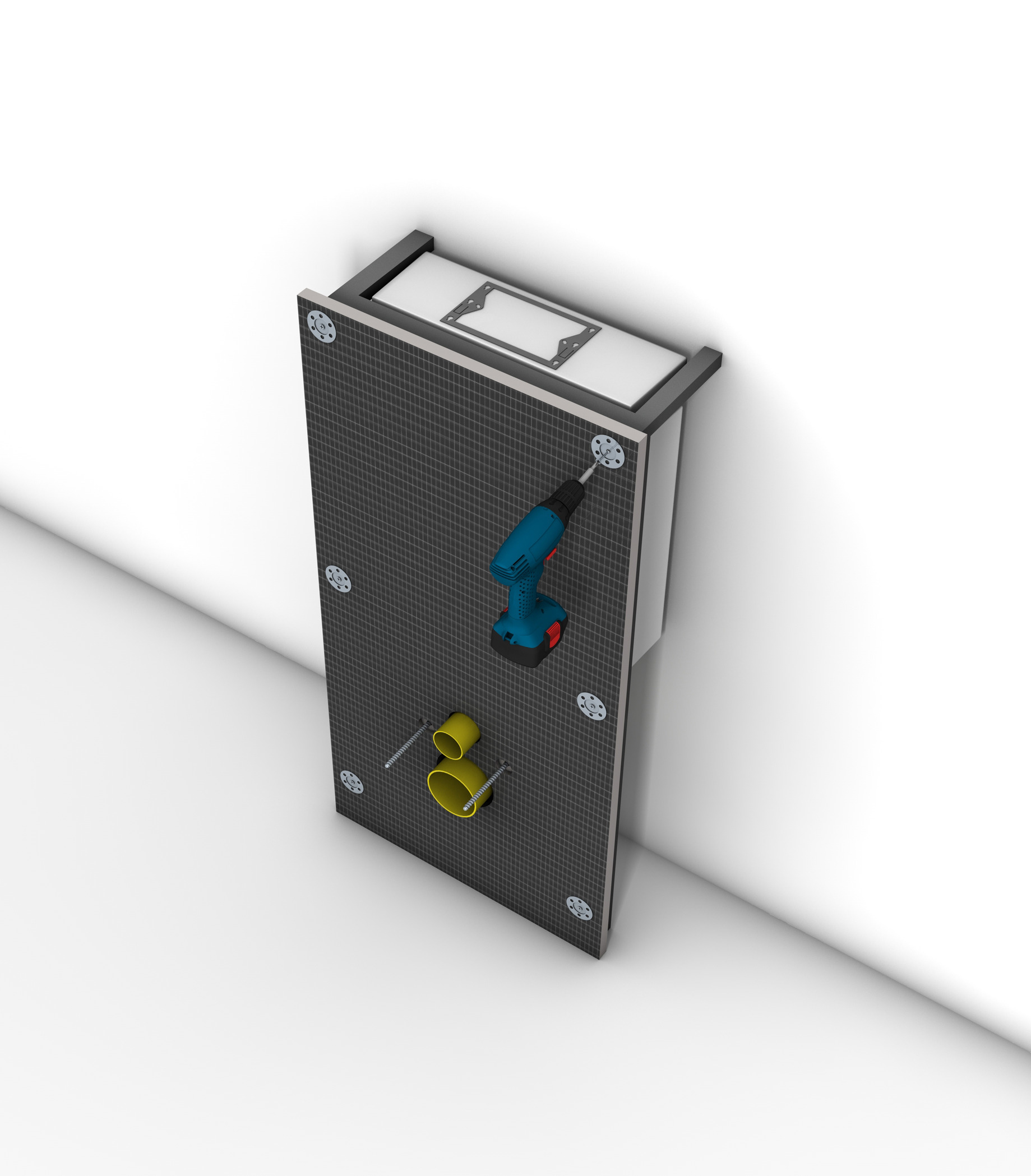

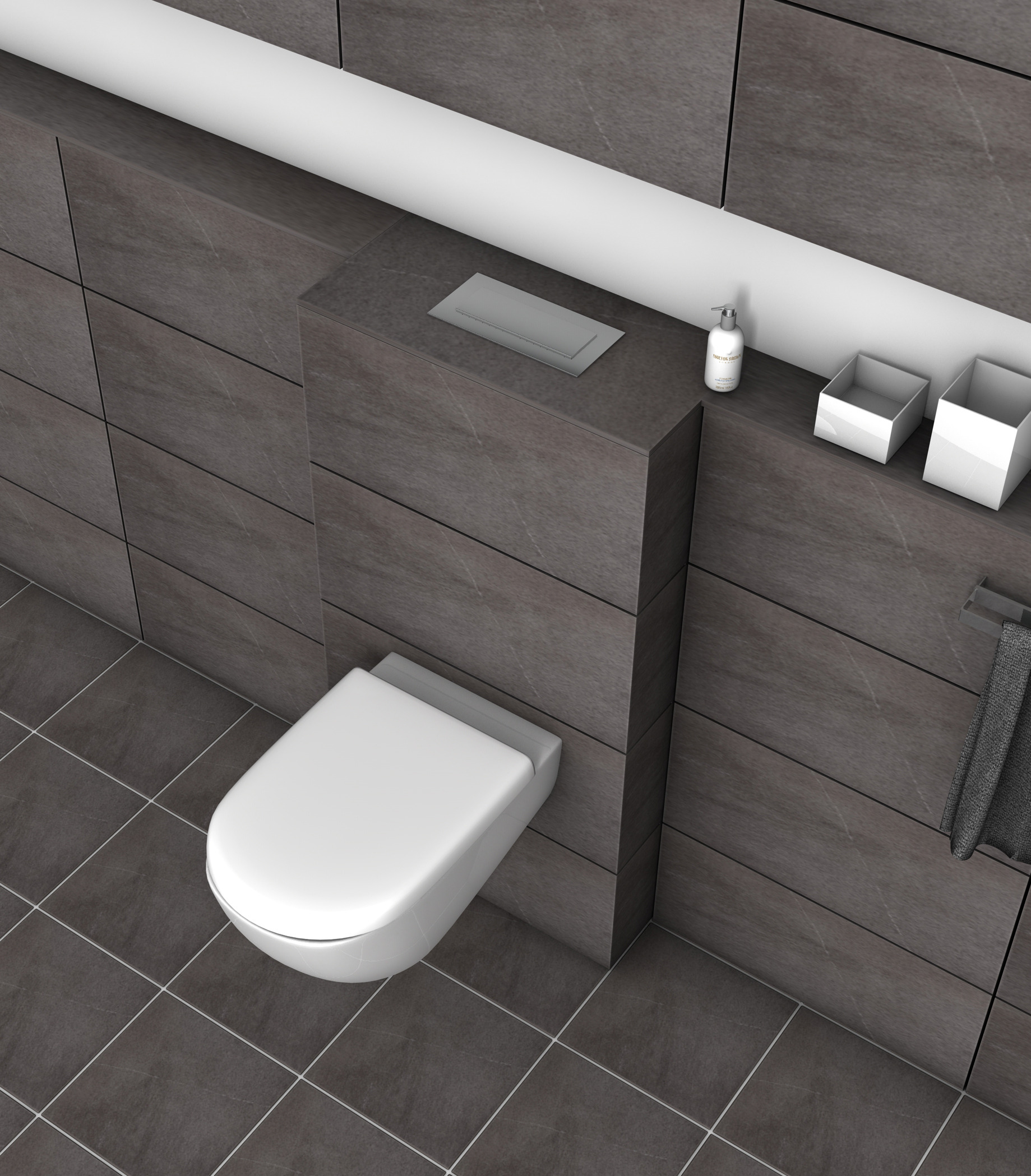

Jackoboard Mounting Set for WC Frame Casing (4521871):
Description:
- A complete solution for aesthetically cladding WC frames.
- Jackoboard by Jackon mounting kit allows for quick and simple casing of all standard WC frames.
- The special element, made of 4 panels of water-resistant extruded polystyrene foam (XPS), is pre-cut to fit all standard WC connections.
- Extremely compression-resistant and ready for direct tiling thanks to the special coating on both sides.
Technical Characteristics:
- Water-resistant
- Special coating on both sides
- Lightweight: approx. 3–6 kg/m²
- Thickness: 20 mm
- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with pipe cutouts) and 3 panels 1300 x 450 x 20 mm
- Excellent thermal insulation λD = 0.035 W/(m·K)
- High compression resistance > 300 kPa
- Certified and approved
- Suitable for high-humidity areas – EB/EB+/EV rooms
Advantages:
- Fits all standard WC connections
- Easy to install
- Ready for direct tiling, plastering, or rendering
Ideal Solution For:
-
Quick and easy cladding of all standard WC frames using tiles without preliminary work
Accessories (not included, must be ordered separately):
- Mounting adhesive
- Reinforcement tape
- Self-tapping metal screws
- Perforated washers
Manufactured in Germany
10-year warranty
