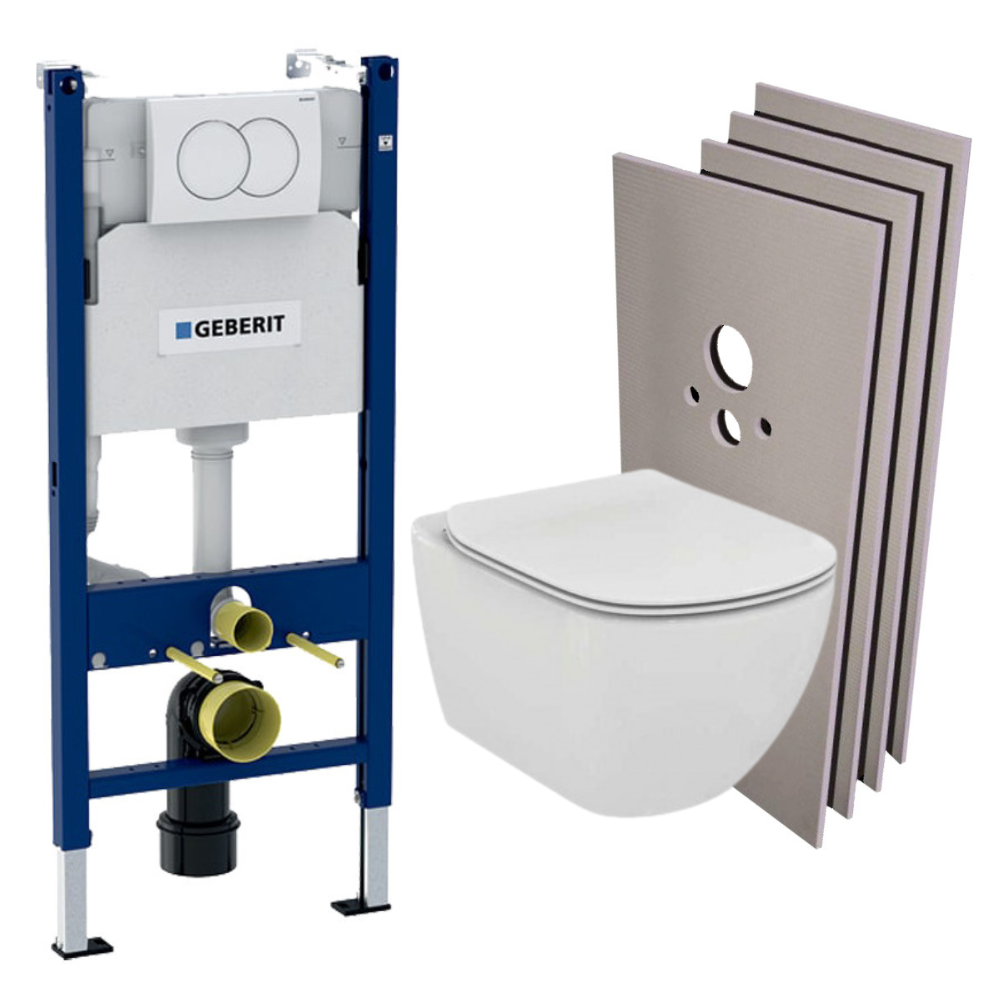

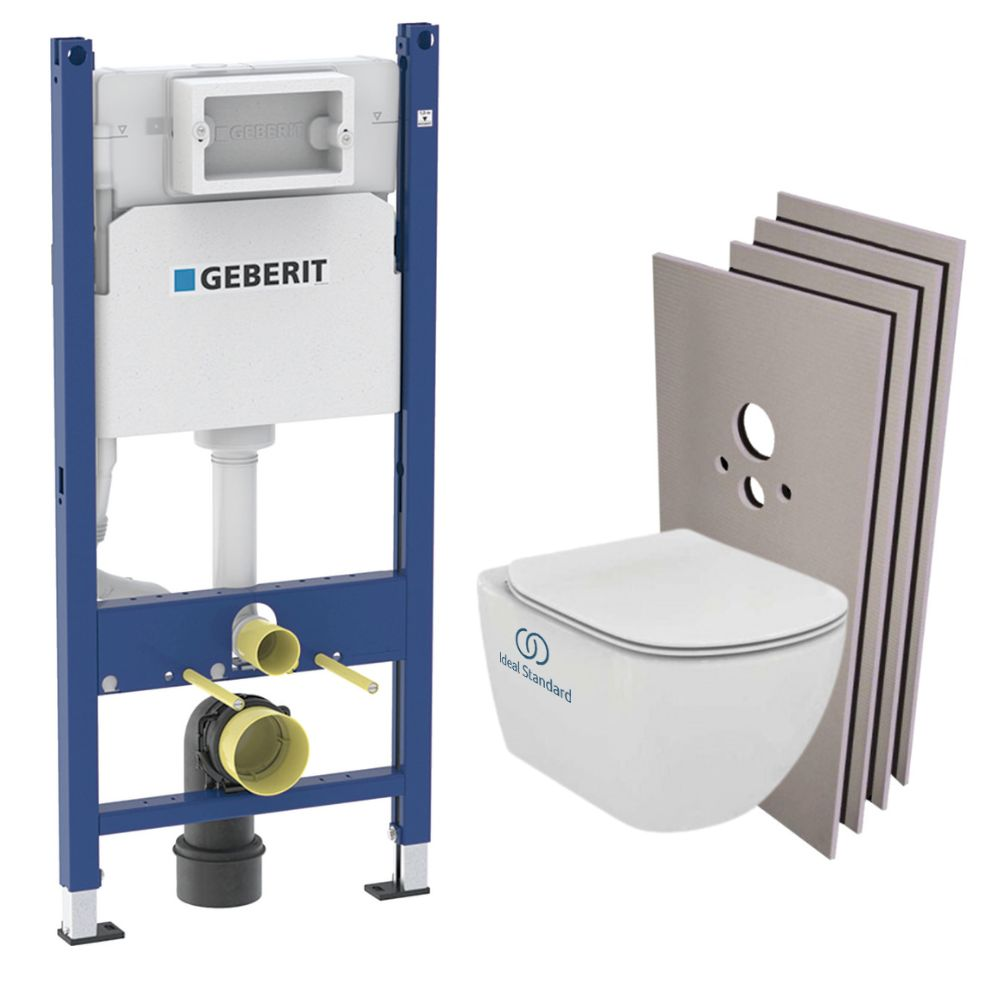

Geberit Toilet Frame + Ideal Standard Tesi Aquablade toilet bowl + White plate + Wall cladding (TESIGEB3-SABO)
- Product reference: TesiGeb3-sabo
- EAN: 0750122358373
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the Ideal Standard Tesi Aquablade Toilet Rack + Basin + White Plate + Cover Set (TesiGeb3-sabo).
This WC set combines the Geberit brand and the Tesi Aquablade range from Ideal Standard. The items in this quality pack are renowned and are sure to satisfy you by providing solutions tailored to your projects. What's more, the Jackoboard by Jackon cladding set included in this pack will enable you to cover the Geberit frame quickly and efficiently.
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
- Colour:White
- Material:Ceramic
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35.00
- Depth:66
- Invisible fixings:Yes
- Product type:Toilet pack + wall cladding
Features of the Toilet Support Frame + Ideal Standard Tesi Aquablade bowl + White plate + Cover set (TesiGeb3-sabo) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall mounting kit for self-assembly (111.839.00.1)
- Geberit DELTA01 white release plate (115.107.11.1)
- Ideal Standard Tesi AquaBlade toilet bowl and ultra-thin seat with fall-brake (T354601)
- Jackoboard Mounting set for WC support frame cladding (4521871)

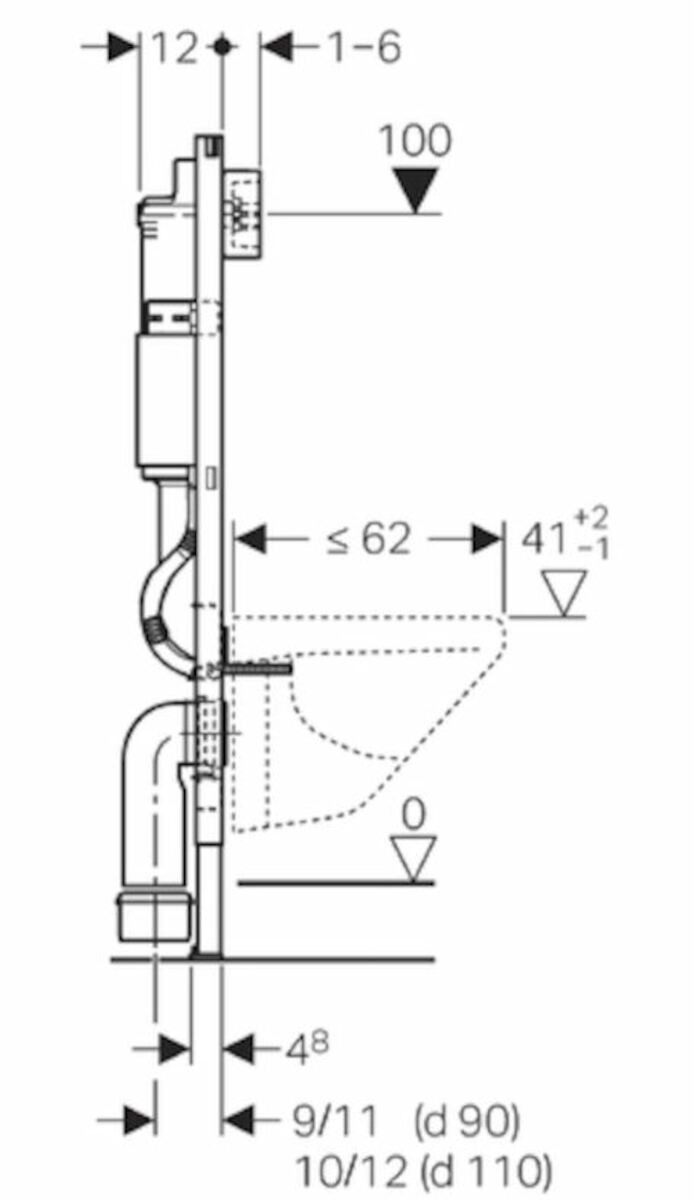

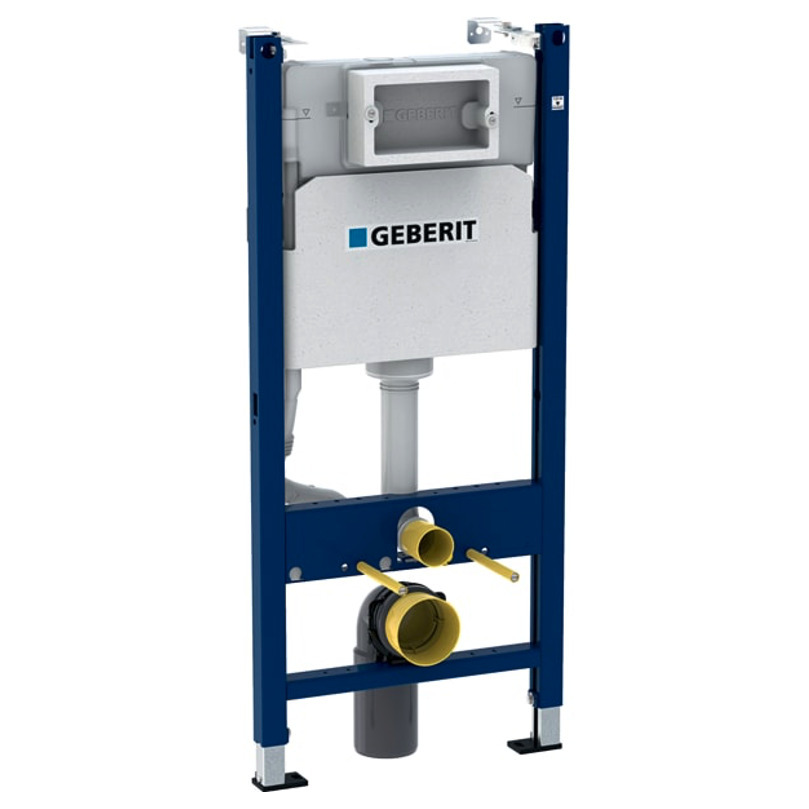

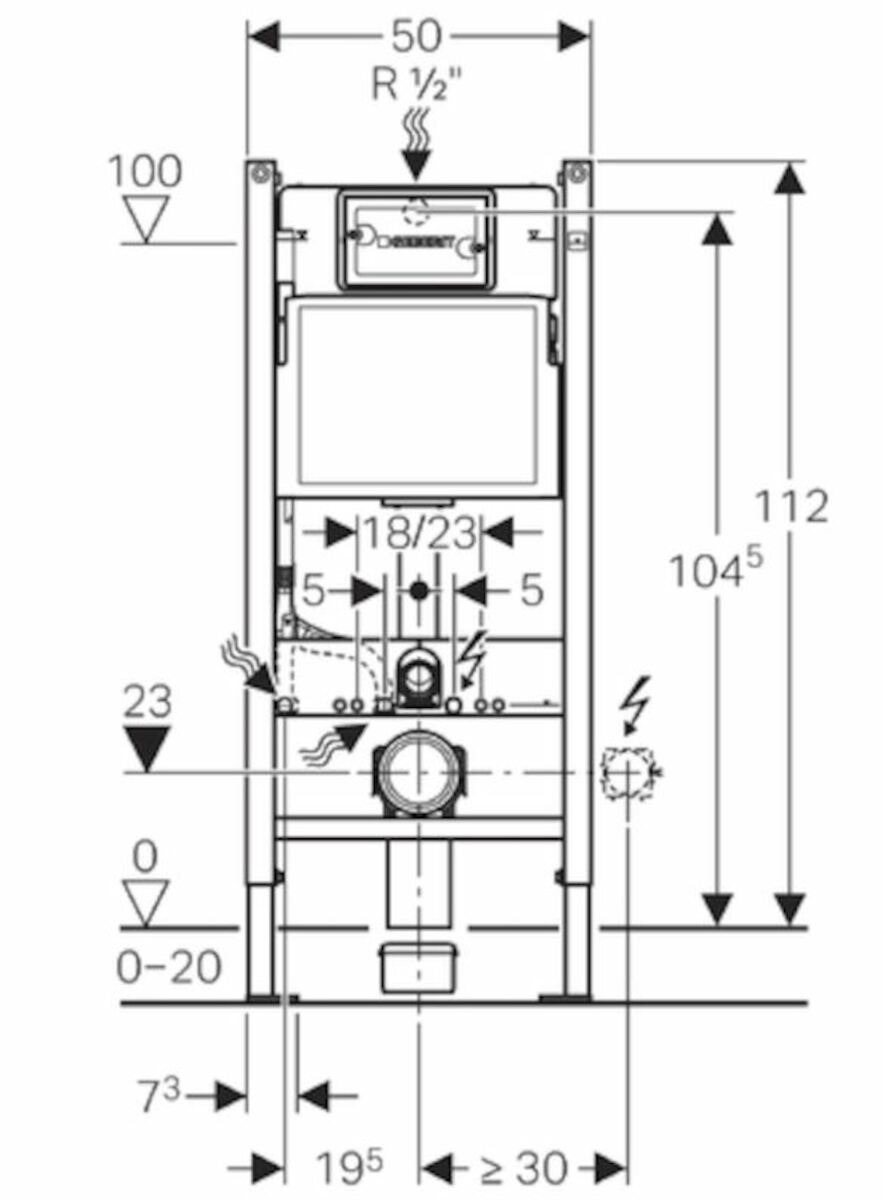

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :
Use:
- For pre-wall installation, full or partial installation
- For solid wall or dry wall installation
- For mounting a wall-hung WC with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
Features :
- Delta Geberit 12 cm flush cistern (UP100) front control, against condensation
- Wide adjustable flow
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply from centre back / top
- Connection pipe to corner valve can be screwed on manually
- 2 flushes with Geberit Delta20 control knobs
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanised supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for UW50 installation
- Installation depth 12 cm
Technical information :
Rinse quantity - factory setting 6 and 3.5 l
High flush volume - setting range 4.5 / 6 / 7.5 l
Included in the frame :
2 M12 threaded rods for ceramic fixing
Drain valve for 2 flush volumes
Cover for rough-in for service hole, polystyrene foam
2 protective caps
Angle tap R 1/2’ with adapter ring
Geberit AquaClean water inlet hose
Connection set ø 90 mm
Waste bend for WC, PE-HD, ø 90/90 mm
Adapter, ø 90/110 mm
Fixing materials
Geberit Duofix wall-mounting kit for self-assembly (111.839.00.1)

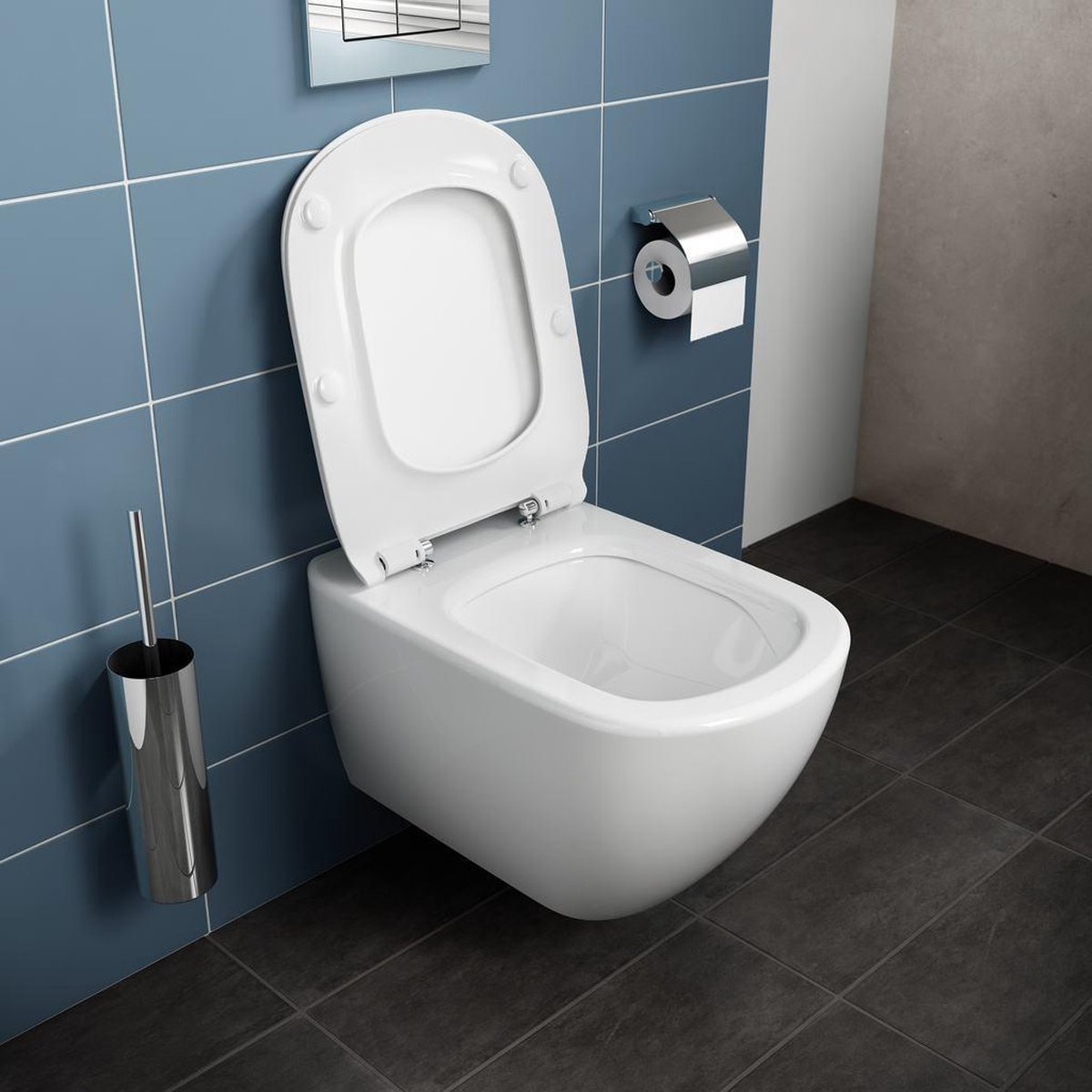

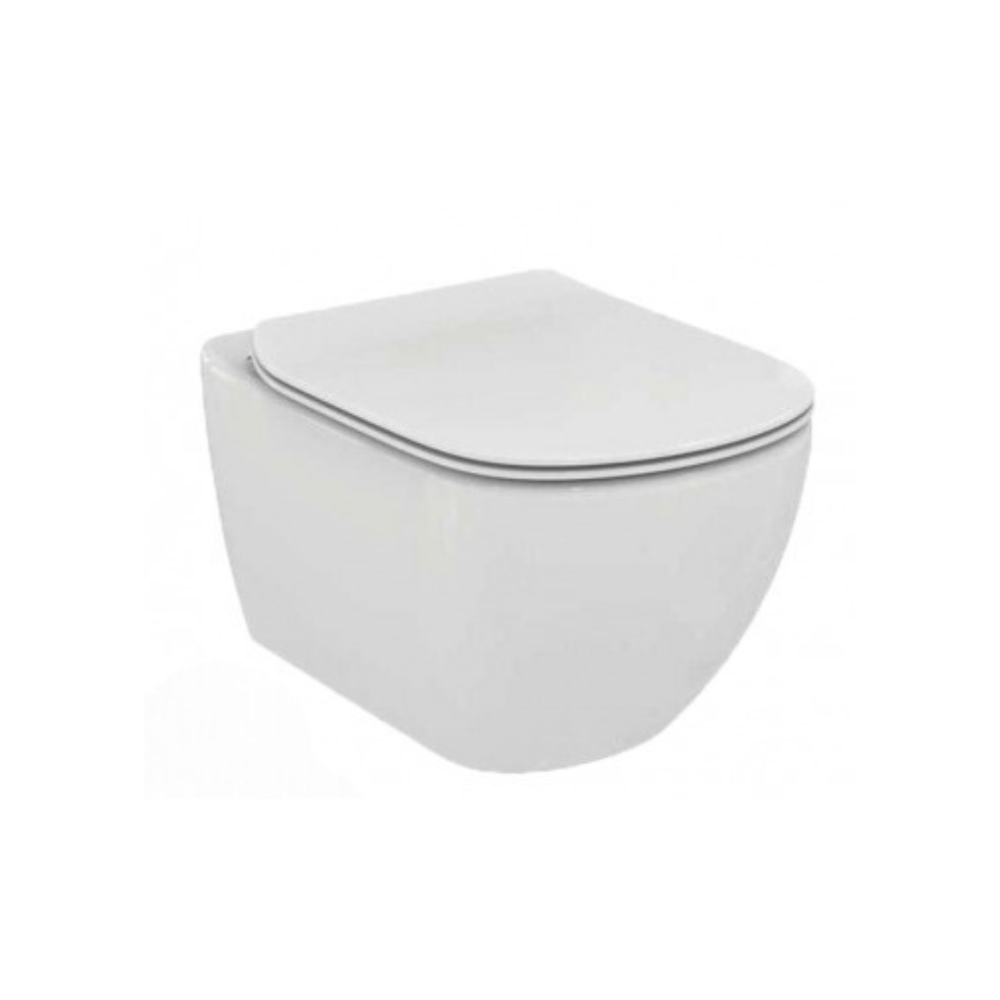

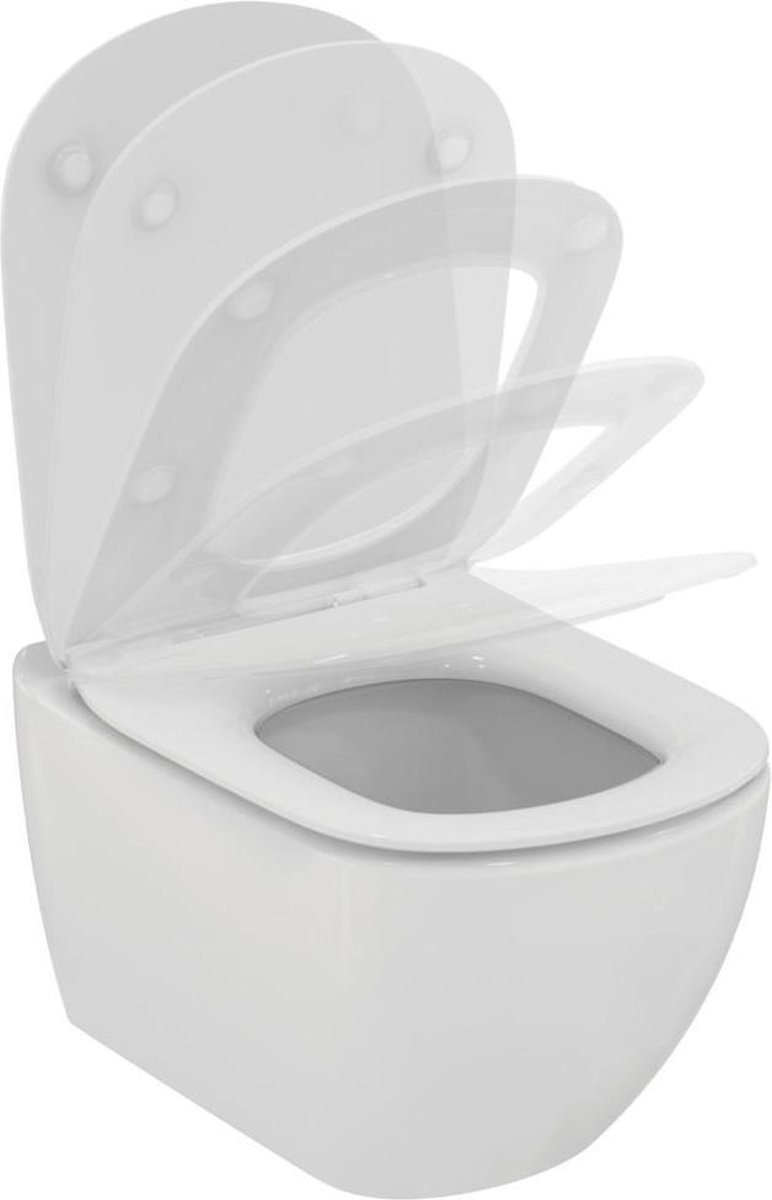

Ideal Standard Tesi AquaBlade toilet bowl and ultra-thin seat with drop-brake (T354601) :
- Porcelain fired at 1270°, is insensitive to light and unalterable to basic acids.
- Its porosity is less than 0.1% and its breaking point is between 500 and 600Kg/cm2.
- The enamel (0.7mm thick) is applied directly to the porcelain and fired at the same temperature, without any slip.
- The enamel complies with standard NF D14-503 (02/2012) concerning resistance to temperature variations at 60°c and thermal shock cycles at 120°c.
- The enamel is resistant to the chemicals described in standard NF D14-508 (02/2012).
- The wall-hung toilet bowl has an elegant design with no protrusions.
- The rear wall is 285cm wide.
- The bowl has no flange and is fully enamelled for easy cleaning.
- Water passes through two open side channels and a central hole.
- The bowl is designed for efficient flushing at 4/2 & 6/3 litres (class 2).
- The fixings are located 180mm apart.
- The bowl is fixed using two threaded rods.
- The installed bowl has a load tolerance of 400kg with no risk of deformation or loosening.

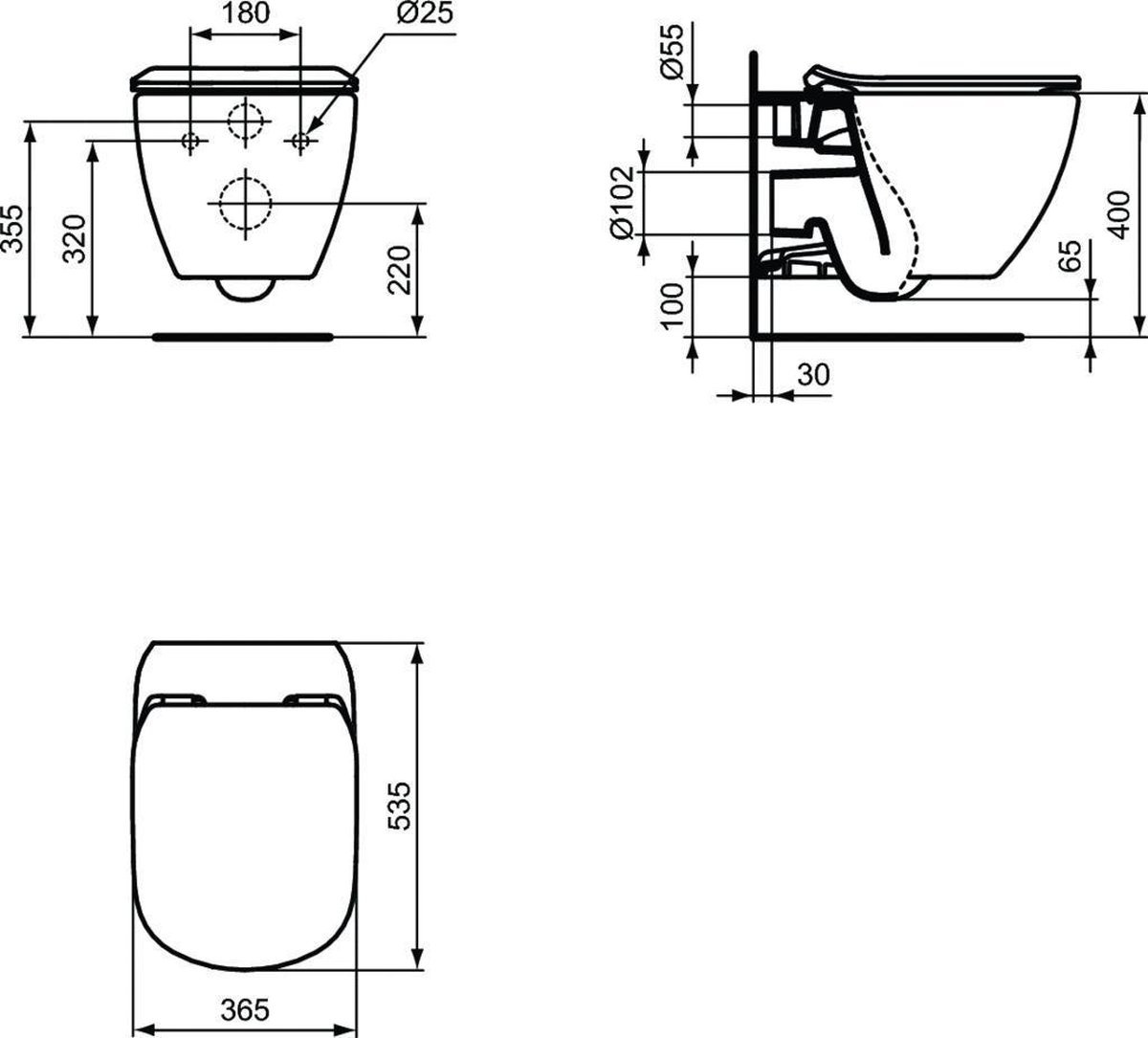

- If the bowl is fixed 320mm from the finished floor, the height of the seat without flap will be 400mm and the distance between the bottom of the bowl and the finished floor will be 60mm.
- The manufacturer's name appears in full on the product.
- Dimensions (WxDxH): 365 x 535 x 355mm
- Complies with standard: EN 997 & EN 33

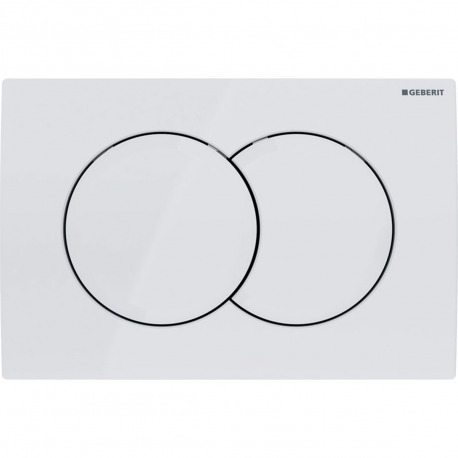

Geberit DELTA01 trigger plate (115.107.11.1) :
Delta has 2 buttons, one for a small 3-litre flush and the other for a large 6-litre flush.
Water saving
Front release

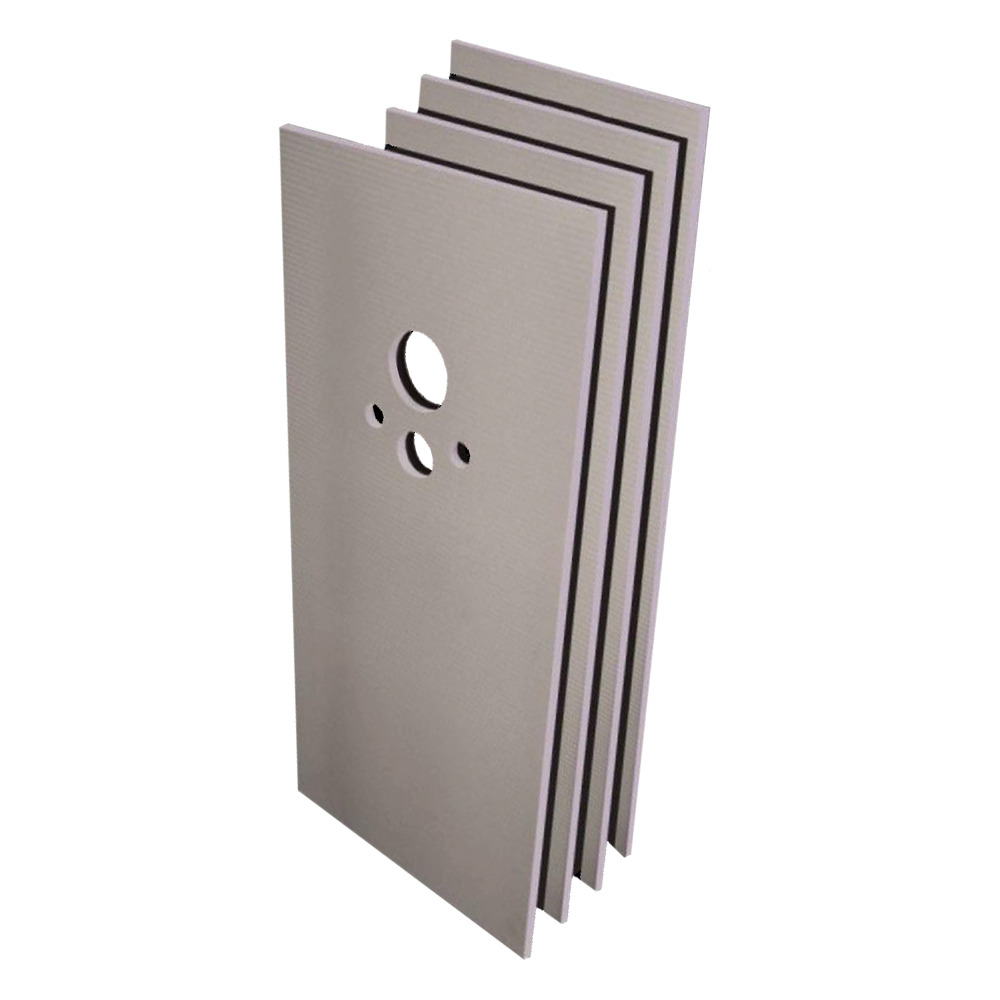

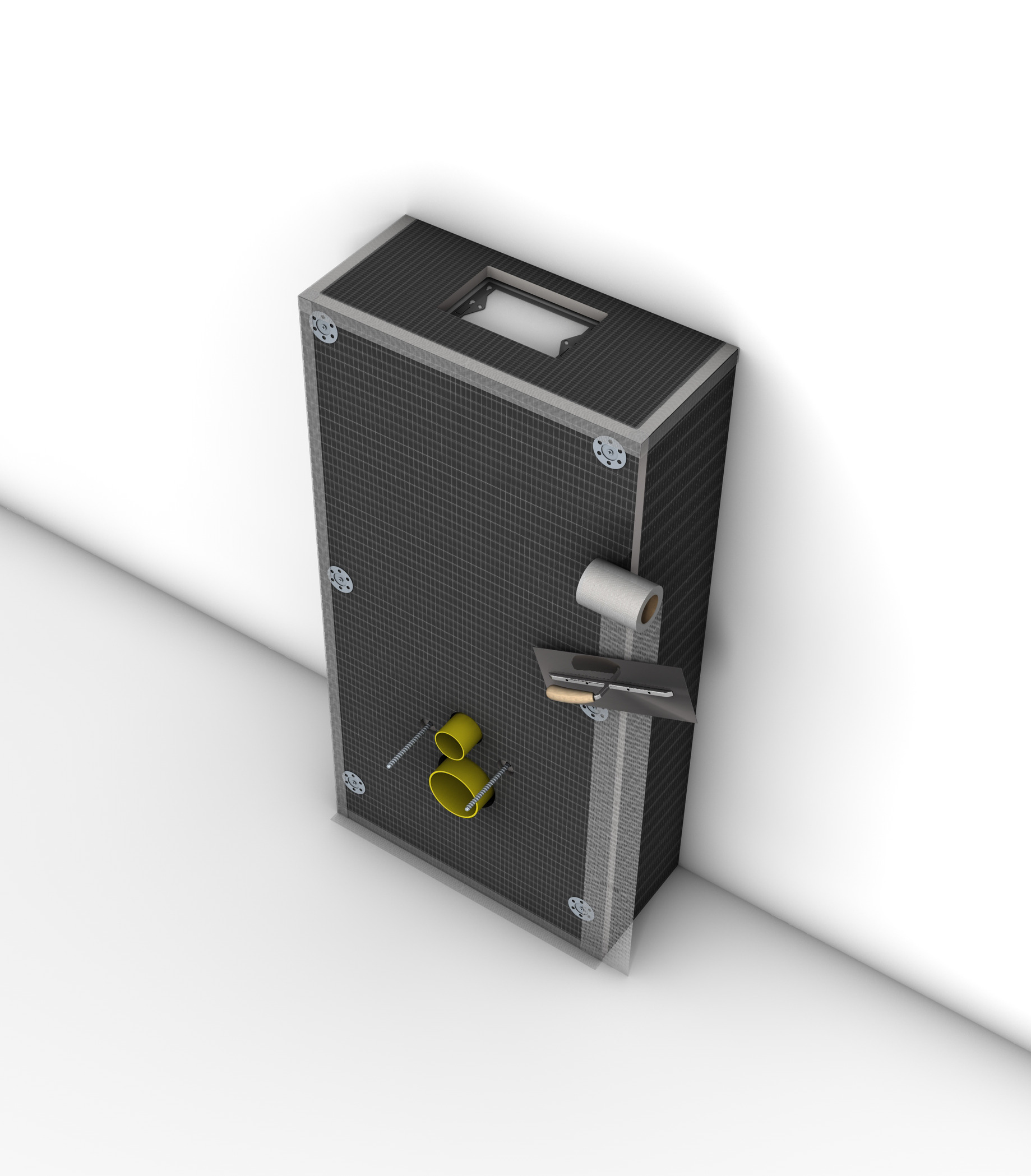

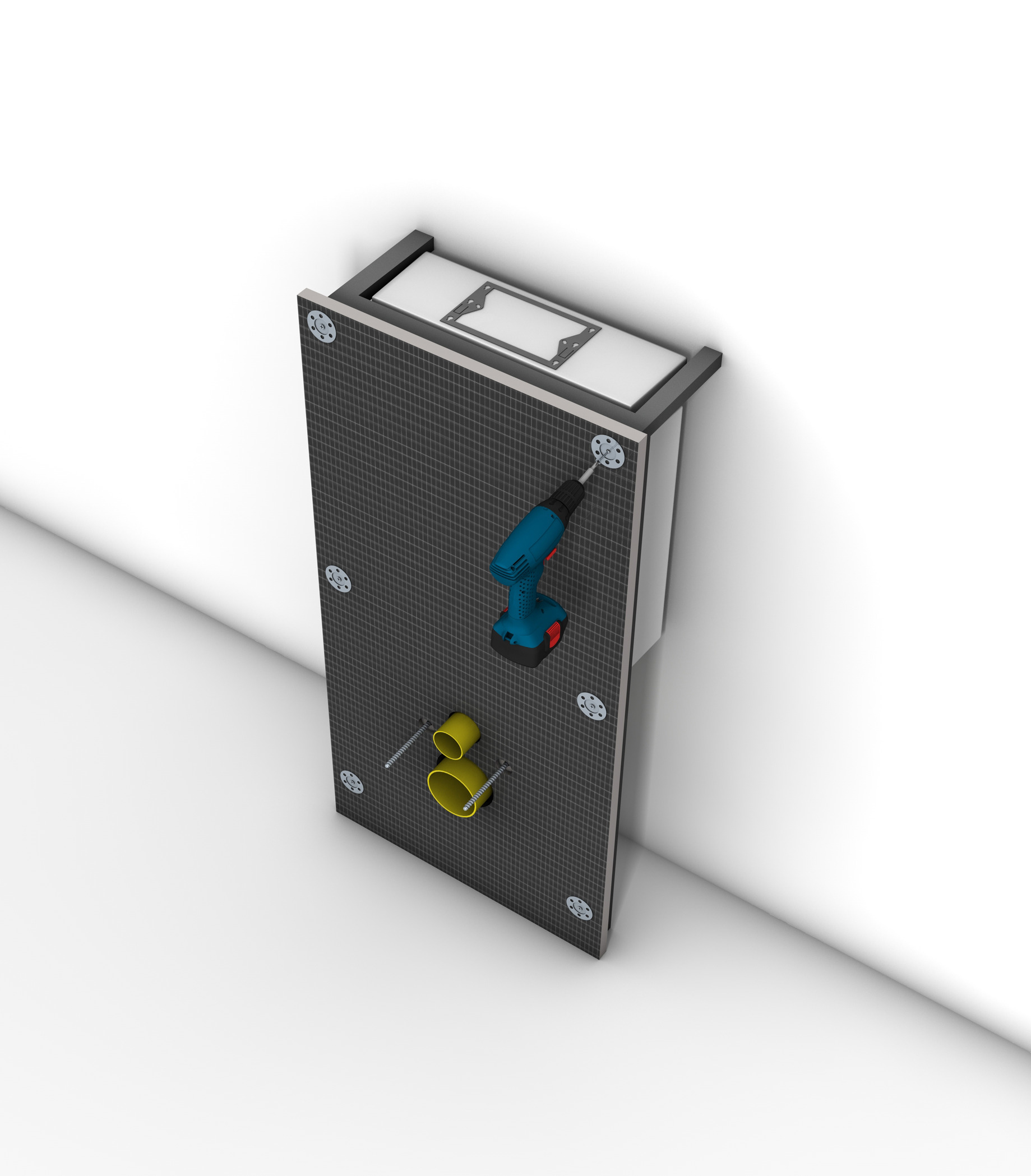

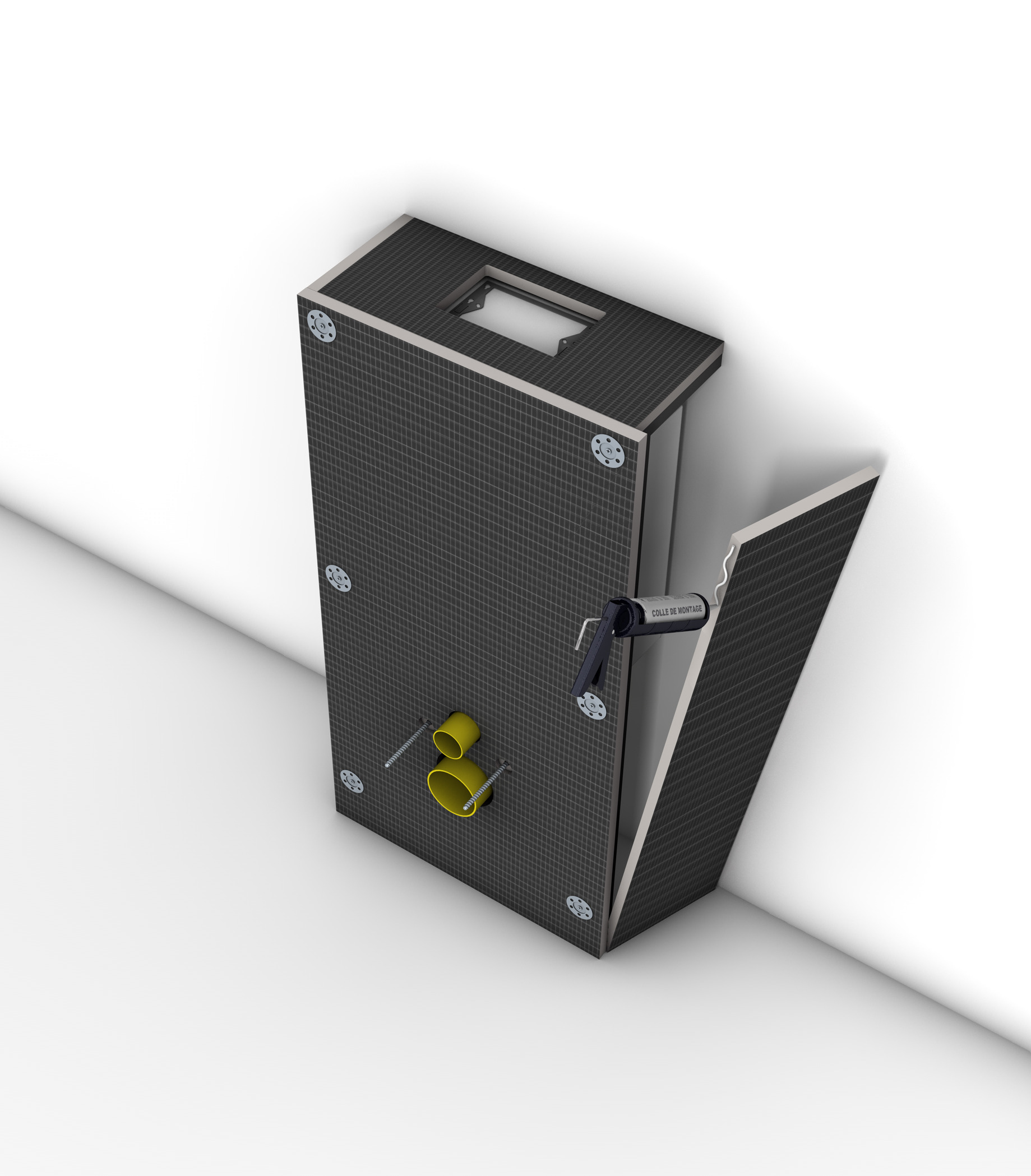

Jackoboard mounting set for WC support frame cladding (4521871):
The complete solution for the aesthetic design of WC.
Technical caracteristics :
- Mounting glue
- Reinforcement strip
- Self-drilling metal screws
- Openwork washers Made in Germany 10 year warranty
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
