Jackon Vertical siphon (0.9 l/s) for Aqua (4512008)
- Product reference: 4512008
- EAN: 4025345094794
Always the right choice: Horizontal or vertical drains.
JACKOBOARD® Aqua drainage systems are perfectly matched to JACKOBOARD® Aqua shower trays. There are various versions: the ultra-flat horizontal drain with a minimum thickness of only 97 mm including the shower tray and the vertical drain.
Technical features of the JACKOBOARD® Aqua drainage systems :

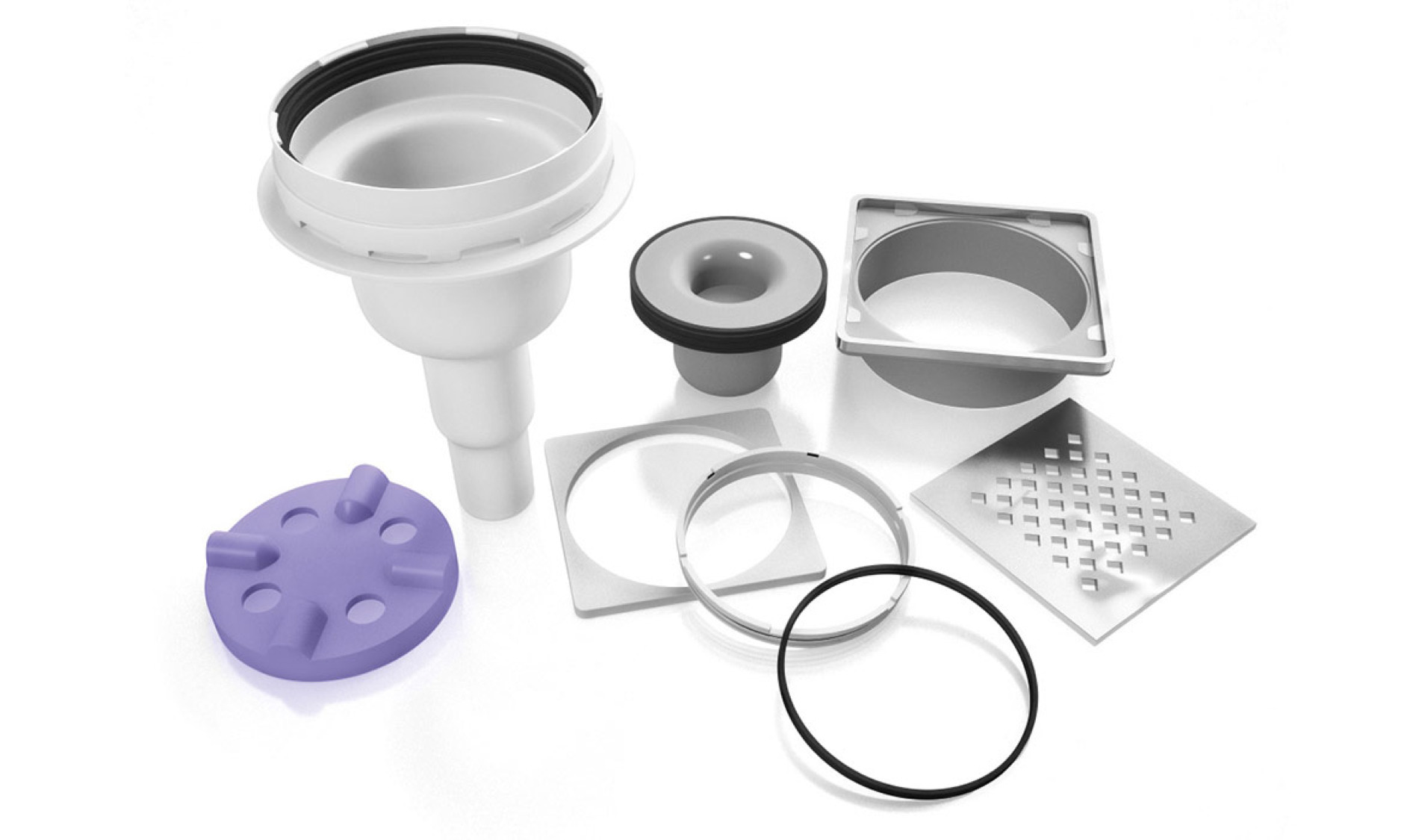

- High-quality design grates made of solid brushed stainless steel
- Height-adjustable grate from 3 to 18 mm
- Ultra-flat horizontal drain with a minimum thickness of 97 mm, including the shower tray
- Flow rate of 0.9 l/s

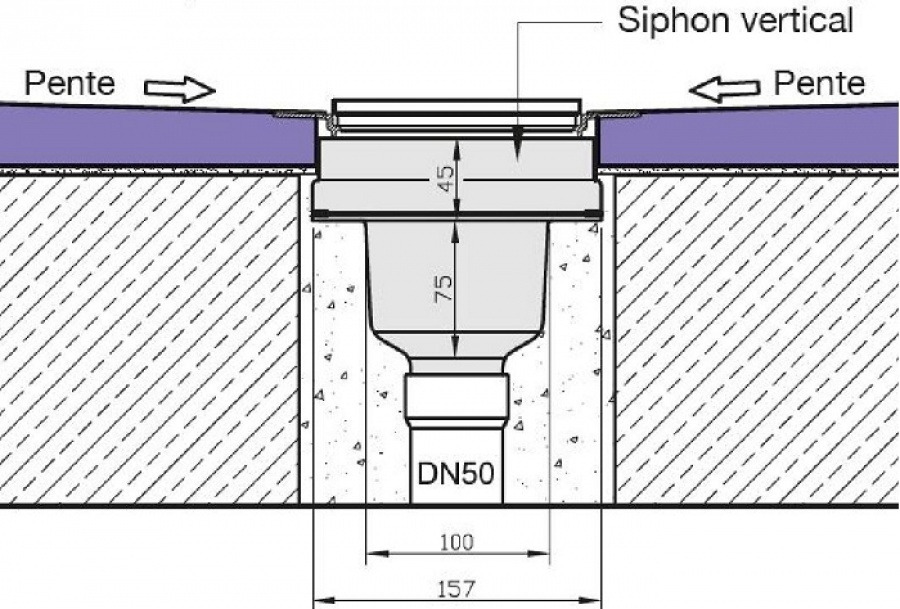

- Drain height 50 mm
- DN 50 (horizontal), DN 40/50 (vertical)
- Drainage connection made of glueable ABS plastic
Advantages of the JACKOBOARD® Aqua drainage systems :
- Perfectly suited to the technical requirements of JACKOBOARD® Aqua shower trays.
Ideal solution :
- For the quick installation of perfectly matched drainage systems for all JACKOBOARD® Aqua shower trays.
Video presentation : https://www.youtube.com/watch?v=QuToE1_YmW0
