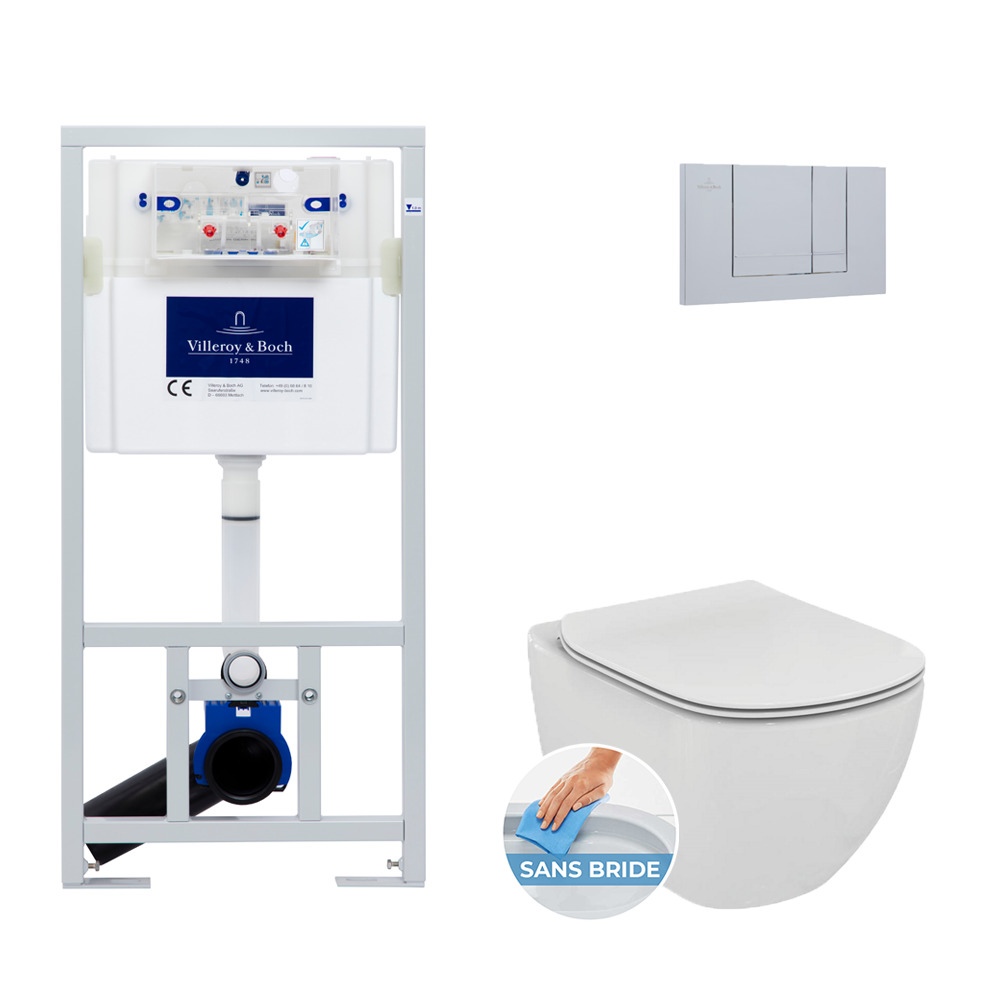

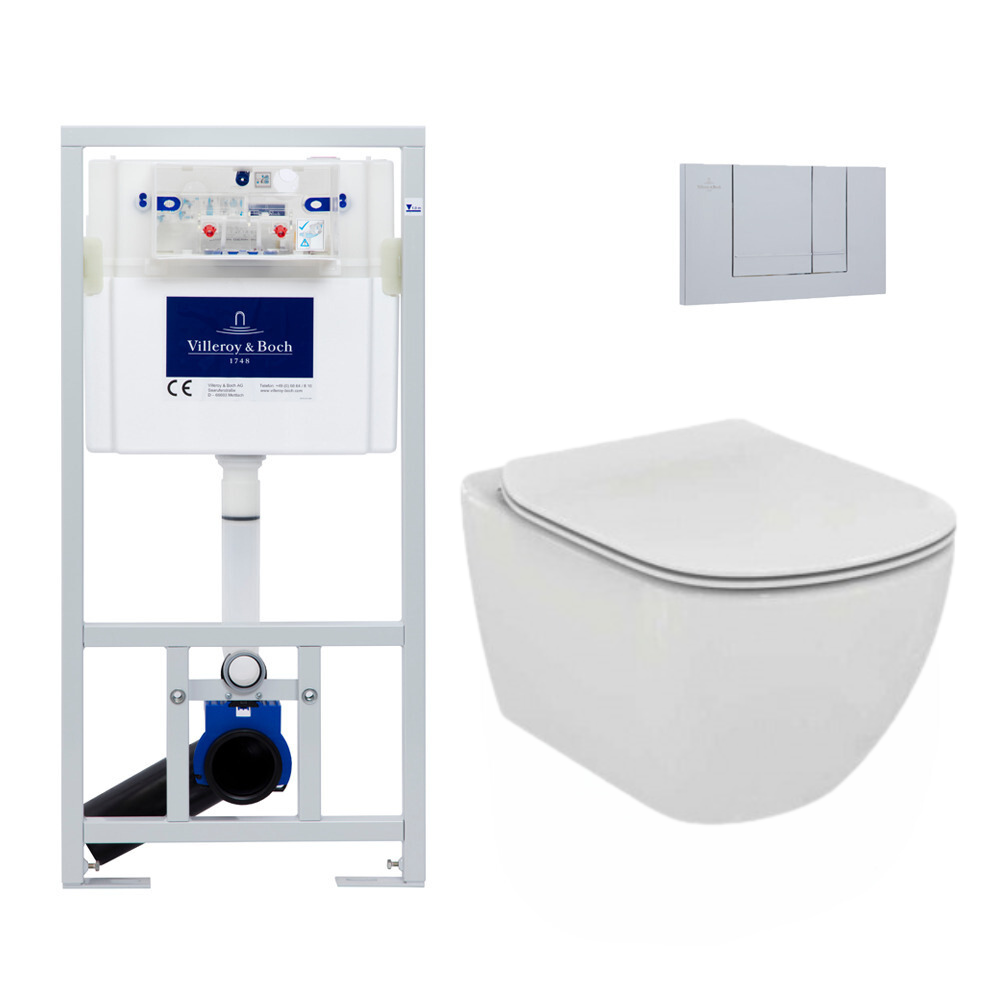

Toilet set support frame + Ideal Standard TESI AquaBlade rimless bowl + Chrome flush plate (ViConnectTesi-1)
- Product reference: ViConnectTesi-1
- EAN: 0750122359714
Brand:
Product warranty:
2 years
Not available
You may also interested in these articles
Product technical properties
- Colour: White
- Material: Porcelain
- Length (cm): 66
- Width (cm): 184
- Height (cm): 60
- Toilet bowl brand: Ideal Standard
- Toilet bowl: Rimless
- Soft closing seat: Softclose
- Frame brand: Villeroy & Boch
- Type of frame: Standard
- Plate colour: Chrome
- Constructor warranty: 2 years
- Weight: 35.00
- Depth: 66
- Bowl colour: White
- Invisible fixings: Yes
- Product type: Toilet pack
Villeroy & Boch is committed: All spare parts for the frame are available 25 years after purchase.
Features of the toilet set support frame + Ideal Standard TESI AquaBlade rimless bowl with invisible fixings + Chrome flush plate (ViConnectTesi-1) :
- Ideal Standard TESI - Flangeless AquaBlade Toilet Bowl + Ultra-thin seat with fall arrest (T354601)
- Viconnect Pro Pack Support frame for wall-hung toilet + chrome two-touch release plate (92214461)

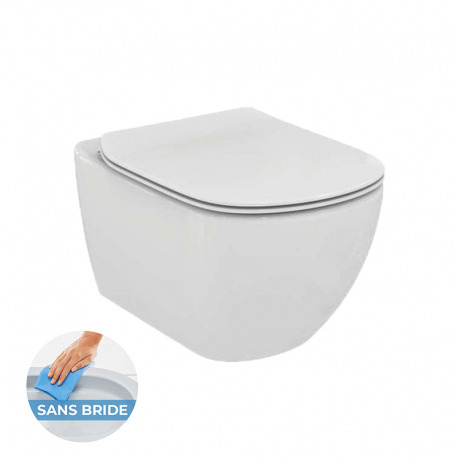

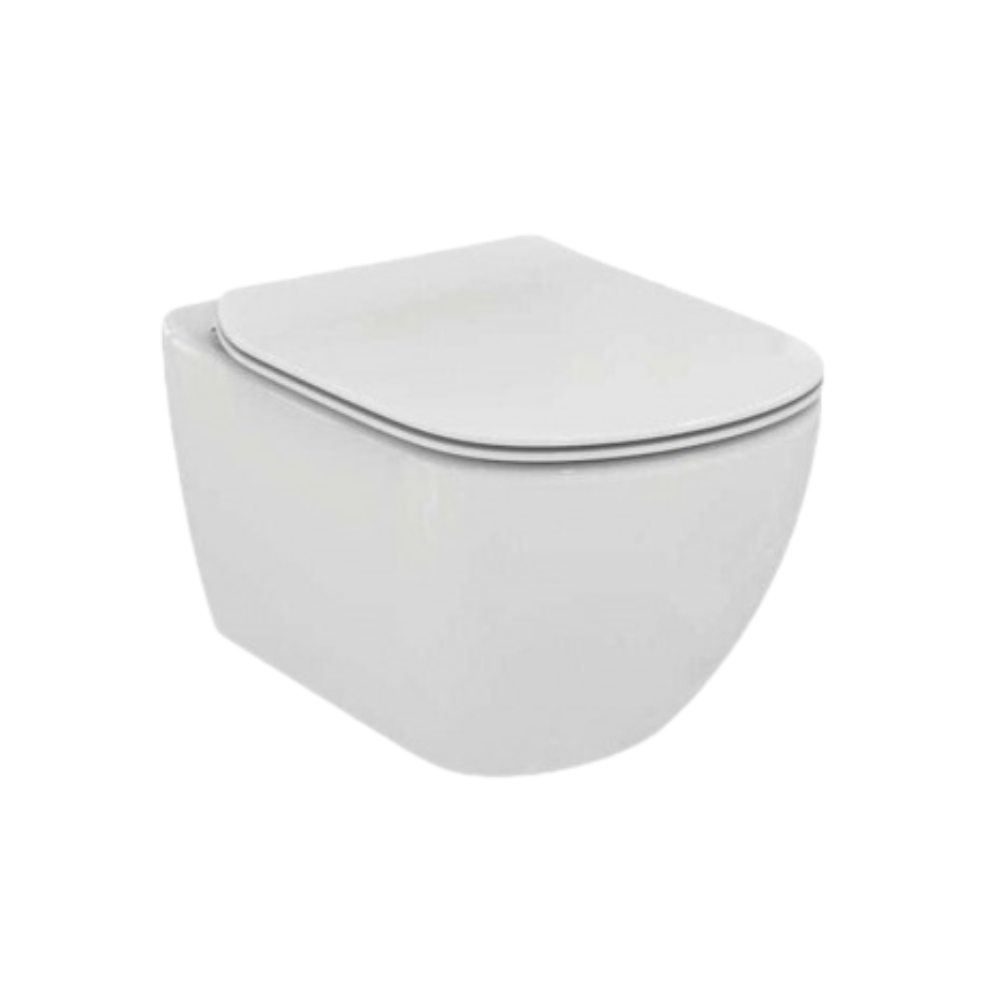

Ideal Standard TESI - AquaBlade flangeless toilet bowl + ultra-thin seat with fall brake (T354601) :
- Rimless porcelain sanitary ware toilet bowl (T007901)
- Toilet seat with soft close system (T352701)
.
Features:

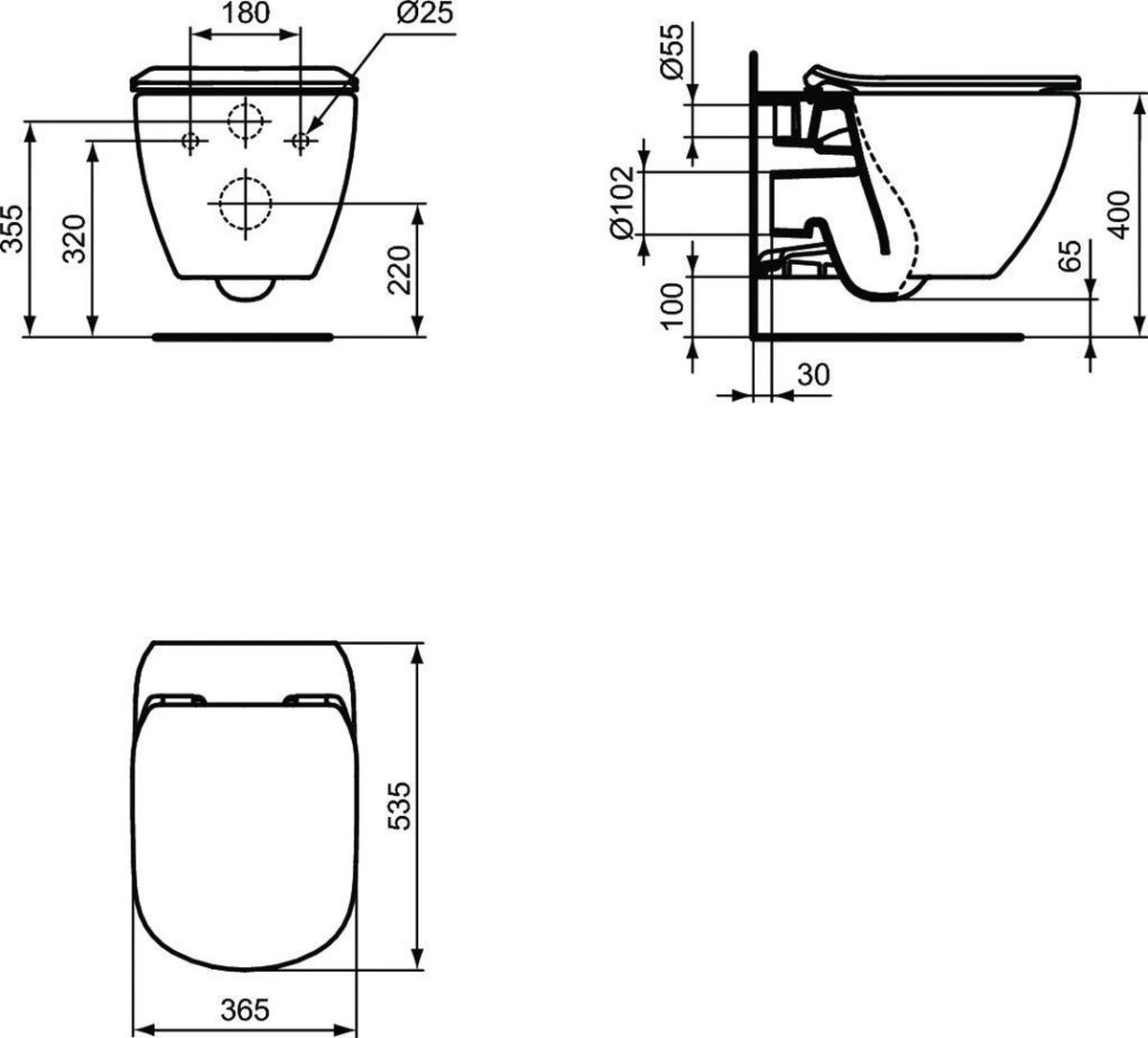

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning
- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm

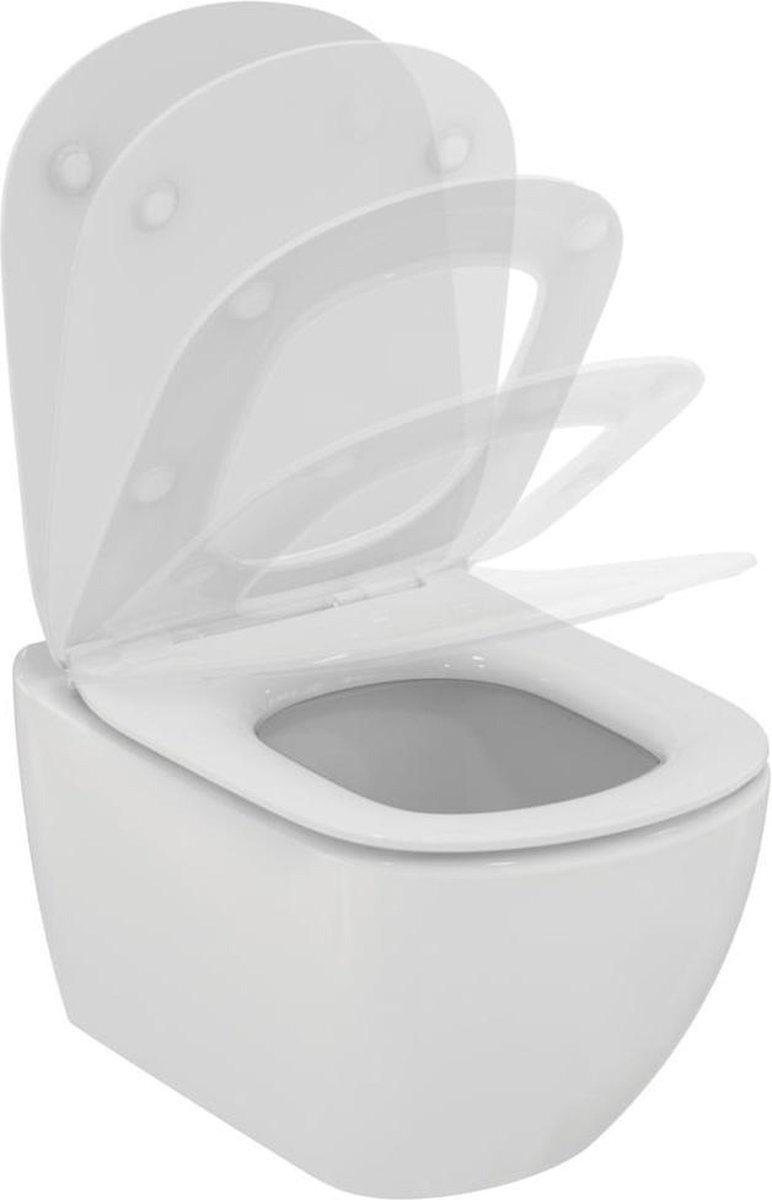

- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33
-
Sound insulation set SP 156SET not included. Not mandatory but strongly recommended.

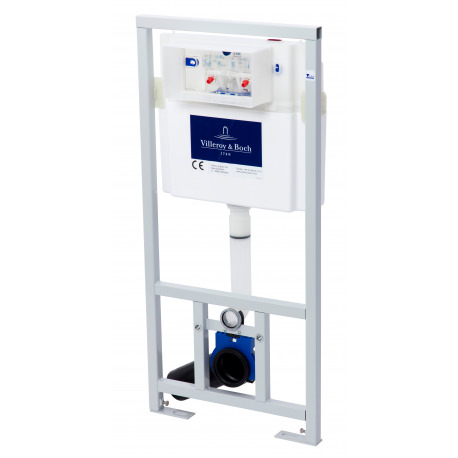

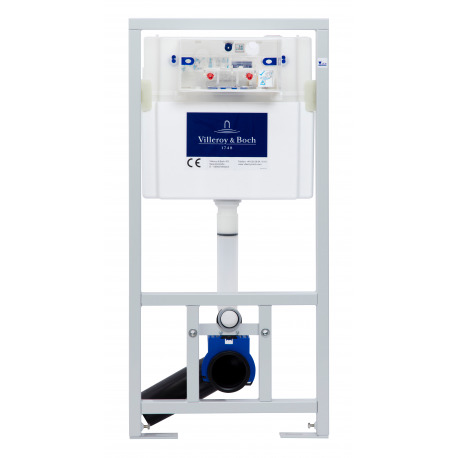

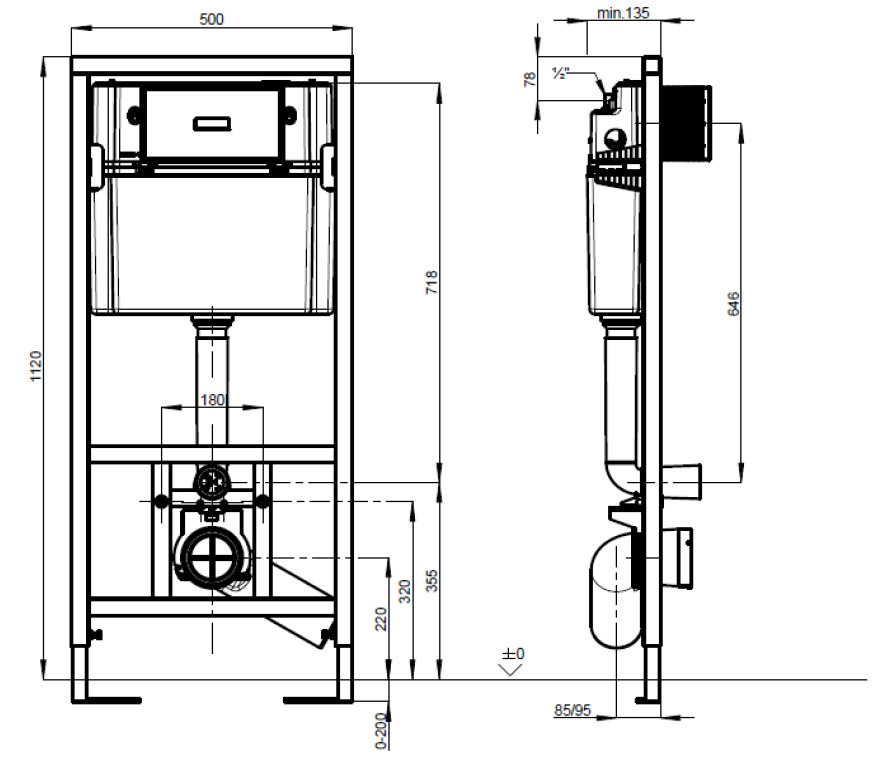

Villeroy & Boch ViConnect Pro (92214200) :
- For drywall construction
- To be built on a load bearing wall
- Leg adjustment range: 0-200mm
- Adjustment range in front of wall: 135-205mm (when mounted on wall brackets)
- 4-point mounting with wall brackets
- Includes support legs and mounting materials for front, side or corner installation
- With protective cap for the flush pipe
- Toilet retaining bolts adjustable to 180 mm with protective caps and nuts
- Installation instructions
- To be combined with wall-hung toilets
- Can be combined with Aquareduct ceramic (LEED points: 4)
- Completely pre-assembled
- Concealed cistern with condensation protection and 3/6l dual flush
- Adjustable to 3/4.5l, maximum flush quantity 7.5l
- Concealed cistern: Noise class I

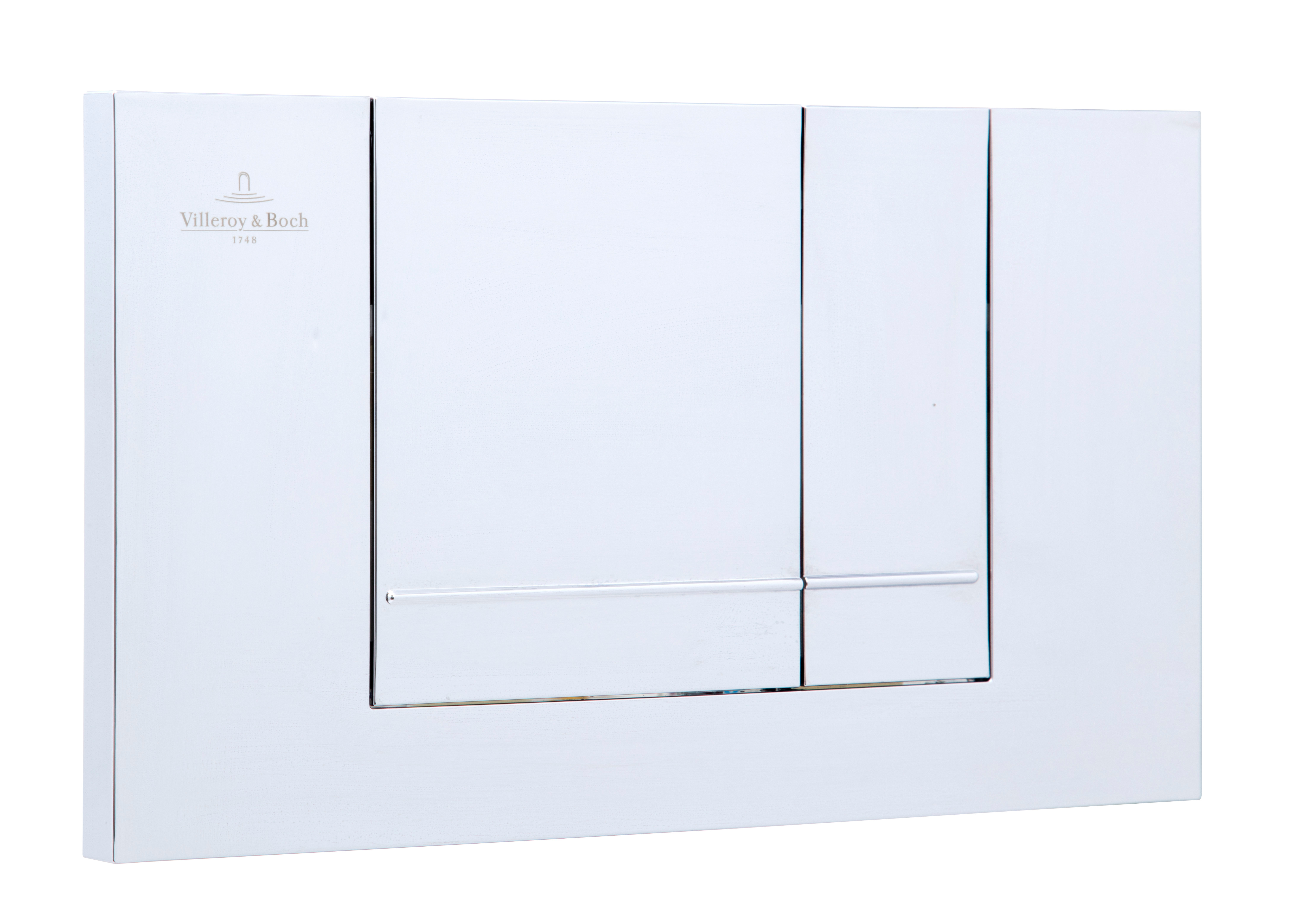

Villeroy & Boch Viconnect Pro (92214361) :

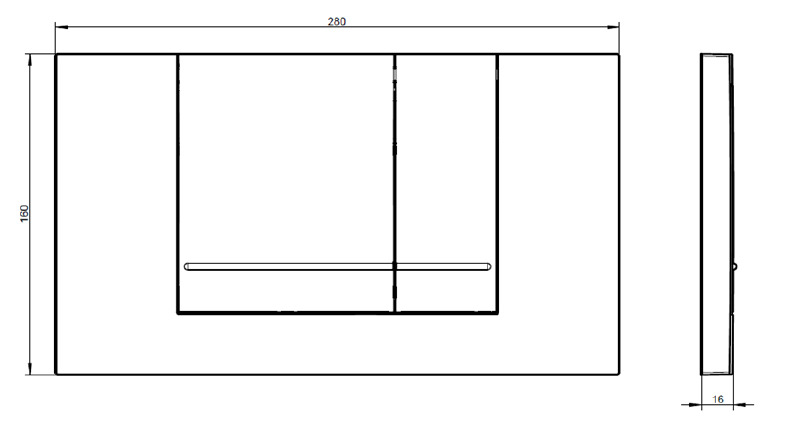

- Dimensions: 280 x 160 x 16 mm
- Water saving dual flush technology
- Made of high quality materials
- Can be combined with the Aquareduct toilet
