This product is no longer available on Bathroom2Kitchen

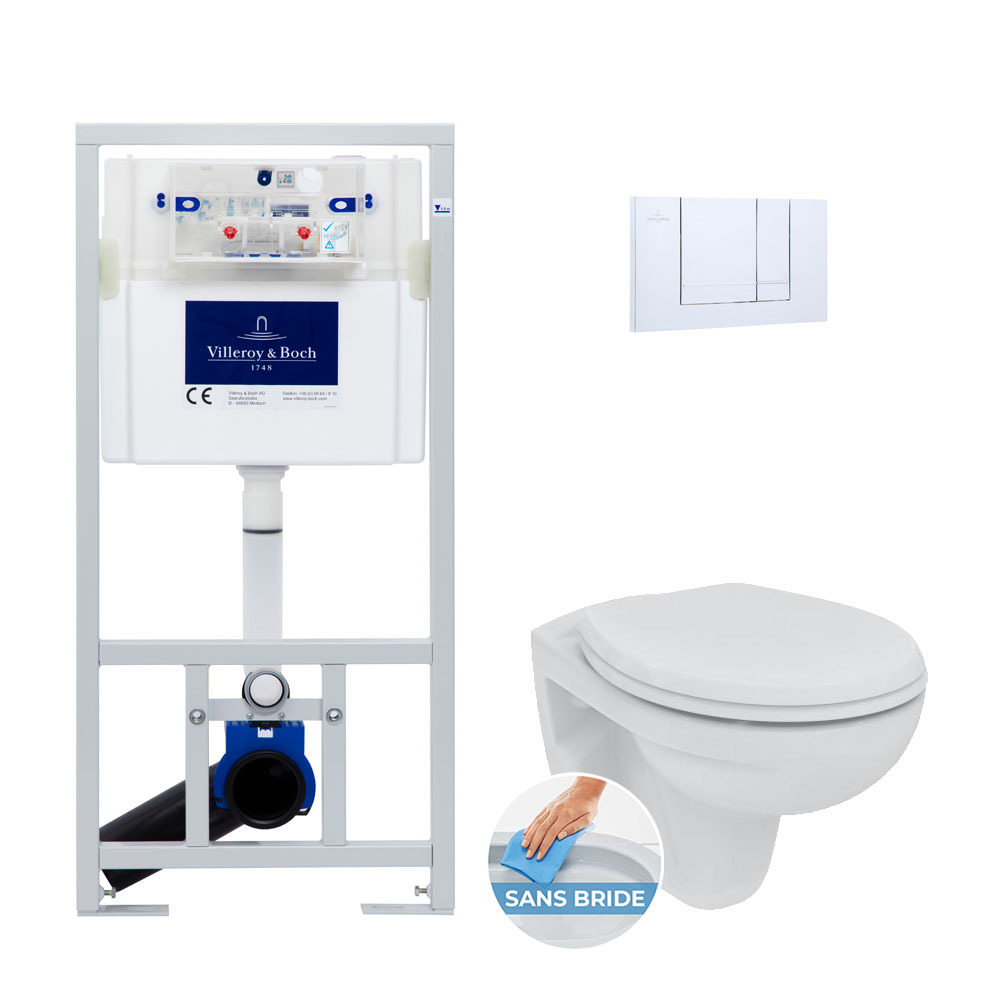

Villeroy & Boch Pack Toilet Frame Porcher Eurovit rimless toilet+ Toilet seat + Chrome plate (ViConnectPorcher-1)
- Product reference: ViConnectPorcher-1
- EAN: 0750122359493
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Colour:White
- Material:Porcelain
- Length (cm):52
- Width (cm):35.5
- Height (cm):35
- Toilet bowl brand:Porcher
- Toilet bowl:RIMLESS
- Soft closing seat:STANDARD
- Frame brand:Villeroy & Boch
- Type of frame:STANDARD
- Plate colour:CHROME
- Weight:16.2
Villeroy & Boch is committed: All spare parts for the frame are available 25 years after purchase.
.

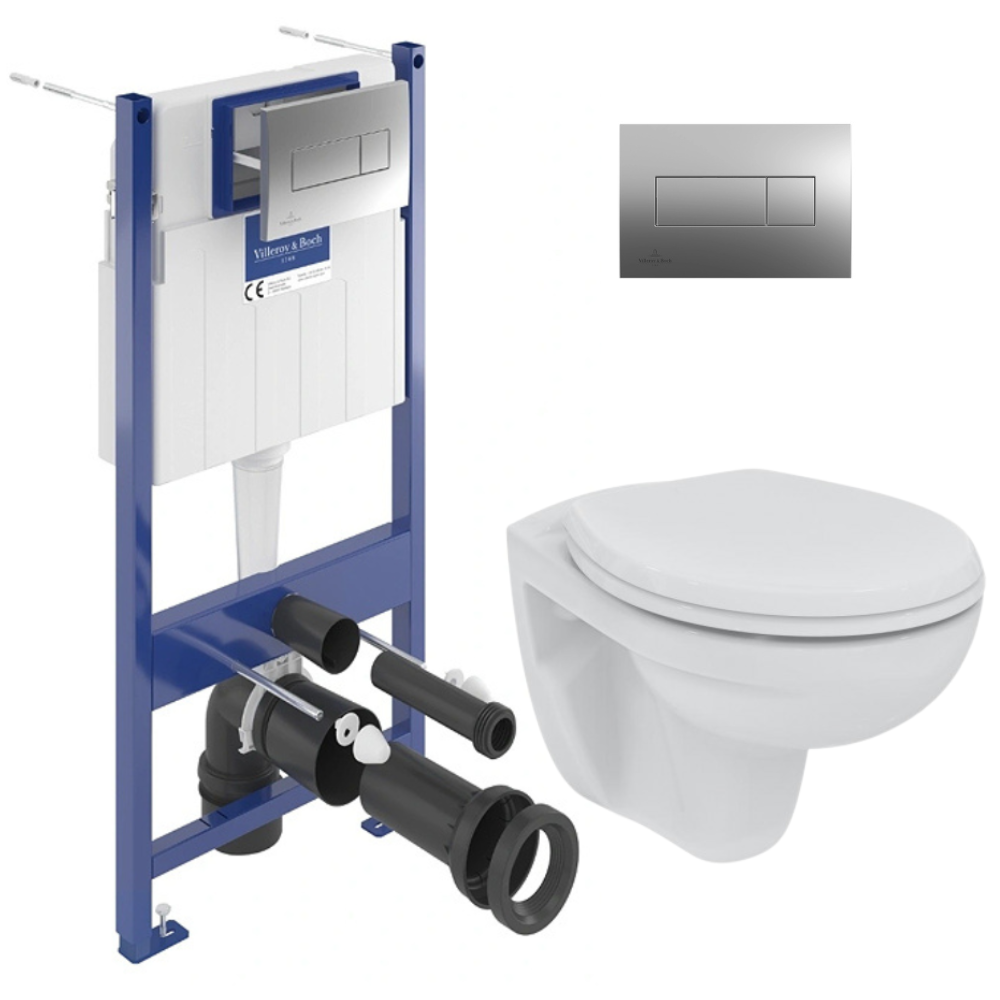

Features of the Porcher Eurovit Rimless Toilet Rack + Flap + Chrome Plate Pack (ViConnectPorcher-1) :
- Porcher Eurovit rimless wall-hung toilet (P006701)
- Ideal Standard Astor toilet seat (W302601)
- Villeroy & Boch Viconnect Pro Pack Support frame for wall-hung toilet + chrome two-touch release plate (92214461)
.

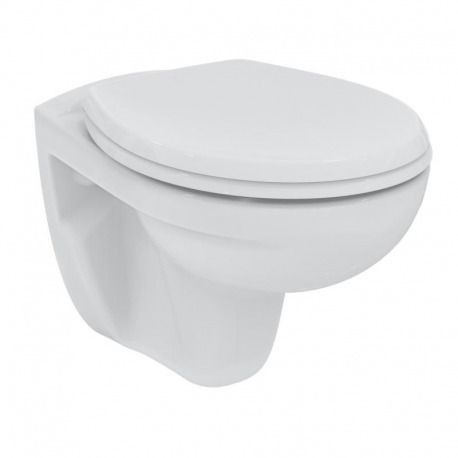

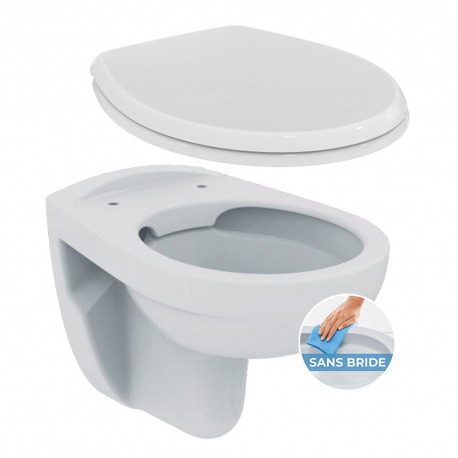

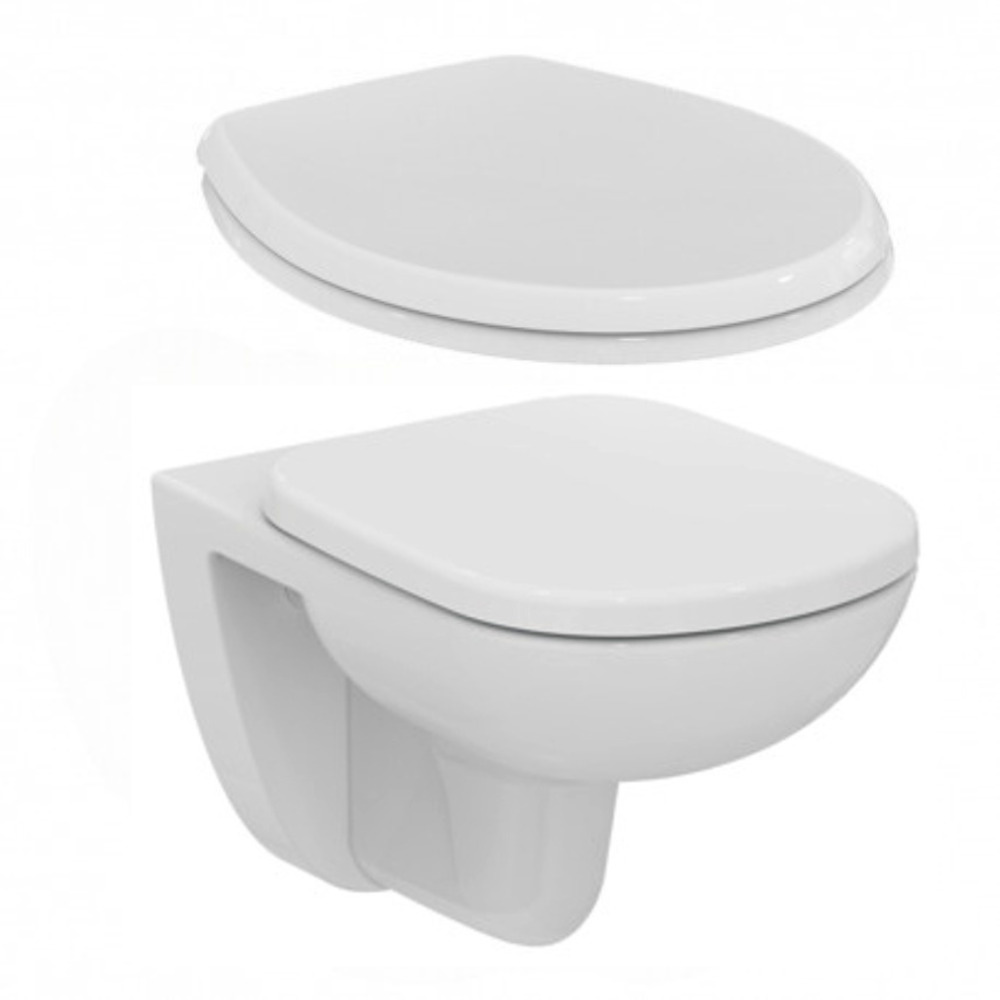

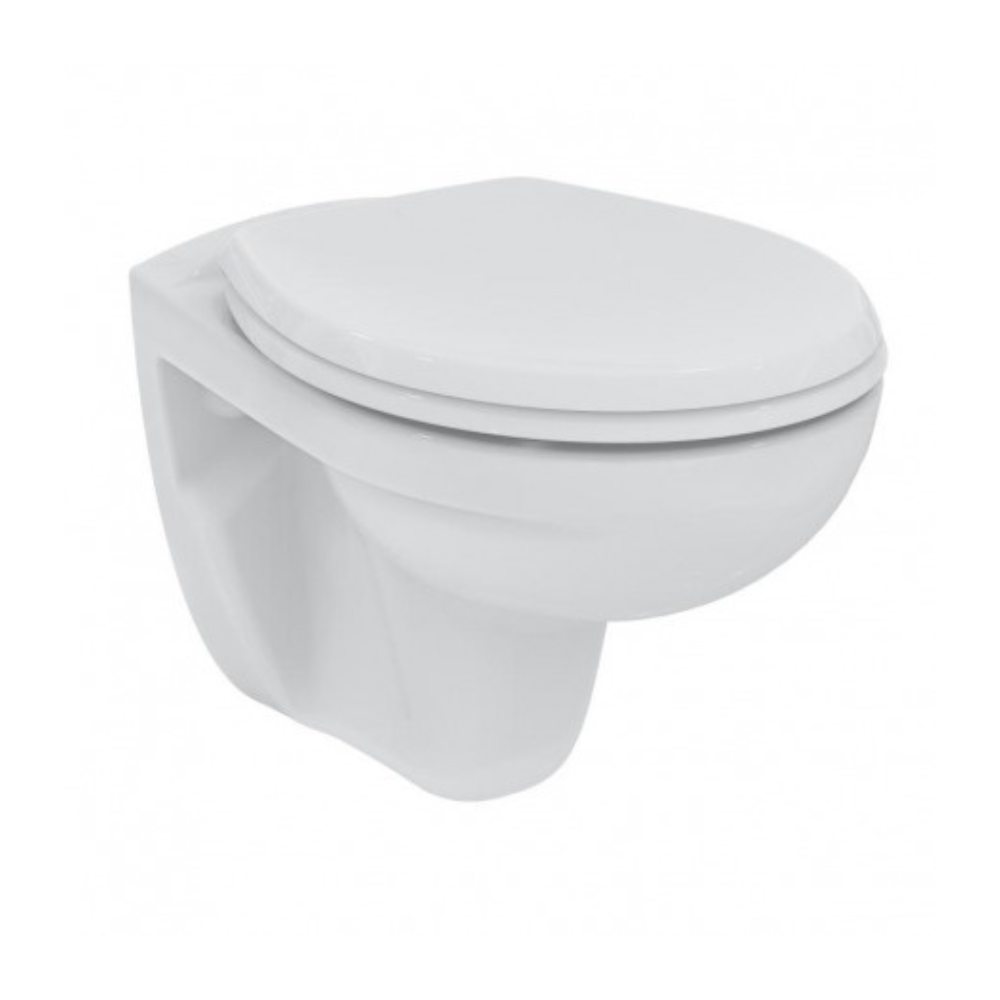

Porcher wall-mounted bowl without rim (P006701) :
- Toilet for wall mounting
- Rimless technology
- Material: porcelain
- Water requirement: 4.5 litres
- Standards: DIN EN 997 CL1-6 a/5 a and DIN EN 33
- Inlet: rear

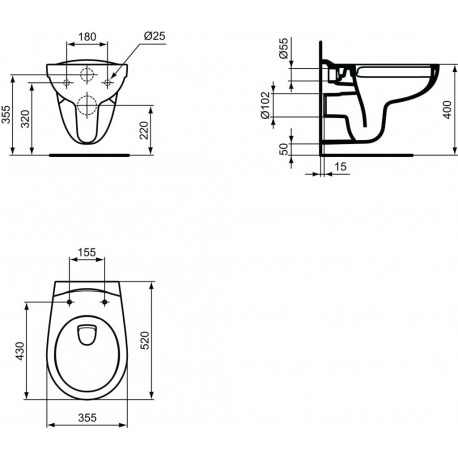

- Width: 355 mm
- Depth of throat: 520 mm
- Height: 350 mm
- Rear width: 280 mm
- Seat attachment distance front / middle: 430 mm
- Seat attachment spacing: 155 mm
- Colour: Alpine White
- Weight: 16.2 kg
.
Ideal Standard Astor toilet seat (W302601) :
- Toilet seat for standard WC with stainless steel hinges.
- Seat and lid in Duroplast.
- Adjustable stainless steel hinges with bottom mounting.
- Extended stops in the seat and circular stops in the lid.
- Complies with NF 20 & DIN 19516
.

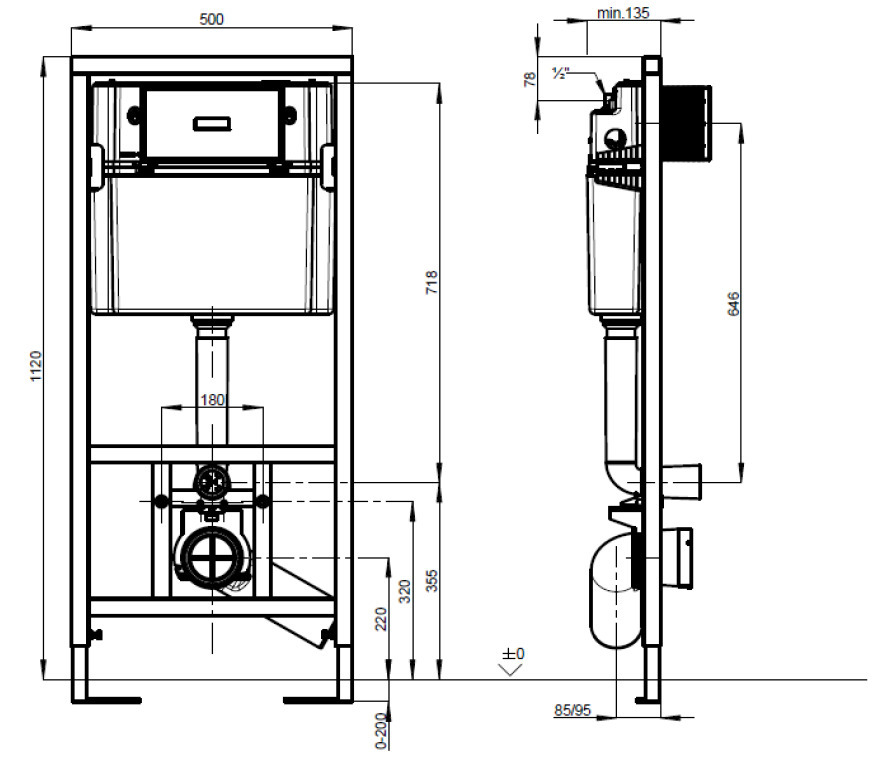

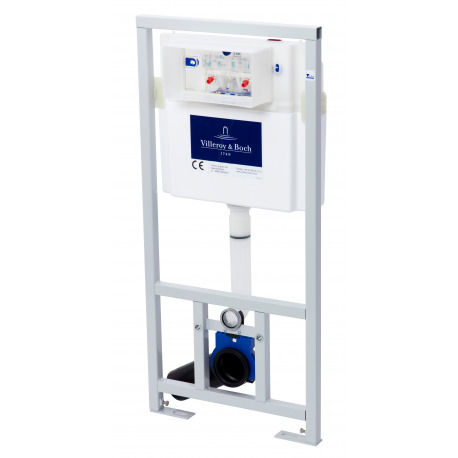

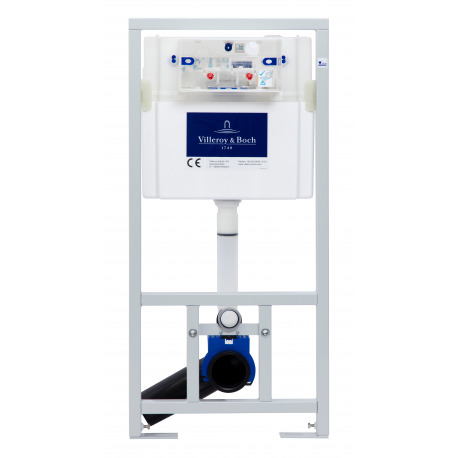

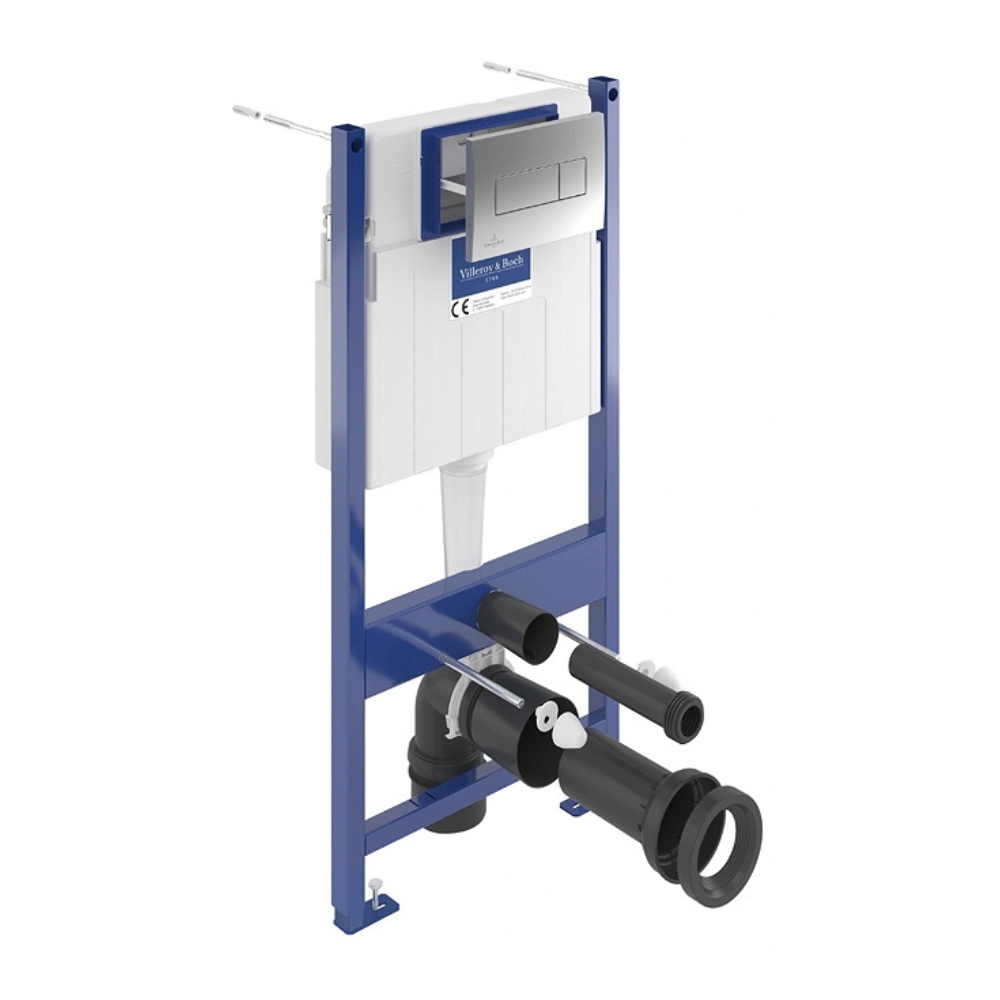

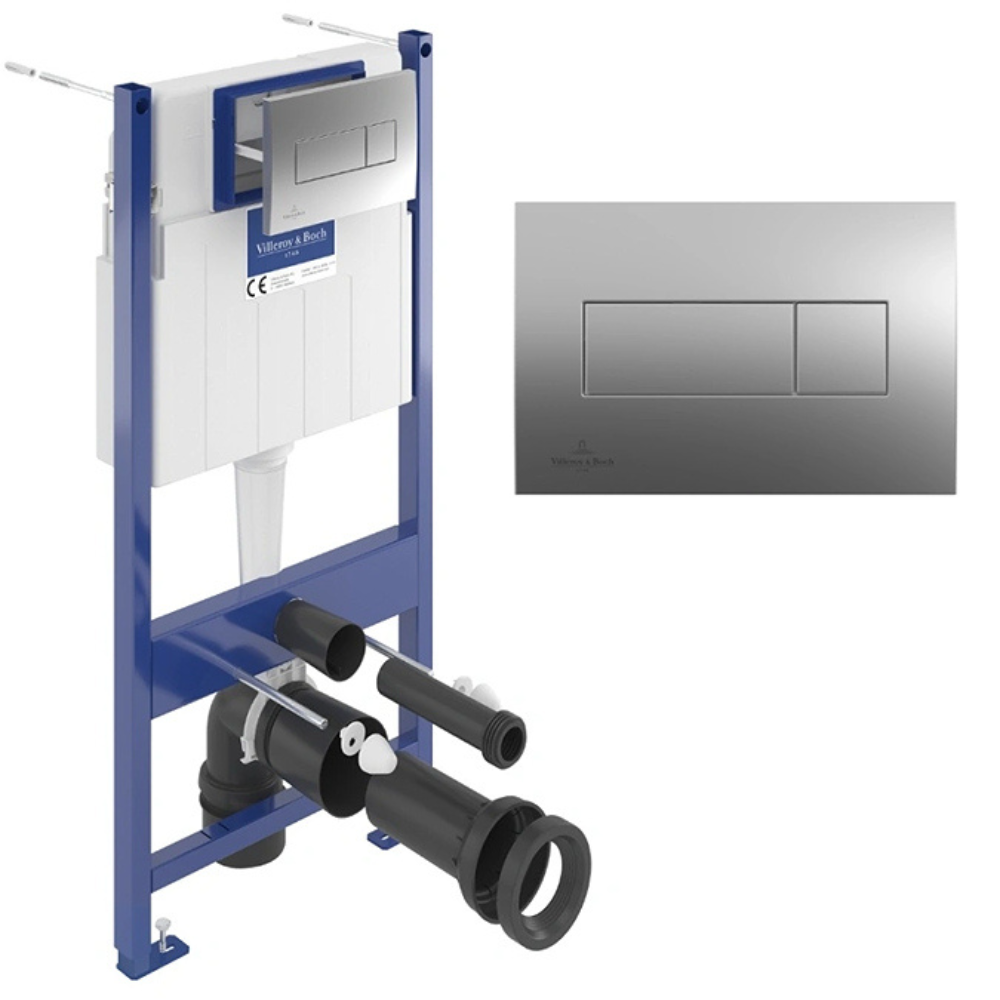

Support frame for Villeroy & Boch ViConnect Pro wall-hung toilet (92214200) :
- For drywall construction
- To be built into a load-bearing wall
- Foot adjustment range: 0-200mm
- Adjustment range in front of wall: 135-205mm (when mounted on wall brackets)
- 4-point fixing with wall brackets
- Includes support legs and fixing materials for front, side and corner installation
- With protective cap for the flush pipe
- Toilet retaining bolts adjustable to 180 mm with protective caps and nuts
- Installation instructions
- Can be combined with wall-hung toilets
- Can be combined with Aquareduct ceramic (LEED points: 4)
- Completely pre-assembled
- Concealed cistern with condensation protection and 3/6 litre dual flush
- Adjustable to 3/4.5l, maximum flush quantity 7.5l
- Concealed cistern: Noise class I
.

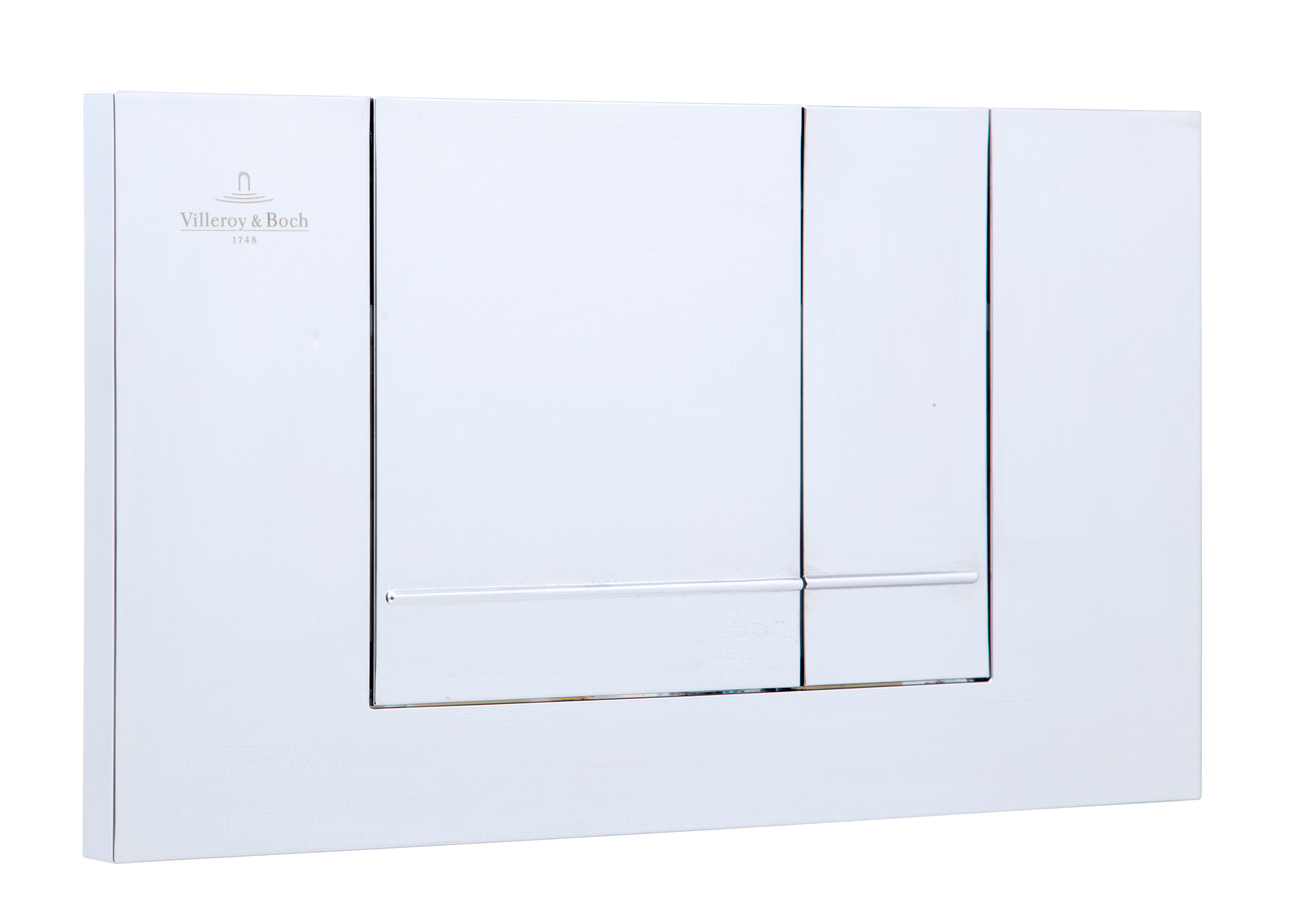

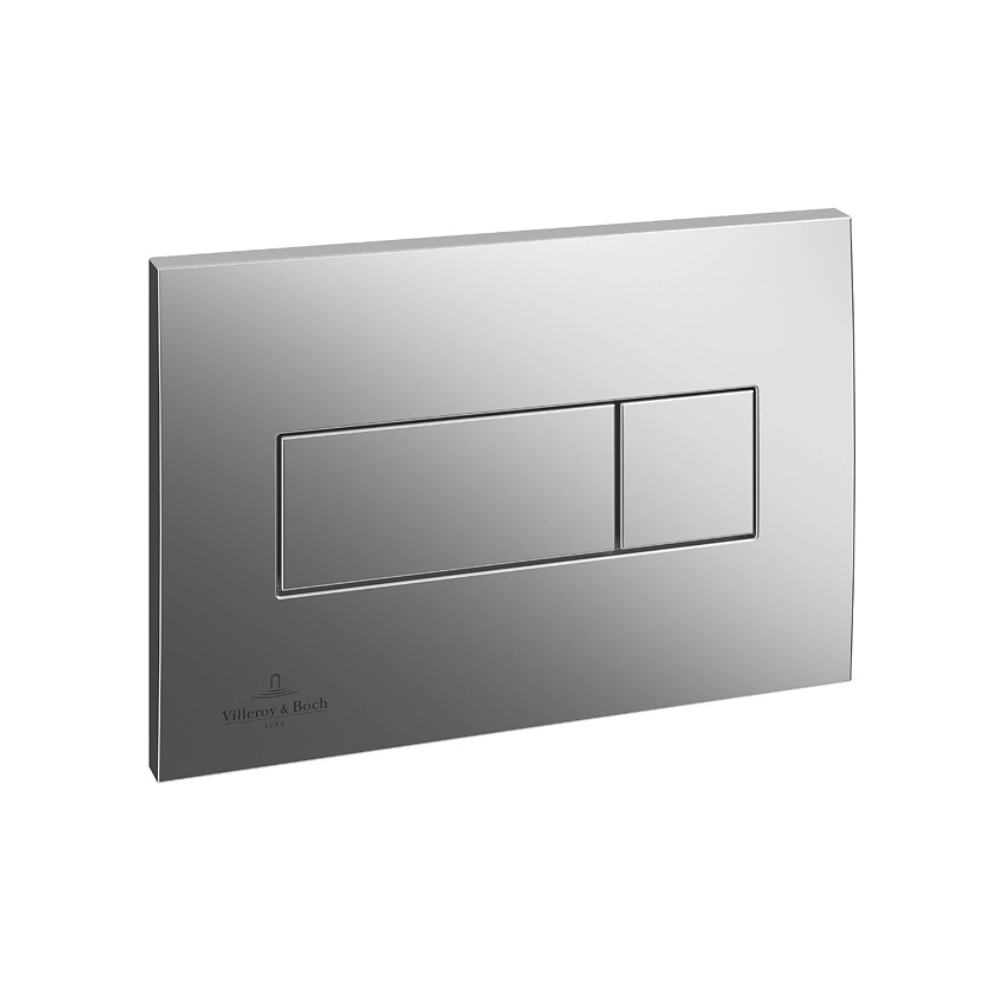

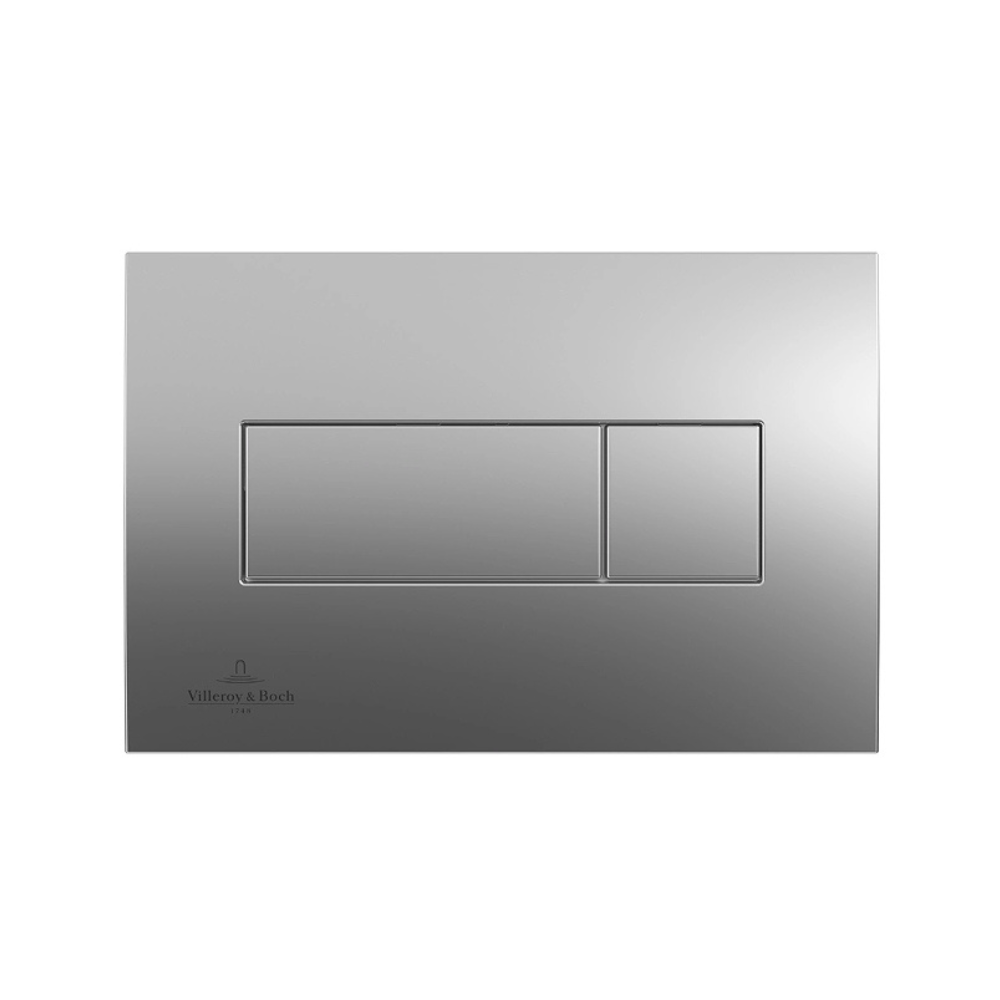

Villeroy & Boch Viconnect Pro two-touch chrome release plate (92214361) :

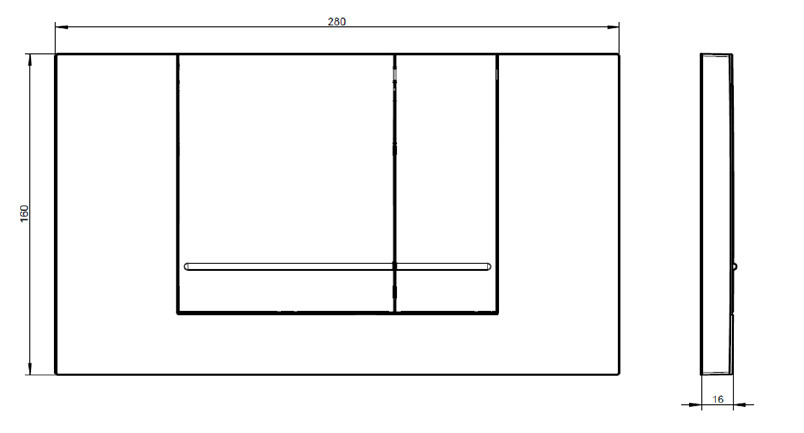

- Dimensions: 280 x 160 x 16 mm
- Water-saving dual flush technology
- Made of high quality materials
- Can be combined with the Aquareduct toilet
.
Please note! It is imperative to check the condition of the package, both inside and out, at the time of delivery.
You have a maximum of 72 hours from receipt of the product to report any damage. After this period, claims cannot be taken into account. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem at the time of receipt. We thank you for your understanding.
