Geberit Duofix Toilet Frame + Ceramia PixL rimless wall-hung WC with SoftClose seat + plate (GEBCEPXBMT02-IN)
- Product reference: GEBCEPXBMT02-IN
- EAN: 3701729209398
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

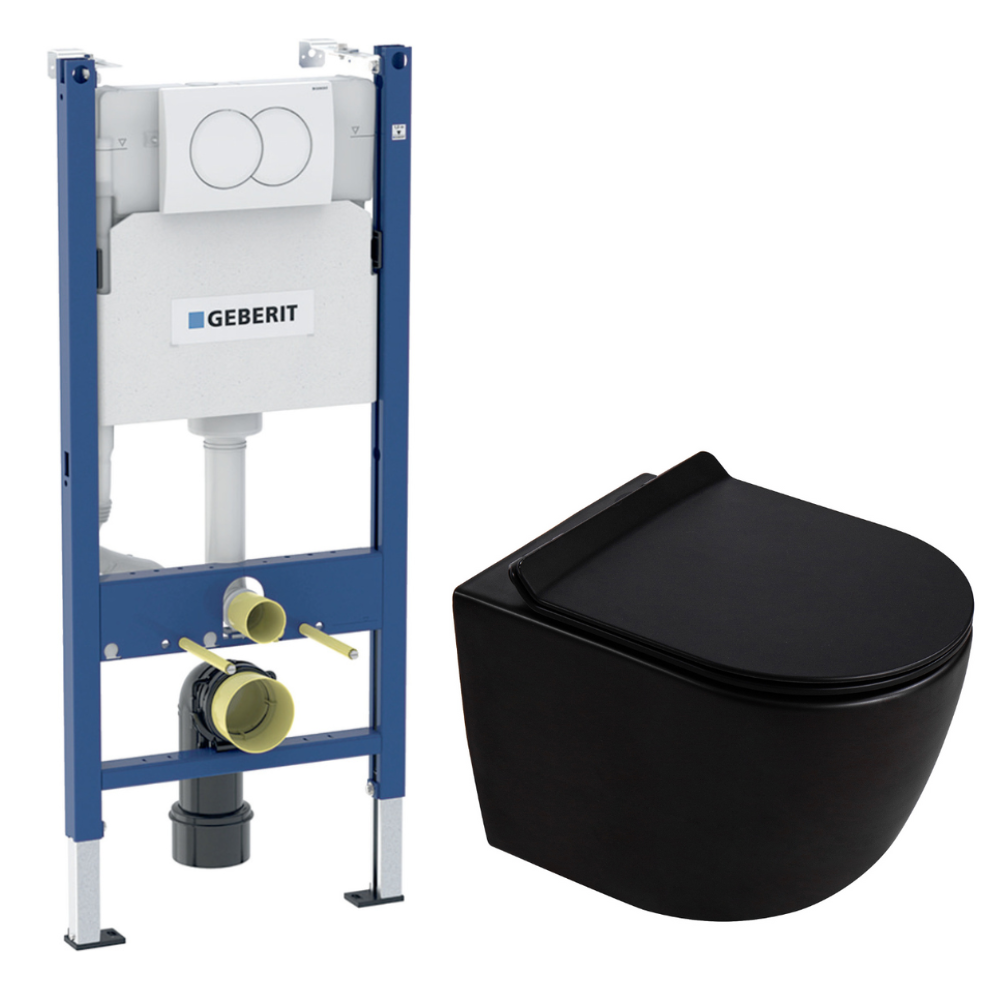

Features of the Geberit Duofix 112 cm frame-mounted toilet pack + Ceramia PixL rimless wall-mounted toilet with SoftClose seat + white plate (GEBCEPXBMT02-IN):
- Geberit Geberit Delta Duofix 112 cm frame-mounted toilet pack + Delta01 flush plate, white + wall brackets (111.154.11.2)
- Ceramia PixL ceramic wall-mounted toilet, rimless, Tornado, concealed brackets + SoftClose seat, black (CEPX010RTORPBKM)
Features of the Delta Duofix 112 cm frame-mounted toilet pack + Delta01 flush plate, white + wall brackets (111.154.11.2):
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall mounting kit for self-assembly (111.839.00.1)
- Geberit Delta01 dual flush actuator plate, alpine white (115.107.11.1)
Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1):
Installation recommendations:
These wall-hung toilet frames are suitable for the following types of installation:
- Against a load-bearing wall (concrete shell, plasterboard, aerated concrete, bricks, breeze blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to the manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against plasterboard partition walls with a cardboard honeycomb core, against plasterboard partition walls on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition wall at the level of the upper fixings).
These wall-hung toilet frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or joist using the lag screws provided.
Main features:
- Geberit Delta UP100 concealed cistern (12 cm), front activation
- Anti-condensation, installation depth: 12 cm
- High flush rate adjustment possible (4.5 / 6 / 7.5 L)
- Small fixed flow rate, immediate flushing possible
- Rear/central water supply from the top
- Manual connection to the angle valve possible
- Compatibility:
- 1 button: Delta15
- 2 buttons: Delta20
- Self-supporting frame, blue coated, with ø 9 mm holes (wood fixing)
- Feet adjustable from 0 to 20 cm, base plates Suitable for UW50 mounting
Technical information:
- Factory setting: 6 / 3.5 L (large/small flush)
Package contents:
- 2 M12 threaded rods (ceramic fixing)
- Dual-flow flush valve
- Protective cover for rough-in installation
- 2 protective caps
- R 1/2" angle valve with adapter
- AquaClean supply hose
- Connection kit ø 90 mm + elbow ø 90 mm + adapter ø 90/110 mm
- Fixing material
Not included: wall mounting kit
Geberit Delta01 dual flush plate, alpine white (115.107.11.1)
- New Geberit 2022
- Mechanical dual flush front actuation
- Water saving
- For Delta cistern

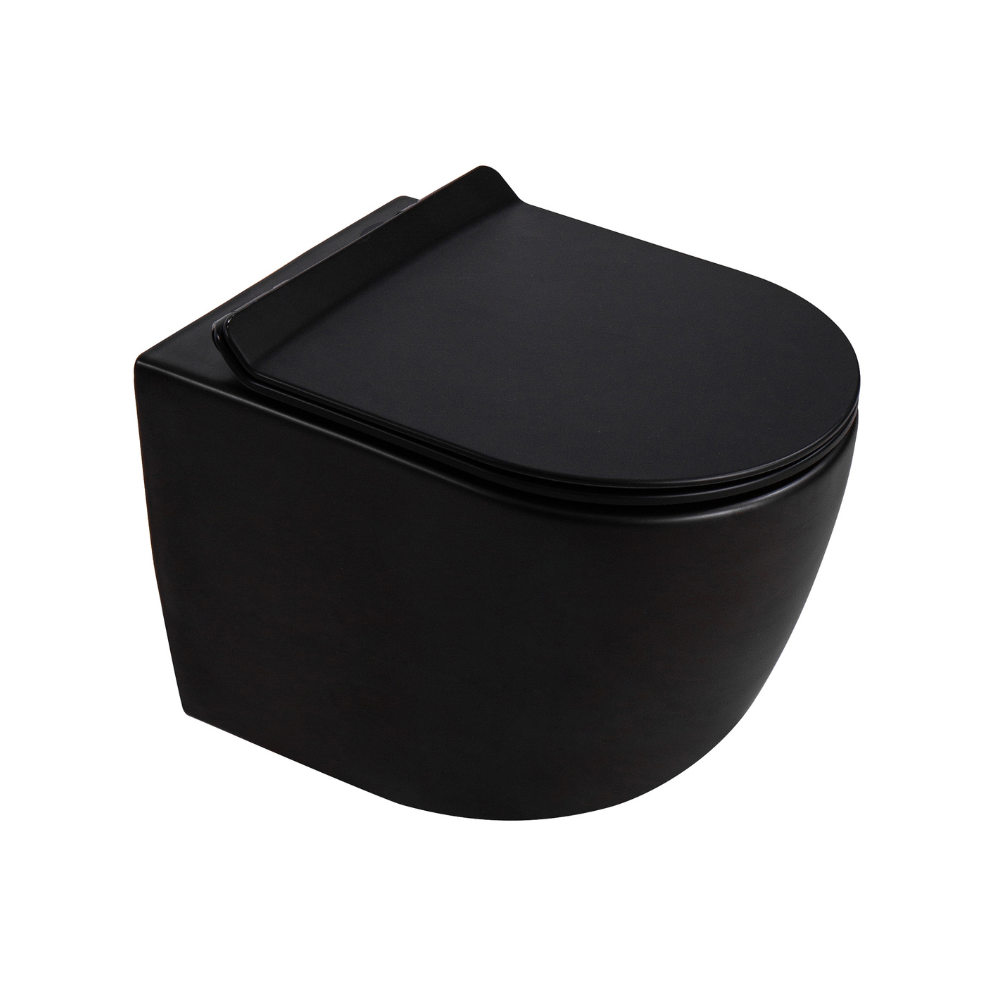

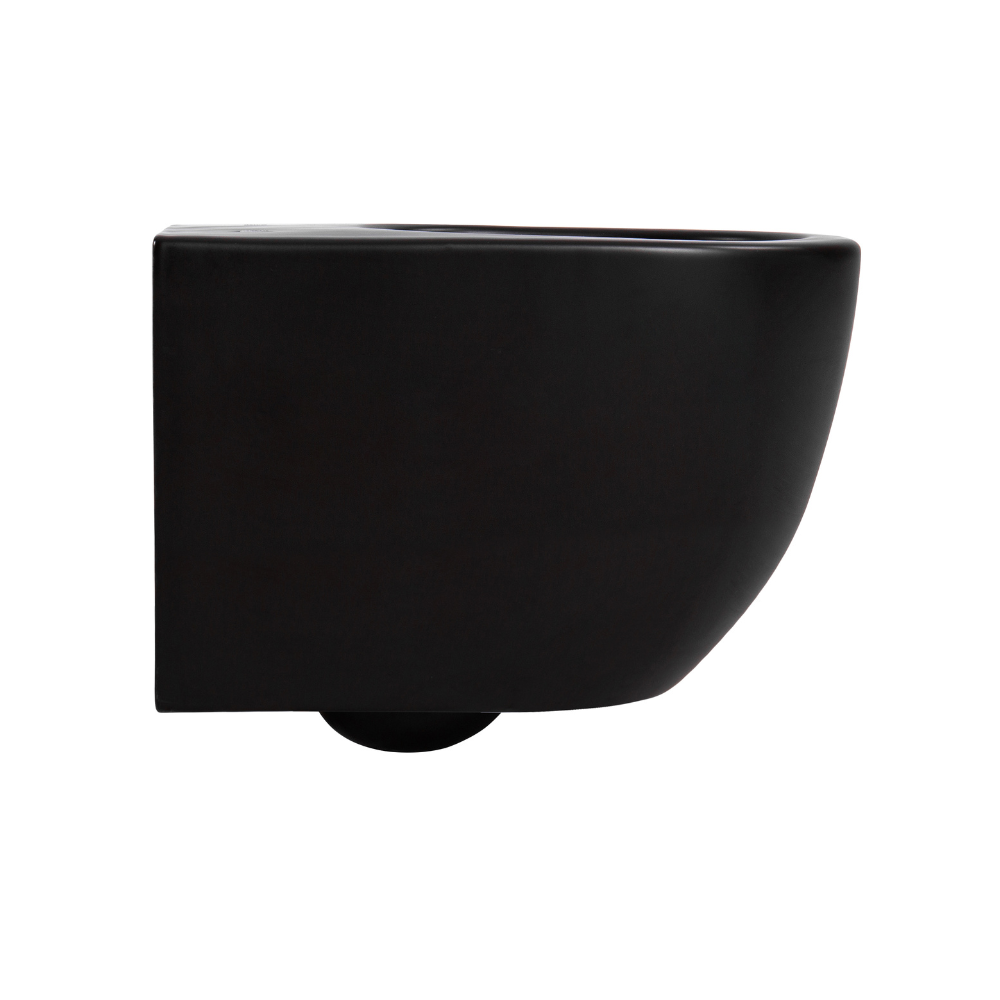

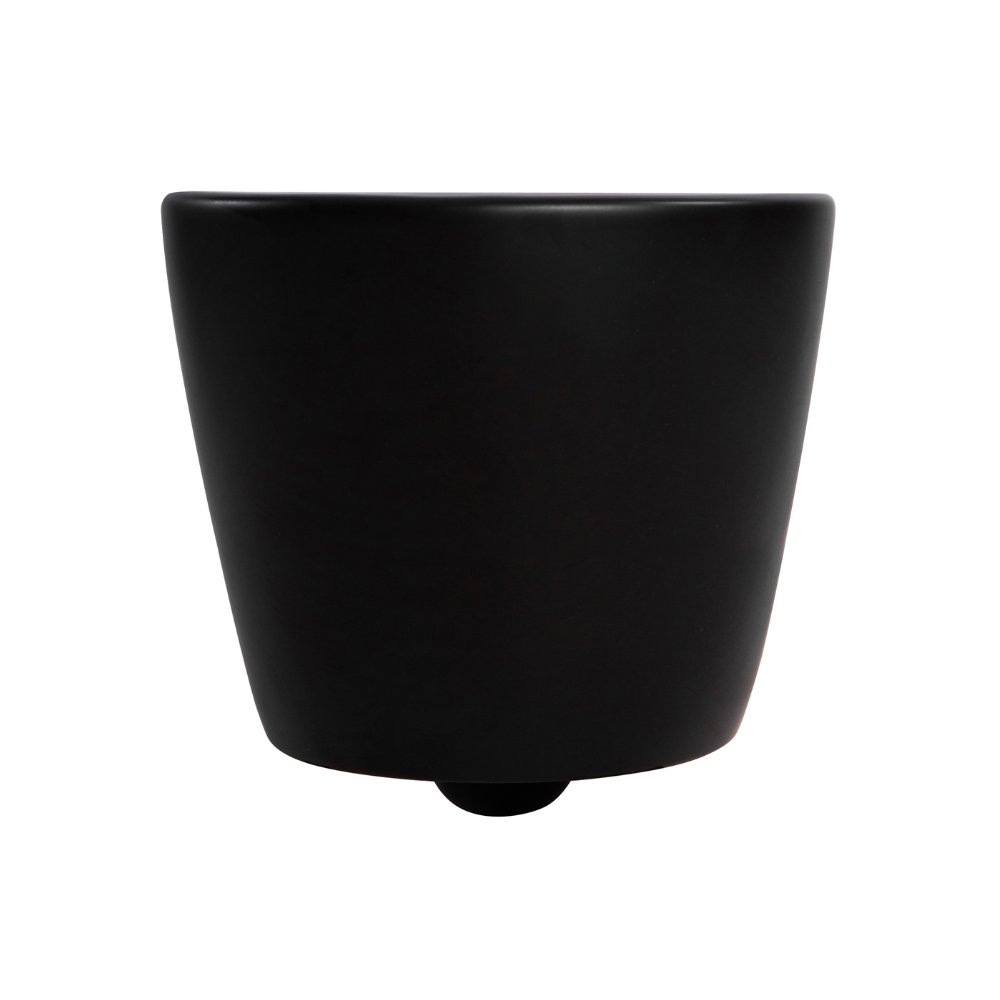

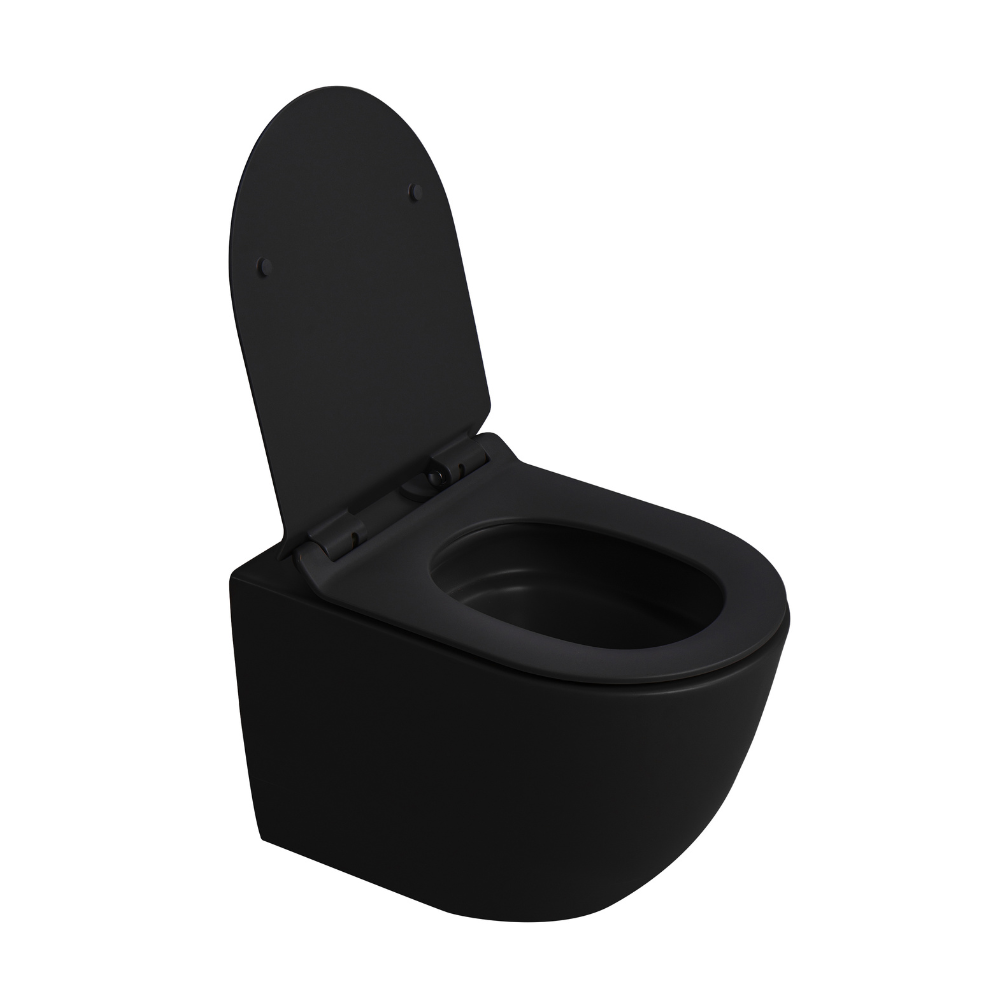

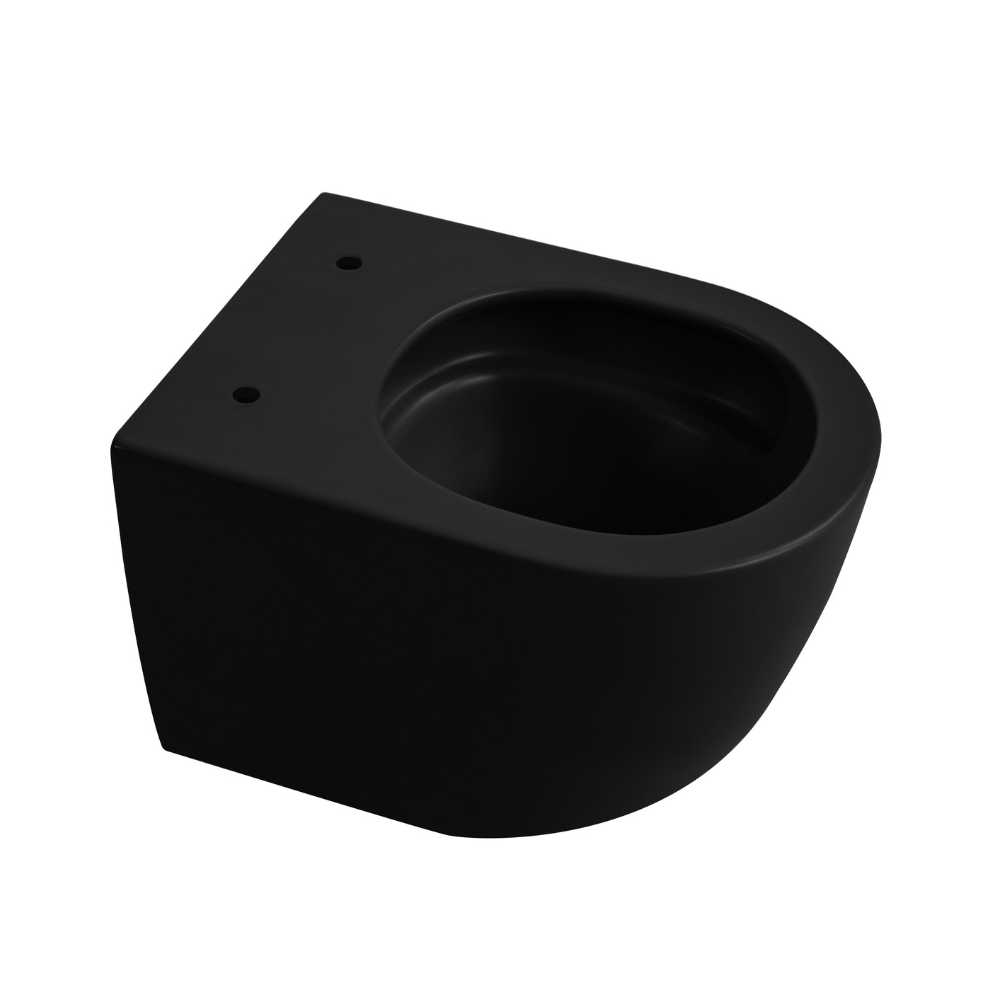

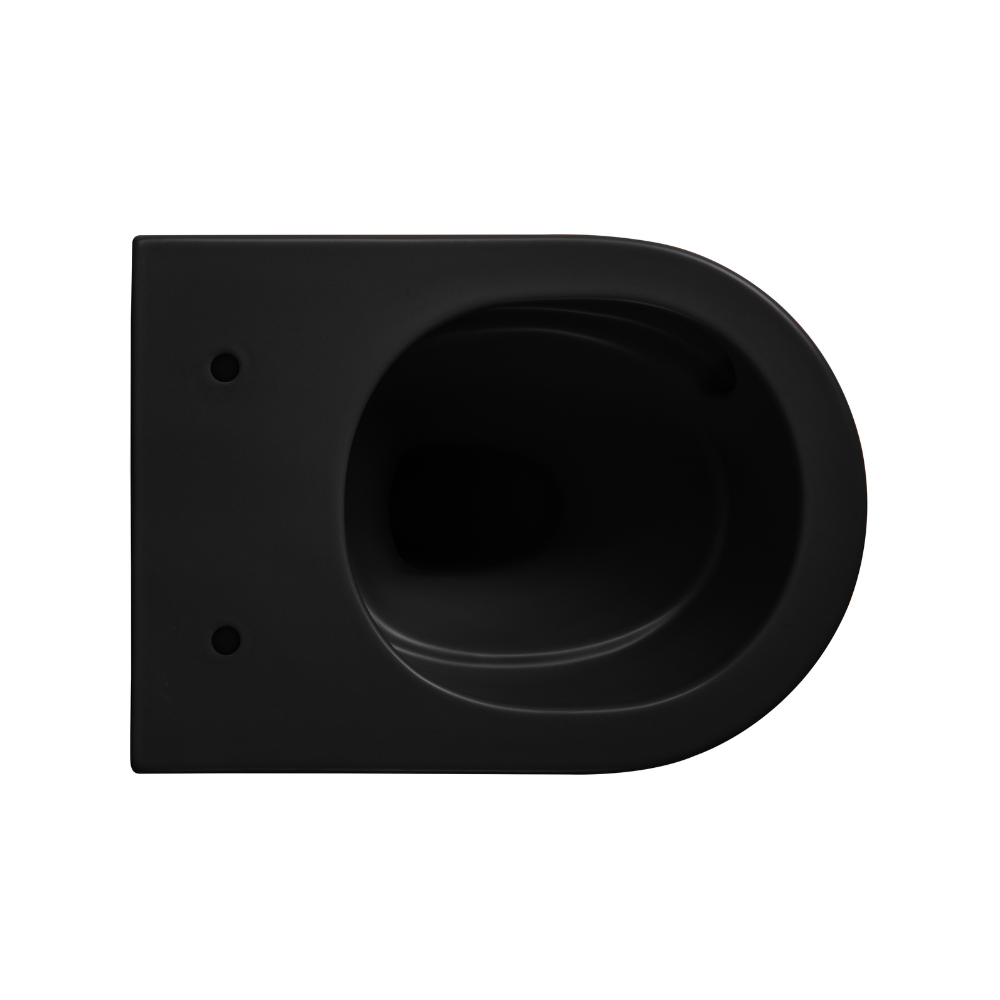

PixL Wall-mounted ceramic toilet, rimless, Tornado, concealed fixings + Softclose seat, black (CEPX010RTORPBKM):

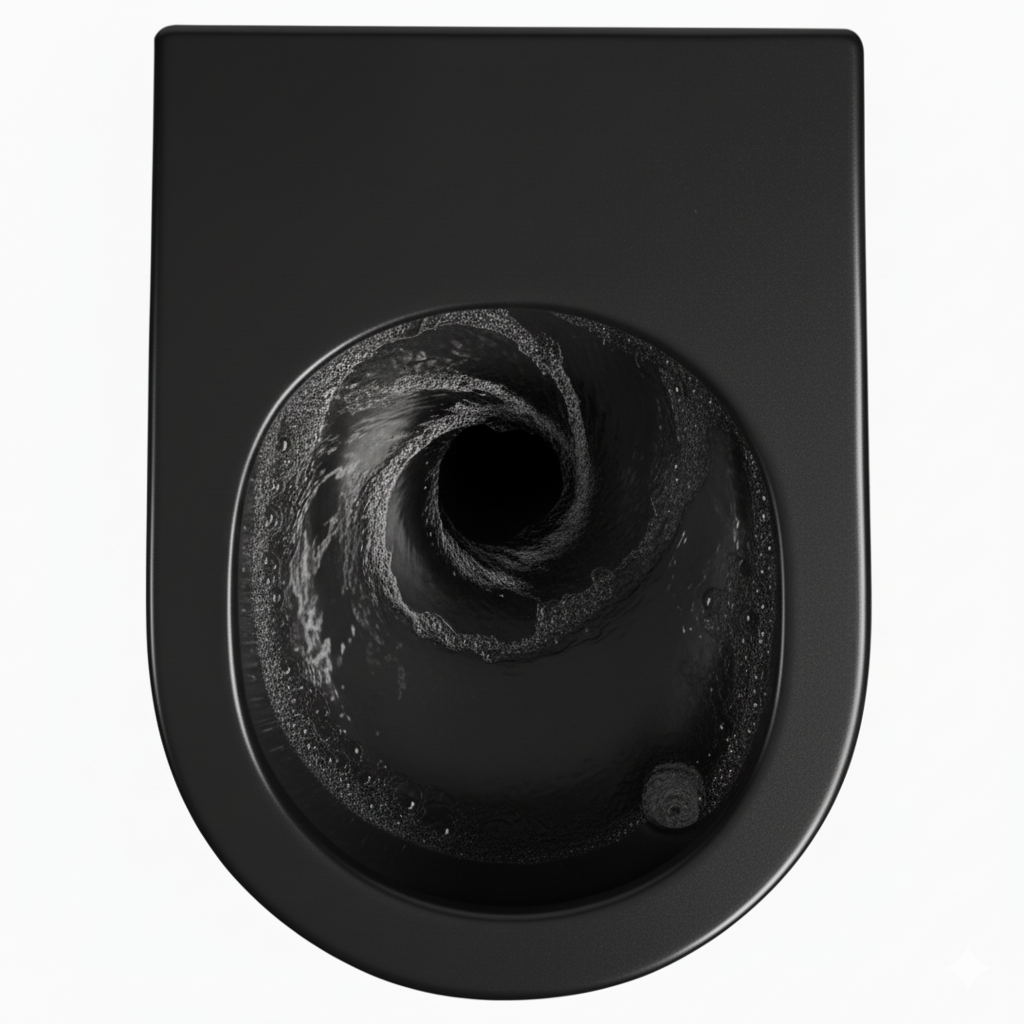

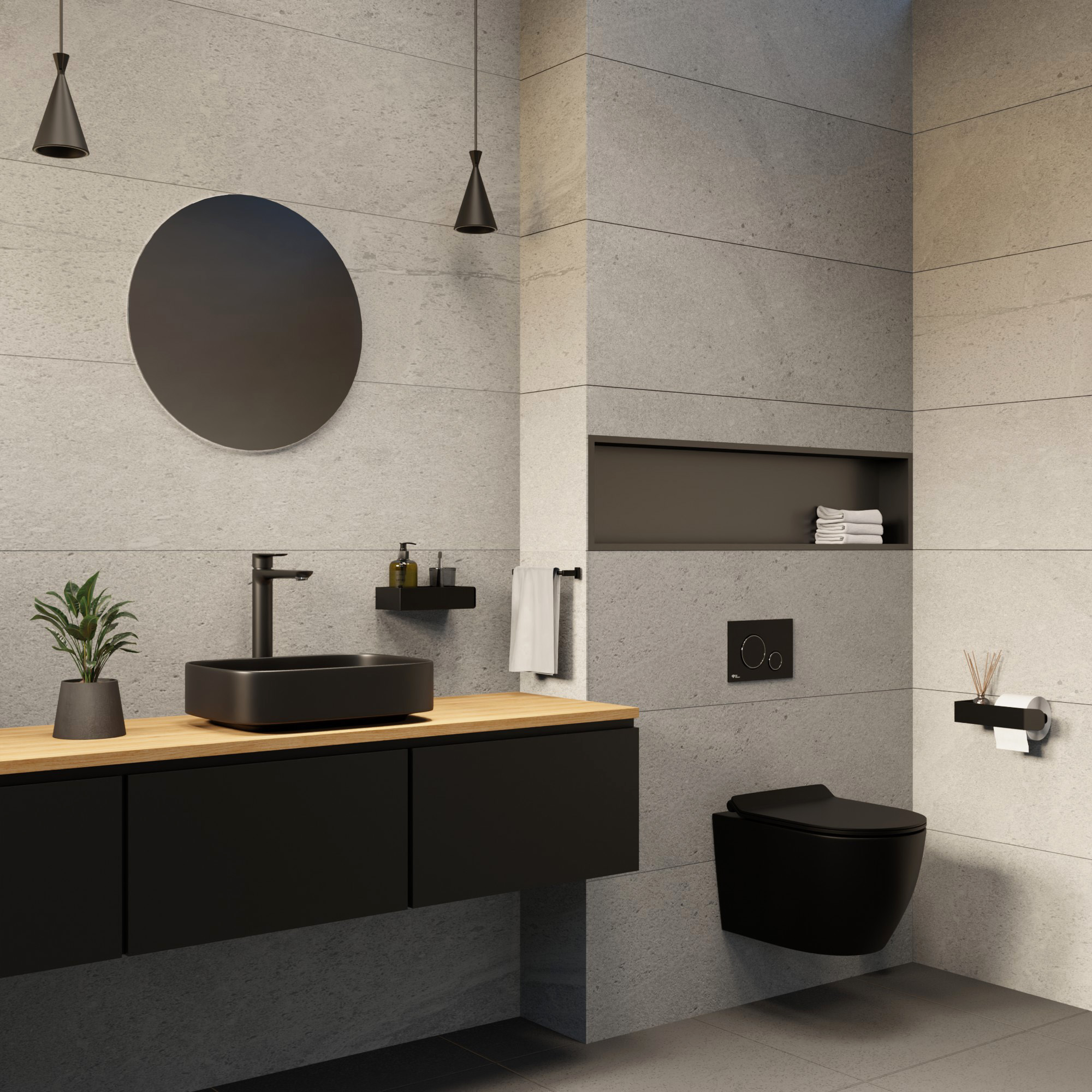

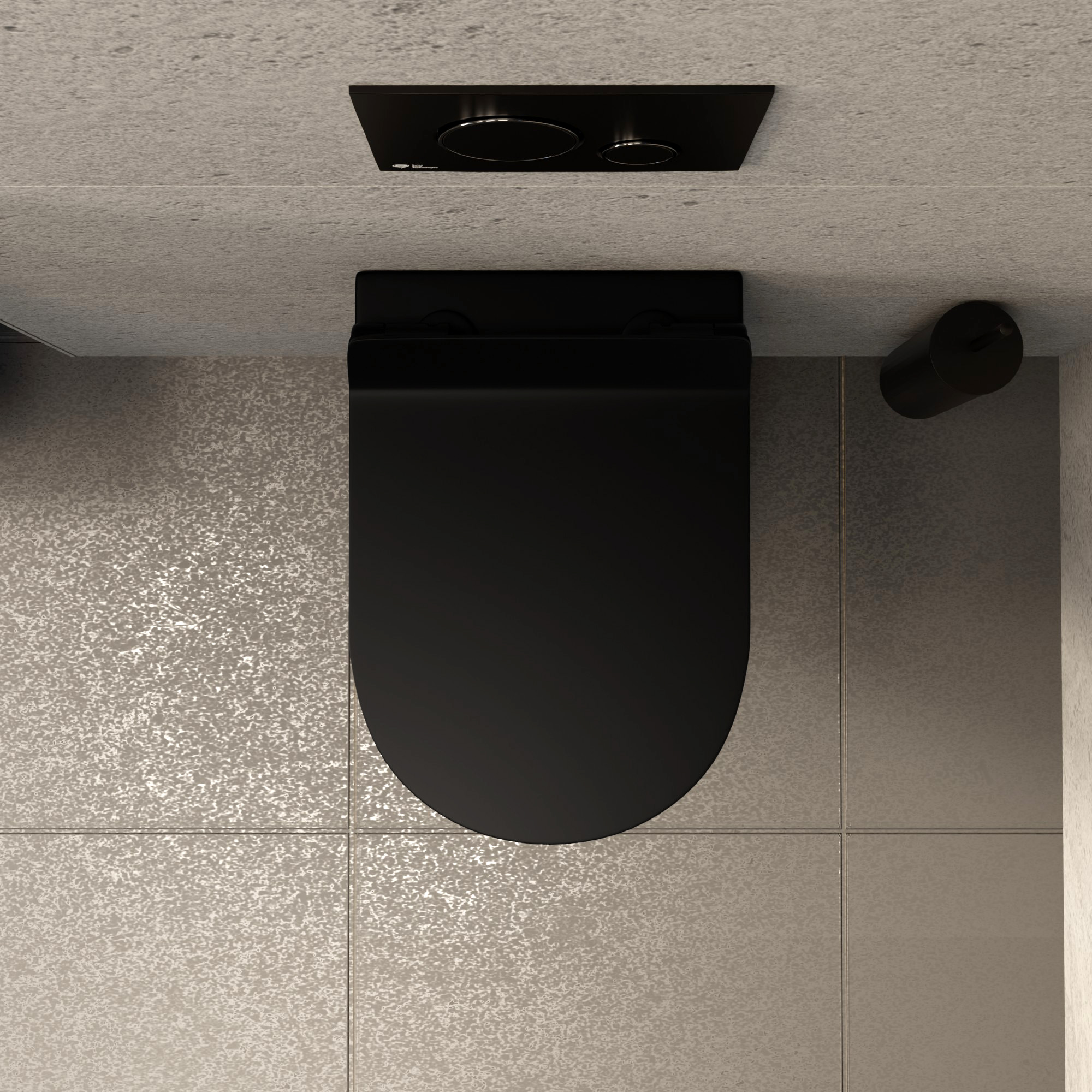

Matte black stands for elegance and luxury. The PixL CEPX010RTORPBKM, wall-mounted toilet in matte black, adds a sophisticated touch to your bathroom. Its rimless design simplifies cleaning and guarantees perfect hygiene, while the technology Tornado Quiet ensures a quiet and highly efficient flush while consuming less water than conventional systems (3/6 l).

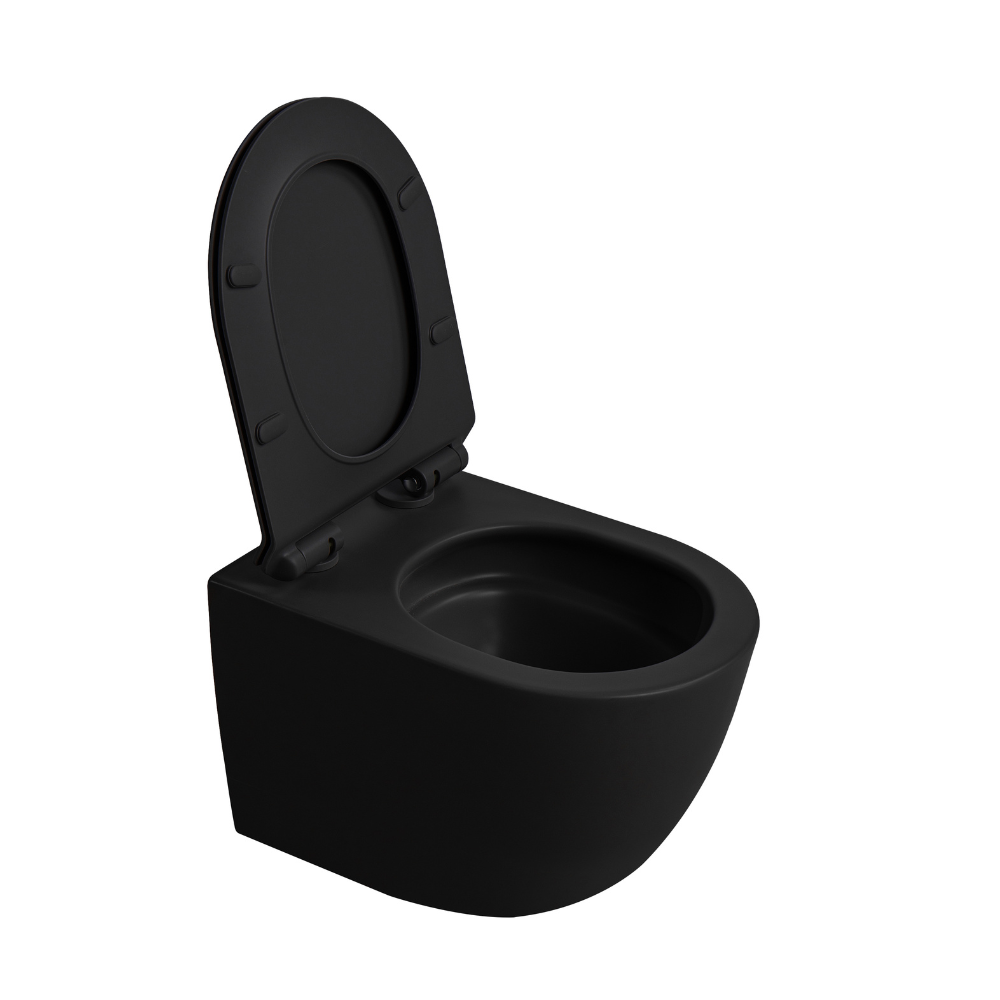

The Soft-Close toilet seat ensures a soft and silent closing, and the Quick Release function allows it to be removed for thorough cleaning. The invisible fixing highlights a minimalist design, even more striking in black finish.
But the PixL series doesn't stop there – it's a complete range of sanitary ceramics, also including a wide selection of washbasins in various shapes and colors. This allows you to create a coherent and harmonious bathroom, where the PixL CEPX010RTORPBKM becomes the centerpiece of a complete world.
Warning! It is imperative to check the condition of the package, both externally and internally, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this period, claims will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Material:Ceramic
- Toilet bowl brand:Ceramia
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35
- Bowl colour:Black
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3 / 4.9 L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No

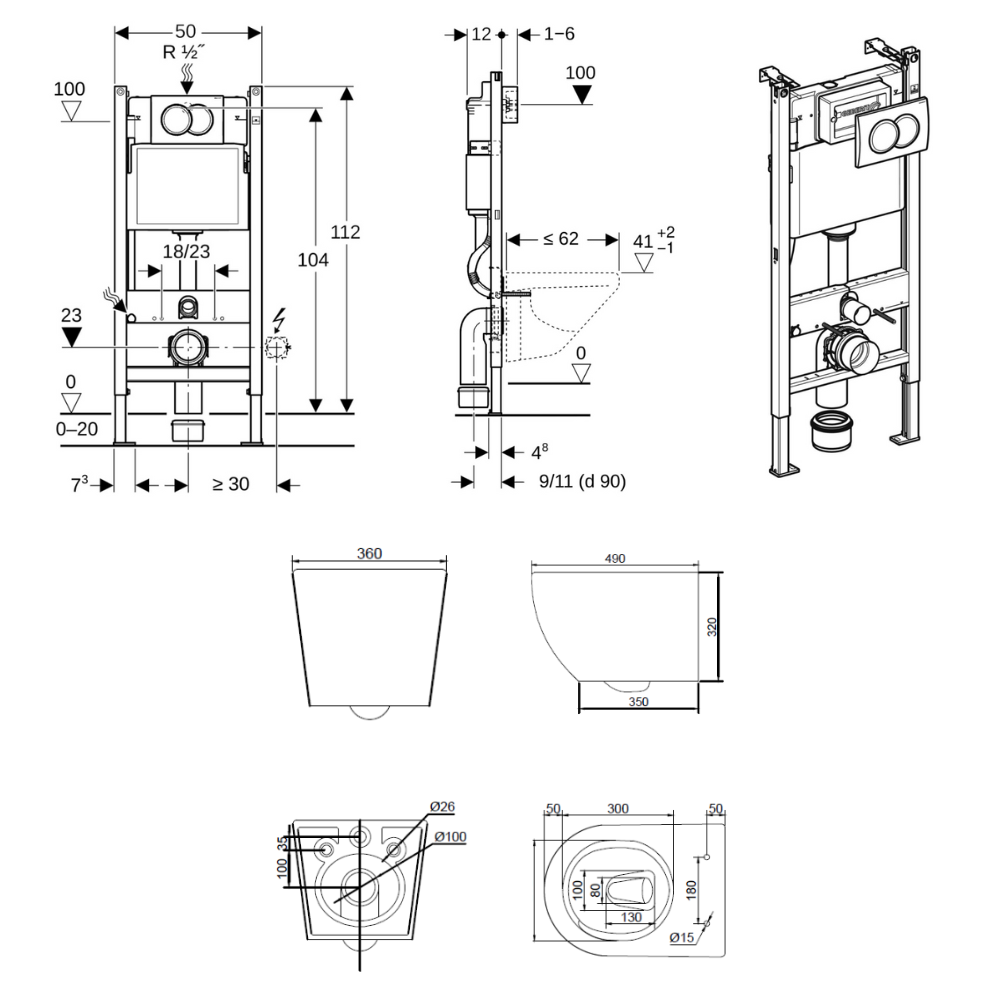

- Built Width:50
- Built Height:112
- Bowl height:32
- Built Depth:12 cm
- Bowl width:36
- Flush plate finish:Glossy
- Bowl finish:Matt
