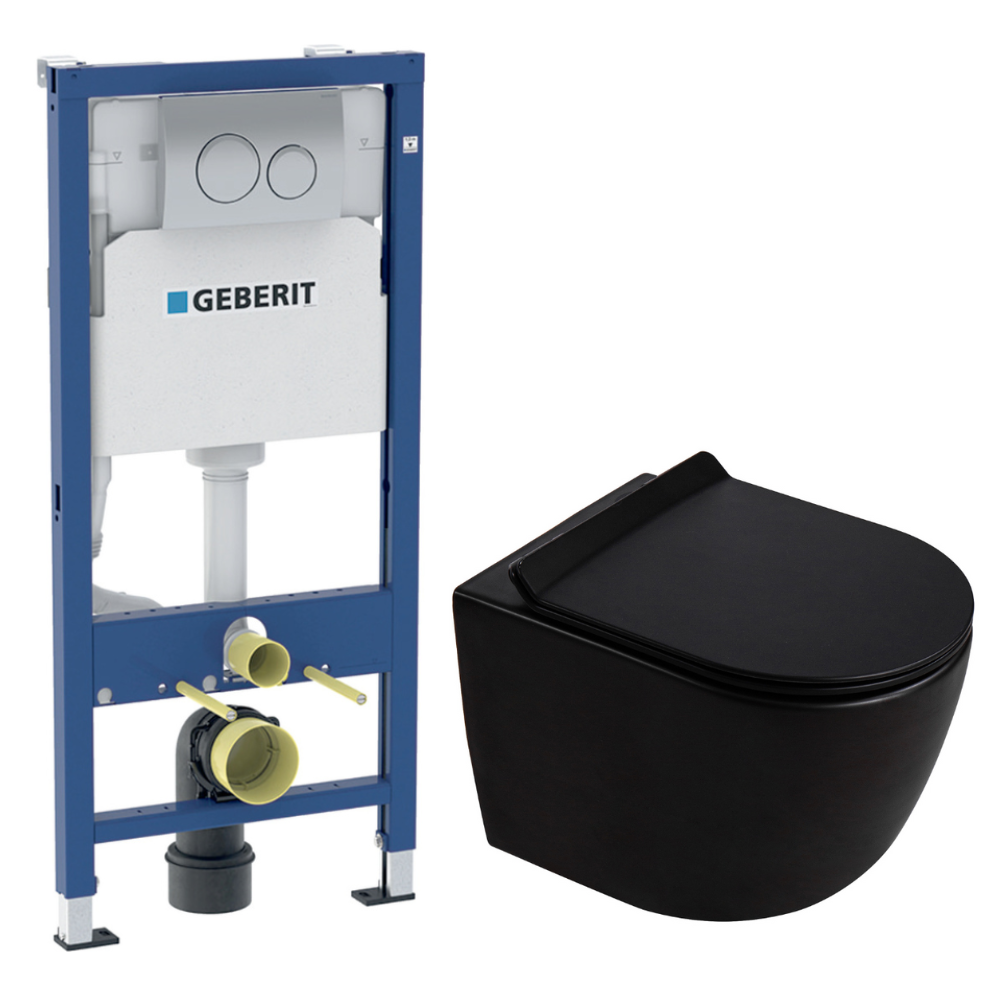

Geberit Duofix Toilet Frame + Ceramia PixL rimless wall-hung WC with SoftClose seat + plate (GEBCEPXBMT01-IN)
- Product reference: GEBCEPXBMT01-IN
- EAN: 3701729209558
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix 112 cm frame-mounted toilet pack + Ceramia PixL rimless wall-mounted toilet with SoftClose seat + glossy chrome plate (GEBCEPXBMT01-IN):
- Geberit Duofix 112 cm frame-mounted toilet pack + Chrome Delta20 flush plate + wall brackets (458.134.21.3)
- Ceramia PixL ceramic wall-mounted toilet, rimless, Tornado, concealed brackets + SoftClose seat, black (CEPX010RTORPBKM)
Features of the Duofix 112 cm frame-mounted toilet pack + Chrome Delta20 flush plate + wall brackets (458.134.21.3):
- Geberit Duofix UP100 frame set + cistern for 112 cm WC (458.103.00.2)
- Geberit dual flush plate, glossy chrome (115.127.21.1):

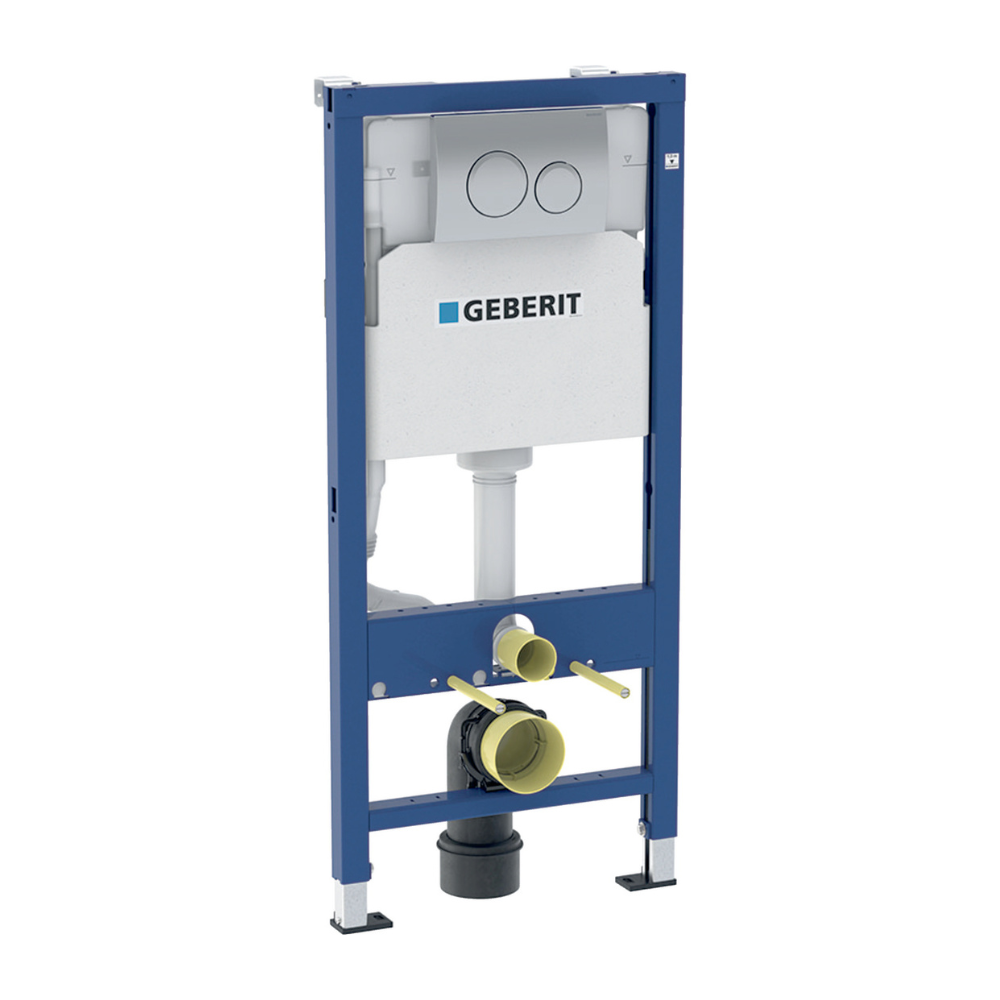

Geberit Duofix basic UP100 frame, 112 cm, with UP100 concealed cistern (458.134.21.3):
Installation recommendations:
These frame sets for wall-hung WCs are suitable for the following types of installation:
- Against a load-bearing wall (concrete wall, plasterboard, aerated concrete, bricks, breeze blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to the manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against plasterboard partition walls with a cardboard honeycomb core, against plasterboard partition walls on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition wall at the level of the upper fixings).
These wall-hung toilet frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or joist using the provided lag screws.
The set includes:
- 112 cm galvanized support frame with adjustable feet from 0-20 cm
- UP100 cistern (with 25-year spare parts warranty)
- Pre-painted frame in Geberit blue
- Support feet with graduation markings in cm
- Swivel feet for mounting in UW50/UW75 profile
- Crosspiece for cladding support
- 2 M12 threaded rods for fixing the ceramic with intermediate distances of 18 or 23 cm
- Concealed cistern 4-6-7.5 l, insulated against condensation
- Front actuation with two flush quantities with Delta21, Delta20 or Delta50 plates
- Inlet at the rear/top
- Angled shut-off valve R1/2",
- Reservation box for inspection hatch
- Styrophor construction site protection
- Drain elbow Ø 90 mm
- Sleeve fitting Ø 90 mm
- Transition sleeve Ø 90/110 mm
- Fixing material
Features of the Delta20 dual flush plate, polished chrome (115.127.21.1):
- Dual flush device
- Color: polished chrome
- Pneumatic actuation

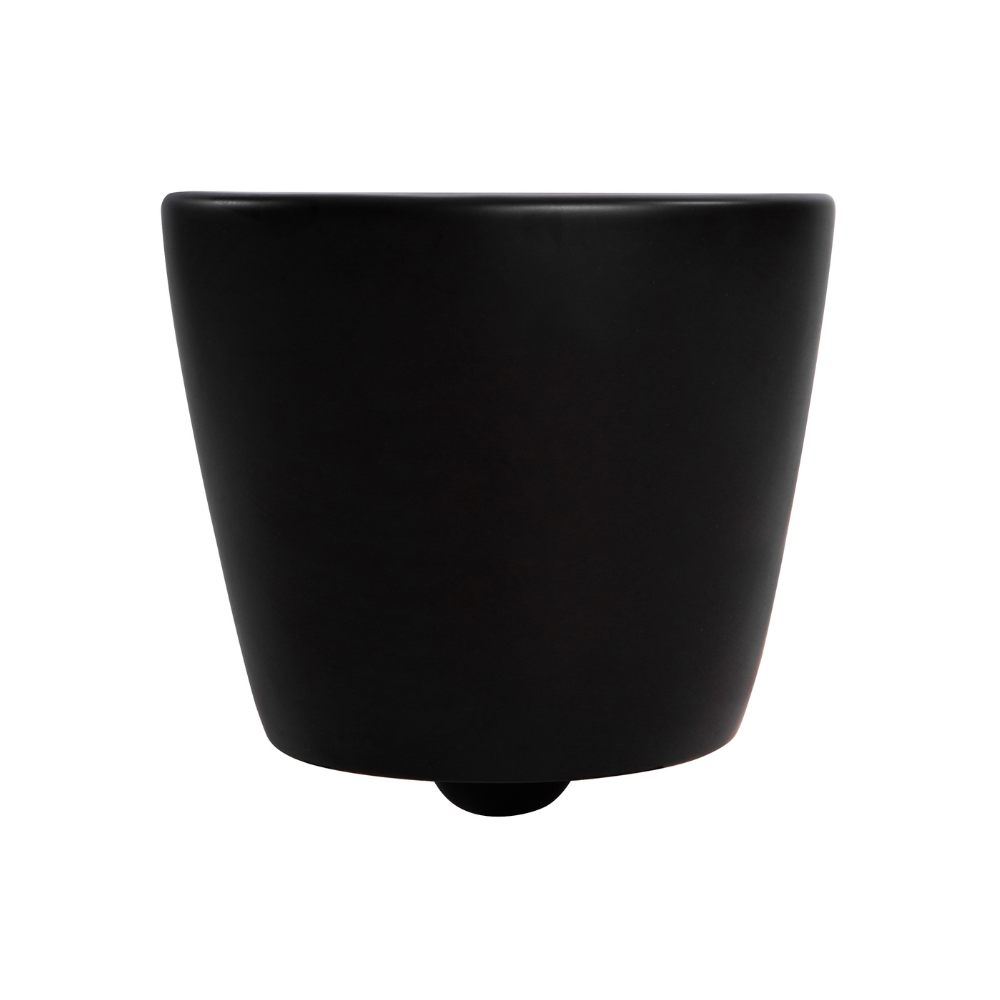

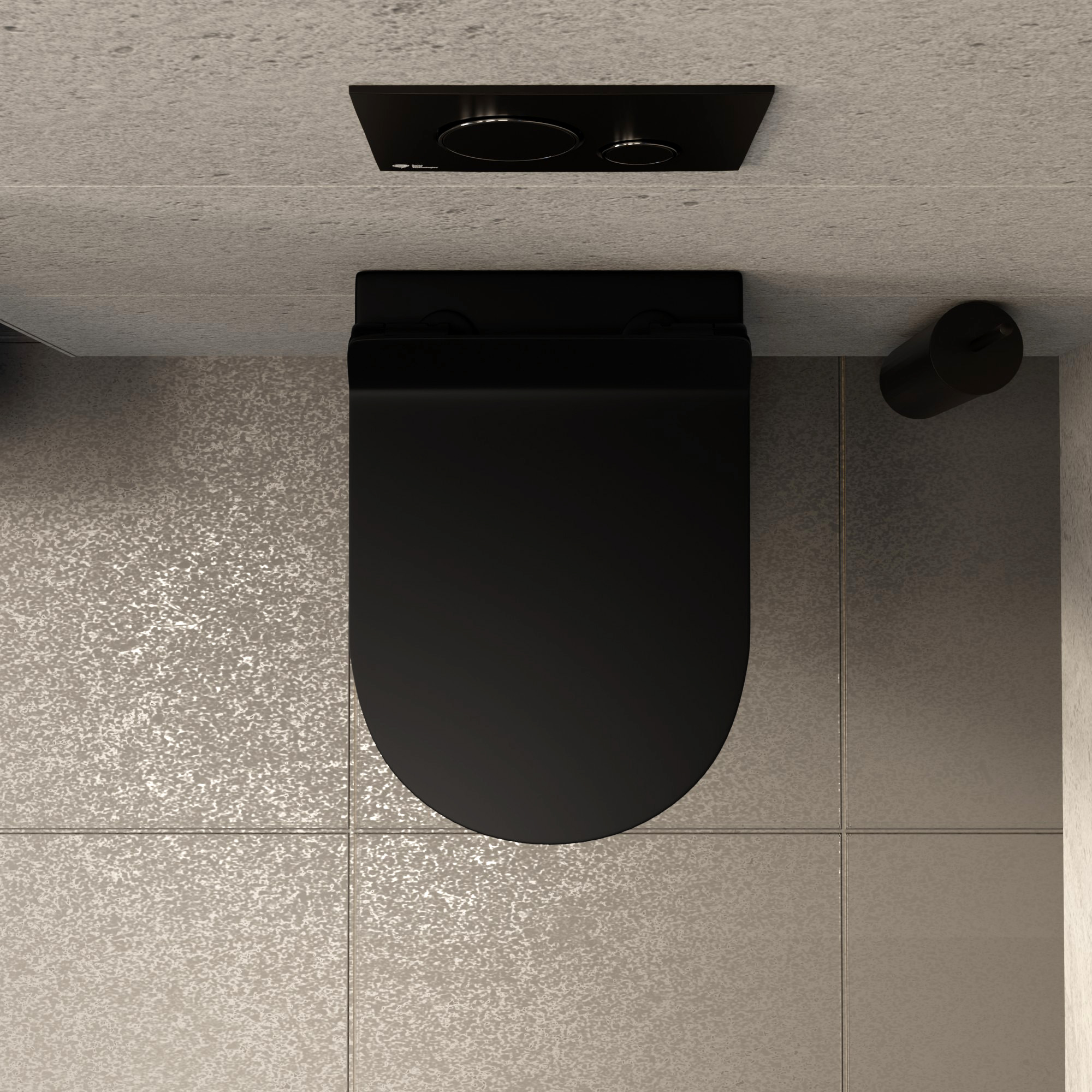

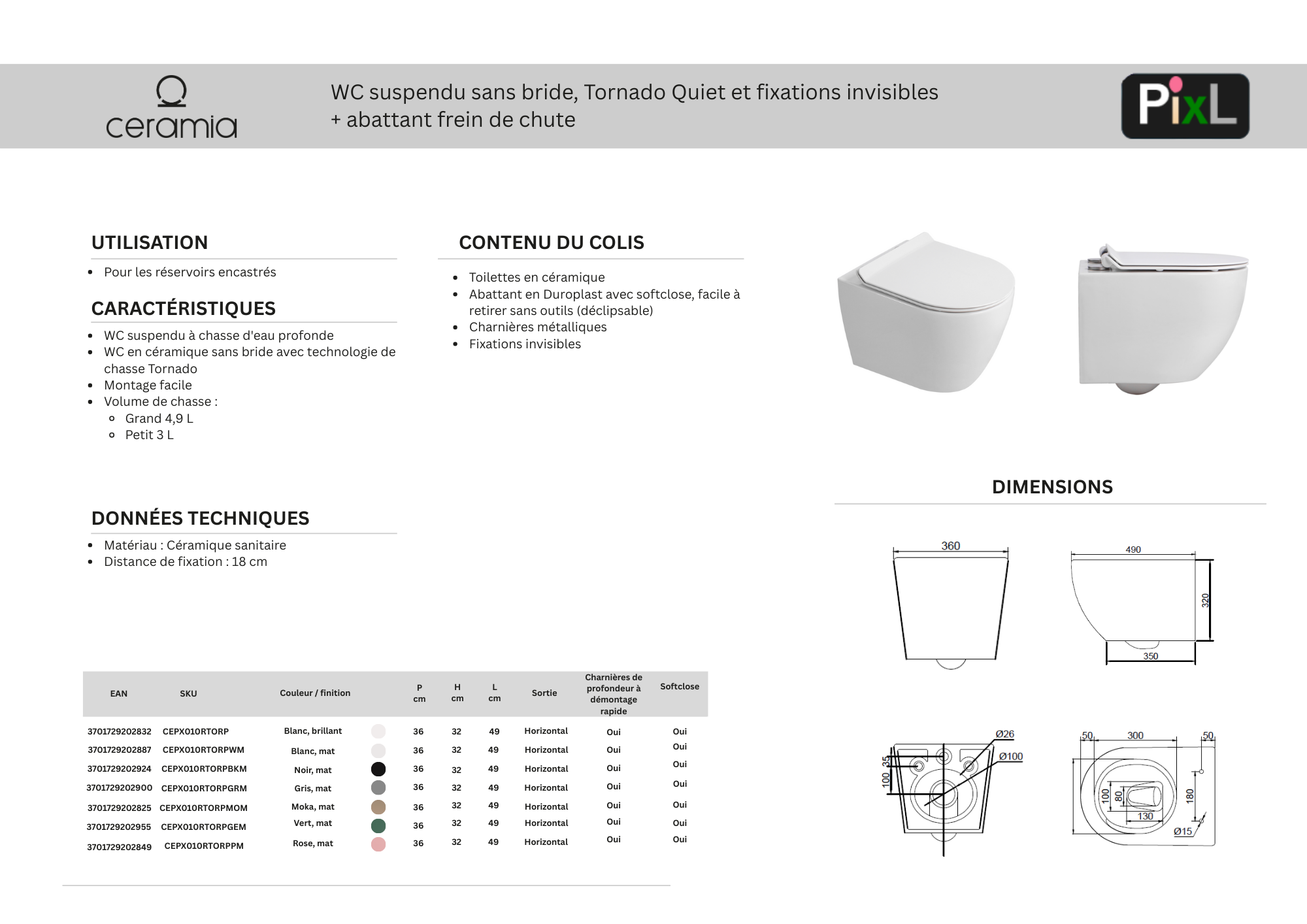

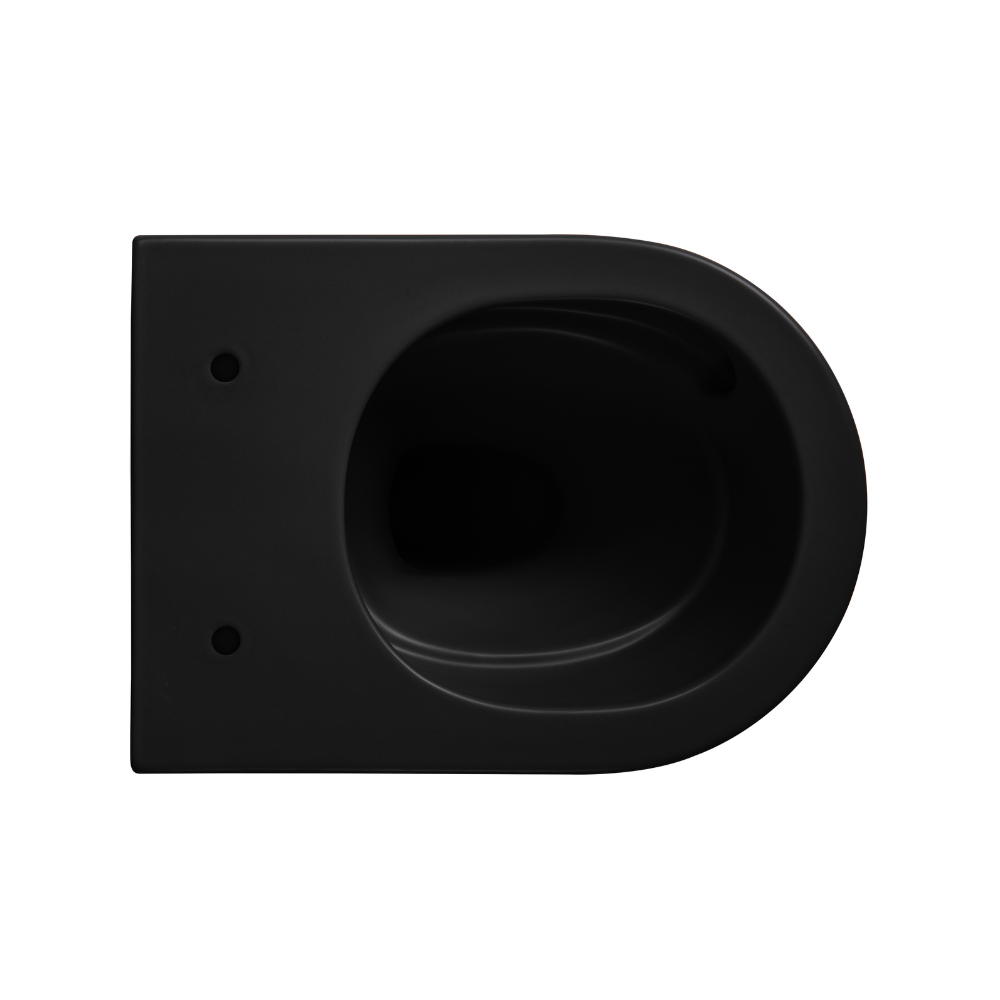

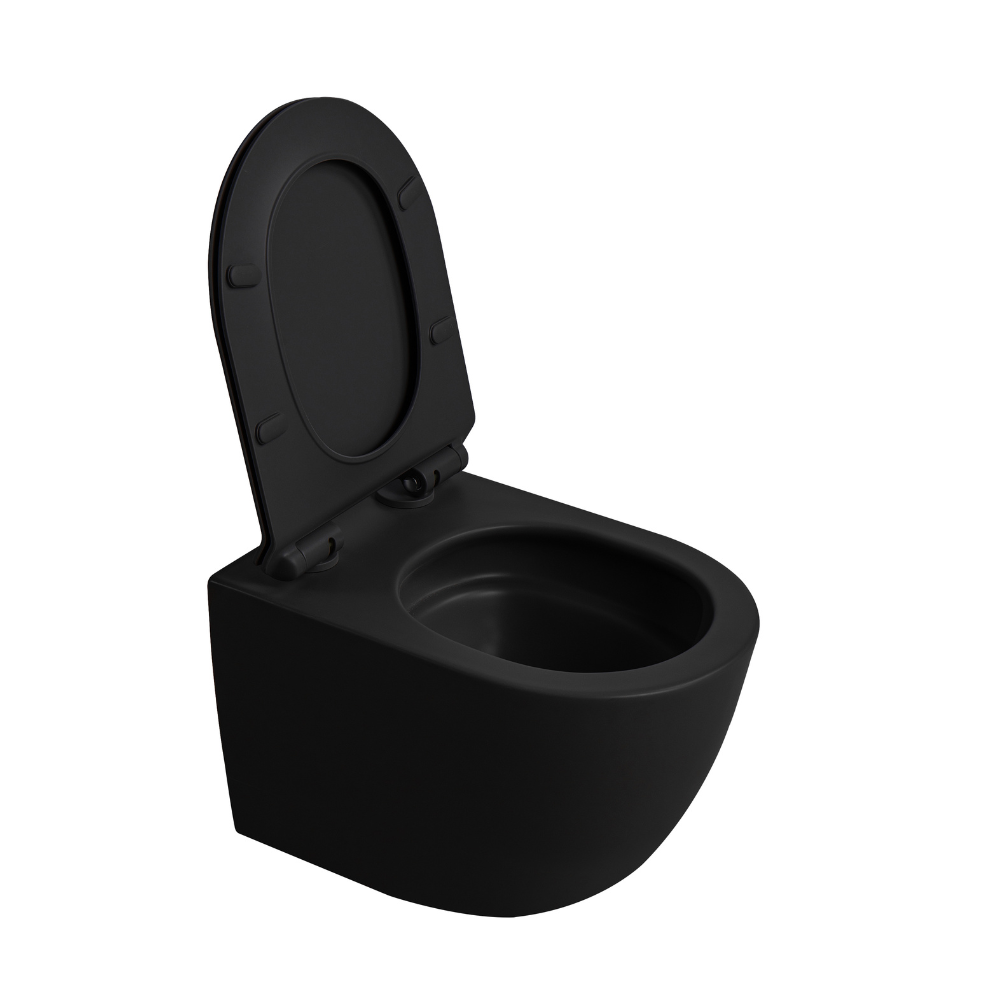

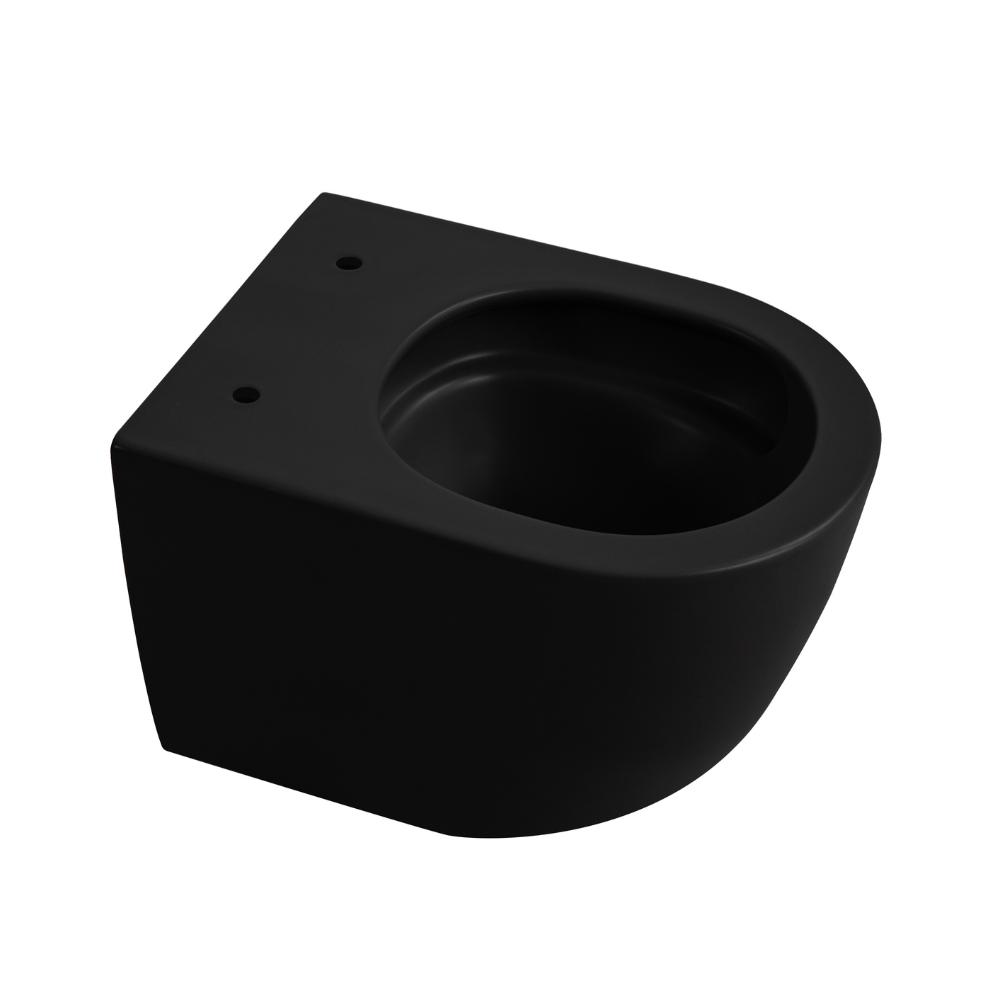

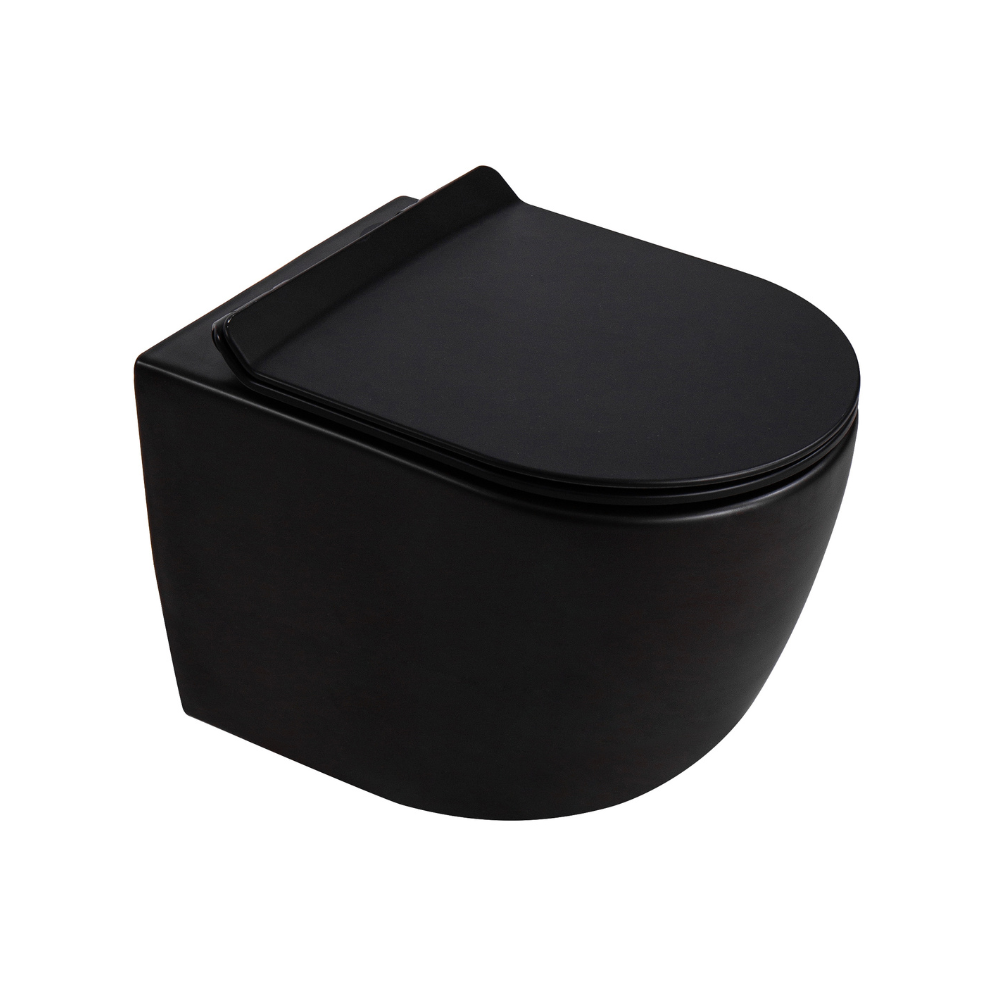

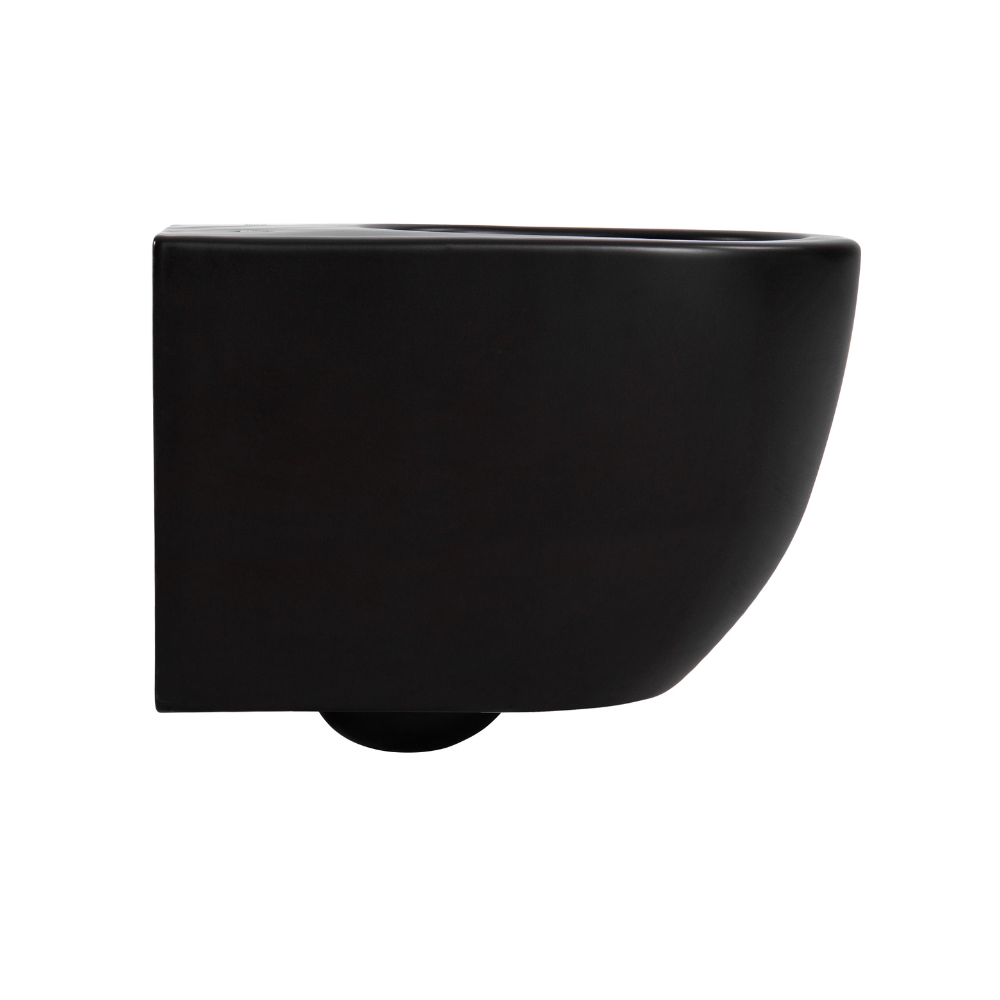

PixL Wall-hung ceramic toilet, rimless, Tornado, concealed fixings + Softclose seat, black (CEPX010RTORPBKM):

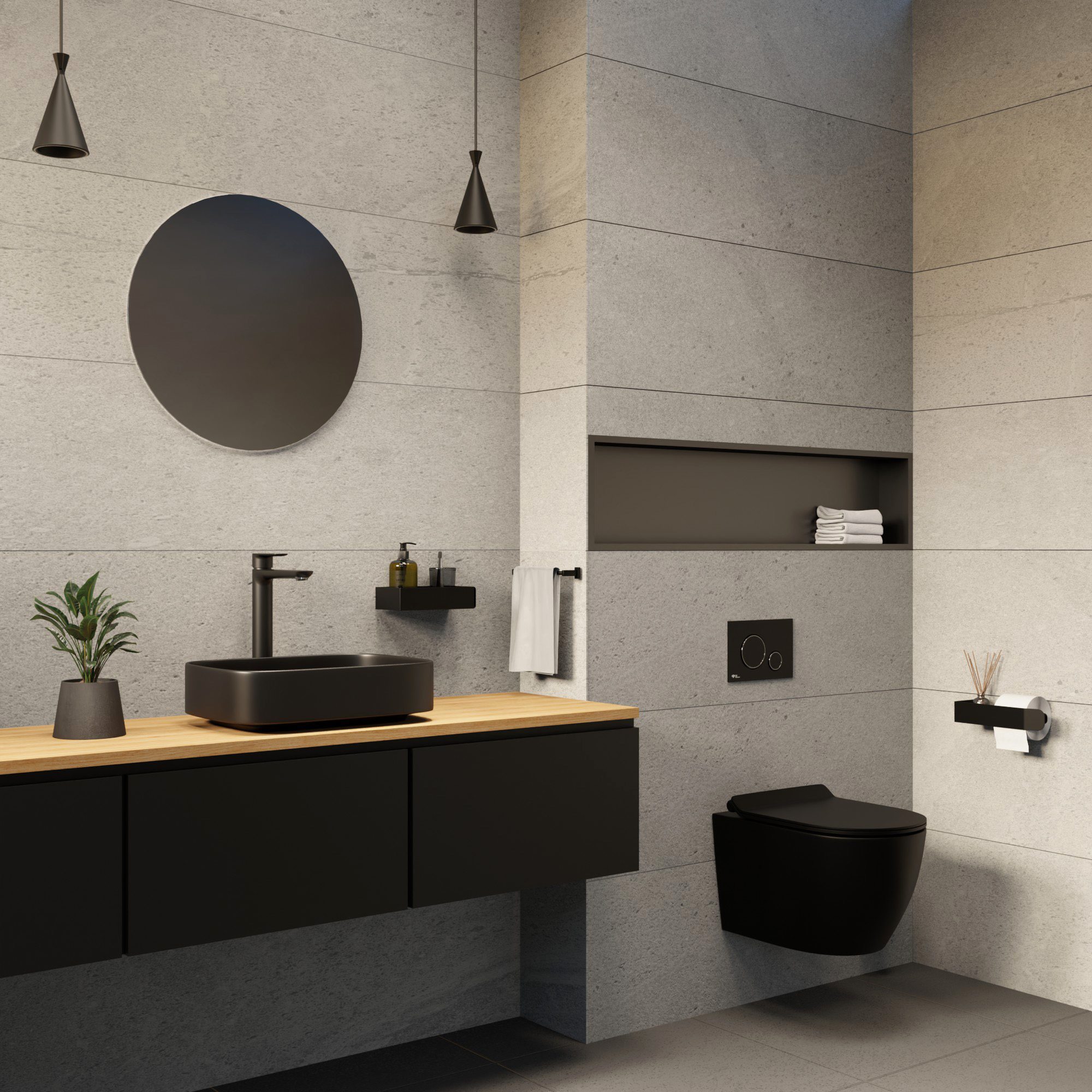

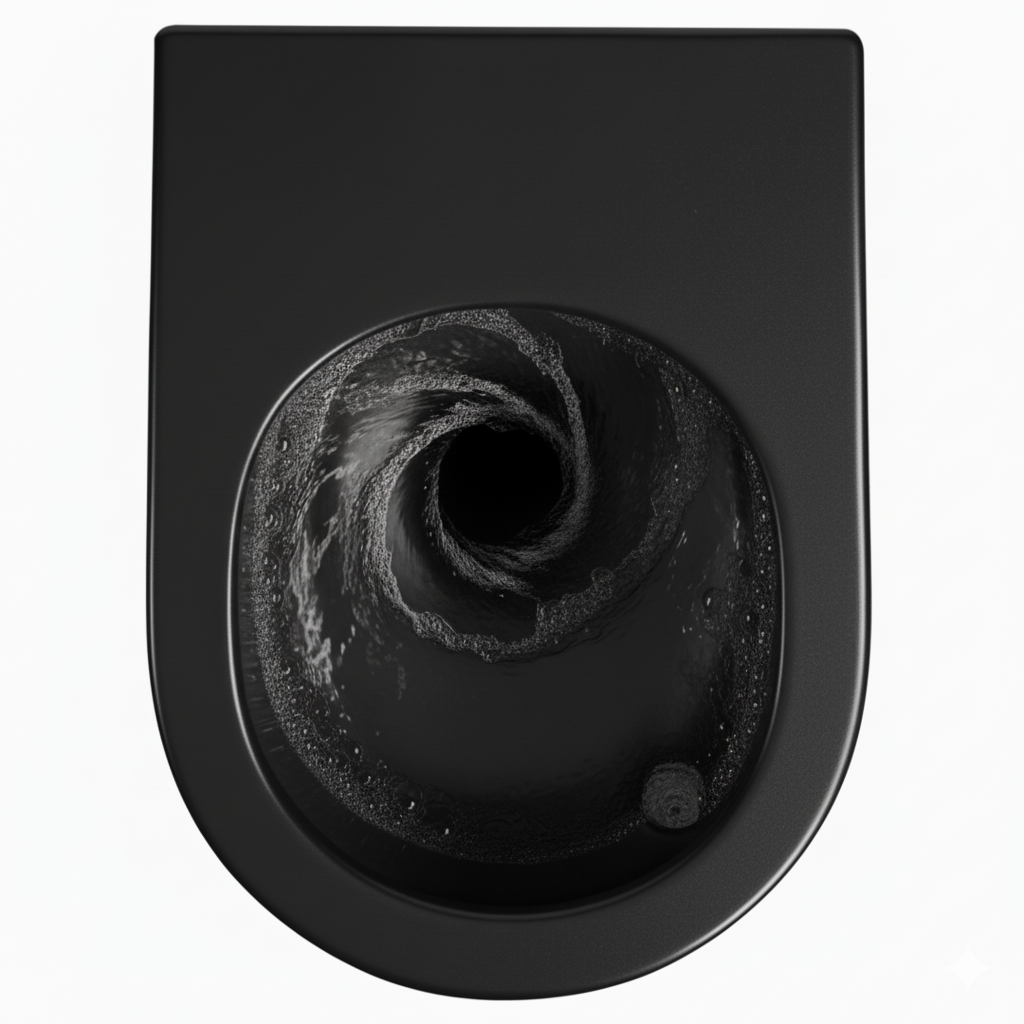

Matte black is synonymous with elegance and luxury. The PixL CEPX010RTORPBKM, wall-hung toilet in matte black finish, brings a sophisticated touch to your bathroom. Its rimless design simplifies cleaning and guarantees perfect hygiene, while the Tornado Quiet Technology ensures a quiet and highly efficient flush using less water than conventional systems (3/6 l).

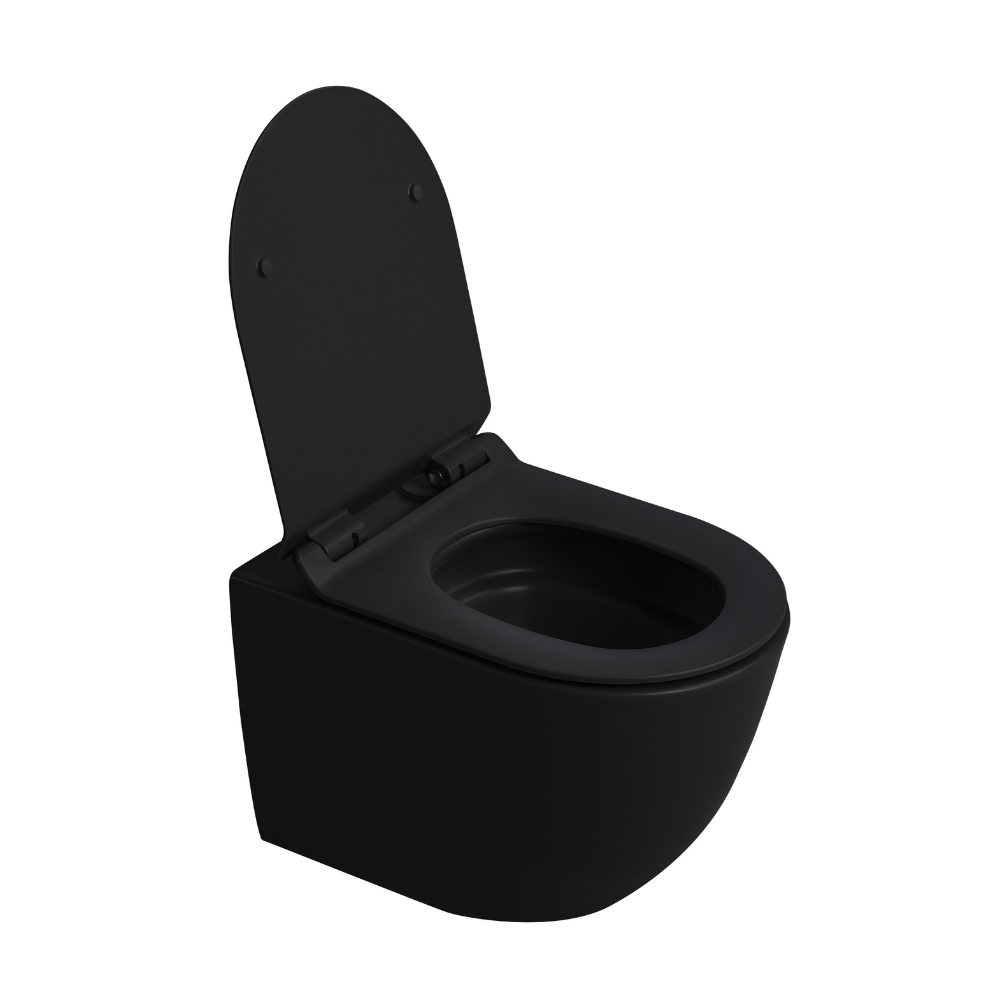

The Soft-Close seat ensures a soft and silent closing, and the Quick Release function allows it to be removed for a thorough cleaning. The concealed fixing highlights a minimalist design, even more striking in a black finish.
But the PixL series doesn't stop there - it's a complete range of sanitary ceramics, also including a wide selection of sinks in various shapes and colors. This allows you to create a coherent and harmonious bathroom, where the PixL CEPX010RTORPBKM becomes the centerpiece of a complete universe.
Attention! It is imperative to check the good condition of the package, both externally and internally, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. Beyond After this period, complaints will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Material:Ceramic
- Toilet bowl brand:Ceramia
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:Chrome
- Constructor warranty:2 years
- New:New
- Weight:35
- Bowl colour:Black
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3 / 4.9 L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No
- Built Width:50
- Built Height:112
- Bowl height:32
- Built Depth:12 cm
- Bowl width:36
- Flush plate finish:Glossy
- Bowl finish:Matt
