Geberit Duofix UP100 Toilet Frame + Swiss Aqua Technologies wall-hung rimless WC, SoftClose seat + plate (GEBSTBRWR02MAN-IN)
- Product reference: GEBSTBRWR02MAN-IN
- EAN: 3701729208506
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

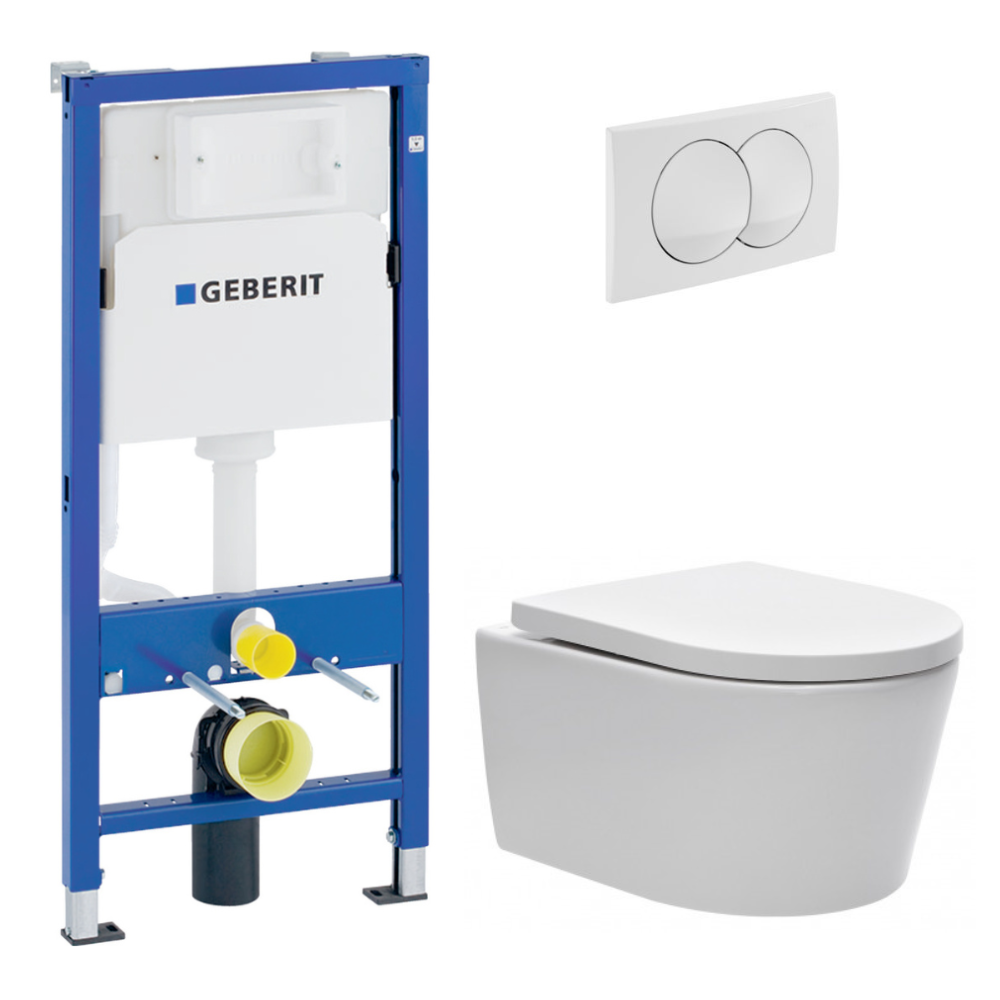

Features of the Geberit Duofix UP100 112 cm frame-mounted toilet + rimless wall-mounted toilet with SoftClose seat Swiss Aqua Technologies + white plate (GEBSTBRWR01MAN-IN):
- Geberit Duofix UP100 frame-mounted toilet + 112 cm toilet cistern (458.103.00.1)
- Swiss Aqua Technologies Rimless wall-mounted toilet with concealed fixings + soft-close seat (SATBRE010RREXP)
- Geberit DELTA20 flush plate (115.100.11.5)

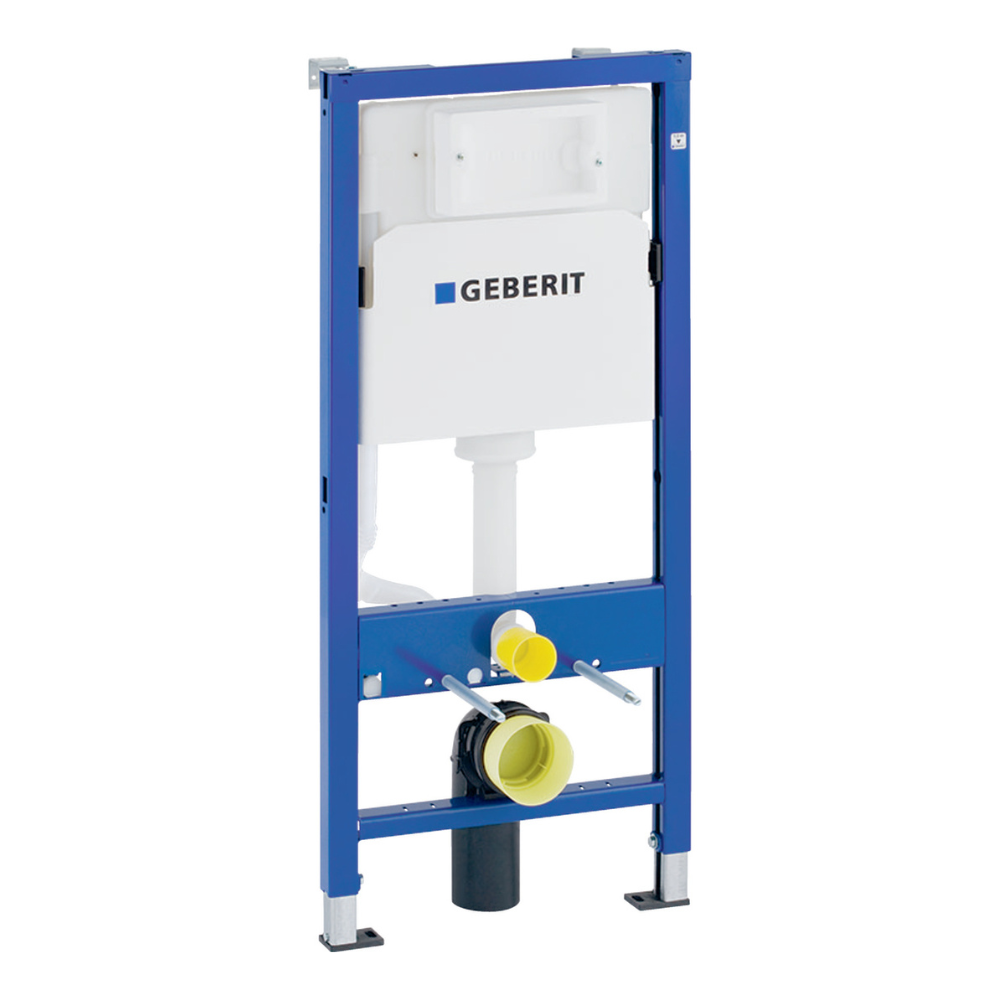

Features of the Duofix UP100 frame-mounted toilet + 112 cm toilet cistern (458.103.00.1):
Installation recommendations:
These wall-hung toilet frames are designed for the following types of installation:
- Against a load-bearing wall (concrete shell, plasterboard, aerated concrete, bricks, breeze blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against partition walls made of slabs of cardboard honeycomb core plasterboard, against plasterboard partitions on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition at the level of the upper fixings).
These support frames for wall-mounted toilets can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or batten using the lag screws provided.
Features:
- Geberit Delta 12 cm concealed cistern (UP100) with front actuation
- concealed cistern insulated against condensation
- large flush volume adjustable
- small fixed flush volume
- immediate flush setting possible
- water inlet from the back / from the top in the center
- connection pipe to the angle valve to be screwed in by hand
- 1 flush volume with the Geberit Delta15 actuator plate
- 2 flush volumes with the Geberit Delta20, Delta 21 and Delta 50 actuator plates
- frame surface treated with powder coating, Geberit blue color
- frame with ø 9 mm holes for fixing in wooden constructions
- galvanized support feet continuously adjustable from 0 to 20 cm
- depth of the plastic foot plates suitable for mounting on UW50 rail
- installation depth 12 cm
Technical information:
- Flush volume - factory setting: 6 and 3.5 l
- Large flush volume - adjustment range: 4.5 / 6 / 7.5 l
Scope of delivery:
- 2 M12 threaded rods for fixing the ceramic bowl
- Overflow valve for 2 flush volumes
- Reservation box for inspection hatch, made of polystyrene foam
- 2 protective caps
- Angle valve R 1/2" with adapter ring
- Insulating sleeve for the water inlet for Geberit AquaClean
- Flush elbow fixing
- Connection kit ø 90 mm
- WC flush elbow, PE-HD, ø 90/90 mm
- reducer, Ø 90/110 mm
- fixing material
- kit for surface mounting

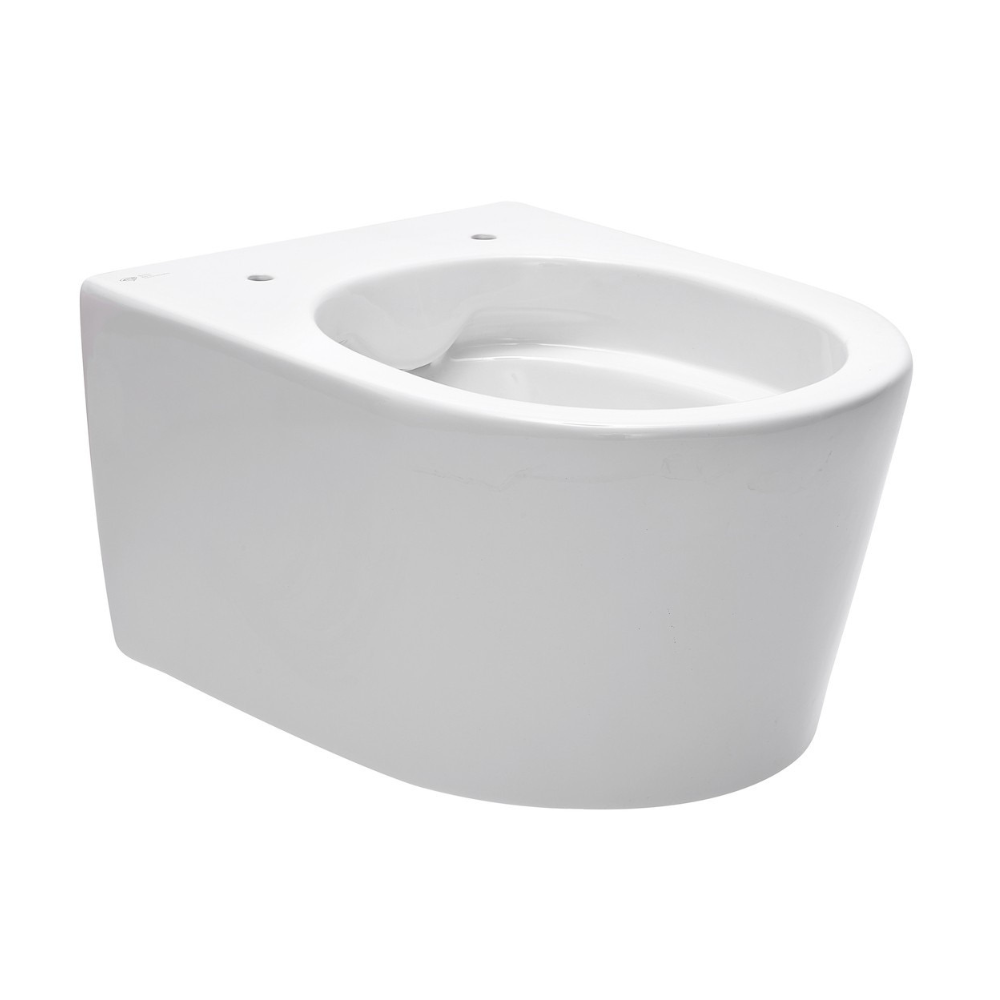

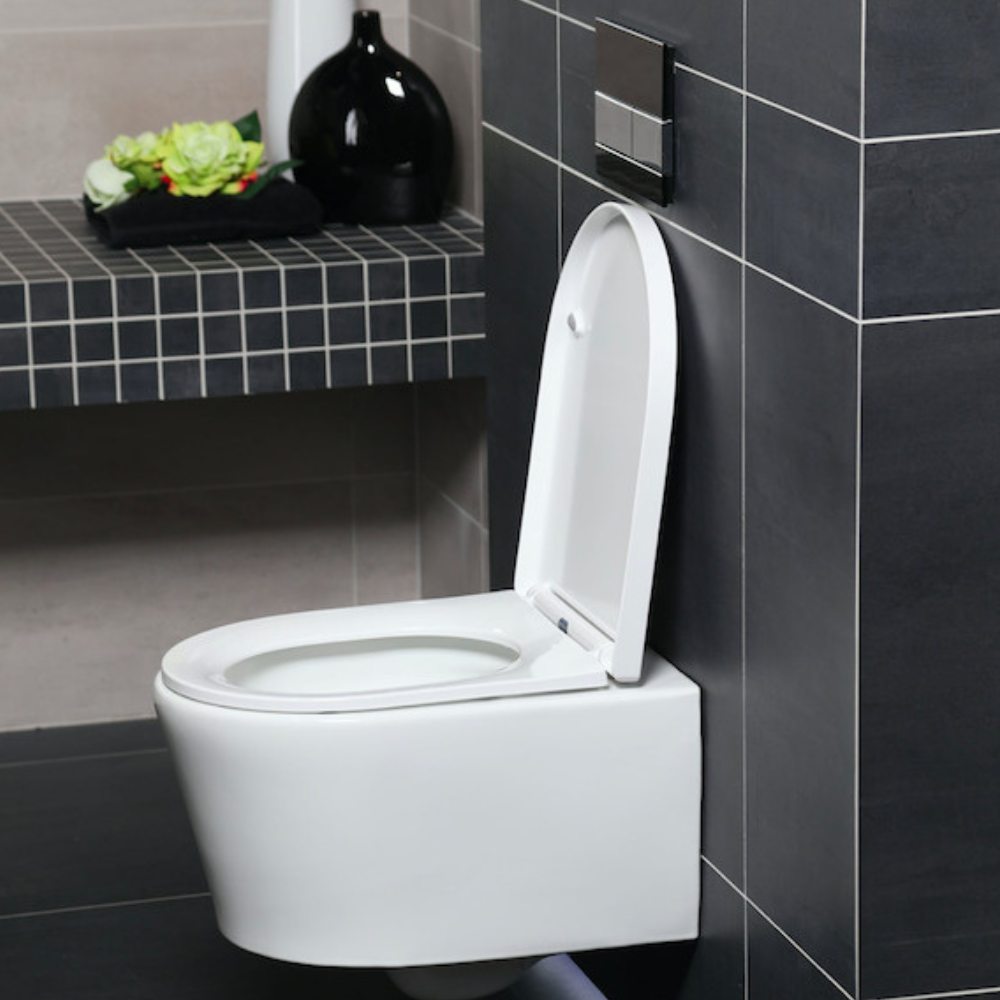

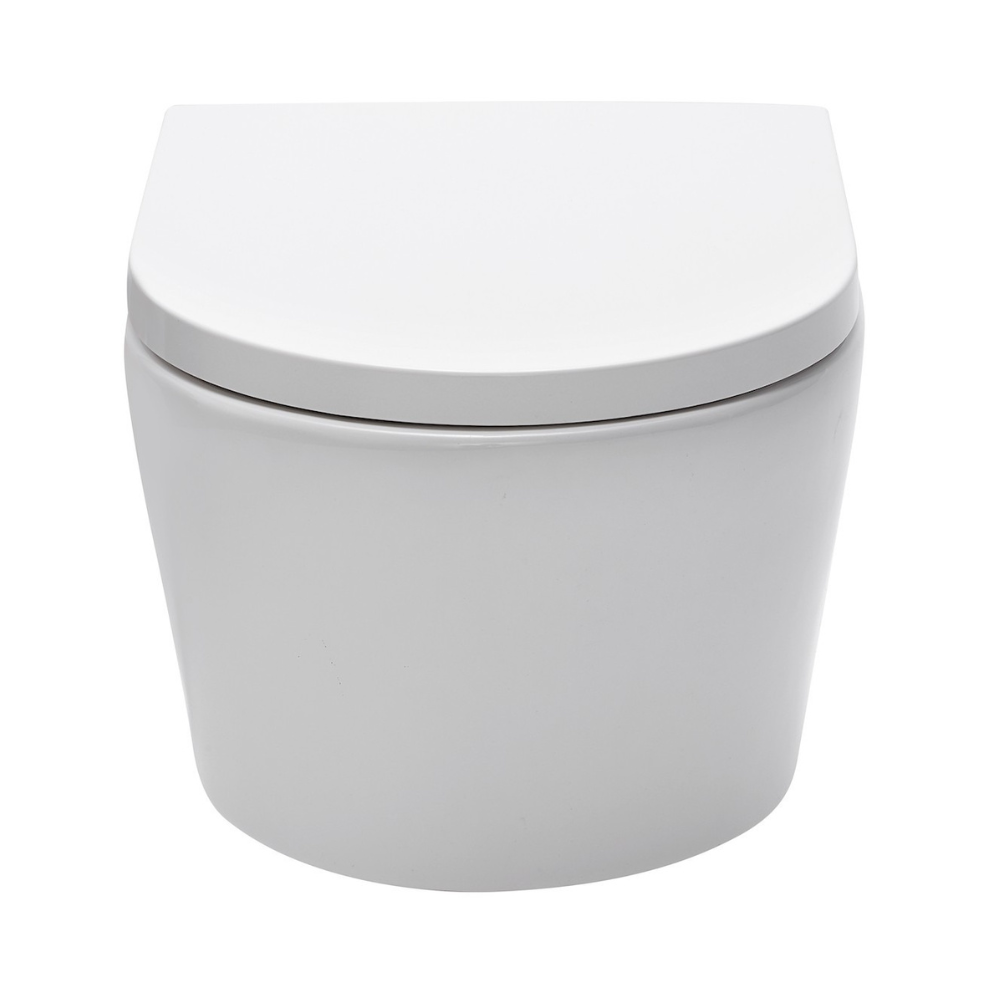

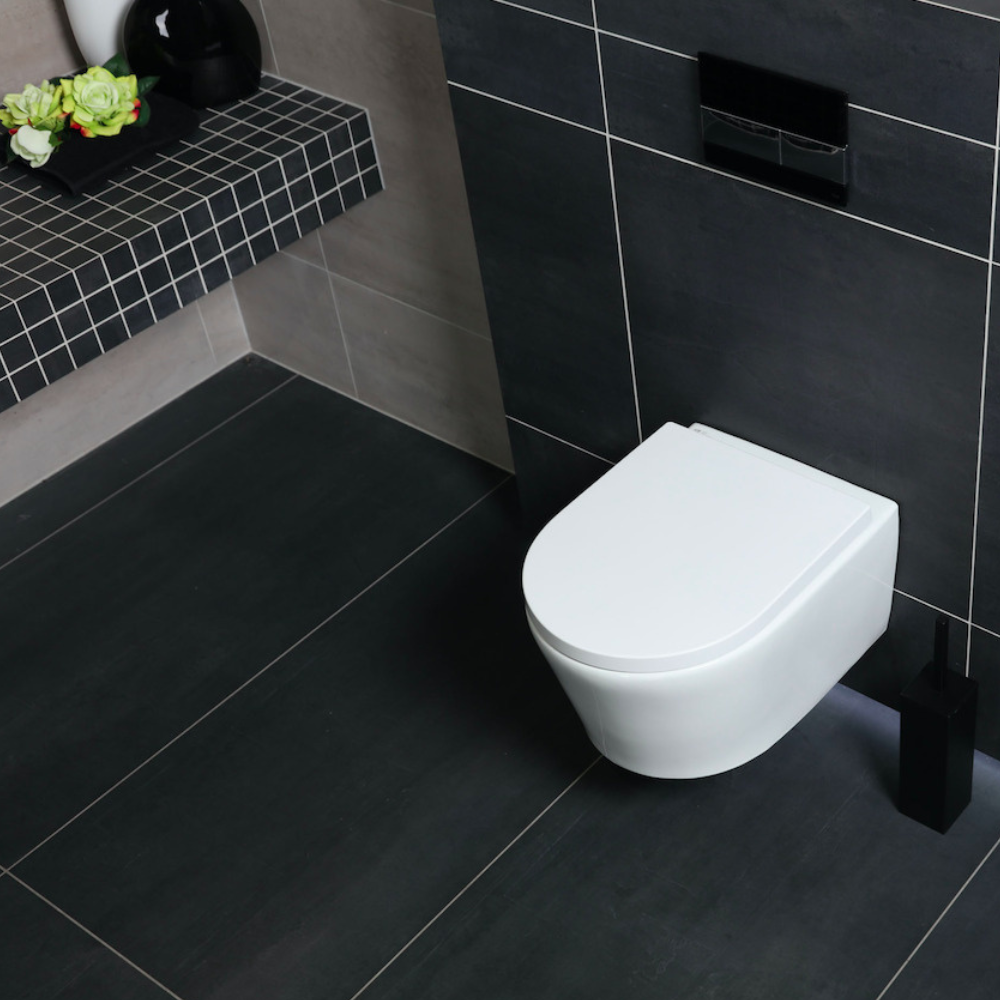

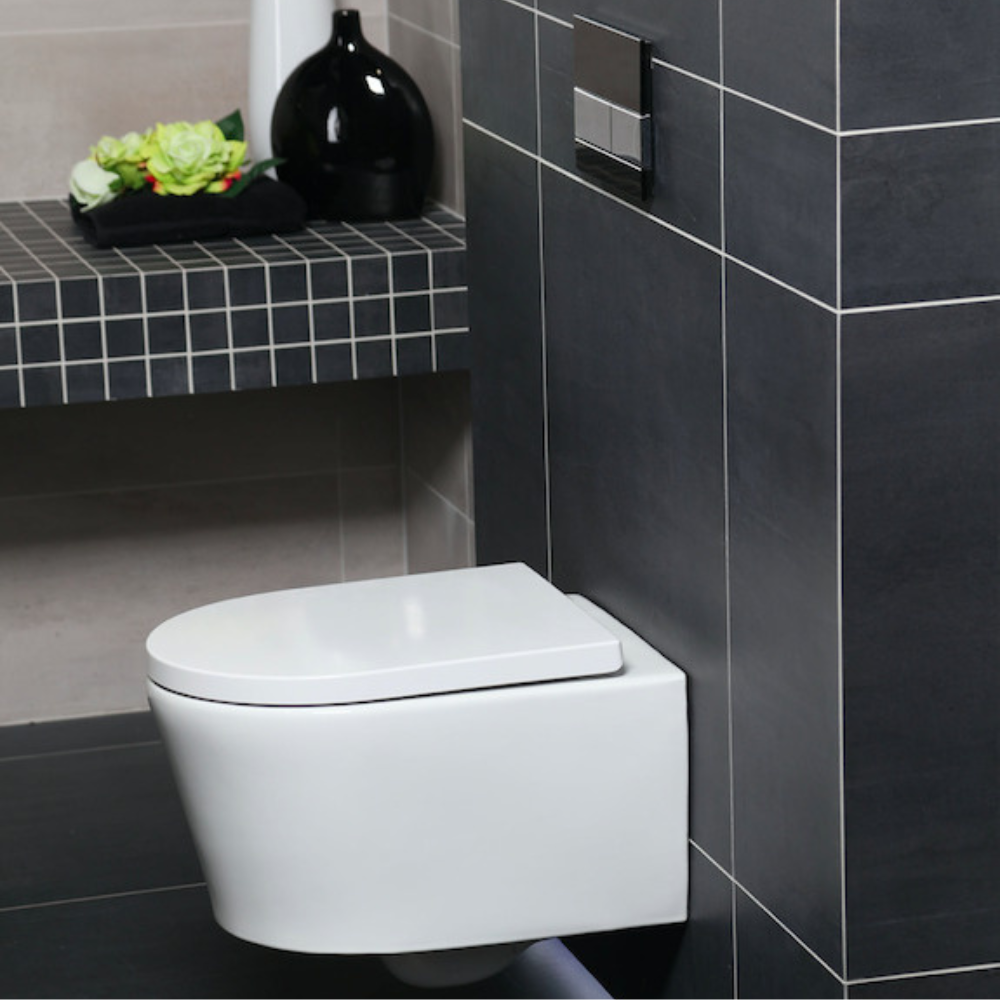

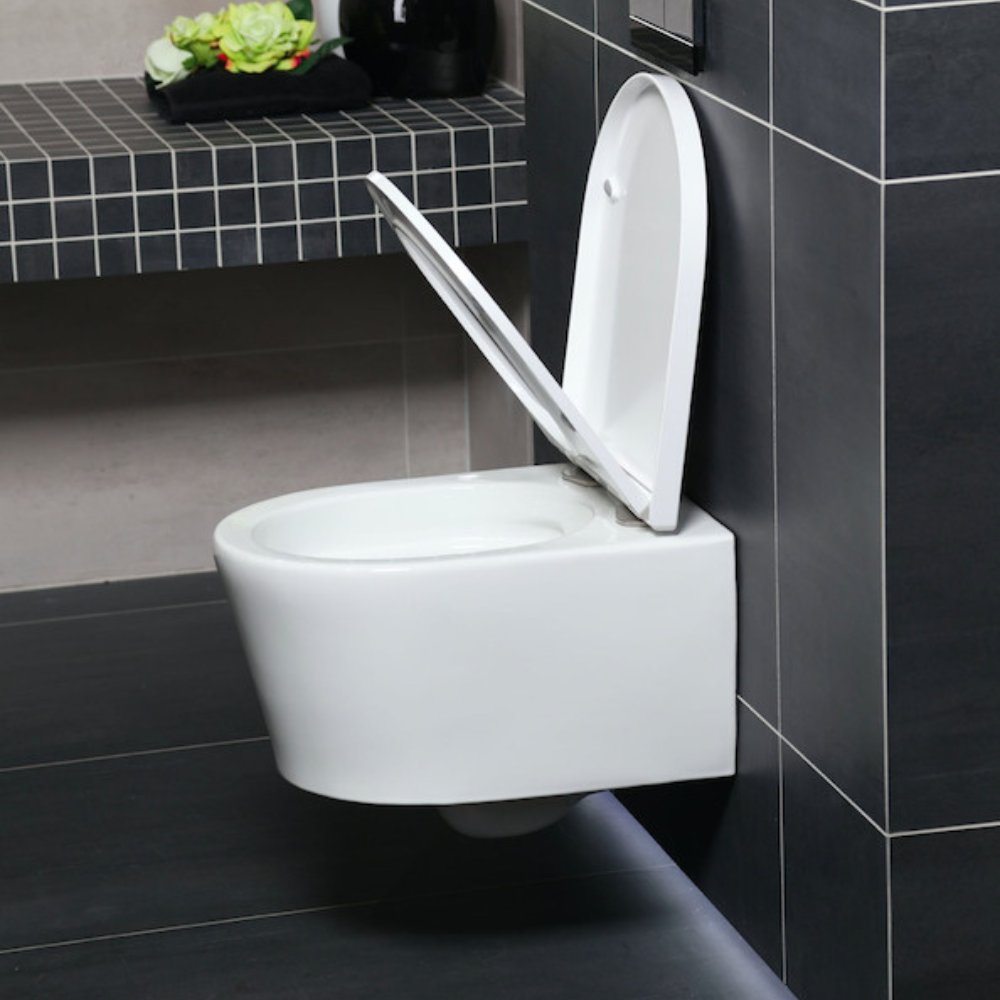

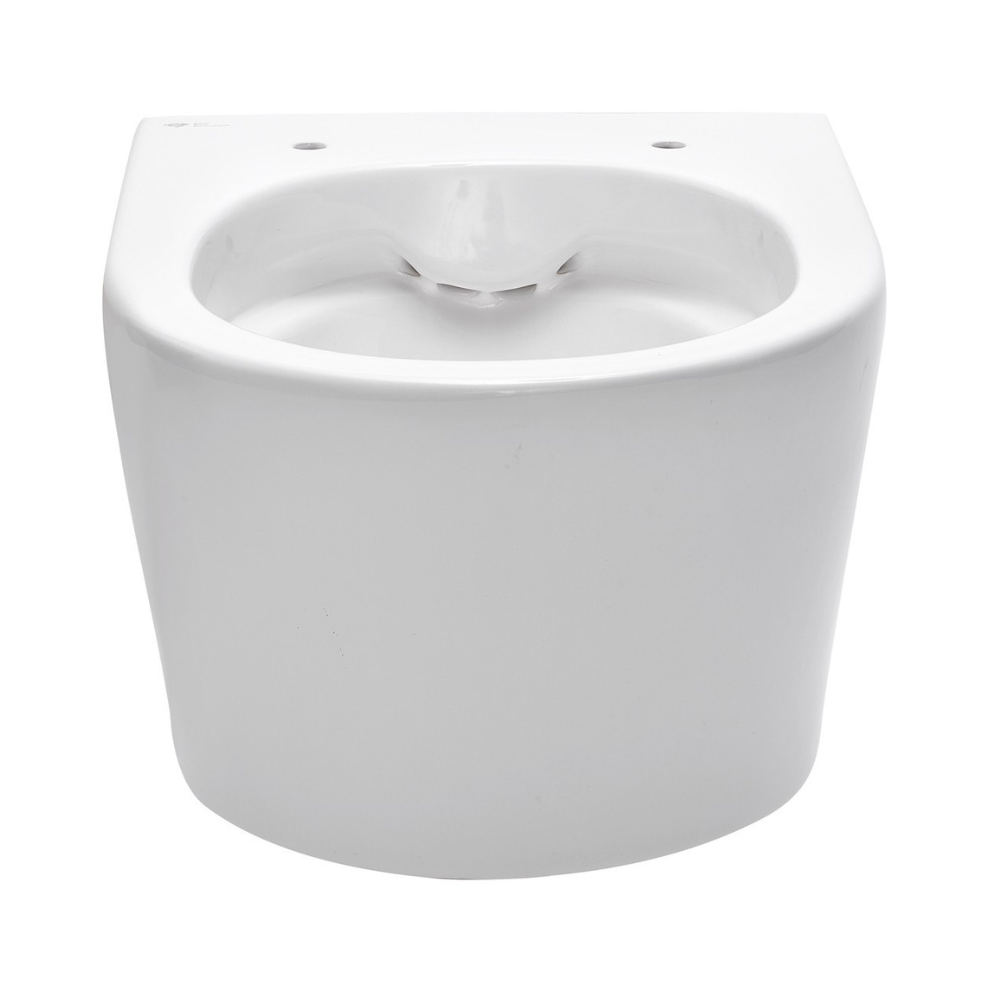

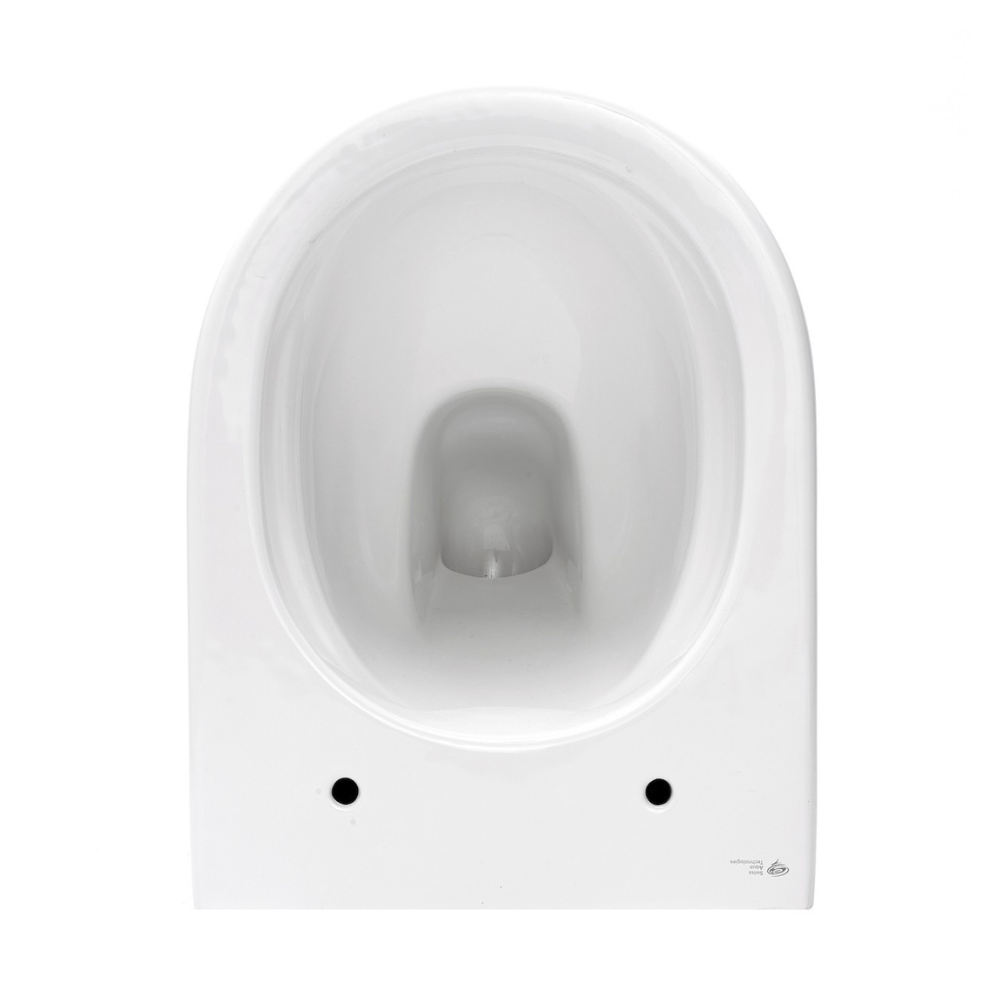

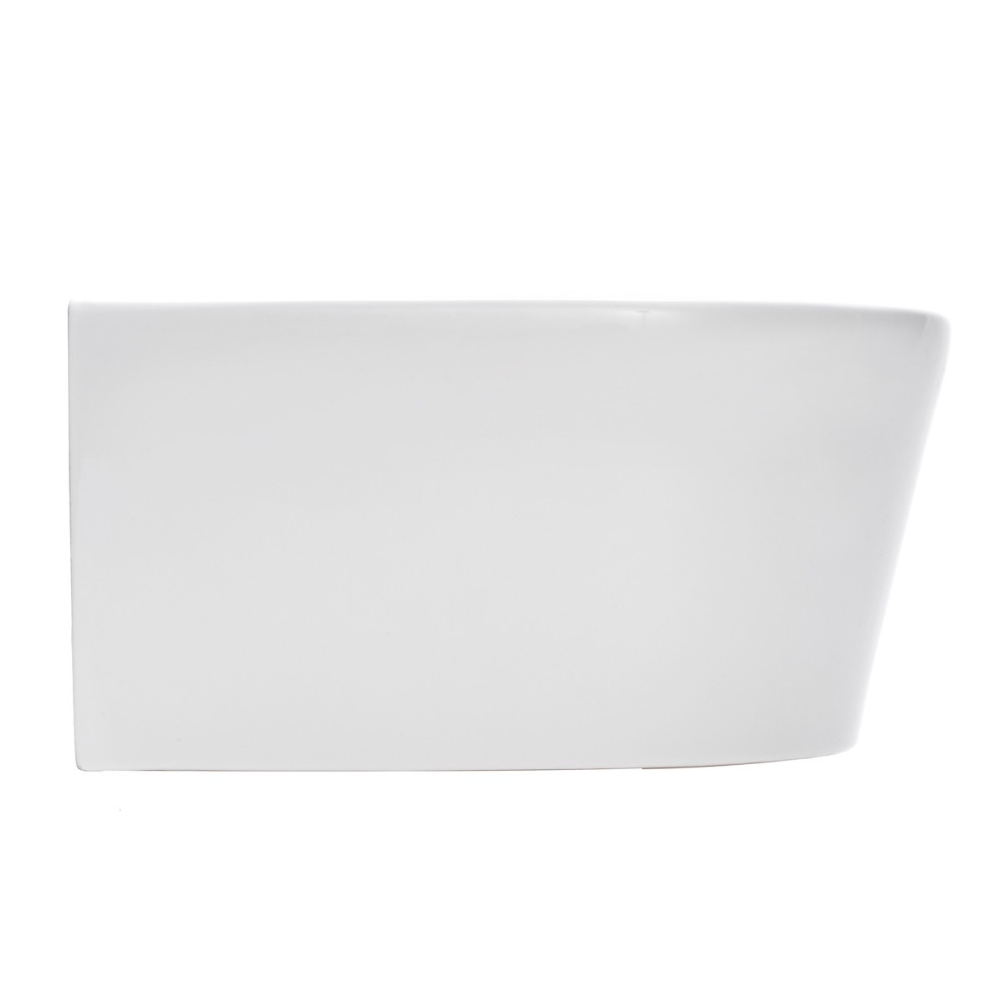

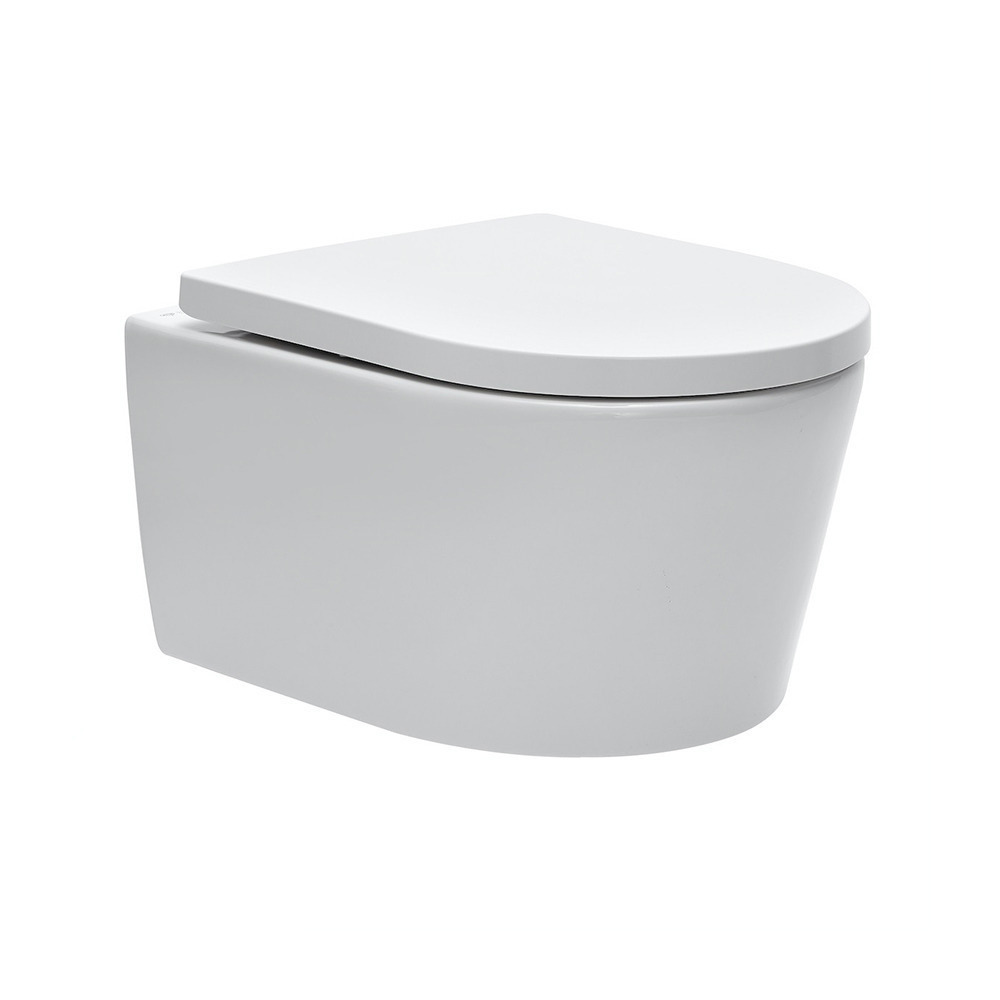

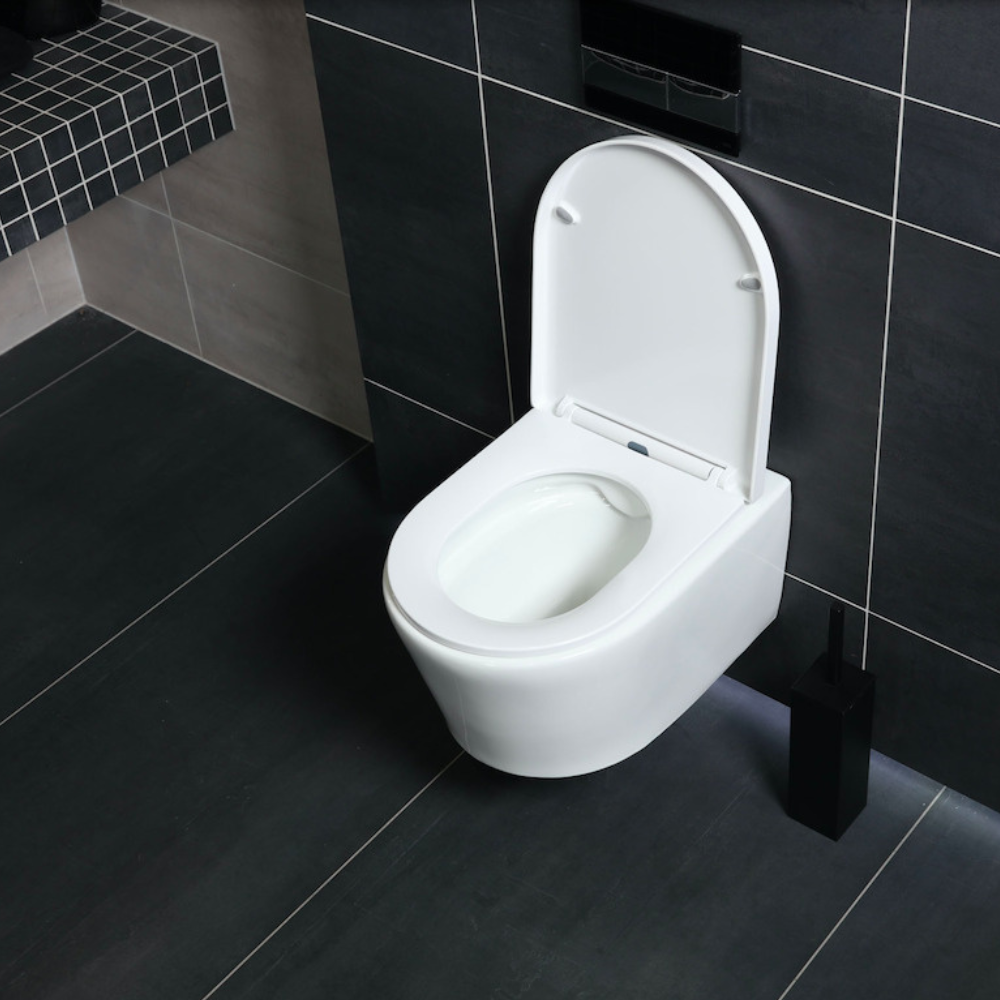

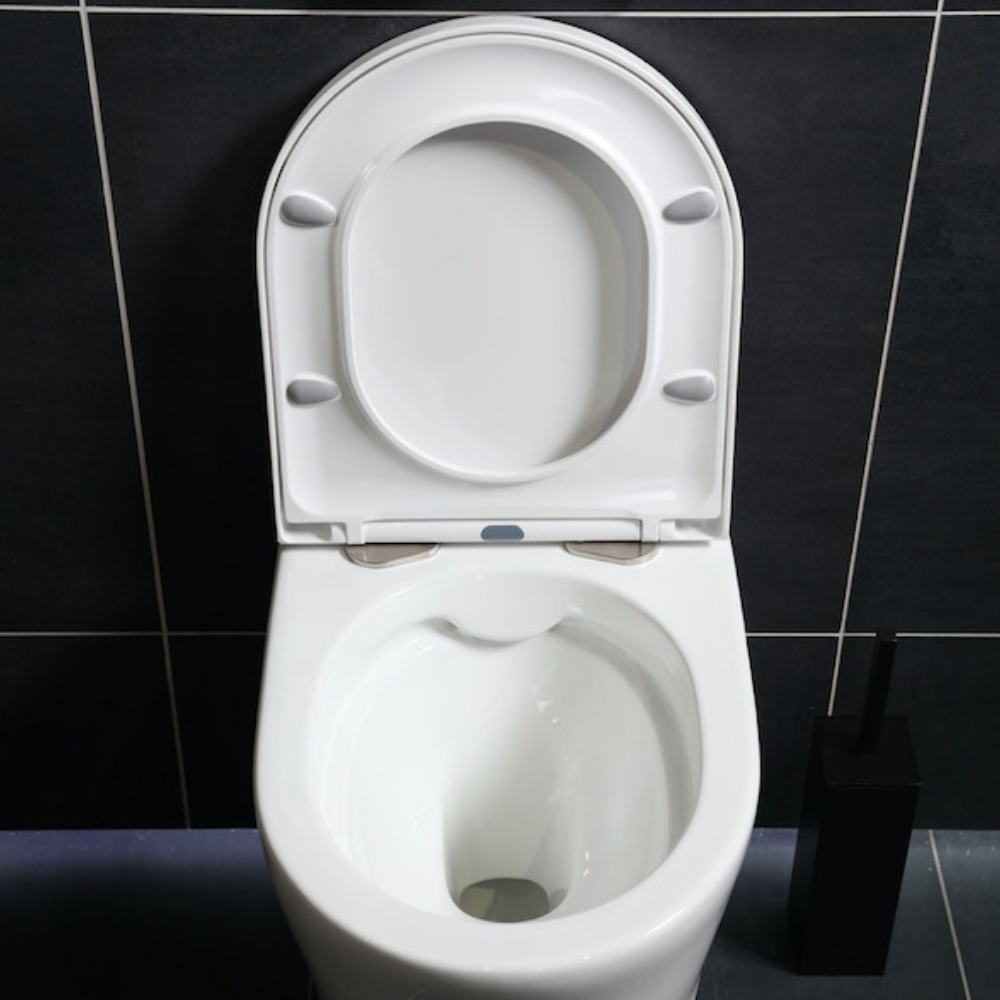

Rimless wall-hung toilet with concealed fixings + soft-close seat (SATBRE010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and refined style
- Rimless toilet
- Concealed fixings
- Depth 48 cm
- Economical flush 3 / 4.5 L

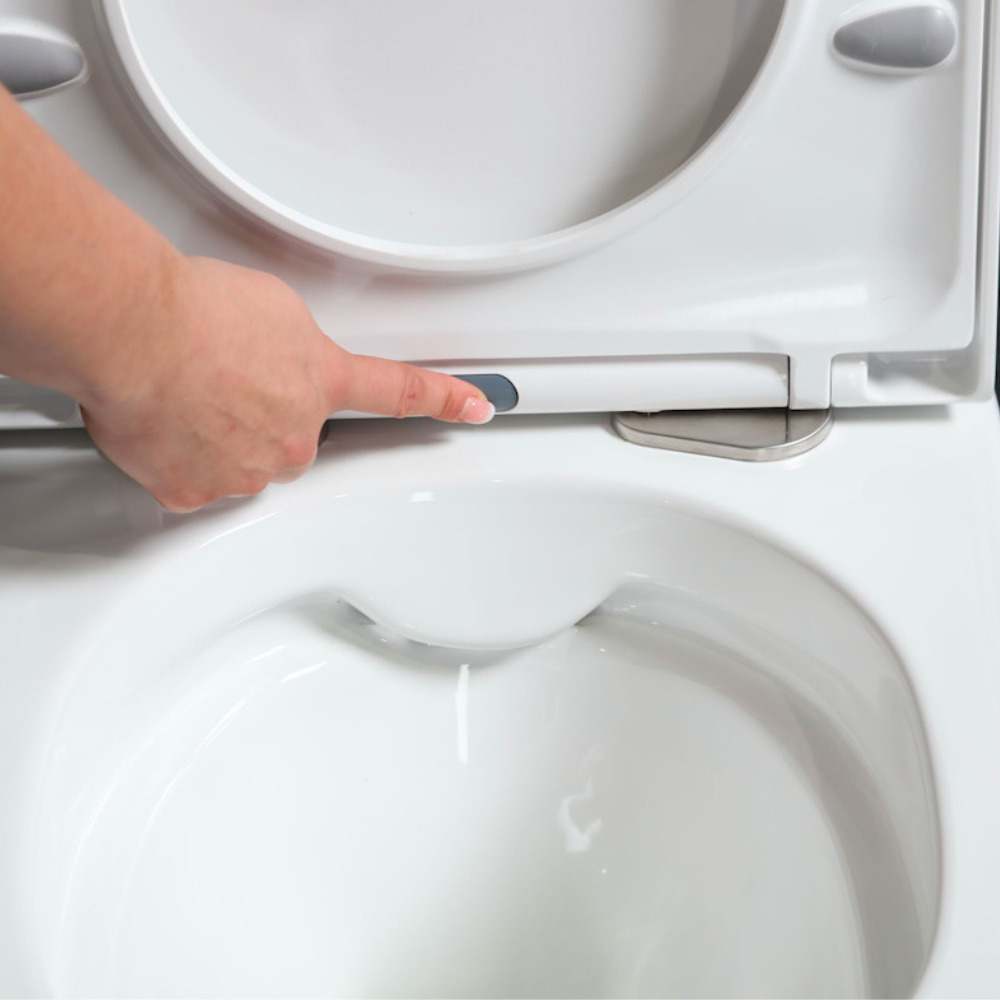

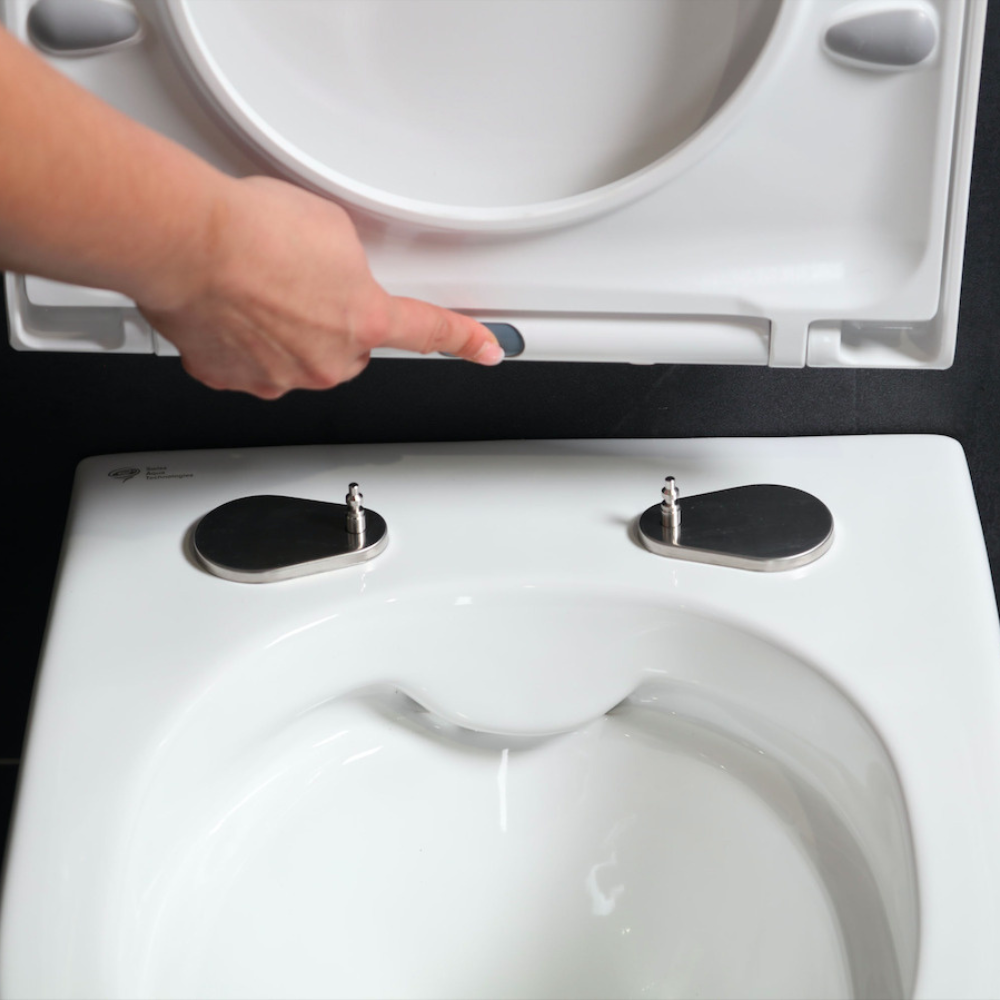

- Soft-close seat
- Removable toilet seat
- Easy to maintain thanks to the rimless system and removable toilet seat
- Quick installation

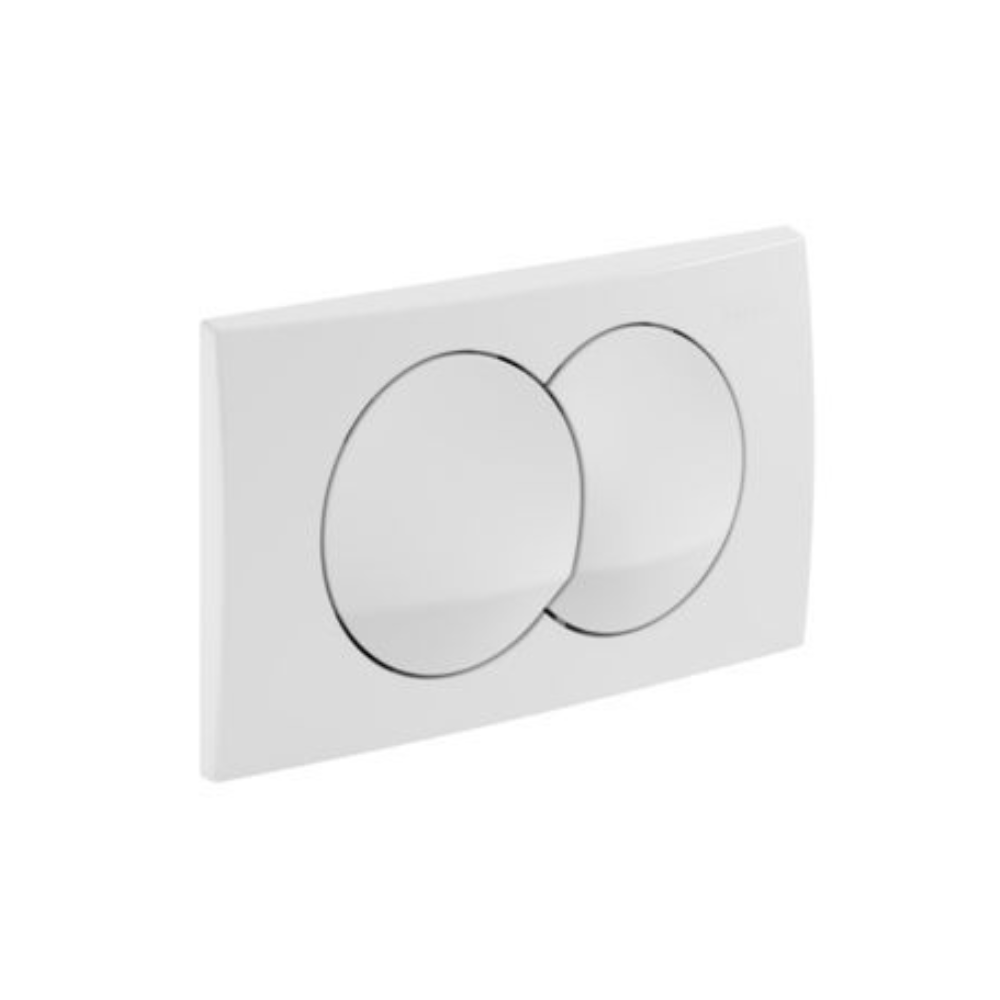

DELTA20 flush plate (115.100.11.5):
Delta has two buttons, one for a small 3L flush and the other for a large 6L flush, allowing you to save water. The Basic frame with the Delta plate is activated from the front.
Warning! It is imperative to check that the package is in good condition, both externally and internally, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this time, claims will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3-4/4.5-6L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No

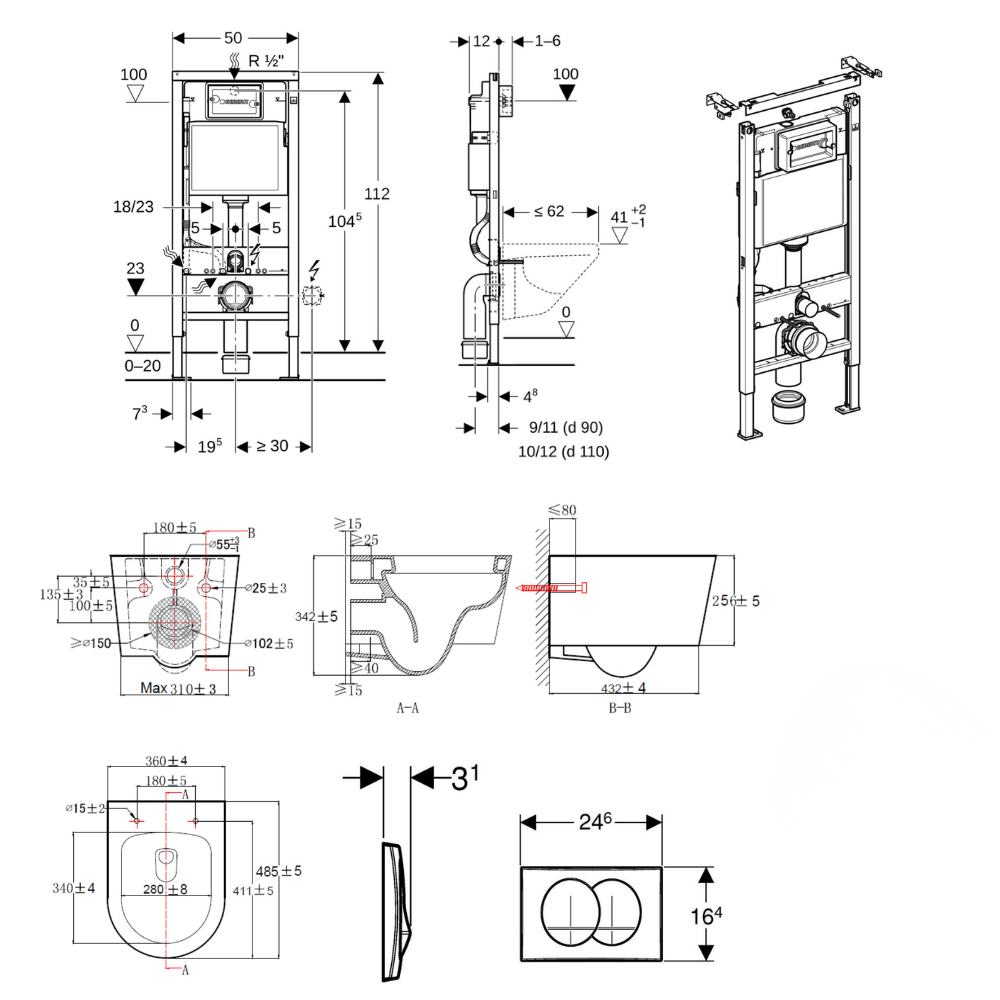

- Built Width:50
- Built Height:112
- Bowl height:34.2
- Built Depth:12 cm
- Bowl width:36.5
- Flush plate finish:Glossy
- Bowl finish:Glossy
