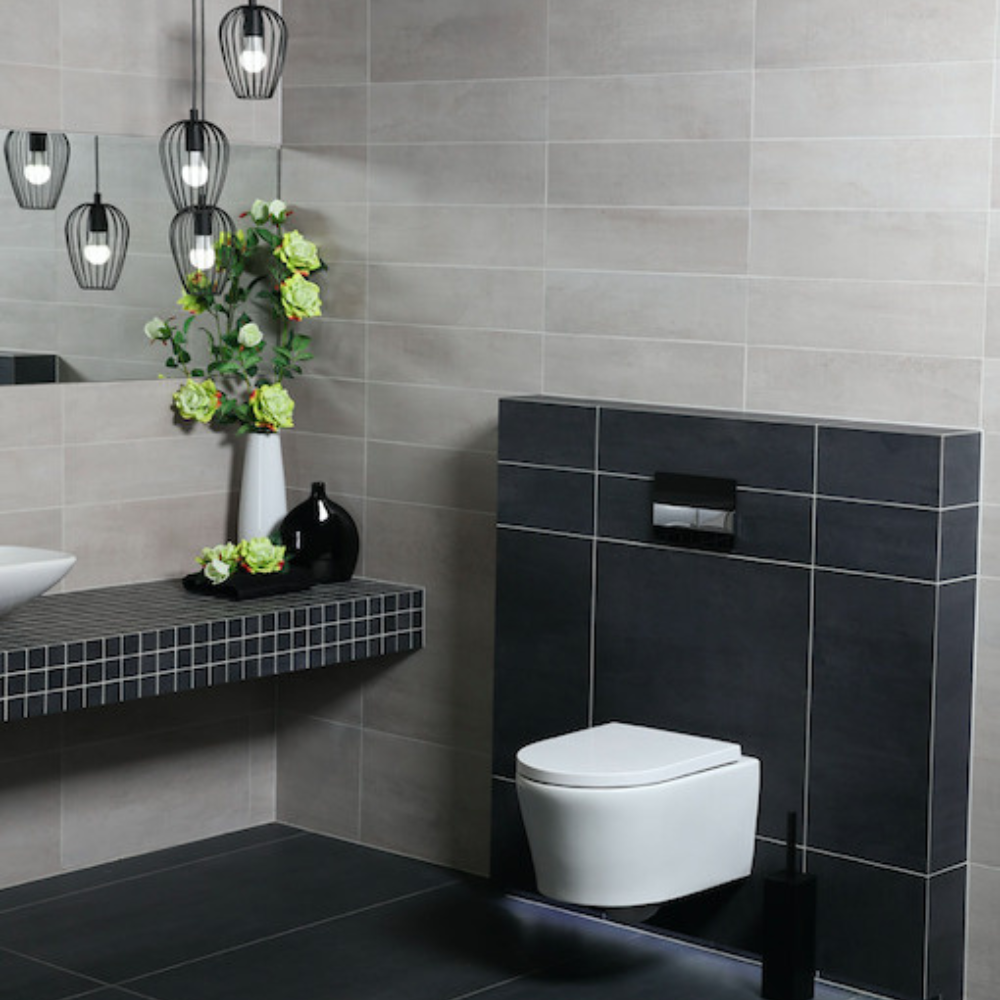

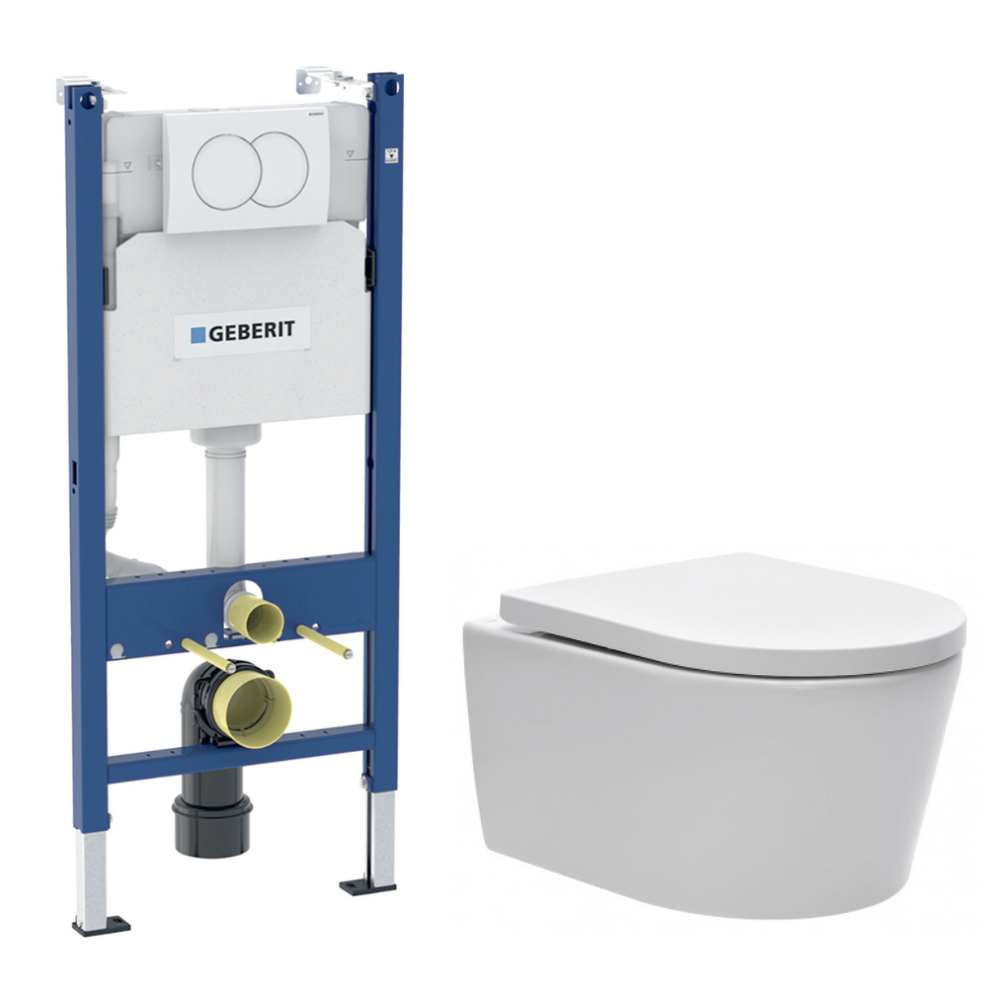

Geberit Duofix Toilet Frame 112 cm + Swiss Aqua Technologies wall-hung rimless WC, SoftClose seat + plate (GEBSTBRWR01MAN-IN)
- Product reference: GEBSTBRWR01MAN-IN
- EAN: 3701729208520
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix 112 cm frame-mounted toilet pack + rimless wall-mounted toilet with SoftClose seat Swiss Aqua Technologies + white plate (GEBSTBRWR01MAN-IN):
- Geberit Delta Duofix 112 cm frame-mounted toilet pack + Delta01 flush plate, white + wall brackets (111.154.11.2)
- Swiss Aqua Technologies Rimless wall-mounted toilet with concealed fixings + soft-close seat (SATBRE010RREXP)
Features of the Geberit Delta Duofix 112 cm frame-mounted toilet pack + Delta01 flush plate, white + wall brackets (111.154.11.2):
- Geberit DUOFIXBasic for wall-mounted toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall mounting kit for self-assembly (111.839.00.1)
- Geberit Delta01 dual flush actuator plate, alpine white (115.107.11.1)
.

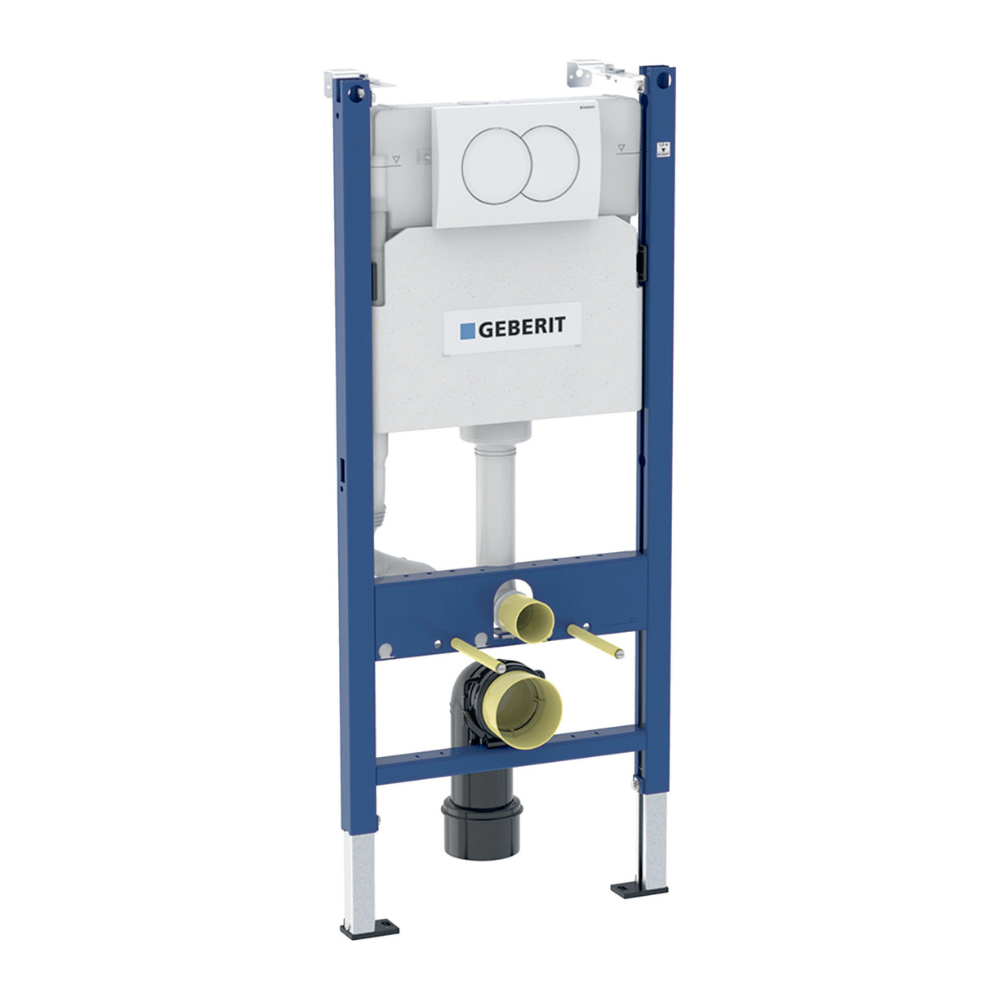

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1):
Installation recommendations:
These wall-hung toilet frames are suitable for the following types of installation:
- Against a load-bearing wall (concrete shell, plasterboard, aerated concrete, bricks, breeze blocks) and on a slab concrete using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to the manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against plasterboard partition walls with a cardboard honeycomb core, against plasterboard partition walls on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition wall at the level of the upper fixings).
These wall-hung toilet frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or batten using the Lag screws included.
Main features:
- Geberit Delta UP100 concealed cistern (12 cm), front activation
- Anti-condensation, installation depth: 12 cm
- High flush rate adjustment possible (4.5 / 6 / 7.5 L)
- Small fixed flow rate, immediate flushing possible
- Rear/central water supply from the top
- Manual connection to the angle valve possible
- Compatibility:
- 1 button: Delta15
- 2 buttons: Delta20
- Self-supporting frame, blue coated, with ø 9 mm holes (wood fixing)
- Feet adjustable from 0 to 20 cm, base plates suitable for UW50 mounting
Technical information:
- Factory setting: 6 / 3.5 L (large/small flush)
Package contents:
- 2 M12 threaded rods (ceramic fixing)
- Dual-flow flush valve
- Protective cover for rough-in installation
- 2 protective plugs
- Angle valve R 1/2" with adapter
- AquaClean supply hose
- Connection kit ø 90 mm + elbow ø 90 mm + adapter ø 90/110 mm
- Fixing material
Not included: wall mounting kit
Flush plate Geberit Delta01 dual flush, alpine white (115.107.11.1)
- New Geberit 2022
- Mechanical dual flush front actuation
- Water saving
- For Delta cistern

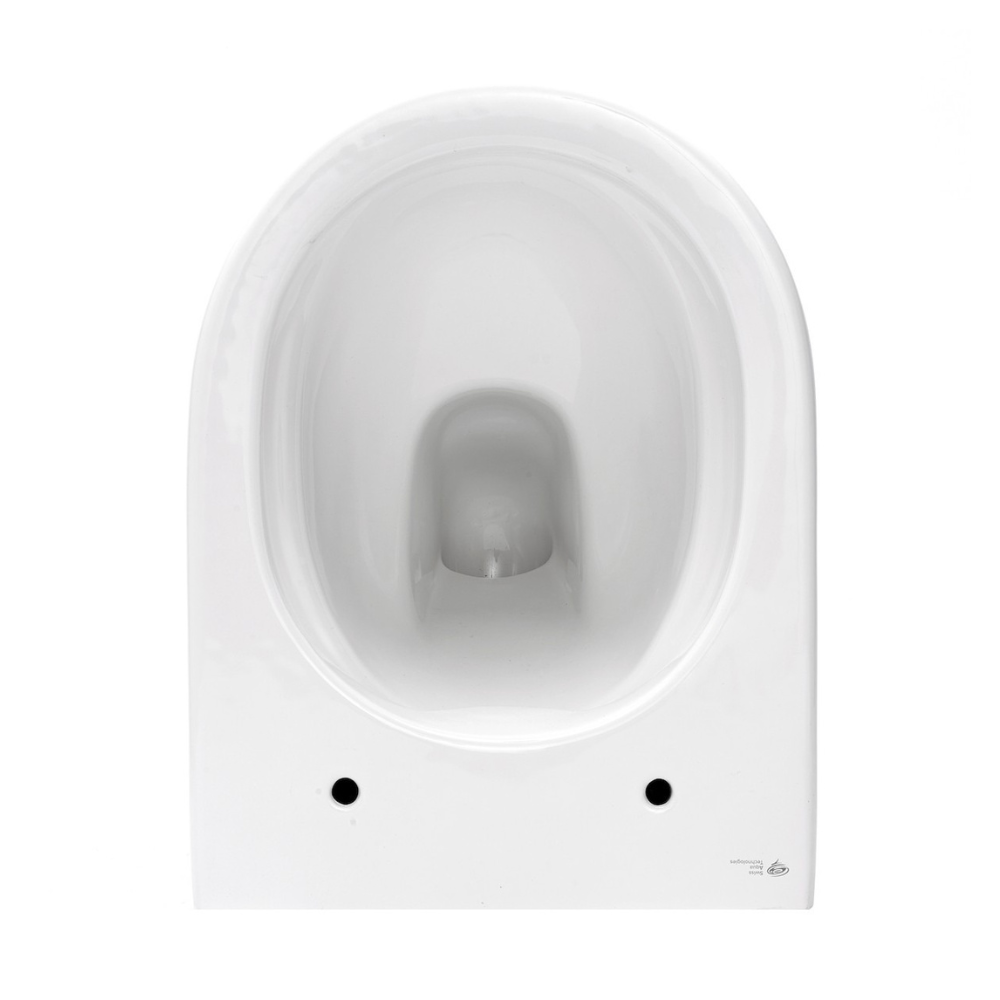

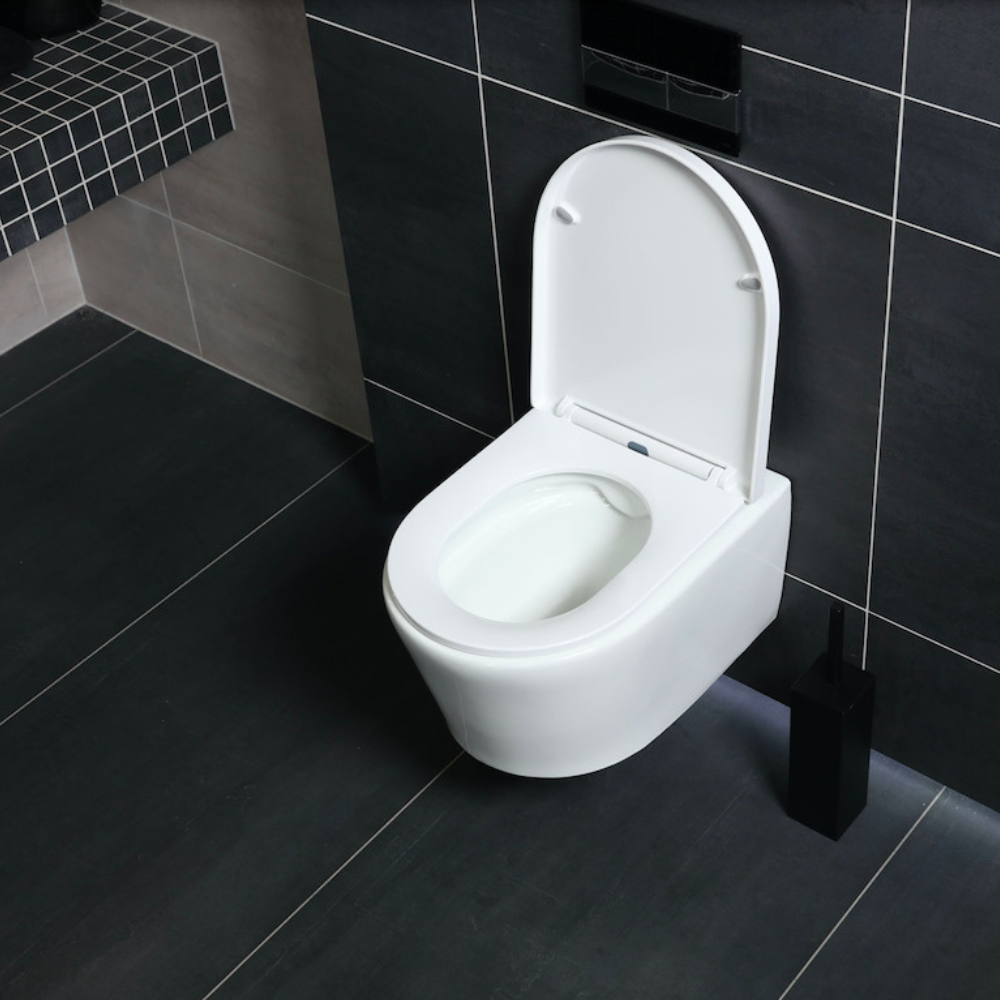

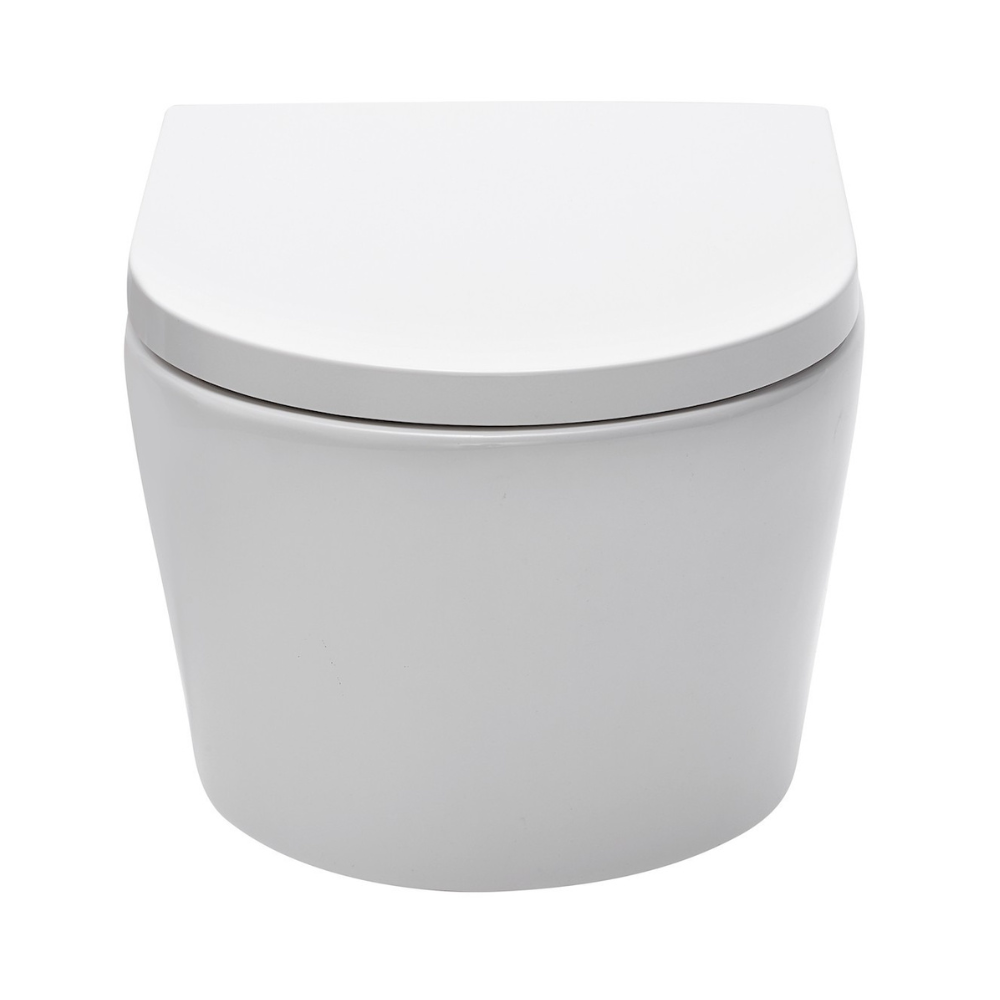

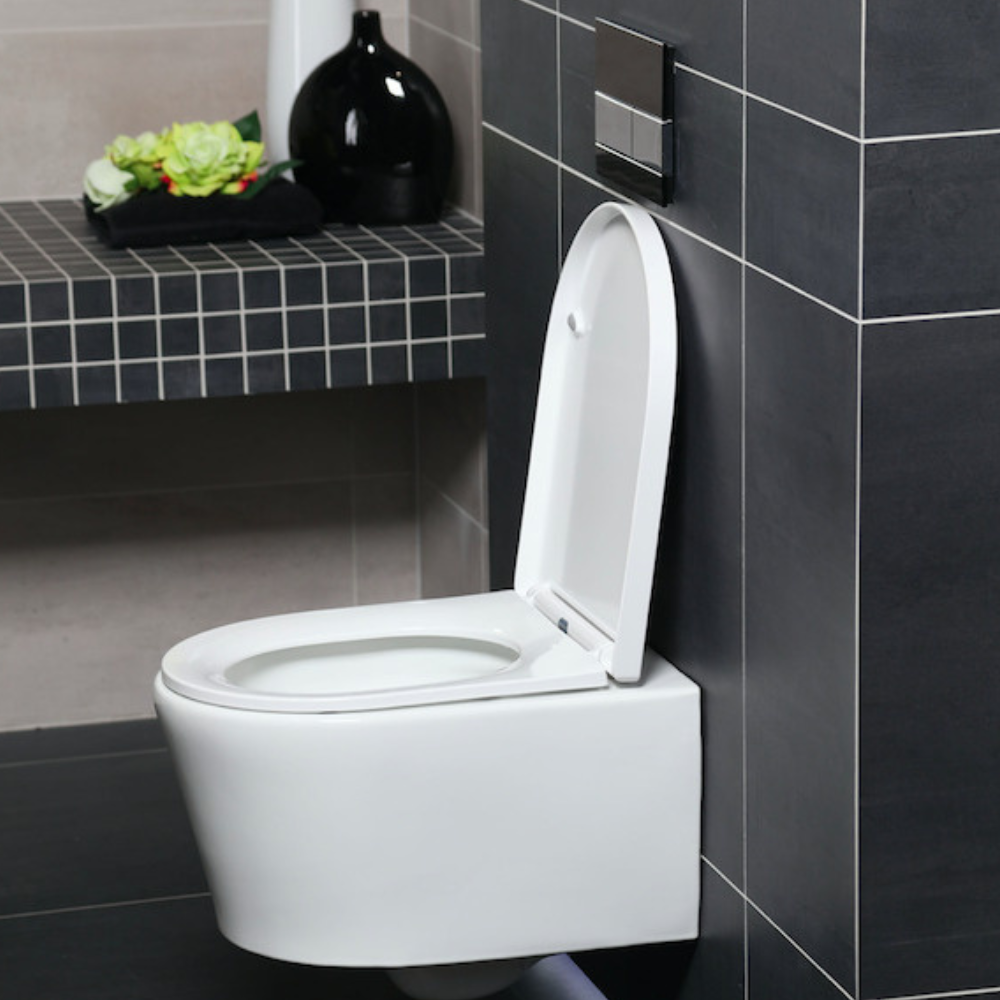

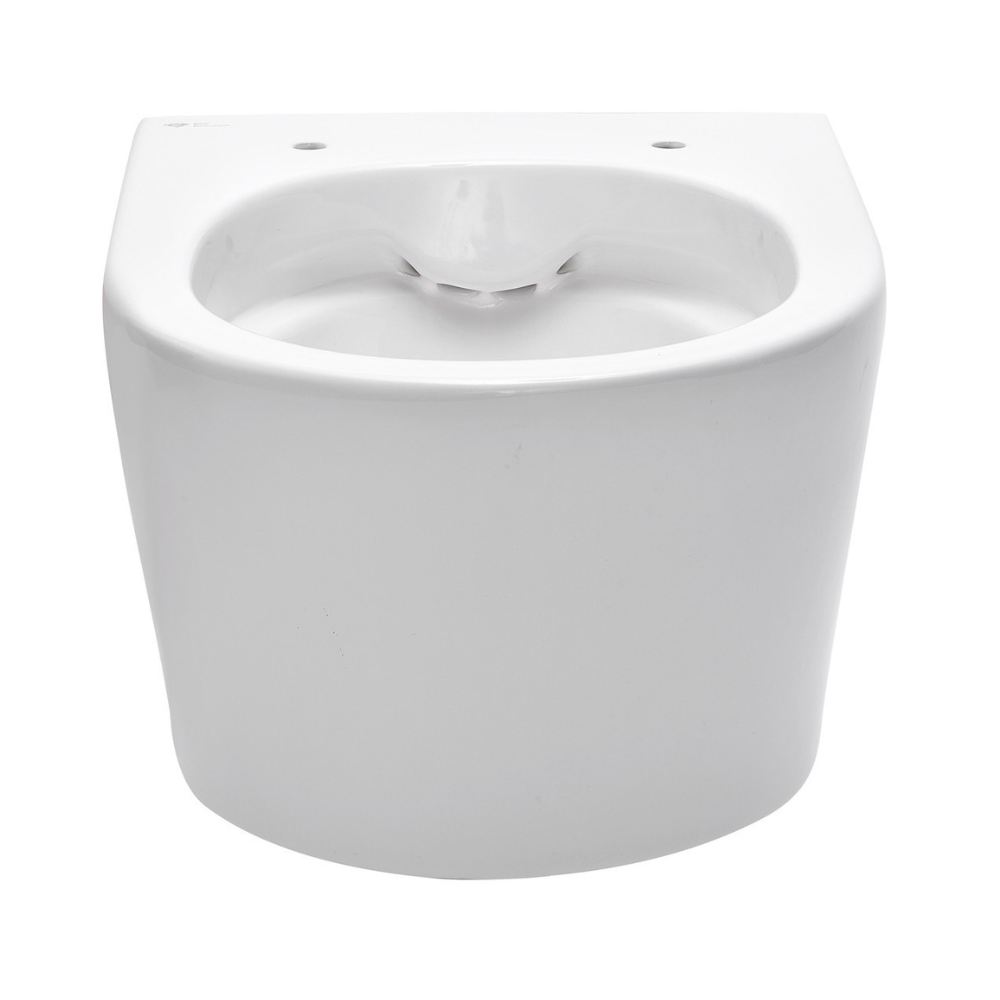

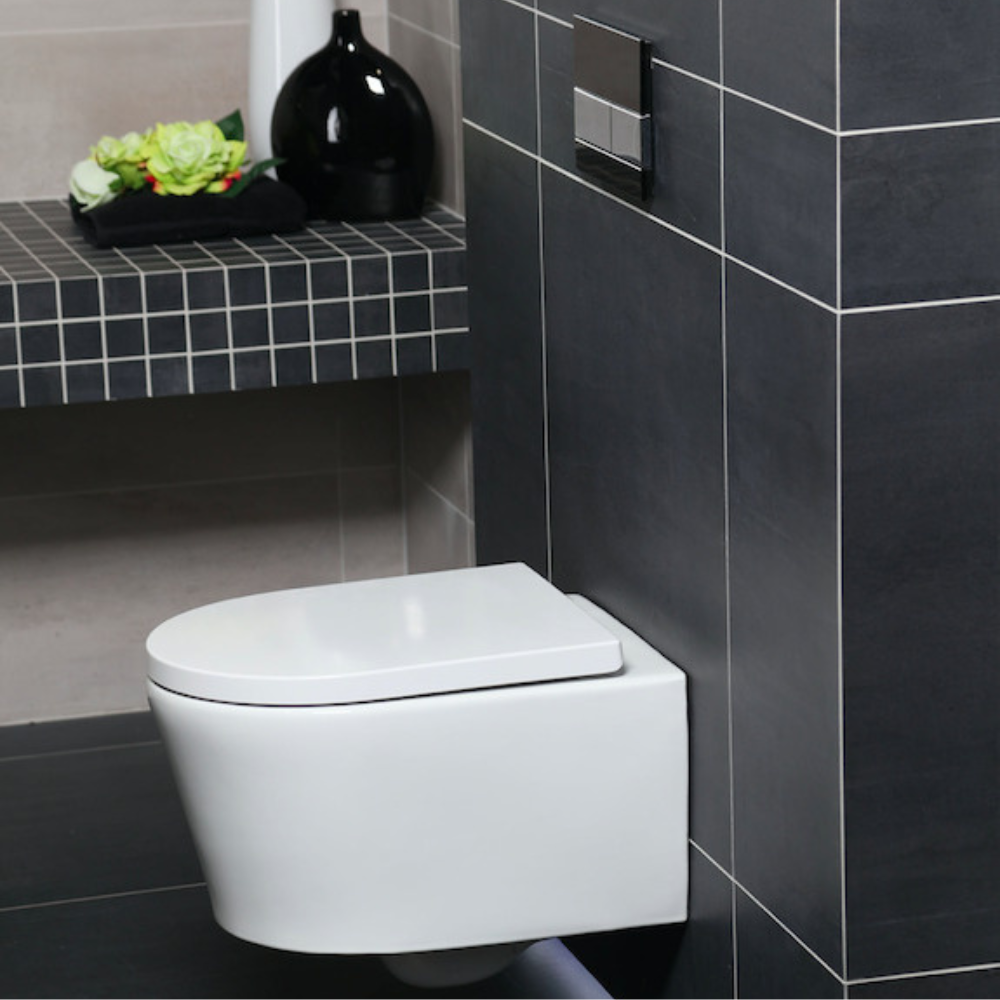

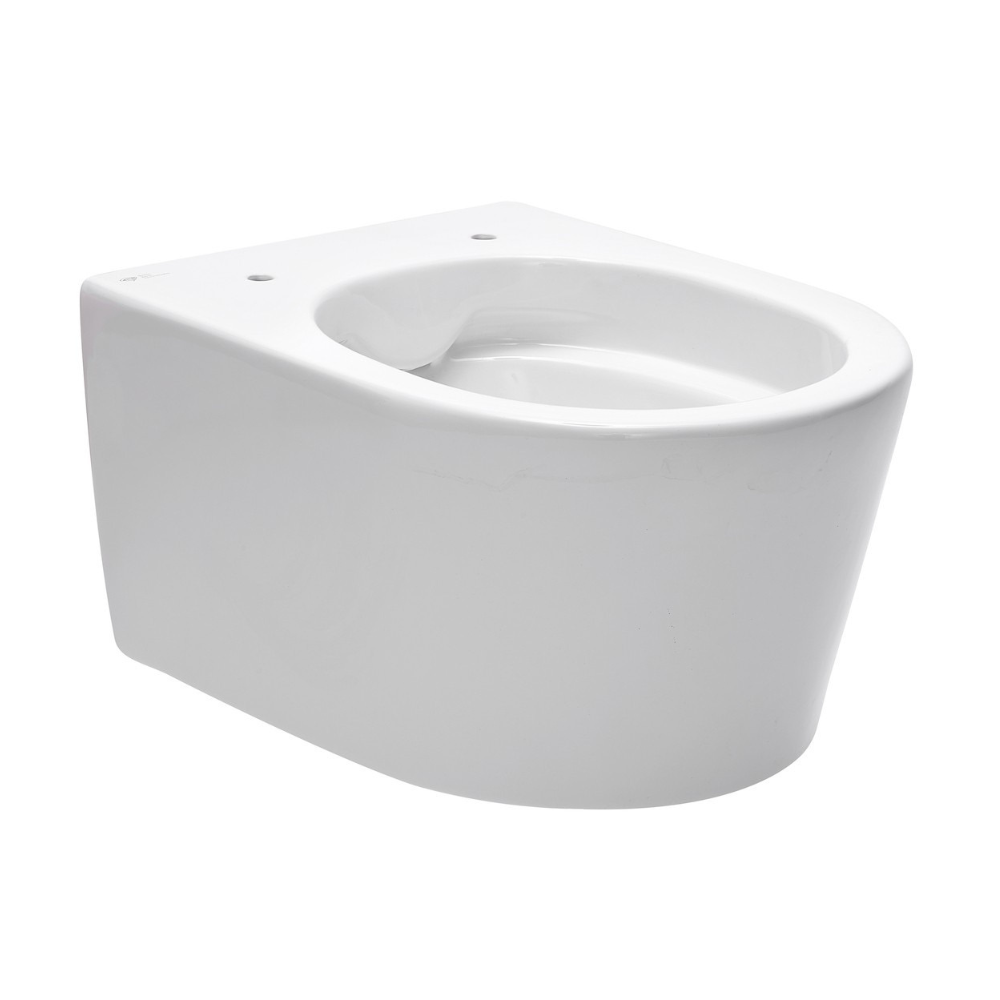

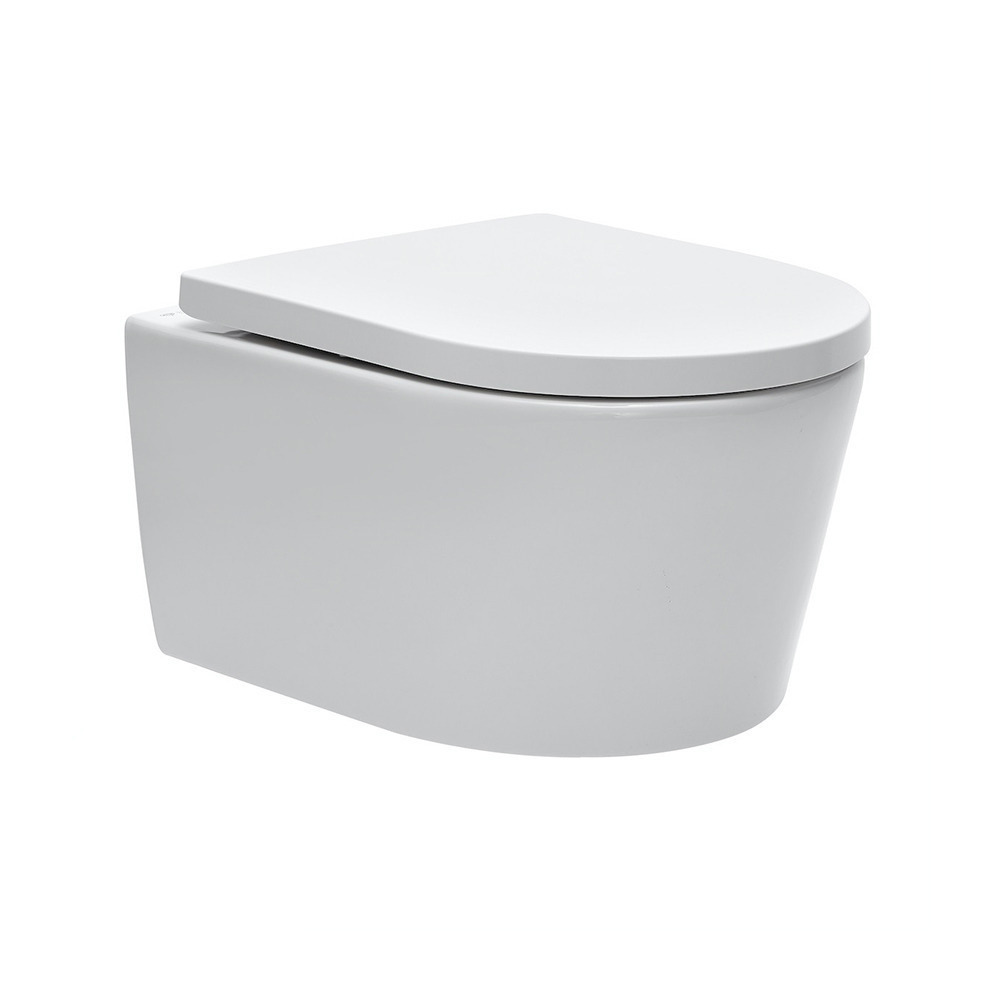

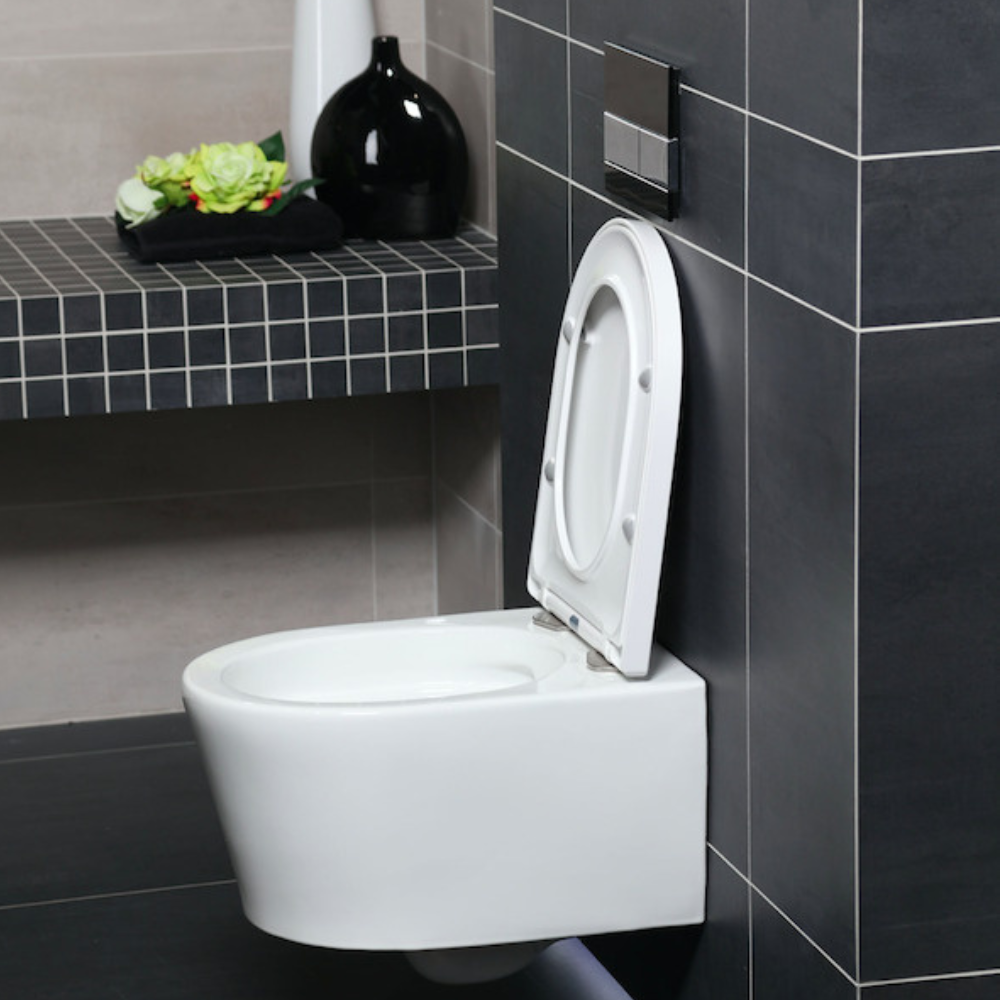

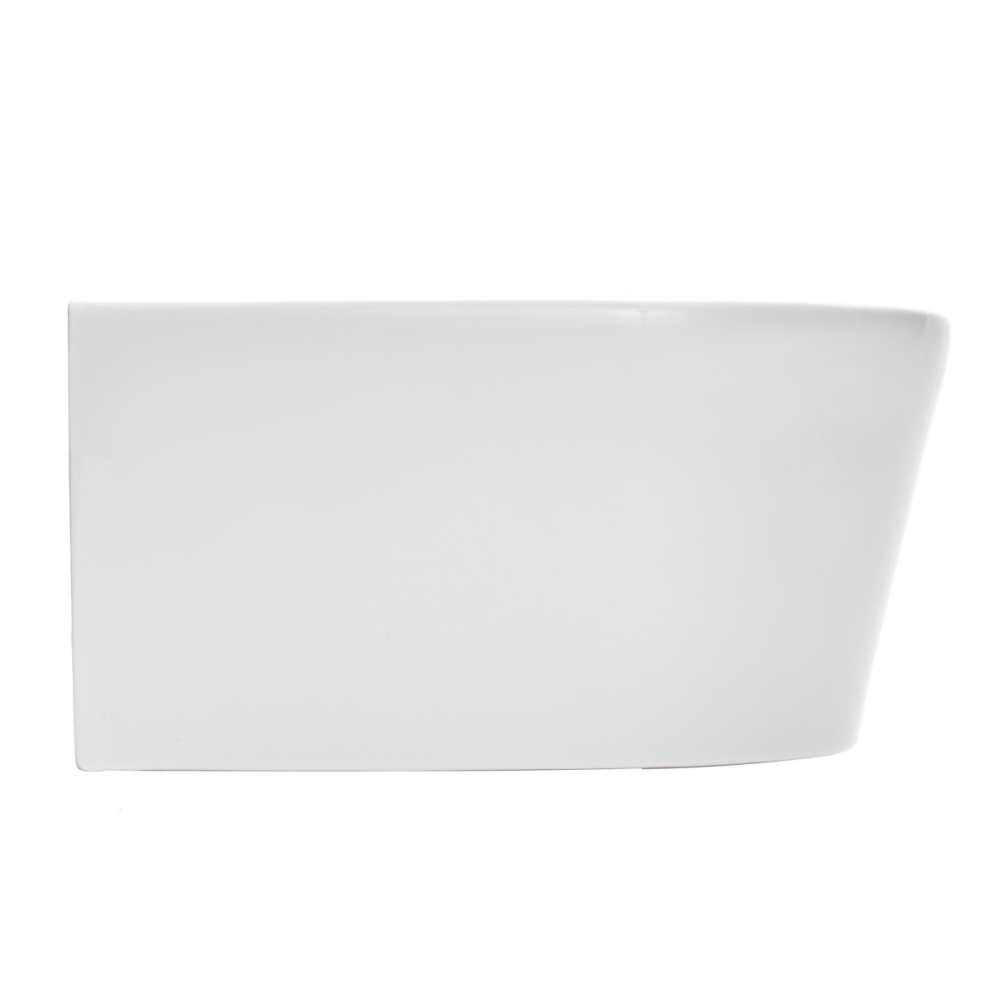

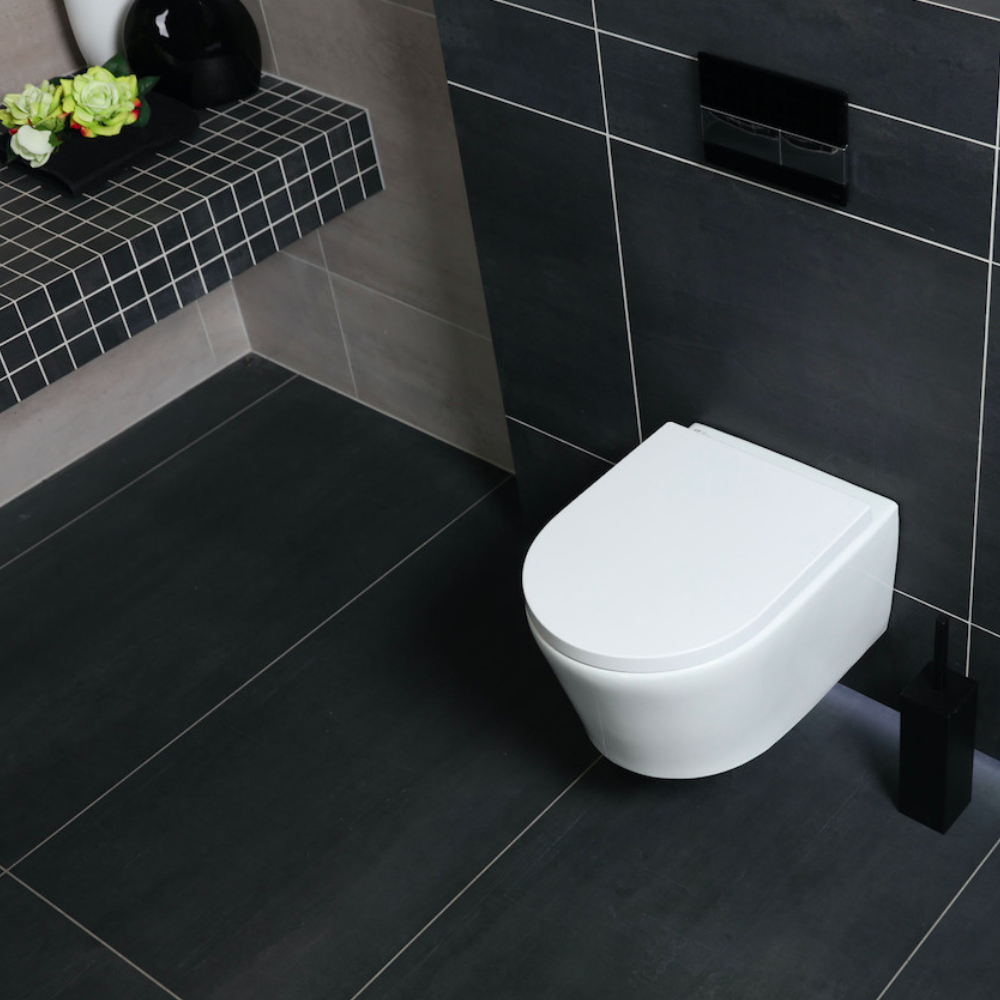

Rimless wall-hung toilet with concealed fixings + soft close seat (SATBRE010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and clean style

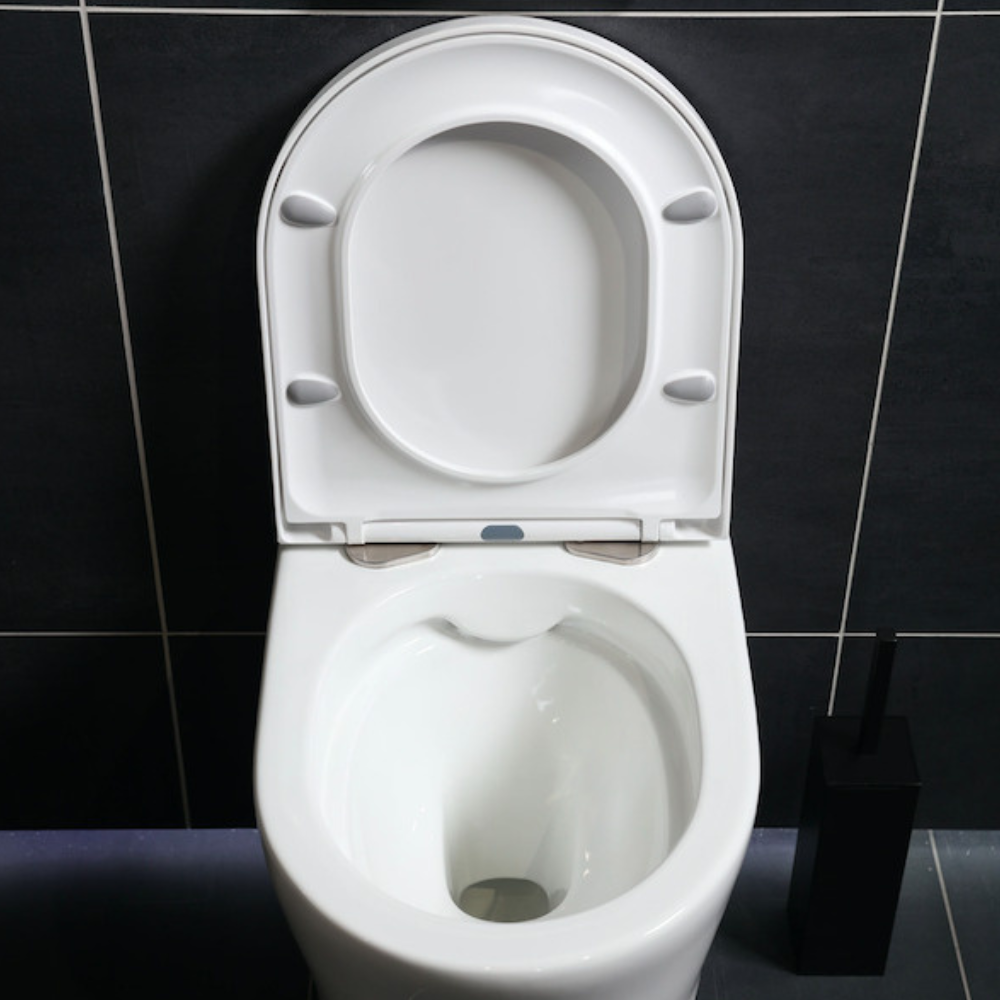

- Rimless toilet
- Concealed fixings
- Depth 48 cm
- Economic flush 3 / 4.5 L

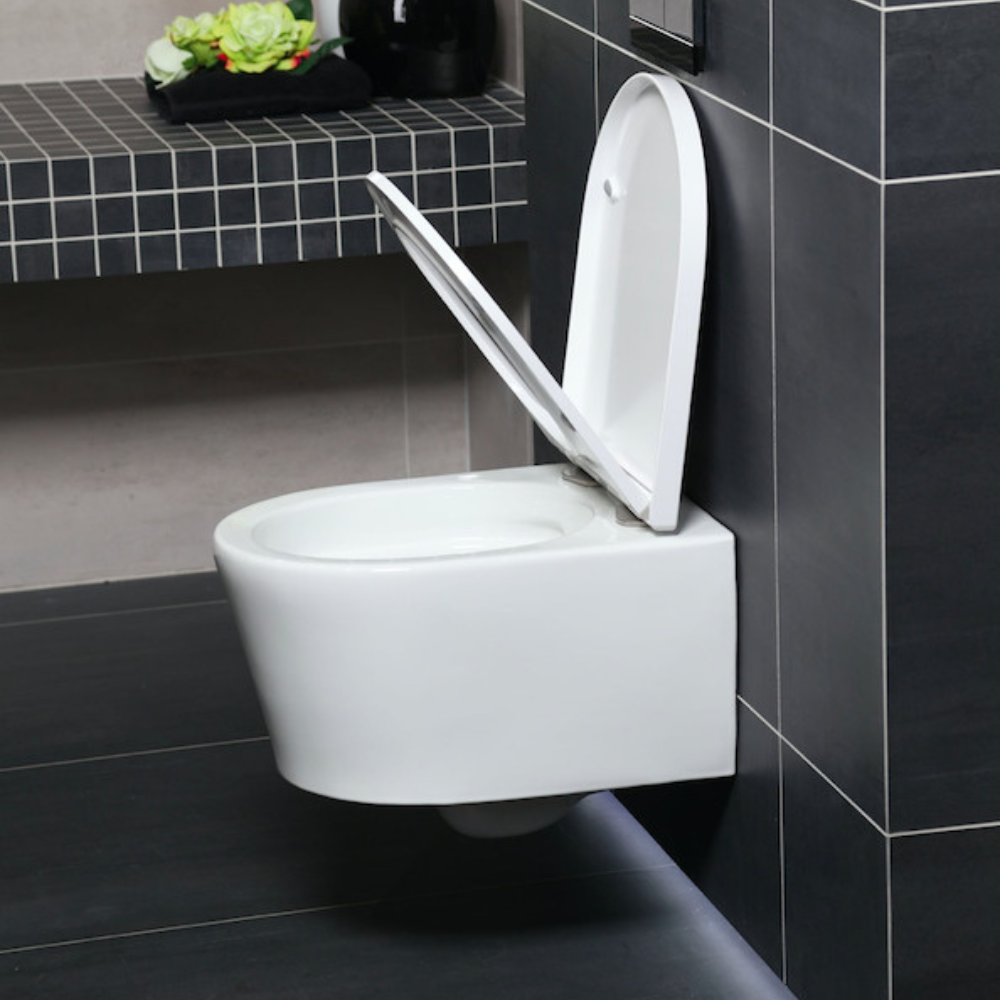

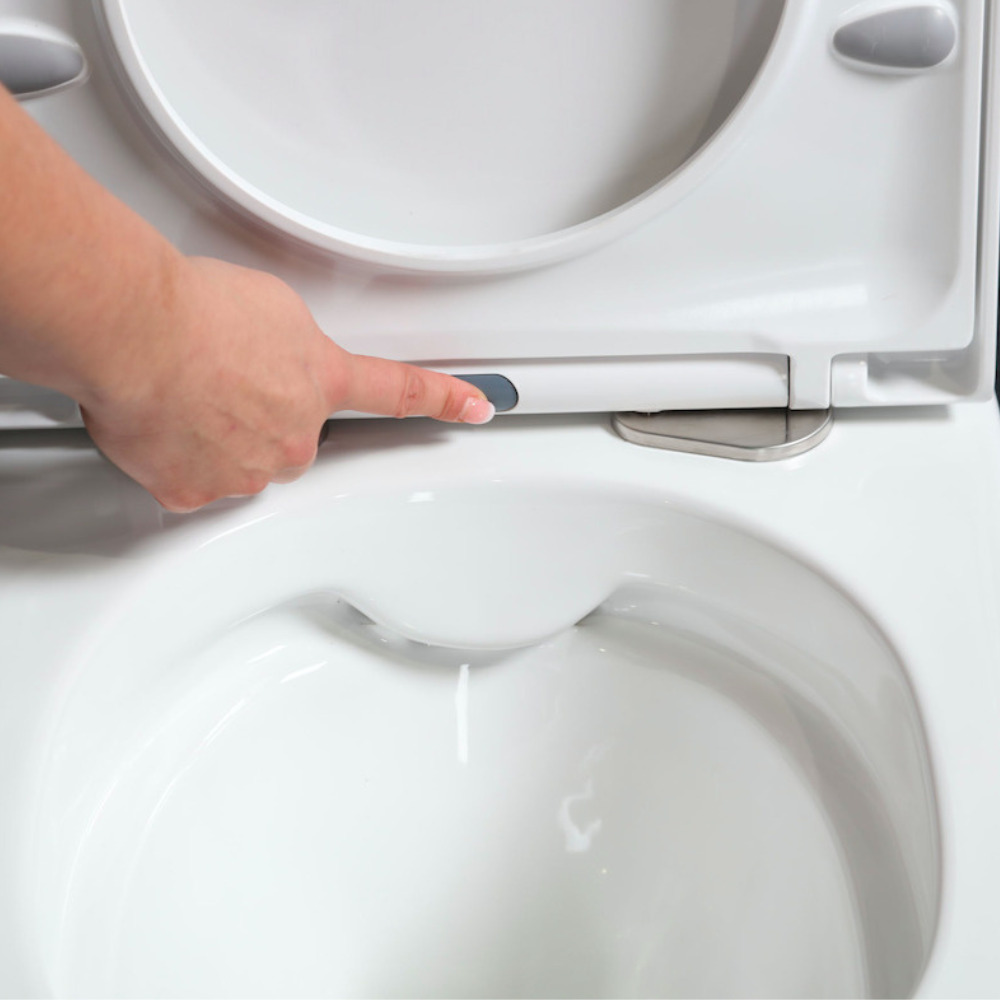

- Soft close seat fall

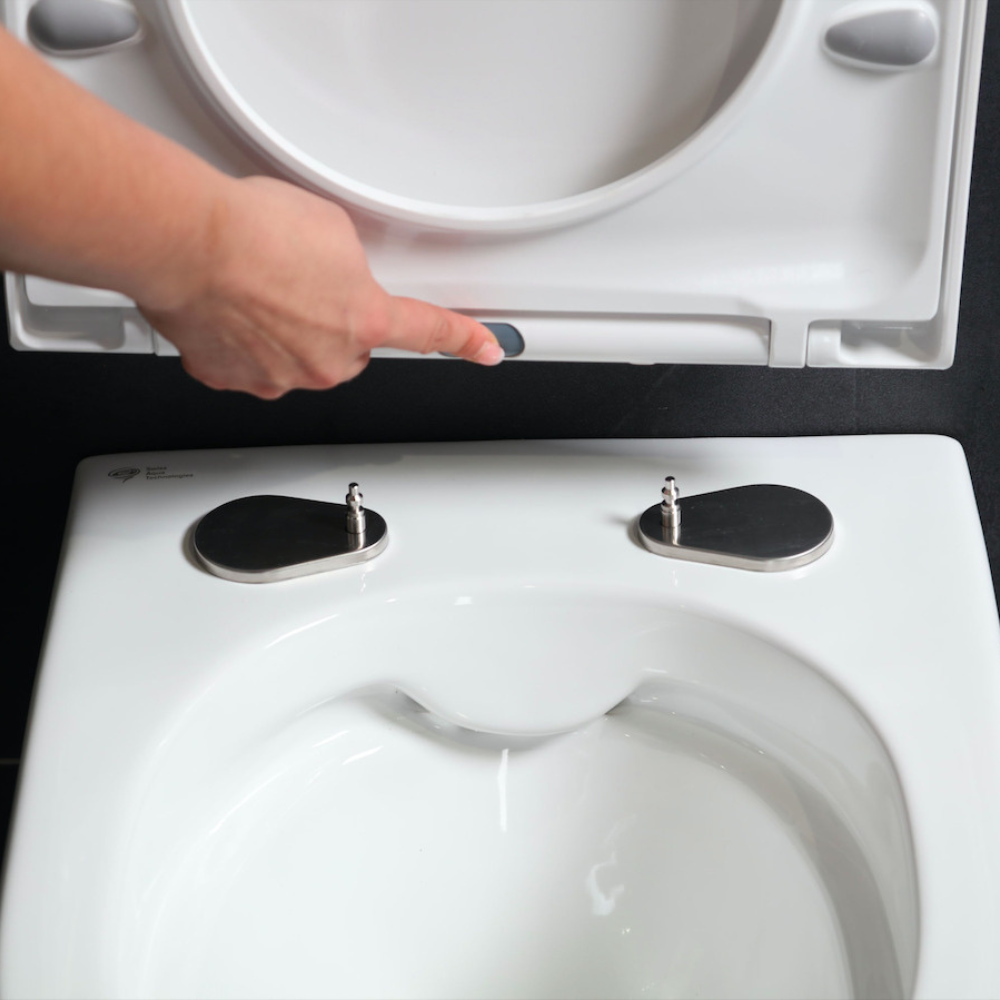

- Removable seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick installation
Warning! It is imperative to check the good condition of the package, both externally and internally, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this period, complaints will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3-4/4.5-6L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No

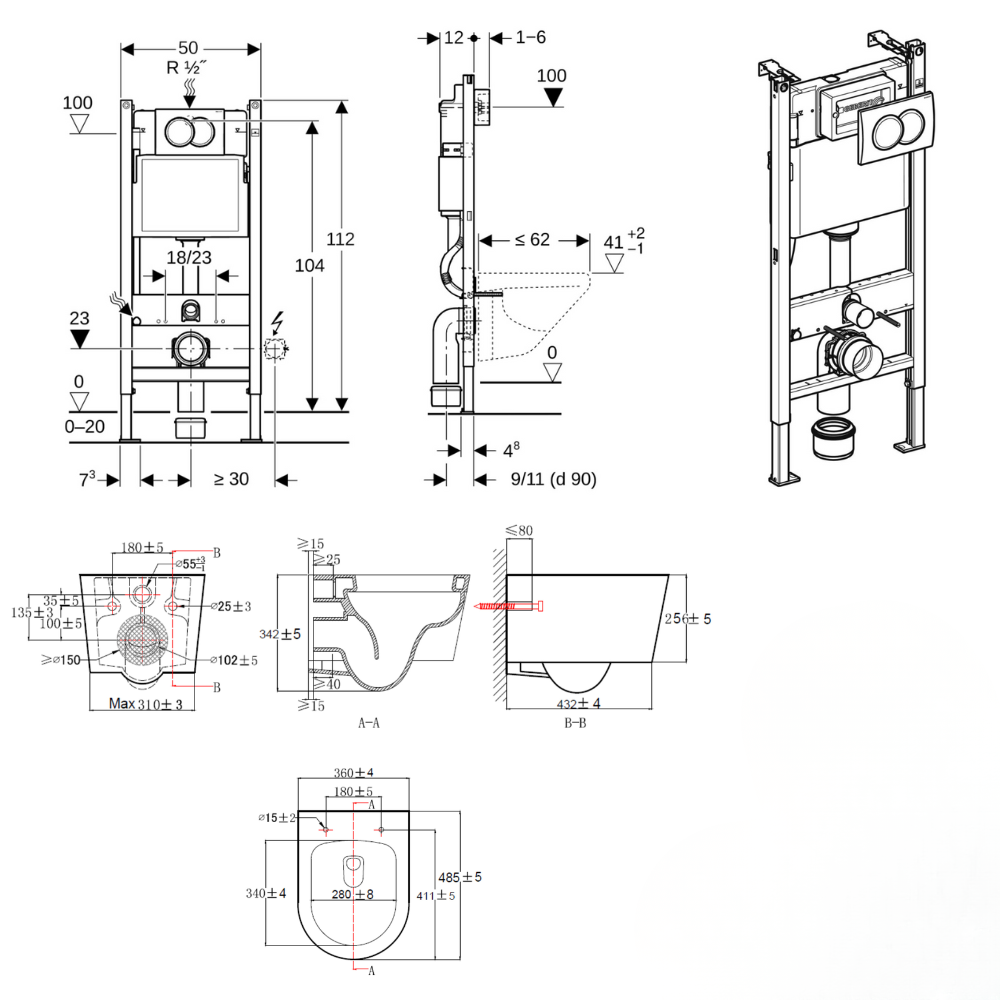

- Built Width:50
- Built Height:112
- Bowl height:34.2
- Built Depth:12 cm
- Bowl width:36.5
- Flush plate finish:Glossy
- Bowl finish:Glossy
