Geberit Duofix Toilet Frame 112 cm + Ceramia wall-hung rimless WC, SoftClose seat + white plate (GEBCE14WT04MAN-IN)
- Product reference: GEBCE14WT04MAN-IN
- EAN: 3701729208476
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix 112 cm frame-mounted toilet pack + rimless wall-mounted toilet with Ceramia SoftClose seat + white plate (GEBCE14WT04MAN-IN):
- Geberit Duofix 112 cm frame-mounted toilet pack + Delta20 alpine white flush plate + wall brackets (458.134.11.3)
- Ceramia Tornado Rimless 53.5 cm wall-mounted toilet, rimless with SoftClose seat, Tornado Flush effect, glossy white (CE142010RTORP)
Features of the Duofix 112 cm frame-mounted toilet pack + Delta20 alpine white flush plate + wall brackets (458.134.11.3) :
- Geberit Duofix UP100 frame set + cistern for 112 cm WC (458.103.00.2)
- Geberit Delta20 dual flush plate, alpine white (115.127.11.1)

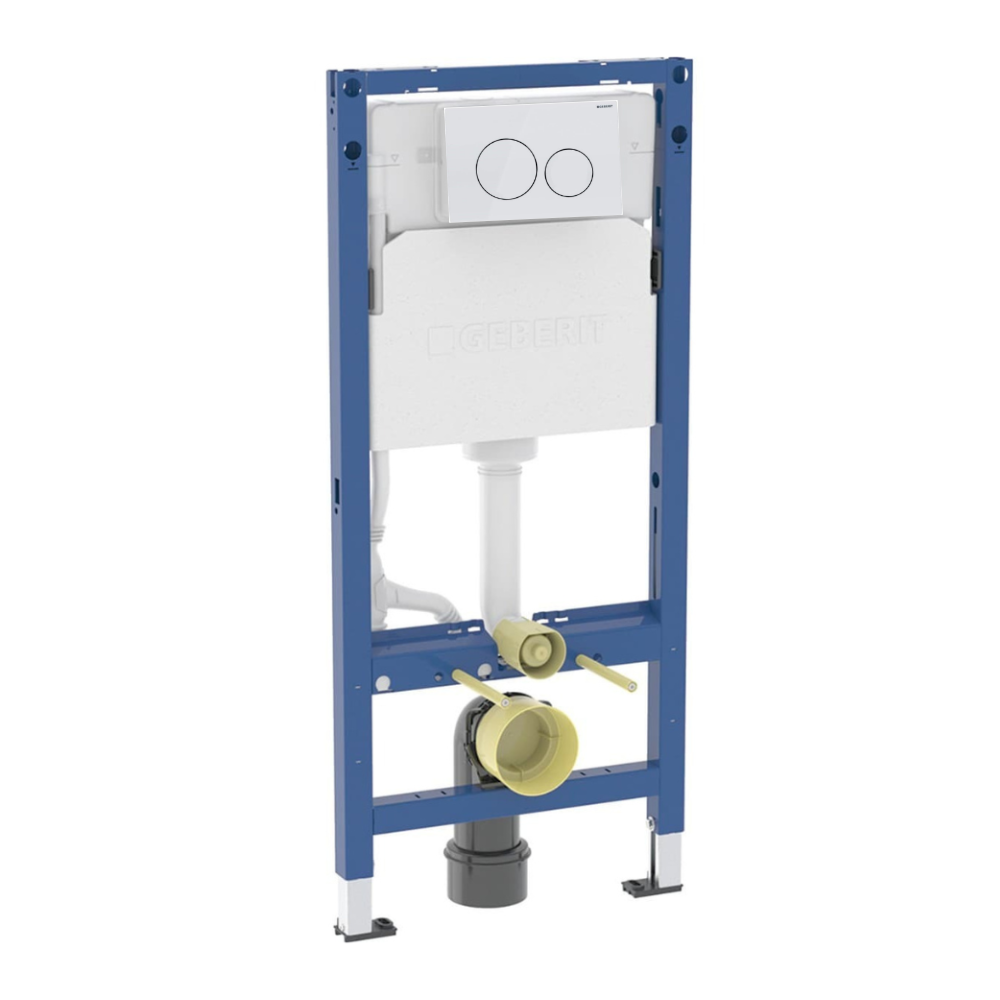

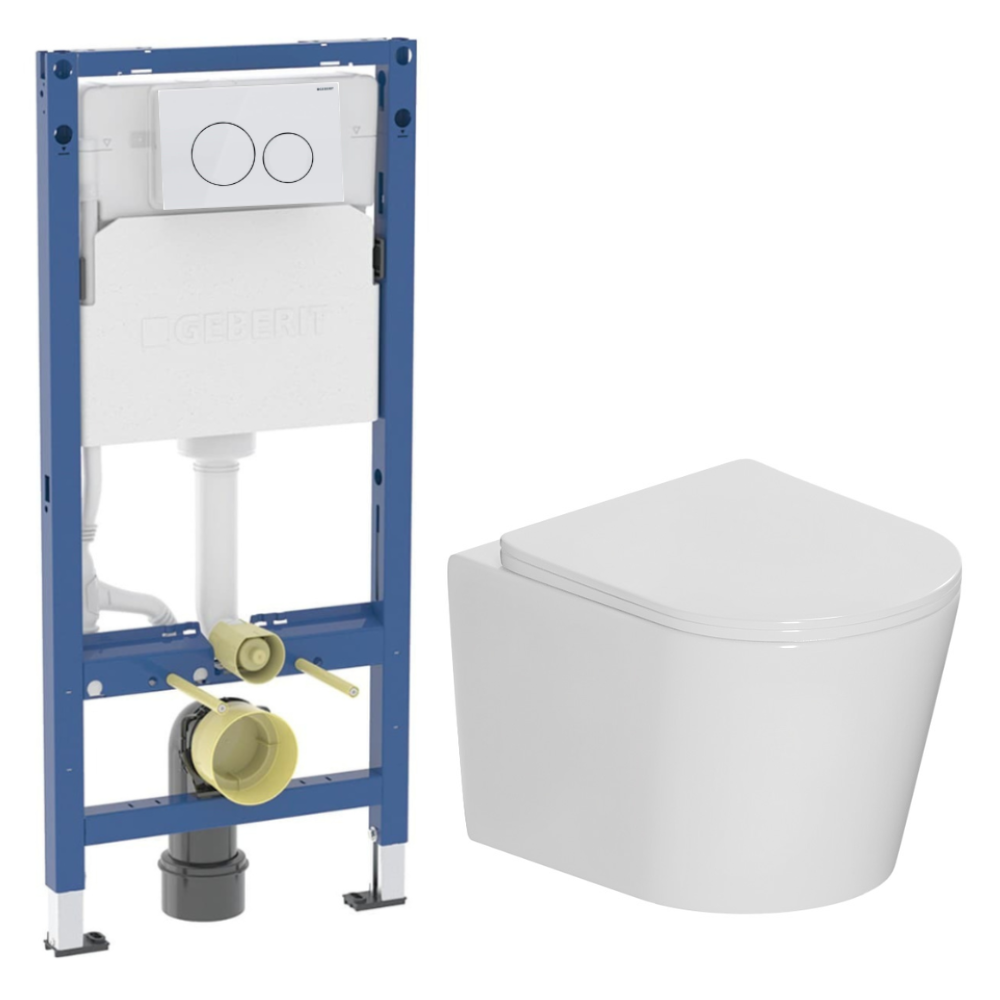

Geberit Duofix basic UP100 frame, 112 cm, with UP100 concealed cistern (458.134.21.3):
Installation recommendations:
These frame sets for wall-hung WCs are suitable for the following types of installation:
- Against a load-bearing wall (concrete wall, plasterboard, aerated concrete, bricks, concrete blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to the manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against plasterboard partition walls with a cardboard honeycomb core, against plasterboard partition walls on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition wall at the level of the upper fixings).
These wall-hung toilet frames can be installed on wooden floors if they are placed against a load-bearing wall (see description previous) and their feet on a joist or batten using the provided lag screws.
The set includes:
- 112 cm galvanized support frame with adjustable feet from 0-20 cm
- UP100 water cistern (with 25-year spare parts warranty)
- Pre-painted frame in Geberit blue
- Support feet with graduation marking in cm
- Swivel feet for mounting in UW50/UW75 profile
- Crosspiece for cladding support
- 2 M12 threaded rods for fixing the ceramic with intermediate distance of 18 or 23 cm
- Concealed cistern 4-6-7.5 l, insulated against condensation
- Dual-flush front actuation with Delta21, Delta20 or Delta50 plates
- Inlet at the rear/top
- Angle shut-off valve R1/2",
- Reservation box for inspection hatch
- Styrophor construction site protection
- Drain elbow Ø 90 mm
- Sleeve fitting Ø 90 mm
- Transition sleeve Ø 90/110 mm
- Fixing material
Delta20 dual-flush actuation plate, alpine white (115.127.11.1):
- Dual-flush device
- Color: alpine white
- Pneumatic actuation

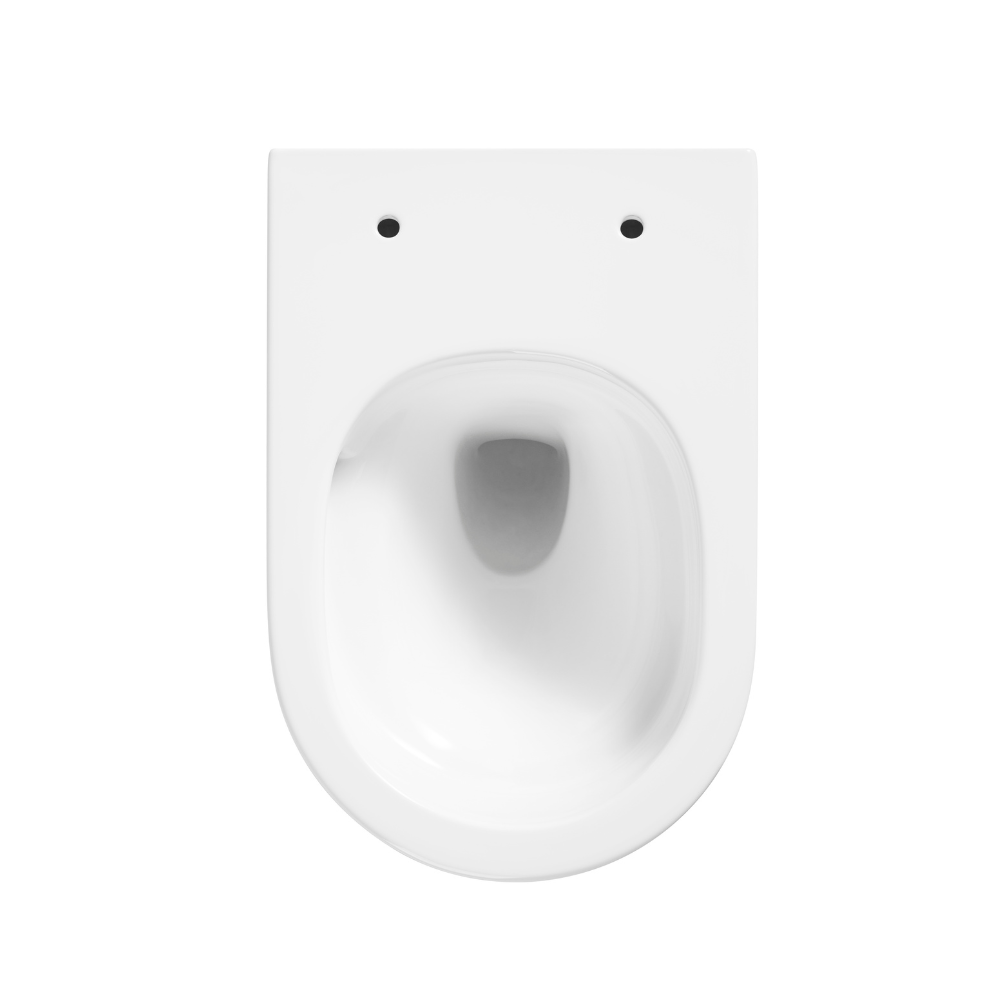

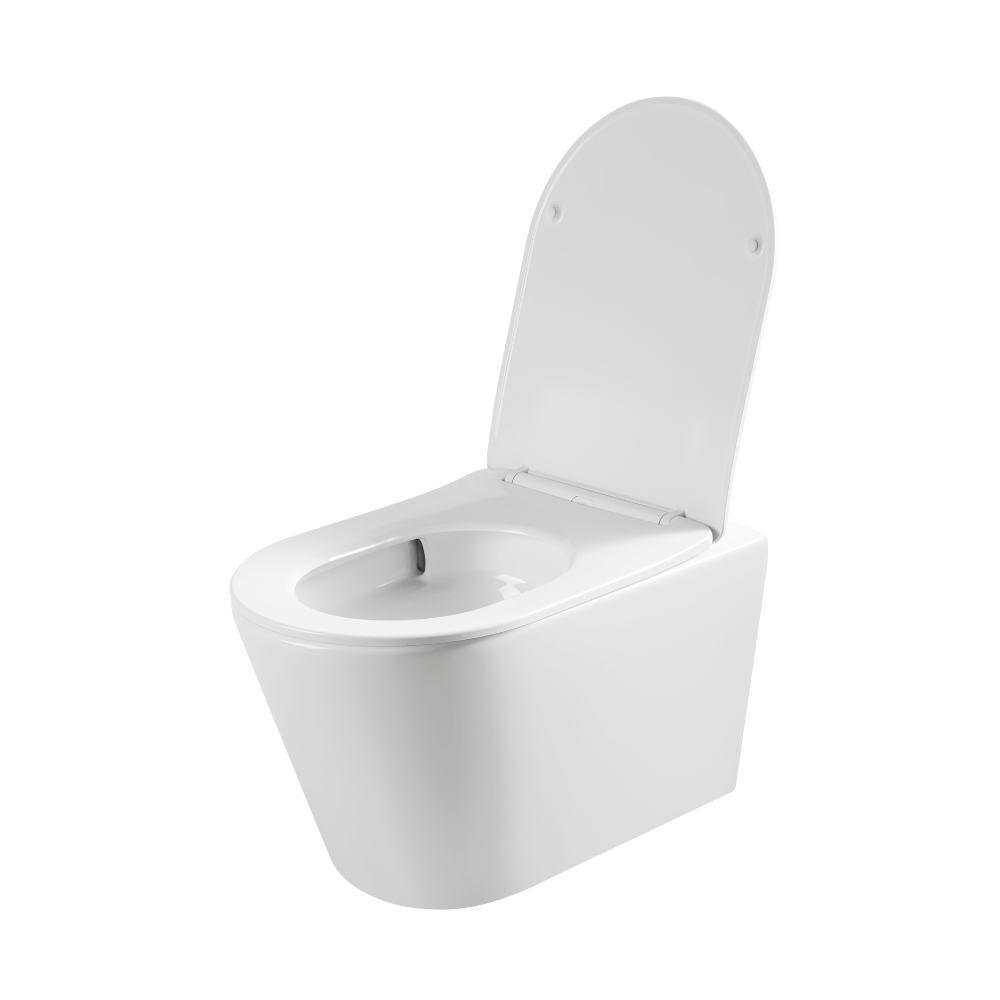

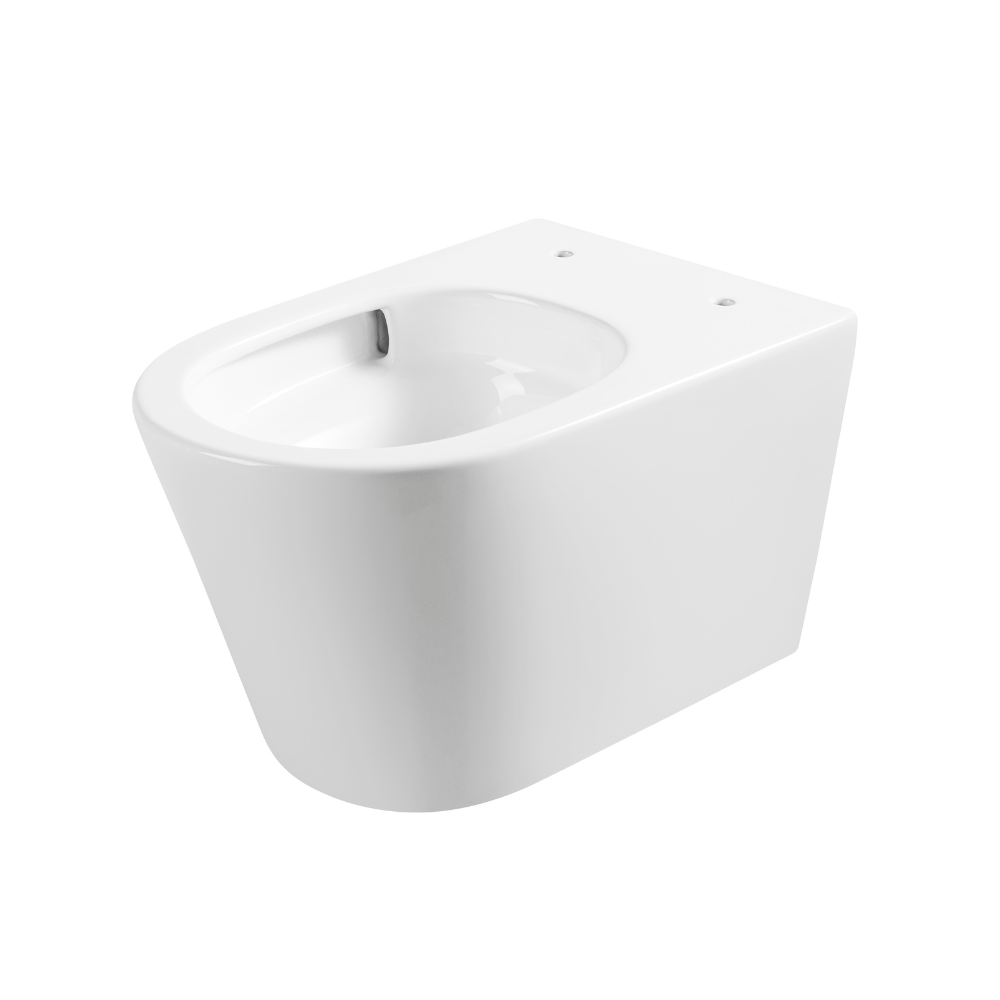

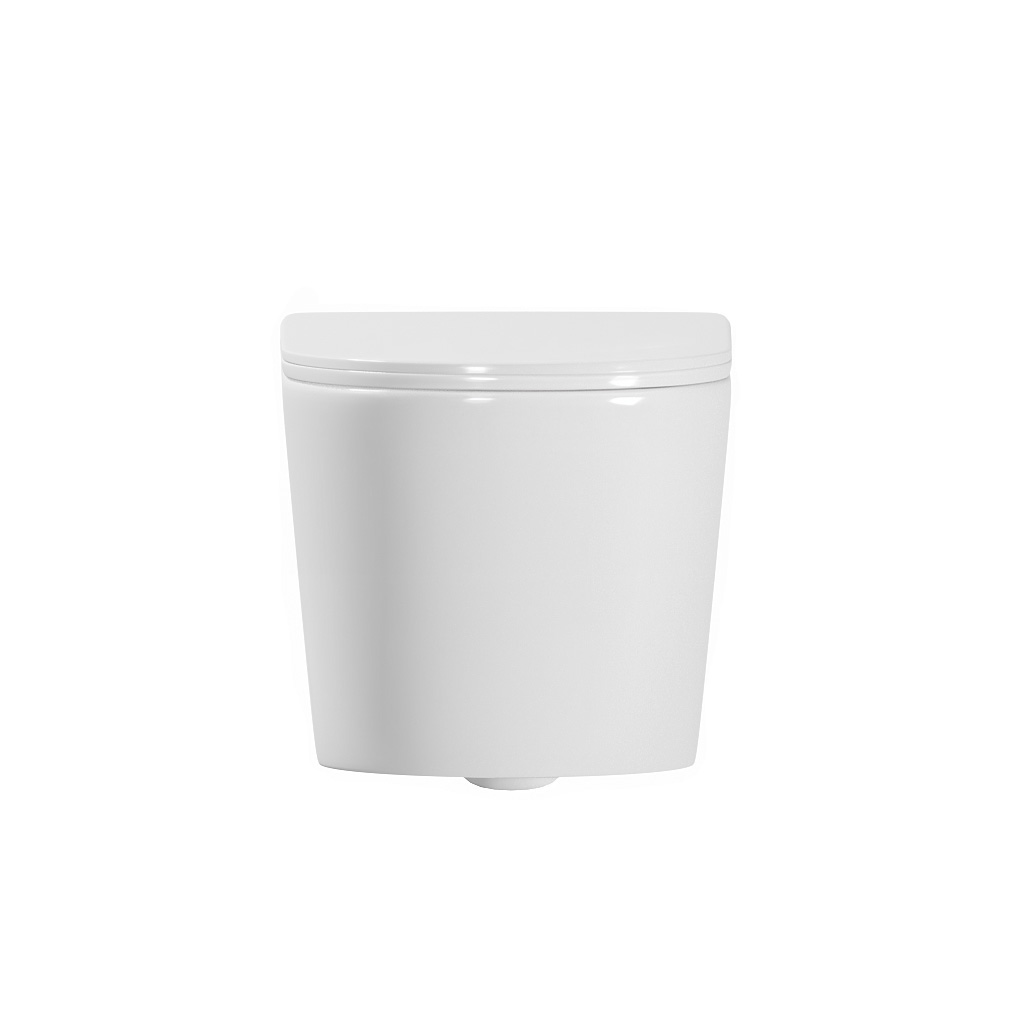

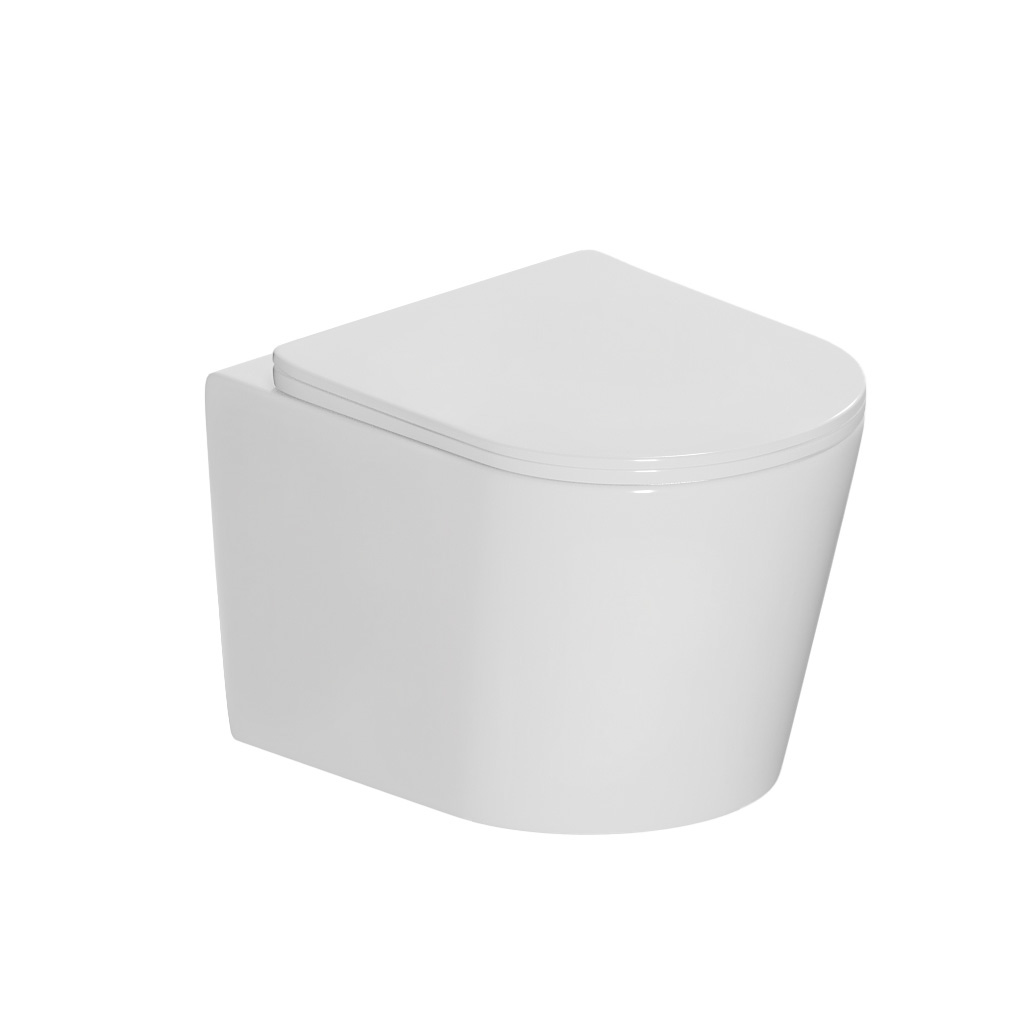

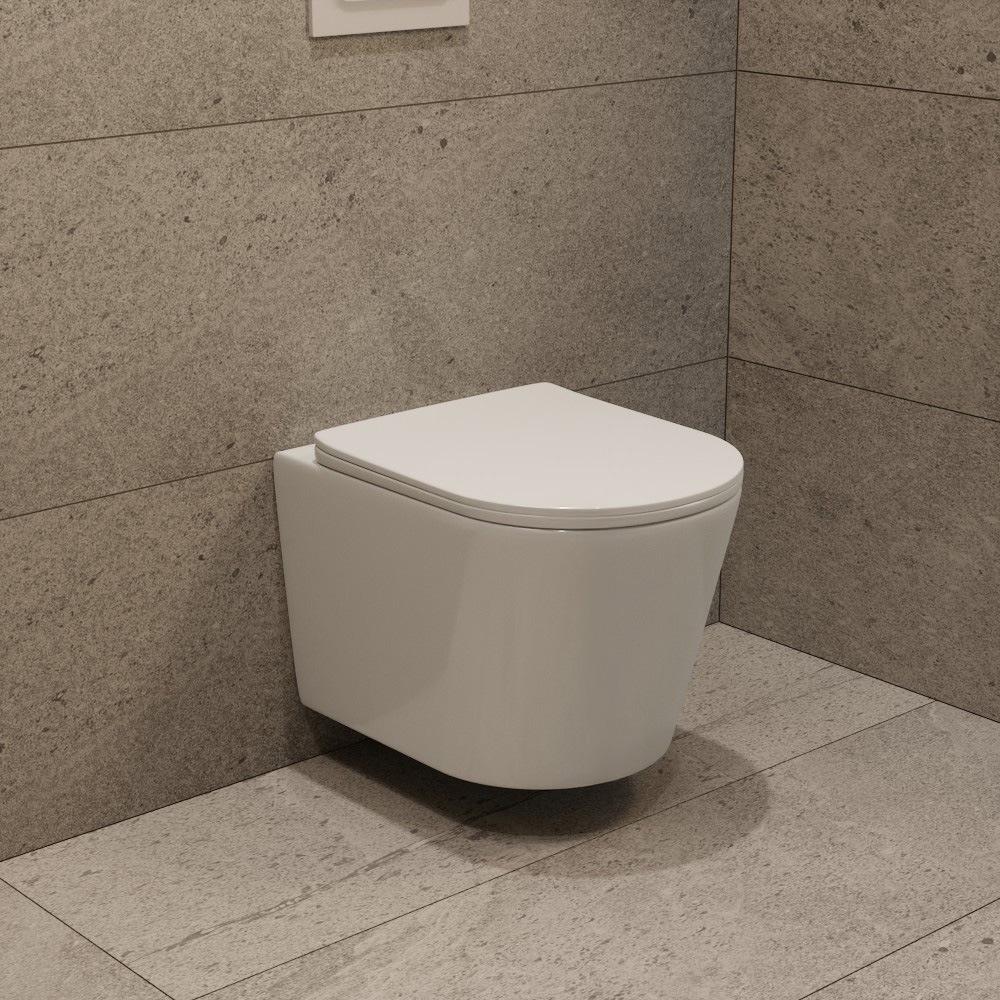

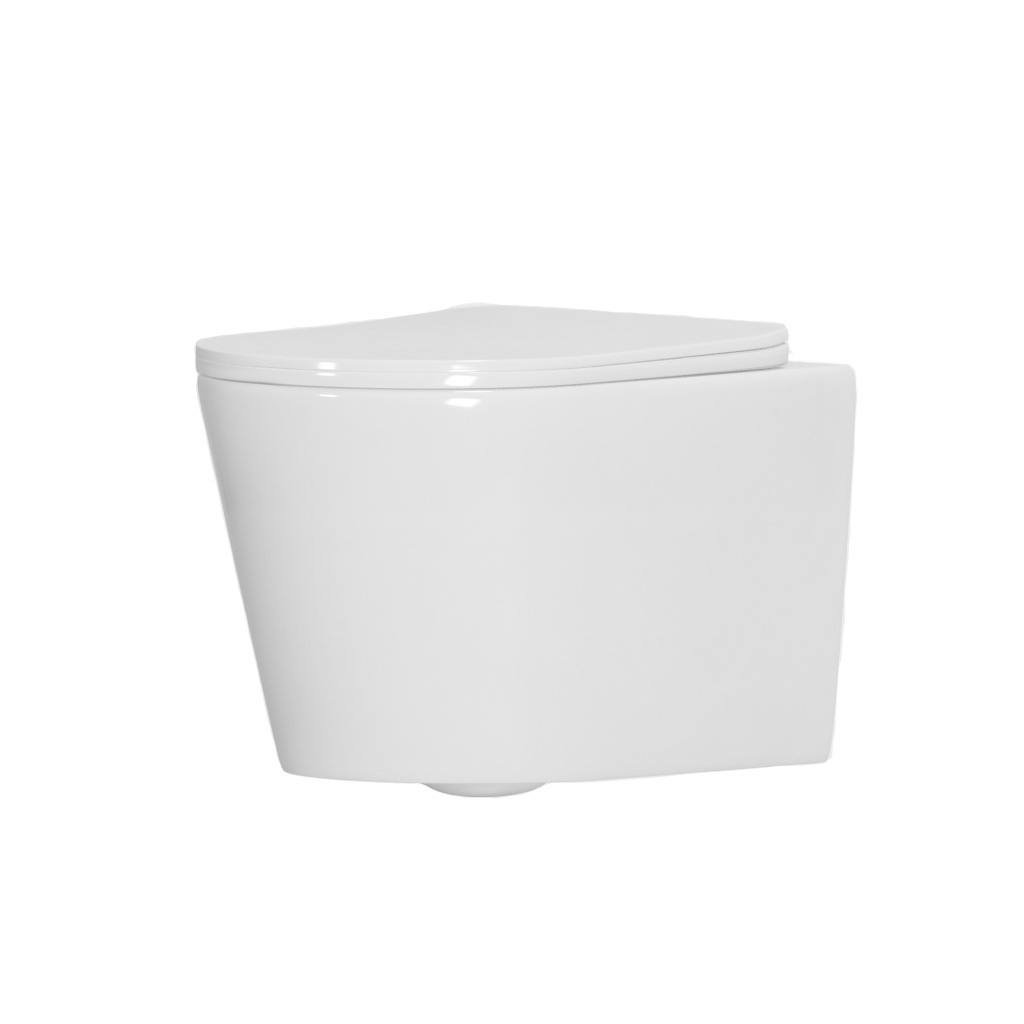

Tornado Rimless Wall-Hung Toilet 53.5 cm Rimless with SoftClose Seat, Tornado Flush Effect, Glossy White (CE142010RTORP):
- Product Type: Rimless Wall-Hung Toilet Set + SoftClose Seat
- Brand: Ceramia
- Series: Tornado Rimless
- Flush Volume: 4.8/3 liters
- Type of Bowl: Rimless Wall-Hung Toilet
- Type of Seat: SoftClose (with soft close)
- Installation Type: Wall-Hung (Wall-Mounted)
- Length: 53.5 cm
- Width: 27 cm
- Height: 35.5 cm
- Color: White
- Finish: Glossy
- With Tornado Flush system to prevent residue from accumulating in the bowl.
- Easy Lock release function allows the seat to be removed easily, for effortless cleaning.
- Weight: 28 kg
Warning! It is imperative to check the good condition of the package, both externally and internally, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this period, complaints will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you Notice a problem upon receipt. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Toilet bowl brand:Ceramia
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3/4.8 L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No

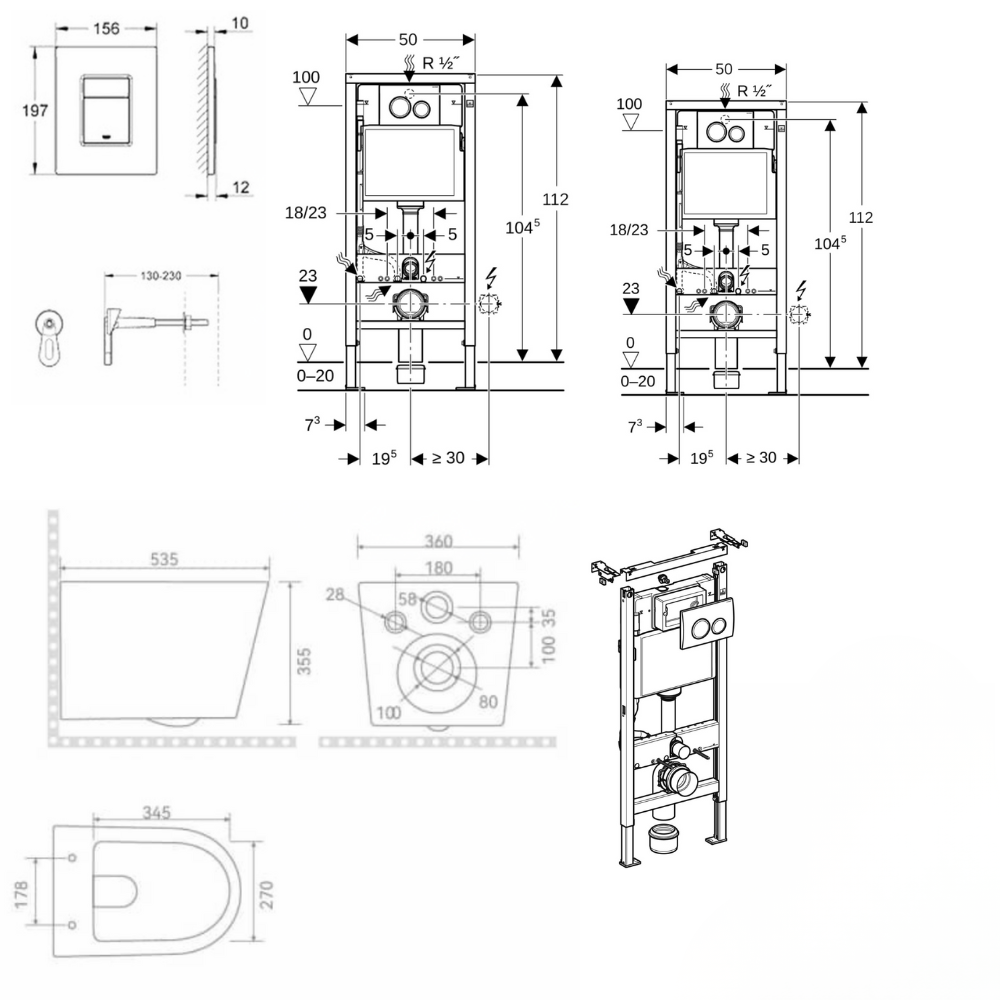

- Built Width:50
- Built Height:112
- Bowl height:35.5
- Built Depth:12 cm
- Bowl width:36
- Flush plate finish:Glossy
- Bowl finish:Glossy
