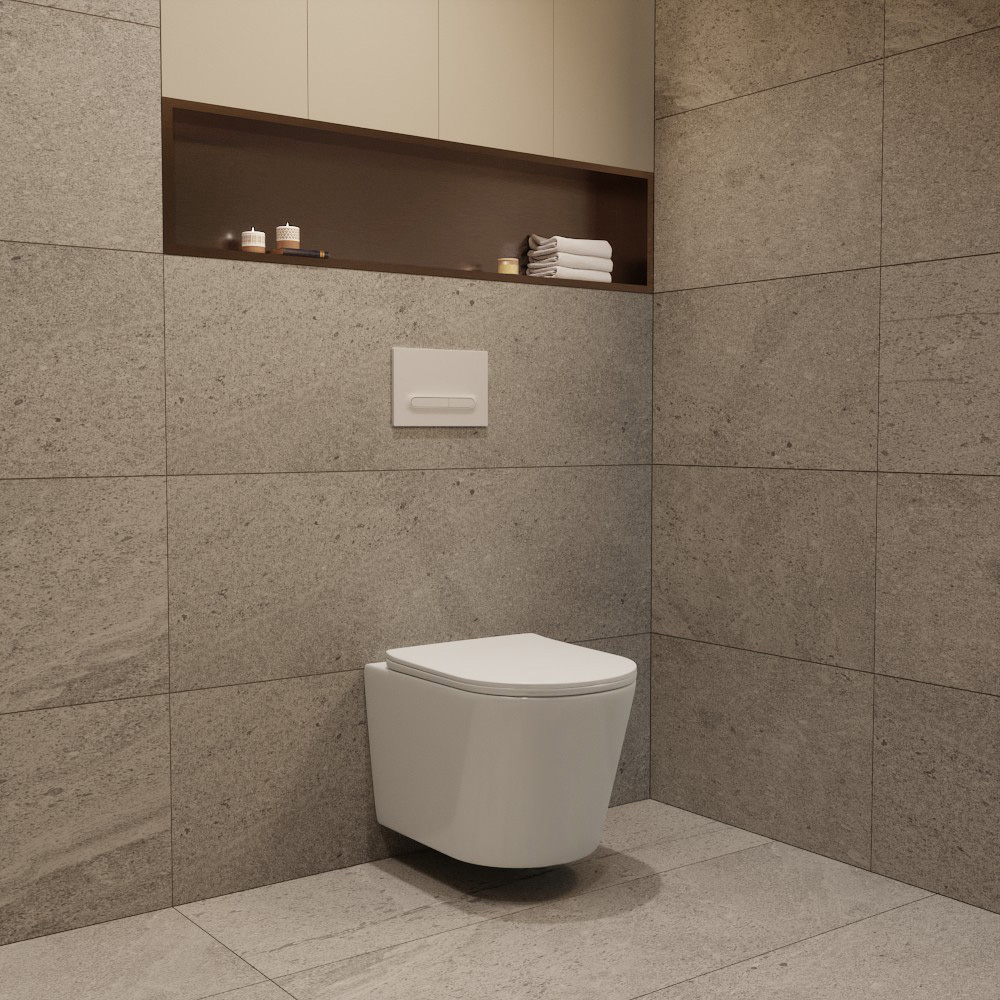

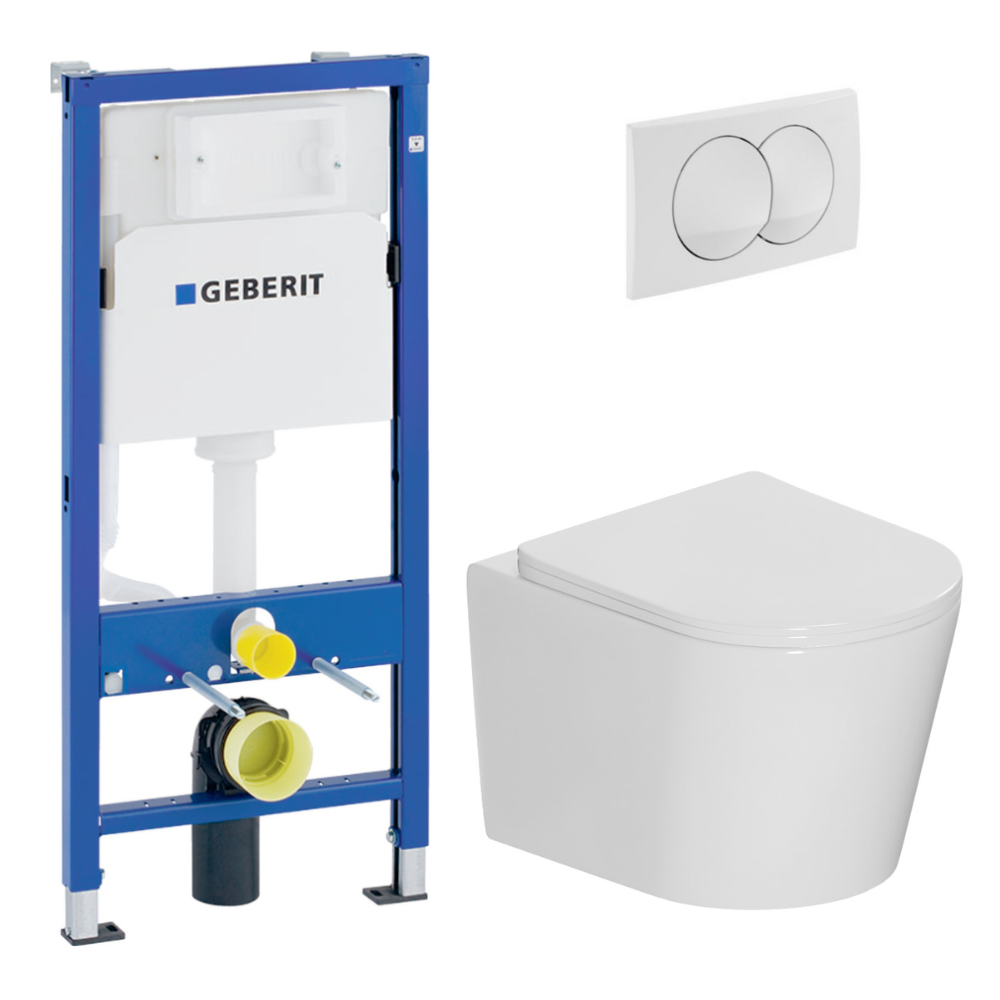

Geberit Duofix UP100 Toilet Frame +Ceramia rimless wall-hung toilet, SoftClose seat + white plate (GEBCE14WT02MAN-IN)
- Product reference: GEBCE14WT02MAN-IN
- EAN: 3701729208490
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix UP100 112 cm wall-mounted toilet + rimless wall-mounted toilet with SoftClose Ceramia seat + white plate (GEBCE14WT02MAN-IN):
- Geberit Duofix UP100 wall-mounted toilet + 112 cm toilet cistern (458.103.00.1)
- Ceramia Tornado Rimless 53.5 cm wall-mounted toilet rimless with SoftClose seat, Tornado Flush effect, high-gloss white (CE142010RTORP)
- Geberit DELTA20 flush plate (115.100.11.5)
Features of the Duofix UP100 wall-mounted toilet + cistern for 112 cm WC (458.103.00.1):
Installation recommendations:
These wall-hung WC support frames are designed for the following types of installation:
- Against a load-bearing wall (concrete wall, plasterboard, aerated concrete, bricks, breeze blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to manufacturer's recommendations).
These wall-hung WC support frames are not can be installed against plasterboard partitions with a cardboard honeycomb core, against plasterboard partitions on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition at the level of the upper fixings).
These wall-mounted WC support frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or batten using the lag screws provided.
Features:
- Geberit Delta 12 cm concealed cistern (UP100) with front actuation
- concealed cistern insulated against condensation
- volume of the large flush adjustable
- small flush fixed volume
- immediate flush setting possible
- water inlet from the rear / from the top in the center
- connection pipe to the angle valve to be screwed in by hand
- 1 flush volume with the Geberit Delta15 actuator plate
- 2 flush volumes with the Geberit Delta20, Delta 21 and Delta 50 actuator plates
- frame surface treated with powder coating, color Geberit blue
- frame with ø 9 mm holes for fixing in wooden constructions
- galvanized support feet continuously adjustable from 0 to 20 cm
- depth of the plastic foot plates suitable for mounting on UW50 rail
- installation depth 12 cm
Technical information:
- Flush volume - factory setting: 6 and 3.5 l
- Large flush volume - adjustment range: 4.5 / 6 / 7.5 l
Scope of delivery:
- 2 M12 threaded rods for fixing the ceramic bowl
- Overflow valve for 2 flush volumes
- Reservation box for inspection hatch, made of polystyrene foam
- 2 protective caps
- Angle valve R 1/2" with adapter ring
- Insulating sleeve for the water inlet for Geberit AquaClean
- Flush elbow fixing
- Kit connection ø 90 mm
- WC flush elbow, PE-HD, ø 90/90 mm
- reducer, Ø 90/110 mm
- fixing material
- kit for surface mounting

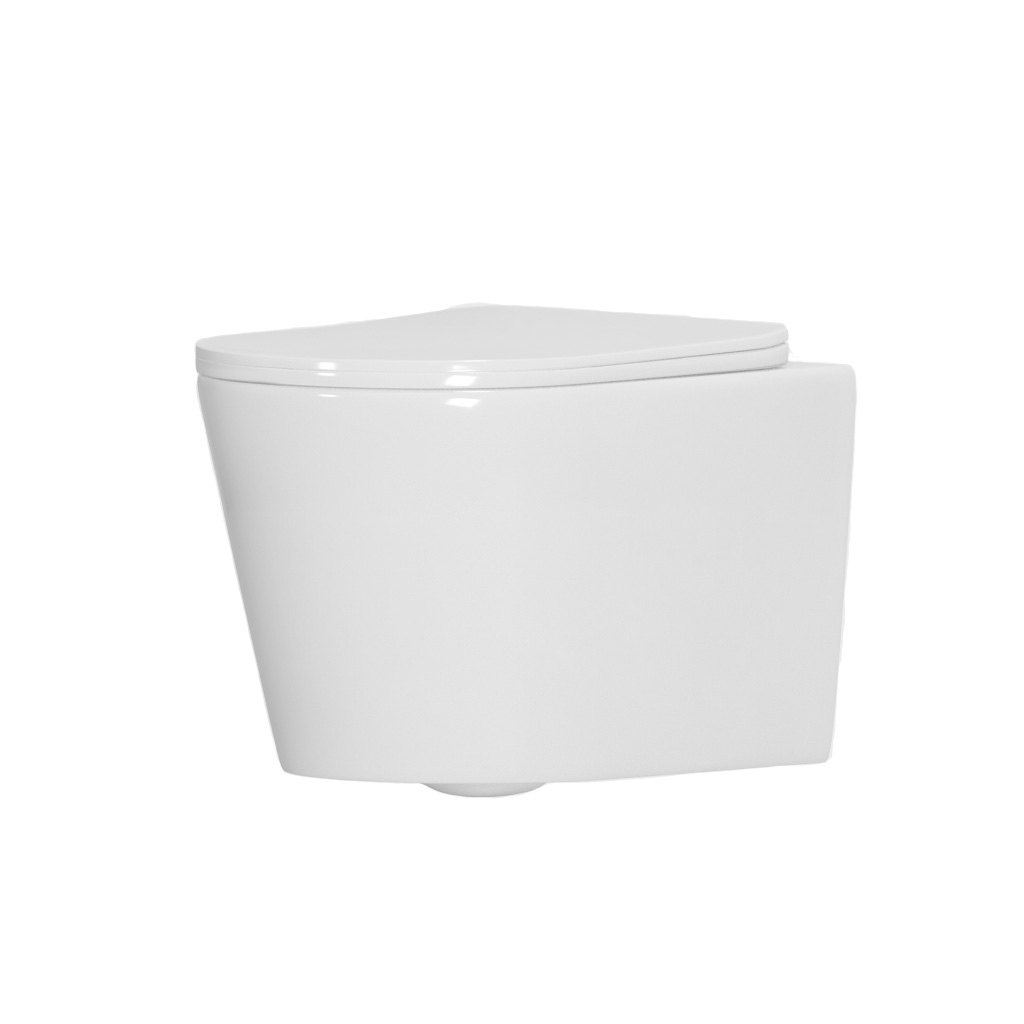

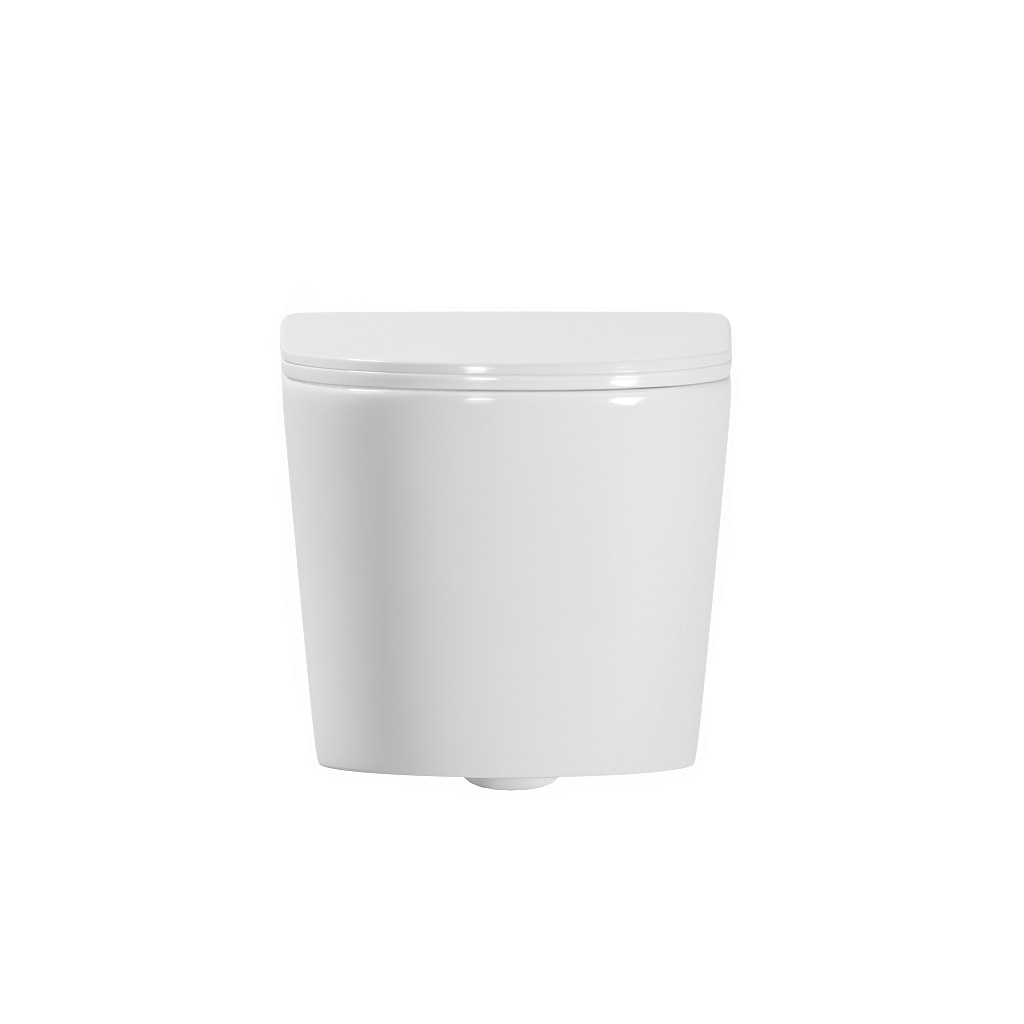

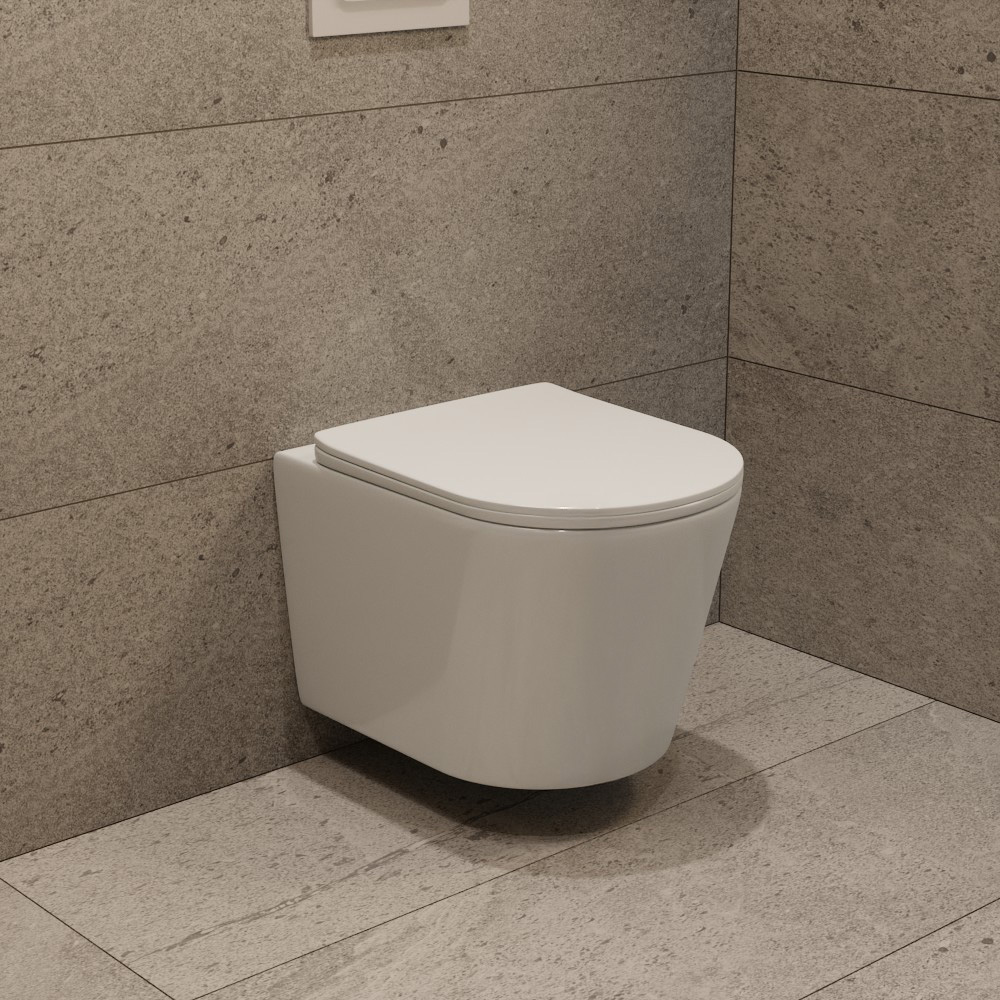

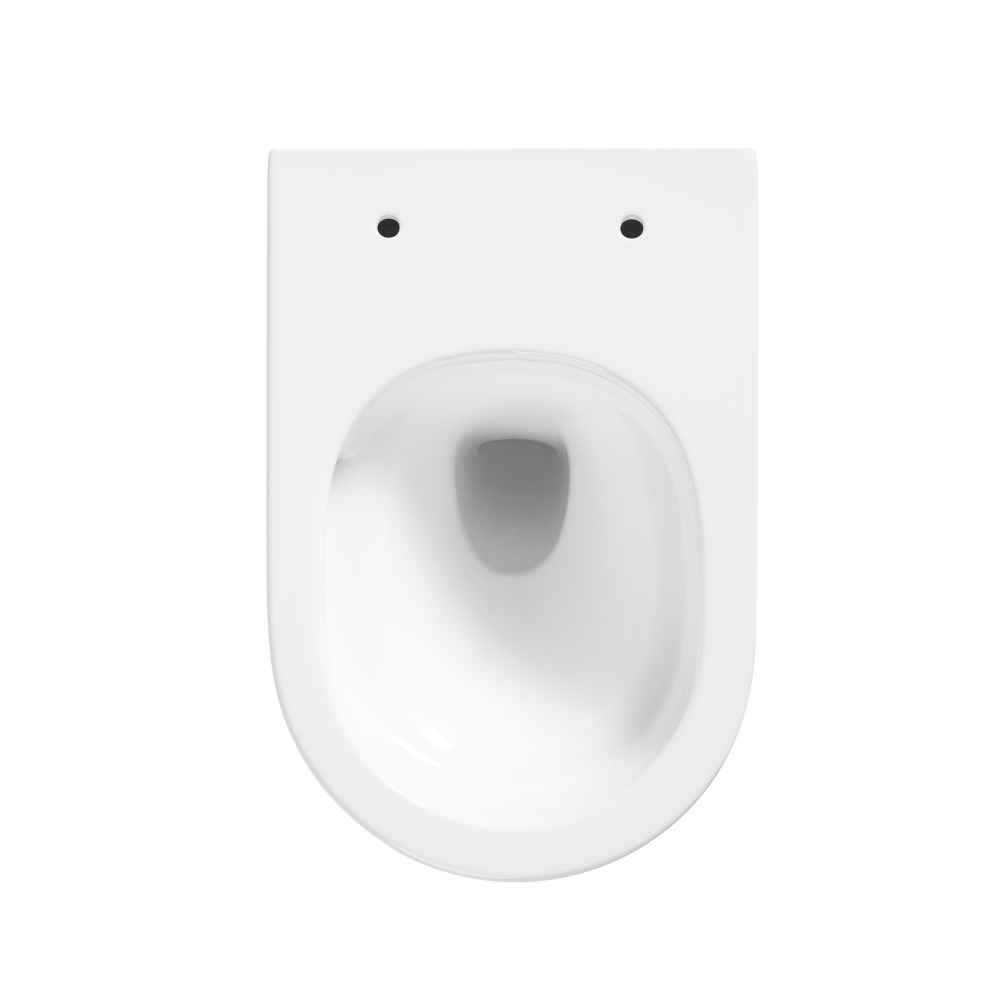

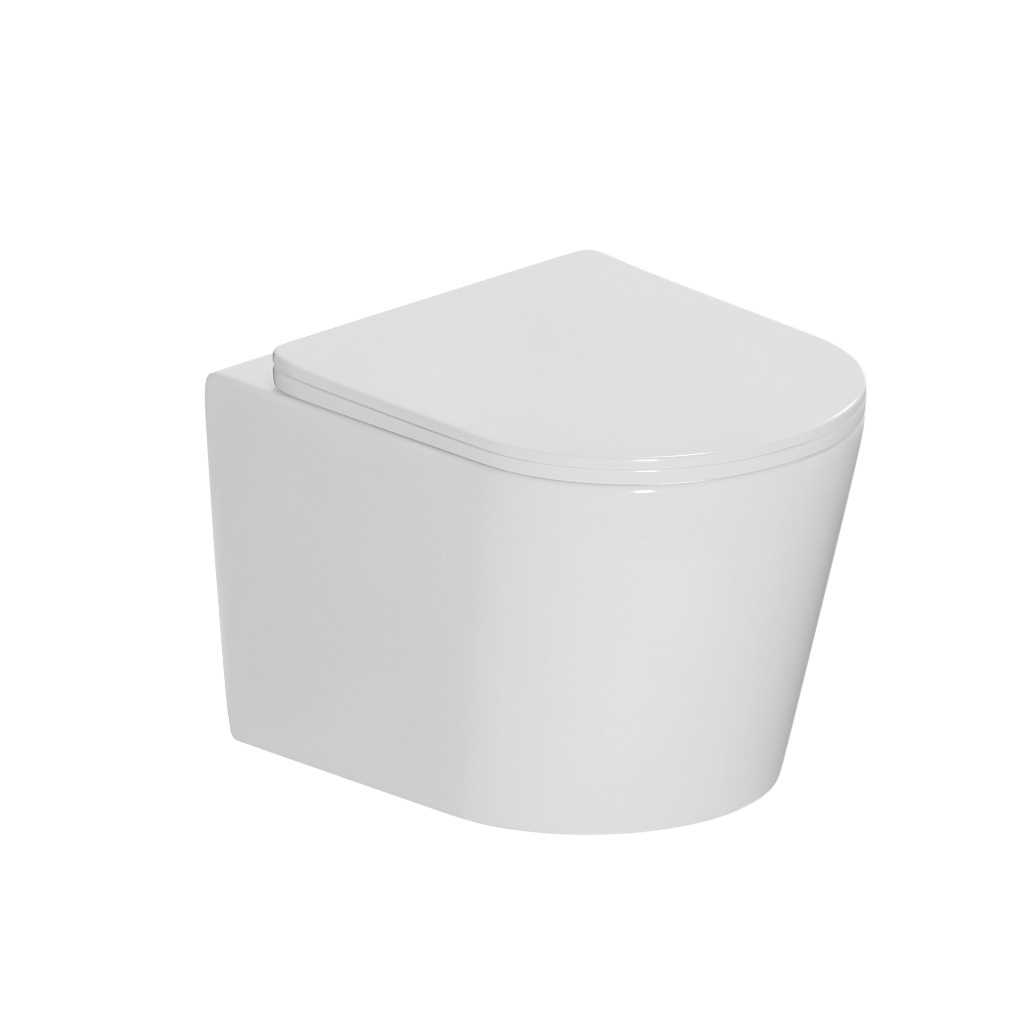

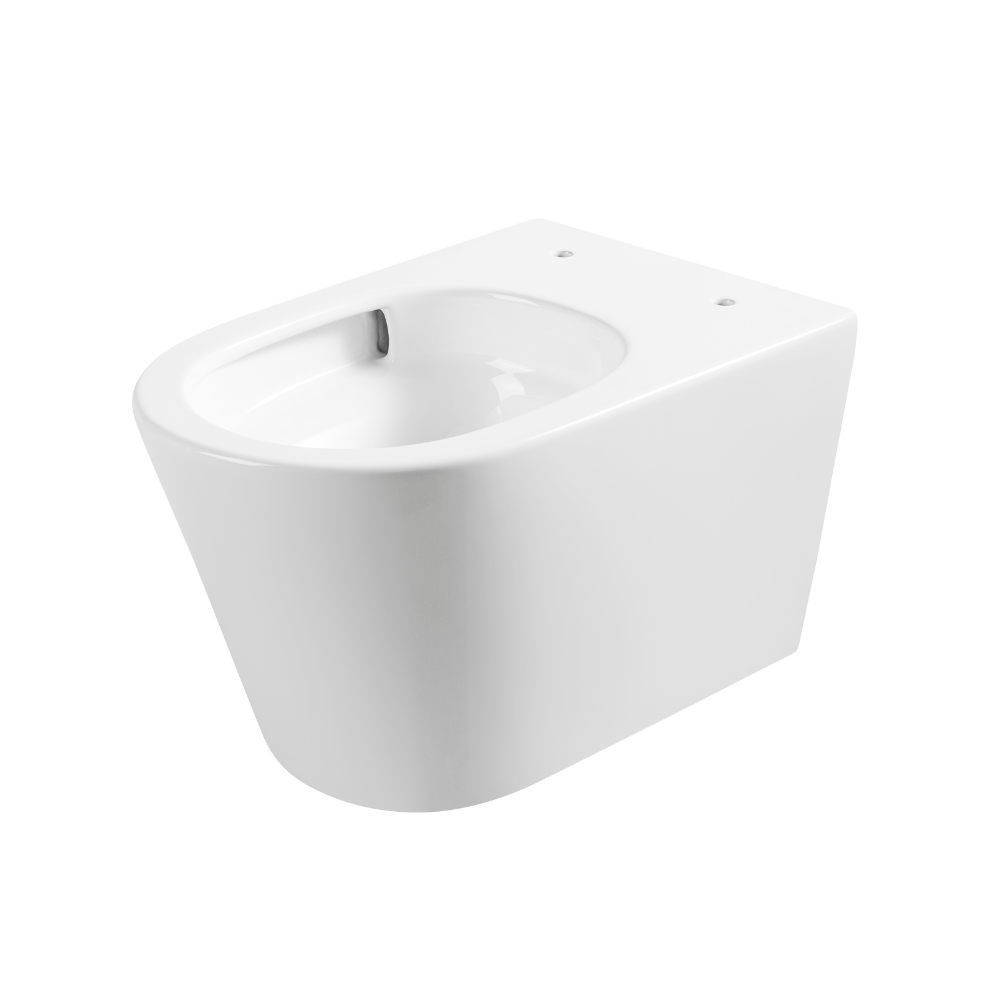

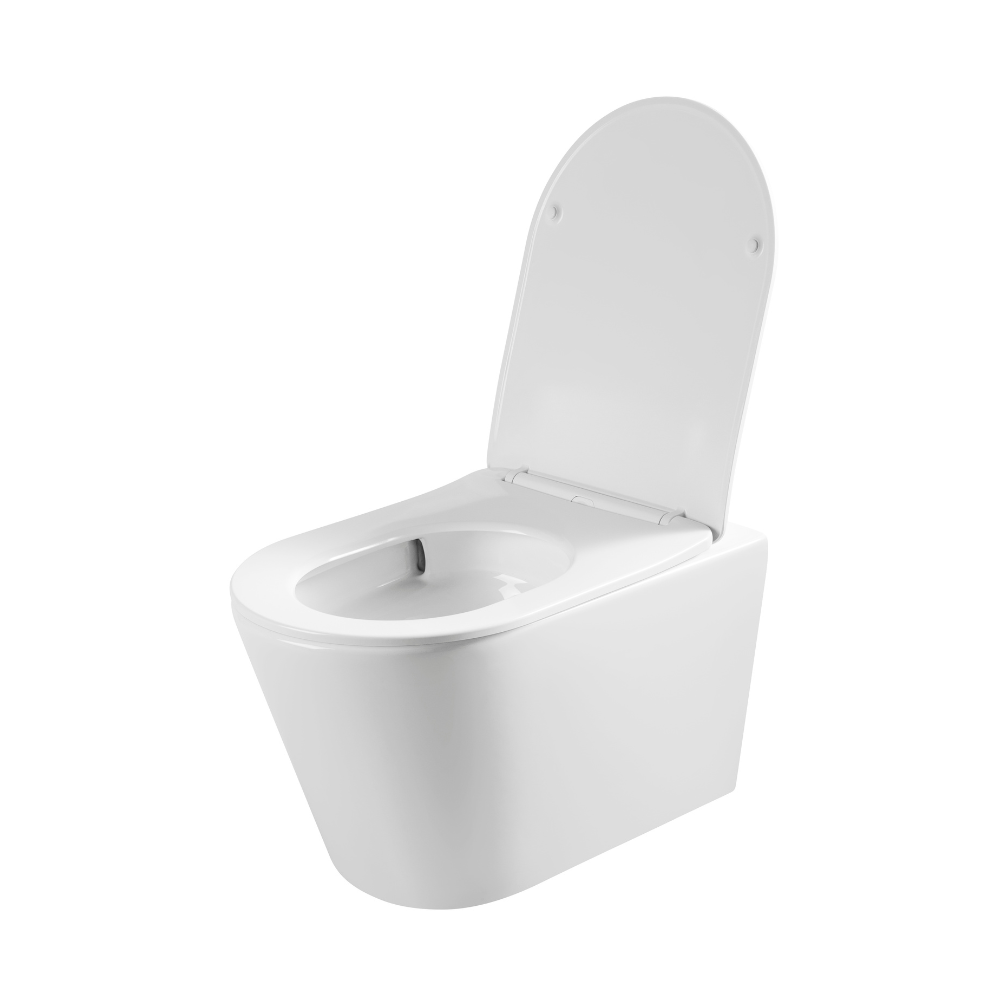

Tornado Rimless Wall-hung WC 53.5 cm rimless with SoftClose seat, Tornado Flush effect, glossy white (CE142010RTORP):
- Product type: Rimless wall-hung WC set + SoftClose seat
- Brand: Ceramia
- Series: Tornado Rimless
- Flush volume: 4.8/3 liters
- Type of bowl: Wall-hung toilet Rimless (rimless)
- Type Toilet seat: SoftClose (with soft close)
- Installation type: wall-mounted

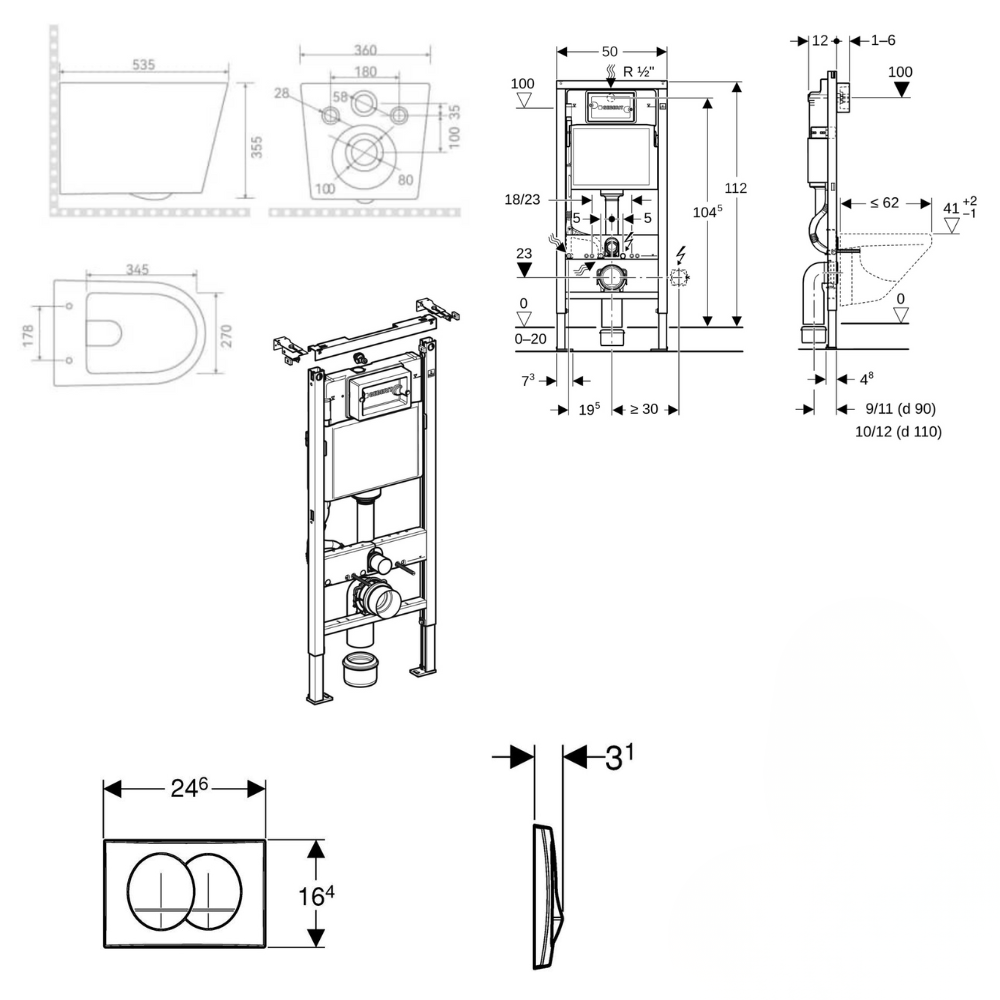

- Length: 53.5 cm
- Width: 27 cm
- Height: 35.5 cm
- Color: white
- Finish: glossy
- With Tornado Flush system to prevent residue from accumulating in the bowl.
- Easy Lock release function for easy removal of the toilet seat, for effortless cleaning.
- Weight: 28 kg

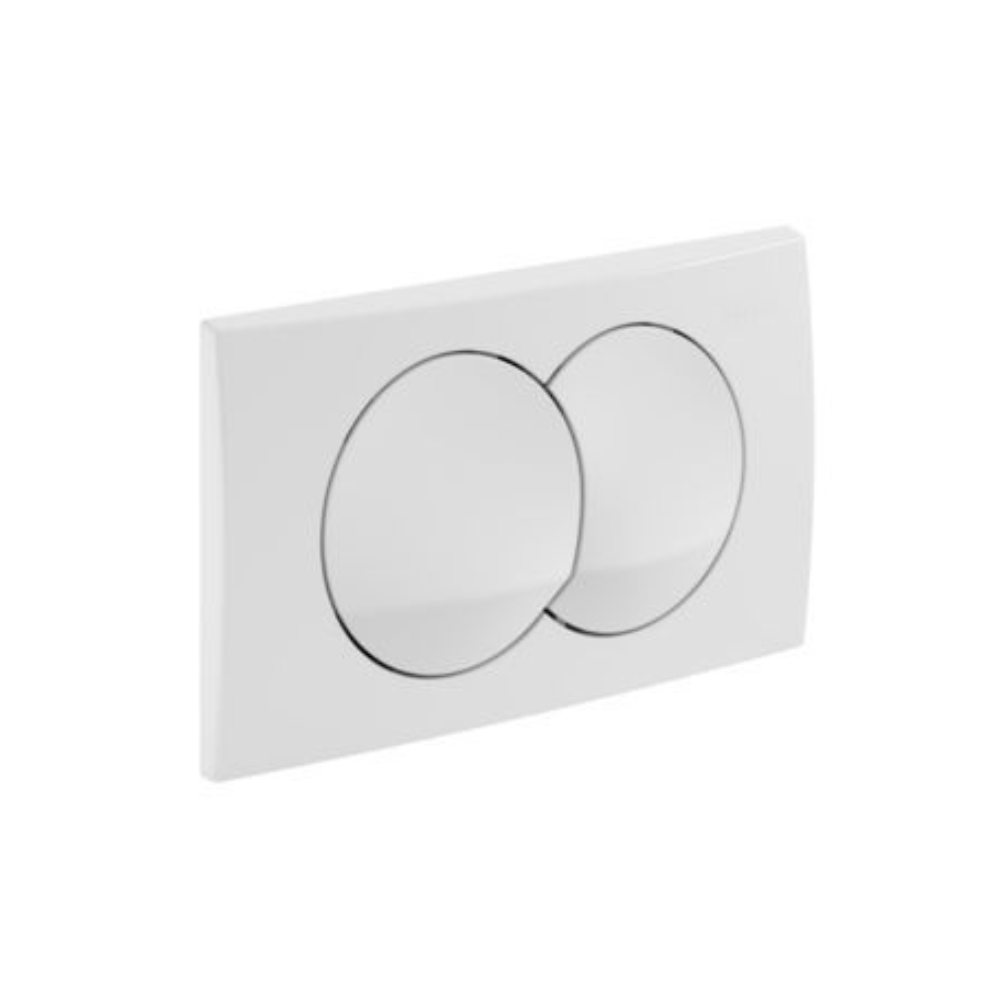

DELTA20 flush plate (115.100.11.5):
Delta has 2 buttons, one for a small 3L flush and the other for a large 6L flush, allowing for water savings. The flush, for the Basic frame with the Delta plate, is triggered from the front.
Warning! It is imperative to check the good condition of the package, both externally and internally, at the time of delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this period, complaints will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Toilet bowl brand:Ceramia
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3/4.8 L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No
- Built Width:50
- Built Height:112
- Bowl height:35.5
- Built Depth:12 cm
- Bowl width:36
- Flush plate finish:Matt
- Bowl finish:Glossy
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
