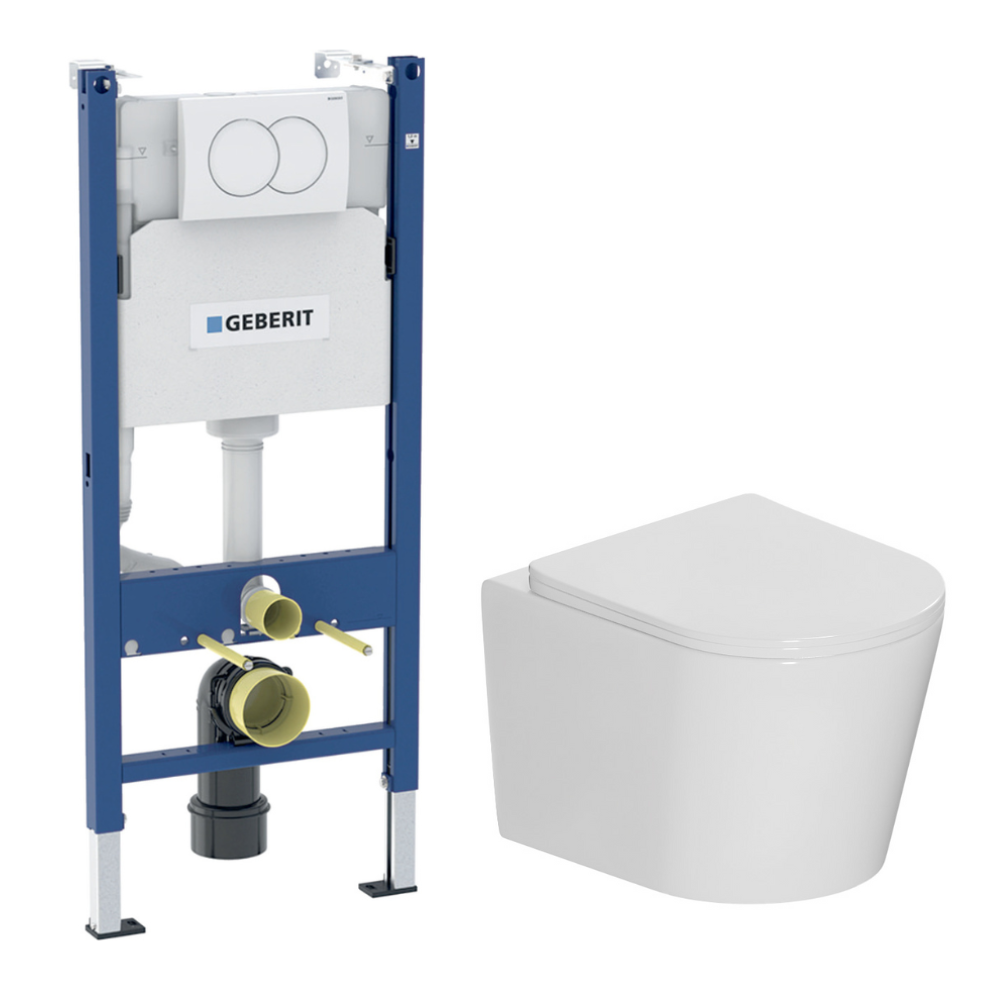

Geberit Duofix Toilet Frame + Ceramia rimless wall-hung WC,SoftClose seat + white plate (GEBCE14WT01MAN-IN)
- Product reference: GEBCE14WT01MAN-IN
- EAN: 3701729208513
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix 112 cm wall-mounted WC + rimless wall-mounted WC with Ceramia SoftClose seat + white plate (GEBCE14WT01MAN-IN):
- Geberit Delta Duofix 112 cm wall-mounted WC + Delta01 flush plate, white + wall brackets (111.154.11.2)
- Ceramia Tornado Rimless 53.5 cm wall-mounted WC, rimless with SoftClose seat, Tornado Flush effect, high-gloss white (CE142010RTORP)
Features of the Geberit Delta Duofix 112 cm wall-mounted WC + Delta01 flush plate, white + wall brackets (111.154.11.2) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall mounting kit for self-assembly (111.839.00.1)
- Geberit Delta01 dual flush actuator plate, alpine white (115.107.11.1)

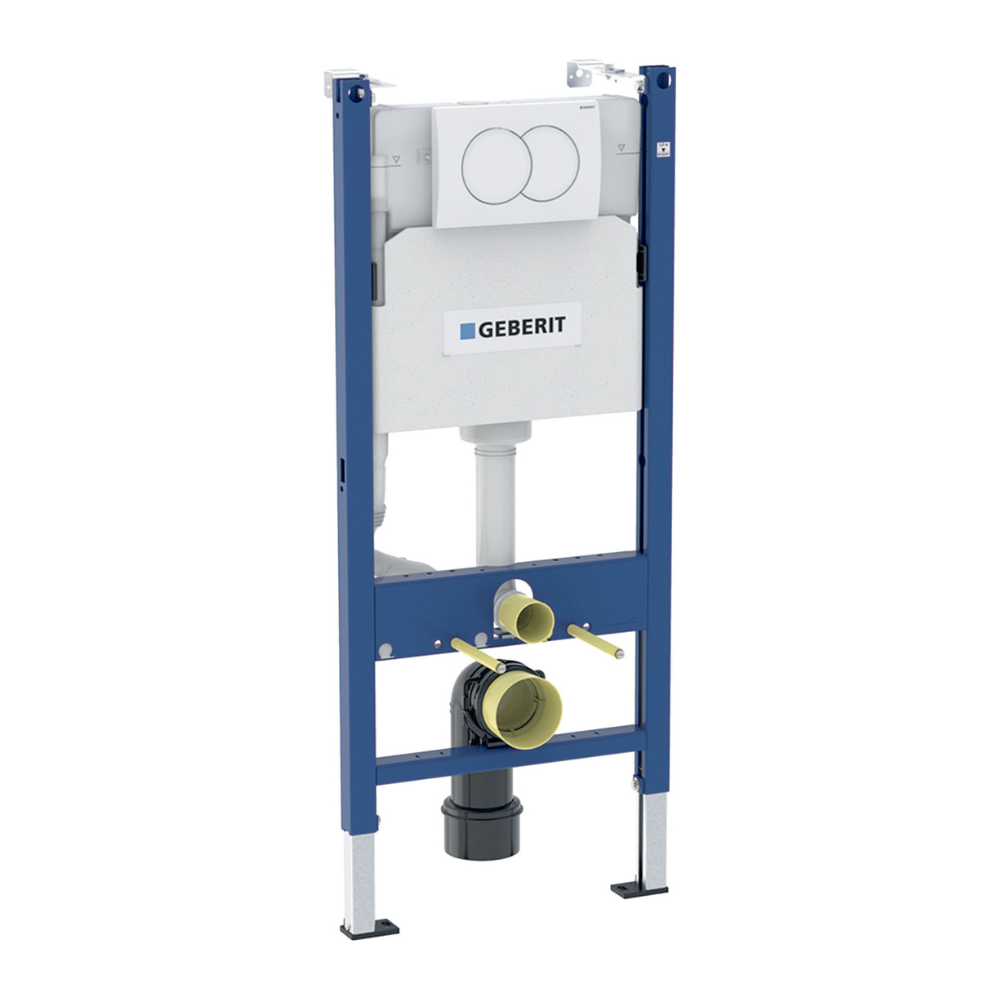

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1):
Installation recommendations:
These wall-hung toilet frames are suitable for the following types of installation:
- Against a load-bearing wall (concrete wall, plasterboard, concrete cellular, bricks, concrete blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to the manufacturer's recommendations).
These wall-hung toilet support frames cannot be installed against plasterboard partition walls with a cardboard honeycomb core, against plasterboard partition walls on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition wall at the level of the upper fixings).
These wall-hung toilet support frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or batten using the lag screws provided.
Main features:
- Geberit Delta UP100 concealed cistern (12 cm), front activation
- Anti-condensation, installation depth: 12 cm
- High flush flow adjustment possible (4.5 / 6 / 7.5 L)
- Small fixed flow, immediate flushing possible
- Rear/central water supply from the top
- Manual connection to the angle valve possible
- Compatibility:
- 1 button: Delta15
- 2 buttons: Delta20
- Self-supporting frame, blue coated, with ø 9 mm holes (wood fixing)
- Feet adjustable from 0 to 20 cm, base plates suitable for UW50 mounting
Technical information:
- Factory setting: 6 / 3.5 L (large/small flush)
Package contents:
- 2 threaded rods M12 (ceramic fixing)
- Dual-flow flush valve
- Protective cover for rough-in installation
- 2 protective plugs
- Angle valve R 1/2" with adapter
- AquaClean supply hose
- Connection set ø 90 mm + elbow ø 90 mm + adapter ø 90/110 mm
- Fixing material
Not included: mounting kit wall-mounted
Geberit Delta01 dual-flush flush plate, alpine white (115.107.11.1)
- New Geberit 2022
- Mechanical dual-flush front actuation
- Water-saving
- For Delta cistern

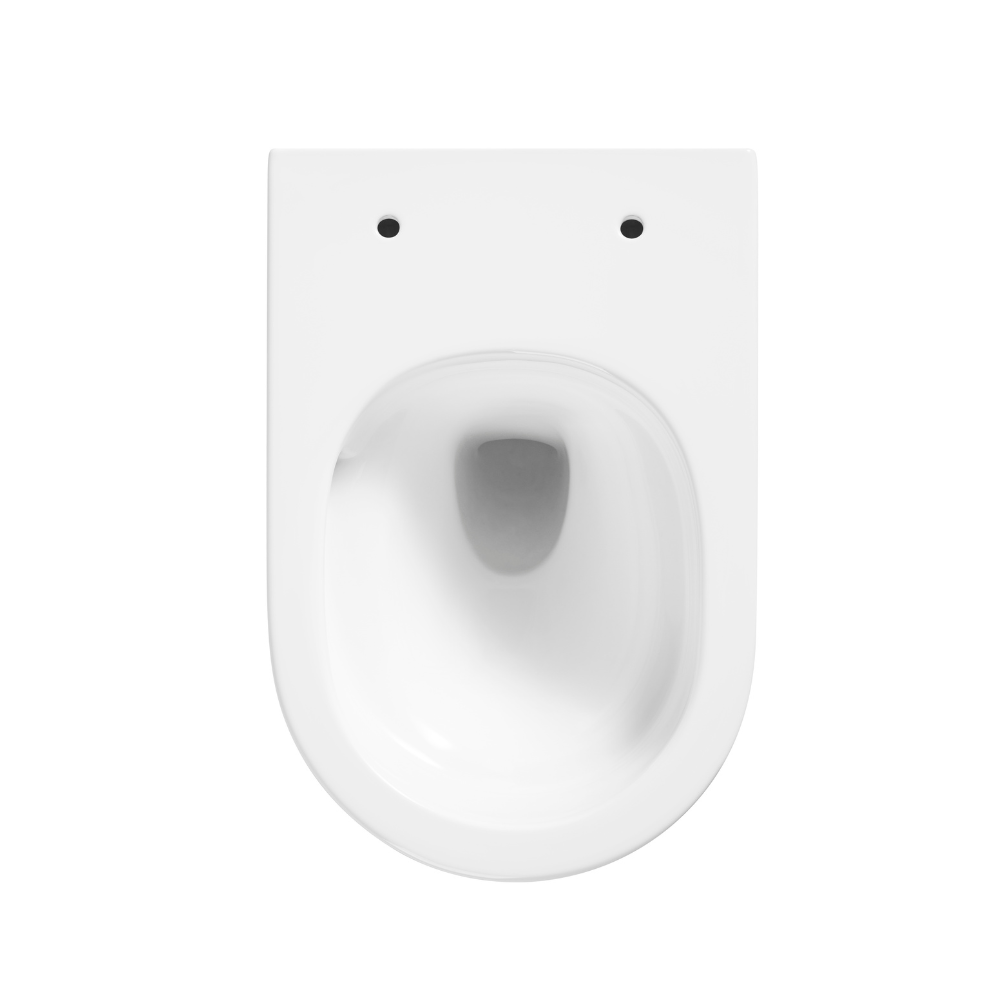

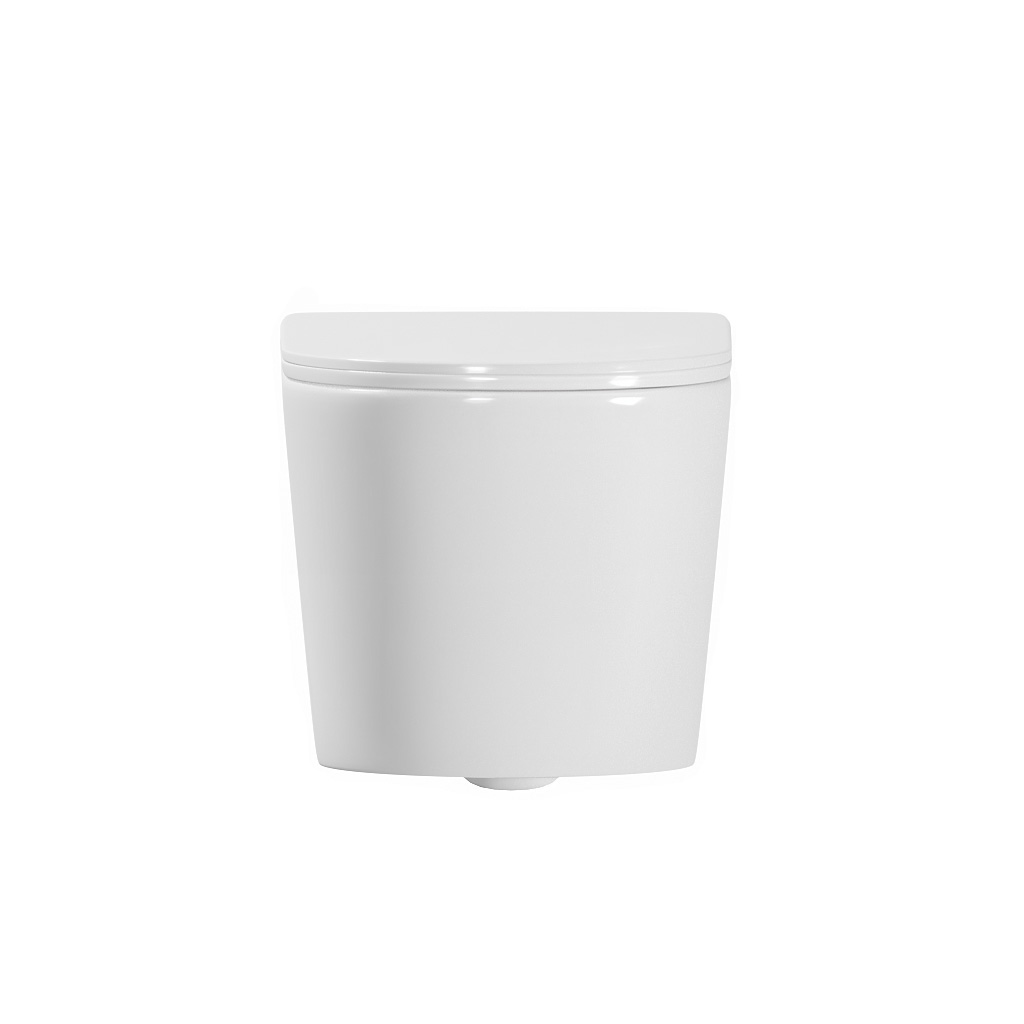

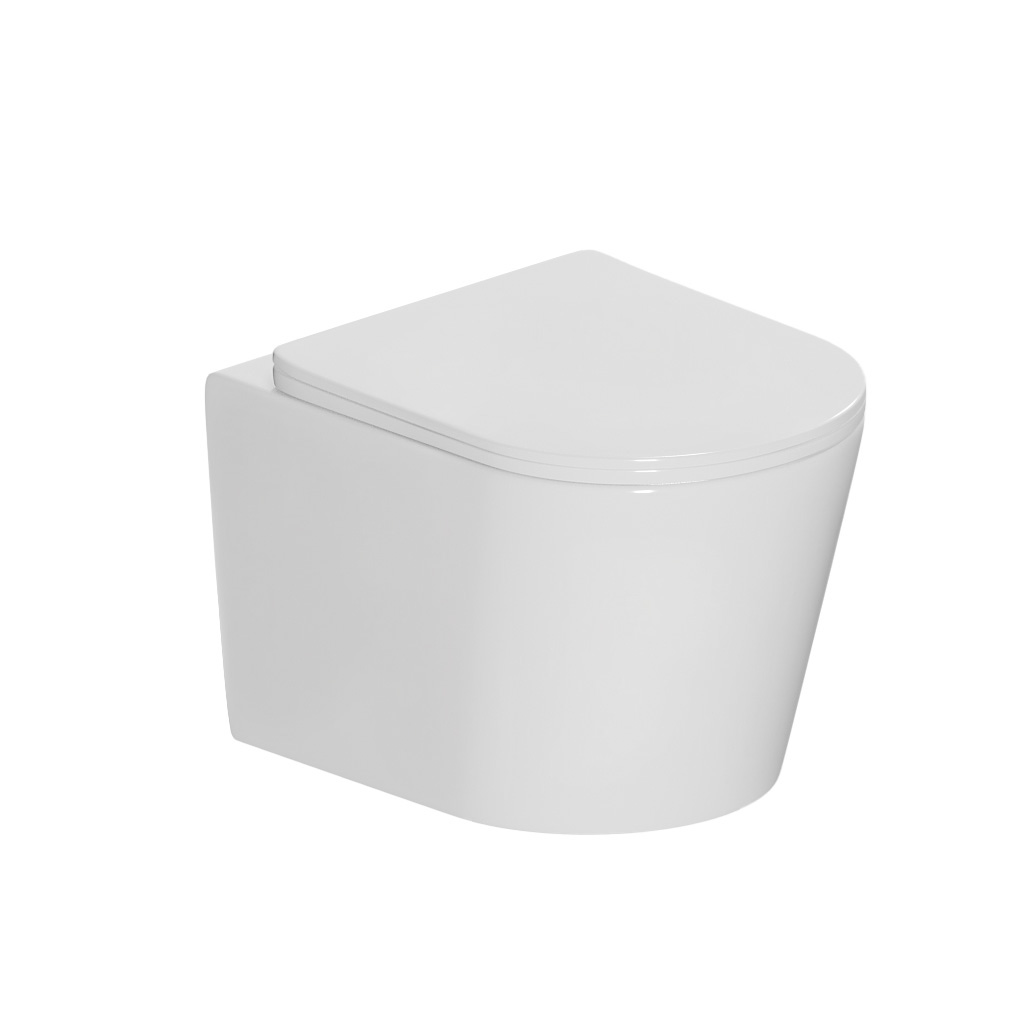

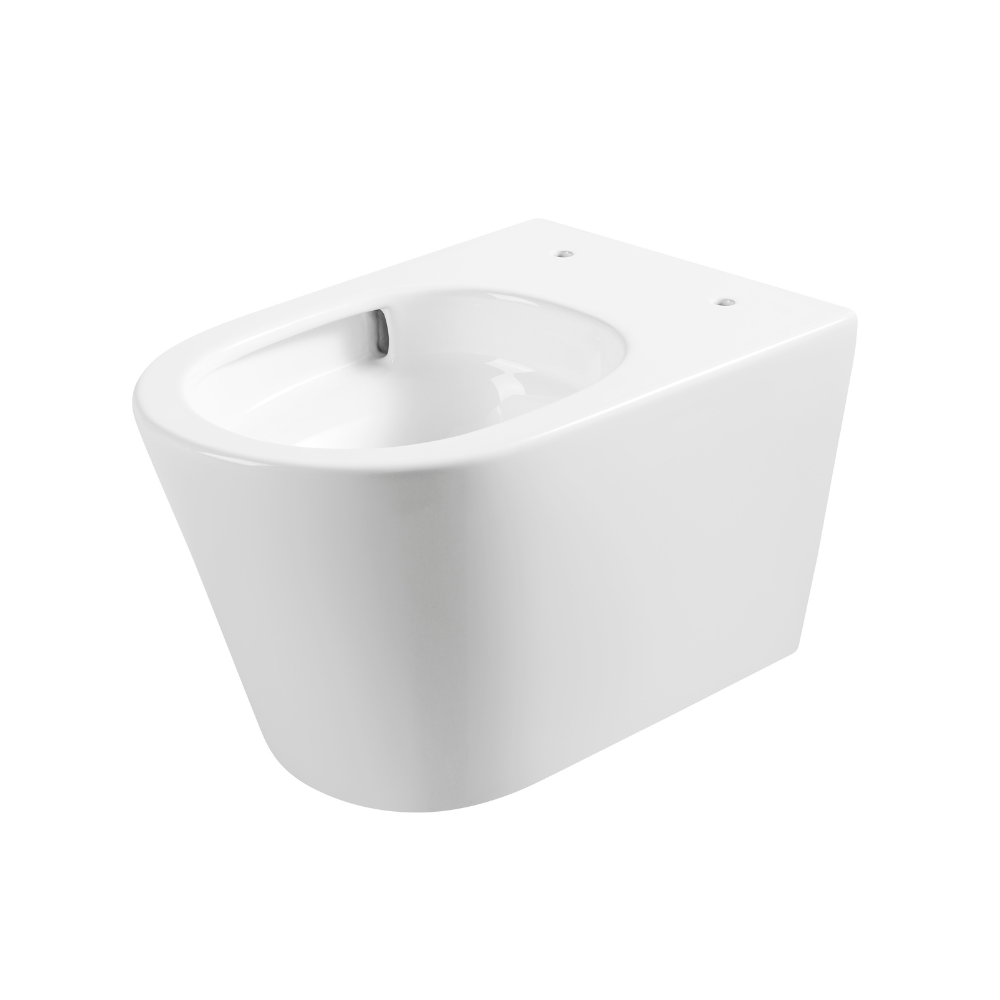

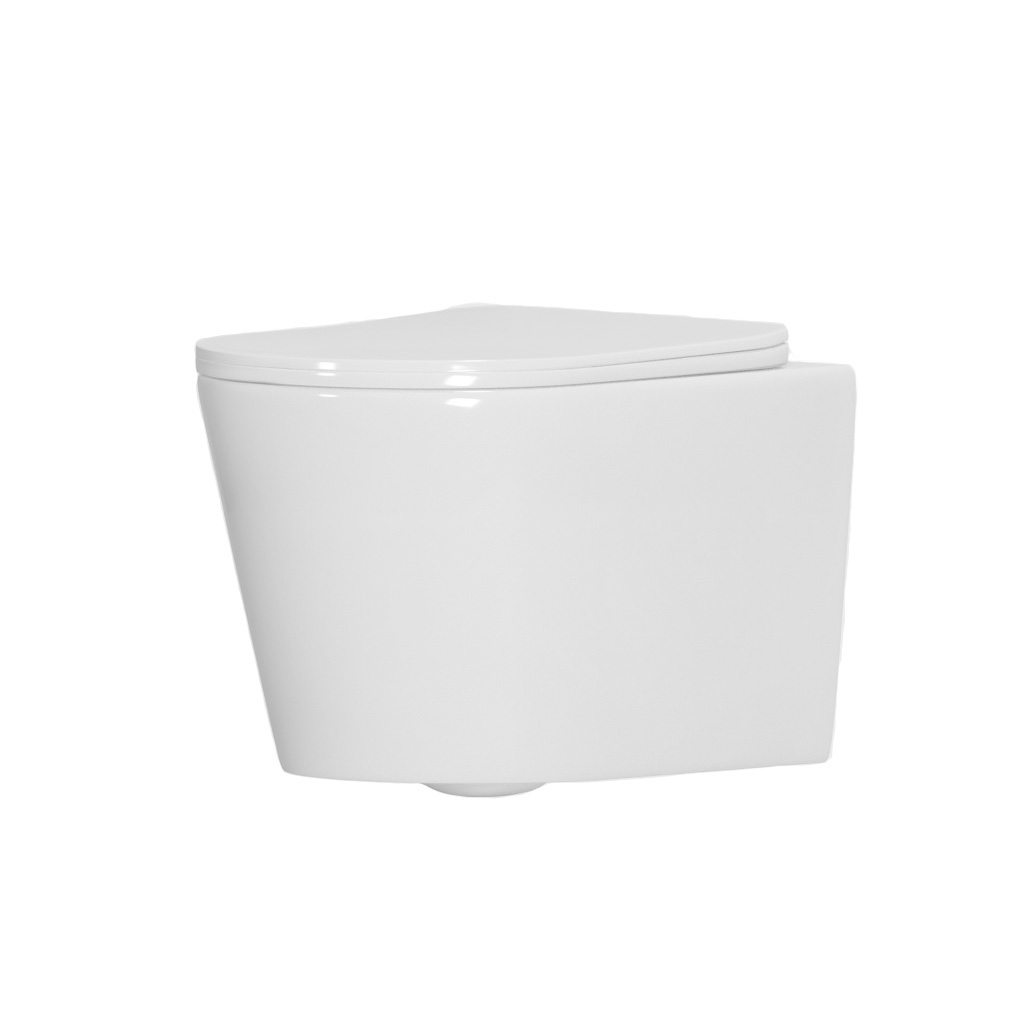

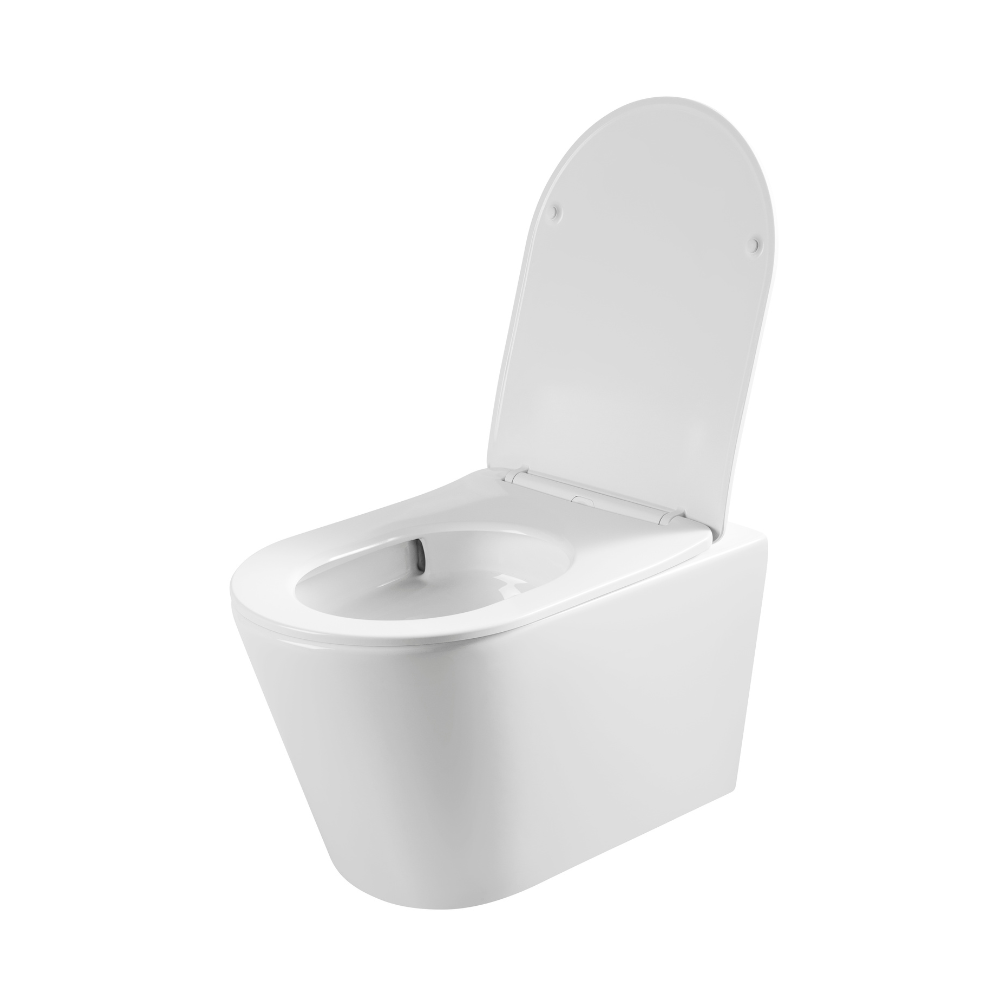

Tornado Rimless 53.5 cm rimless wall-mounted toilet with SoftClose seat, Tornado Flush effect, high-gloss white (CE142010RTORP):
- Product type: rimless wall-mounted toilet set + SoftClose seat
- Brand: Ceramia
- Series: Tornado Rimless
- Flush volume: 4.8/3 liters
- Type of bowl: bowl Rimless wall-hung
- Seat type: SoftClose (with soft close)
- Installation type: wall-hung
- Length: 53.5 cm
- Width: 27 cm
- Height: 35.5 cm
- Color: white
- Finish: glossy
- With Tornado Flush system to prevent residue from accumulating in the bowl.
- Easy Lock release function to easily remove the seat for effortless cleaning.
- Weight: 28 kg
Warning! It is imperative to Check the package is in good condition, both inside and out, upon delivery.
You have a maximum of 72 hours upon receipt of the product to report any damage. After this period, claims will no longer be considered. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem upon receipt. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Toilet bowl brand:Ceramia
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Net weight:31.5
- Volume:3/4.8 L
- Flush plate:Double tap
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No

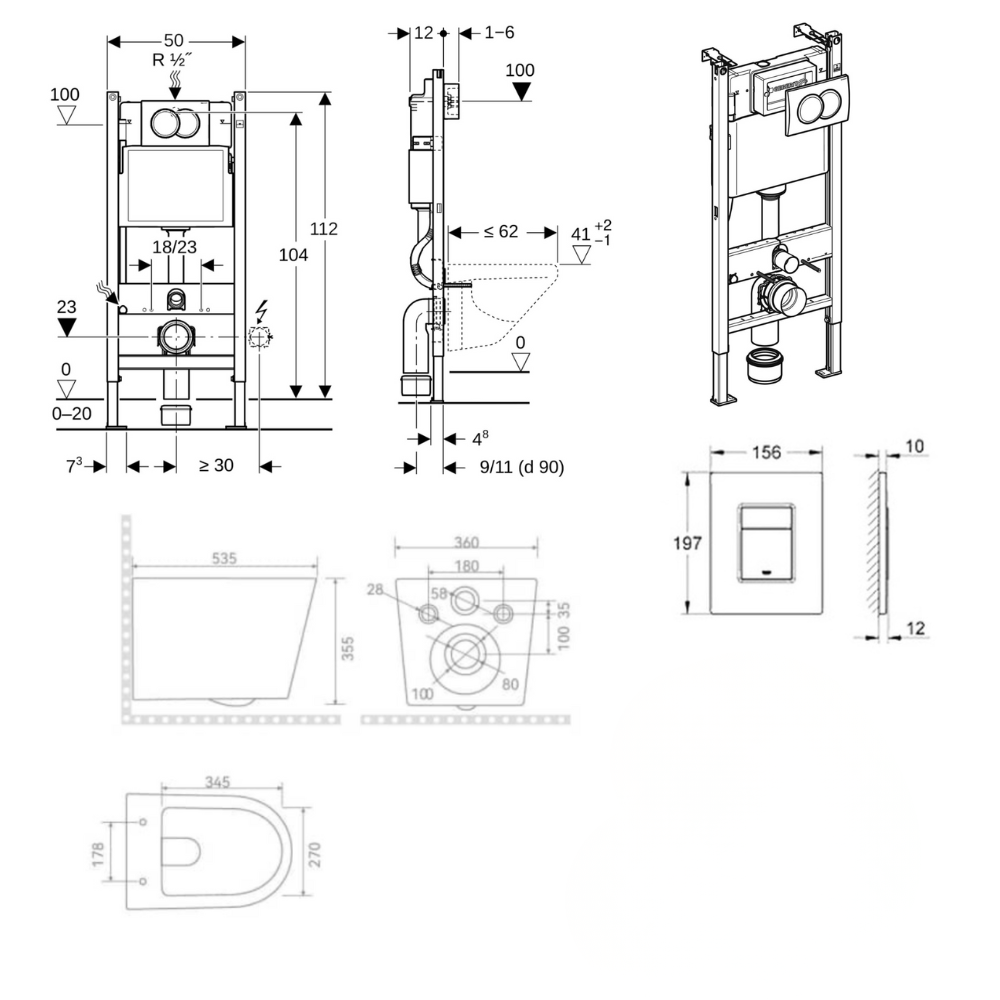

- Built Width:50
- Built Height:112
- Bowl height:35.5
- Built Depth:12 cm
- Bowl width:36
- Flush plate finish:Glossy
- Bowl finish:Glossy
