Swiss Aqua Technologies ECO 2L Swiss Aqua Technologies Toilet pack + Swiss Aqua Technologies rimless wall-hung toilet + gold plate (STESTBRWR06-IN)
- Product reference: STESTBRWR06-IN
- EAN: 3701729204546
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

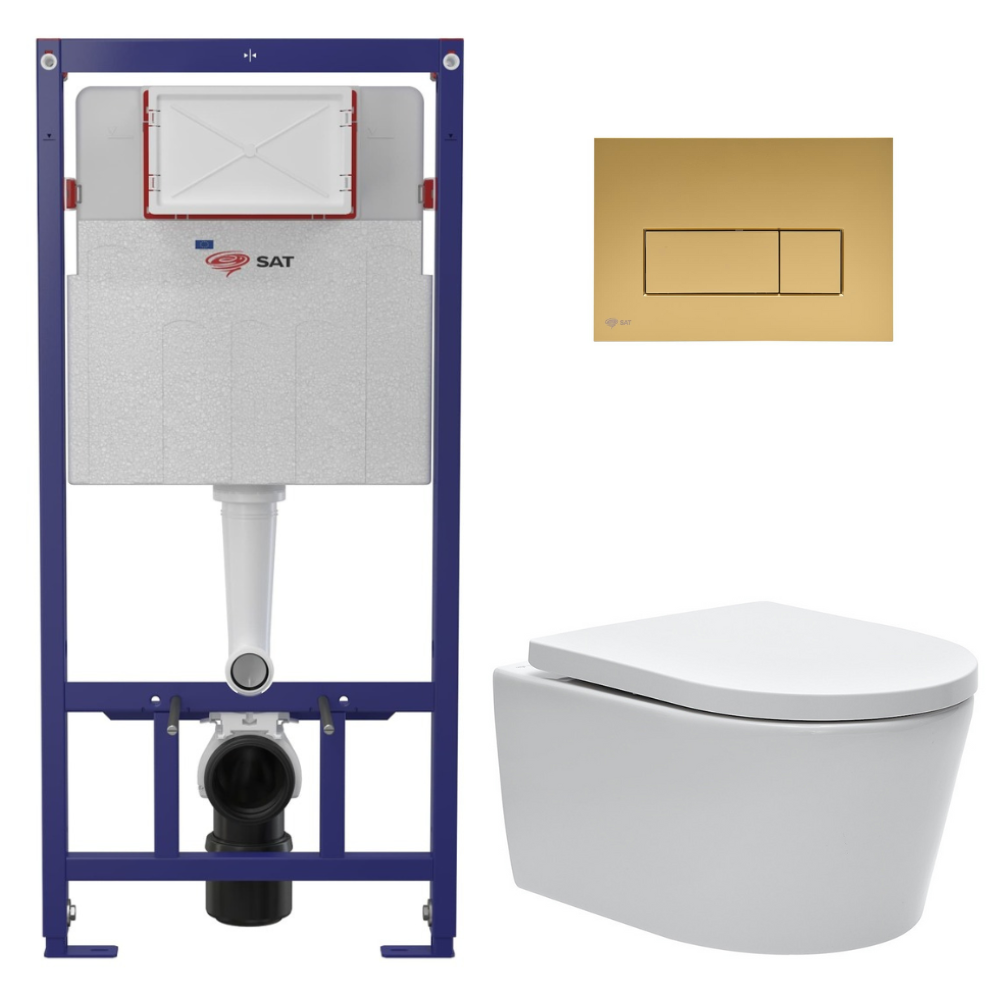

Features of the ECO 2L Swiss Aqua Technologies built-in toilet pack + Swiss Aqua Technologies rimless wall-hung toilet with invisible fixings + gold plate (STESTBRWR06-IN):
- Swiss Aqua Technologies 112 cm lightweight frame for Swiss Aqua Technologies wall-hung toilet, ECO 2L (SATAMSKECO)
- Swiss Aqua Technologies Rimless wall-hung toilet with invisible fixings + soft-close seat (SATBRE010RREXP)
- Swiss Aqua Technologies Stainless steel dual flush plate, PVD treatment, matte gold (SATATG-M)

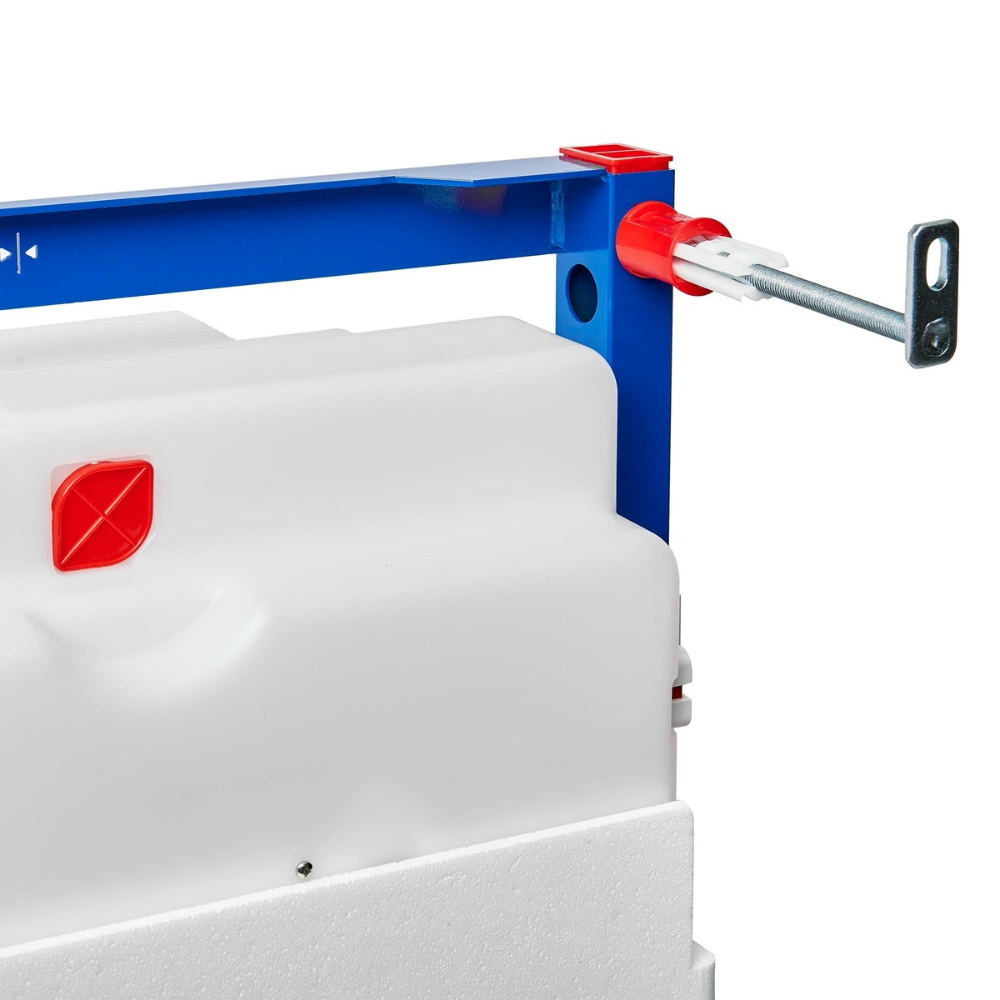

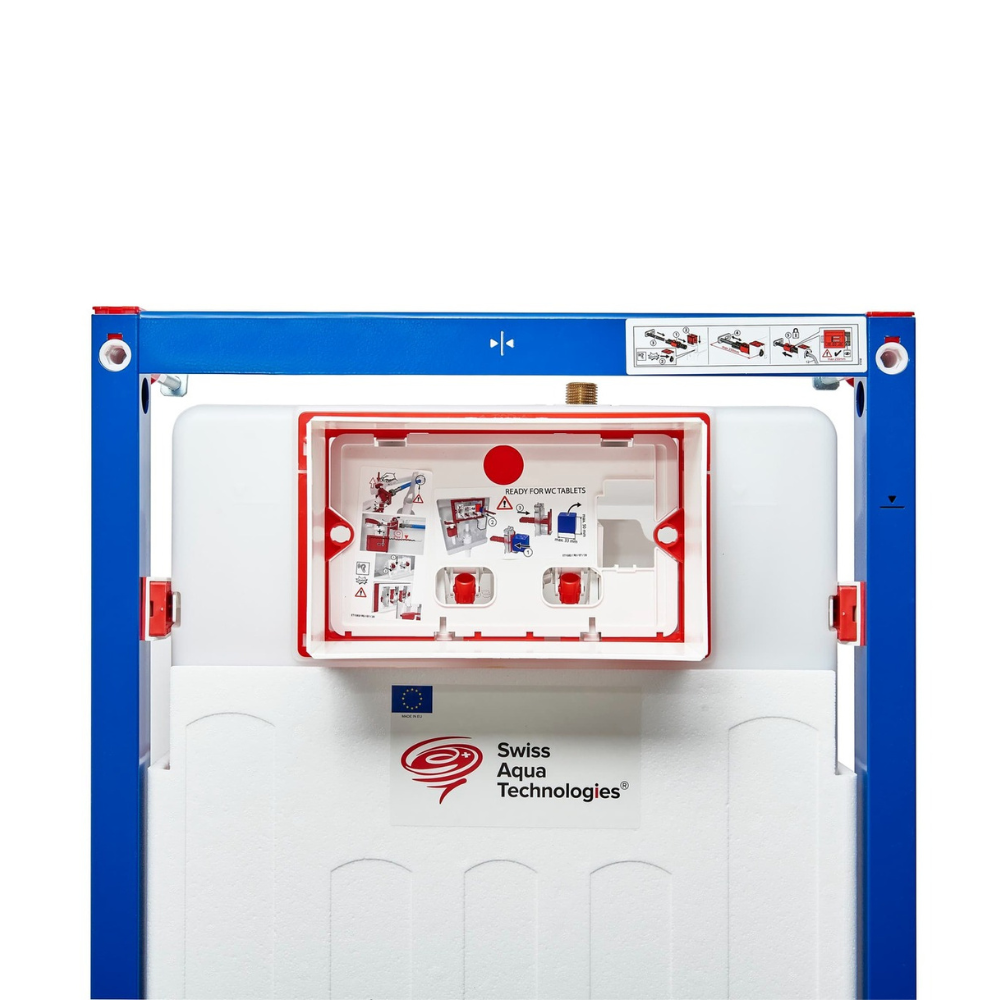

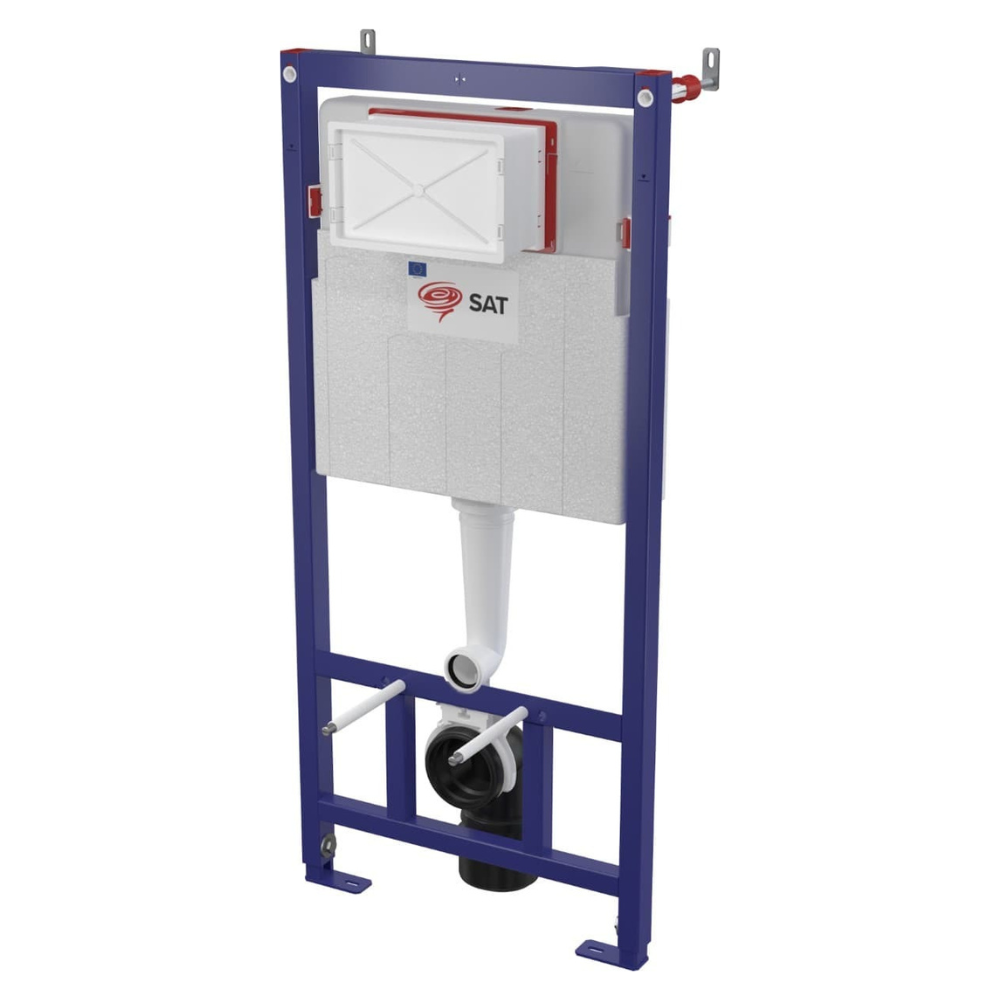

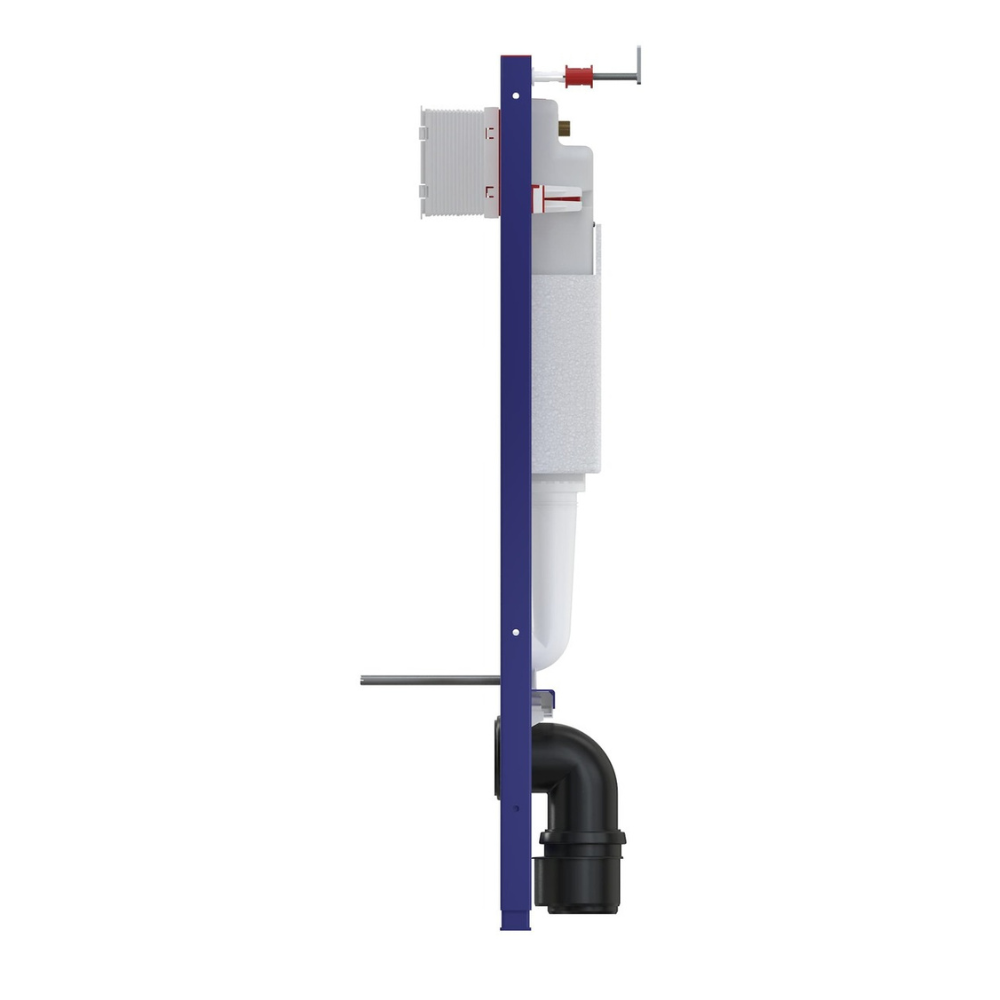

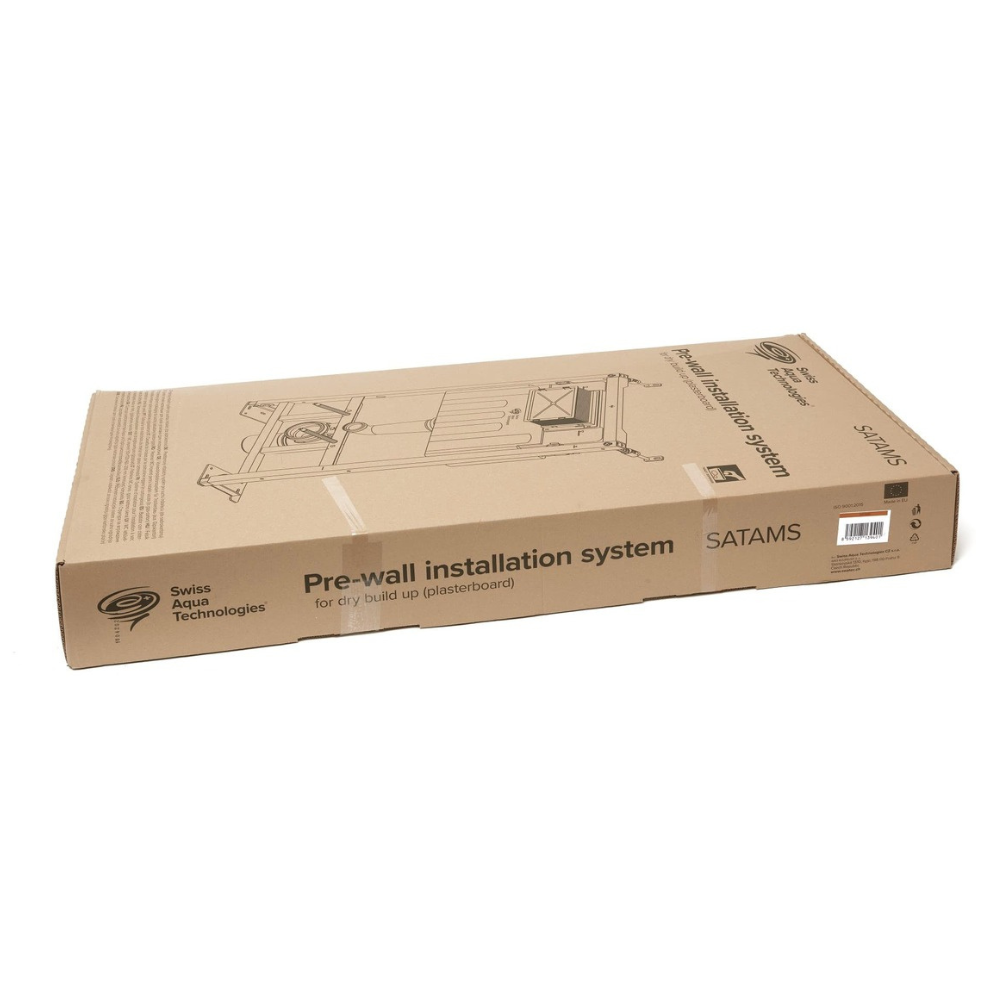

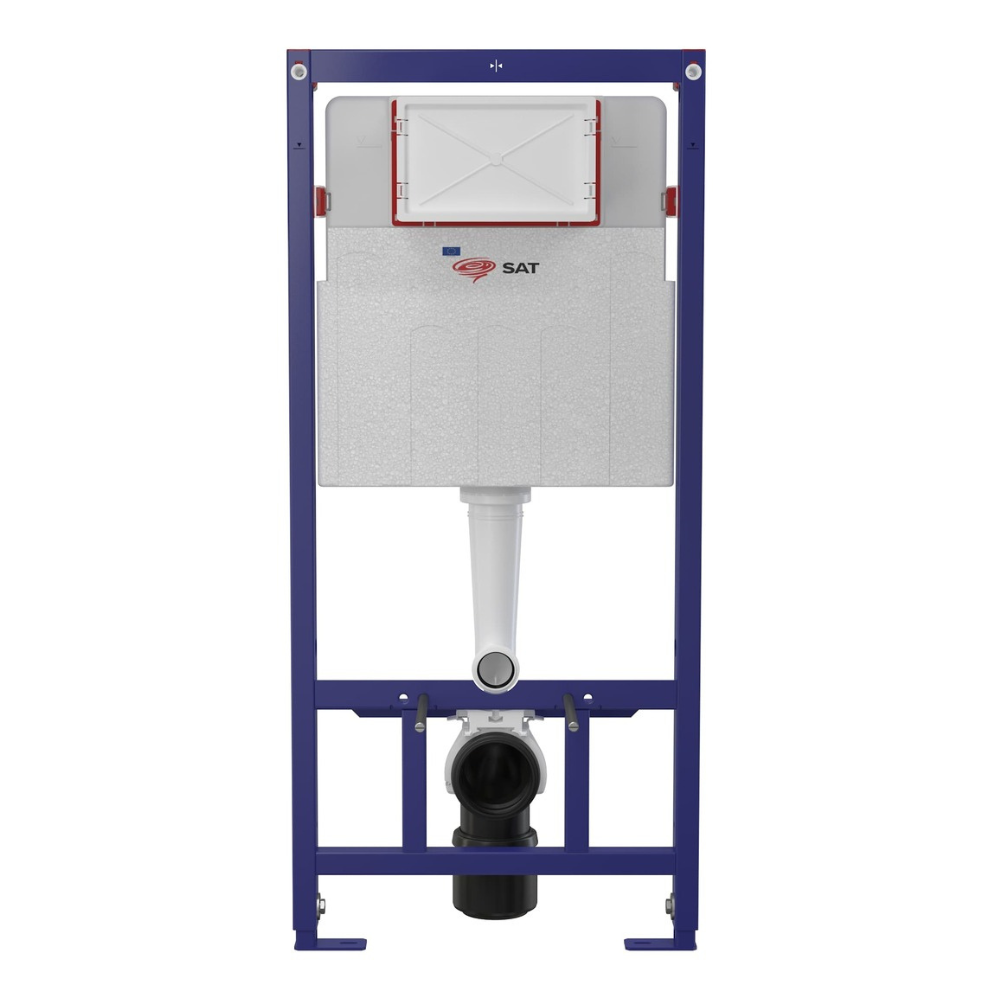

112 cm lightweight frame for Swiss Aqua Technologies wall-hung toilet, ECO 2L (SATAMSKECO):
Features
- Brand: Swiss Aqua Technologies
- Product type: Wall-hung toilet frame
- Package contents: 1 piece
- Adjustable flush
- Height: 112 cm
- Width: 52 cm
- Depth: 14.5 cm
- Insulating polystyrene cistern, preventing the formation of condensation on the surface and reducing the transmission of vibrations to the structure
- Self-supporting metal frame, powder-coated for greater durability
- 100% leak-proof one-piece cistern with integrated flushing mechanism and the option of remote or sensor control.
- Preparation for connecting a bracket with DG 1/2" transition (e.g. for SoftClose bidet seat SATBEASY2233 or hand shower WC).
- Product warranty: 5 years
Use
- For wall-hung toilets
- For installation in front of a load-bearing wall or in a plasterboard structure
- For installing a wall-hung toilet with a connection pitch of 180 mm or 230 mm
- Adjustable installation depth from 20 to 95 mm; total depth: 200 mm
- Sturdy anchoring feet, adjustable from 0 to 200 mm, with safety brake
Technical parameters
- Recommended water pressure range: 0.3-0.5 MPa
- Operating water pressure range: 0.05-1.6 MPa
- Water supply from the rear or from the top (central position) with integrated angle valve
- Cistern volume: 6 L
- Flush setting:
- Small flush: 2 – 4 L (factory setting: 3 L)
- Large flush: 3.5 – 6 L (factory setting: 4.5 L)
- Load tested up to 400 kg
Compatibility
- Compatible with all Swiss Aqua Technologies flush plates

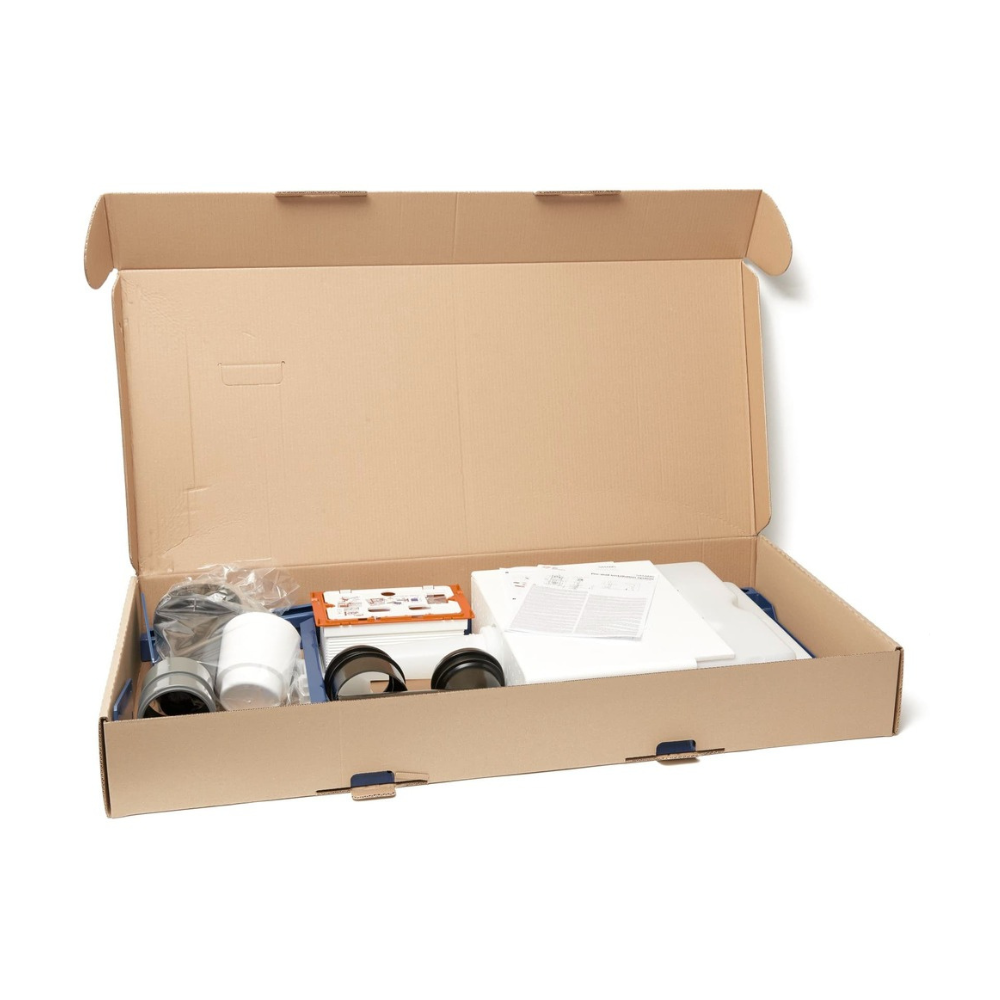

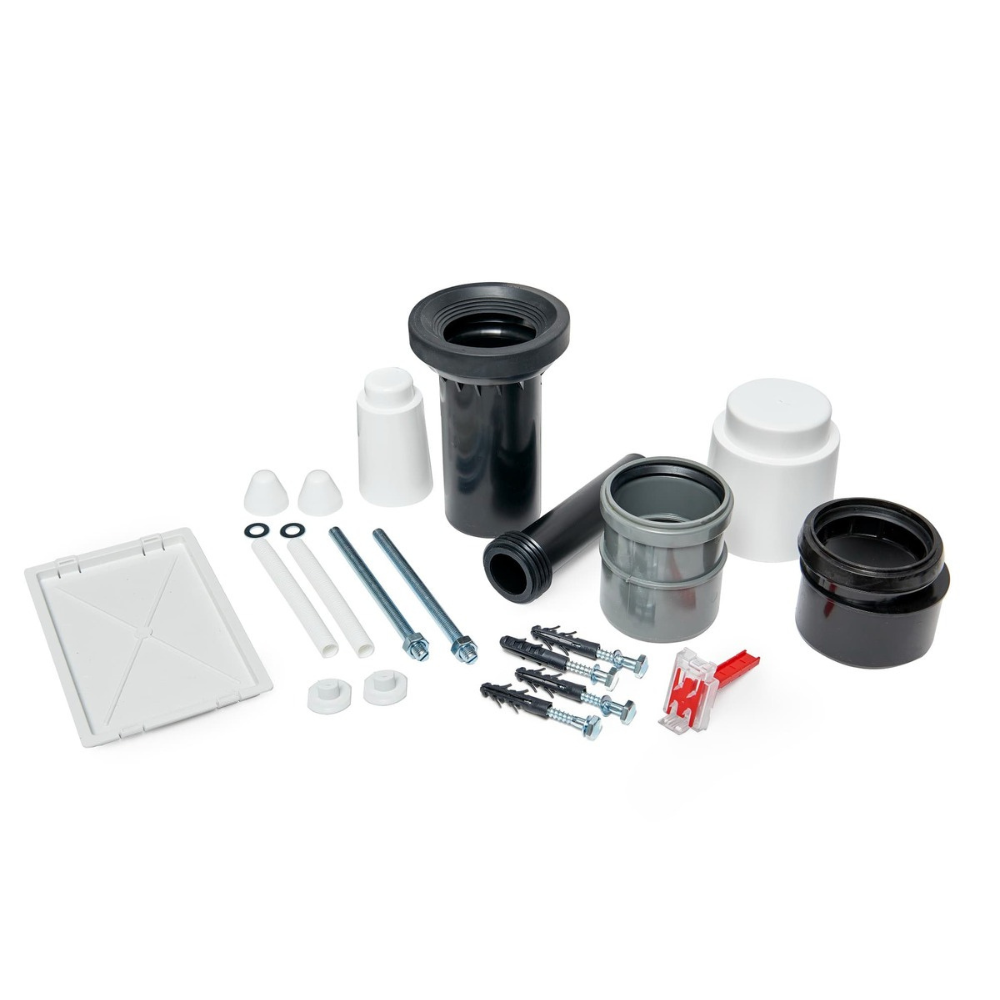

Scope of delivery
- Toilet fixing kit:
- 2 M12 threaded rods
- 4 washers, 2 nuts, 2 protective caps, 2 thread protectors
- Frame mounting kit:
- 4 screws Ø8×60
- 4 dowels Ø12

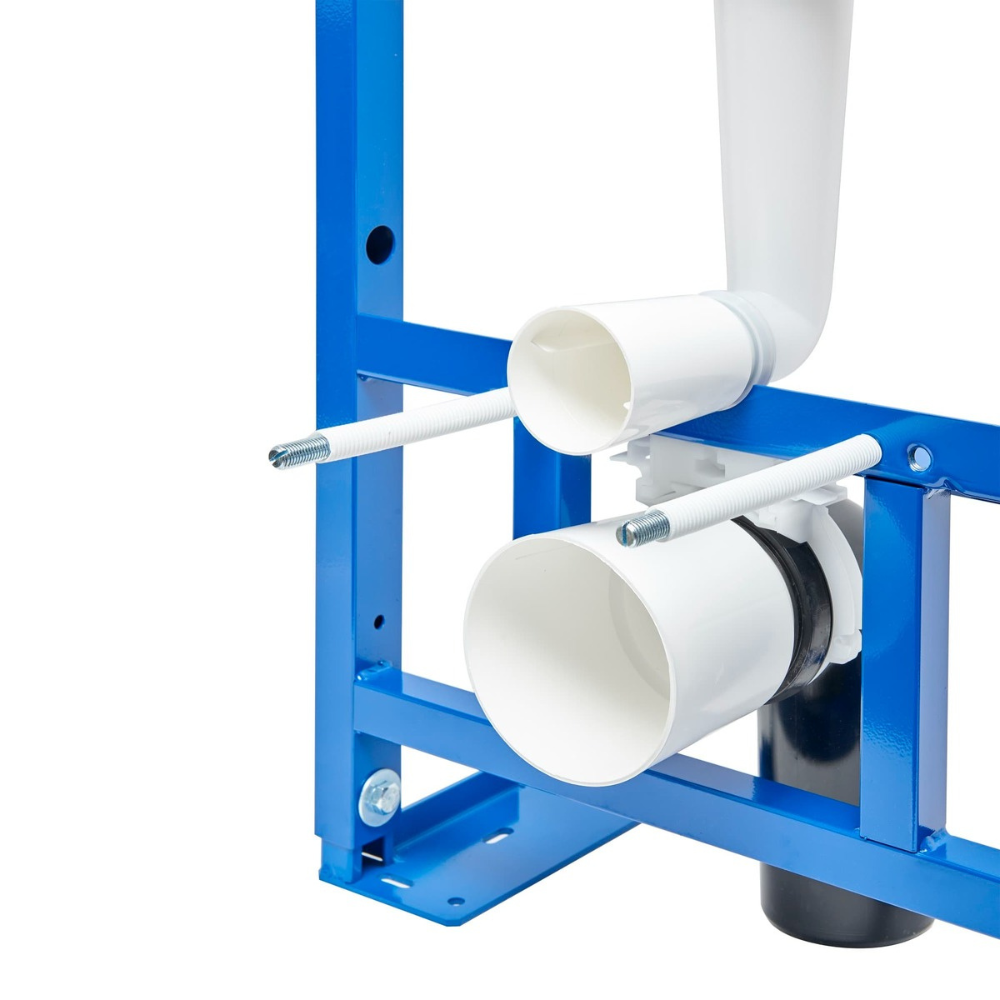

- HT 90/90 drain elbow made of PE-HD
- Two-part service hole cover, can be cut to size
- Cistern with filling and drain connections
- Set of protective covers for connection holes

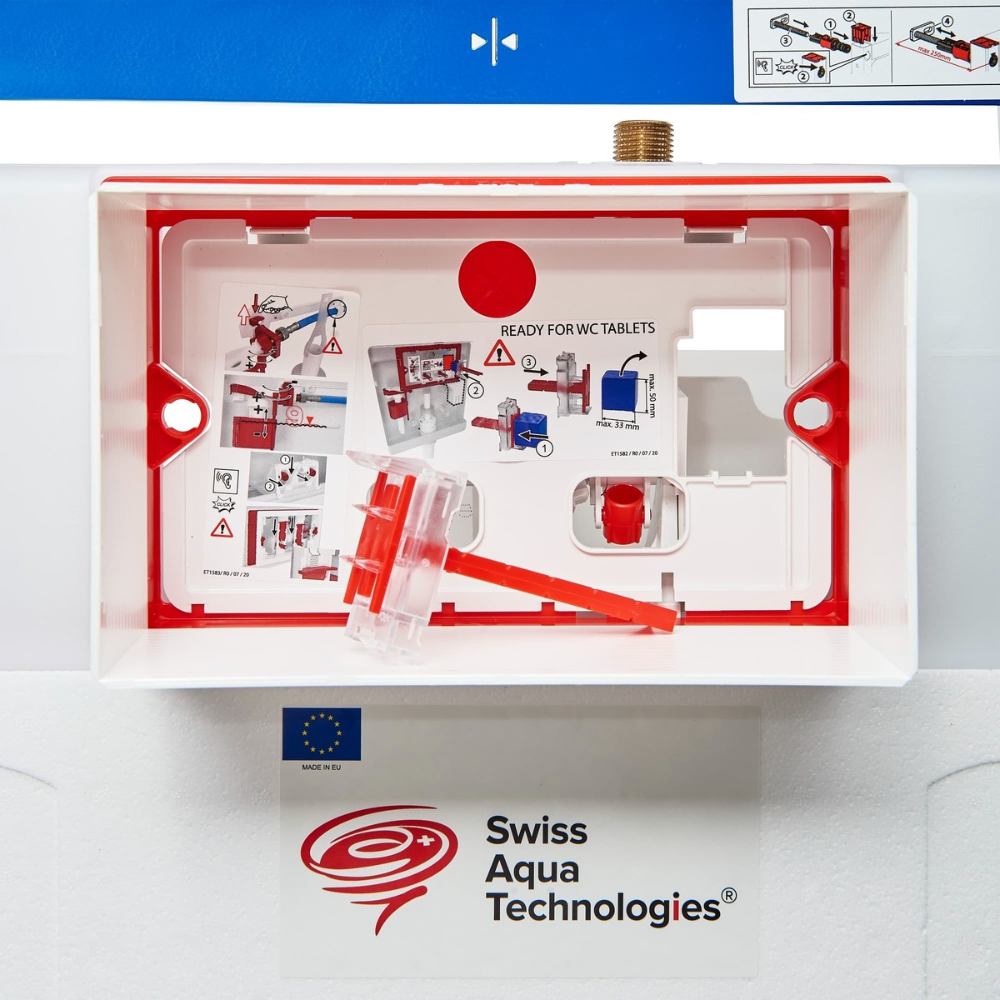

- Toilet tablet dispenser set
- Drain seal, polypropylene jumper and its seals
- 1/2" screw connection with integrated Schell angle valve 1/2"–3/8"
- Polypropylene cable gland with corrugated insert

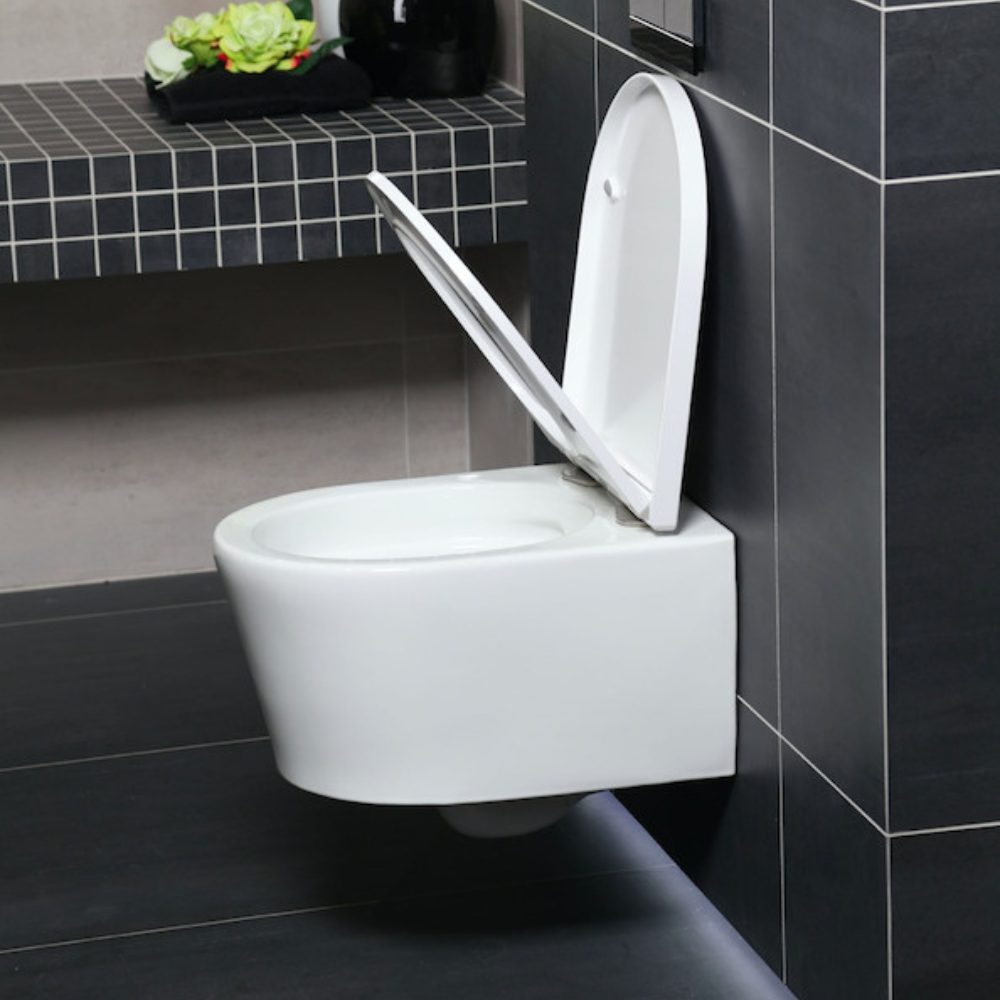

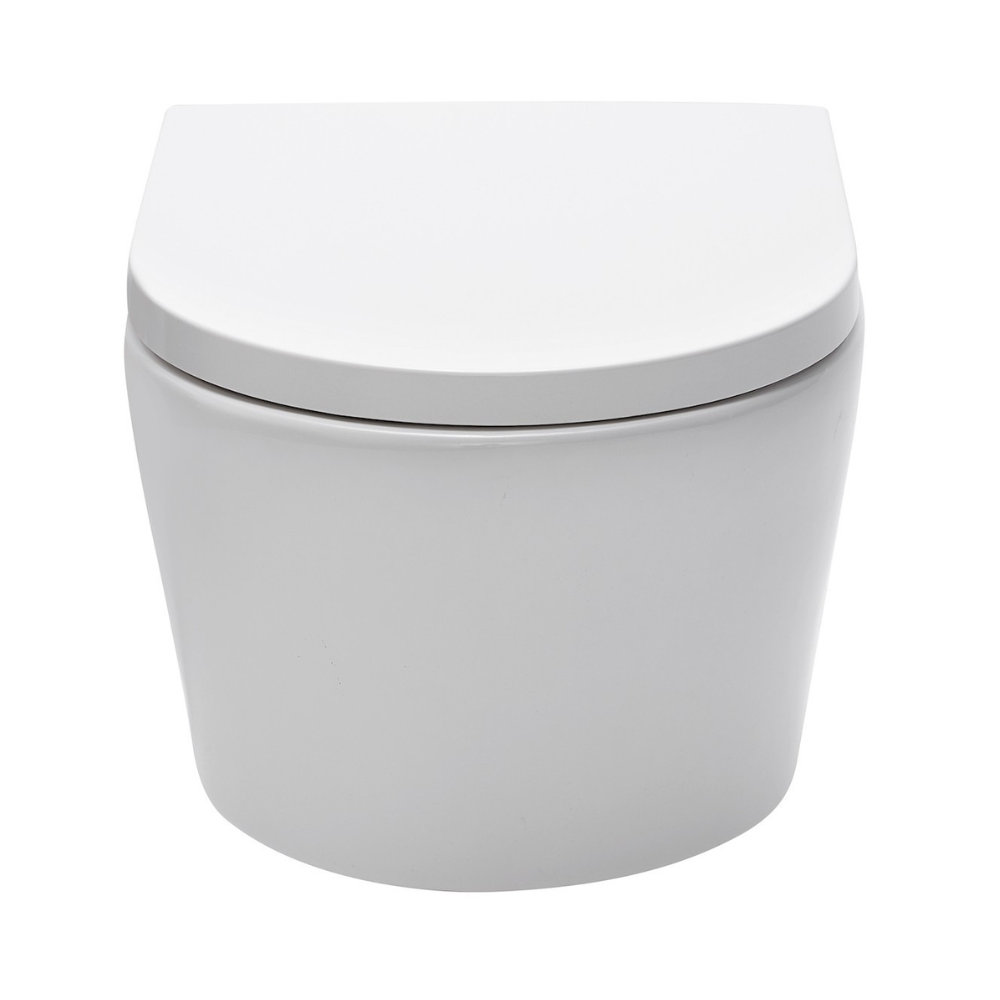

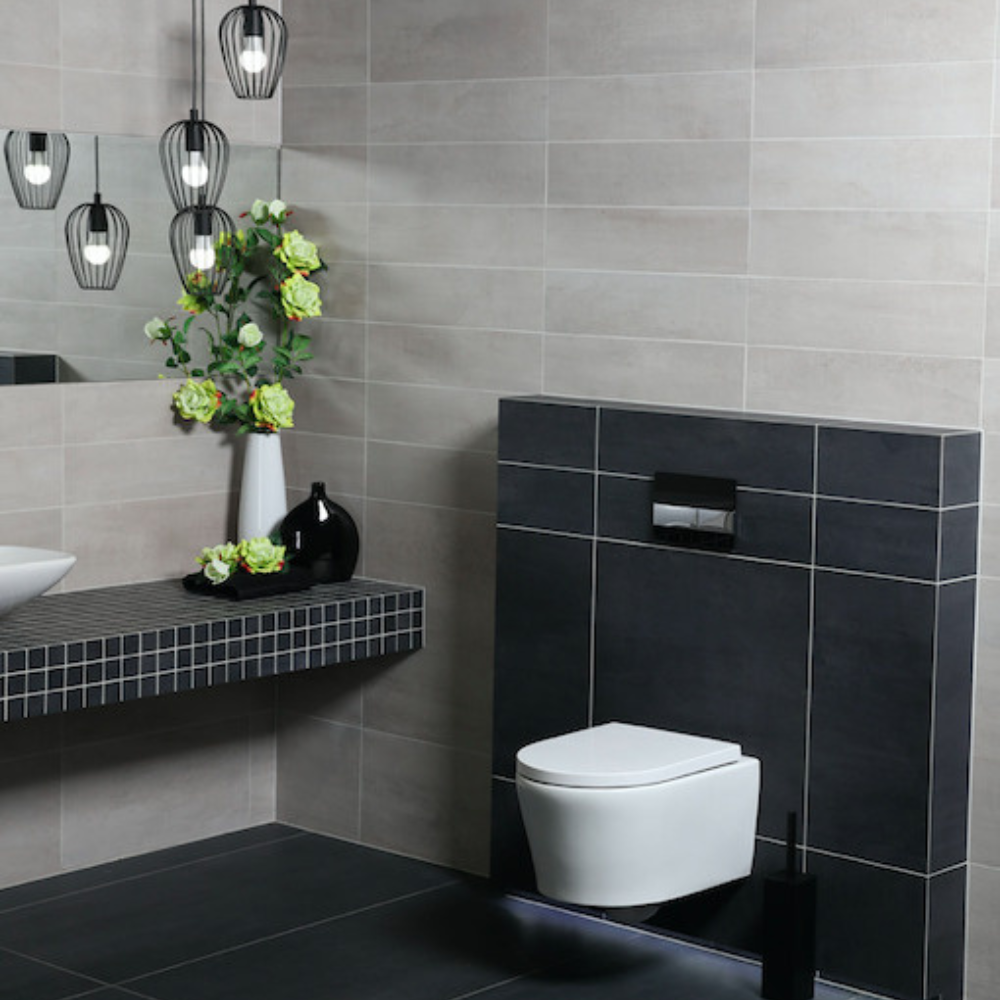

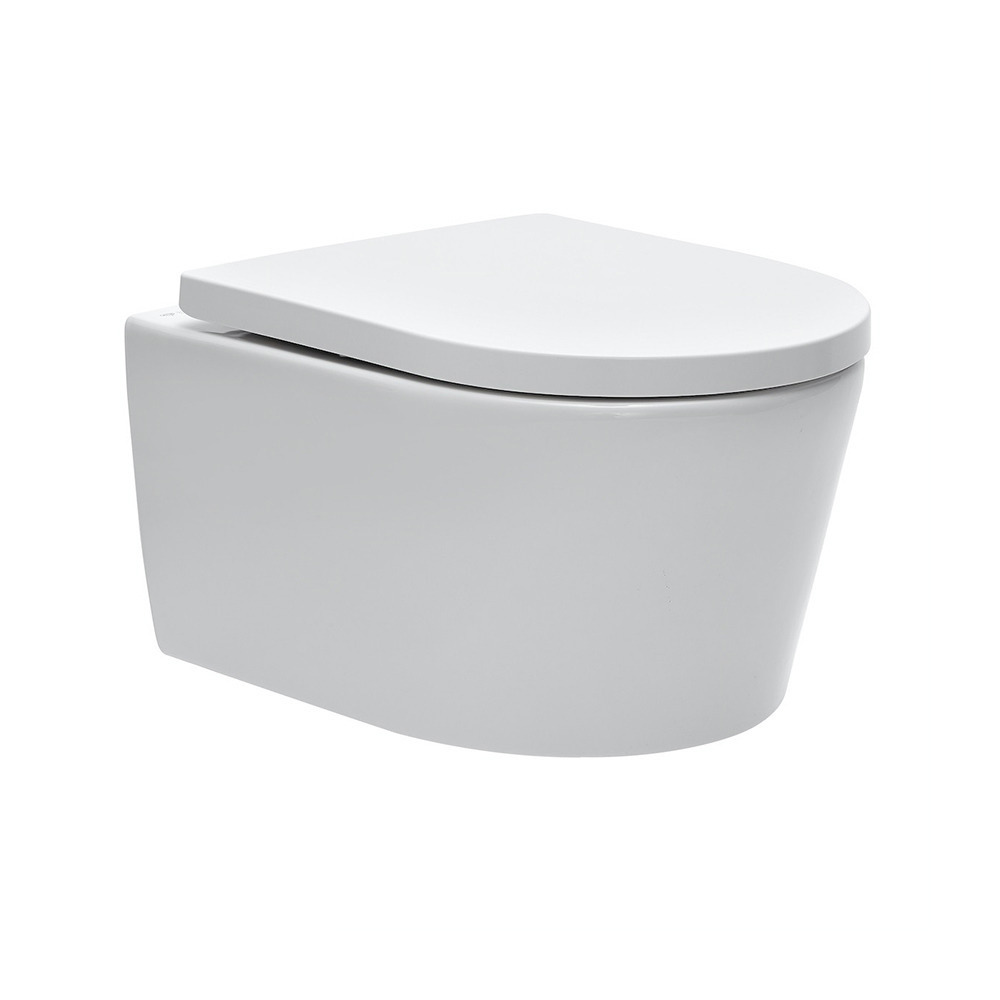

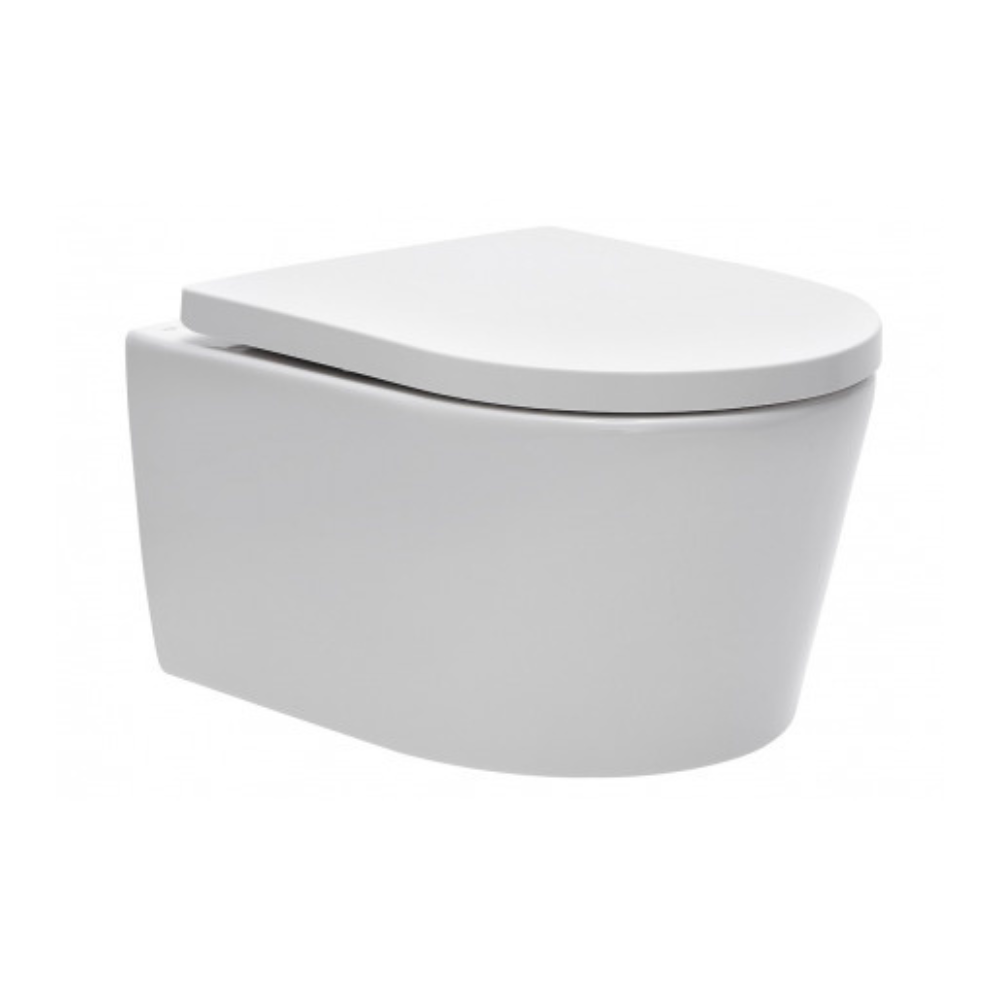

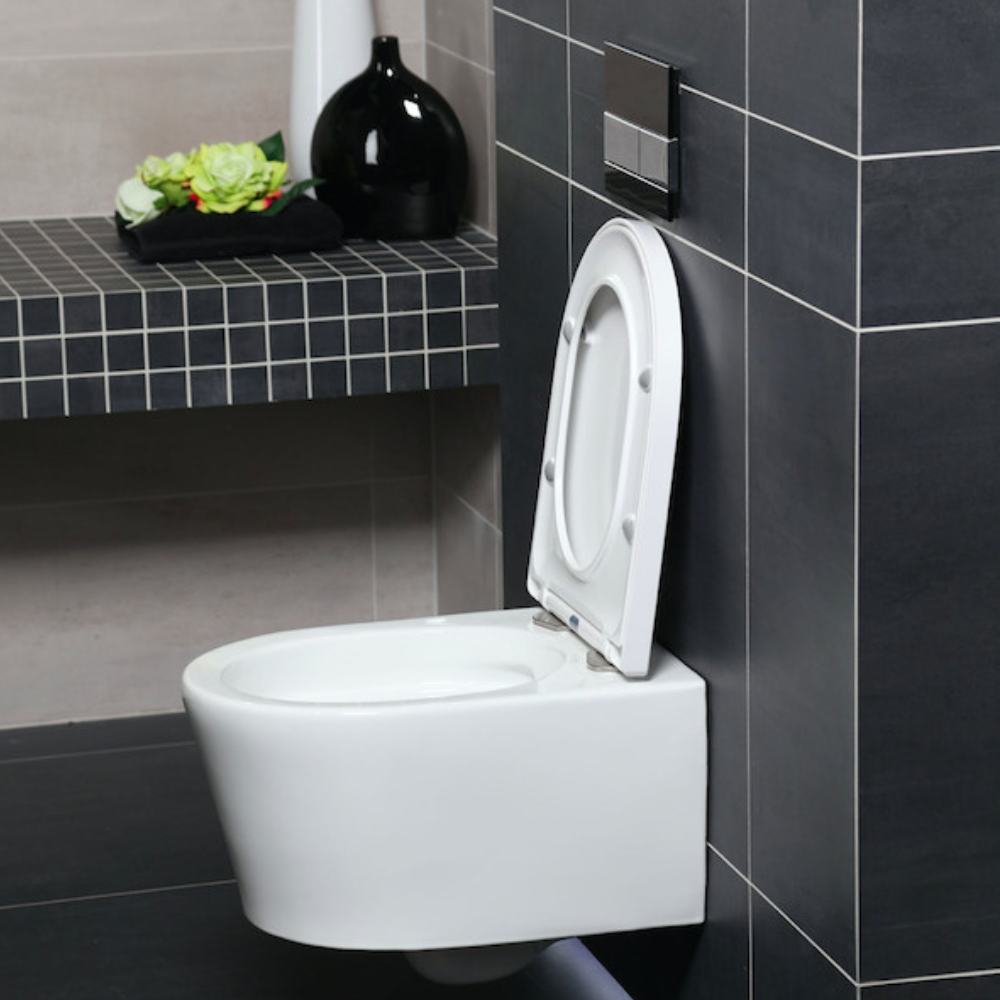

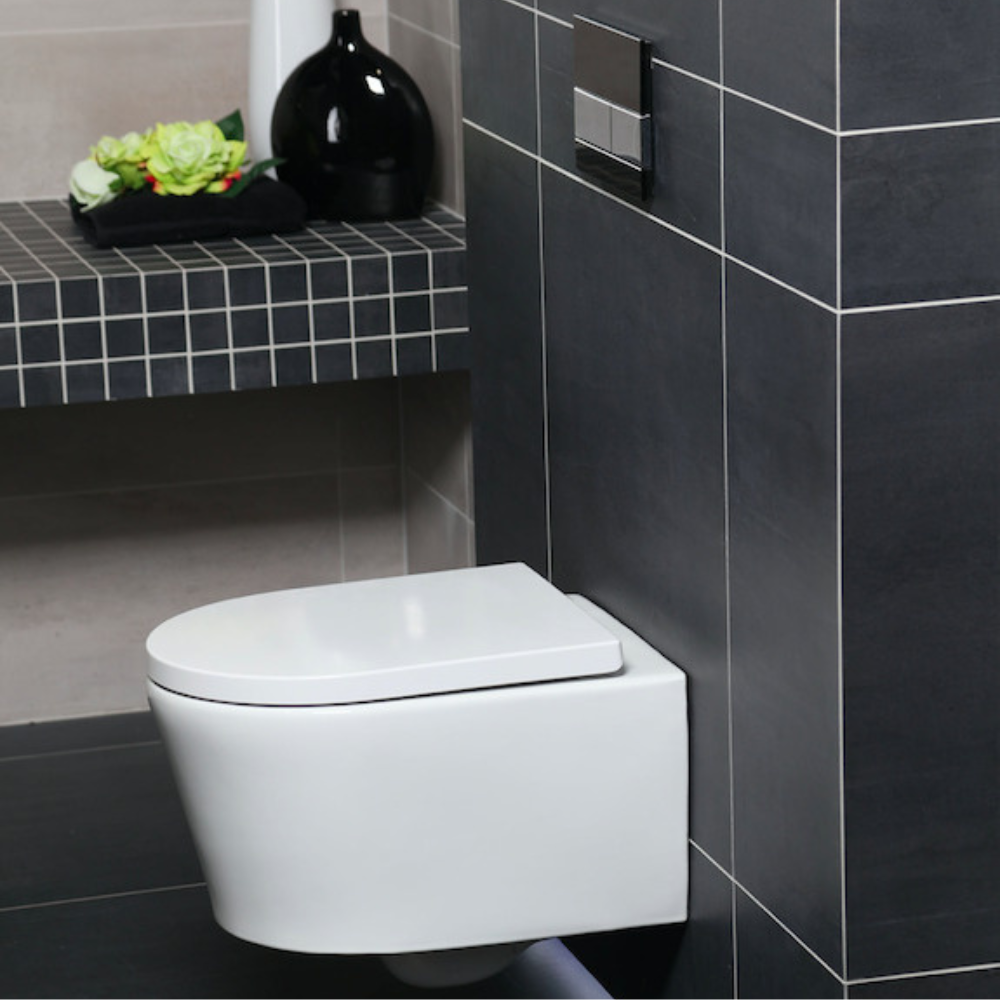

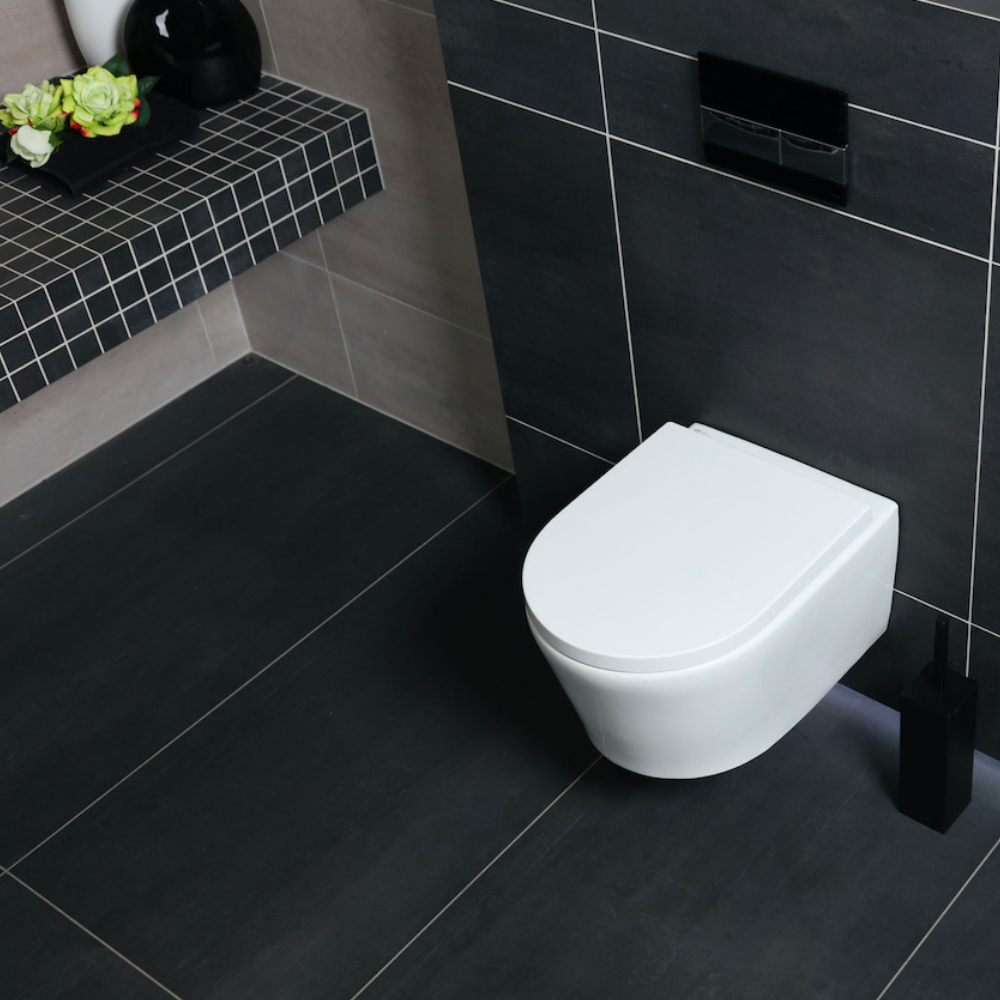

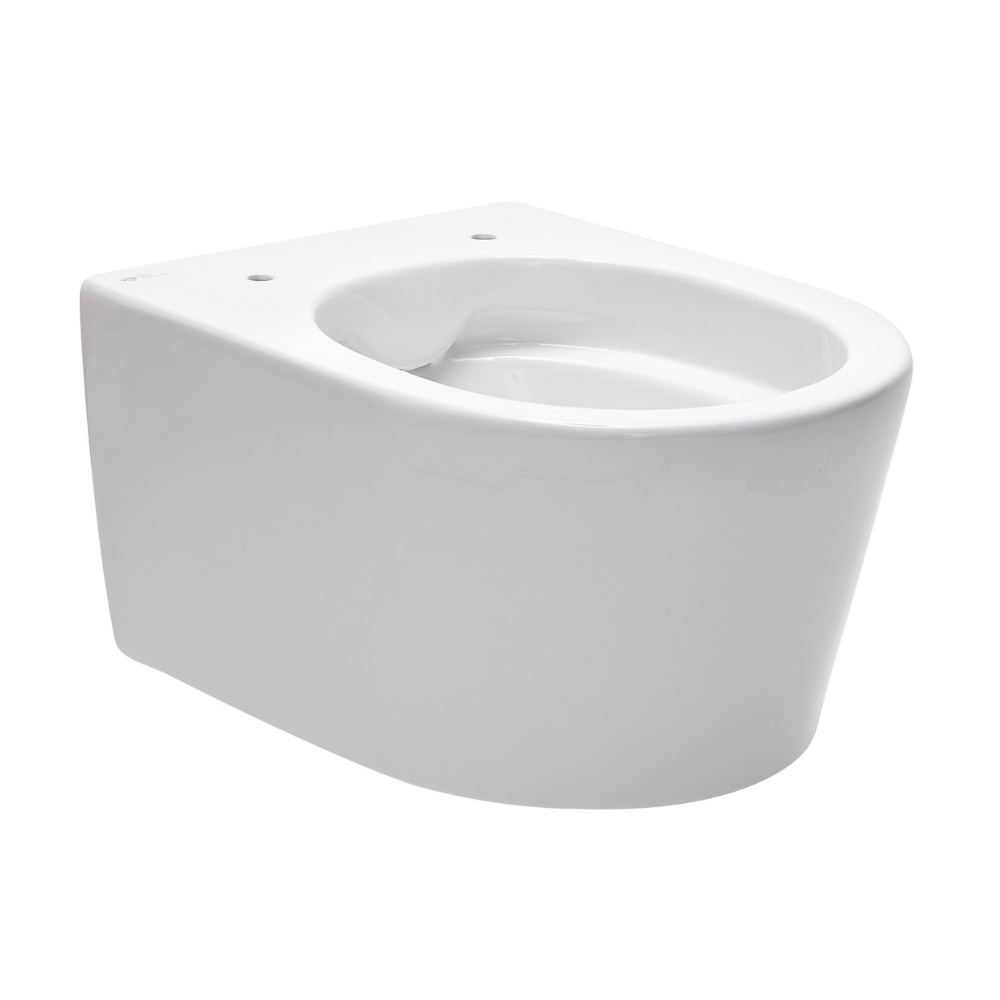

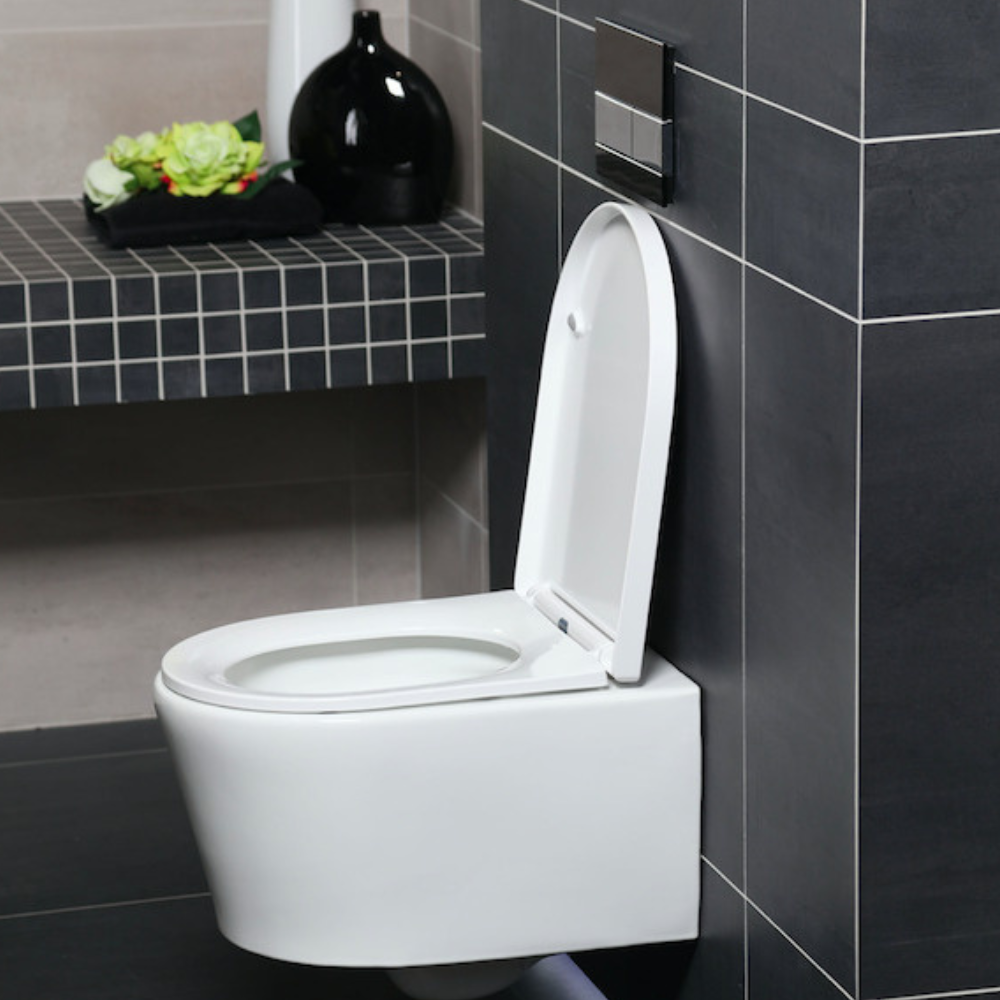

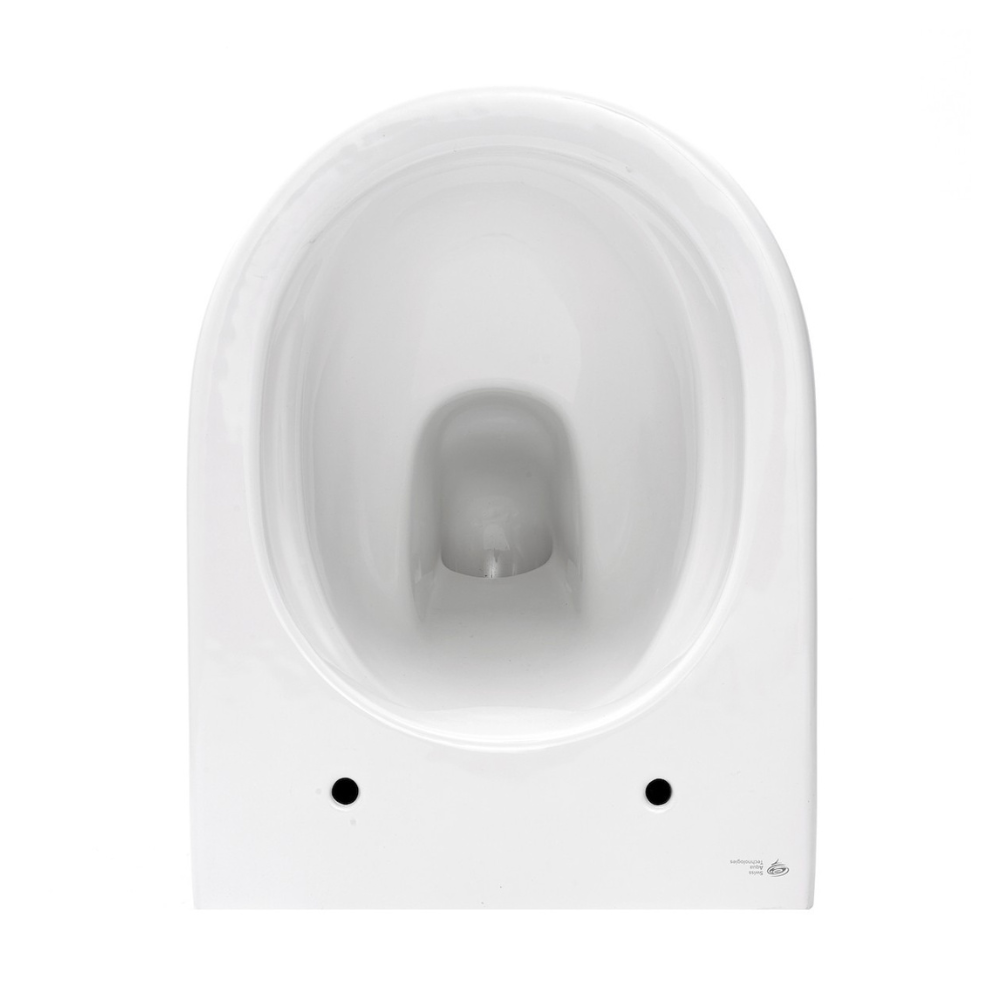

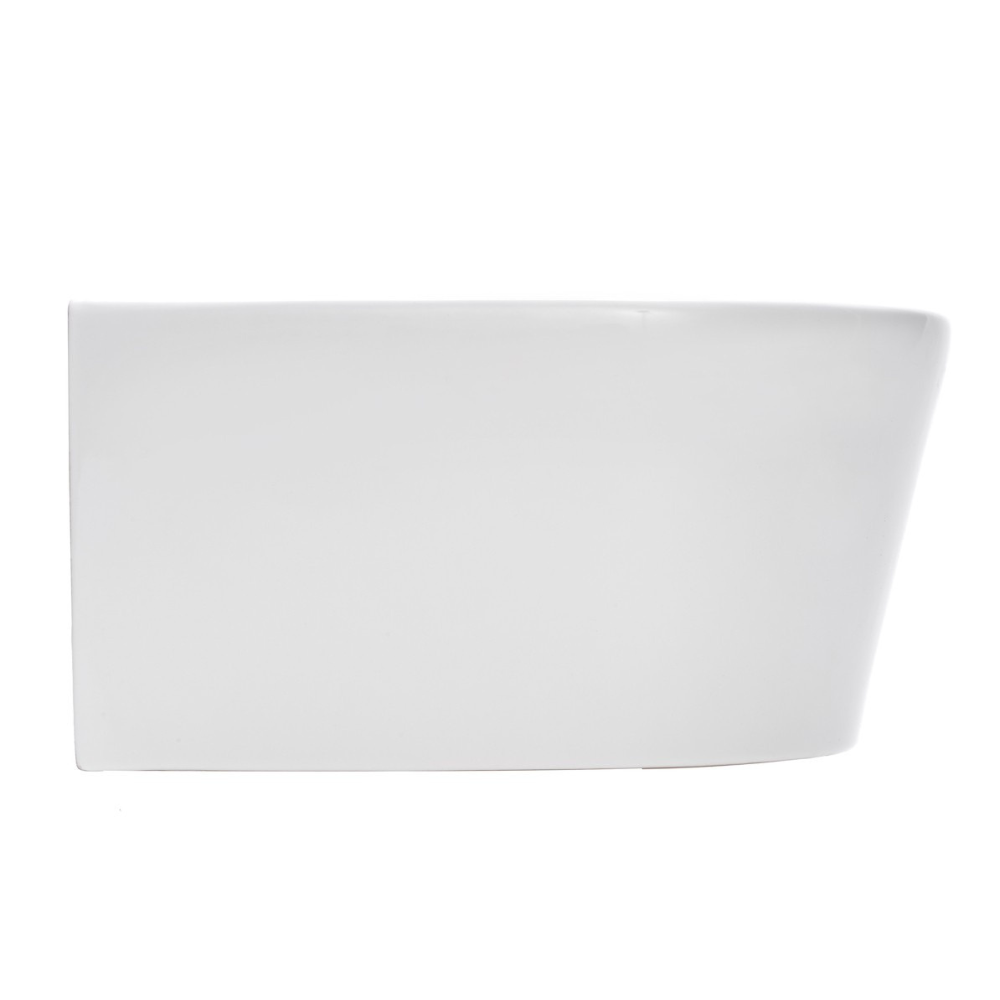

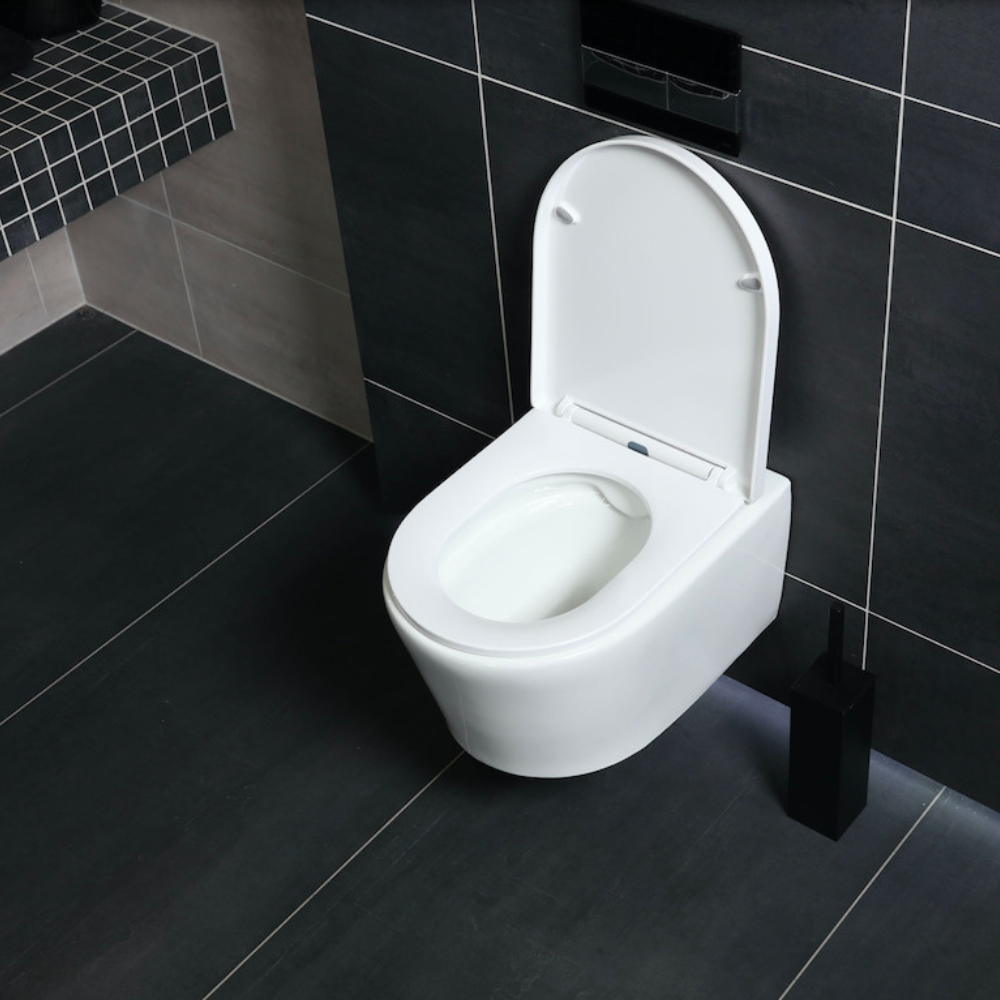

Rimless wall-hung toilet with invisible fixings + Soft close toilet seat (SATBRE010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and refined style

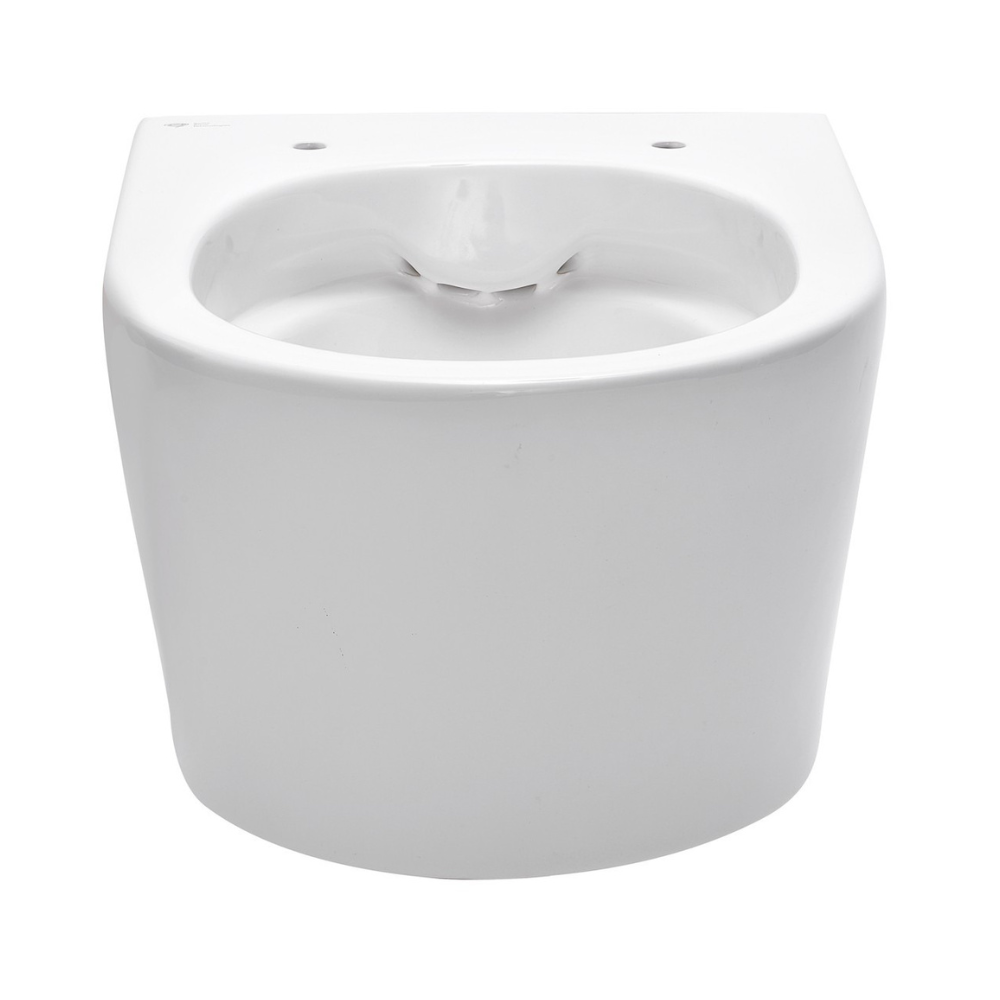

- Rimless toilet
- Concealed fixings
- Depth of 48 cm
- Economical flush 3 / 4.5 L
- Soft close seat
- Removable seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick installation
Stainless steel dual flush plate, PVD treatment, matte gold (SATATG-M):
- Product type: plate order
- Brand: Swiss Aqua Technologies
- Package contents: 1 piece
- Material: stainless steel
- Number of keys: 2
- Color: gold
- Finish: matte
- Width: 24.7 cm
- Height: 16.5 cm
- Weight: 0.33 kg
- UV resistant
- With PVD surface treatment, resistant to scratches, corrosion and wear
- Product warranty: 5 years
Attention! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and clearly indicated for each product on the delivery slip. No complaints will be accepted after the fact, as carriers are very strict on this matter. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Width (cm):36.4 cm
- Height (cm):112 cm
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Plate colour:Gold
- Constructor warranty:5 years
- Type of installation:Wall
- New:New
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Depth:14.5 cm
- Net weight:31.5
- Volume:2-4L / 3.5-6L
- Flush plate:Double touch
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No
- Toilet Rim type:Rimless
- Bowl weight:22 kg
- Bowl height:34.2 cm
- Bowl width:36.4 cm
- Flush plate finish:Matt
- Bowl finish:Glossy
