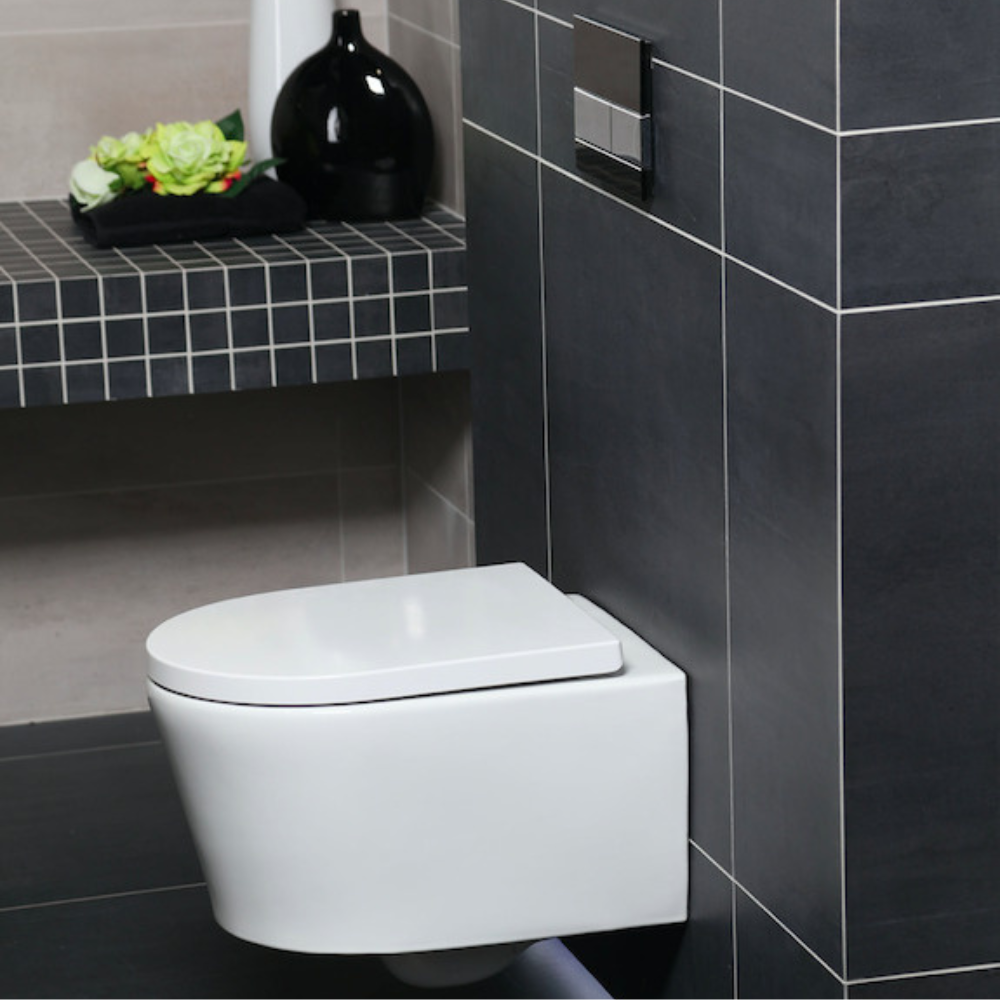

Swiss Aqua Technologies ECO 2L Swiss Aqua Technologies Toilet pack + Swiss Aqua Technologies wall-hung toilet + white/chrome plate (STESTBRWR04-IN)
- Product reference: STESTBRWR04-IN
- EAN: 3701729204560
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

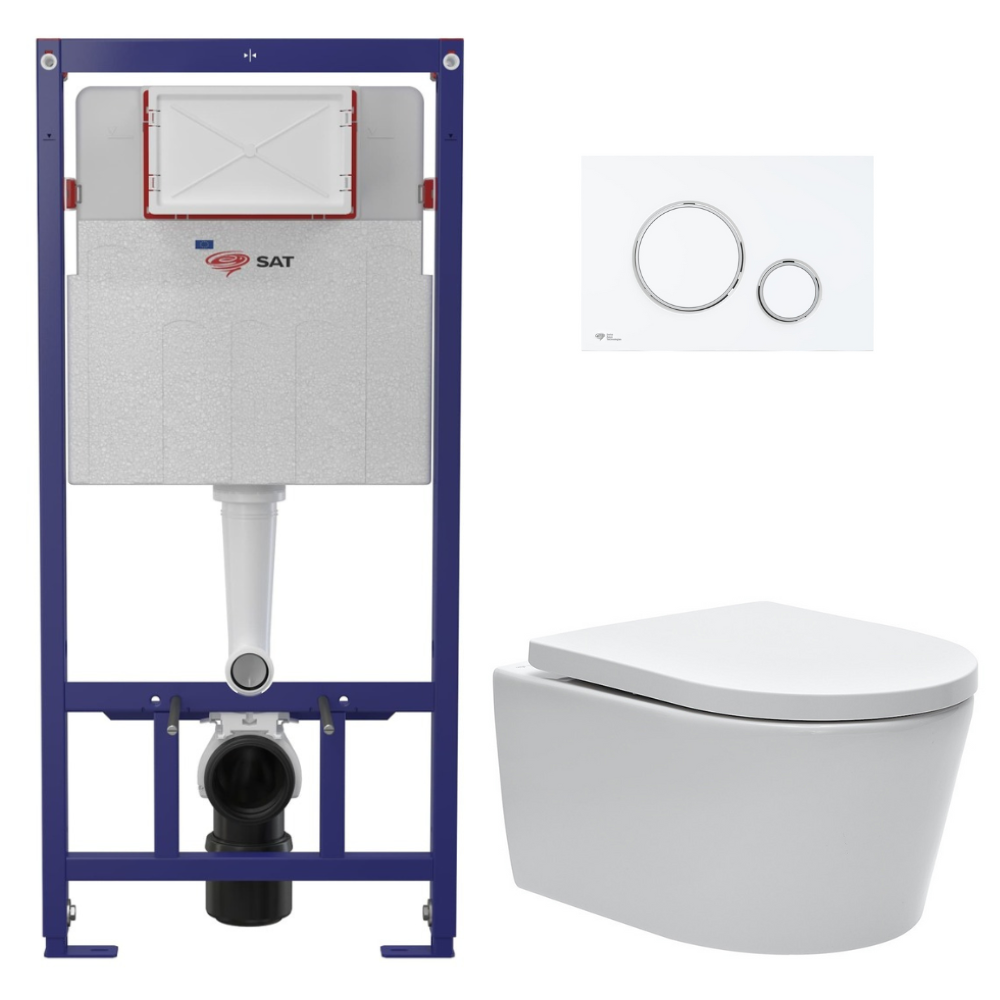

Features of the ECO 2L Swiss Aqua Technologies built-in toilet pack + Swiss Aqua Technologies rimless wall-hung toilet with concealed fixings + SoftClose toilet seat + matt white/glossy chrome plate (STESTBRWR04-IN):
- Swiss Aqua Technologies 112 cm lightweight frame for Swiss Aqua Technologies wall-hung toilet, ECO 2L (SATAMSKECO)
- Swiss Aqua Technologies Rimless wall-hung toilet with concealed fixings + soft-close toilet seat (SATBRE010RREXP)
- Swiss Aqua Technologies Plastic dual-flush flush plate, matt white/glossy chrome (SATAT76)

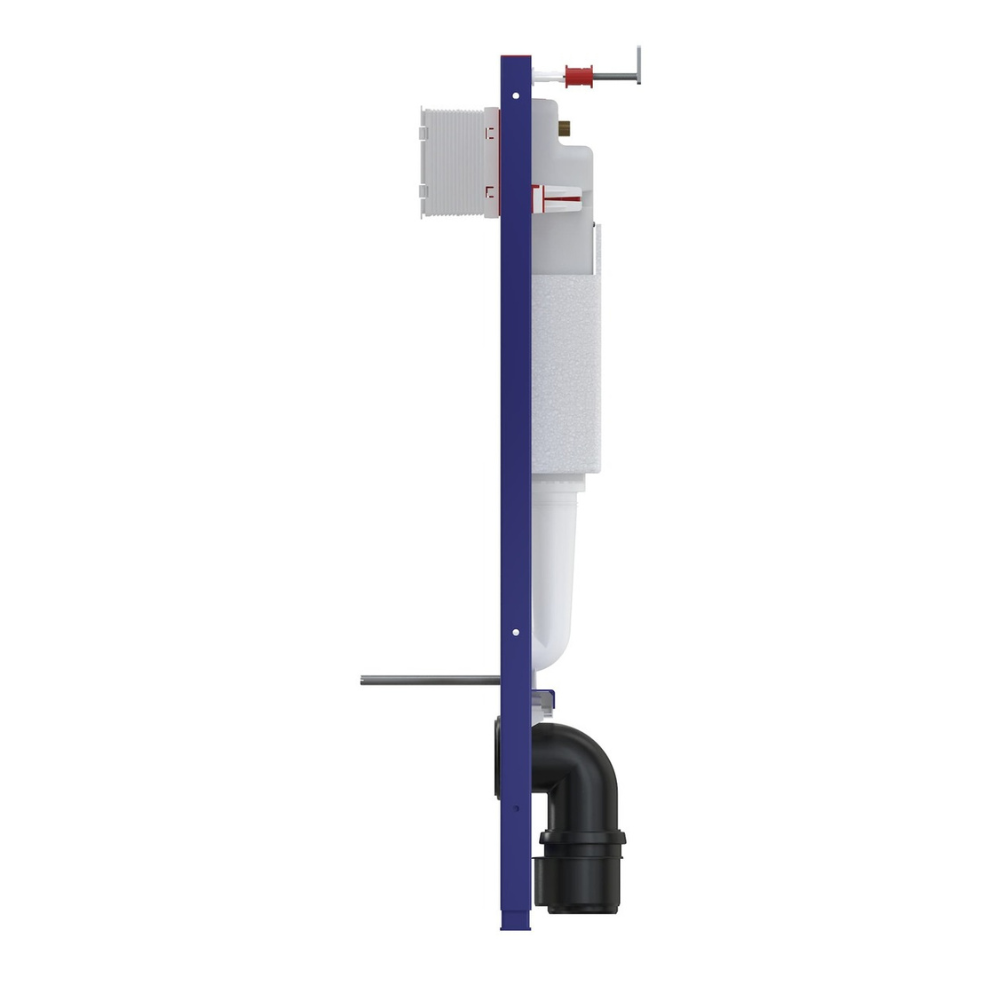

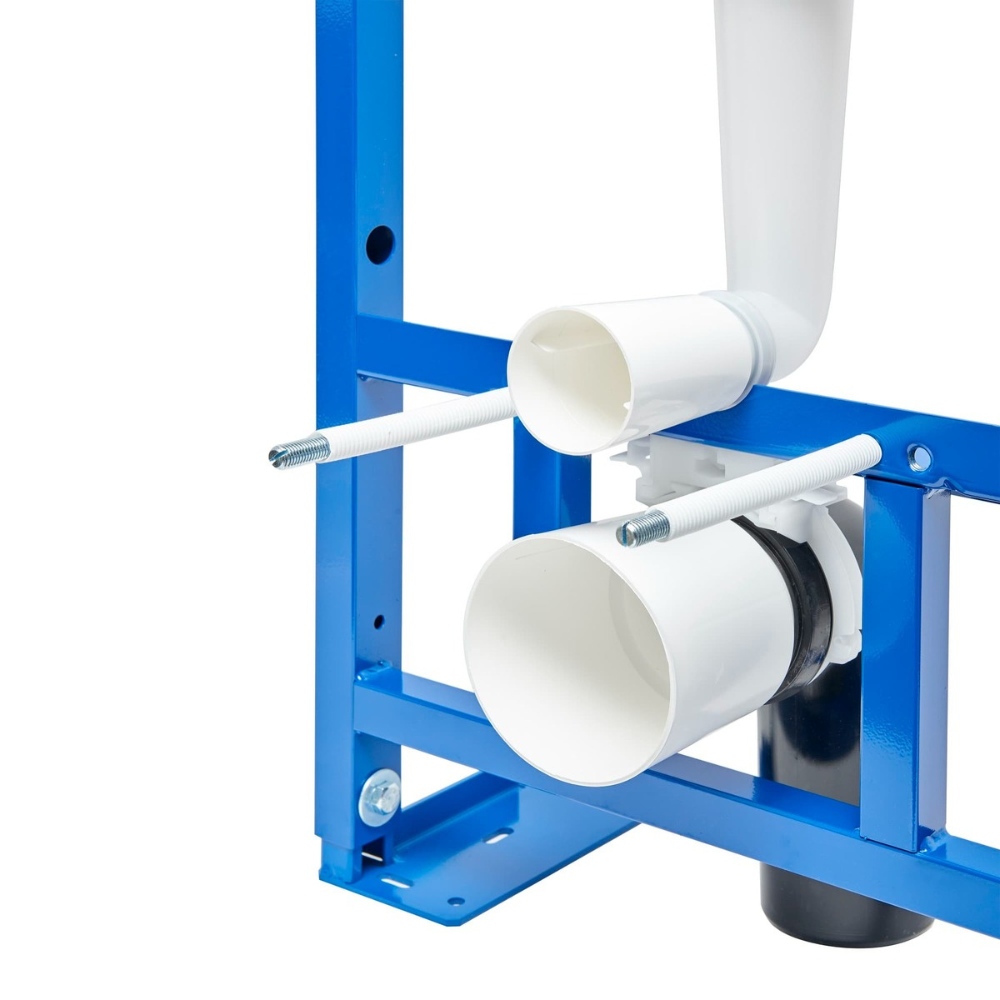

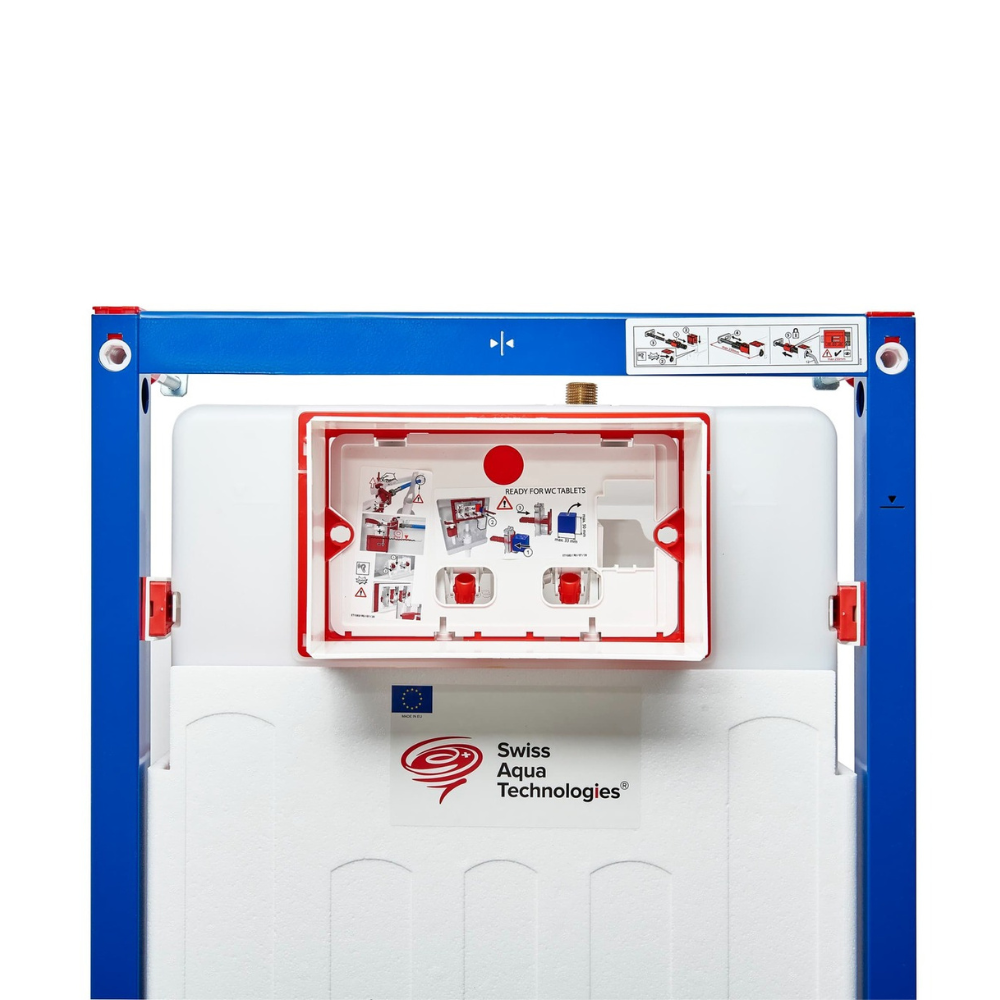

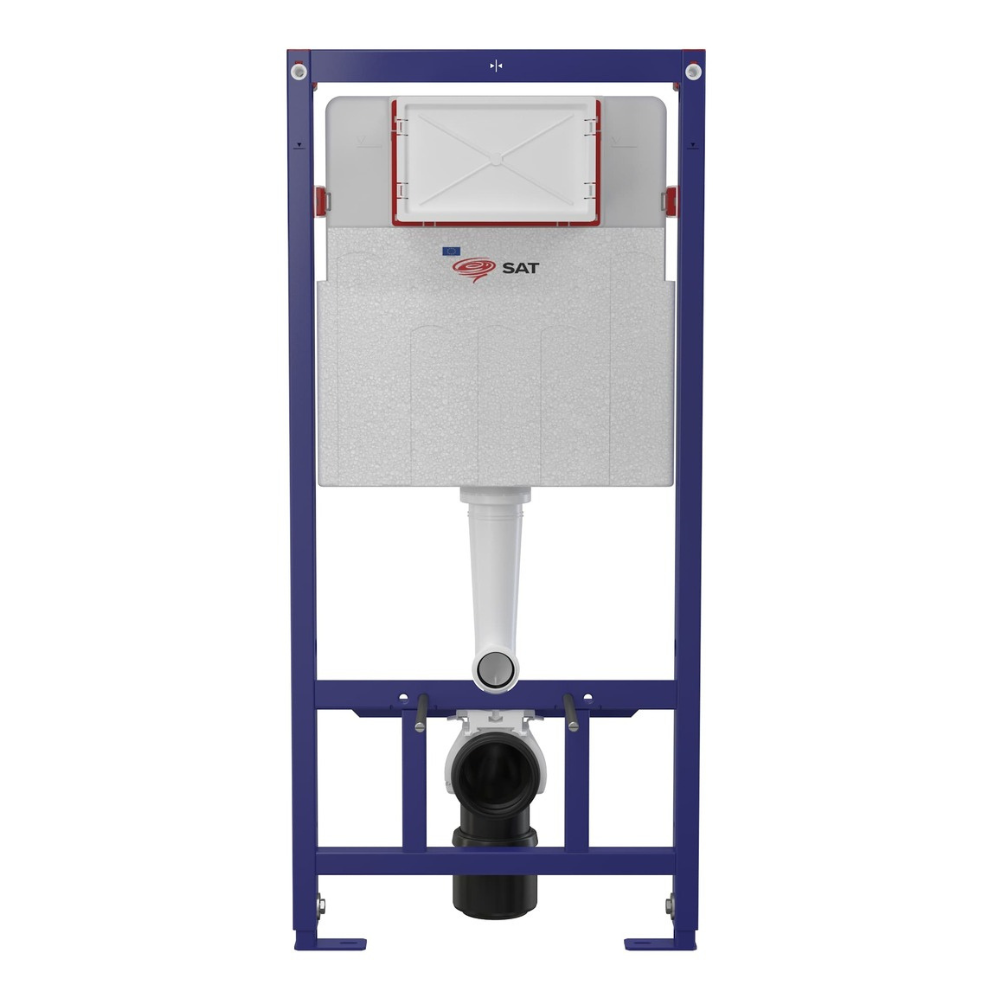

112 cm lightweight frame for Swiss Aqua Technologies wall-hung toilet, ECO 2L (SATAMSKECO):
Features
- Brand: Swiss Aqua Technologies
- Product type: Wall-hung toilet frame
- Package contents: 1 piece
- Adjustable flush
- Height: 112 cm
- Width: 52 cm
- Depth: 14.5 cm
- Insulating polystyrene cistern, preventing the formation of condensation on the surface and reducing the transmission of vibrations to the structure
- Self-supporting metal frame, powder-coated for greater durability
- 100% leak-proof one-piece cistern with integrated flushing mechanism and the option of remote or sensor control.
- Prepared for connecting a bracket with a 1/2" DG transition (e.g. for SoftClose bidet seat) SATBEASY2233 or toilet spray).
- Product warranty: 5 years
Use
- For wall-hung toilets
- For installation in front of a load-bearing wall or in a plasterboard structure
- For installing a wall-hung toilet with a connection pitch of 180 mm or 230 mm
- Adjustable installation depth from 20 to 95 mm; total depth: 200 mm
- Sturdy anchoring feet, adjustable from 0 to 200 mm, with safety brake
Technical parameters
- Recommended water pressure range: 0.3-0.5 MPa
- Pressure range Operating water pressure: 0.05-1.6 MPa
- Water supply from the rear or from the top (central position) with integrated angle valve
- Cistern volume: 6 L
- Flush setting:
- Small flush: 2 – 4 L (factory setting: 3 L)
- Large flush: 3.5 – 6 L (factory setting: 4.5 L)
- Load tested up to 400 kg
Compatibility
- Compatible with all Swiss Aqua Technologies flush plates

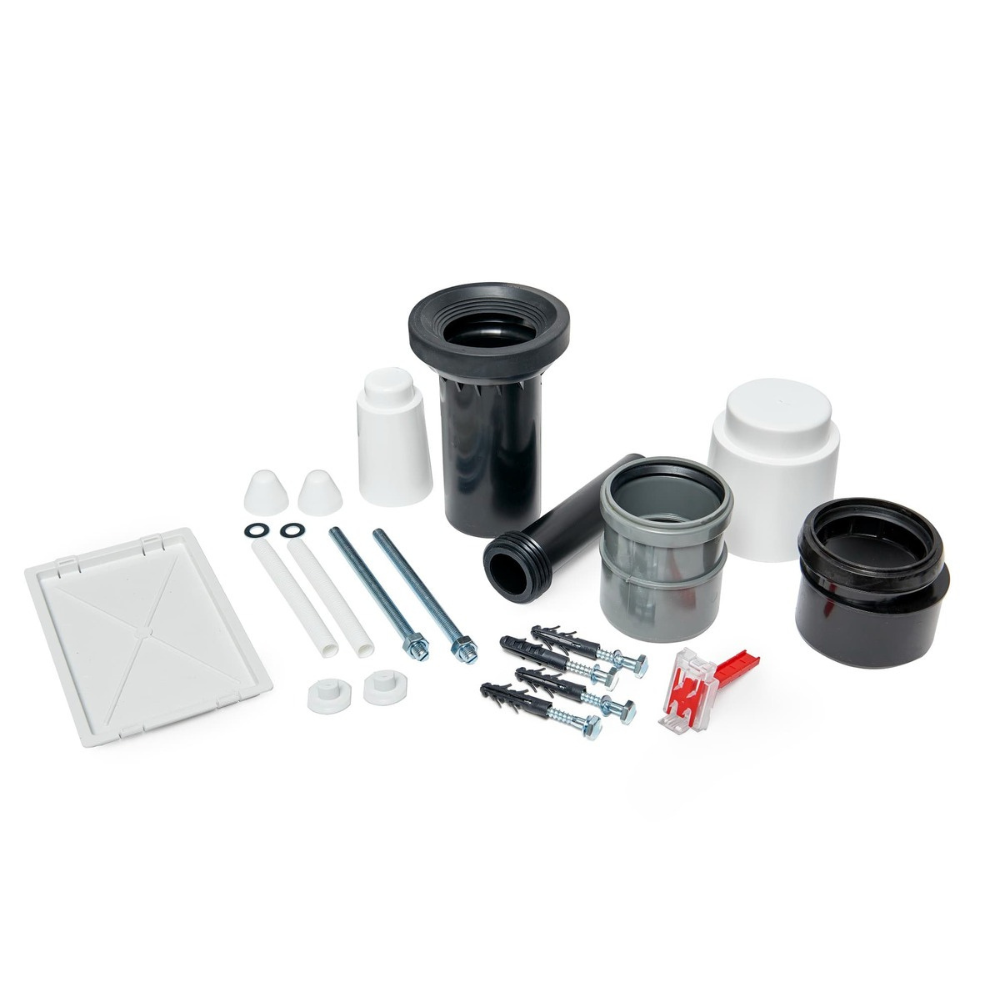

Scope of delivery

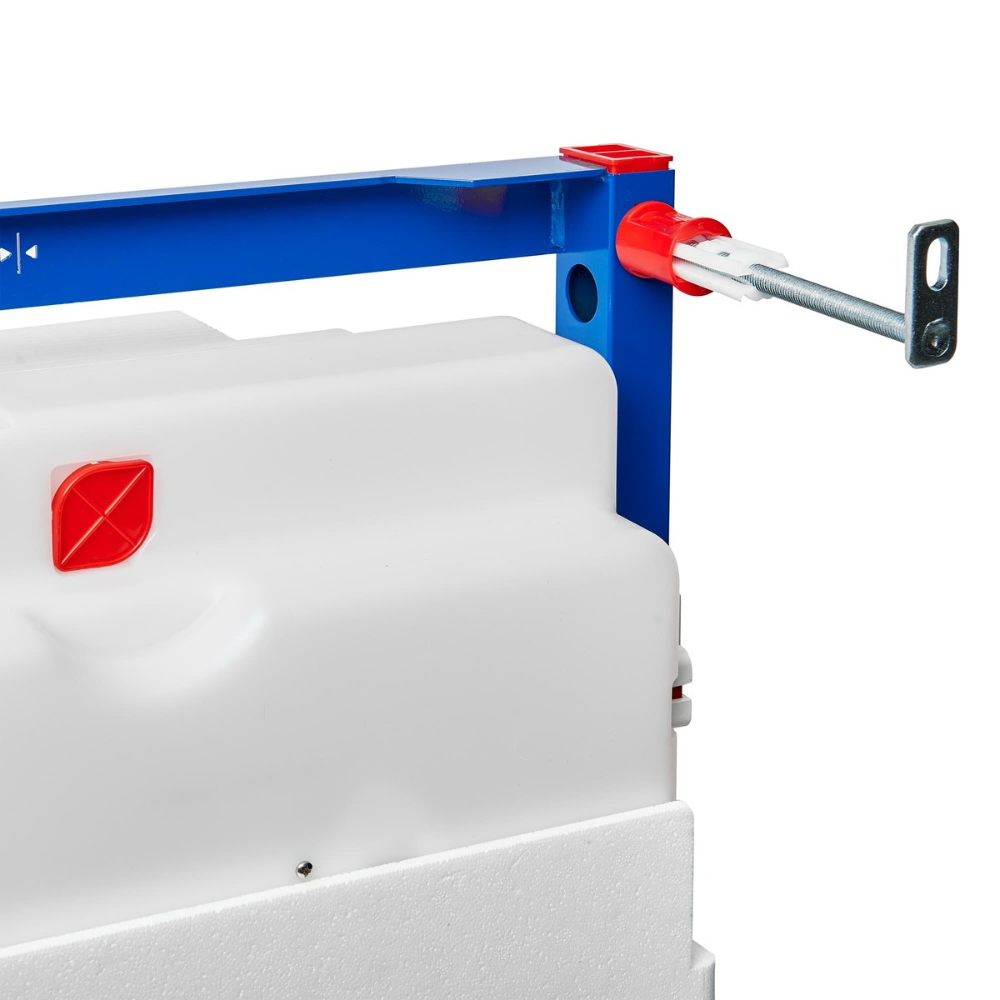

- Toilet fixing kit:
- 2 threaded rods M12
- 4 washers, 2 nuts, 2 protective caps, 2 thread protectors
- Frame mounting kit:
- 4 screws Ø8×60
- 4 dowels Ø12
- HT 90/90 drain elbow made of PE-HD
- Two-part service hole cover, can be cut to size
- Cistern with filling and drain connections
- Set of protective covers for connection holes

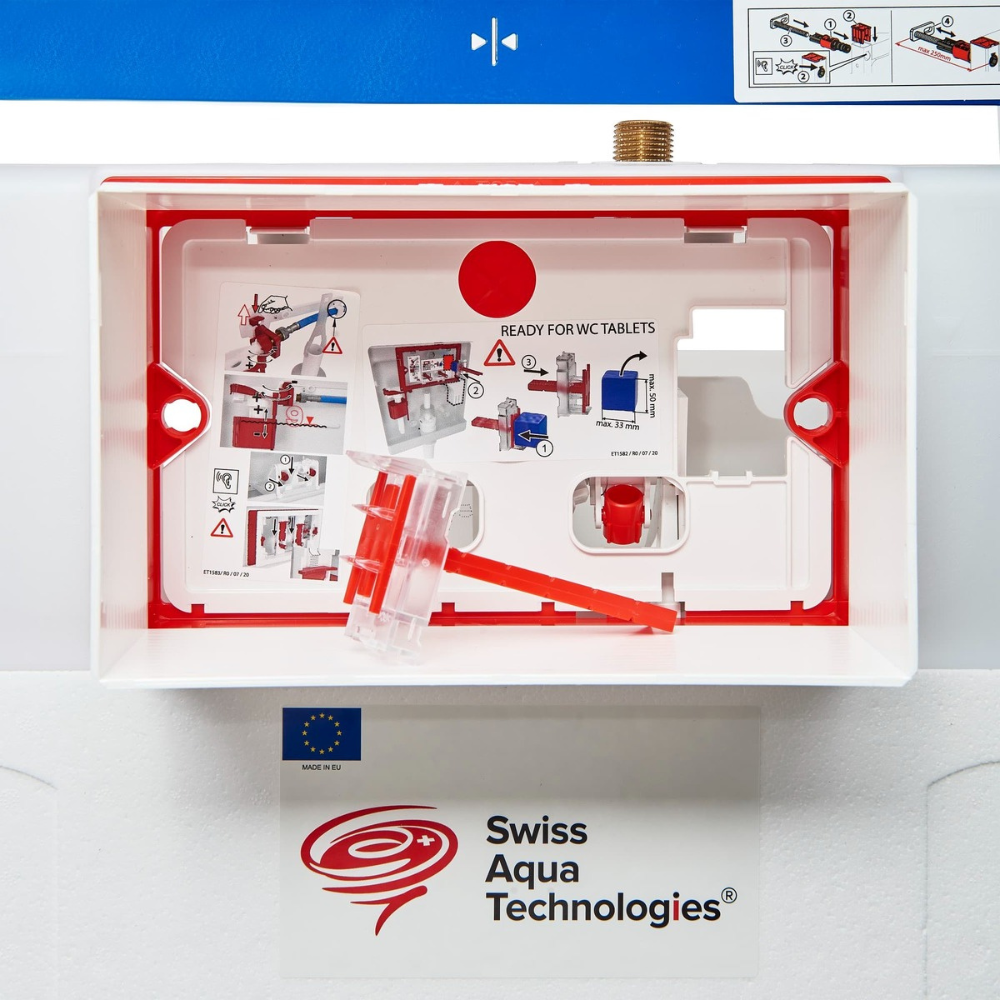

- Toilet tablet dispenser set
- Drain seal, polypropylene jumper and its seals
- 1/2" screw connection with integrated Schell angle valve 1/2"–3/8"
- Polypropylene cable gland with corrugated insert

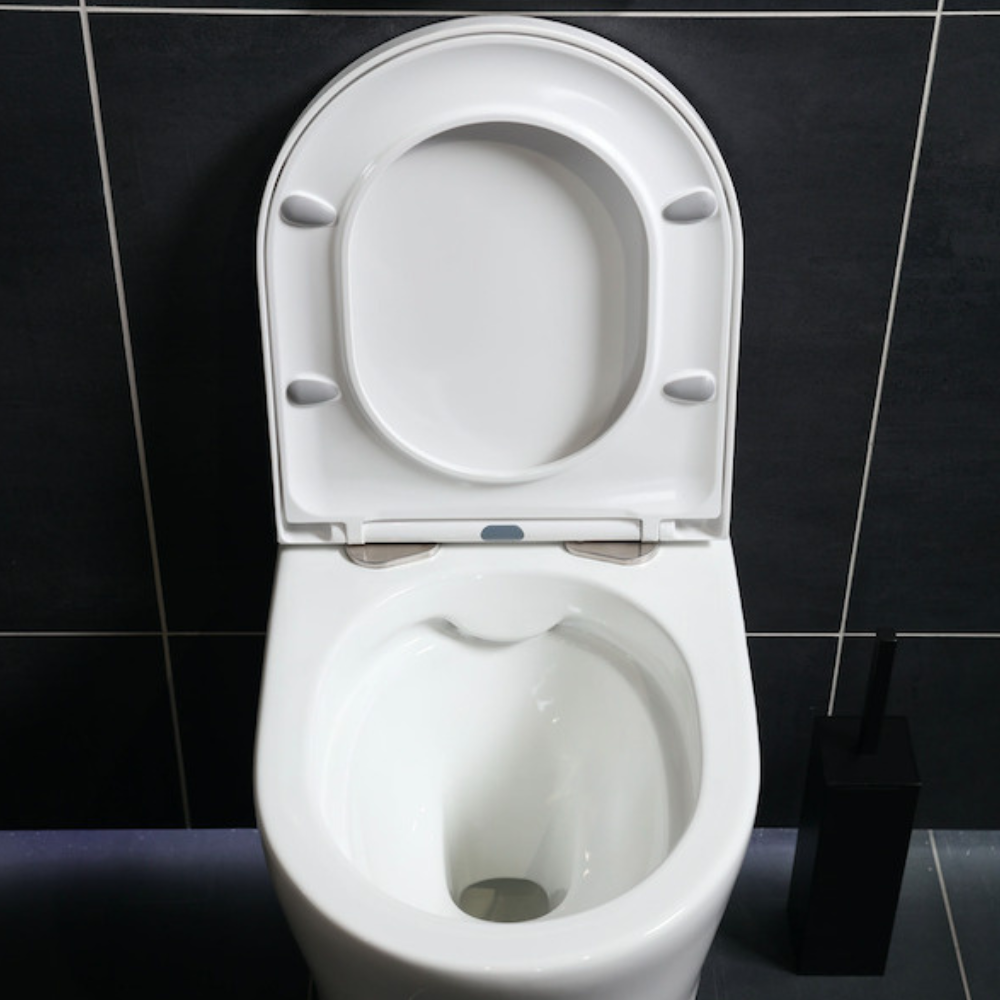

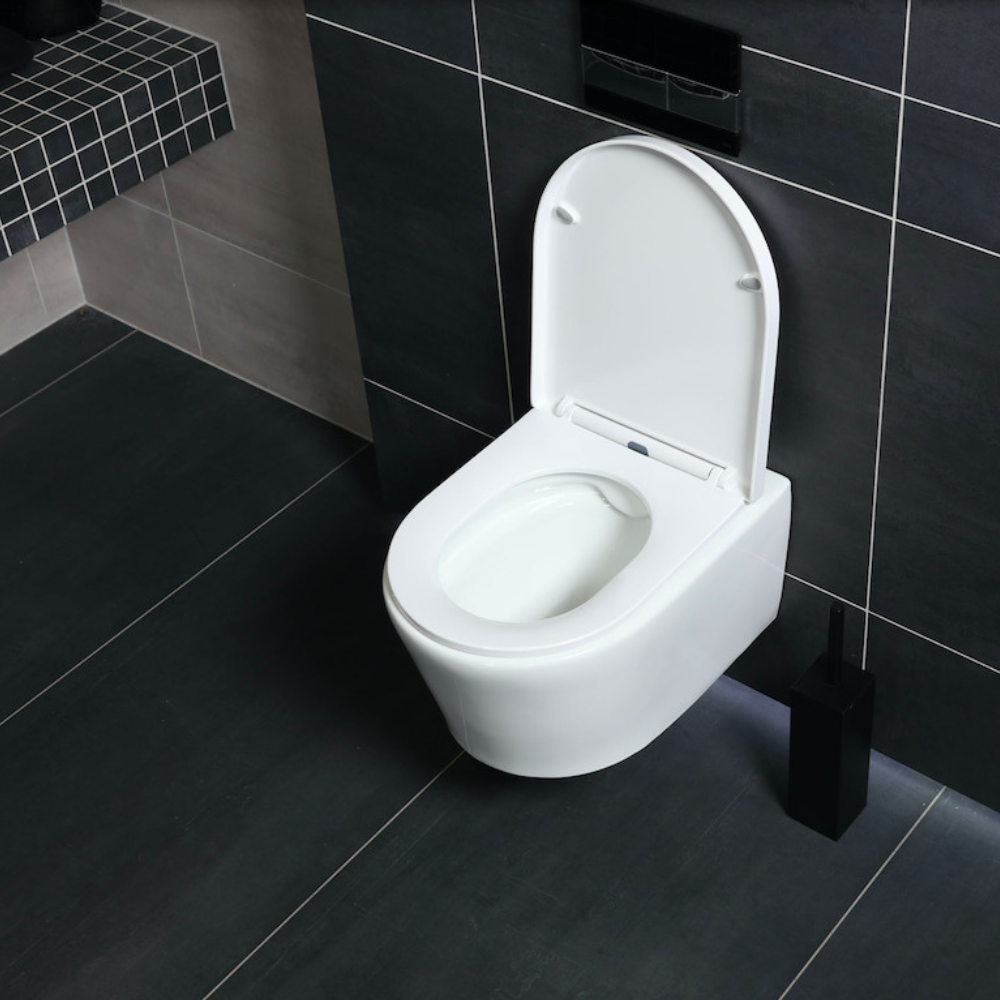

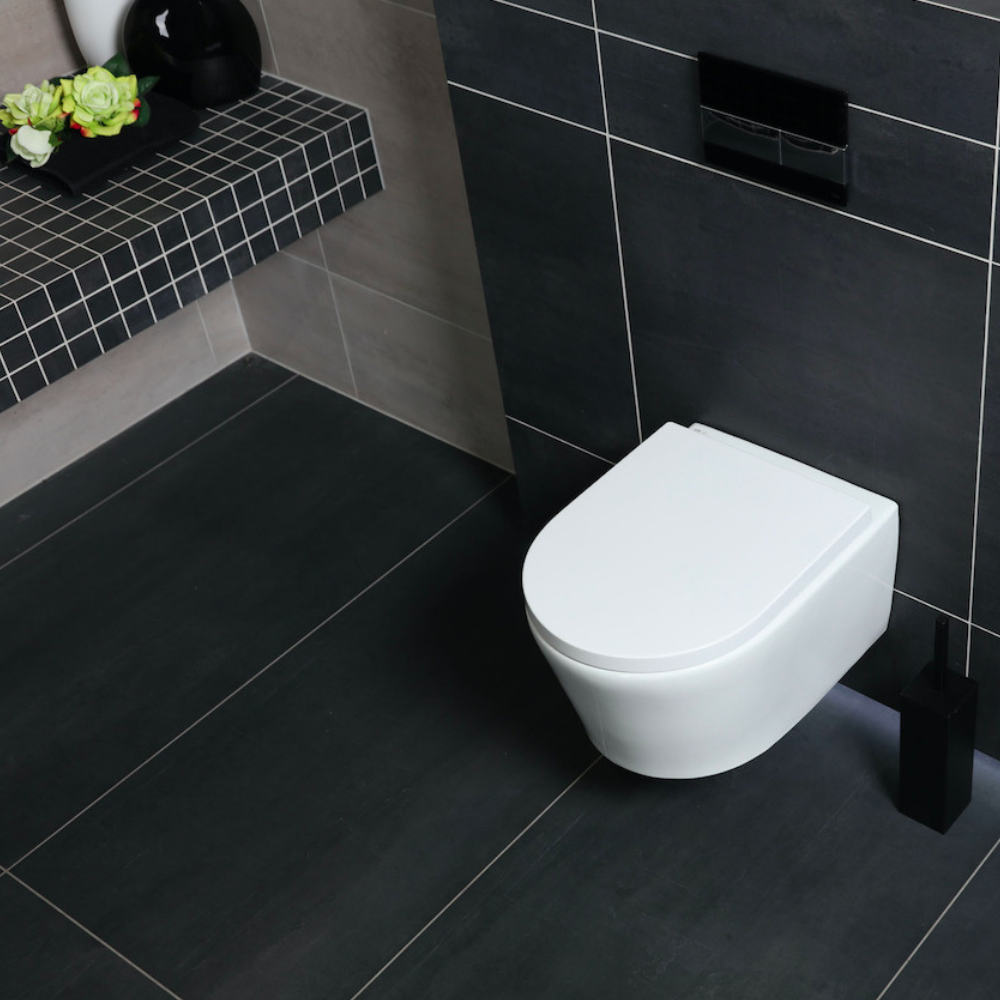

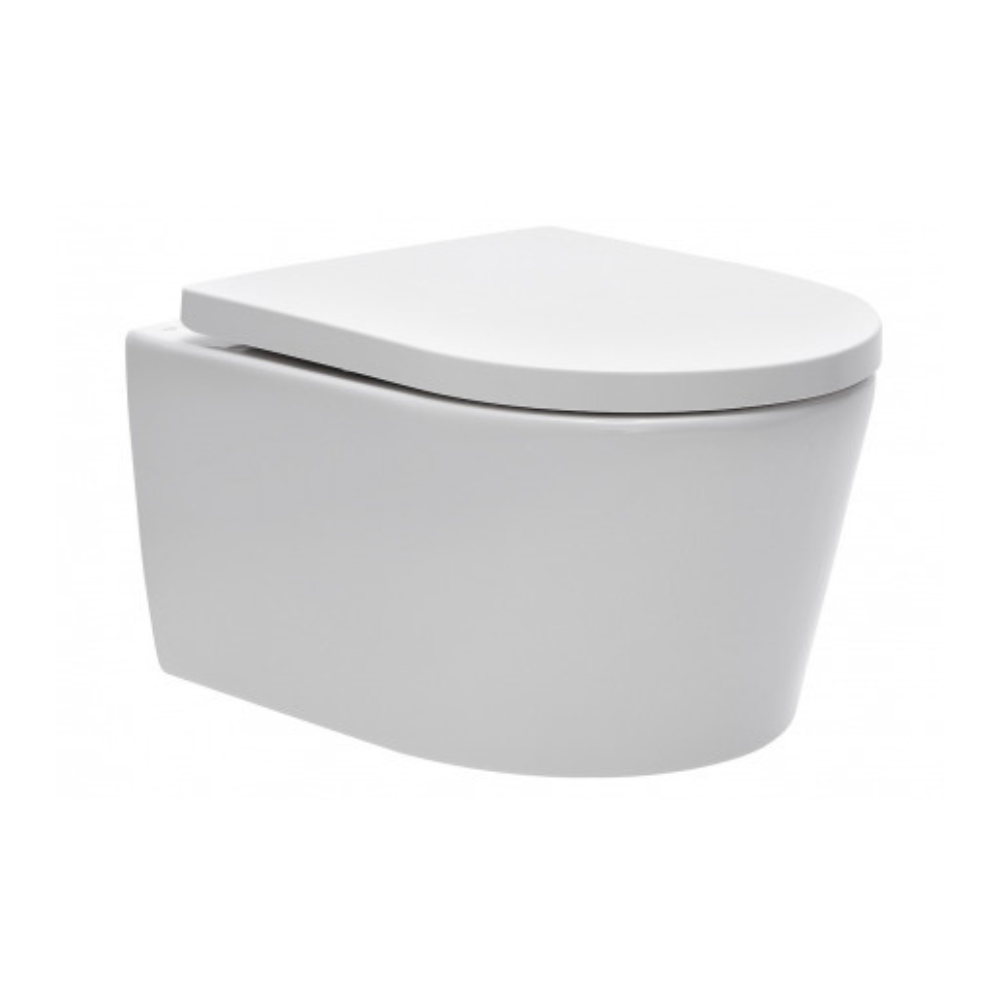

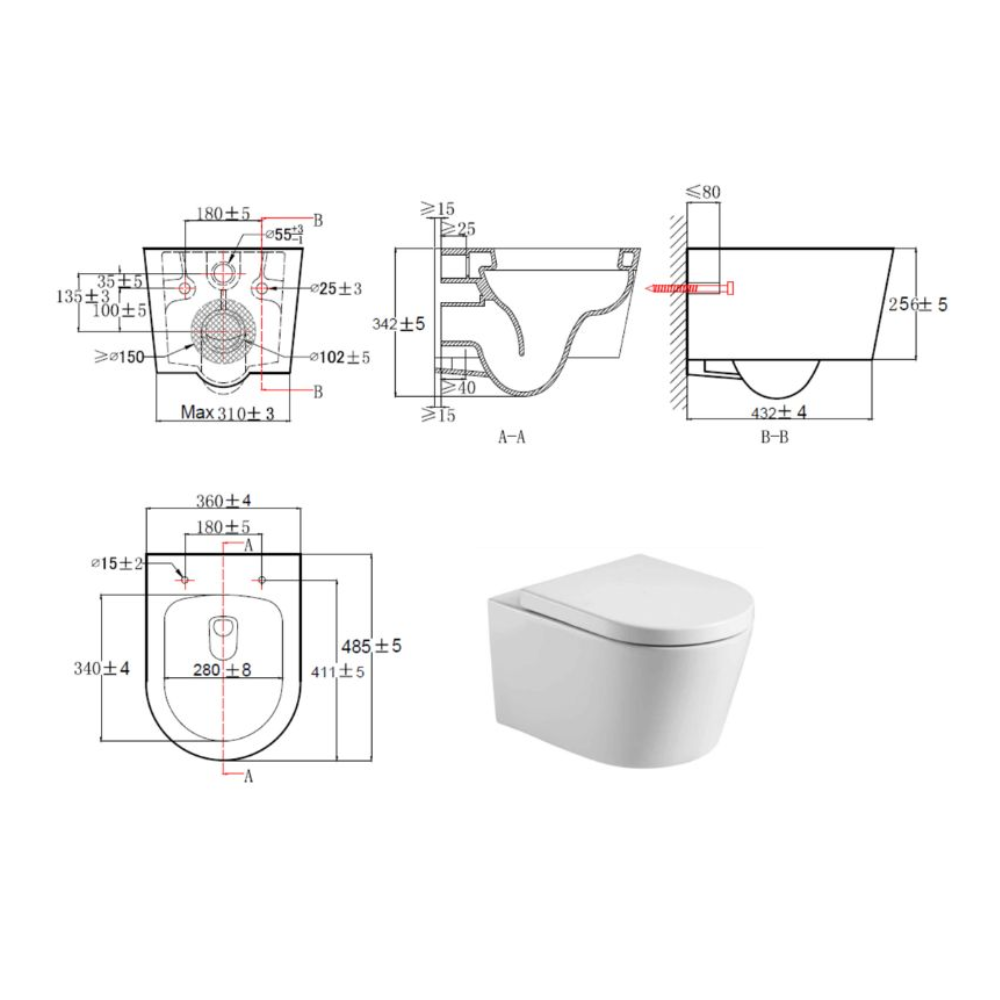

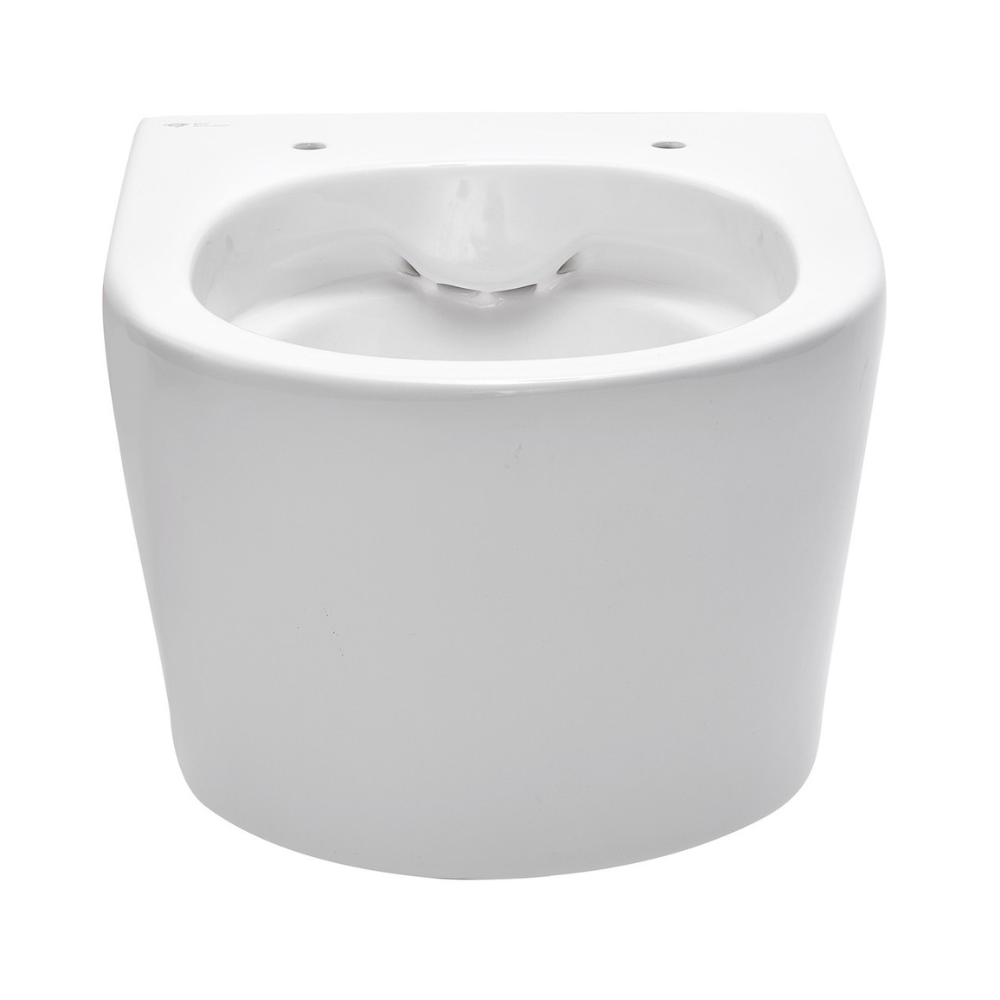

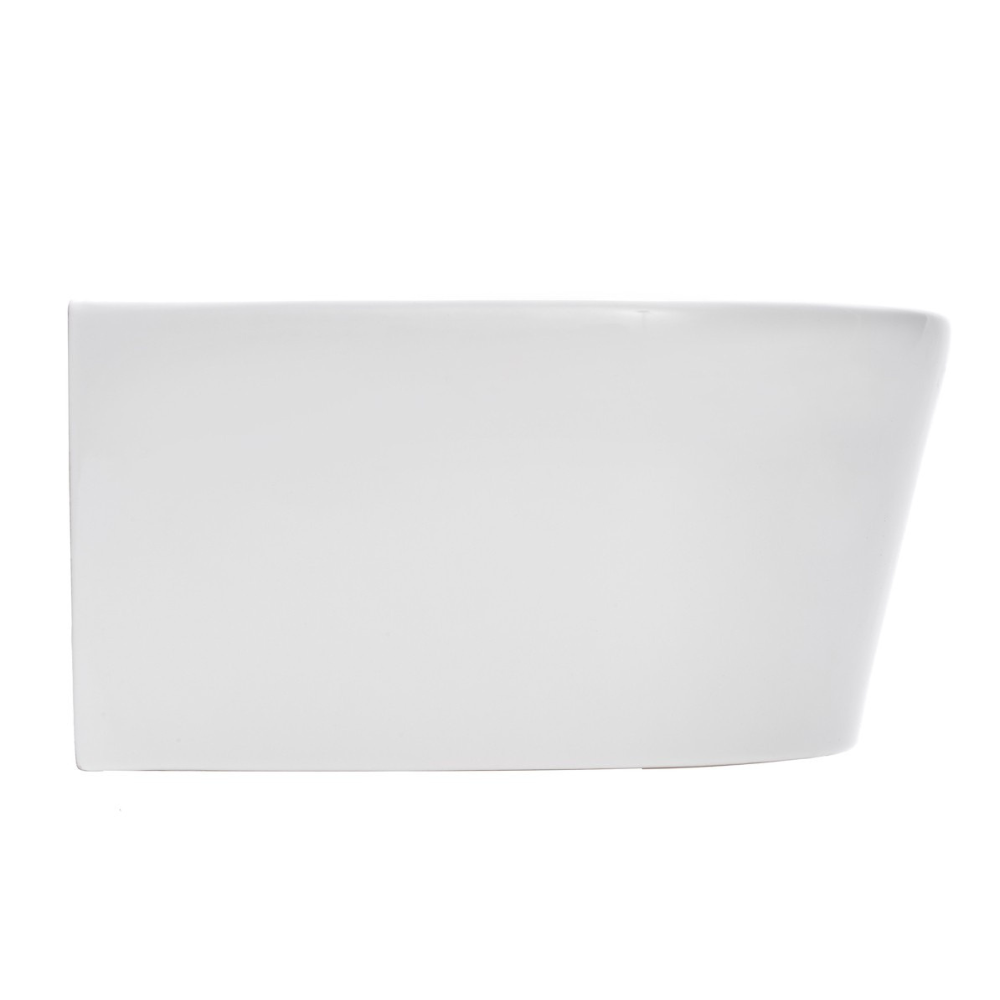

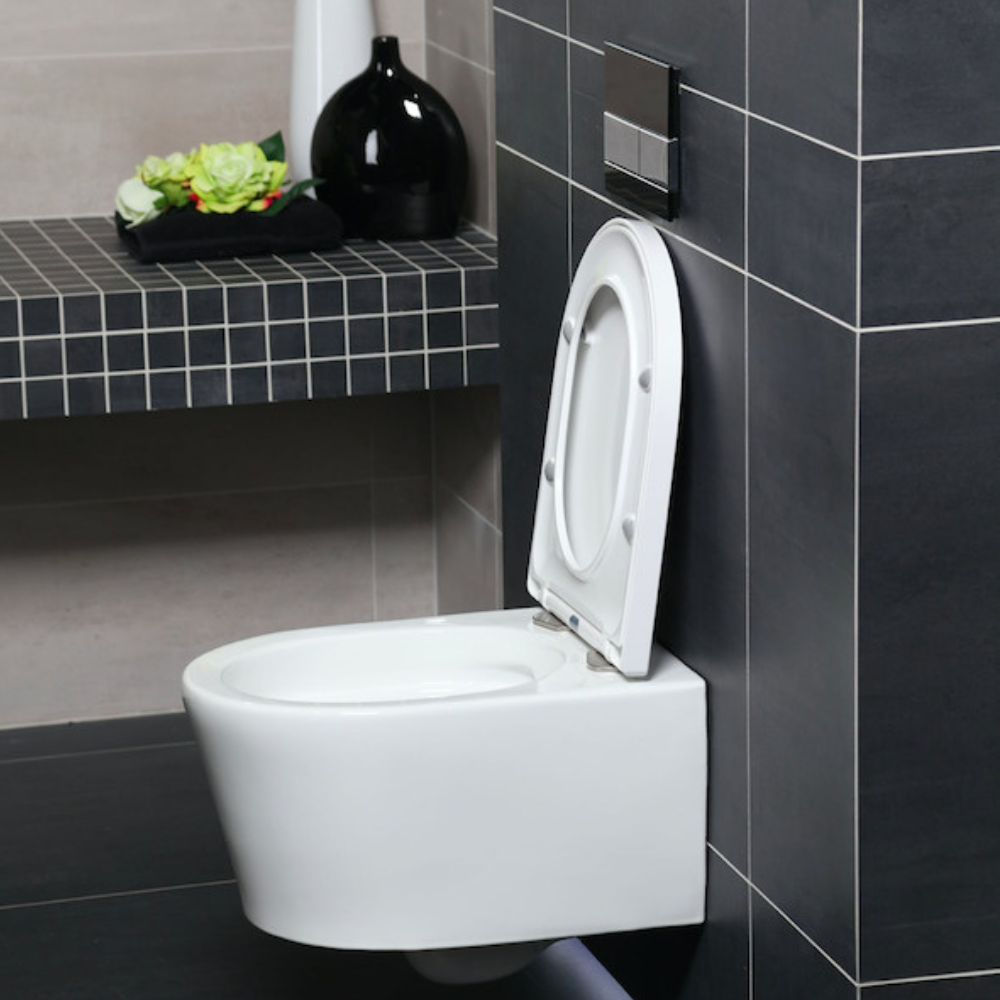

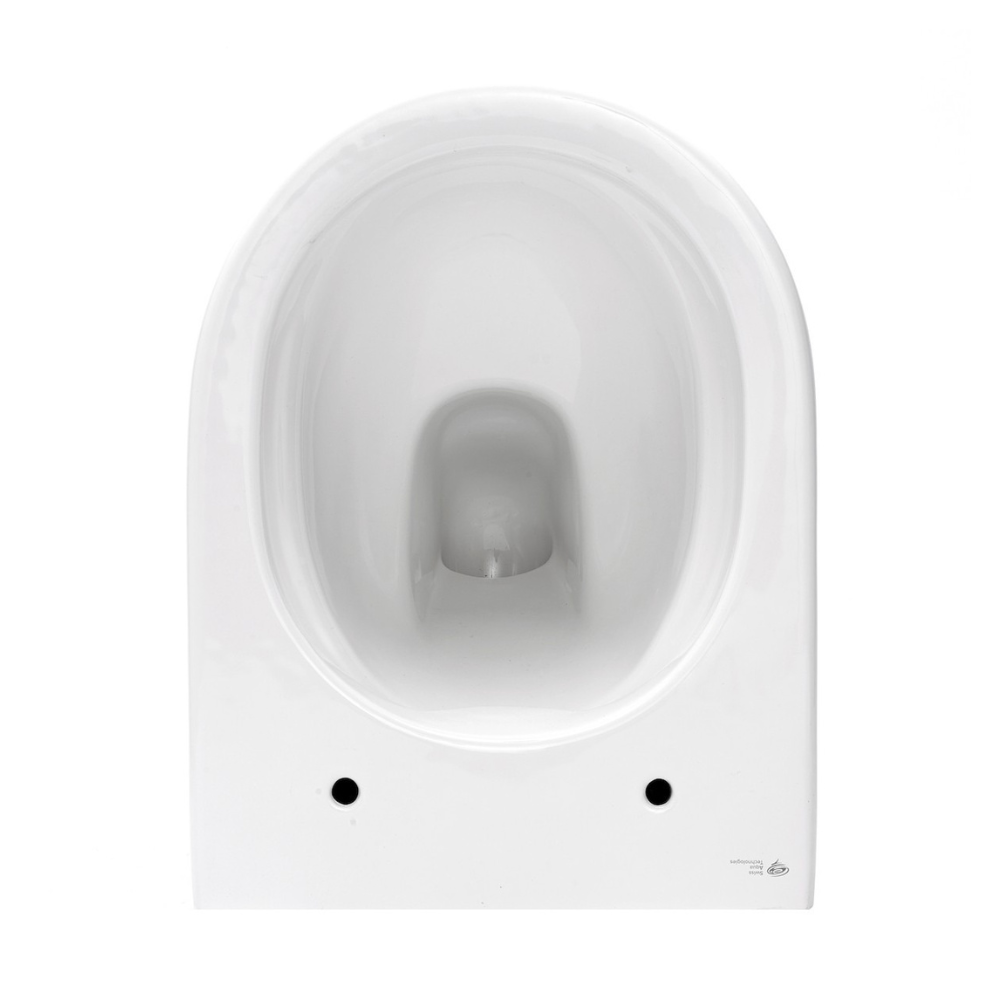

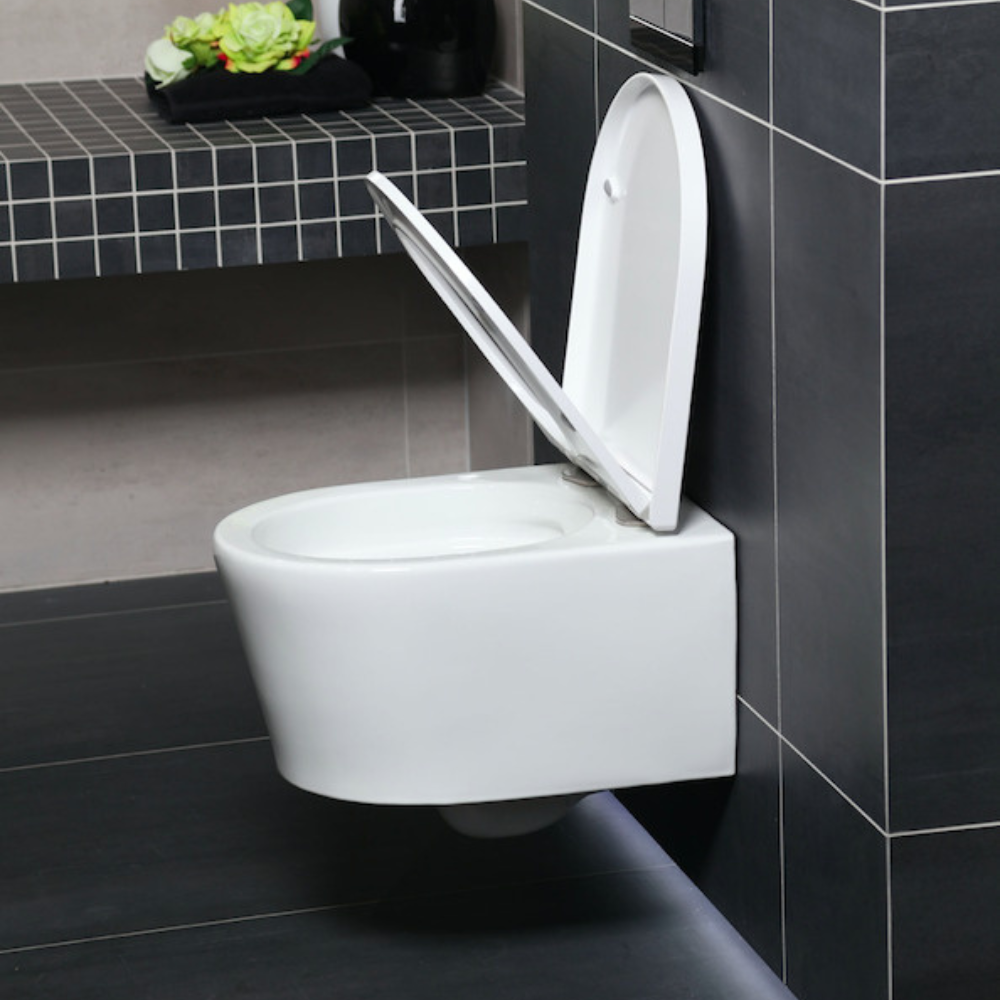

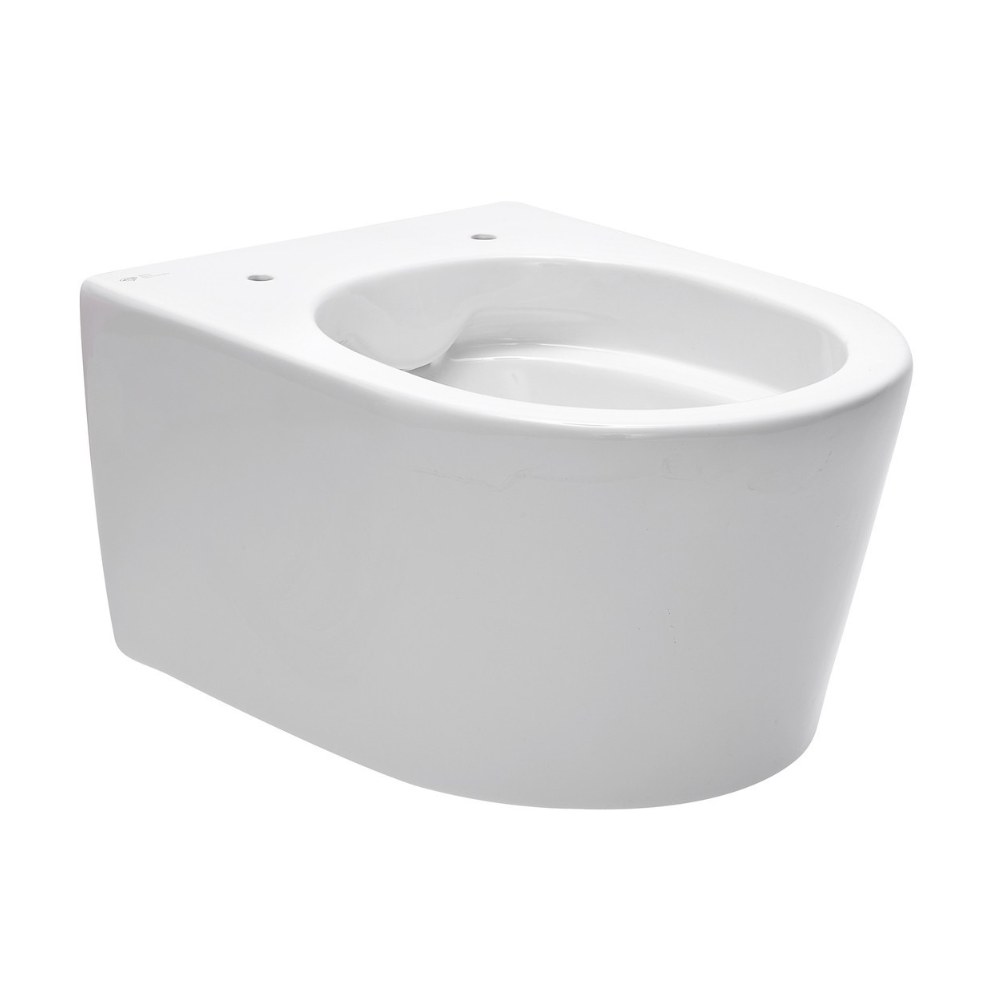

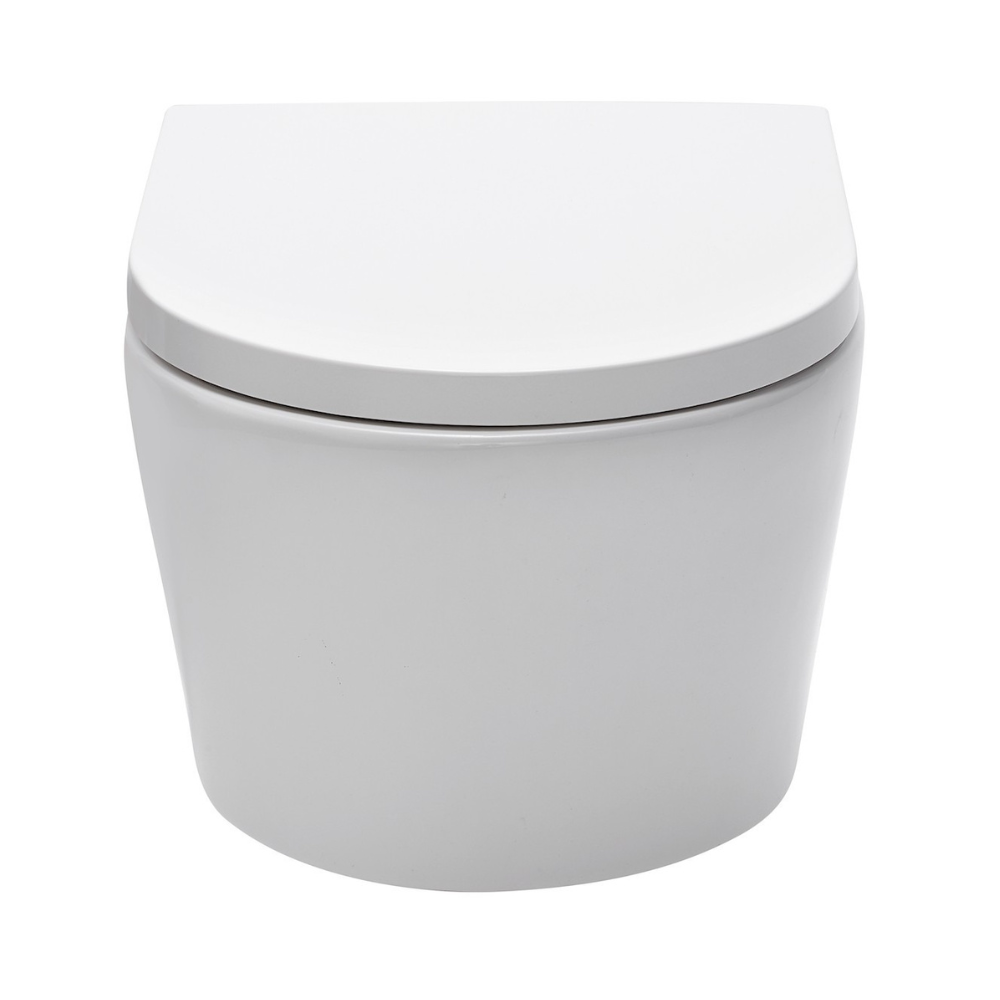

Rimless wall-hung toilet with invisible fixings + soft-close seat (SATBRE010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and refined bowl style
- Rimless bowl
- Concealed fixings
- Depth of 48 cm
- Economical flush 3 / 4.5 L

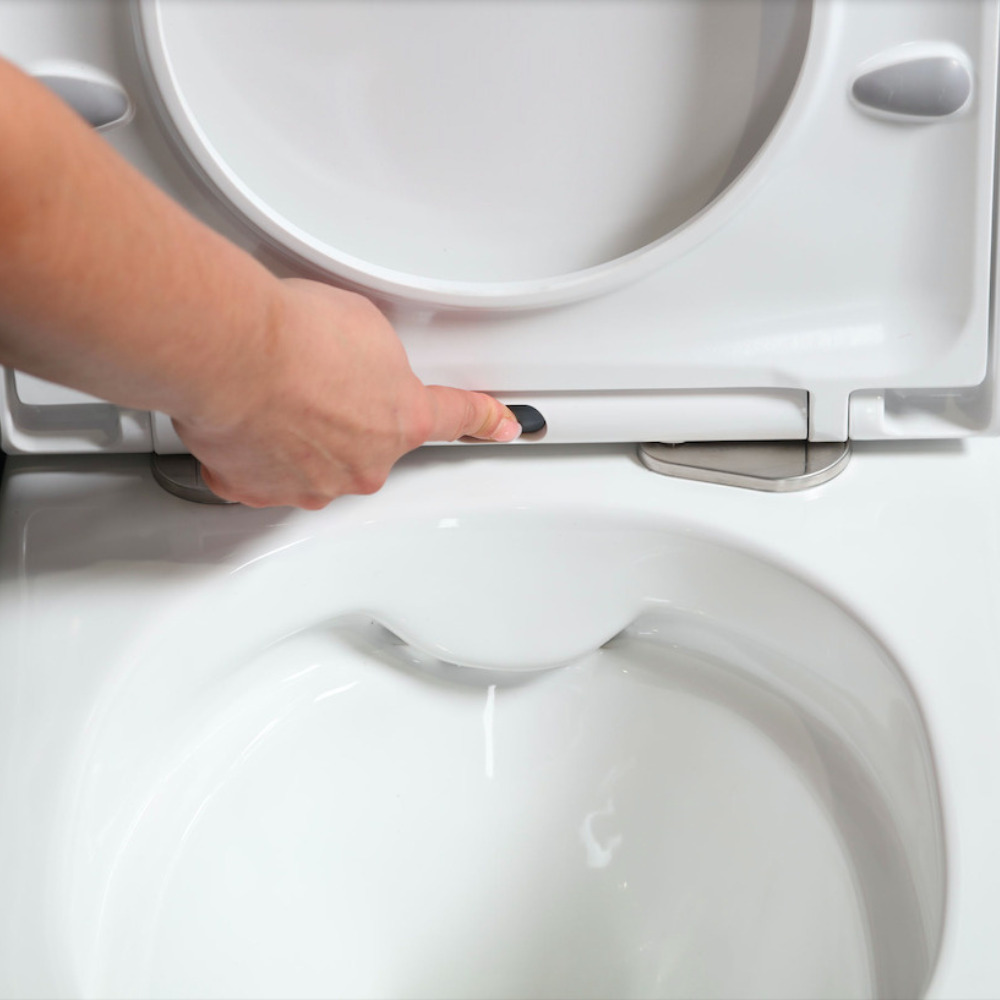

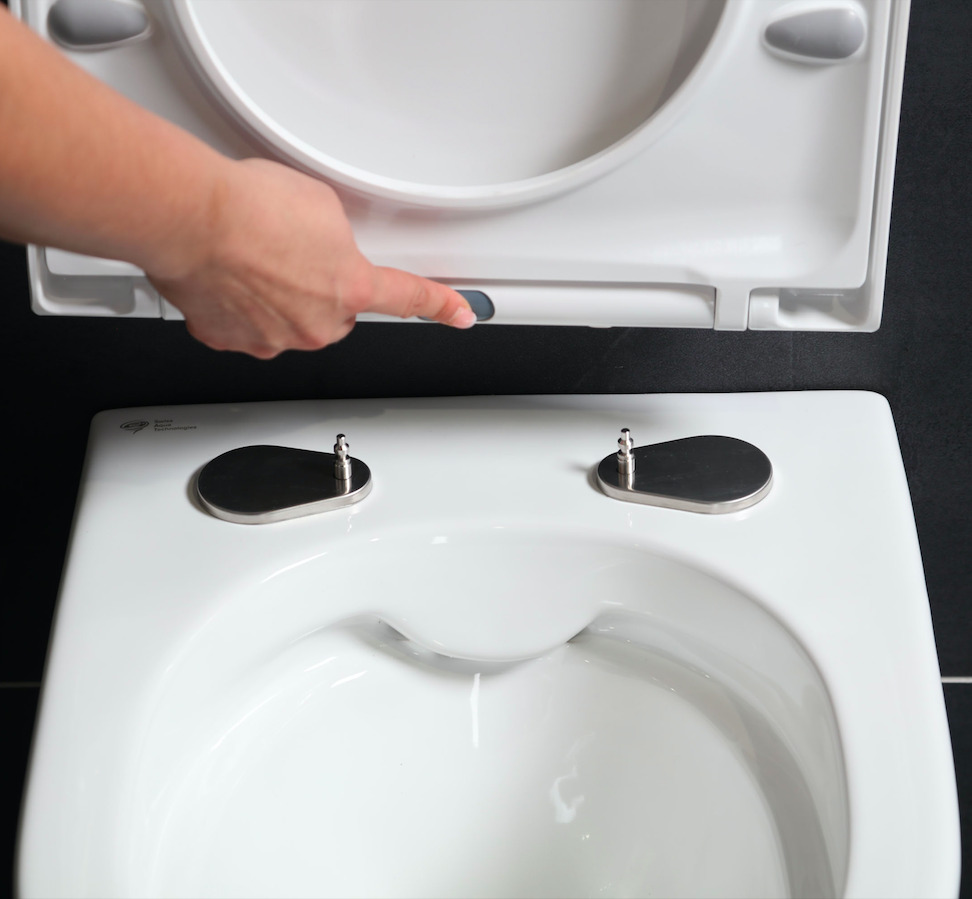

- Soft-close seat
- Removable seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick installation

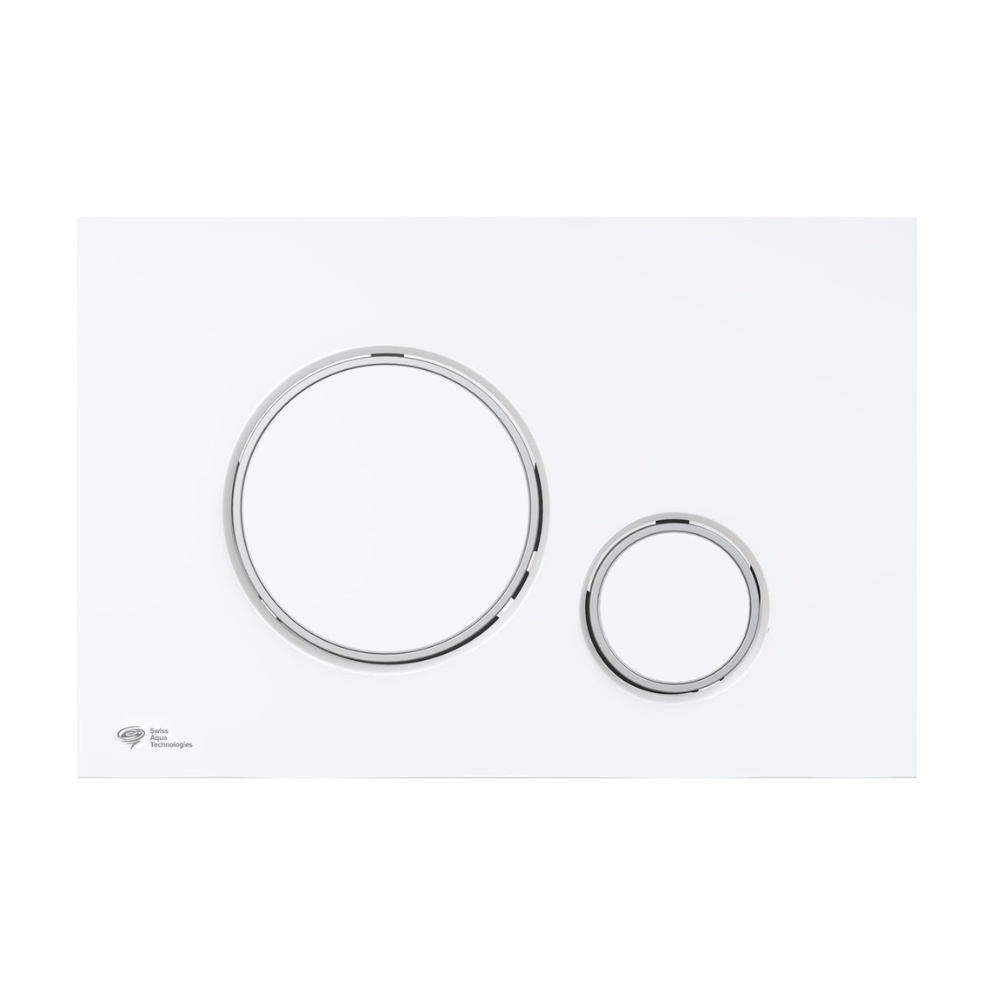

Plastic dual-flush control plate, matte white/glossy chrome (SATAT76):
- Brand: Swiss Aqua Technologies
- Product type: control plate
- Material: plastic
- Color: white/chrome
- Finish: matte and glossy
- Number of buttons: 2
- Width: 24.7 cm
- Height: 16.5 cm
- Weight: 0.34 kg
- Product warranty: 5 years
Warning! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and clearly indicated for each product on the delivery slip. No complaints will be accepted after the fact, as carriers are very strict on this subject. We thank you for your understanding.
- Colour:White
- Material:Ceramic
- Manufacturer colouring:White
- Width (cm):36.4 cm
- Height (cm):112 cm
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Plate colour:White
- Constructor warranty:5 years
- Type of installation:Wall
- New:New
- Weight:35
- Water saving:Yes
- Bowl colour:White
- Outlet:Horizontal
- Product type:Toilet pack
- Depth:14.5 cm
- Net weight:31.5
- Volume:2-4L / 3.5-6L
- Flush plate:Double touch
- Suitable for people with reduced mobility:No
- Anti-limescale bowl:No
- Toilet Rim type:Rimless
- Bowl weight:22 kg
- Bowl height:34.2 cm
- Bowl width:36.4 cm
- Flush plate finish:Matte / glossy
- Bowl finish:Glossy
