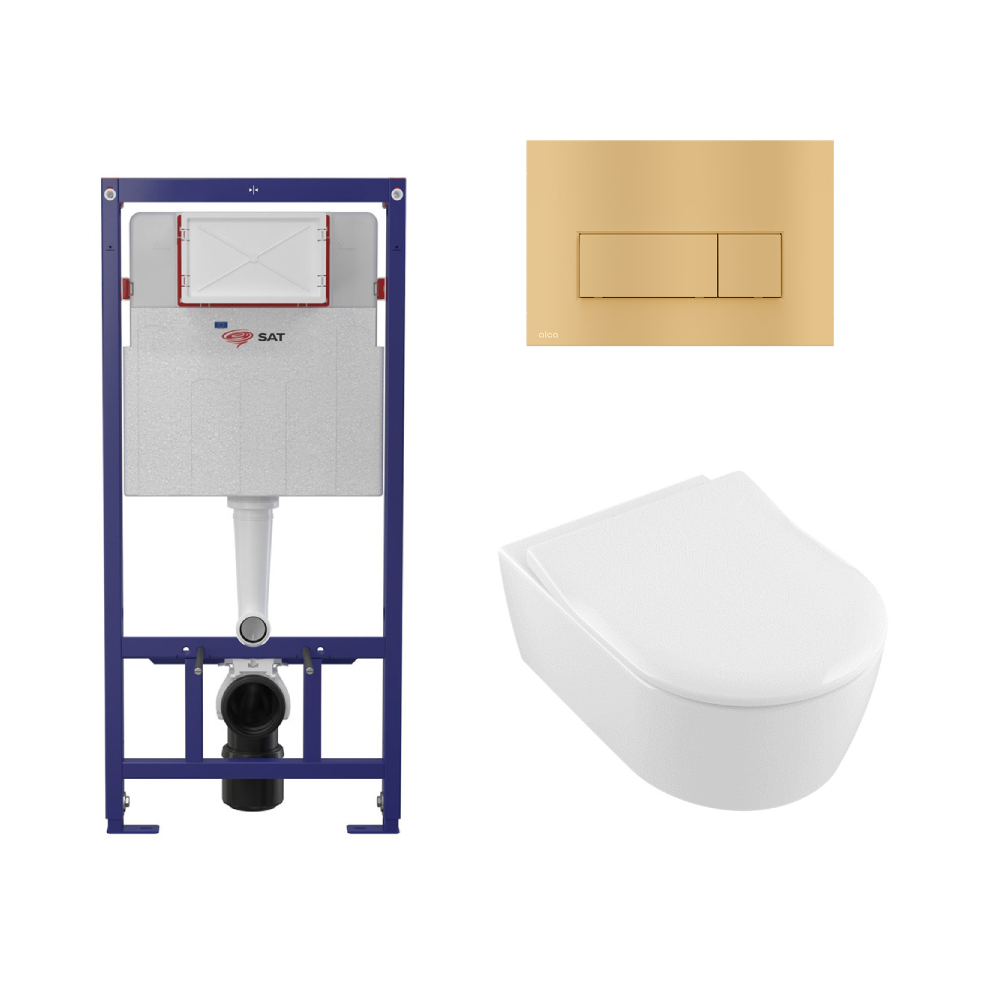

Swiss Aqua Technologies SAT cistern frame + V&B Arceau Rimless wall hung toilet + soft close seat + Matt gold flush plate (SMARTK-Avento-gold)
- Product reference: SMARTK-Avento-gold
- EAN: 8592127183497
Brand:
Product warranty:
5
years
Not available
You may also interested in these articles
Product technical properties
- Toilet bowl brand:Villeroy & Boch
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Type of frame:Standard
- Plate colour:Matt gold
- Bowl colour:White
- Invisible fixings:Yes

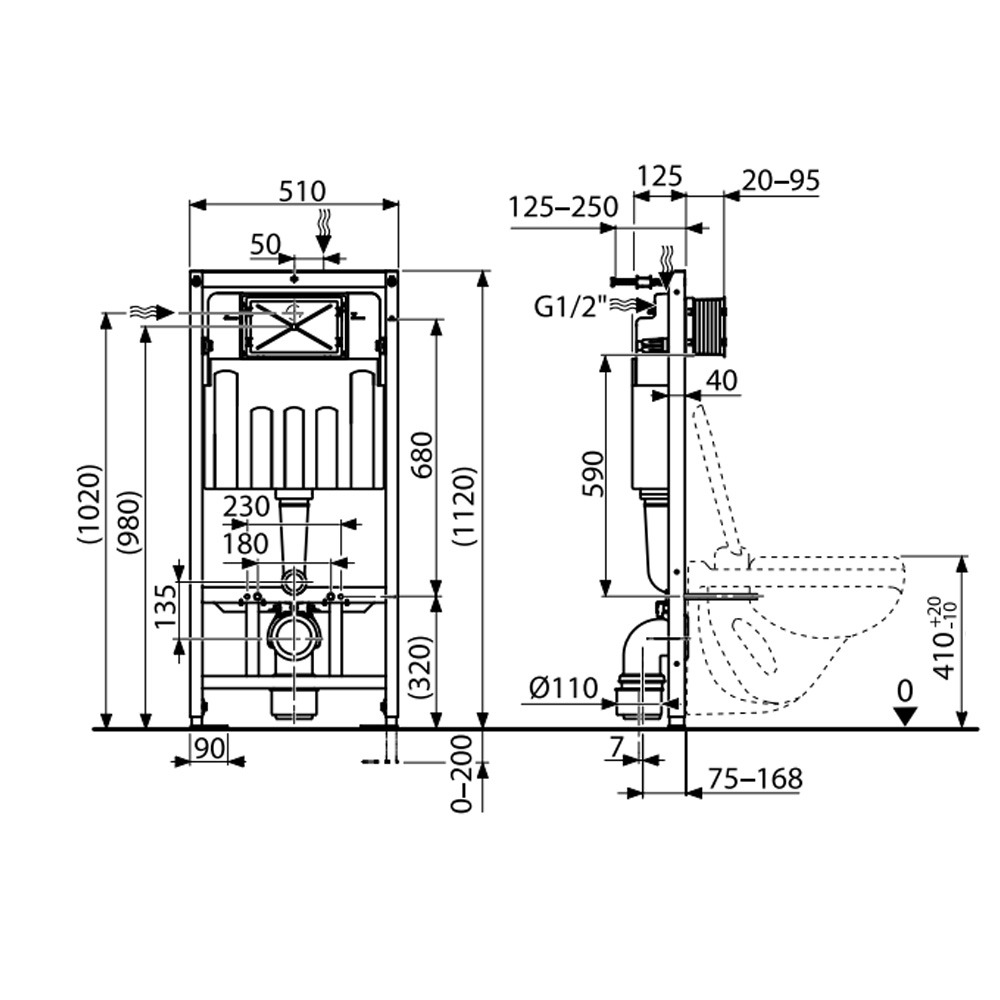

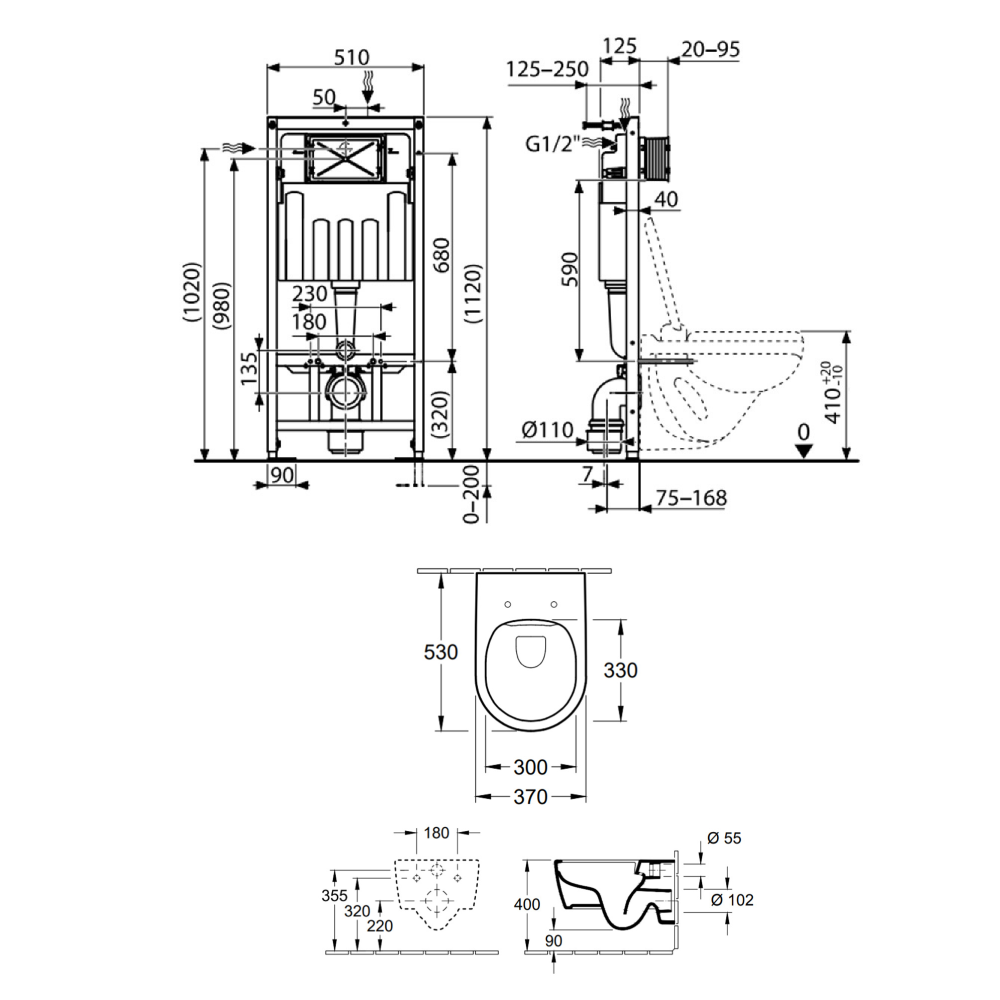

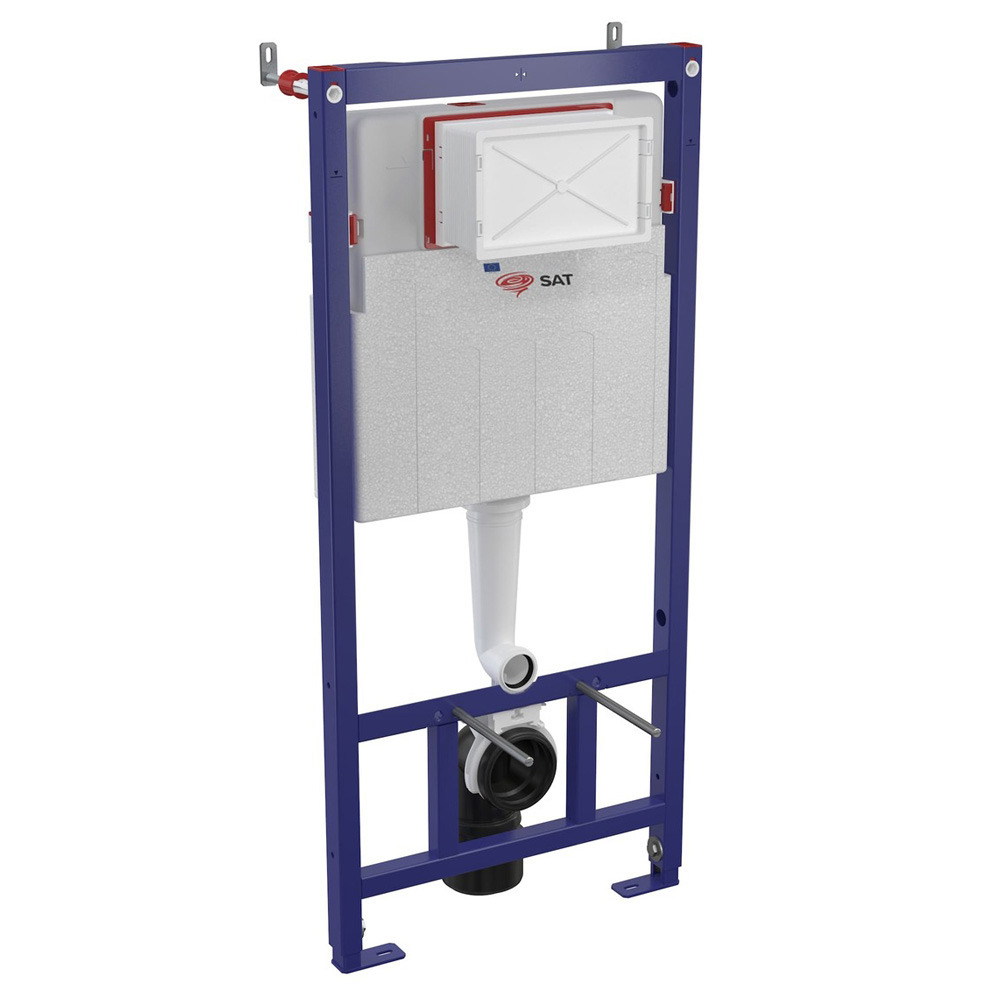

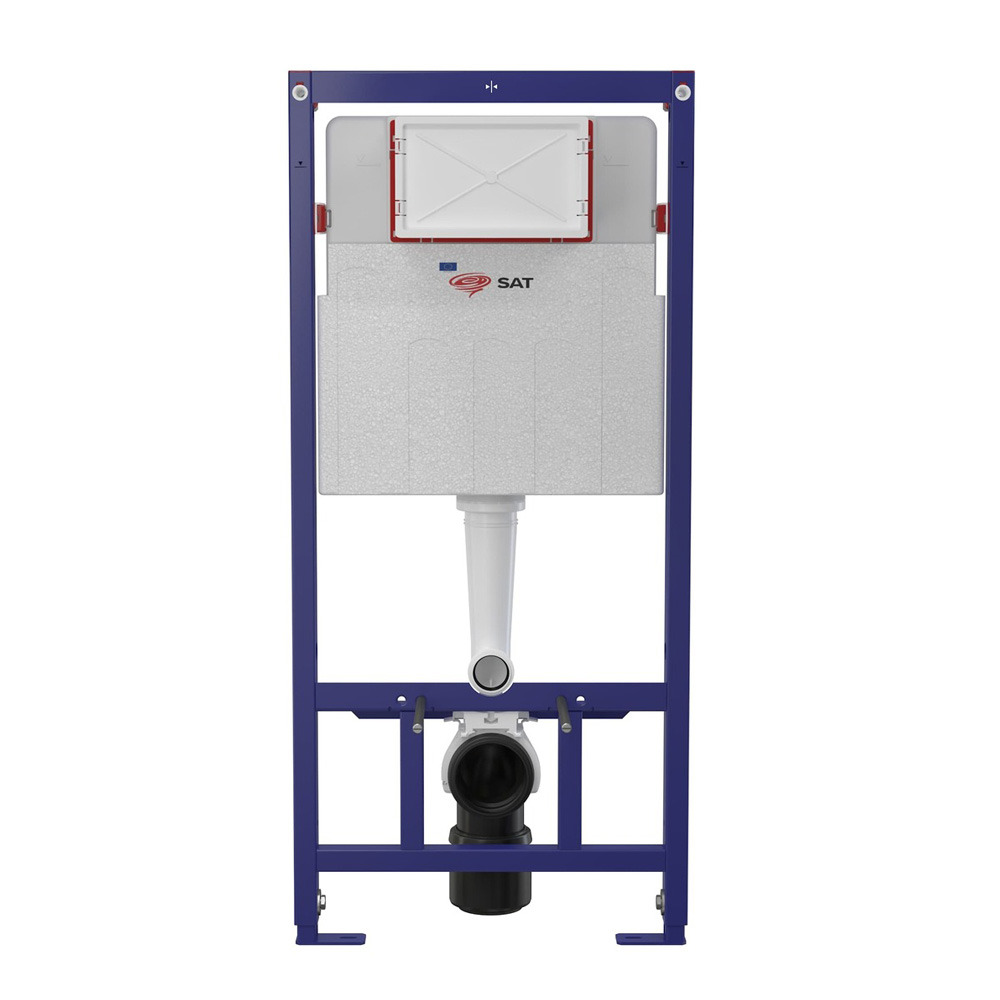

Swiss Aqua Technologies Toilet Support + Cistern for Wall-Hung Toilets 112 cm (SATAMSK):
Use:
- For installation in front of a load-bearing wall or in plasterboard construction
- For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
- For floor constructions of 0 to 200 mm
- For wall-hung toilets
Features:
- Adjustable Dual Flush
- Compatible with all SAT control buttons
- Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
- The service opening cover simplifies installation and prevents accumulation of moisture and dirt
- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- Structural material: powder-coated metal
- Adjustable installation depth in the range of 20-95 mm
- Possibility of installing remote flushing or sensor flushing
- The tank is made in one piece, making it 100% watertight
Delivery Contents:
- Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
- Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
- 90/90 HT polyethylene drain elbow, PE-HD
- Two-part service opening cover, easily shortened
- Tank with filling and flushing valve
- 90/100 HT polyethylene waste reduction
- Set of plugs to protect connection holes during system installation
- Self-supporting frame connection
- 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
- Drainage gasket, PP connector, connector gasket
- Entry, exit PP gasket, packaging gasket
Technical details:
- Recommended water pressure range 0.3-0.5 MPa
- Functional water pressure range 0.05-0.8 MPa
- Water volume in the tank 9 L
- Water connection from the back or top via G1/2" mounting holes
- Small flush factory setting: 3 L
- Large flush factory setting 6 L
- Small flush 2.5-3.5 L
- Large flush 6-9 L
- Max load: 400 kg

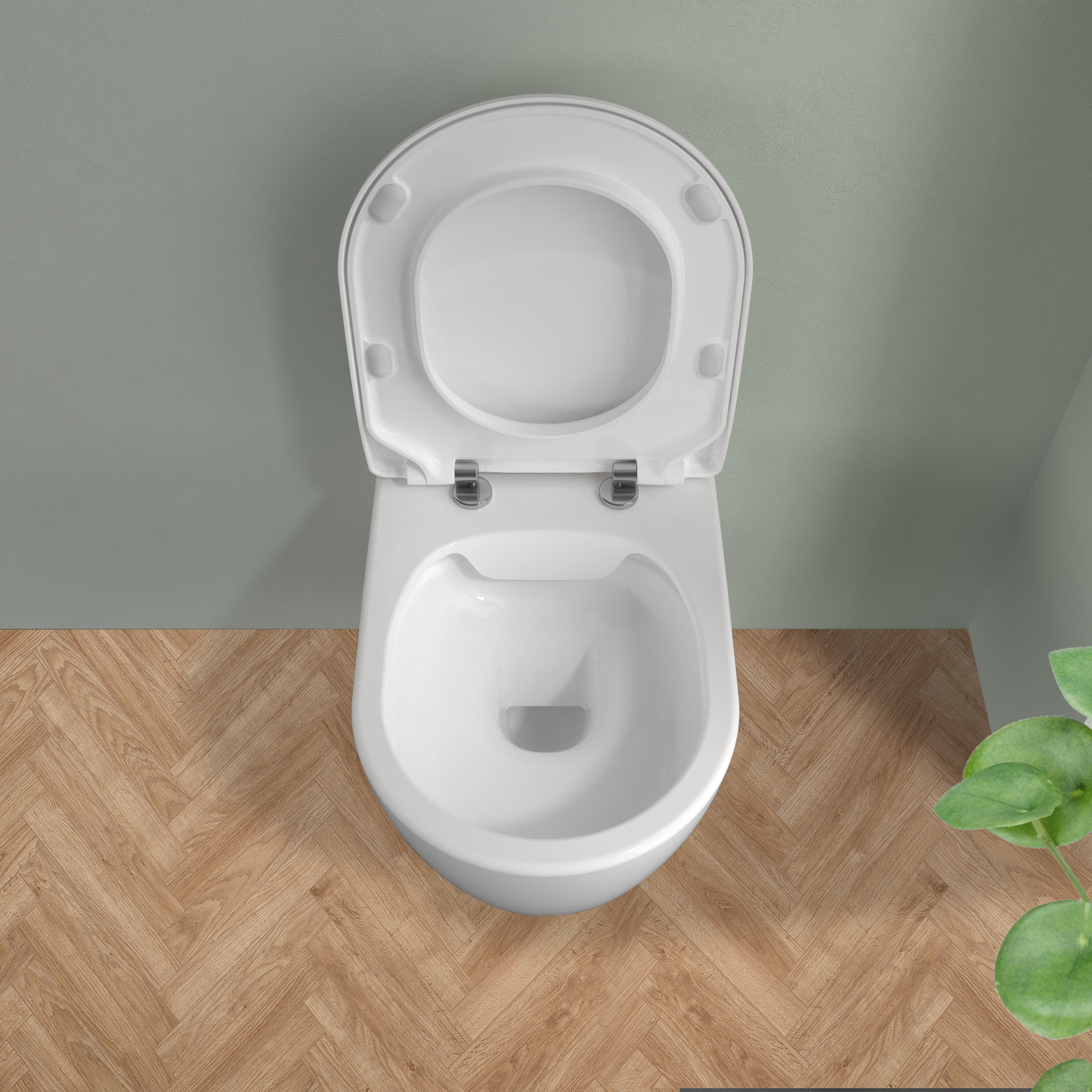

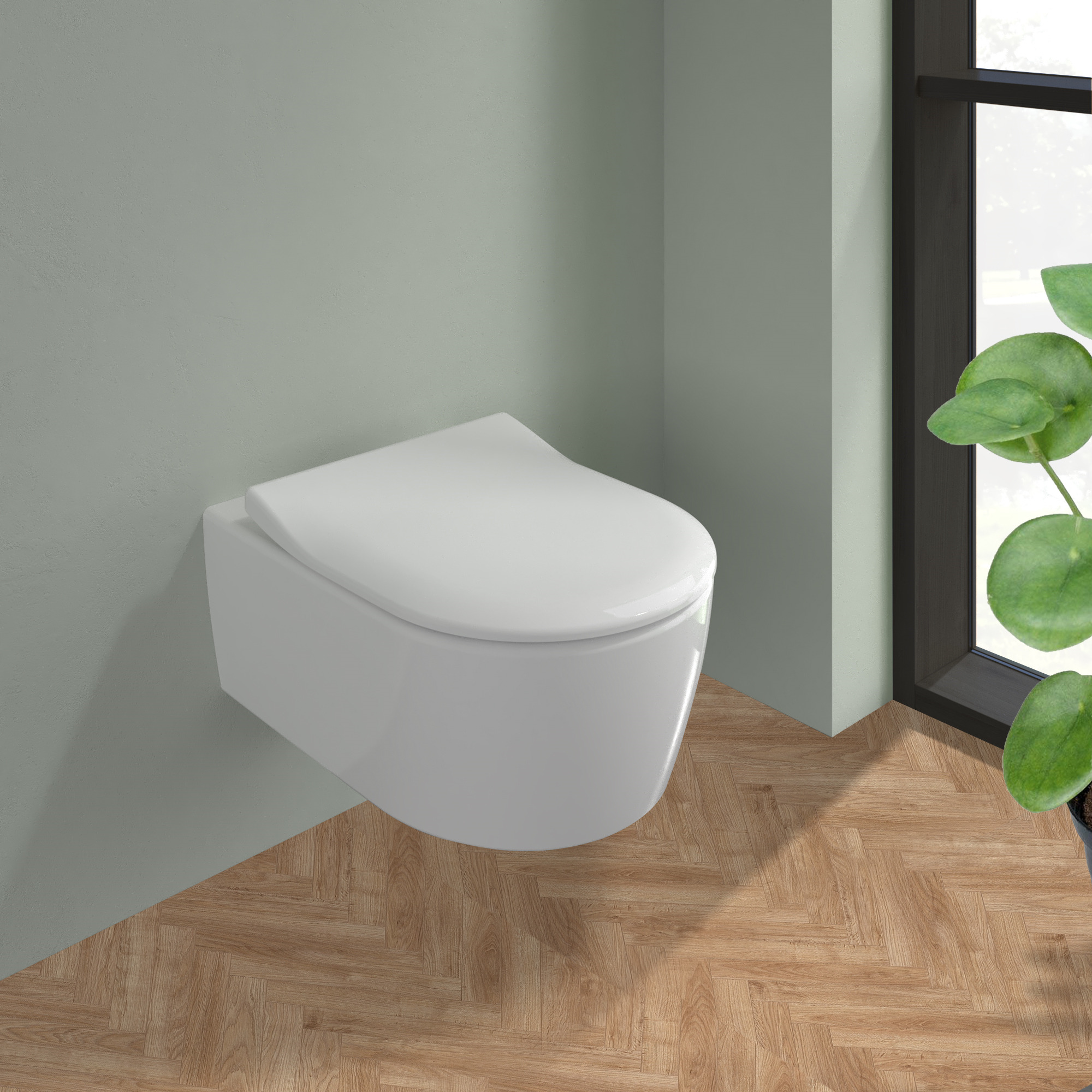

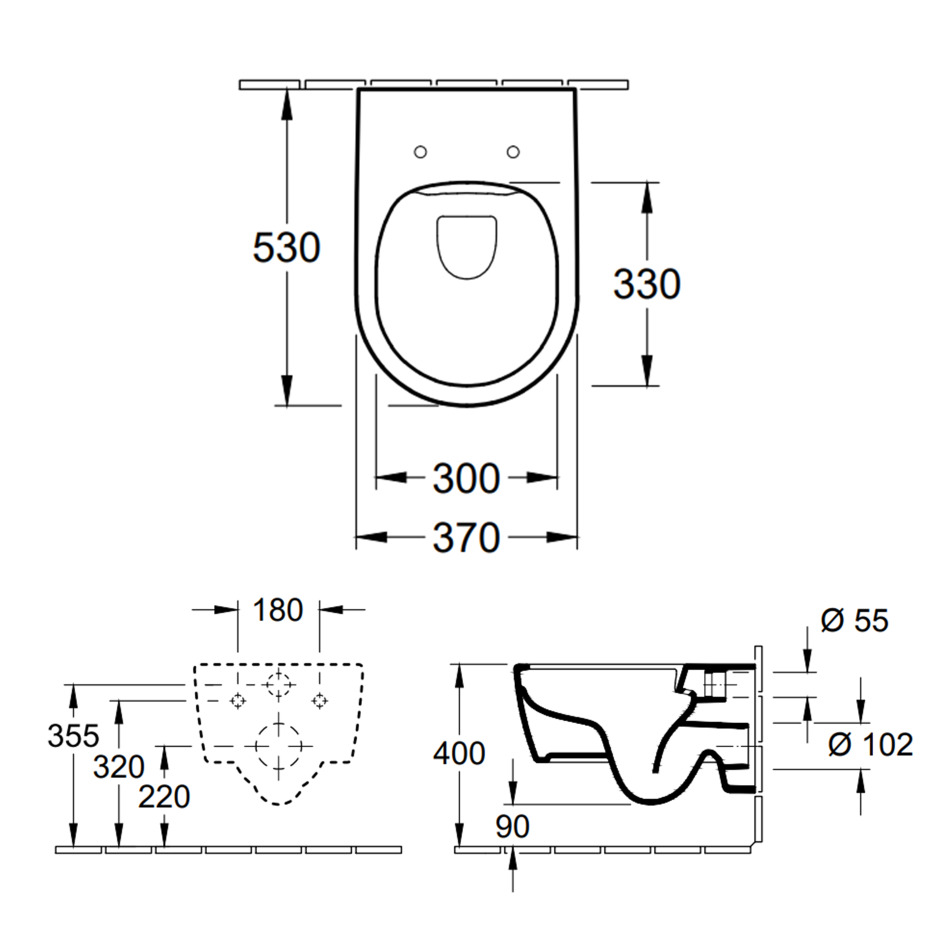

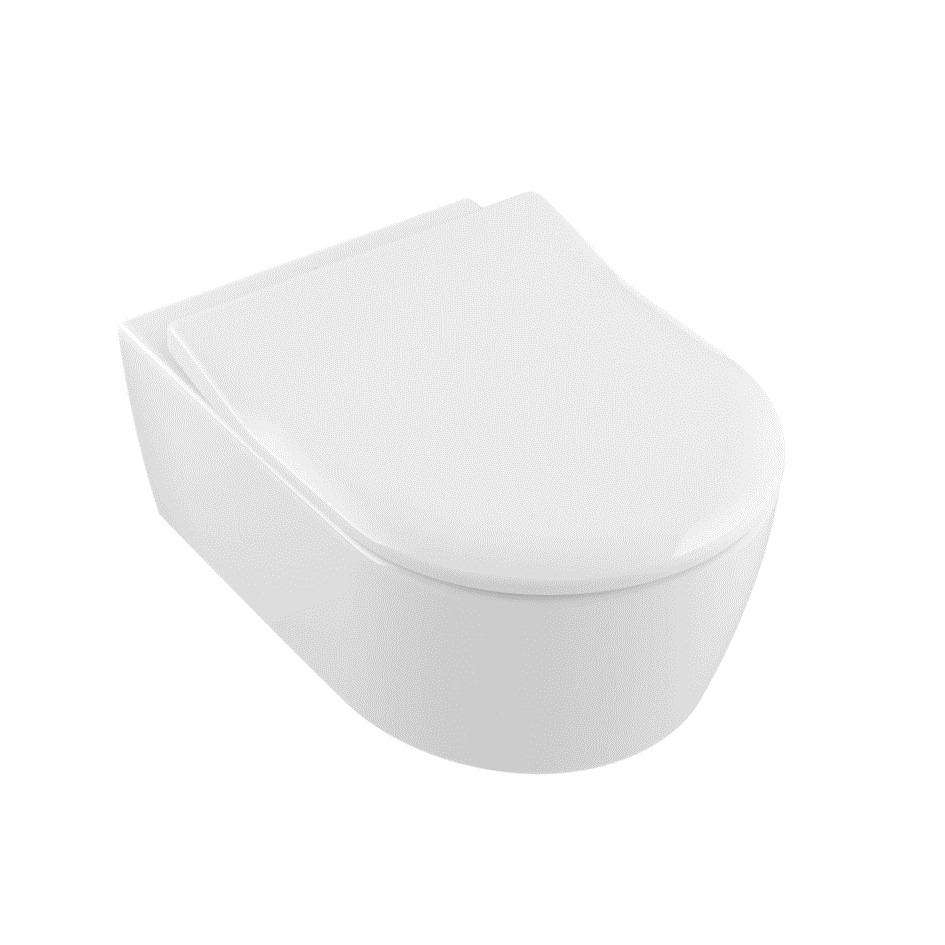

Villeroy & Boch Arceau Wall-Hung Rimless Bowl 530 x 370 x 315mm, White (4658R001):
- Length: 530mm
- Width: 370mm
- Height: 315mm
- Rimless bowl
- Weight: 25Kg
- Flush type: Hollow base bowl
- Flush volume: 3/6 L
- Waste outlet: Horizontal
- Mounting type: Wall-hung
- Material: Sanitary ceramic
- Colour: White
Villeroy & Boch Removable soft-closing seat for arceau pans, Duroplast (8M31S101):
- The new Arceau toilet seats from Villeroy & Boch combine functionality and aesthetics
- Matching toilet seats create a harmonious unity in your bathroom
- Particularly quiet closing of the toilet seat lid thanks to SoftClosing
- QuickRelease: Easy removal and installation of the toilet seat
- Duroplast toilet seat with stainless steel hinges
- Fixing centre: 18cm
- Finish: Glossy

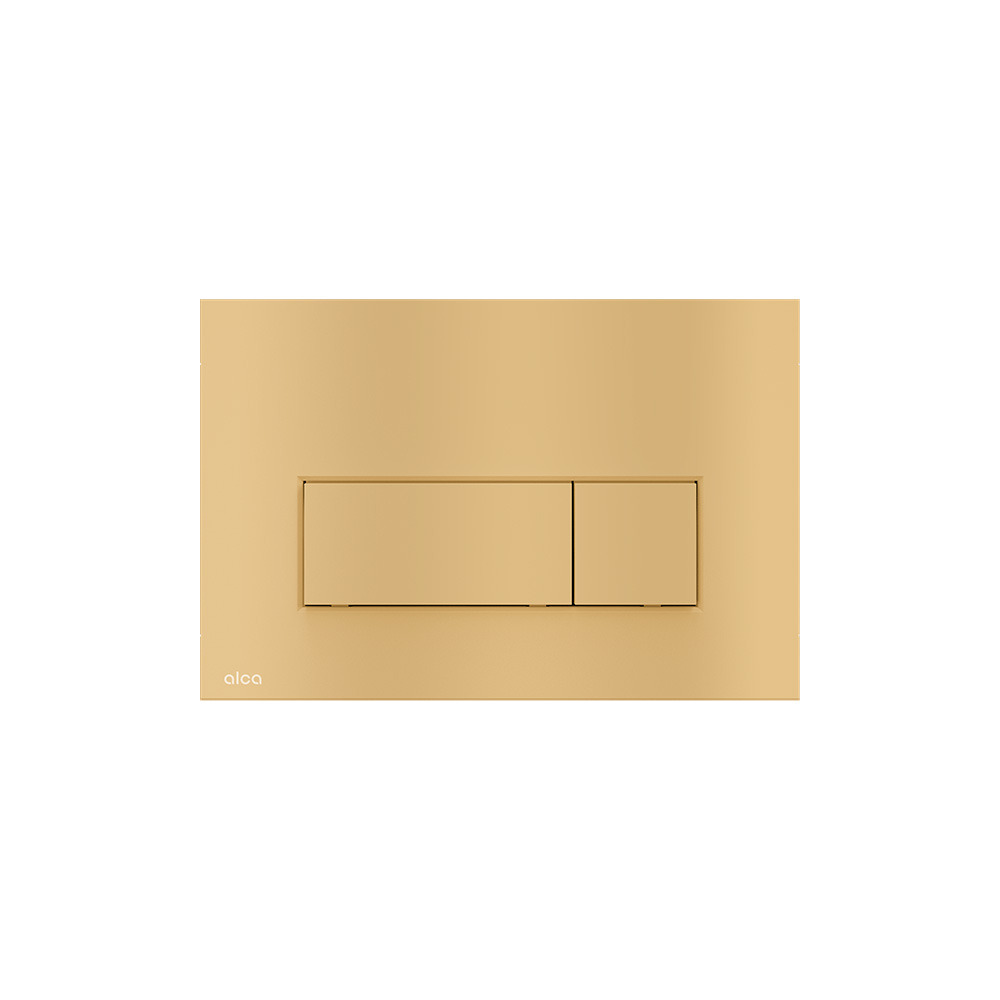

Alca Dual Flush Plate, Matt Gold (M57-G-M):
- Compatible with all Alcaplast installation systems and pre-wall tanks.
- Thanks to its thin 5.5 mm profile, this plate protrudes only slightly from the cladding.
- Dual flush
- Colour: Matt Gold
