Toilet Frame+ Serel SM26 rimless bowl + Soft close seat + White plate (SM26GEB3)
- Product reference: SM26GEB3
- EAN: 0034966358158
- Line:
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Colour: White
- Material: Ceramic
- Toilet bowl brand: Serel
- Toilet bowl: Rimless
- Soft closing seat: SOFT CLOSE
- Frame brand: Geberit
- Type of frame: Standard
- Plate colour: White
- Weight: 35
- Bowl colour: White
- Invisible fixings: No

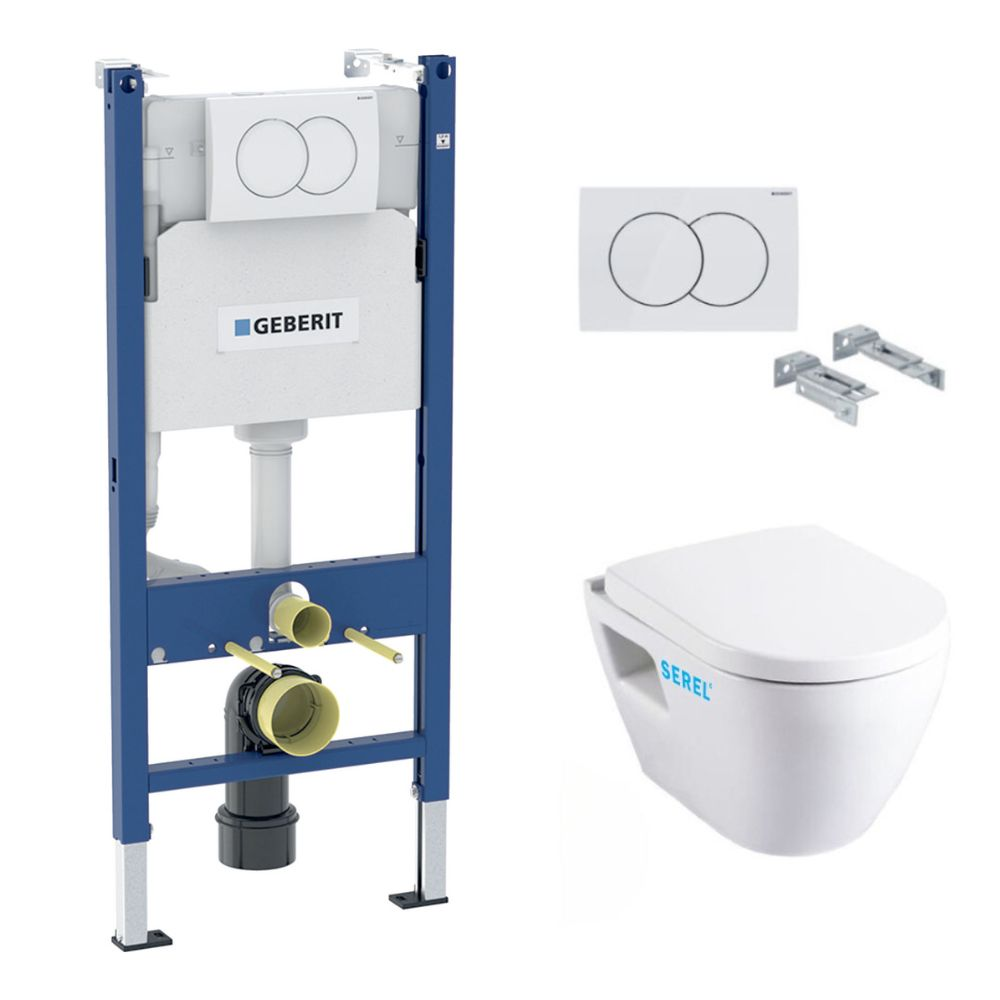

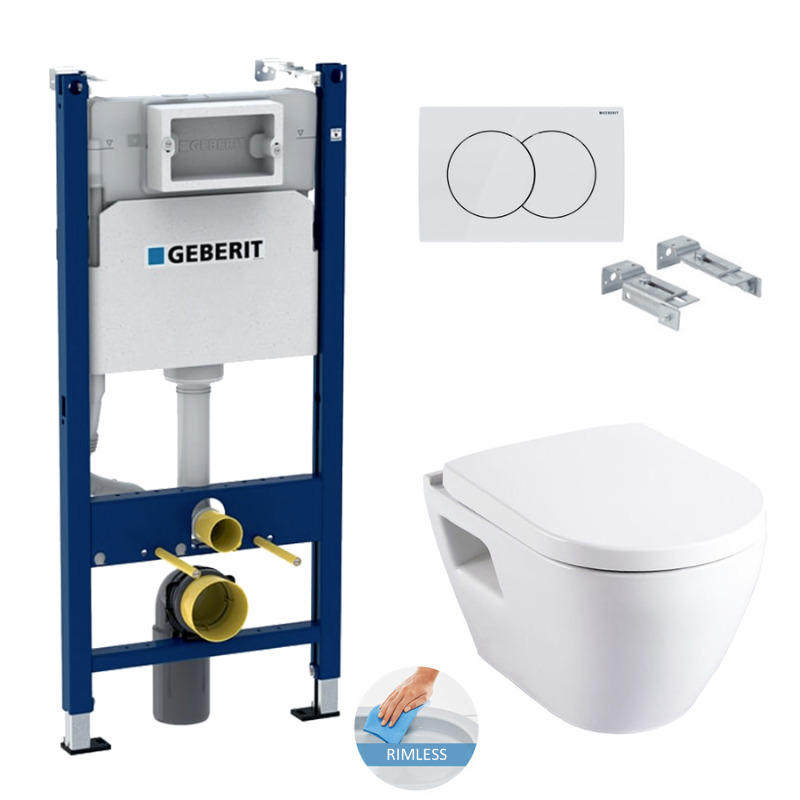

Features of the Toilet set Self supporting frame + Serel SM26 rimless bowl + Soft close seat + White flush plate (SM26Geb3) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit Trigger plate DELTA01 white (115.107.11.1)
- Serel Rimless bowl + soft close seat (sm26)

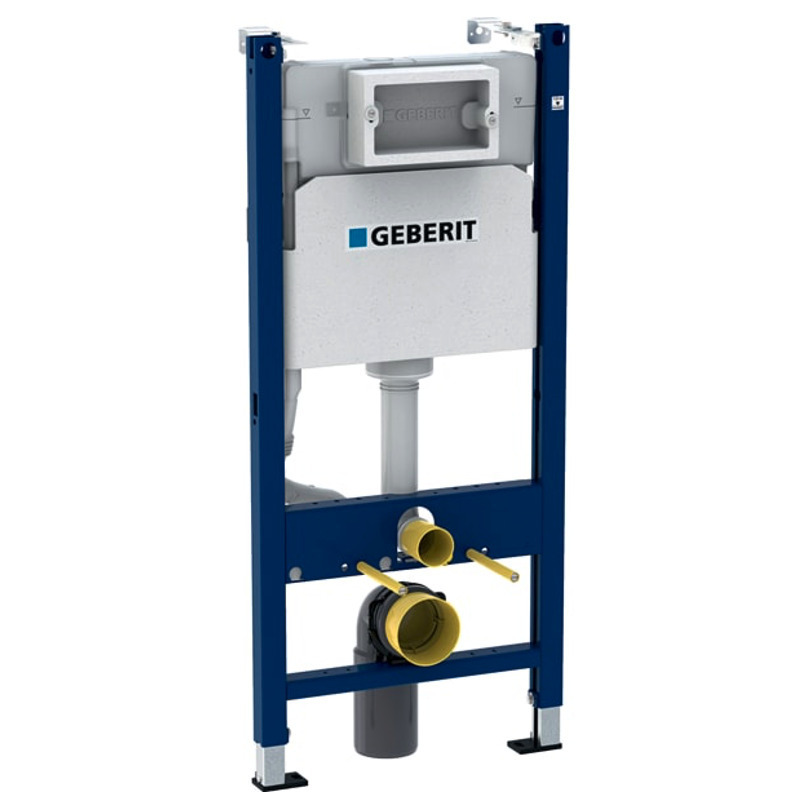

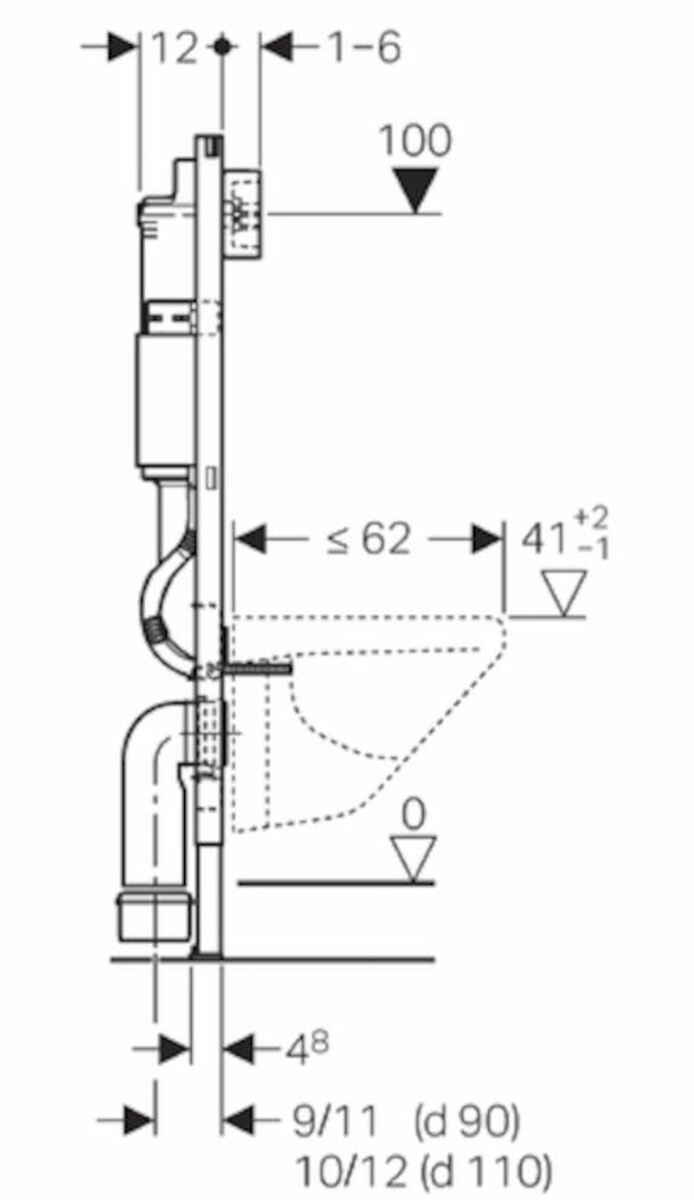

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.
Geberit DuofixBasic pre-wall mounting set (111.839.00.1) :
- Material: Steel
- For fixing Geberit Duofix frames to partitions and load-bearing walls
- For Geberit Duofix frames with open top
- Adjustable depth
- Galvanised
.

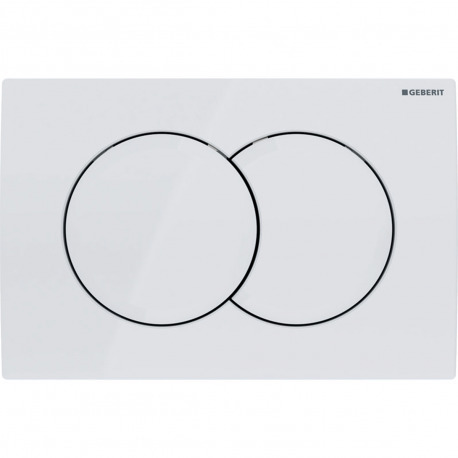

Geberit Trigger plate DELTA01 white (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal release
.

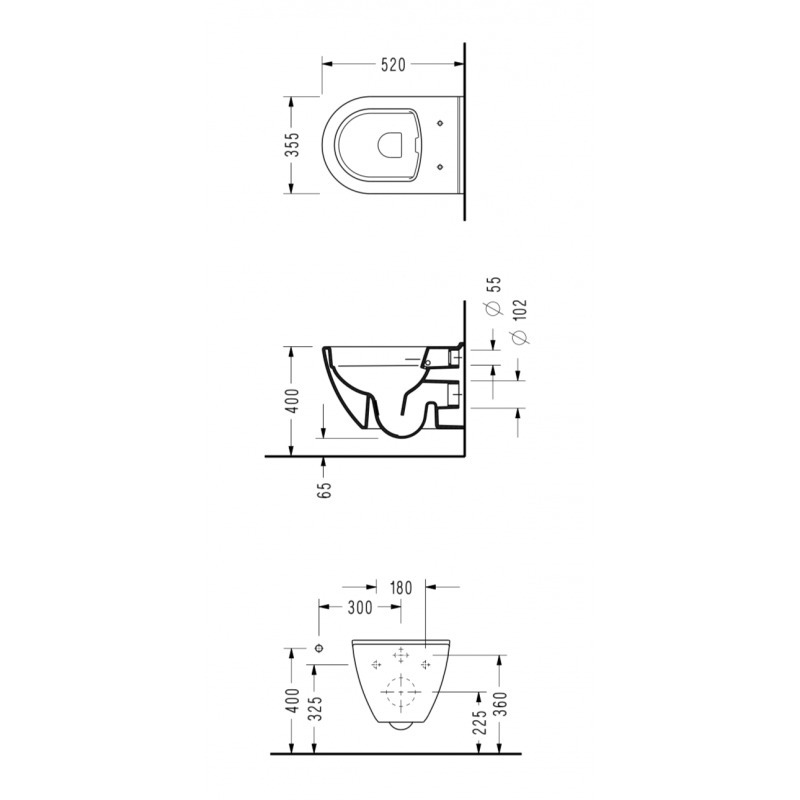

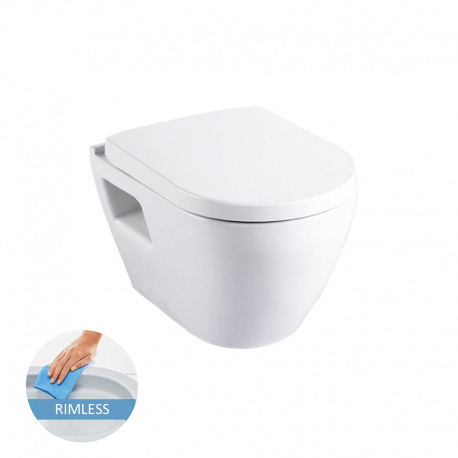

Serel Rimless bowl + soft close seat (sm26) :
- Rimless SEREL Hygiene plus white vitrified ceramic bowl
- anti-bacterial treatment

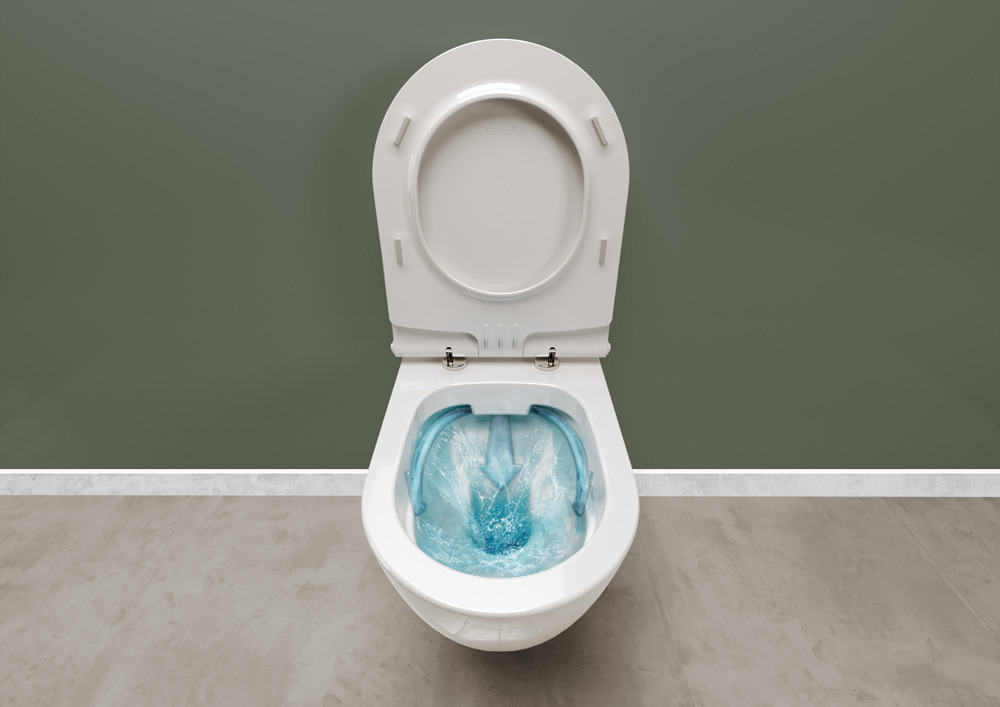

- Pure Wash flangeless technology for a total cleaning of the bowl surface
- SEREL brand toilet bowl
- High quality Duroplast softclose seat
.
Please note! It is imperative to check the good condition of the package, both inside and out, at the time of delivery.
