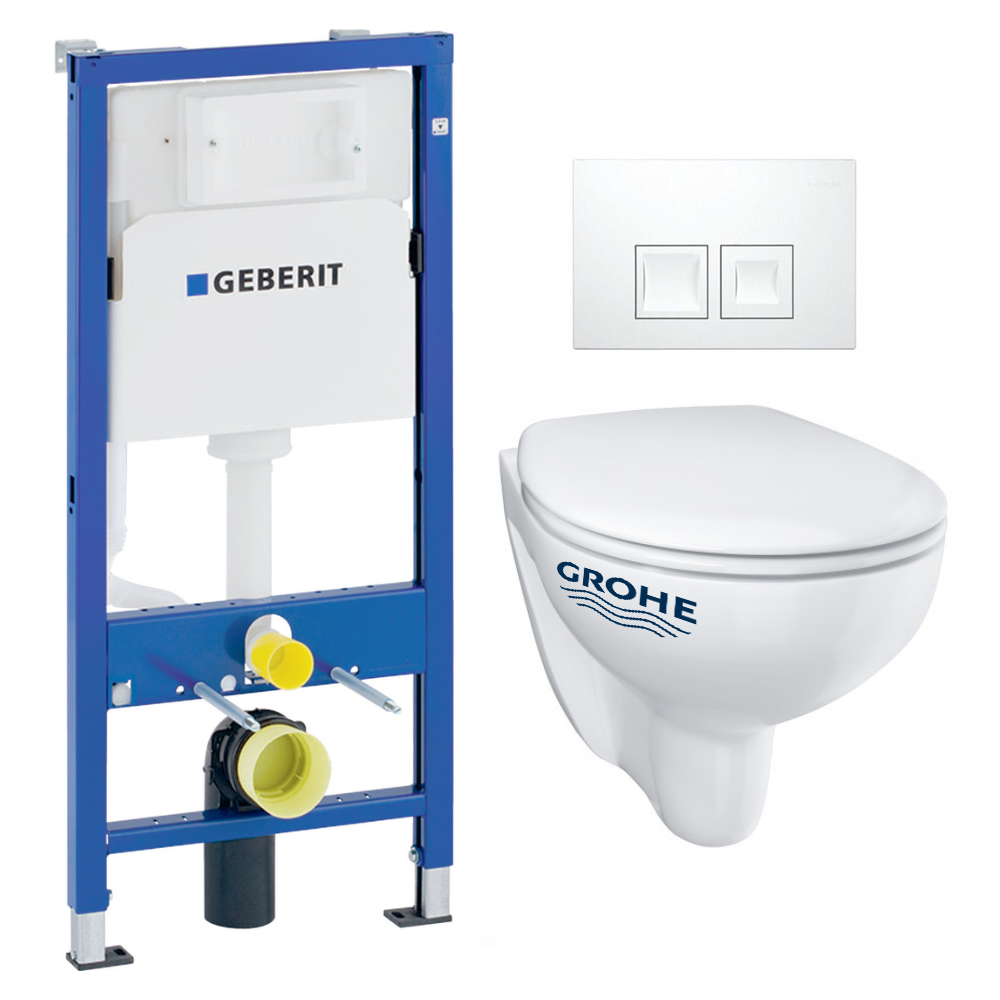

UP100 Frame + Delta50 plate + Grohe Bau Ceramic Rimless bowl + softclose seat (BAUGEB1)
- Product reference: BAUGEB1
- EAN: 3052351464687
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Toilet bowl brand: Grohe
- Toilet bowl: Rimless
- Soft closing seat: SOFT CLOSE
- Frame brand: Geberit
- Type of frame: Standard
- Plate colour: White
- Bowl colour: White
- Invisible fixings: No

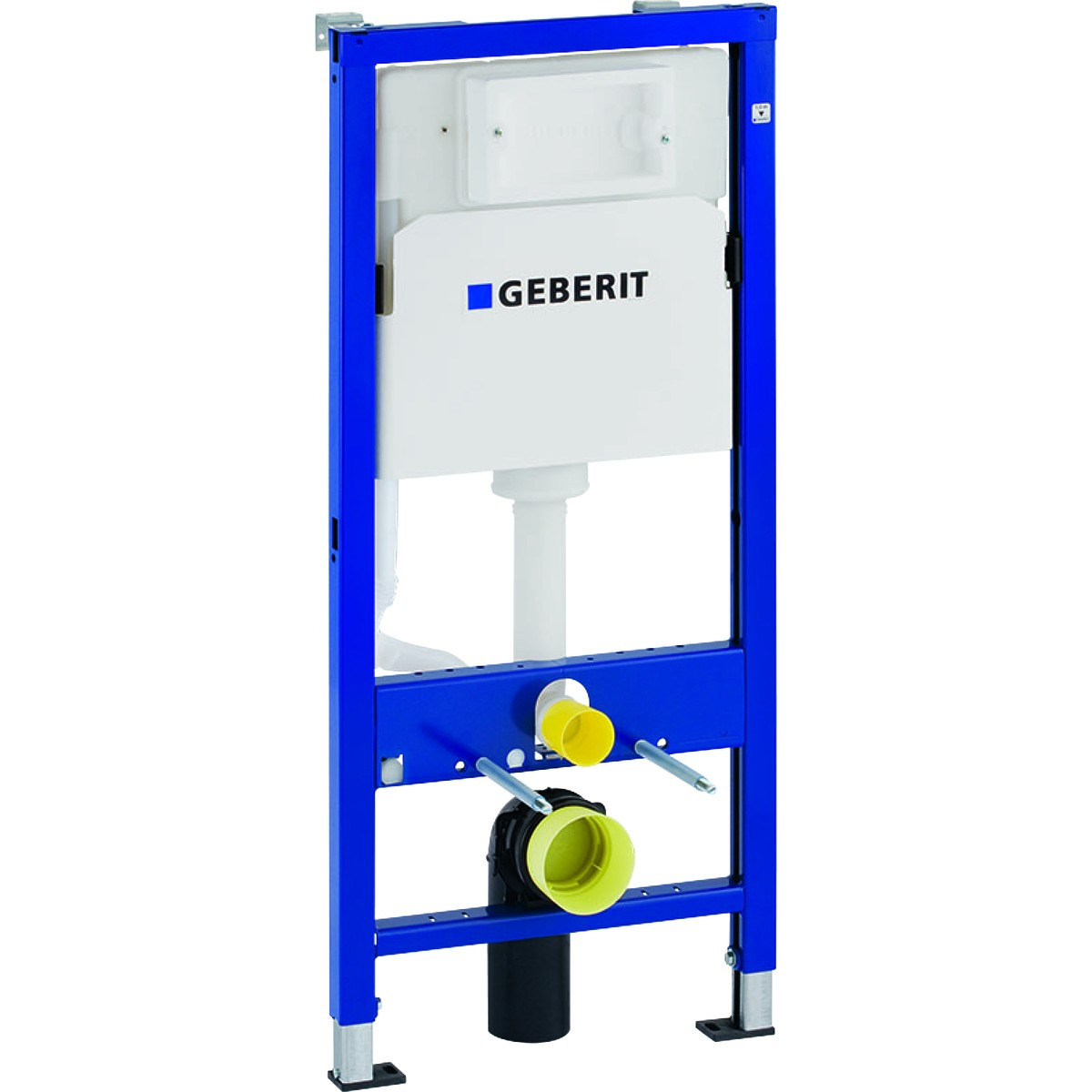

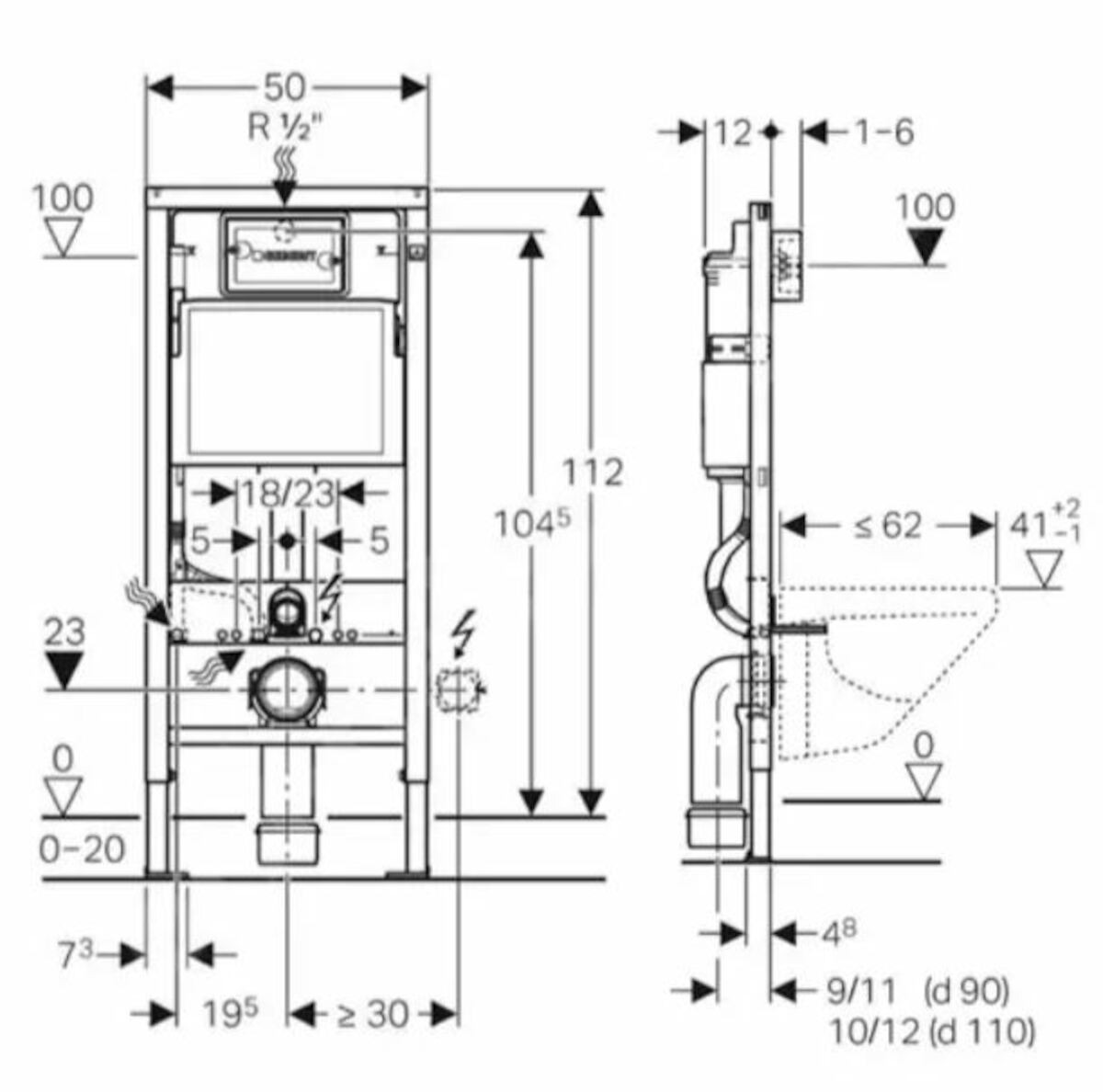

Geberit Duofix basic UP100, 112 cm, with concealed water tank UP100 (458.103.00.1) :
- 112 cm galvanised support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25-year manufacturer's warranty on spare parts)
- pre-painted frame in Geberit blue
- support feet with cm scale marking
- swivel feet for mounting in UW50/UW75 profile
- crossbar for cladding support
- 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
- concealed cistern 4-6-7.5 l, insulated against condensation
- two-stage front operation with Delta21, Delta20 or Delta50 plates
- supply from the back/top
- angle stop valve R1/2",
- housing for inspection hatch
- construction protection made of styrophor
- drain elbow Ø 90 mm
- sleeve fitting Ø 90 mm
- transition sleeve Ø 90/110 mm
- fixing material

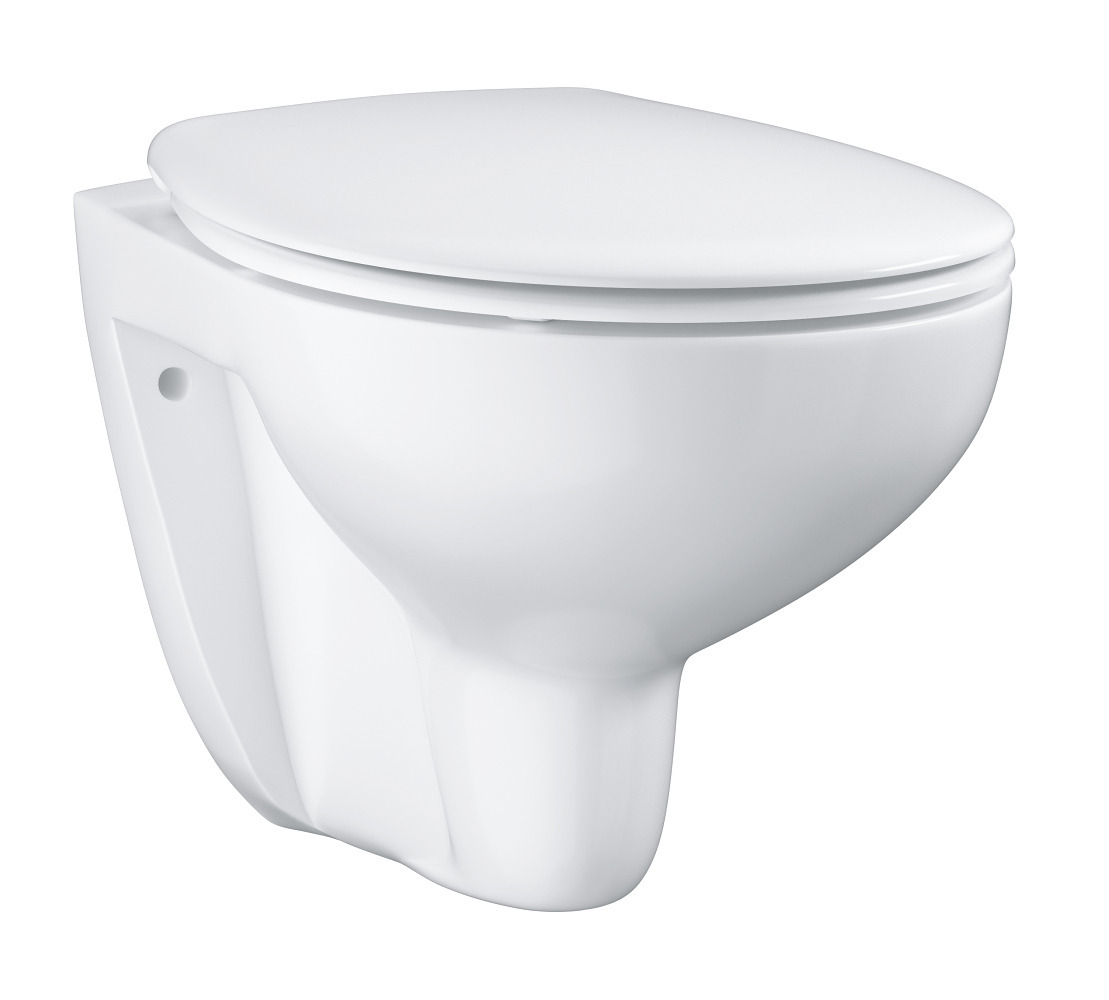

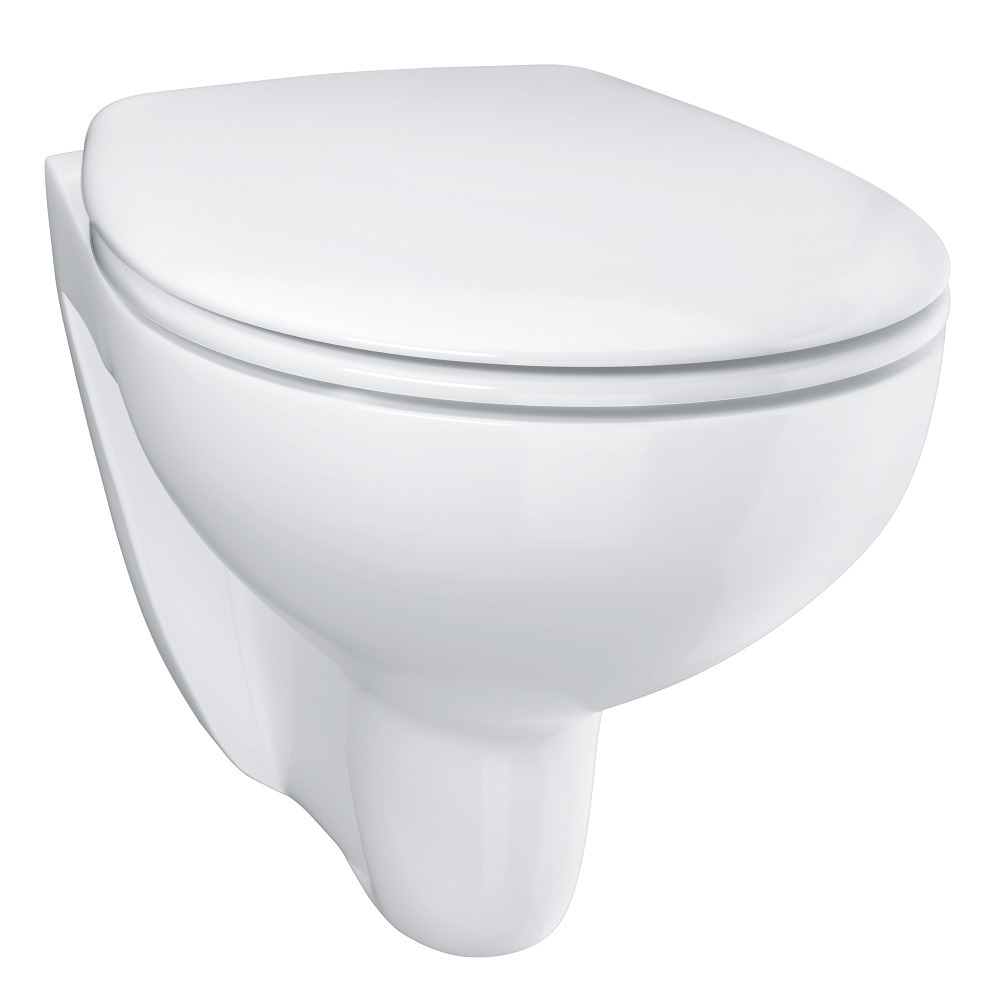

Grohe Wall hung WC set (39351000) :

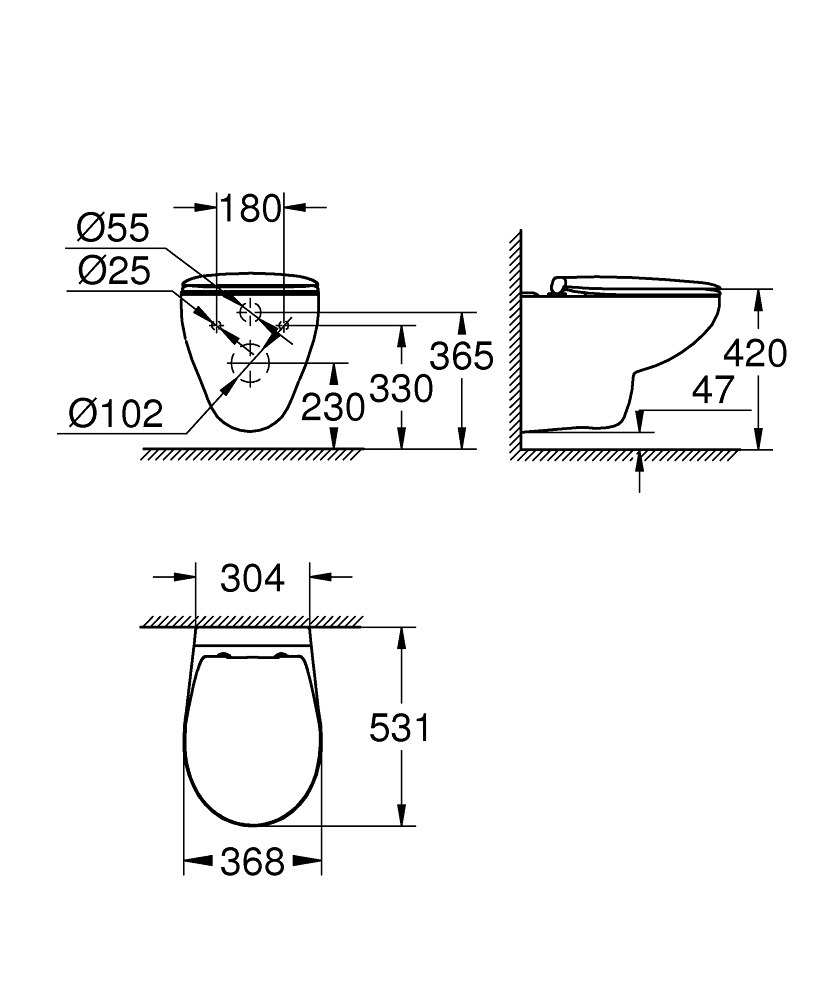

- Grohe Bau Ceramic wall hung WC (39 427 000)
- for concealed cistern
- horizontal outlet
- wash down
- rimless
- flush volume 3/6 l
- sanitary ware
- Grohe Bau Ceramic WC seat (39 493 000)
- soft close
- quick release function
- detachable
- material: Duroplast
- including fixation set
Geberit Delta01 white flush plate (115.135.11.1) :
- WC control plate
- Delta01 series
- Colour: White
- Material : Plastic
- Dimensions: 164 x 246 x 26 mm
- Two-touch mechanism
