Geberit Duofix Toilet Frame + Serel SM10 Toilet + Softclose seat + White plate + FREE toilet brush (SM10Geb3-Flex2)
- Product reference: SM10Geb3-Flex2
- EAN: 0734077001058
- Line:
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Colour:White
- Toilet bowl brand:Serel
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No

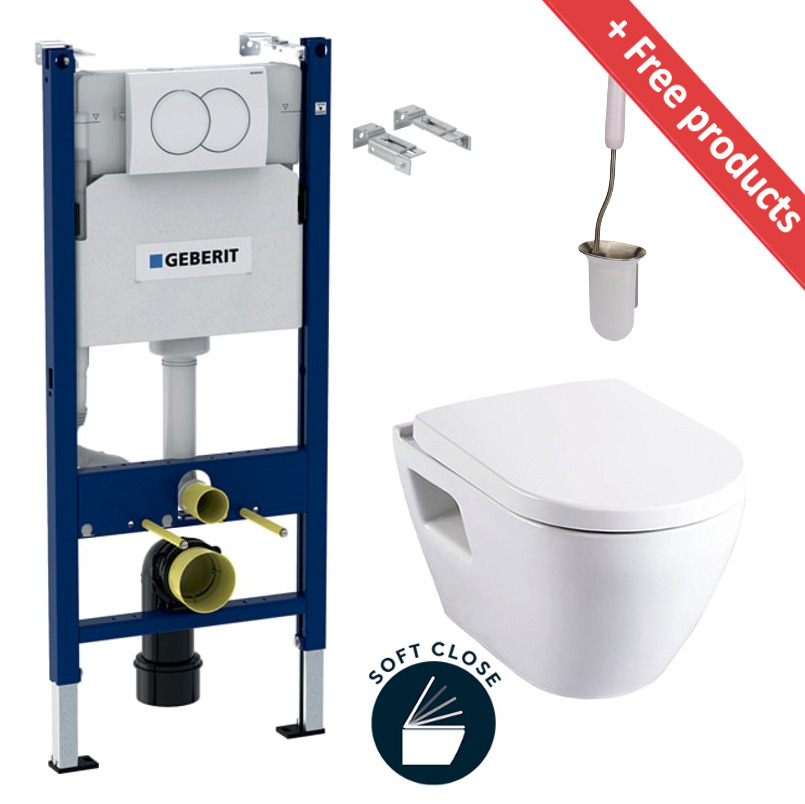

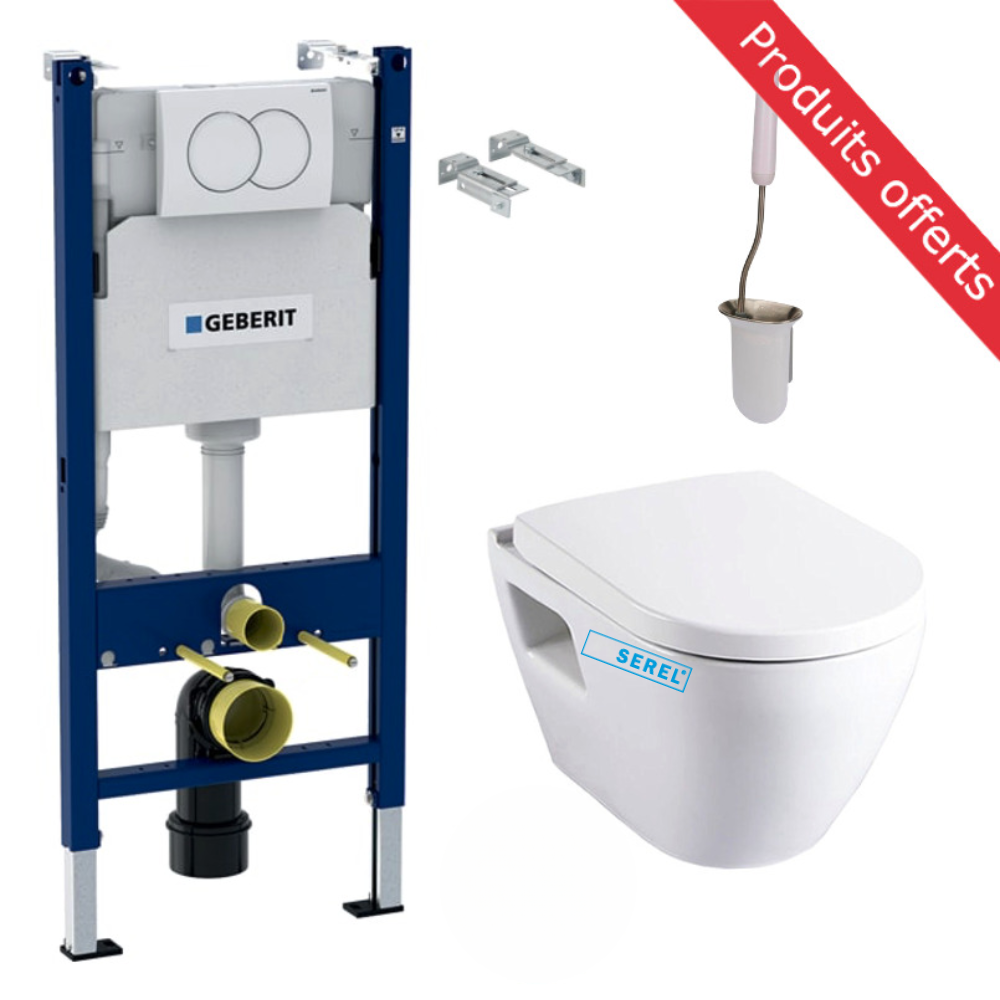

Features of the Toilet set Duofix frame + Serel SM10 wall-hung toilet + Softclose seat + White flush plate + FREE toilet brush (SM10Geb3-Flex2) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Serel bowl Solido compact + Softclose seat (SM10)
- Geberit Trigger plate DELTA20 white (115.107.11.1)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528)
.

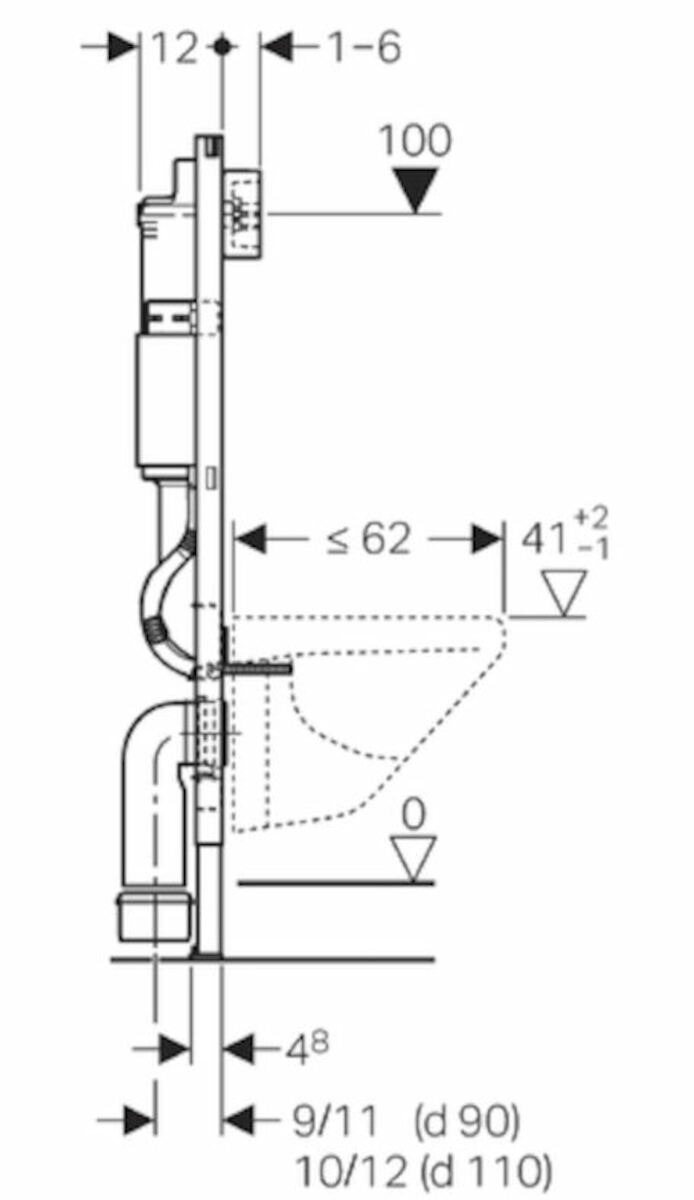

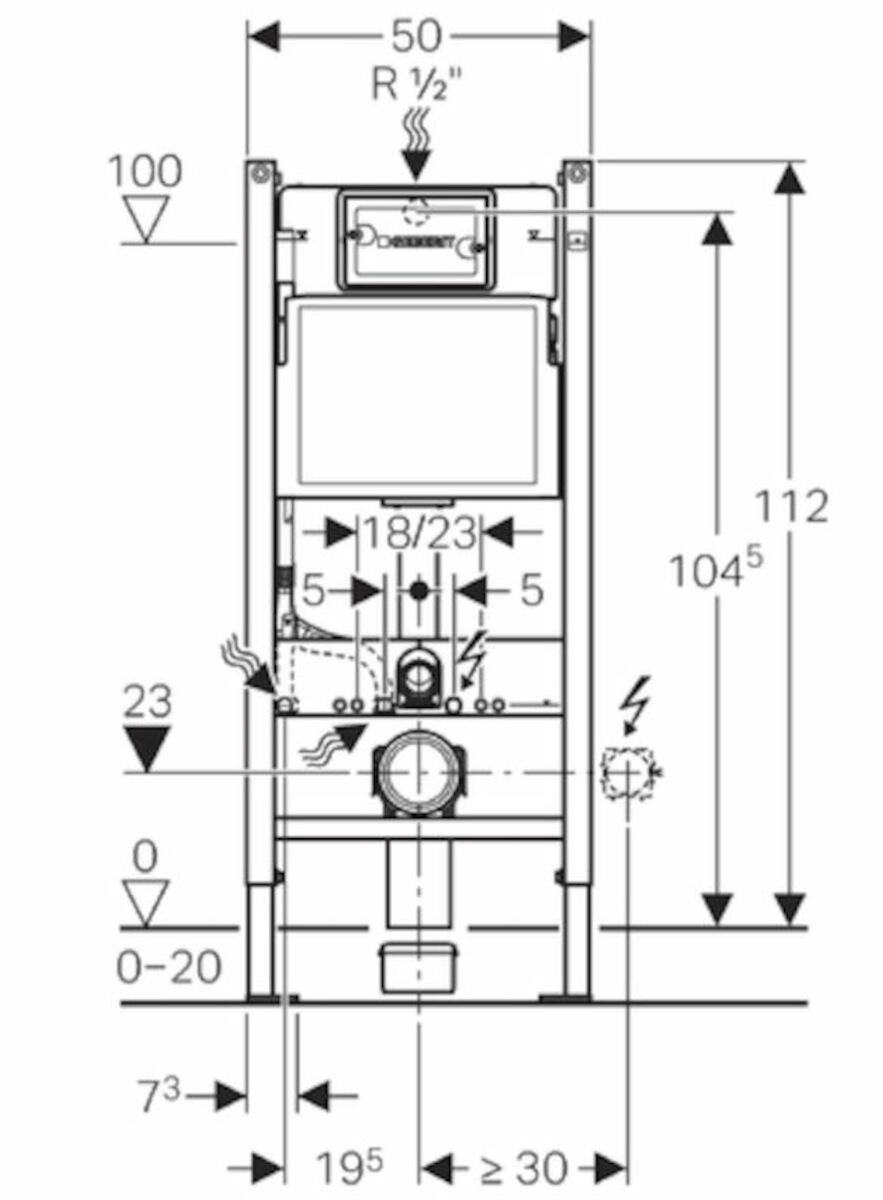

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.

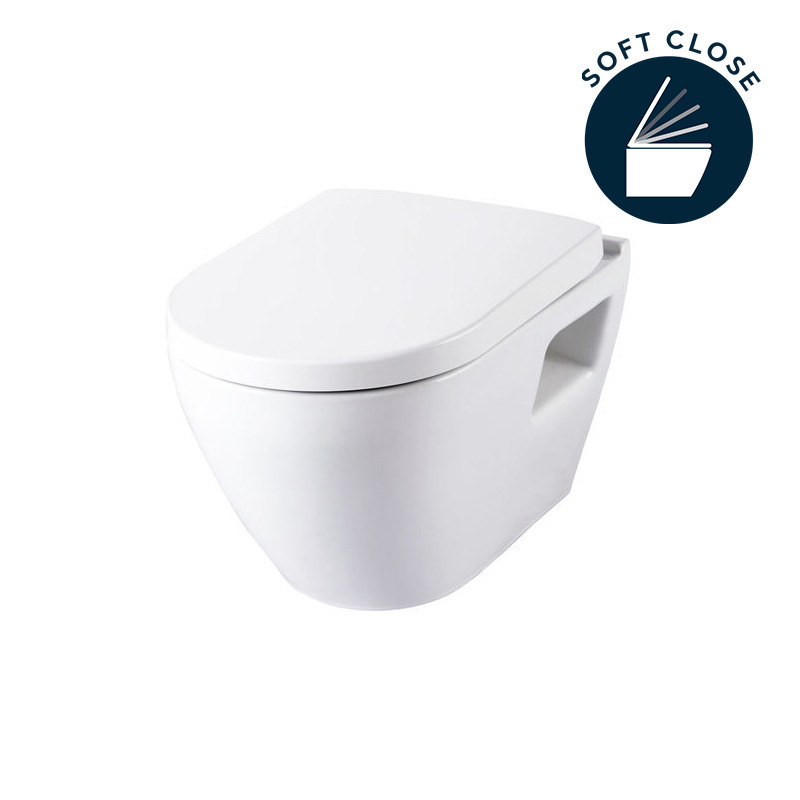

Serel bowl Solido compact + fall arrest seat (SM10) :
- Wall-hung toilet bowl with ceramic rimless SEREL Hygiene glazed white
- SEREL ABS toilet seat with fall protection

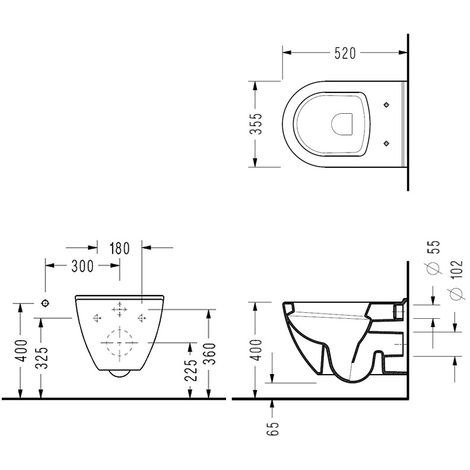

- Dimensions L52xW36xH33 (cm)
- CE mark
- Scratchproof
- Serel
- A bowl that combines style and comfort. Resolutely design and minimalist, it adapts to all bathrooms and toilets.
.
Geberit DuofixBasic pre-wall mounting set (111.839.00.1) :
- Material: Steel
- For fixing Geberit Duofix frames to partitions and load-bearing walls
- For Geberit Duofix frames with open top
- Adjustable depth
- Galvanised
.
Geberit Trigger plate DELTA20 white (115.107.11.1) :
- New from Geberit 2022
- Mechanical two-button front release
- Water saving
- For Delta tank
.

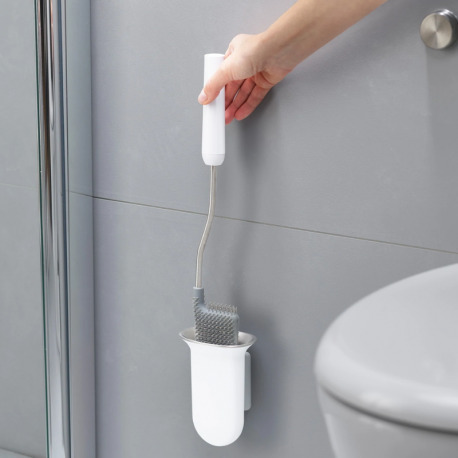

Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528) :
- Flexible, D-shaped head reaches all areas, even under the rim
- Anti-drip : less dripping between cleaning and storing
- Anti-clog: wide bristle spacing ensures dirt rinses off easily
- Space-saving wall-mounted holder with screws and fixings included
- Stainless-steel shaft and holder trim
- Brush & holder - clean with bleach or hot soapy water (if using bleach, rinse thoroughly and avoid prolonged contact with stainless-steel parts)
- Do not submerge holder in water
- Find the full instruction booklet here
- H43.5 x W10 x D8cm (H17¼ x W4 x D3¼ inches)
.
