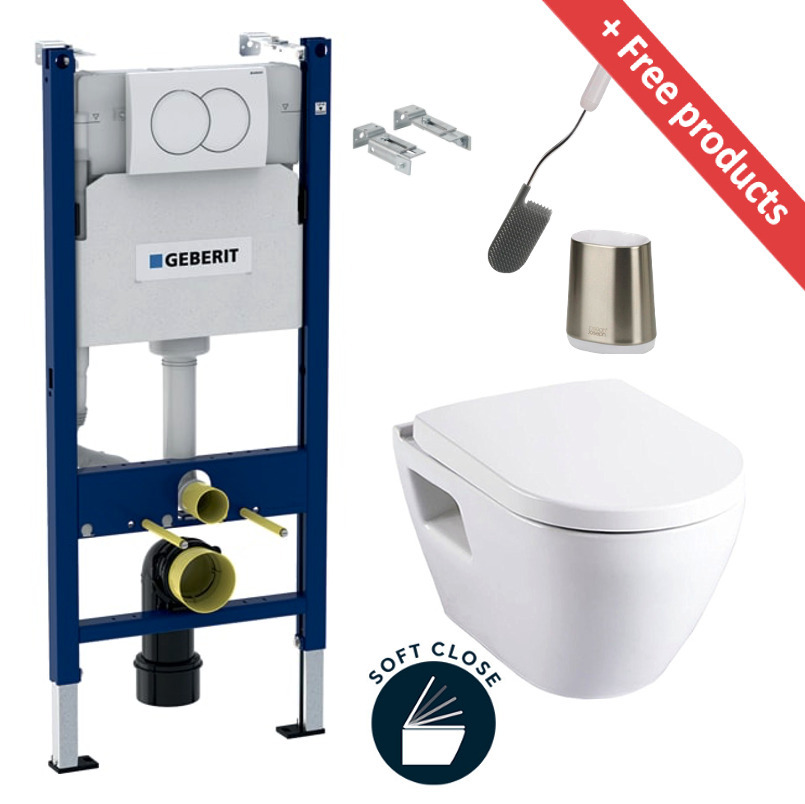

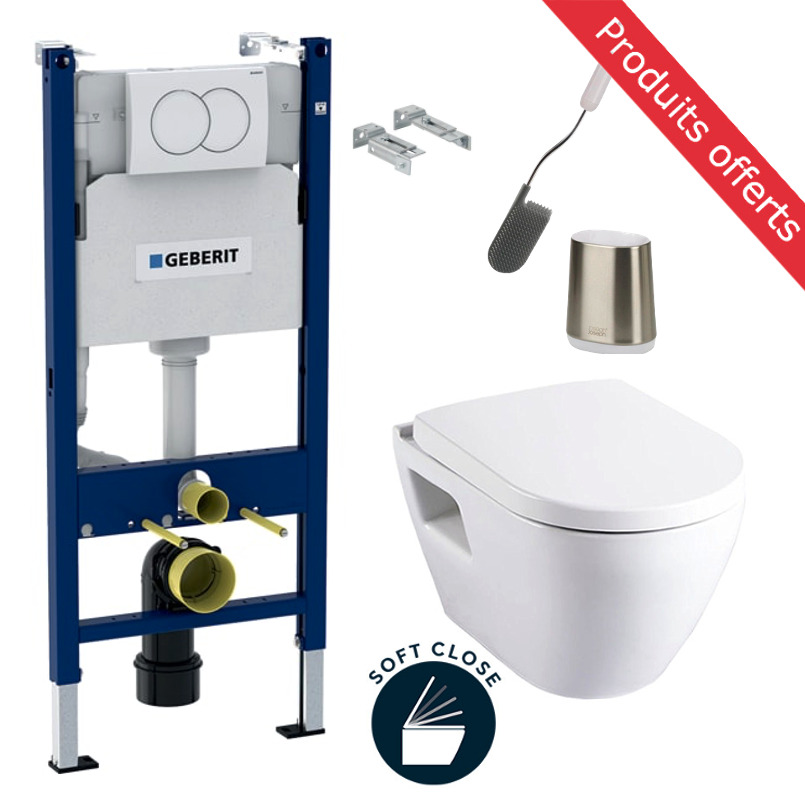

Geberit Duofix Frame + Serel SM10 wall-hung bowl + Softclose seat + White plate + FREE toilet brush (SM10Geb3-Flex1)
- Product reference: SM10Geb3-Flex1
- EAN: 0734077001041
- Line:
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Colour:White
- Toilet bowl brand:Serel
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No
Features of the Toilet set Duofix frame + Serel SM10 wall-hung toilet + Softclose seat + White flush plate + FREE grey toilet brush ( SM10Geb3-Flex1 ) :
- Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.2)
- Joseph Joseph Flex™ Lite Steel Anti-drip toilet brush with compact stainless steel anti-fingerprint holder, Grey (70561)
- Serel bowl Solido compact + fall arrest seat (SM10)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
.
Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1) :

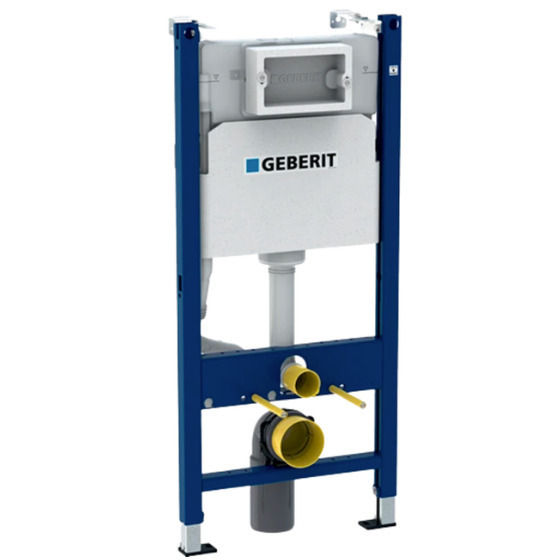

- Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1)
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

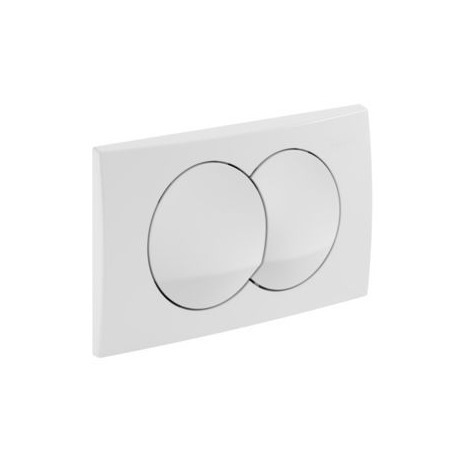

- Geberit Trigger plate DELTA20 white (115.107.11.1)
.
Features of the pack :
.

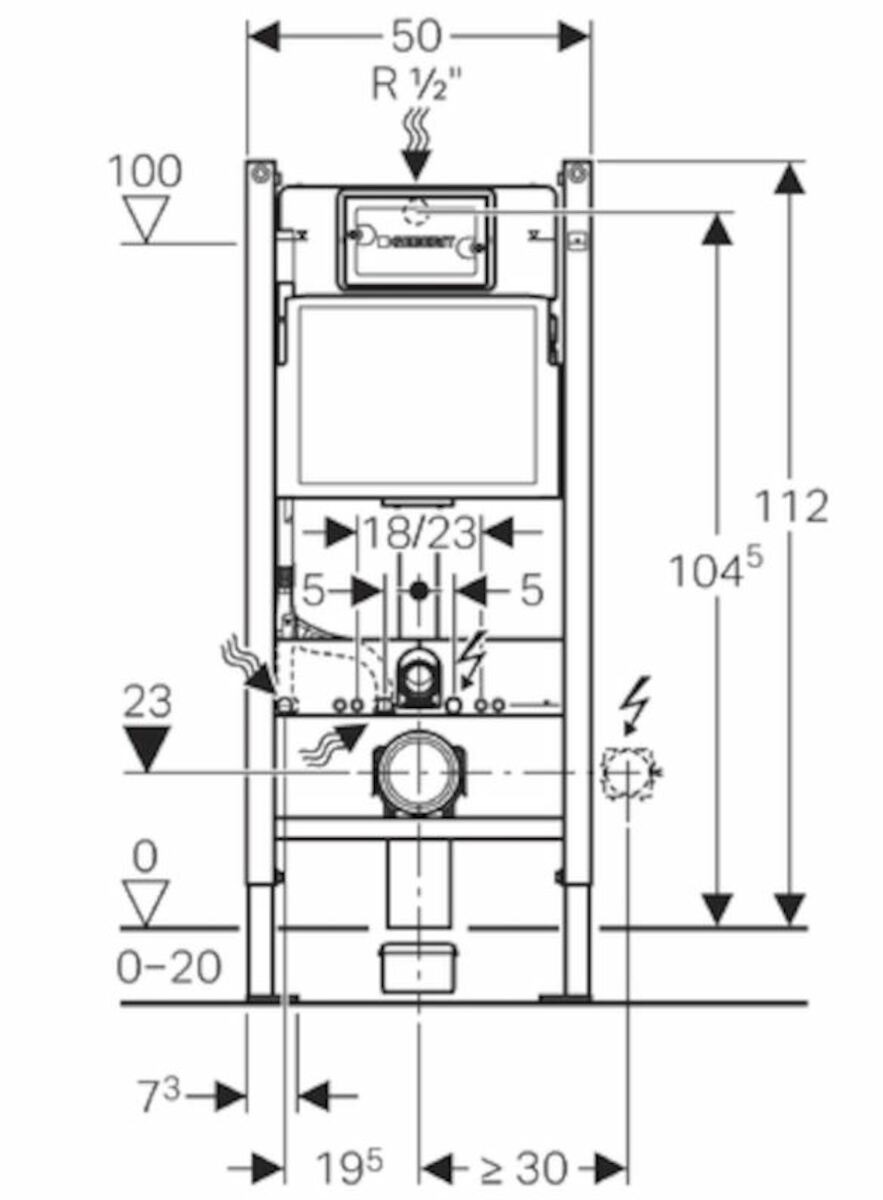

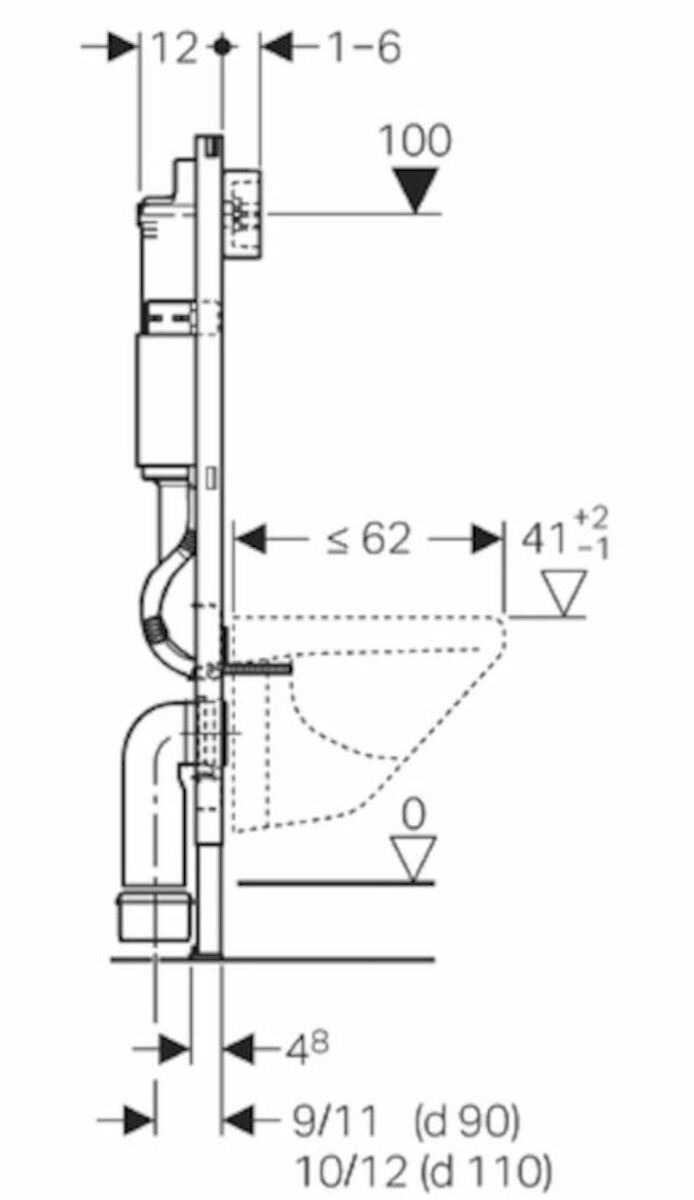

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
.
Geberit Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation
.

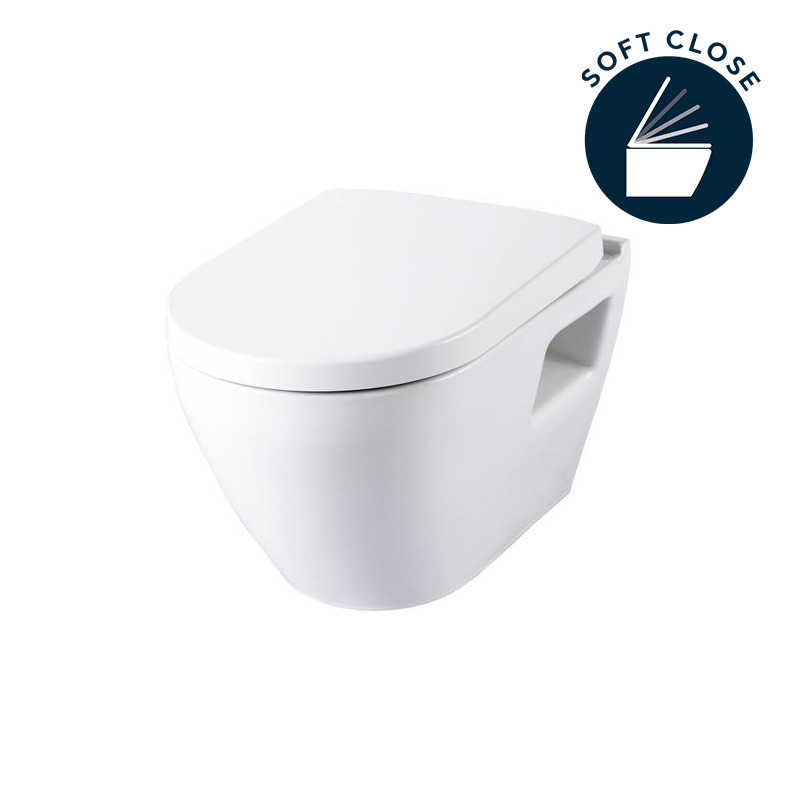

Serel Serel bowl Solido compact + fall arrest seat (SM10) :
- Wall-hung toilet bowl with ceramic flange SEREL Hygiene glazed white
- SEREL ABS toilet seat with fall protection

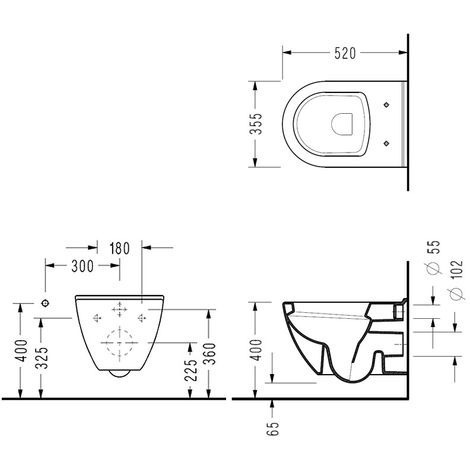

- Dimensions L52xW36xH33 (cm)
- CE mark
- Scratchproof
- Serel
- A bowl that combines style and comfort. Resolutely design and minimalist, it adapts to all bathrooms and toilets.
.
Geberit DuofixBasic pre-wall mounting set (111.839.00.1) :
- Material: Steel
- For fixing Geberit Duofix frames to partitions and load-bearing walls
- For Geberit Duofix frames with open top
- Adjustable depth
- Galvanised
.

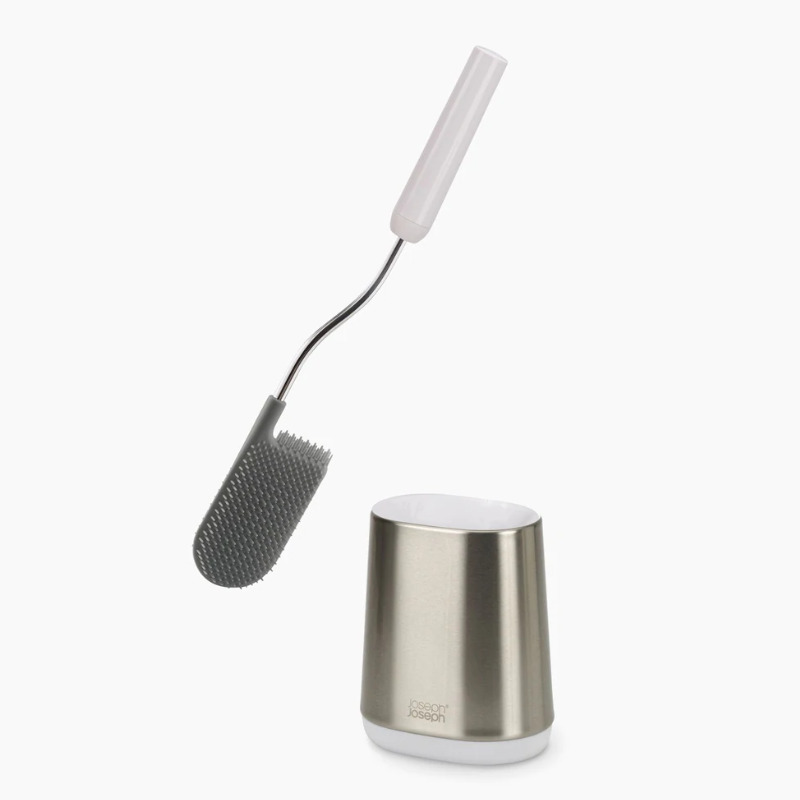

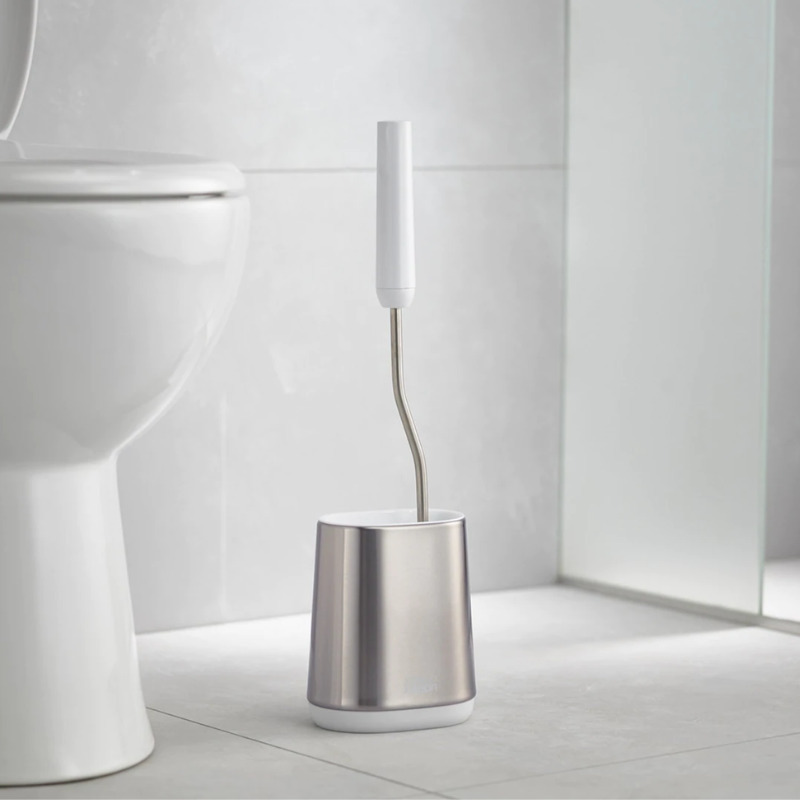

Joseph Joseph Flex™ Lite Steel Anti-drip toilet brush with compact stainless steel anti-fingerprint holder, Grey (70561) :
- Flexible, D-shaped head reaches all areas, even under the rim
- Anti-drip - less dripping between cleaning and storing
- Anti-clog design - wide bristle spacing ensures dirt rinses off easily
- Durable bristles
- Slimline holder with a stainless-steel finish
- Holder - wipe clean with a damp cloth
- Do not use abrasive cloths or strong chemical cleaners on stainless-steel parts
- Brush - clean with bleach or hot soapy water (if using bleach, avoid prolonged contact with stainless-steel shaft)
- H42.5 x W12.5 x D8.9 cm (H16¾ x W5 x D3½ inches)
.
