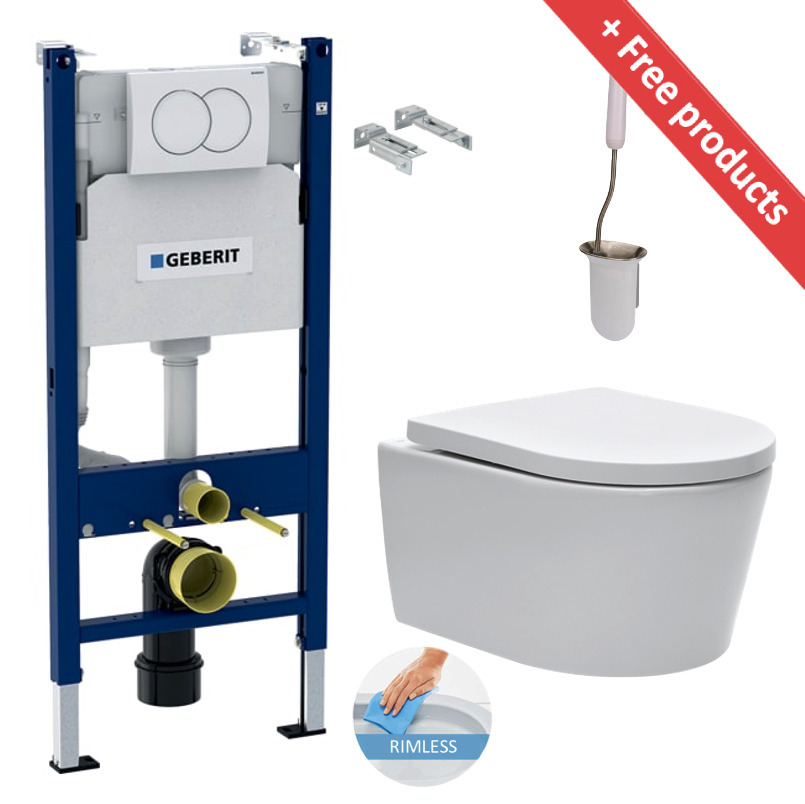

Geberit Duofix Frame + SAT Rimless Bowl + Softclose seat + White plate + FREE toilet brush (SATrimlessGeb3-Flex2)
- Product reference: SATrimlessGeb3-Flex2
- EAN: 0734077001034
- Line:
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Colour:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:Yes

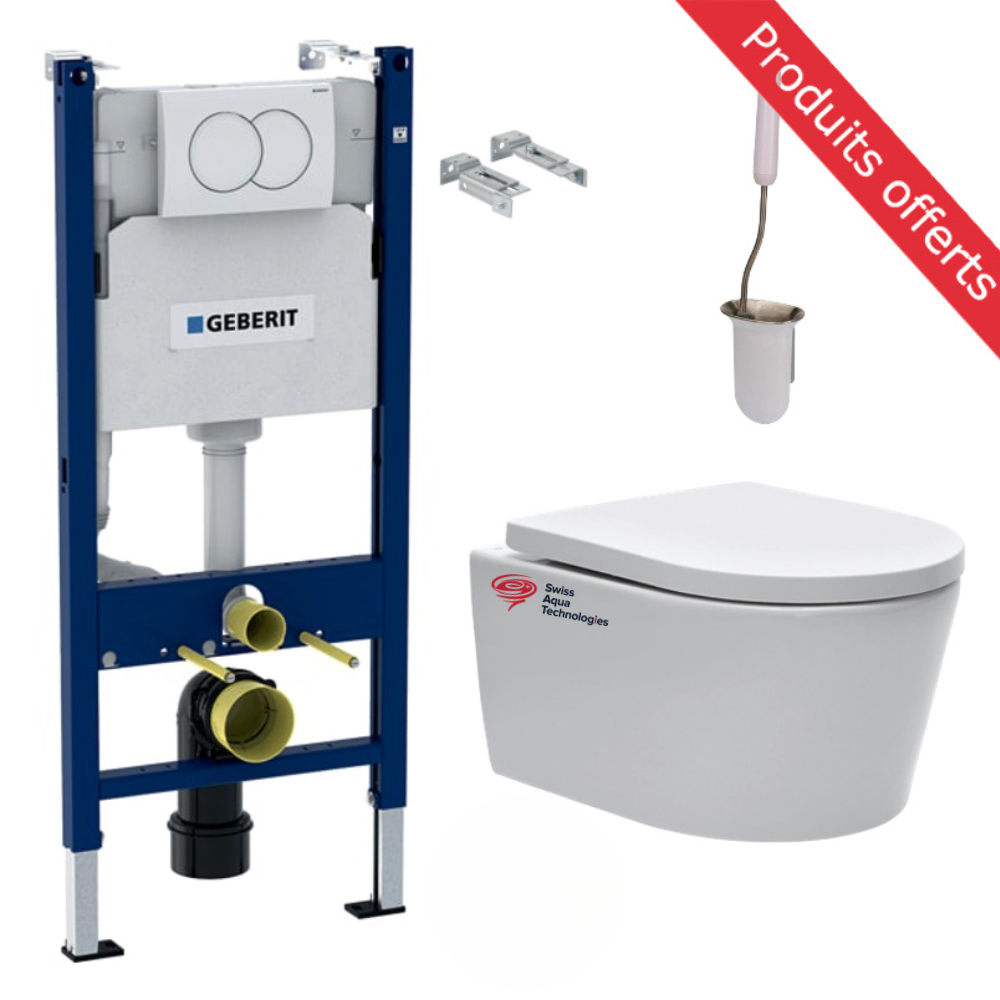

Features of the Duofix support frame set + SAT rimless+ Softclose seat + White flush plate + FREE toilet brush (SATrimlessGeb3-Flex2) :

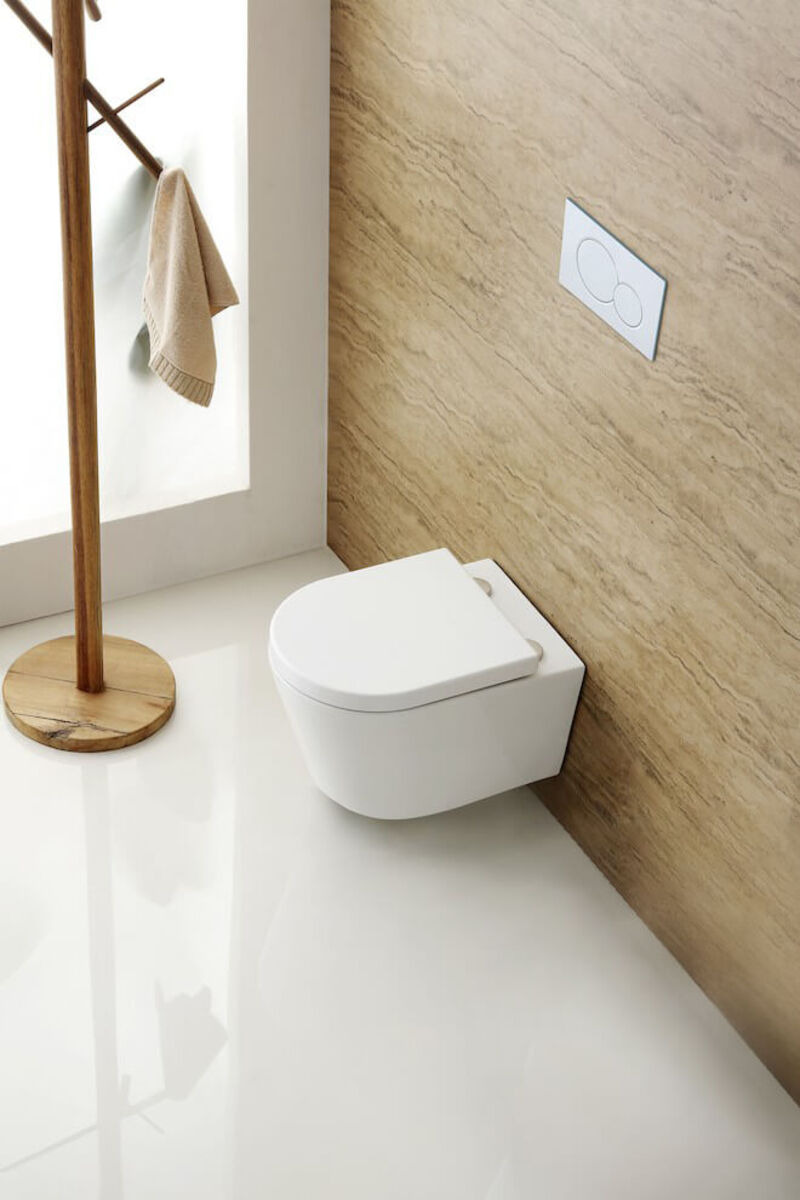

- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1)
- Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528)
.

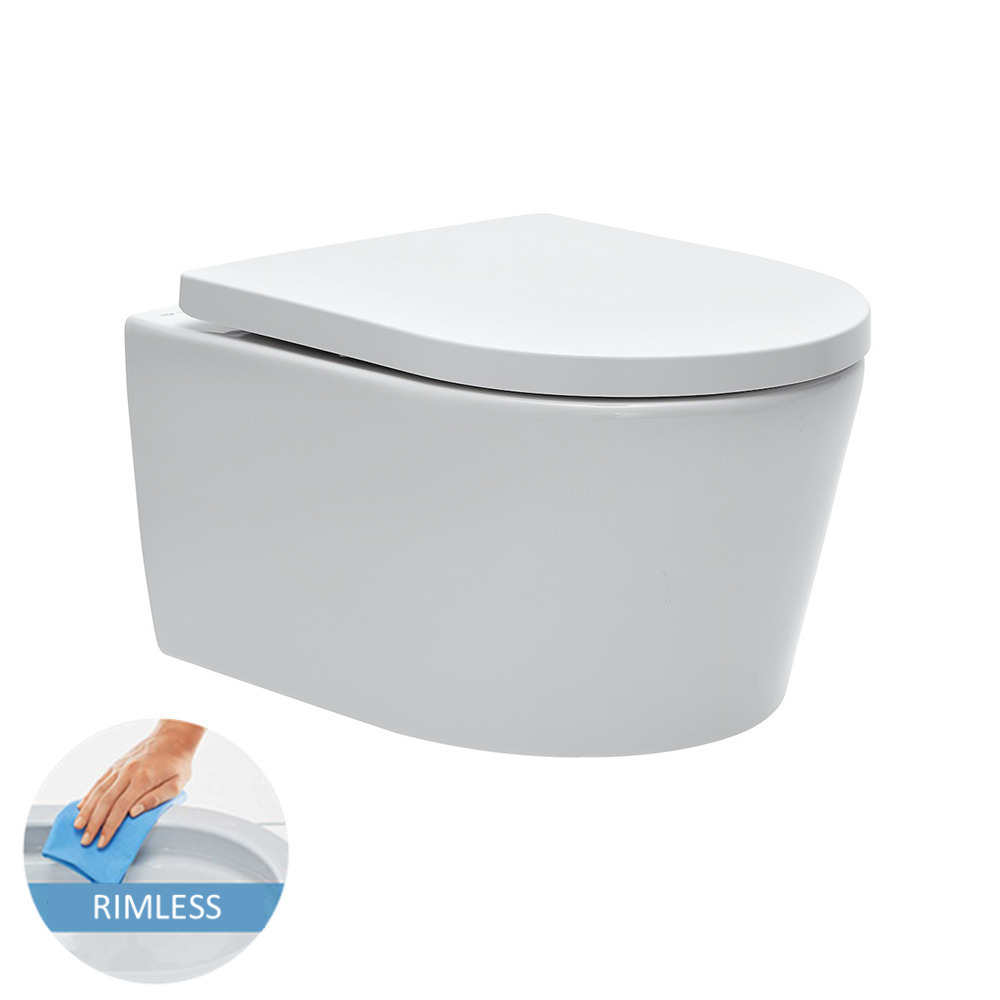

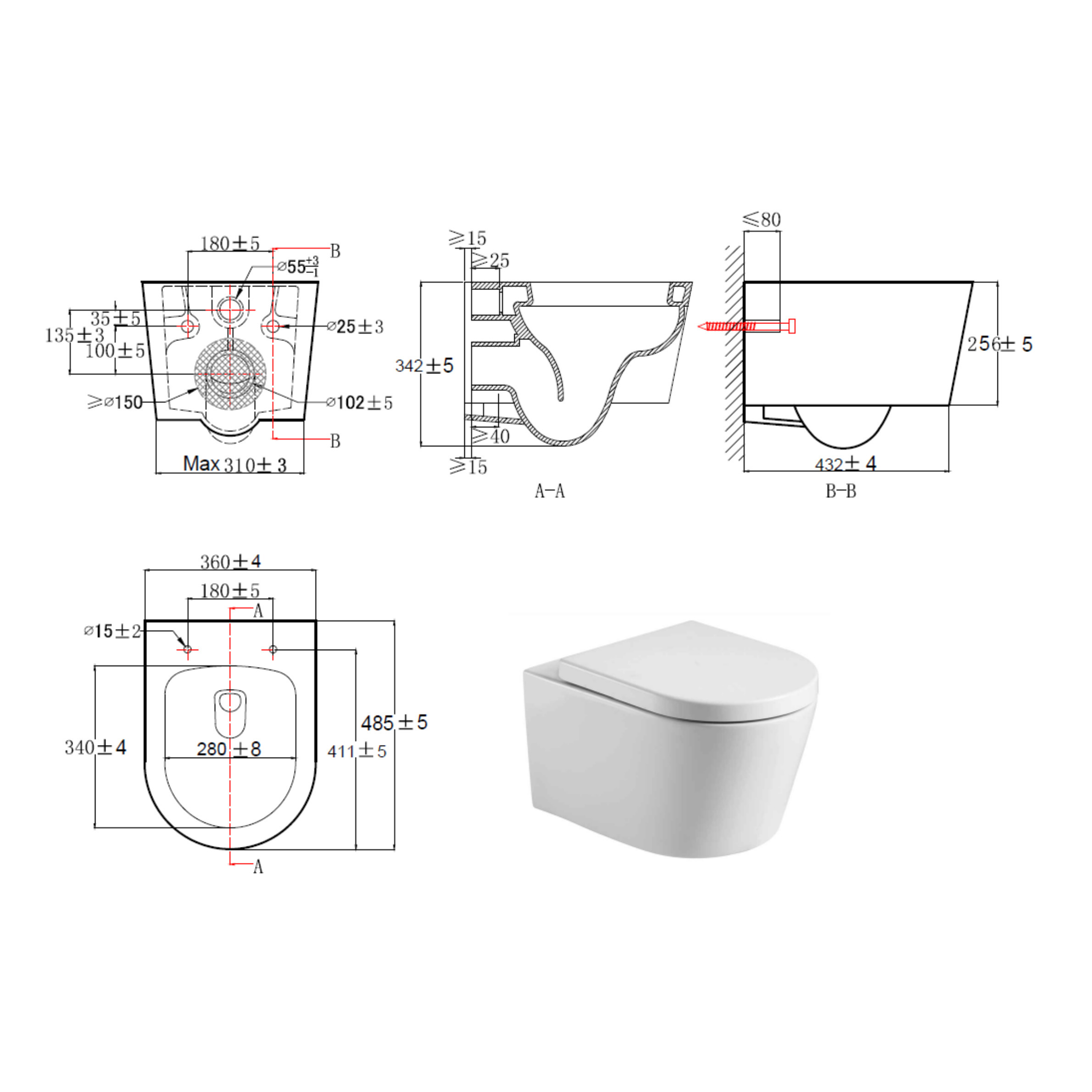

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L

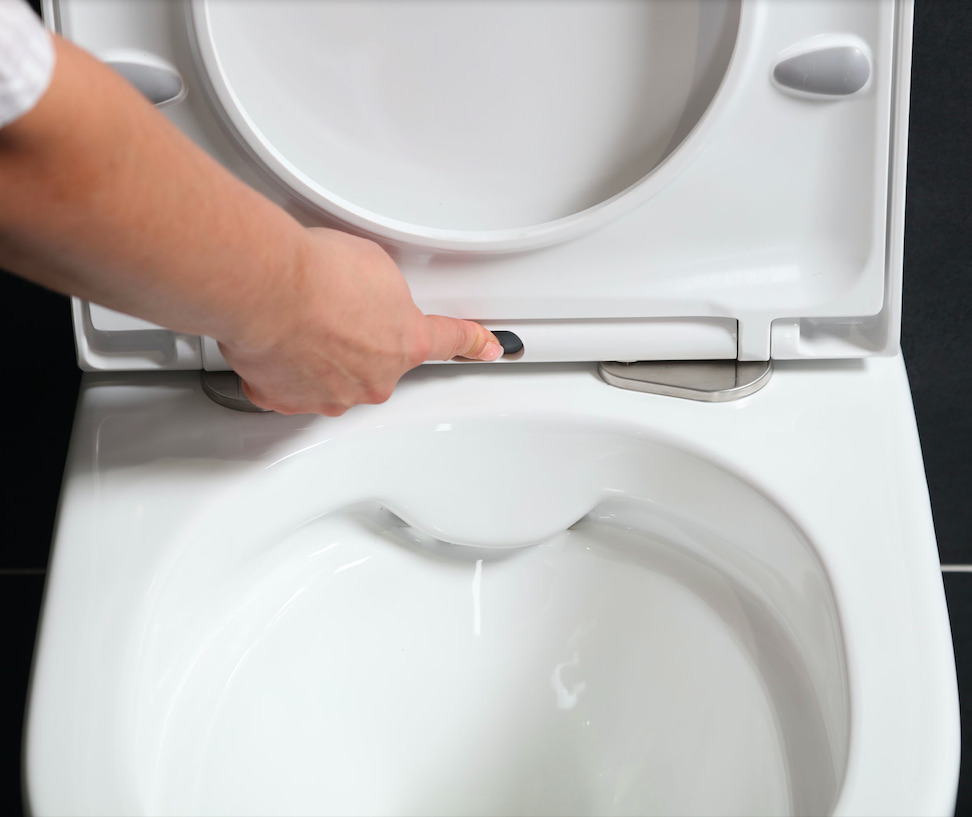

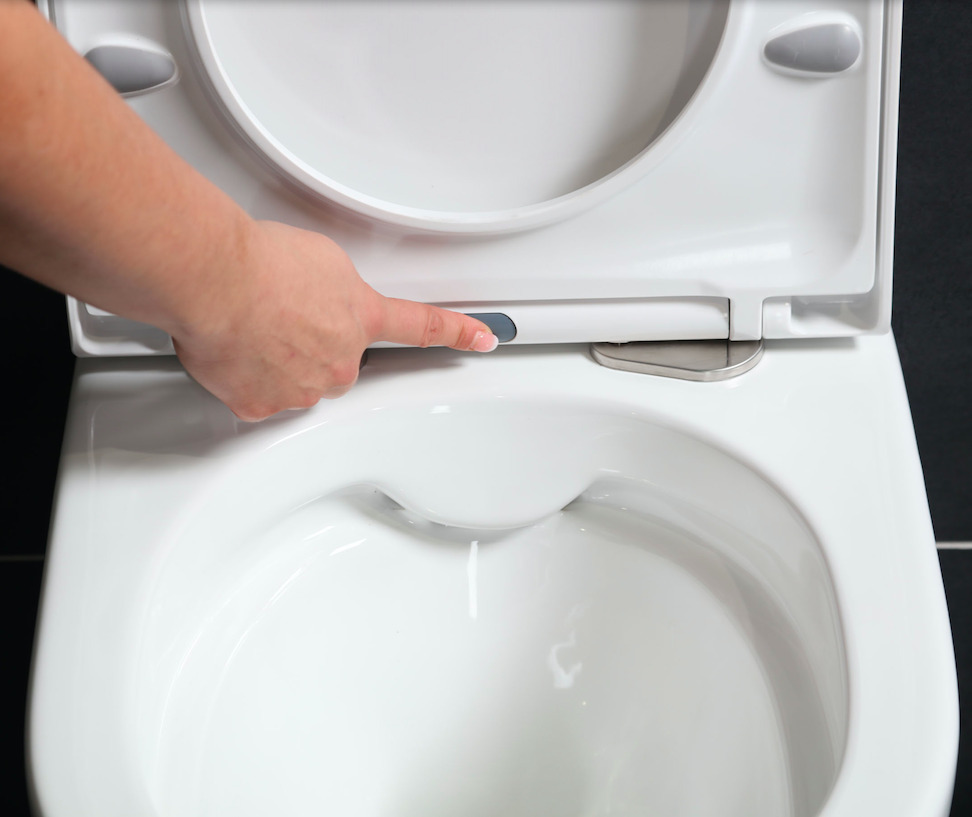

- Toilet seat with fall brake

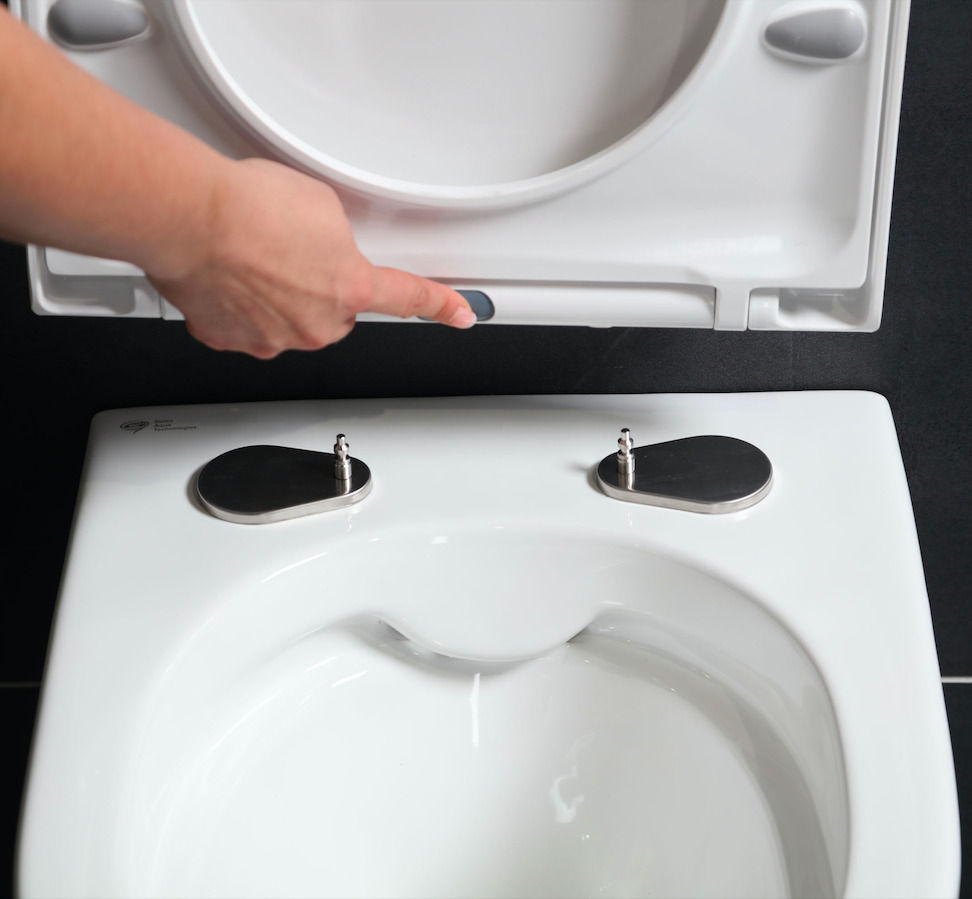

- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup
Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1) :
- Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1)
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
- Geberit Trigger plate DELTA20 white (115.100.11.1)
.
Features of the pack :

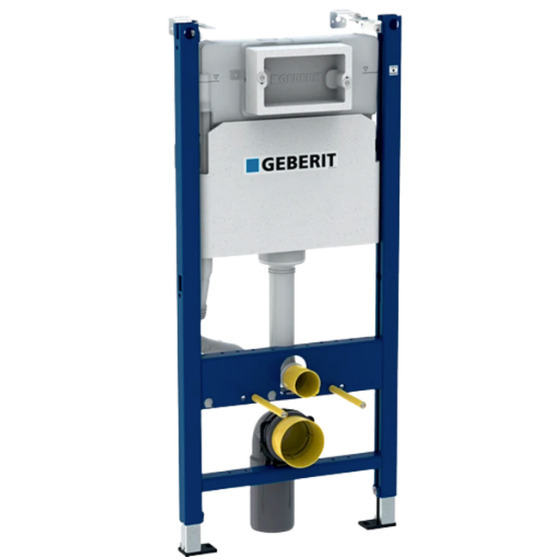

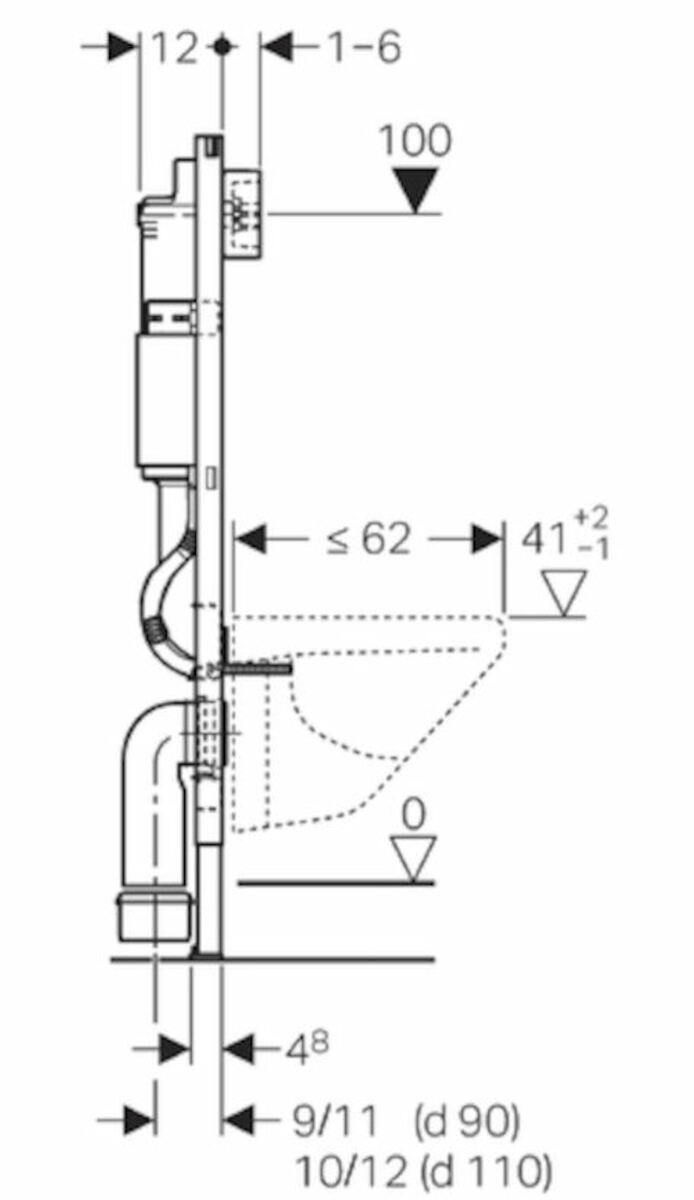

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

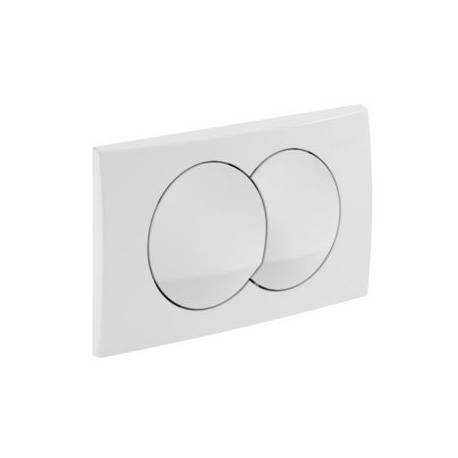

Geberit Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation

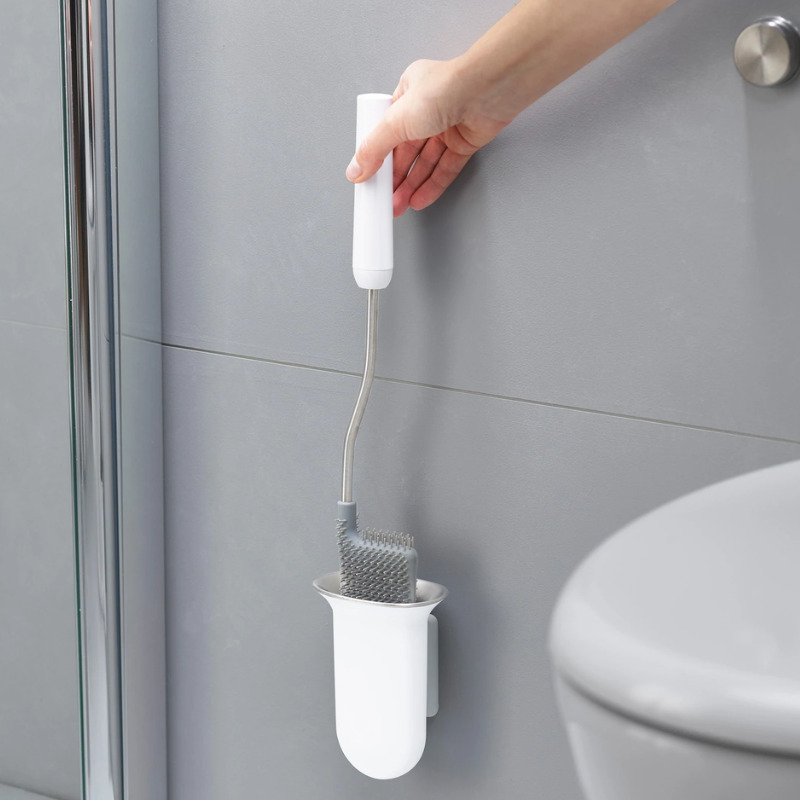

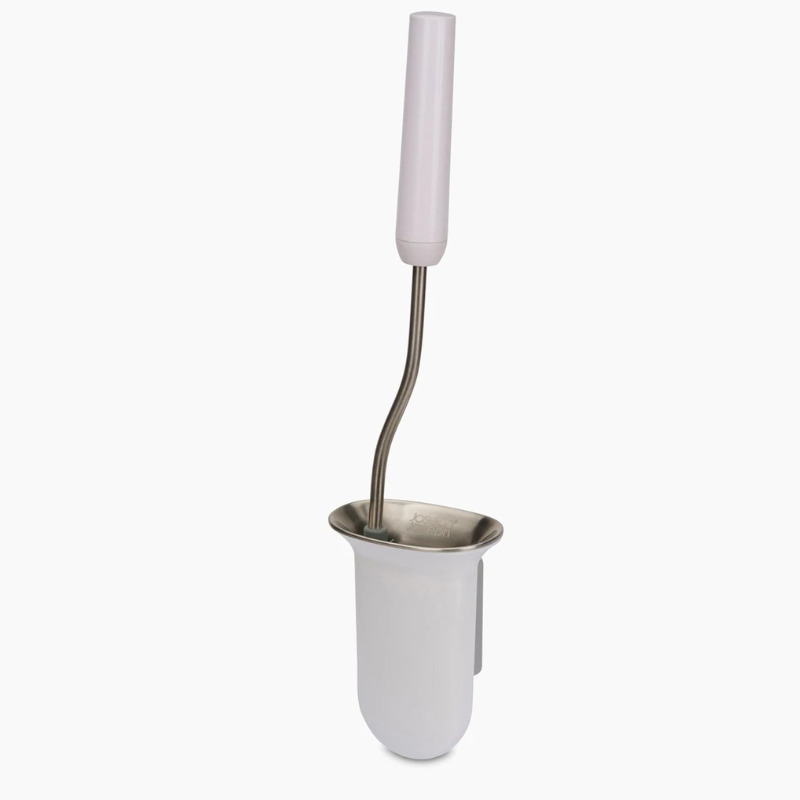

Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528)
- Flexible, D-shaped head reaches all areas, even under the rim
- Anti-drip: less dripping between cleaning and storing
- Anti-clog: wide bristle spacing ensures dirt rinses off easily
- Space-saving wall-mounted holder with screws and fixings included
- Stainless-steel shaft and holder trim
- Brush & holder - clean with bleach or hot soapy water (if using bleach, rinse thoroughly and avoid prolonged contact with stainless-steel parts)
- Do not submerge holder in water
- Find the full instruction booklet here
- H43.5 x W10 x D8cm (H17¼ x W4 x D3¼ inches)
