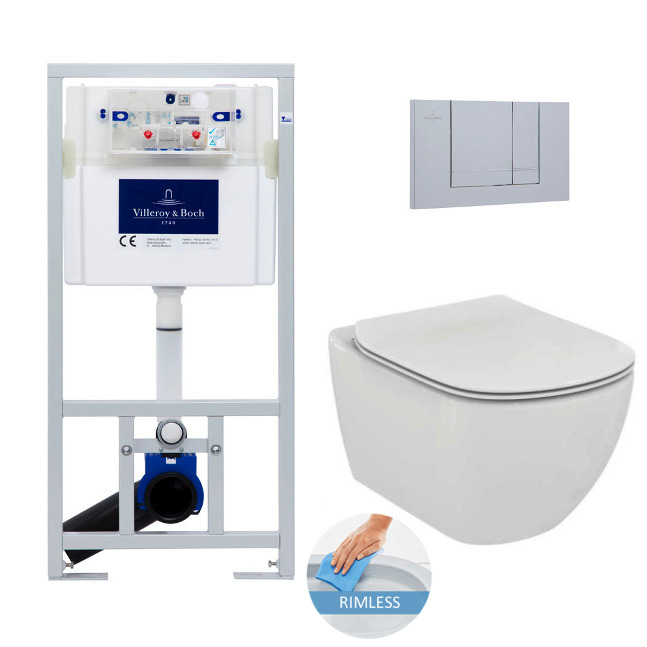

Villeroy & Boch WC Frame + Ideal Standard TESI AquaBlade Rimless WC + Matt chrome flush plate (ViConnectTesi-3)
- Product reference: ViConnectTesi-3
- EAN: 0750122359707
Brand:
Product warranty:
2 years
Not available
You may also interested in these articles
Product technical properties
- Colour:White
- Material:Porcelain
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Villeroy & Boch
- Type of frame:Standard
- Plate colour:Matt Chrome
- Constructor warranty:2 years
- Weight:35.00
- Depth:66
- Bowl colour:White
- Invisible fixings:Yes
- Product type:Toilet pack
Features of the Toilet set Frame + Ideal Standard TESI AquaBlade rimless WC , invisible fixings + Matt chrome flush plate (ViConnectTesi-3) :
- Villeroy & Boch Viconnect Pro Suspended Toilet Frame + Two-touch plate matt chrome (92214469)
- Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
Villeroy & Boch Viconnect Pro Suspended Toilet Frame + Two-touch plate matt chrome (92214469)
- Villeroy & Boch ViConnect Pro wall-hung toilet frame (92214200)
- Villeroy & Boch Viconnect Pro two-touch matt chrome trigger plate (92214369)

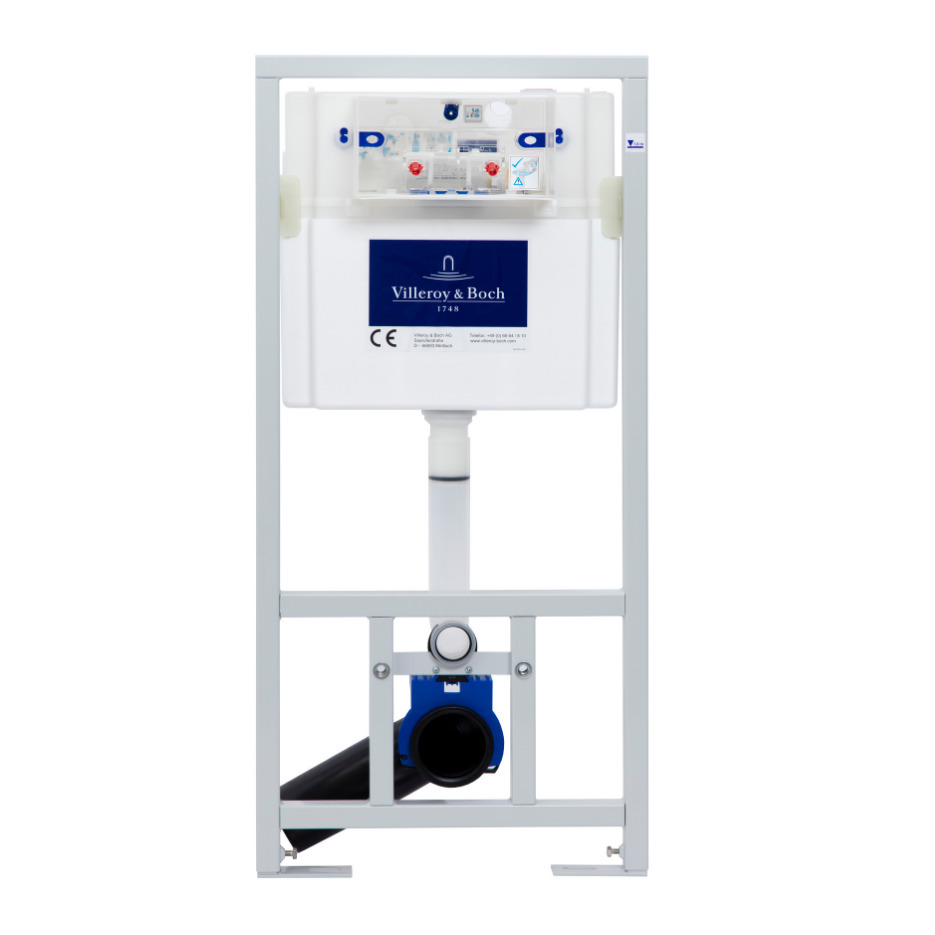

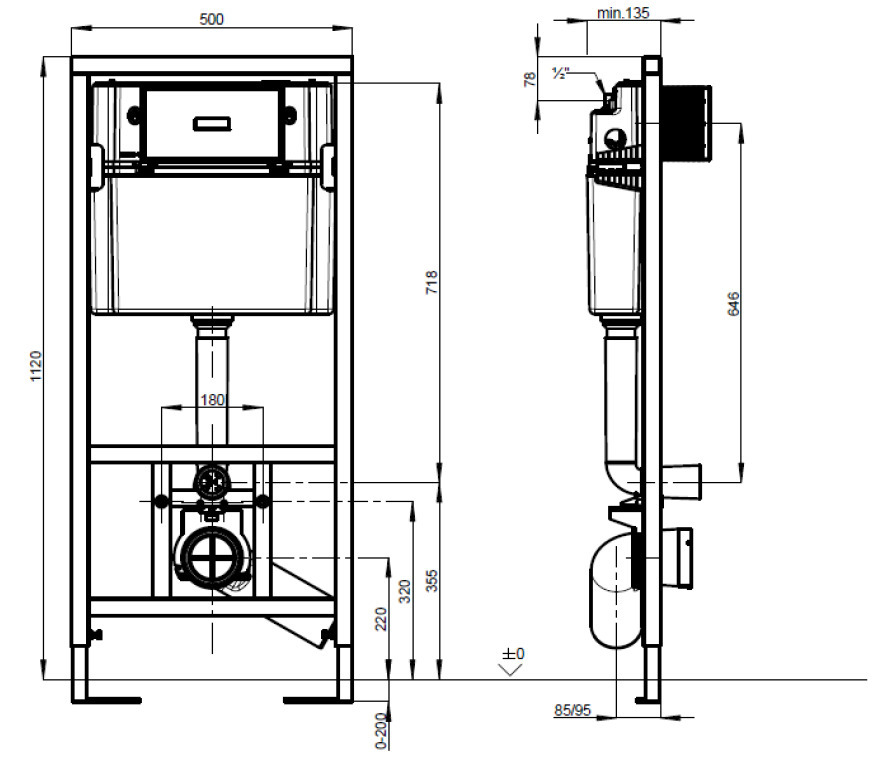

Features of Villeroy & Boch ViConnect Pro Suspended Toilet Frame (92214200) :
- For drywall construction
- To be built on a load-bearing wall
- Leg adjustment range: 0-200mm
- Adjustment range in front of wall: 135-205mm (when mounted on wall brackets)
- 4-point fixing with wall brackets
- Includes support legs and fixing materials for front, side and corner installation
- With protective cap for the flush pipe
- Toilet retaining bolts adjustable to 180 mm with protective caps and nuts
- Installation instructions
- Can be combined with wall-hung toilets
- Can be combined with Aquareduct ceramic (LEED points: 4)
- Completely pre-assembled
- Concealed cistern with condensation protection and 3/6 litre dual flush
- Adjustable to 3/4.5l, maximum flush quantity 7.5l
- Concealed cistern: Noise class I

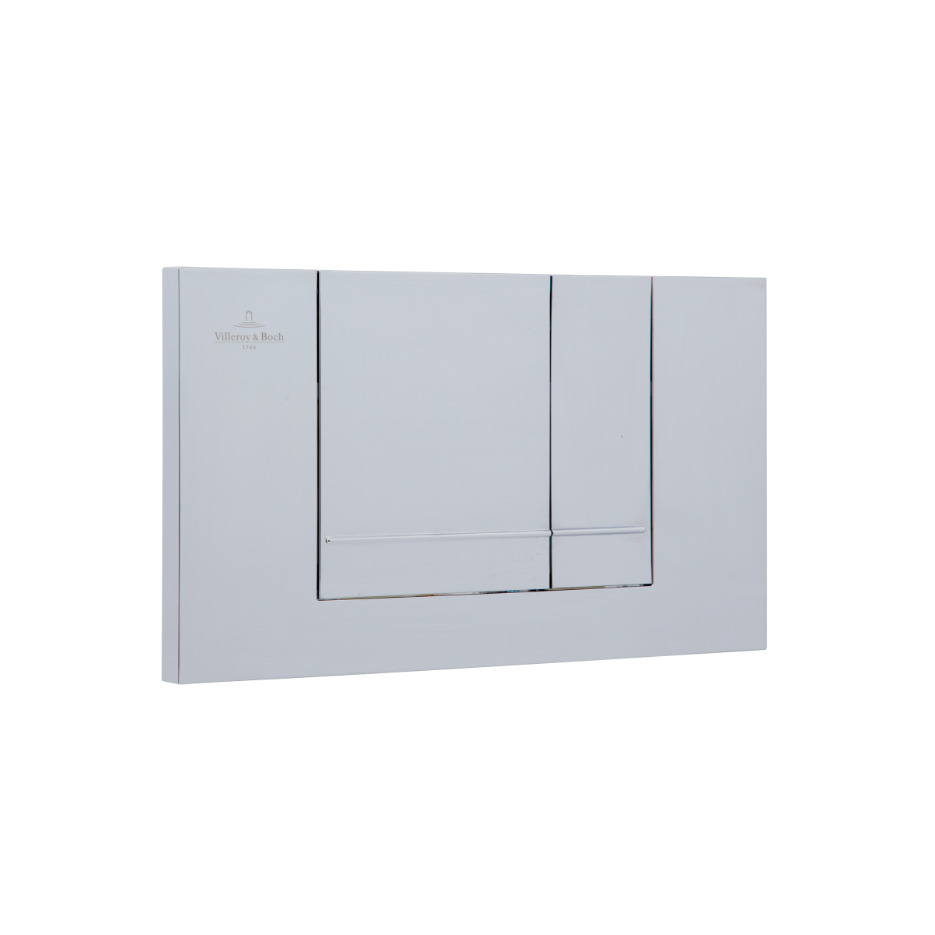

Features of Villeroy & Boch Viconnect Pro Two-touch trigger plate matt chrome (92214369) :

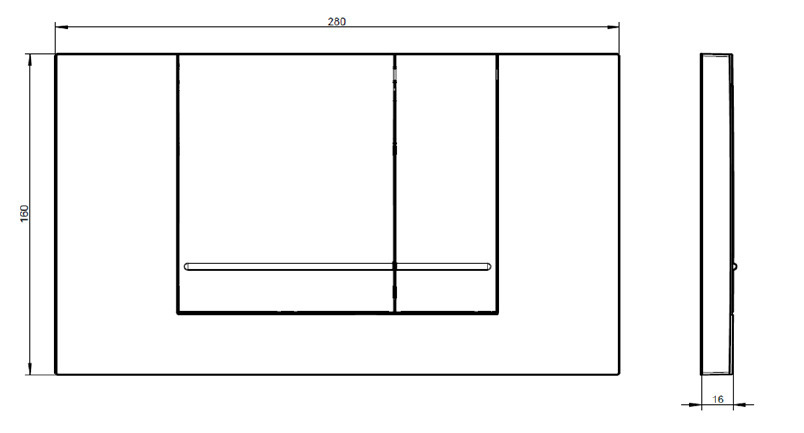

- Dimensions: 280 x 160 x 16 mm
- Water saving dual flush technology
- Made from high quality materials
- Can be combined with Aquareduct toilets

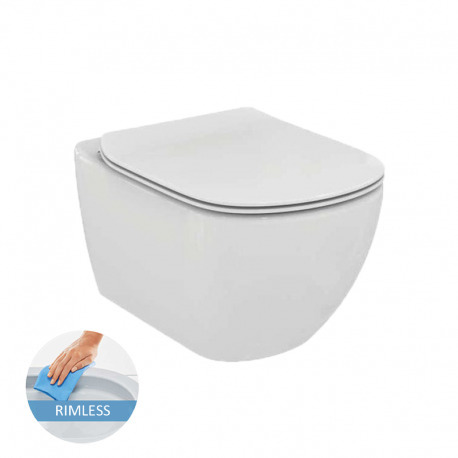

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
- Rimless porcelain sanitary ware toilet bowl (T007901)

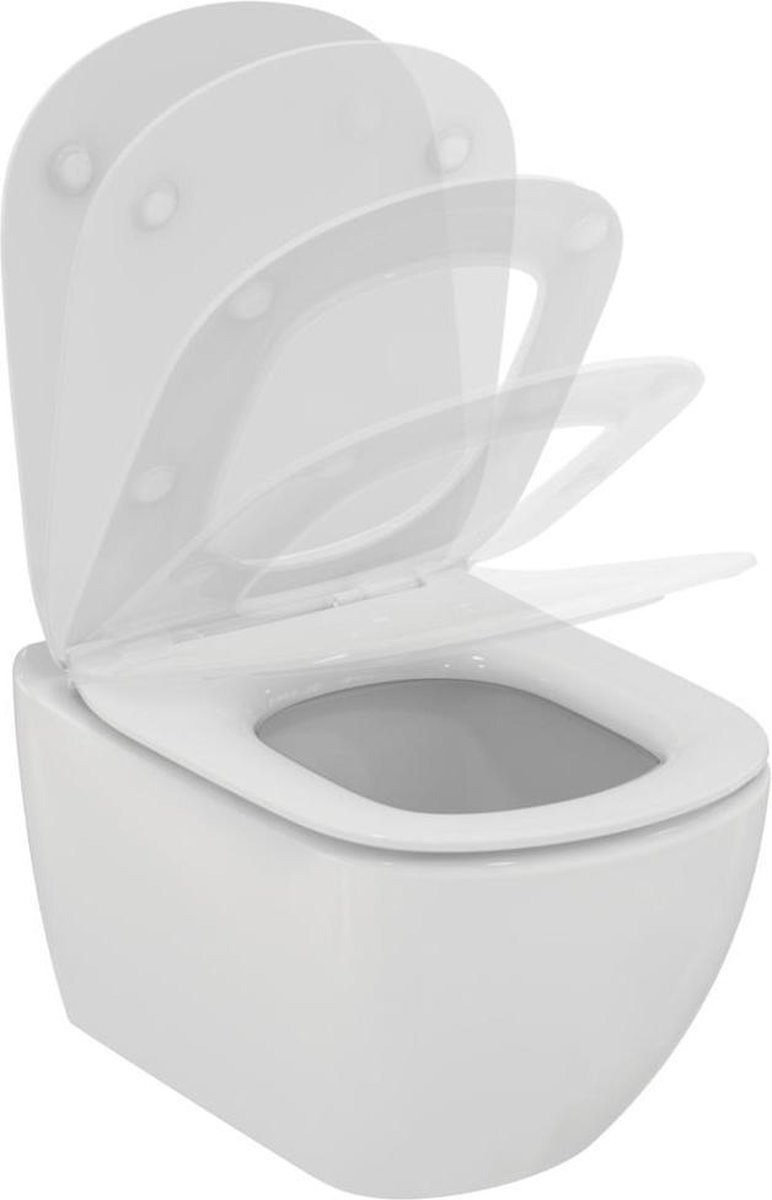

- Toilet seat with soft close system (T352701)
Features:

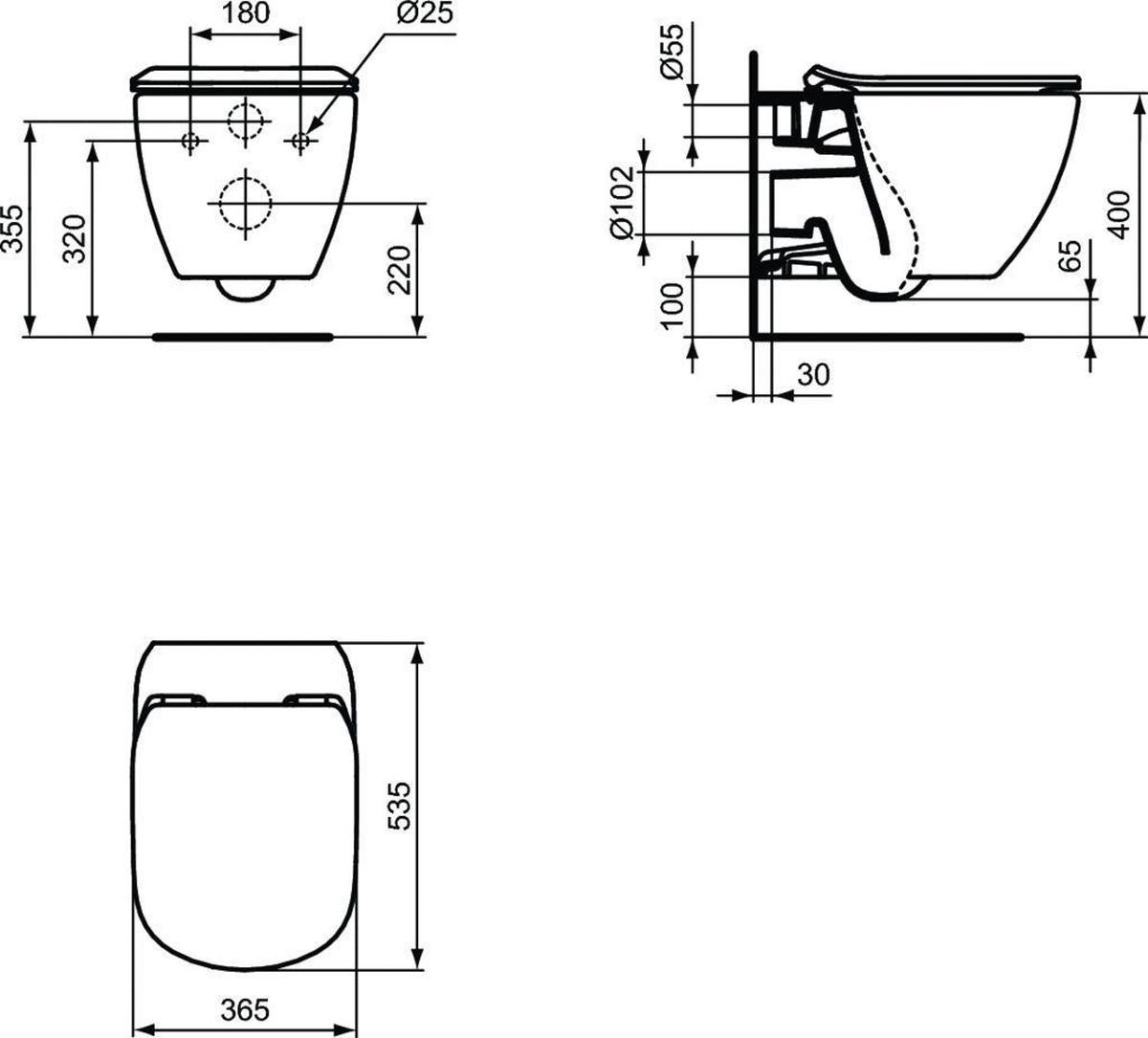

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning
- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33
