Alca Toilet set 85cm+ Tesi AquaBlade rimless bowl + Chrome flush plate (alca85Tesi-8)
- Product reference: alca85Tesi-8
- EAN: 0034966357724
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Alca
- Type of frame:Standard
- Plate colour:Chrome
- Bowl colour:White
- Invisible fixings:Yes

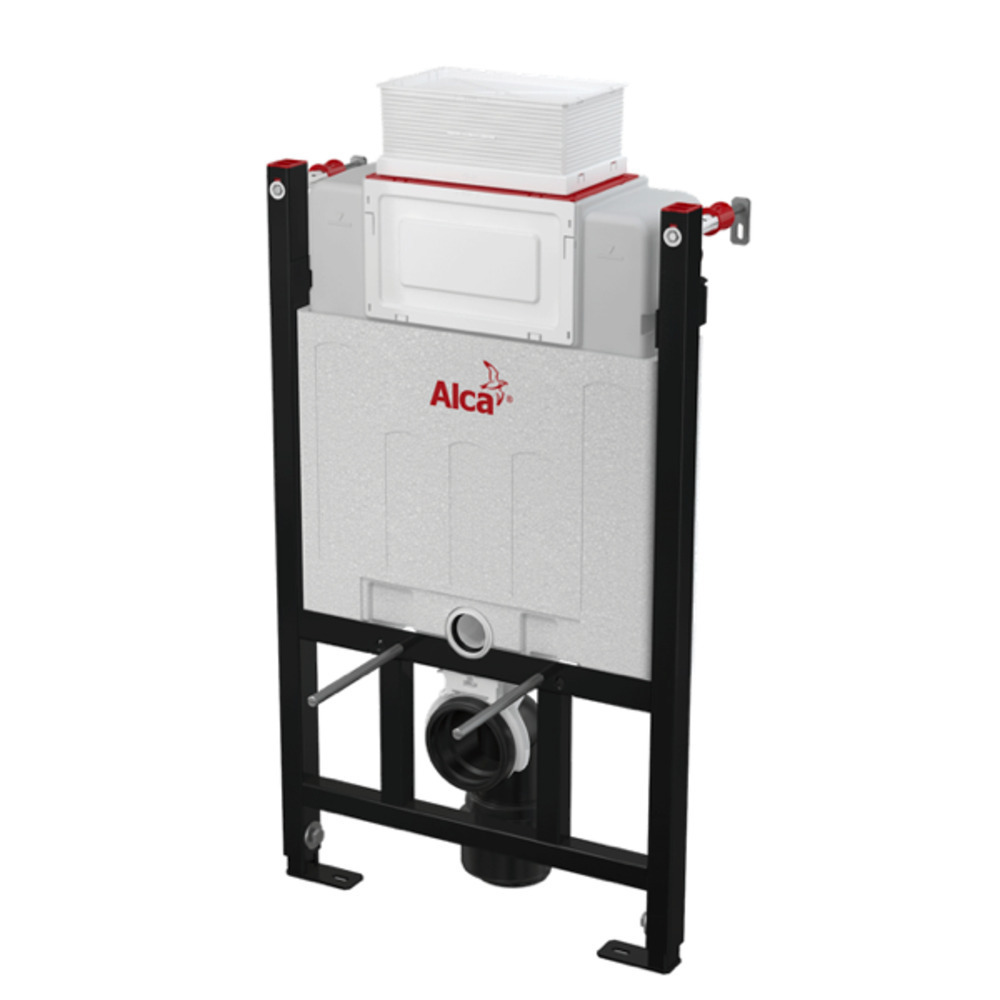

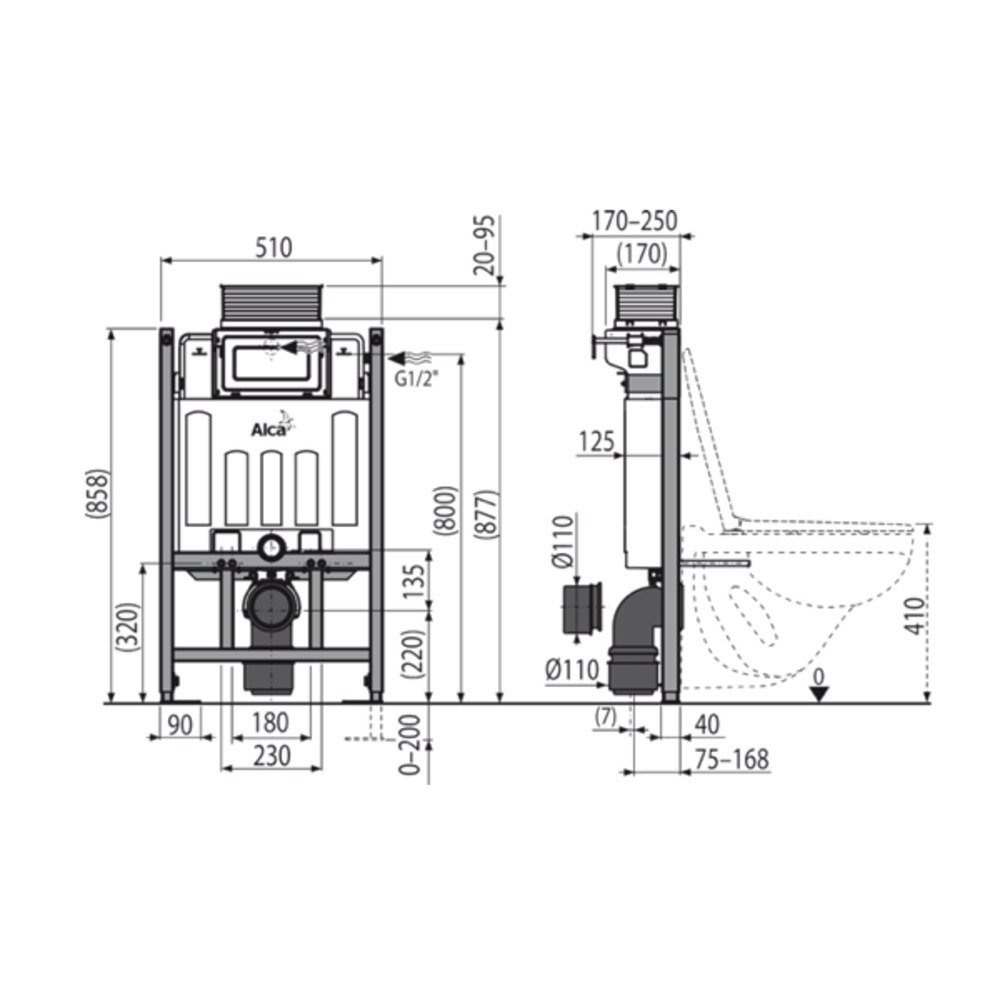

Alca 85CM support frame for wall-hung toilets (AM118/850) :
- For wall-hung WC
- For mounting in front of a support wall or in to a plasterboard construction
- For floor thickness 0–200 mm
- For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm
- The flush plate can be placed in front of or above the support frame.
Features :
- Adjustable anchor feet and a spring-lock system, with a range of 0–200 mm
- Sliding rail holder for the waste connector can be set to eight positions between 0–93 mm
- Angle valve with the ability to connect to the Mepla piping system
- The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
- The installed module is covered with a plasterboard panel and there is no need for any additional fixing or anchoring elements
- The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
- Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats and sprays
- Dual flush independently adjustable with hygienic reserve
- Possibility of built-in remote flushing
- Compatible with all flush plates Alca except sensor flush plates and NIGHT LIGHT
- Pre-wall installation system with top or front actuation
- Maintenance work without using any tools
- Water supply from the rear/top
- The cistern is made of one piece, thus ensuring 100% impermeability
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- Installation depth adjustable from 20–95 mm
- Installation depth 170 mm
- Frame material: powder-coated metal

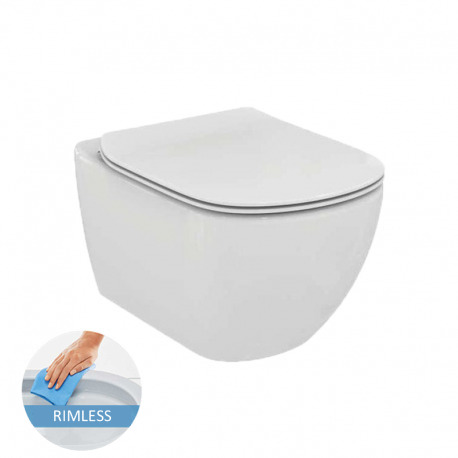

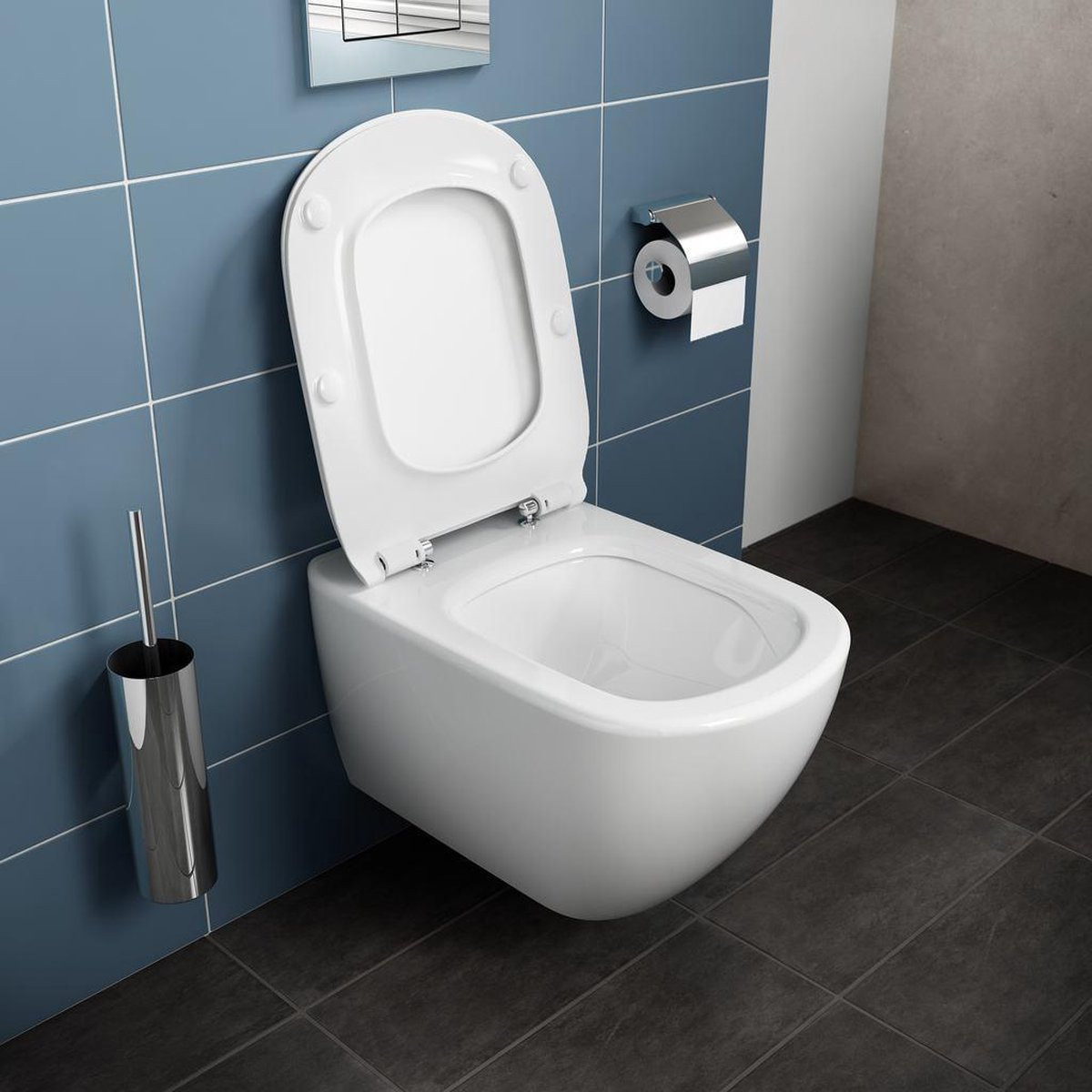

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601) :
- Rimless porcelain sanitary ware toilet bowl (T007901)

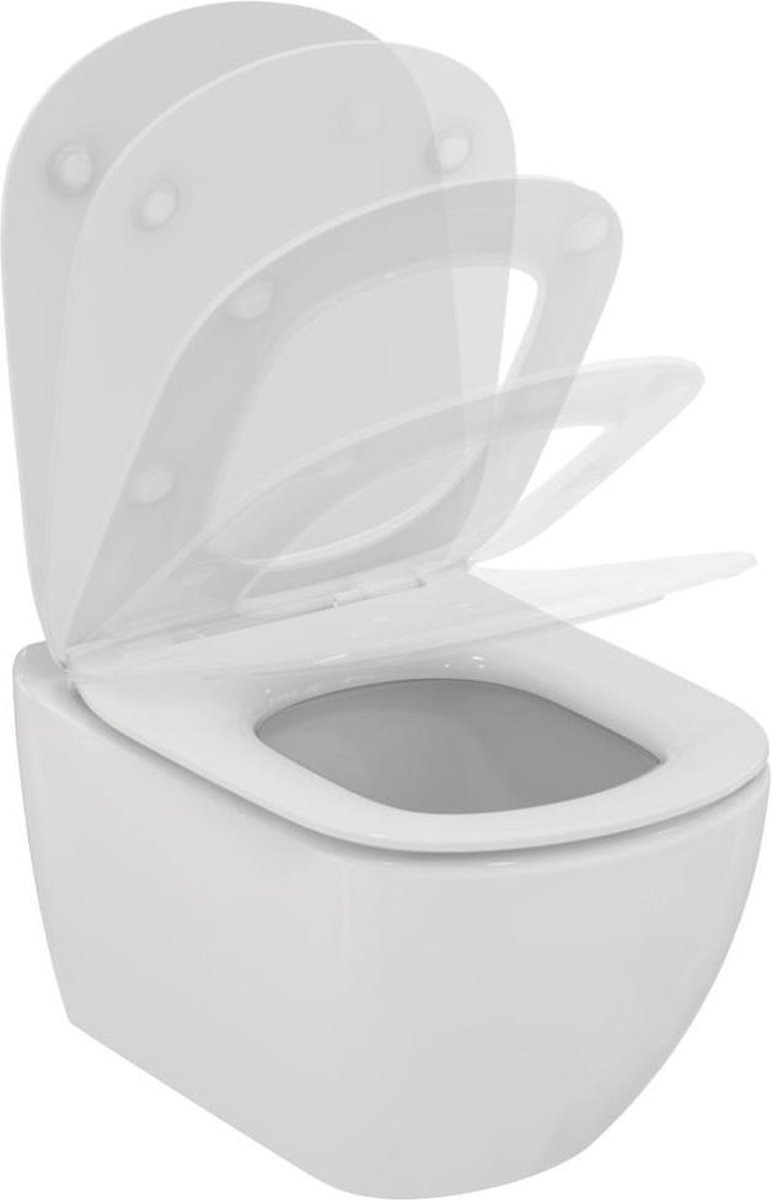

- Toilet seat with soft close system (T352701)
Features:

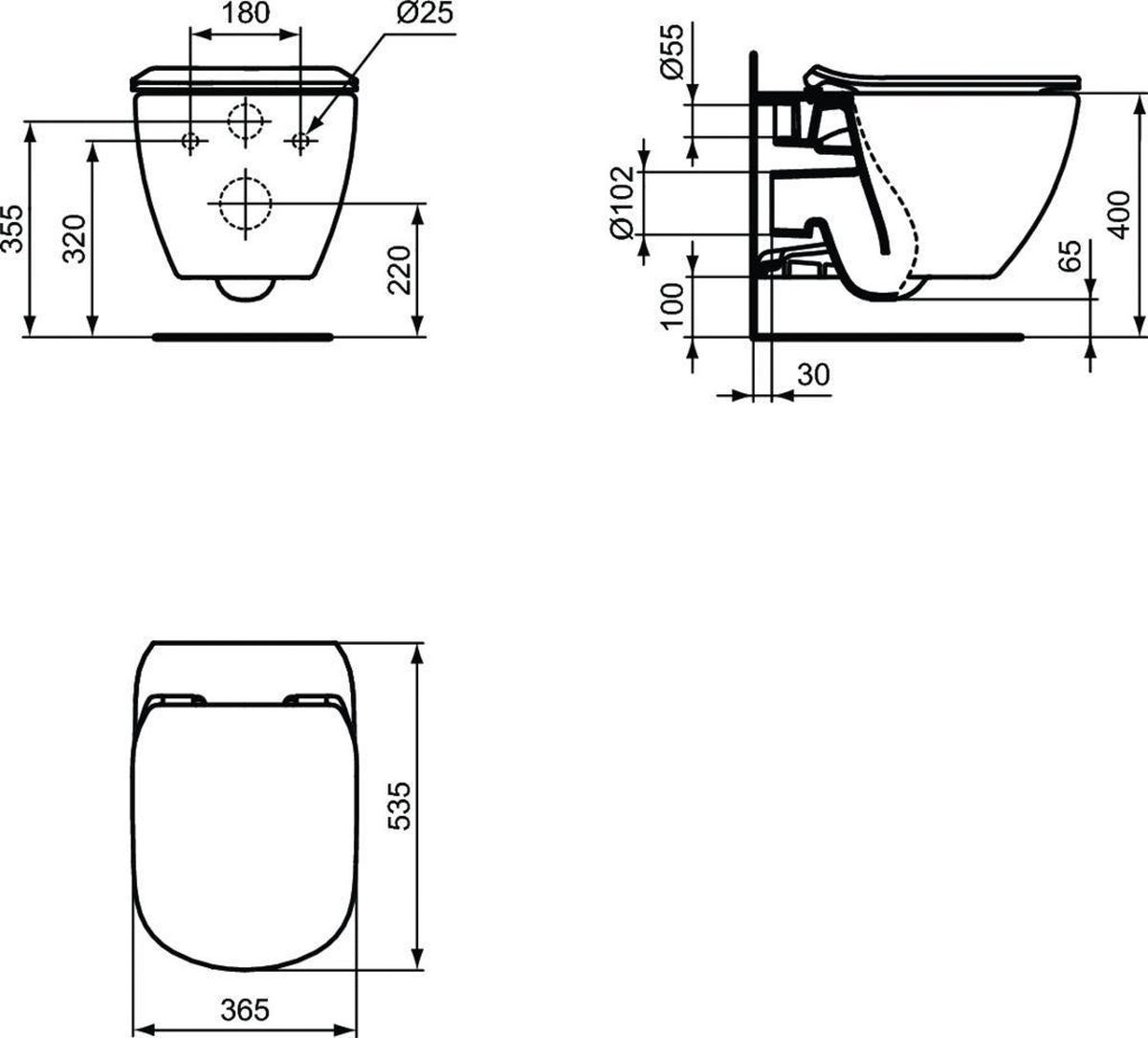

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning
- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33

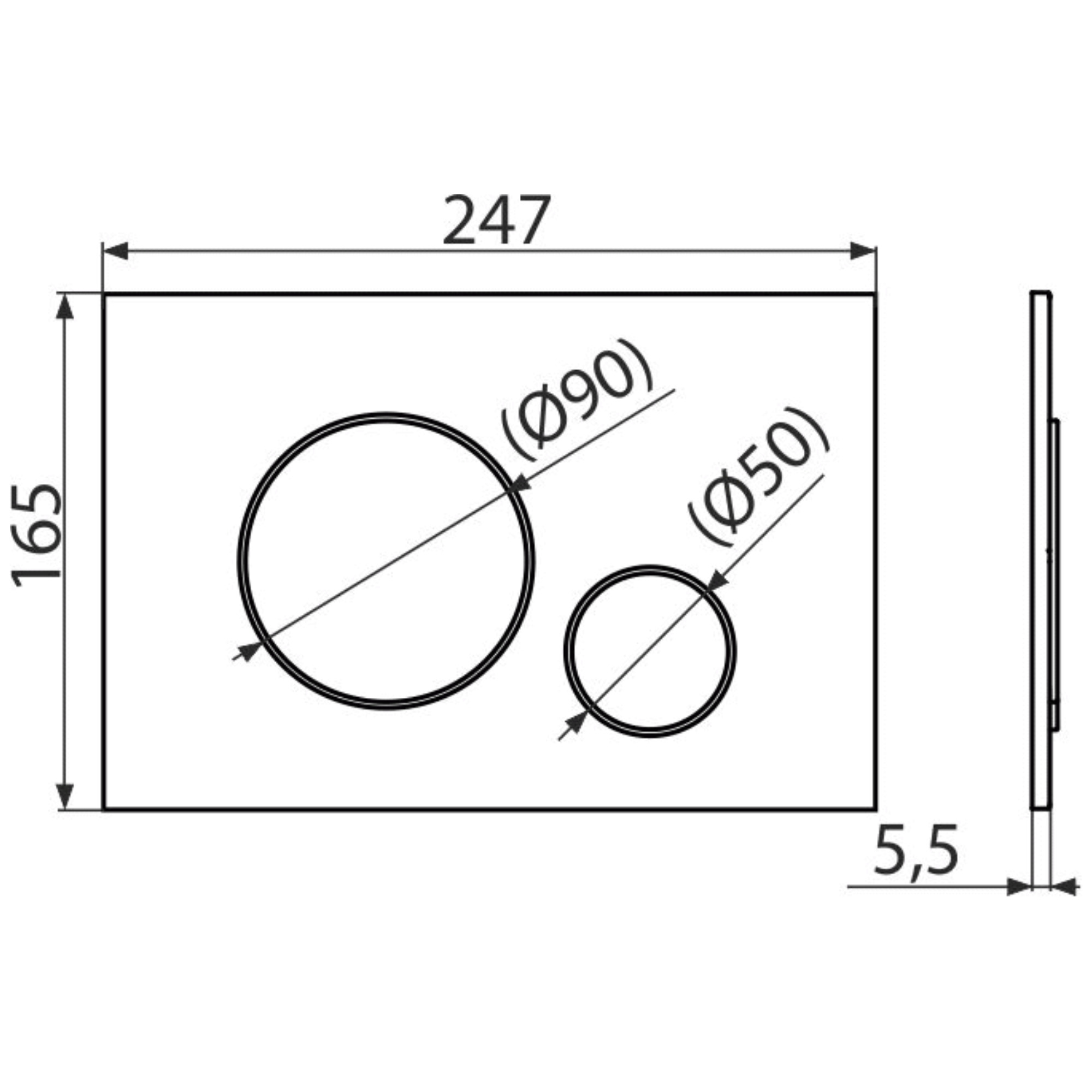

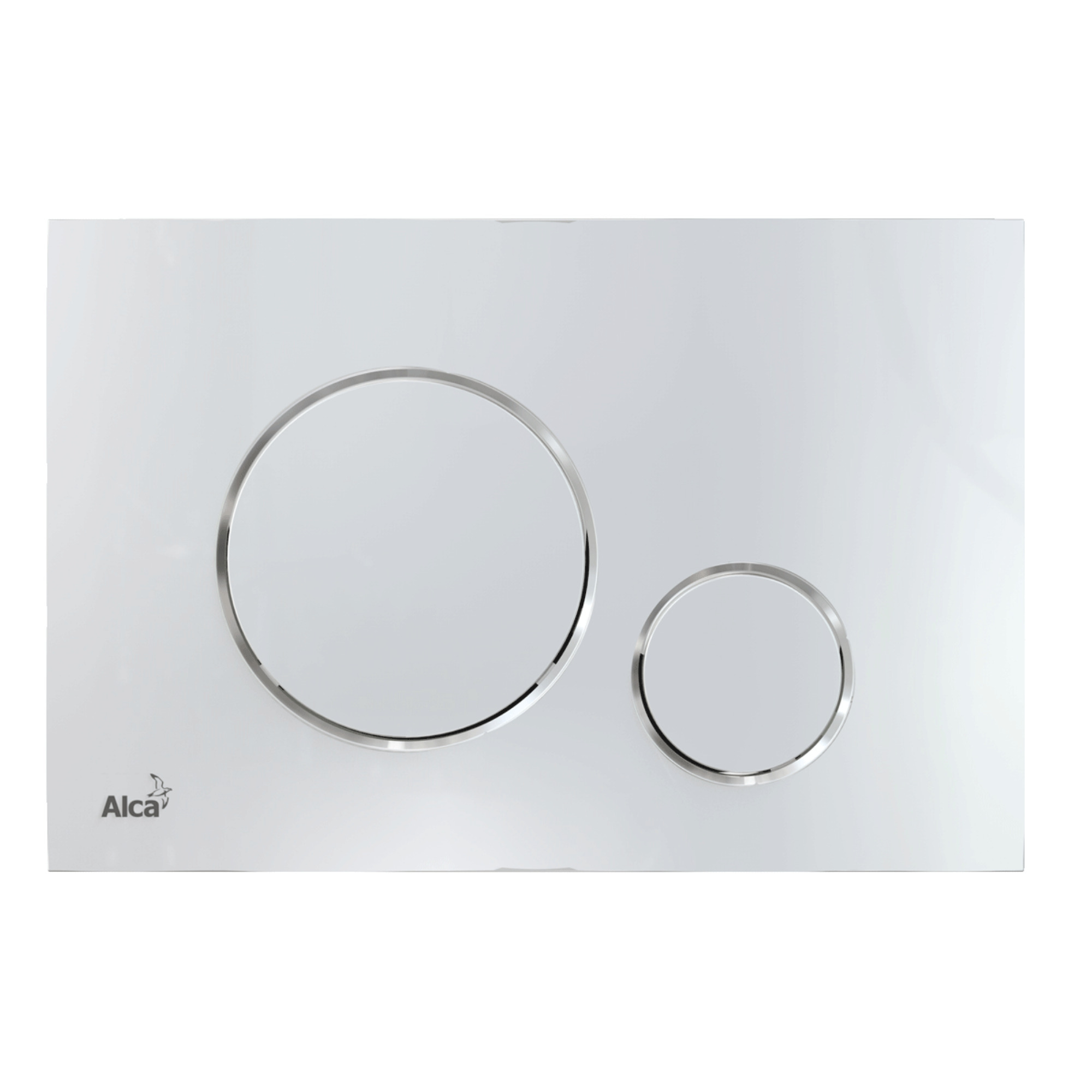

Alca Gloss chrome two-touch control panel with chrome trim (M671) :
- Compatible with all Alcaplast installation systems and pre-wall tanks.
- Thanks to its slim 5.5 mm profile, this plate protrudes only slightly from the lining.
- Double action mechanical flushing.
- Colour: bright chrome Surface finish: chrome polished
- Material: plastic
