This product is no longer available on Bathroom2Kitchen

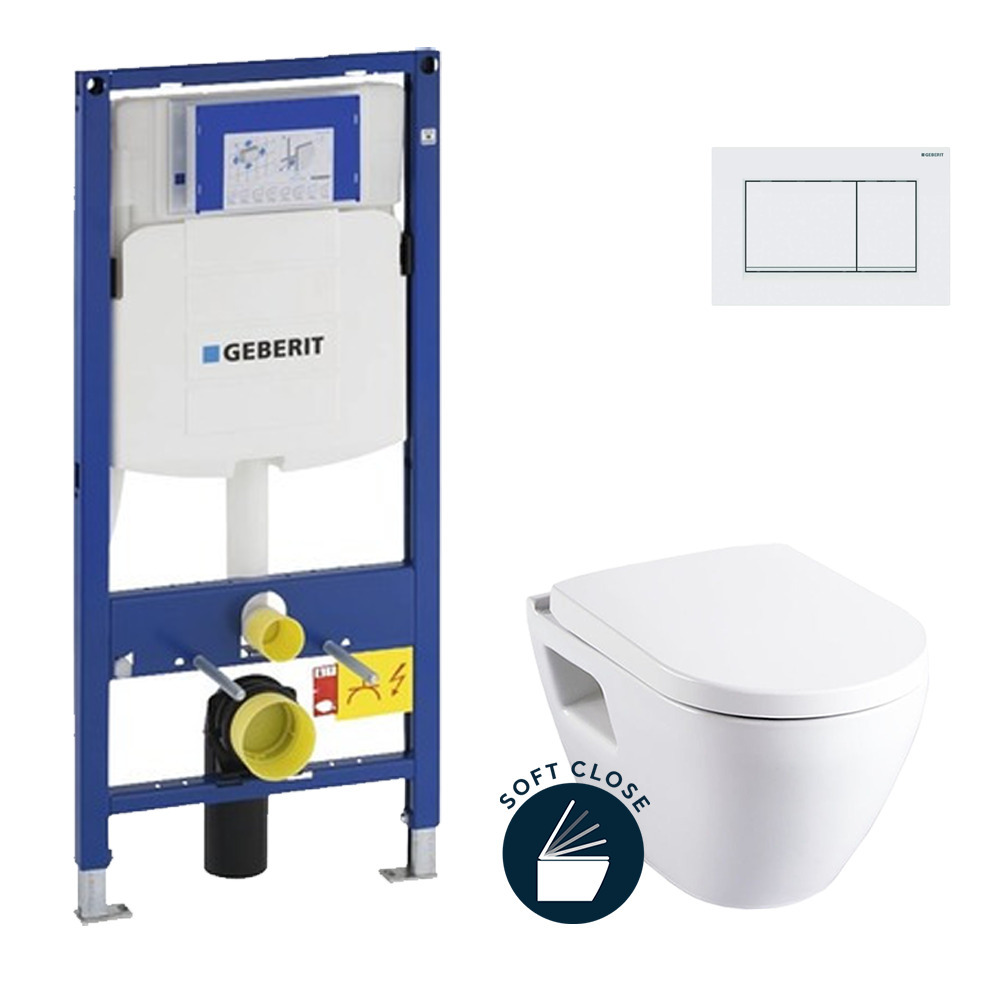

Geberit UP320 Toilet Frame + Serel SM10 + Softclose seat + White plate (GebSM10-K)
- Product reference: GebSM10-K
- EAN: 0750122365296
Brand:
Product warranty:
2
years
Not available
You may also interested in these articles
Product technical properties
- Toilet bowl brand:SEREL
- Toilet bowl:With Rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No

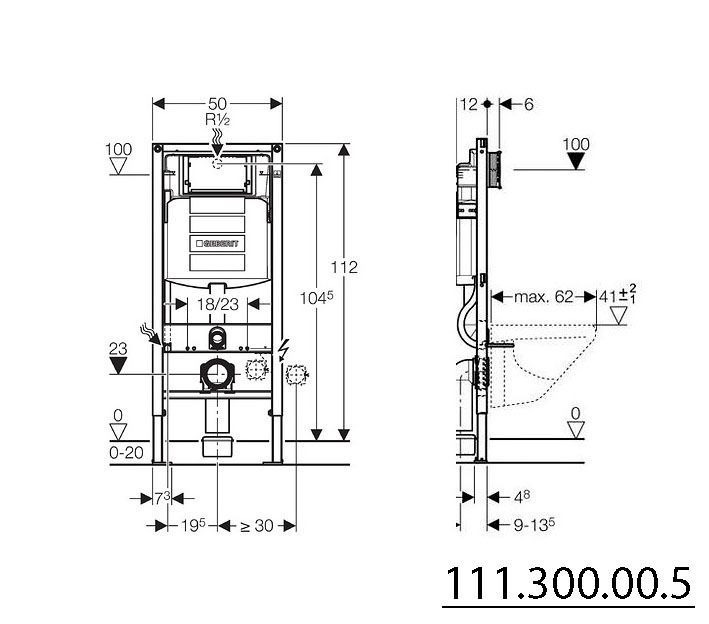

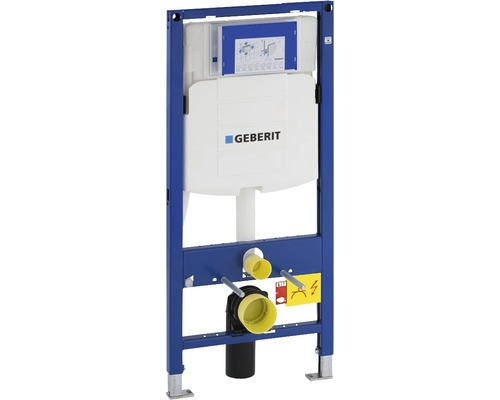

Geberit Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above

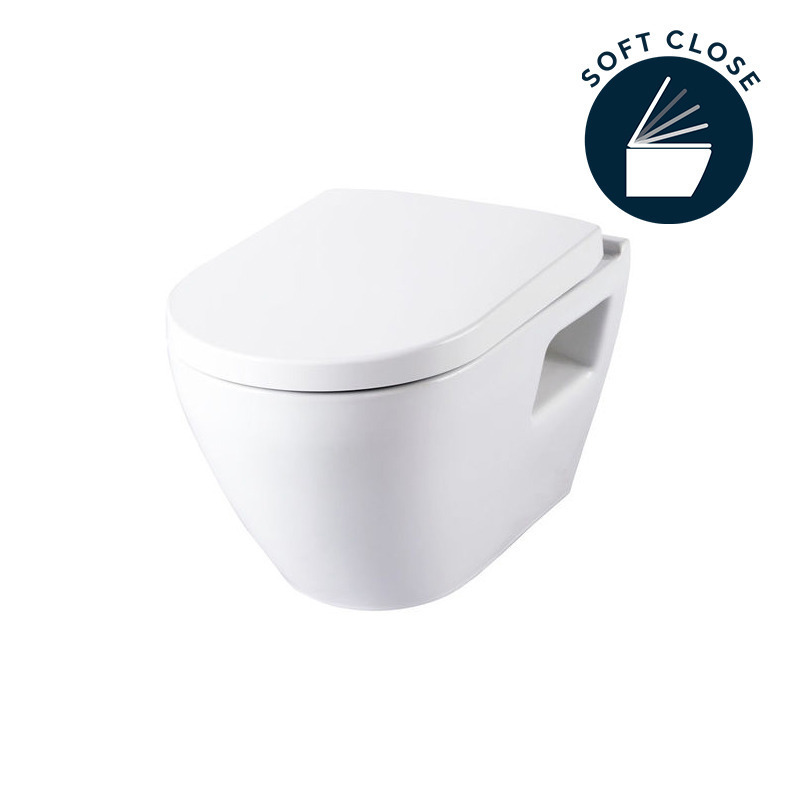

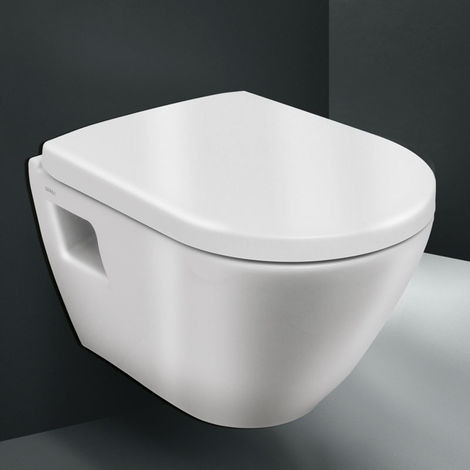

Serel bowl Solido compact + fall arrest seat (SM10) :
- SEREL Hygiene white vitrified ceramic bowl with flange
- SEREL ABS toilet seat with fall brake

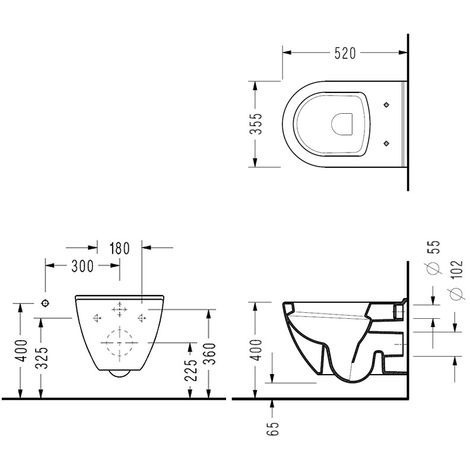

- Dimensions L52xW36xH33 (cm)
- CE marking
- Scratchproof
- Serel

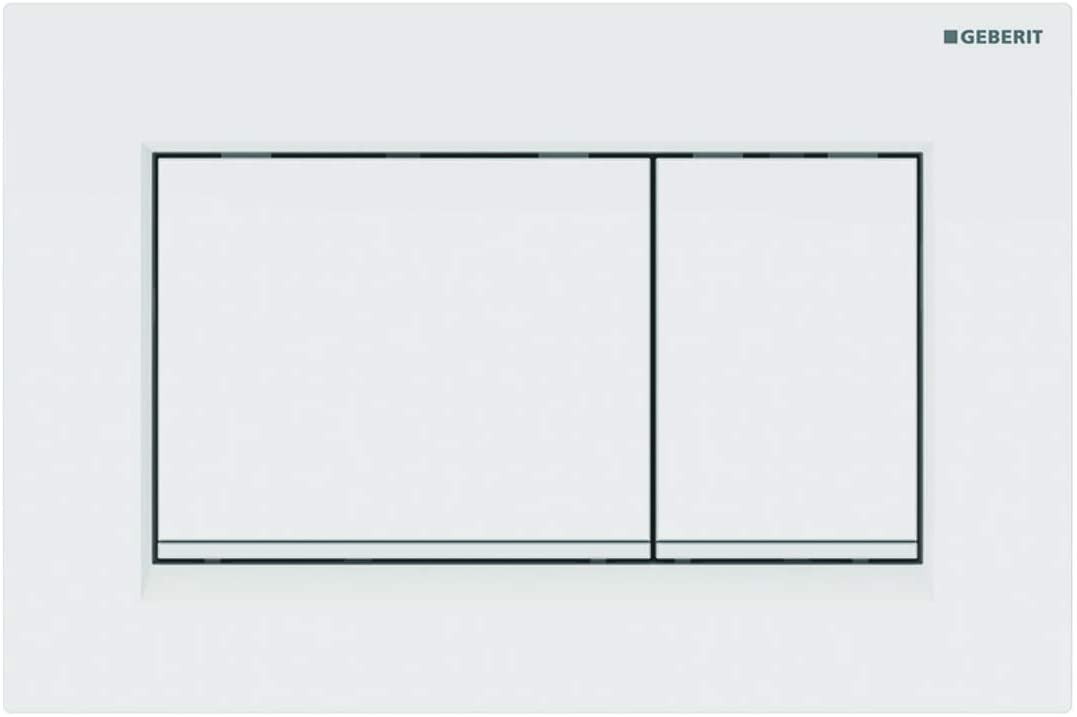

Geberit flush plate Sigma30 for dual flush white (115.883.11.1) :
- Actuation force < 20 N
- Front actuation
- Sound-absorbing actuator rods, tool-free fast adjustment
- Material : plastic
- Design :
- Plate and buttons: gloss chrome-plated
- Design stripes: matt chrome-plated
- Scope of delivery :
- Mounting frame
- 2 distance bolts
- 2 actuator rods

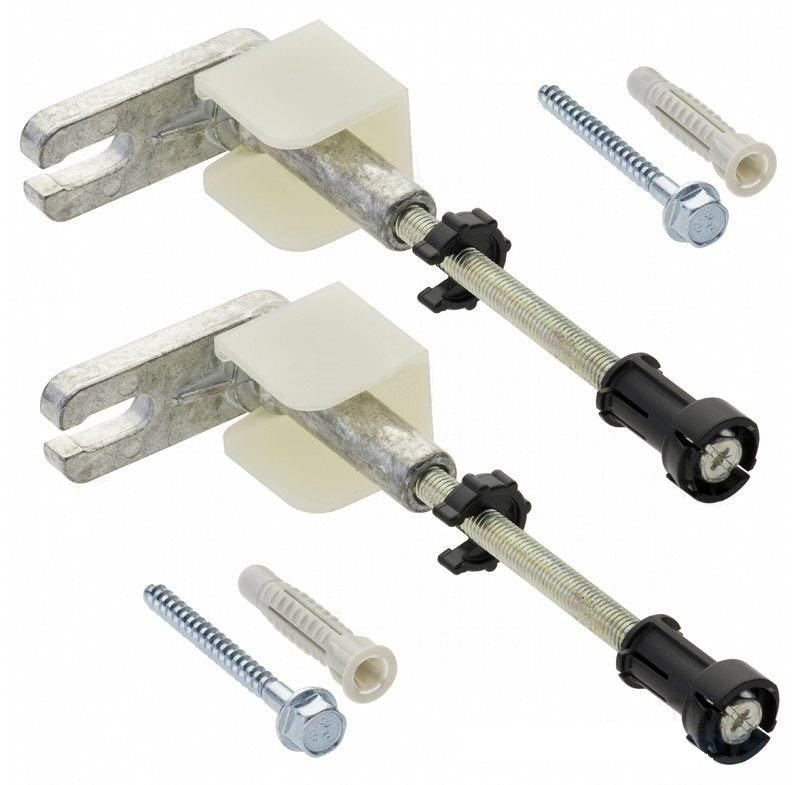

Geberit DUOFIX wall mounting set (111.815.00.1) :
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
