Geberit Toilet 112cm Frame + Swiss Aqua Technologies rimless toilet + White plate + Wall cladding (SATGEB3SB)
- Product reference: SATGEB3SB
- EAN: 0750122358717
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Choose the quality and ease of installation of the 112cm Support Frame Pack + Swiss Aqua Technologies Rimless Toilet + White Plate + Wall cladding Set (SSATGEB3SB).

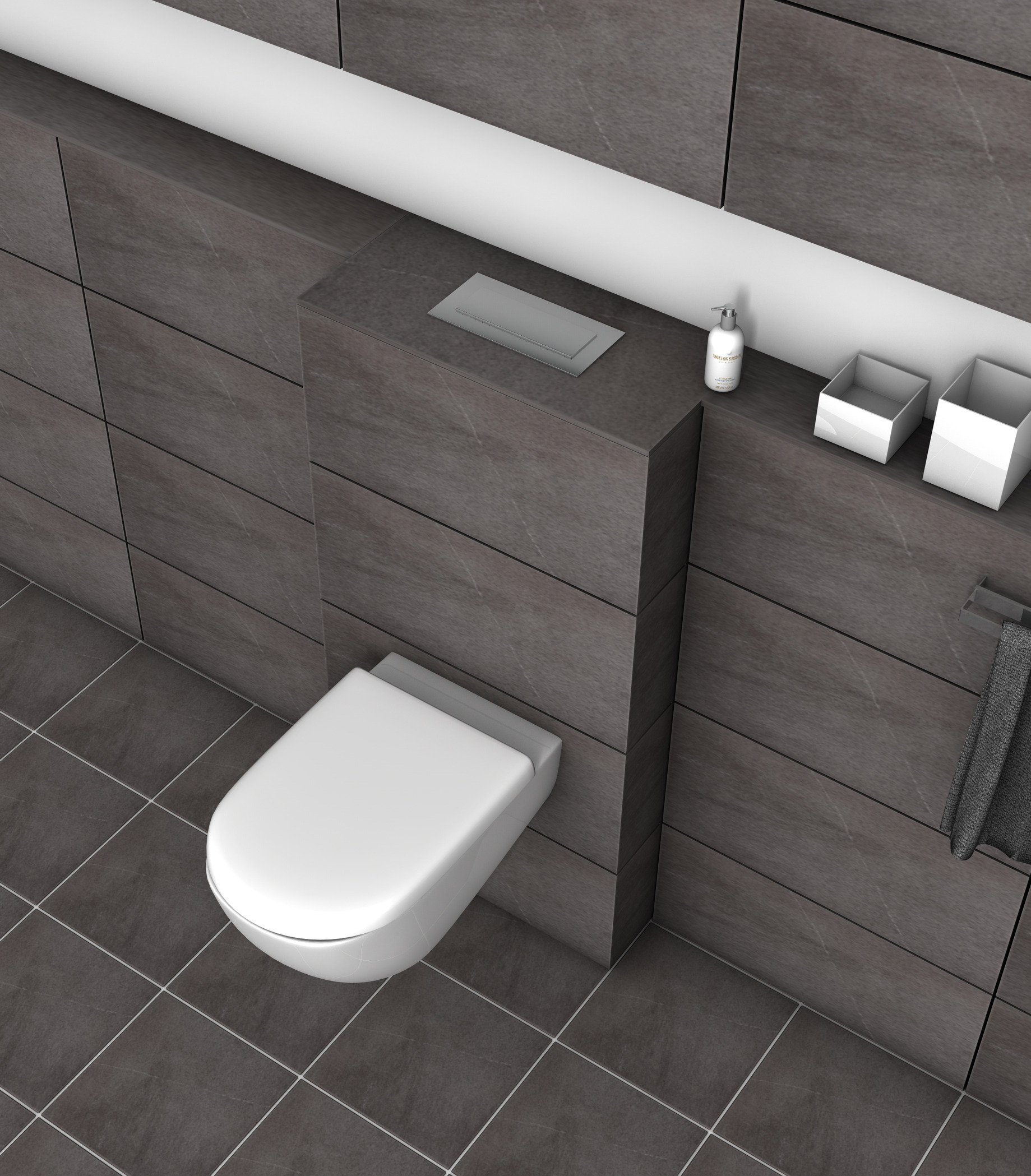

This WC set combines the Swiss Aqua Technologie brand and the Geberit brand. These are products of a certain quality and will certainly satisfy you by providing you with solutions adapted to your projects. In addition, the Jackoboard by Jackon trim pack included in this pack will allow you to quickly and efficiently cover the Geberit frame.
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
Also, explore the step-by-step installation guide for Jackoboard Sabo! https://www.youtube.com/watch?v=KlKLHKAIbvY
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):66
- Width (cm):184
- Height (cm):60
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:2 years
- New:New
- Weight:35.00
- Depth:66
- Invisible fixings:Yes
- Product type:Toilet pack + wall cladding

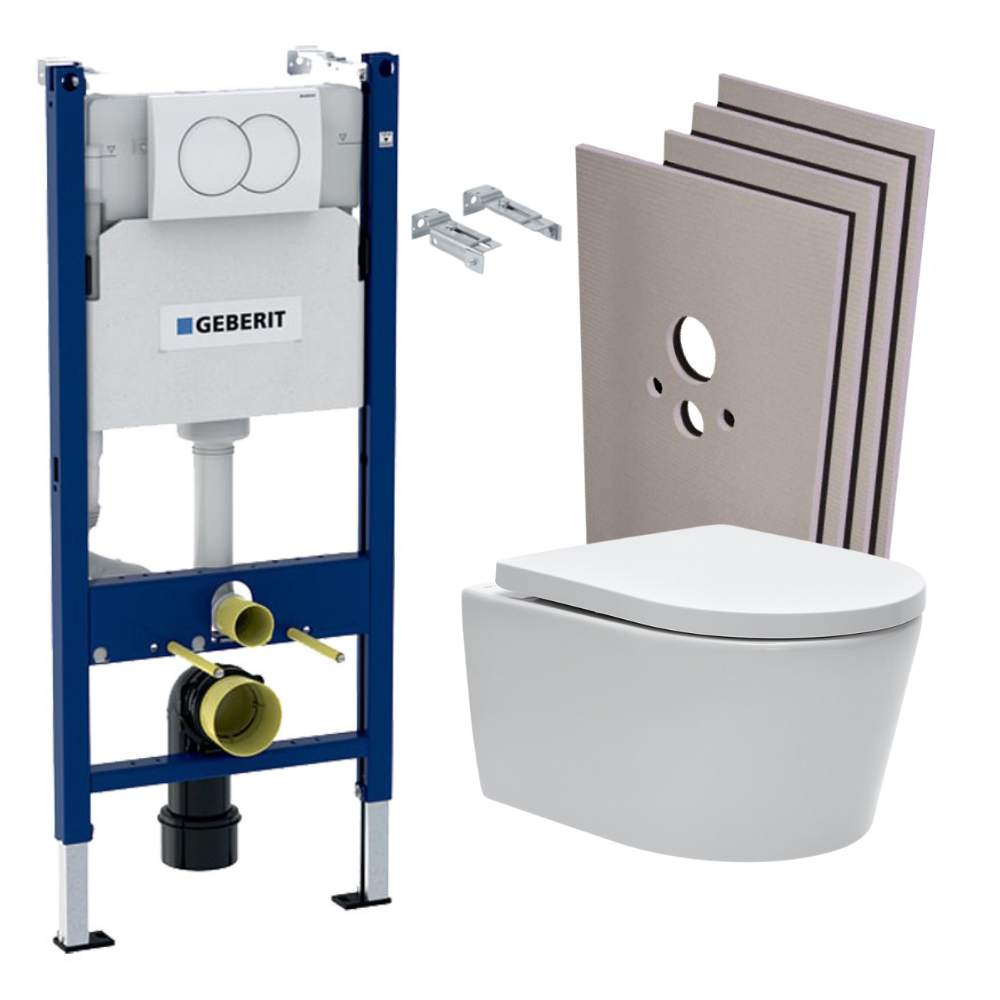

Features of the 112cm Frame Pack + Swiss Aqua Technologies Rimless Toilet Bowl + White Plate + Wall cladding Set (SATGEB3SB):
- Rimless wall-hung toilet bowl with invisible fixings + soft-close seat (SATBRE010RREXP)
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall fixing kit for self-assembly (111.839.00.1)
- Geberit DELTA01 flush plate white (115.107.11.1)
- Jackon Jackoboard Mounting set for WC frame trim (4521871)
.

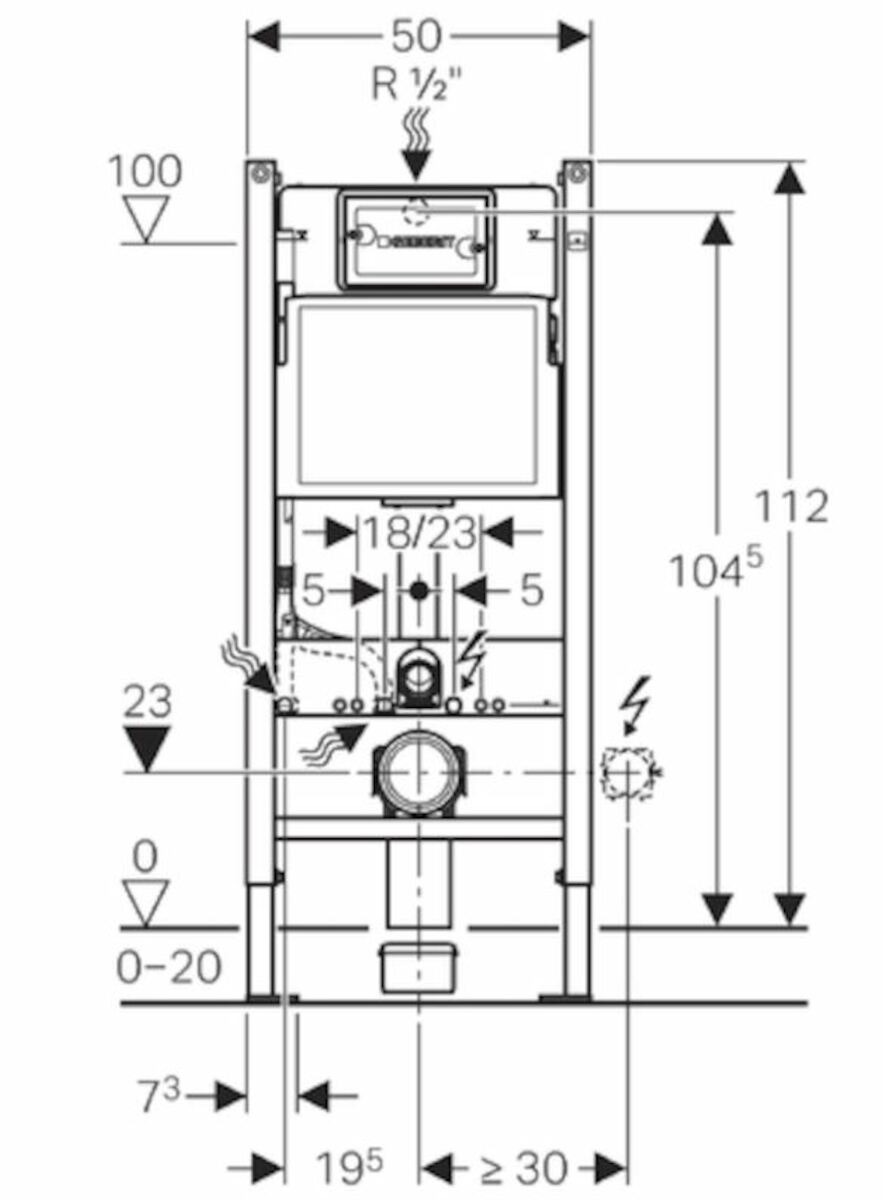

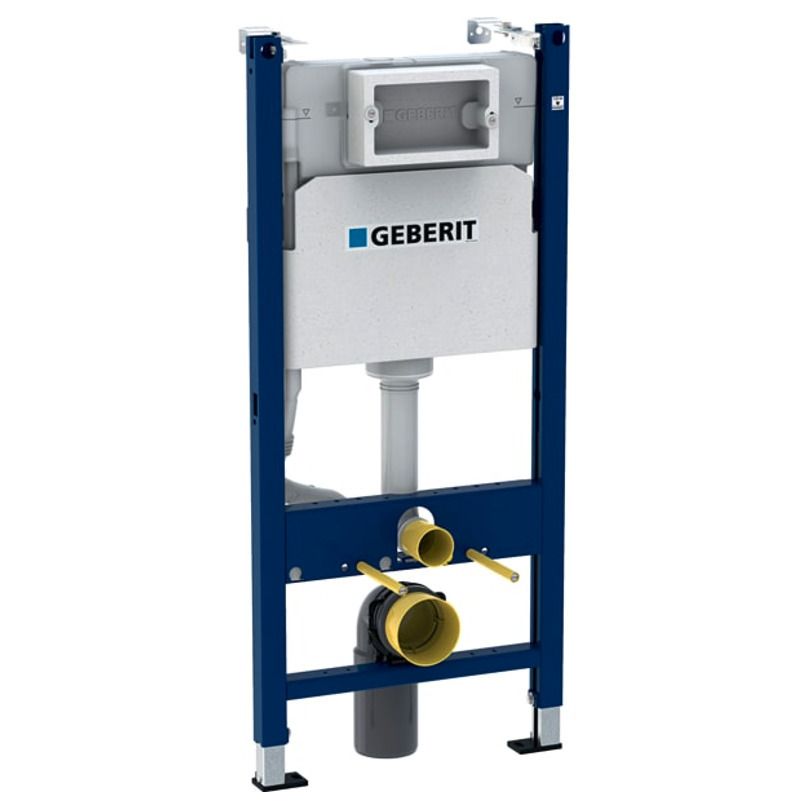

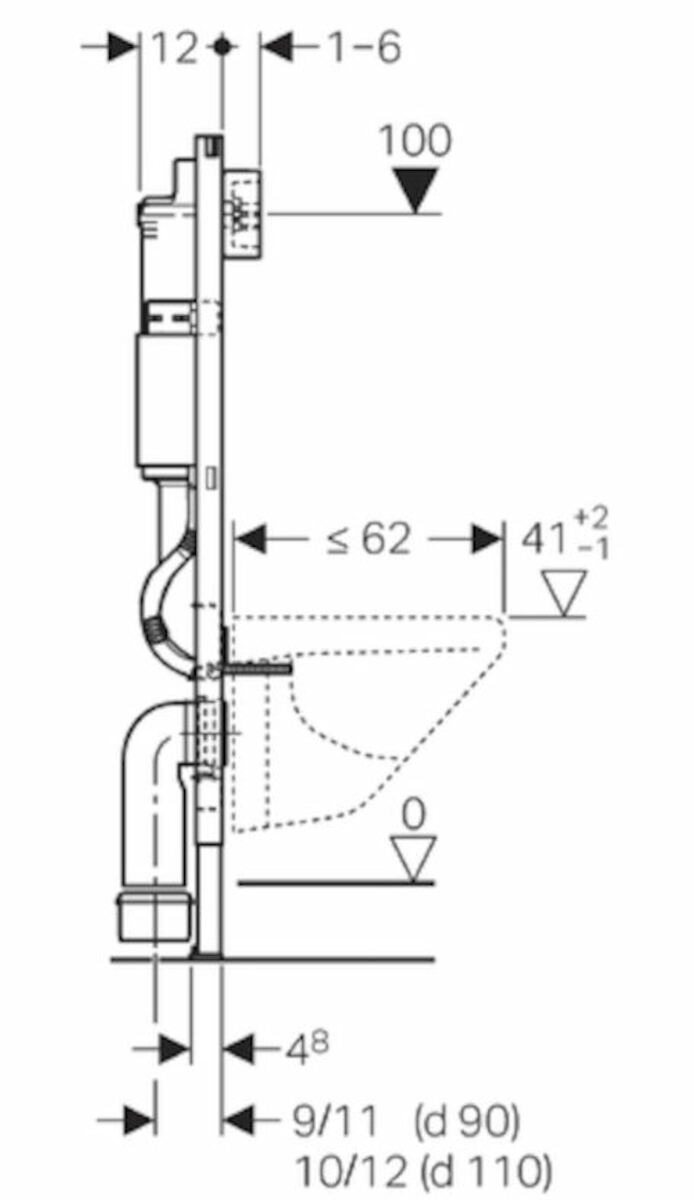

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1):
Application:
- For installation in the pre-wall, installation in all or part
- For a solid wall or a dry-process wall
- For installing a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
Features:
- Geberit Delta flush cistern 12 cm (UP100) front control, against condensation
- Flow rate large adjustable
- Small fixed flush rate
- Adjustable instant flush option
- Water supply from the rear / top centre
- Connection pipe to the angle valve can be screwed in manually
- 2 flush valves with Geberit Delta20 control buttons
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanised brackets, continuously adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for UW50 installation
- Installation depth 12 cm
Technical information:
- Flush quantity - factory setting 6 and 3.5 l
- High flush flow rate - adjustment range 4.5 / 6 / 7.5 l
Included in the frame:
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush rates
- Cover for rough mounting for service hole, expanded polystyrene
- 2 protective caps
- Angle valve R 1/2 "with adapter ring
- Geberit AquaClean water supply hose
- Connection set ø 90 mm
- Waste elbow for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Geberit Duofix wall mounting set for self-assembly (111.839.00.1)
.

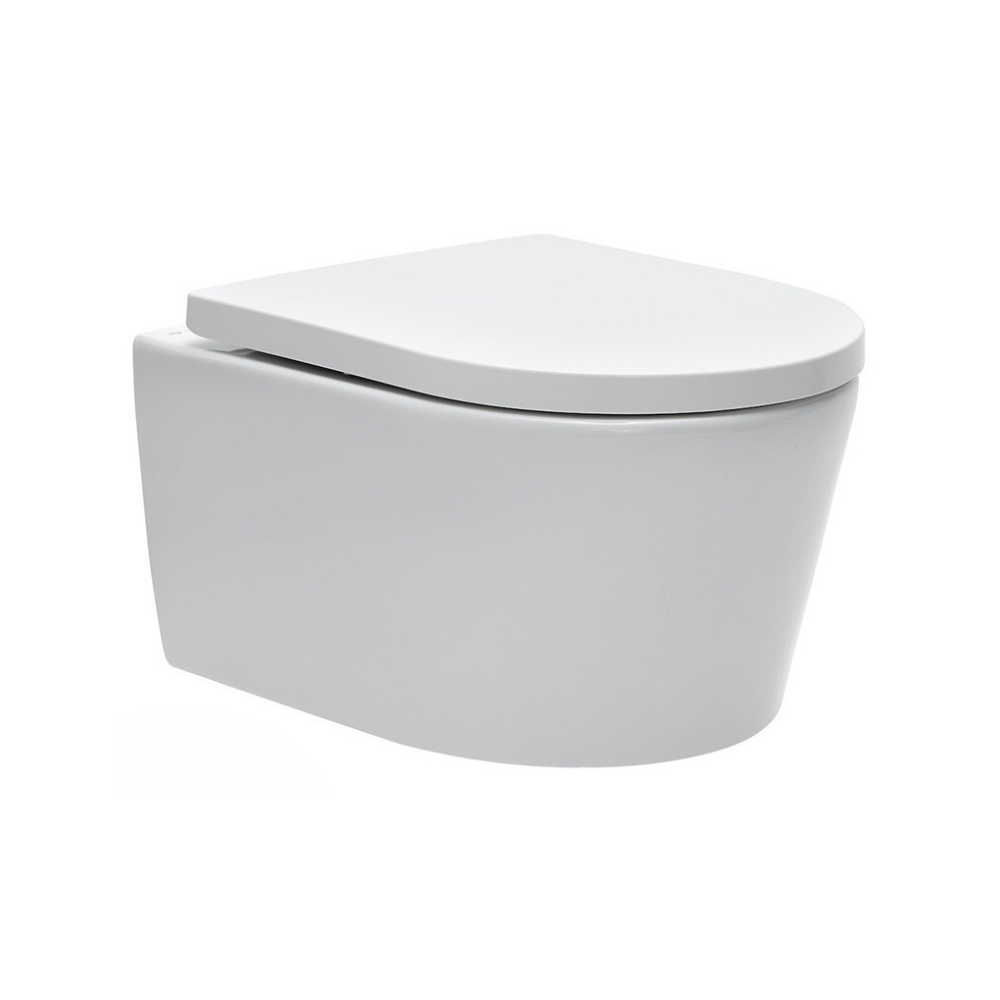

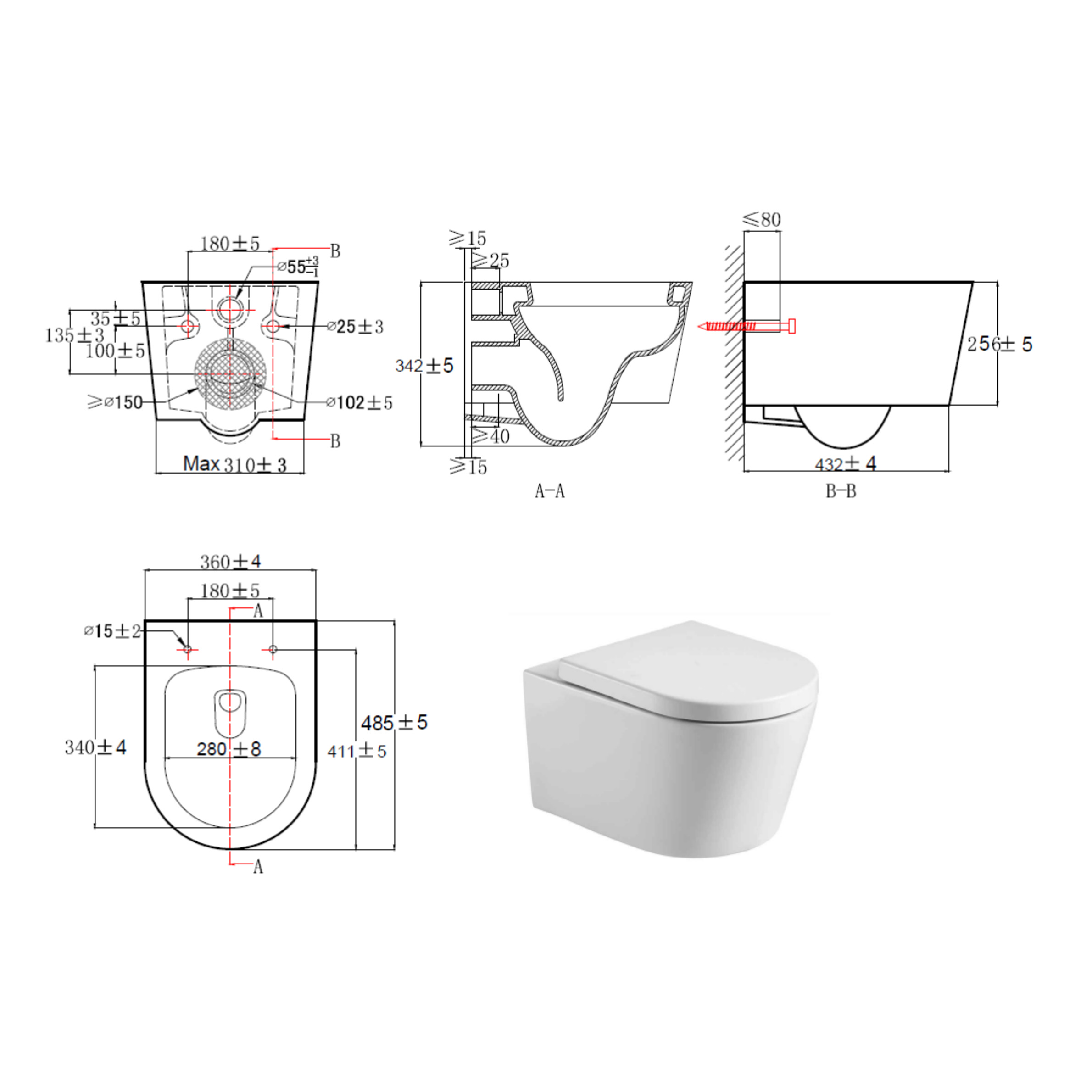

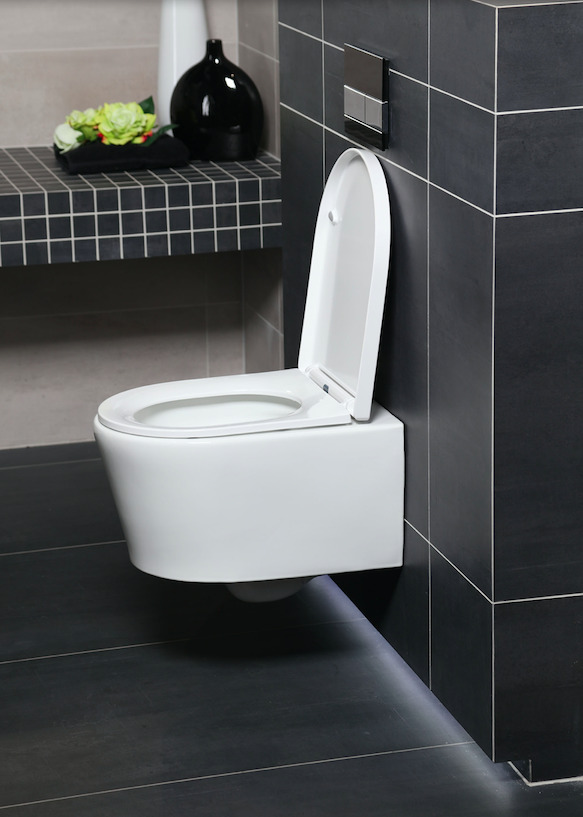

Swiss Aqua Technologies rimless wall-hung toilet + softclose seat (SATBRE010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and refined style bowl
- Rimless bowl
- Concealed fixings
- Depth of 48 cm
- Economical flush 3 / 4.5 L
- Seat with soft close mechanism

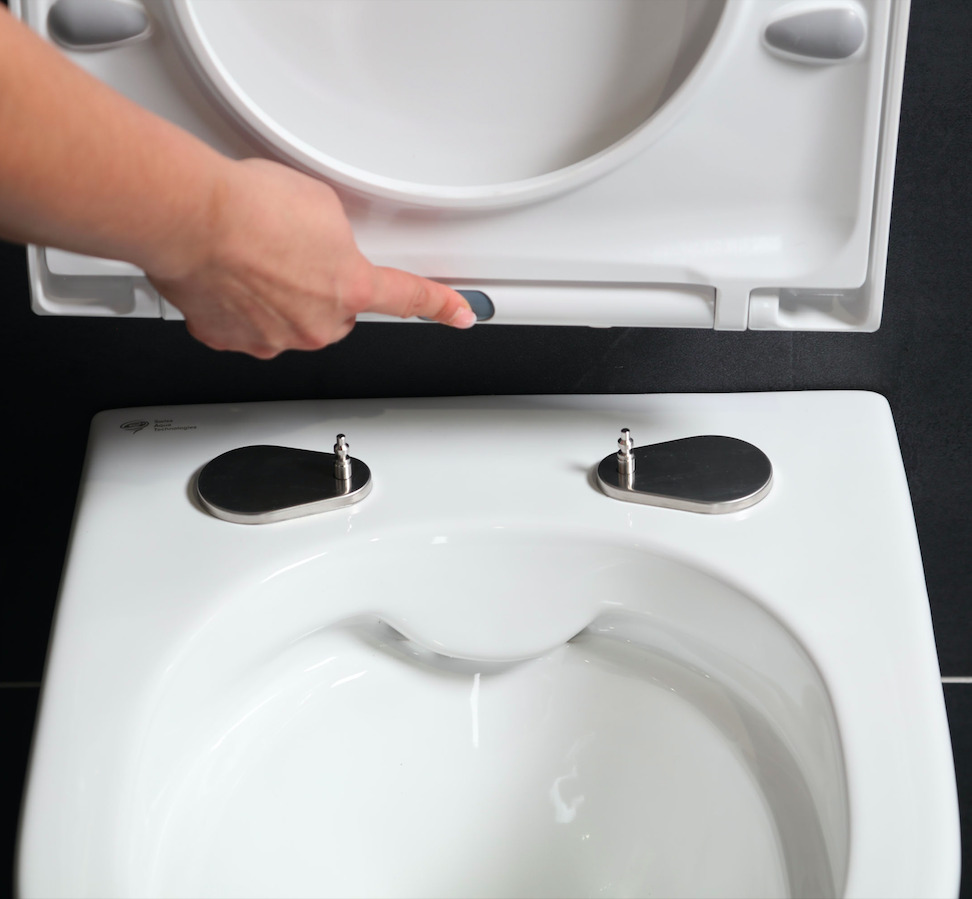

- Removable seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick installation
.

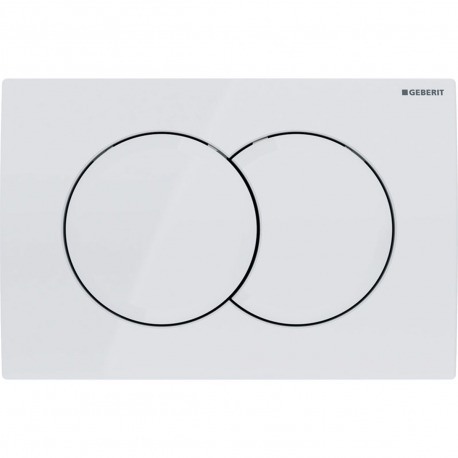

Geberit flush plate DELTA01(115.107.11.1):
- Delta has 2 buttons, one for a small flush of 3L and the other for a large flush of 6L
- Water saving
- Front actuation
.
Jackon Jackoboard mounting set for WC frame cladding (4521871):
- Water-repellent
- Special coating on both sides
- Lightweight: approx. 3–6 kg/m2
- Thickness: 20 mm

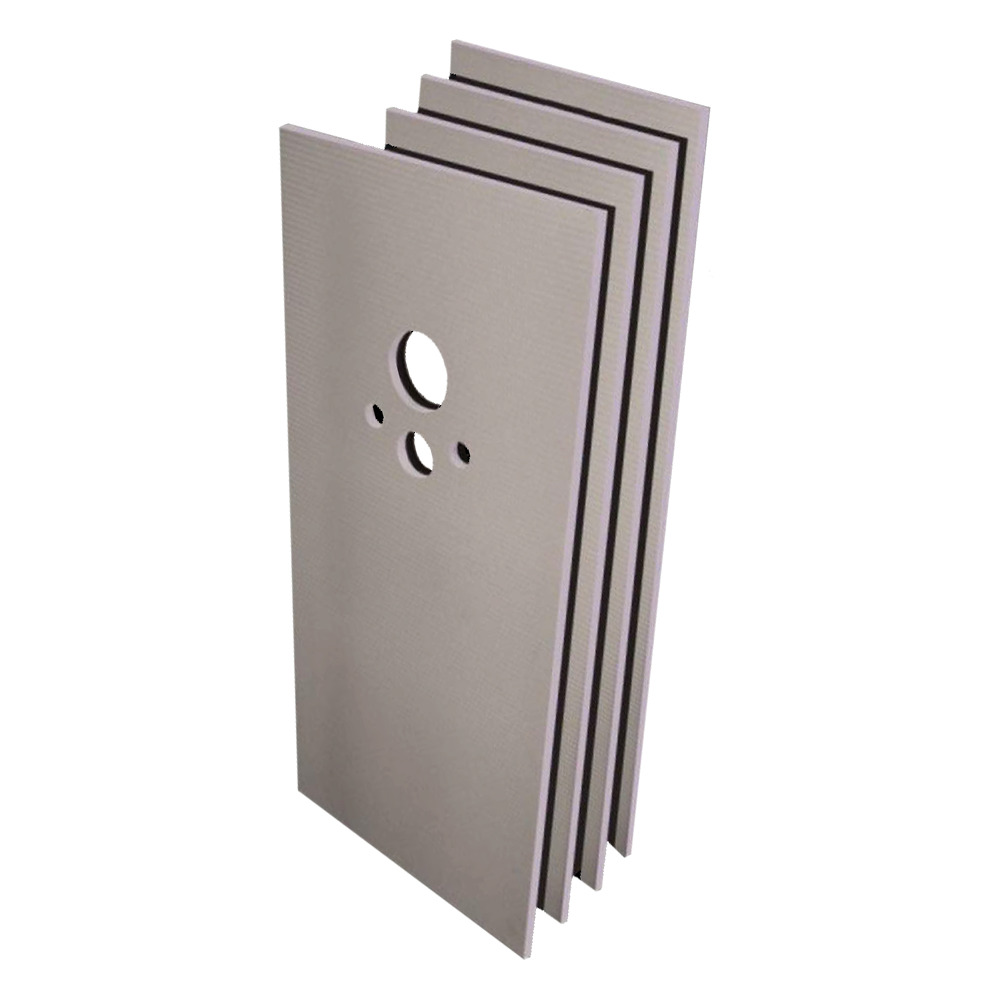

- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cut-outs for pipes) and 3 panels 1300 x 450 x 20 mm
- Excellent insulating power λD = 0.035 W/( m K)
- High compressive strength > 300 kPa
- Approved and certified
- Suitable for rooms with high humidity – EB/EB+/EV rooms
Advantages:
- Easy to install
- Directly tileable, plasterable and plasterable
Ideal solution:

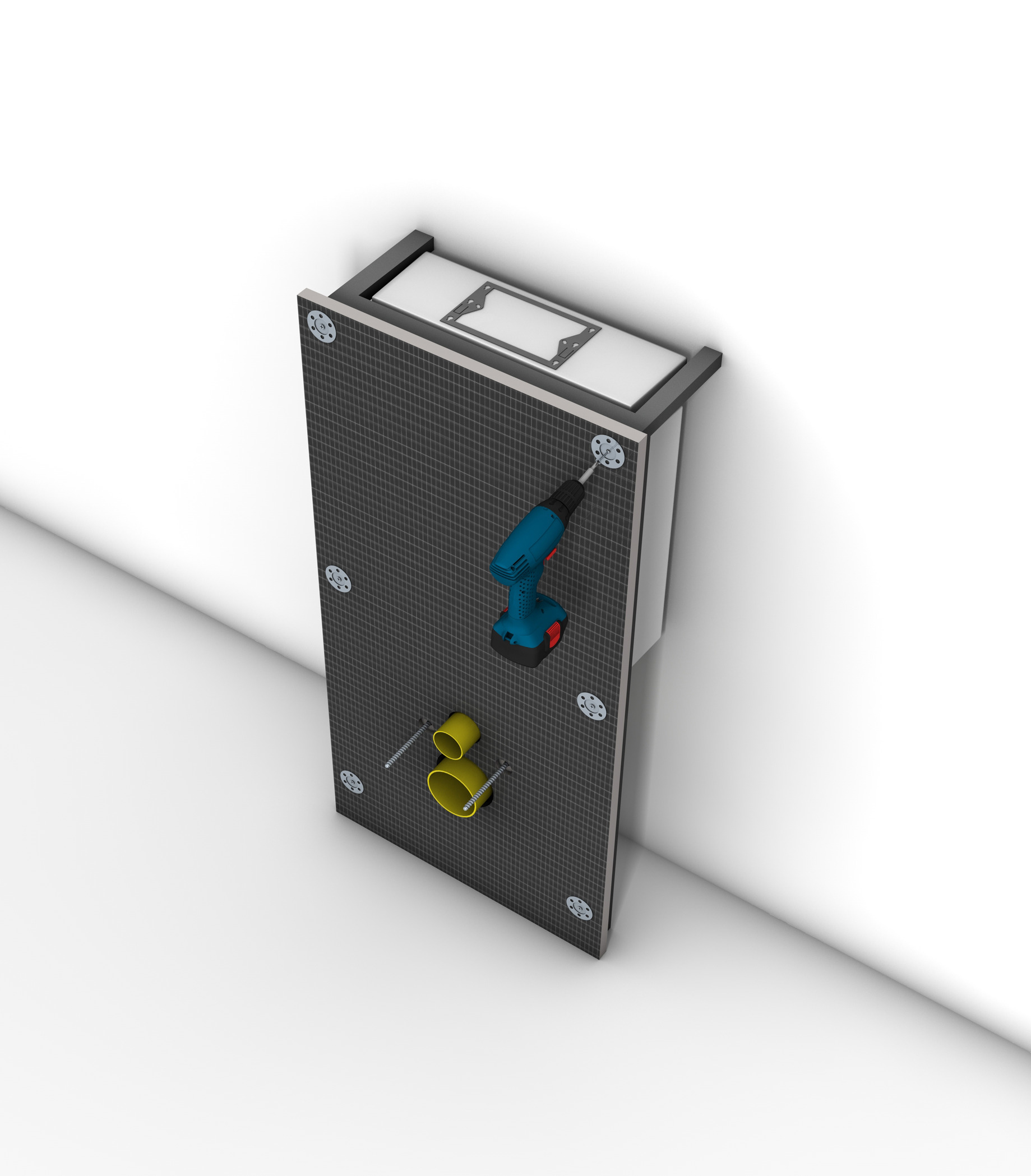

- For quick and easy cladding of all standard toilet frames with tiles without preliminary work
.
The following accessories (not included) are required:

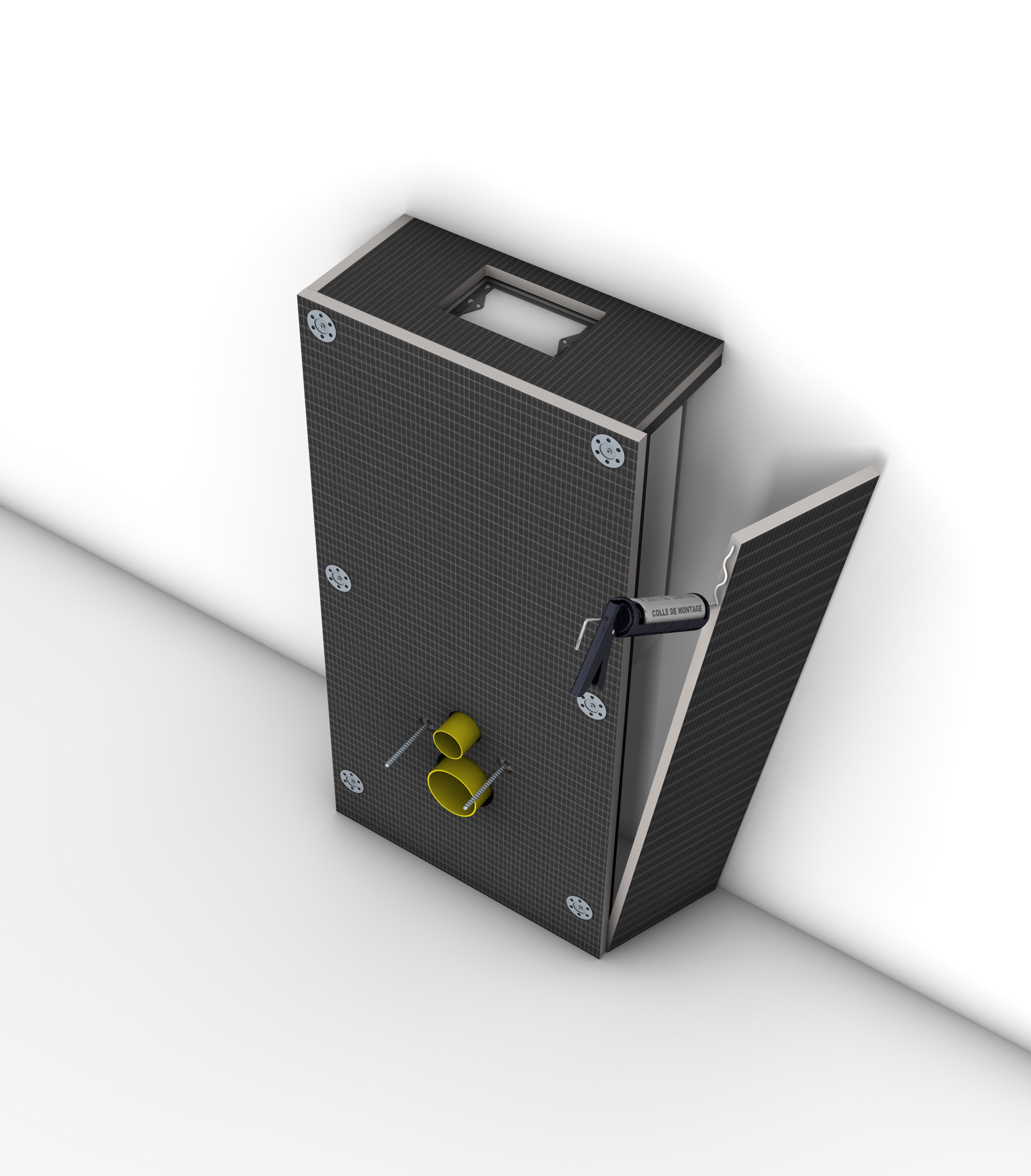

-Mounting adhesive

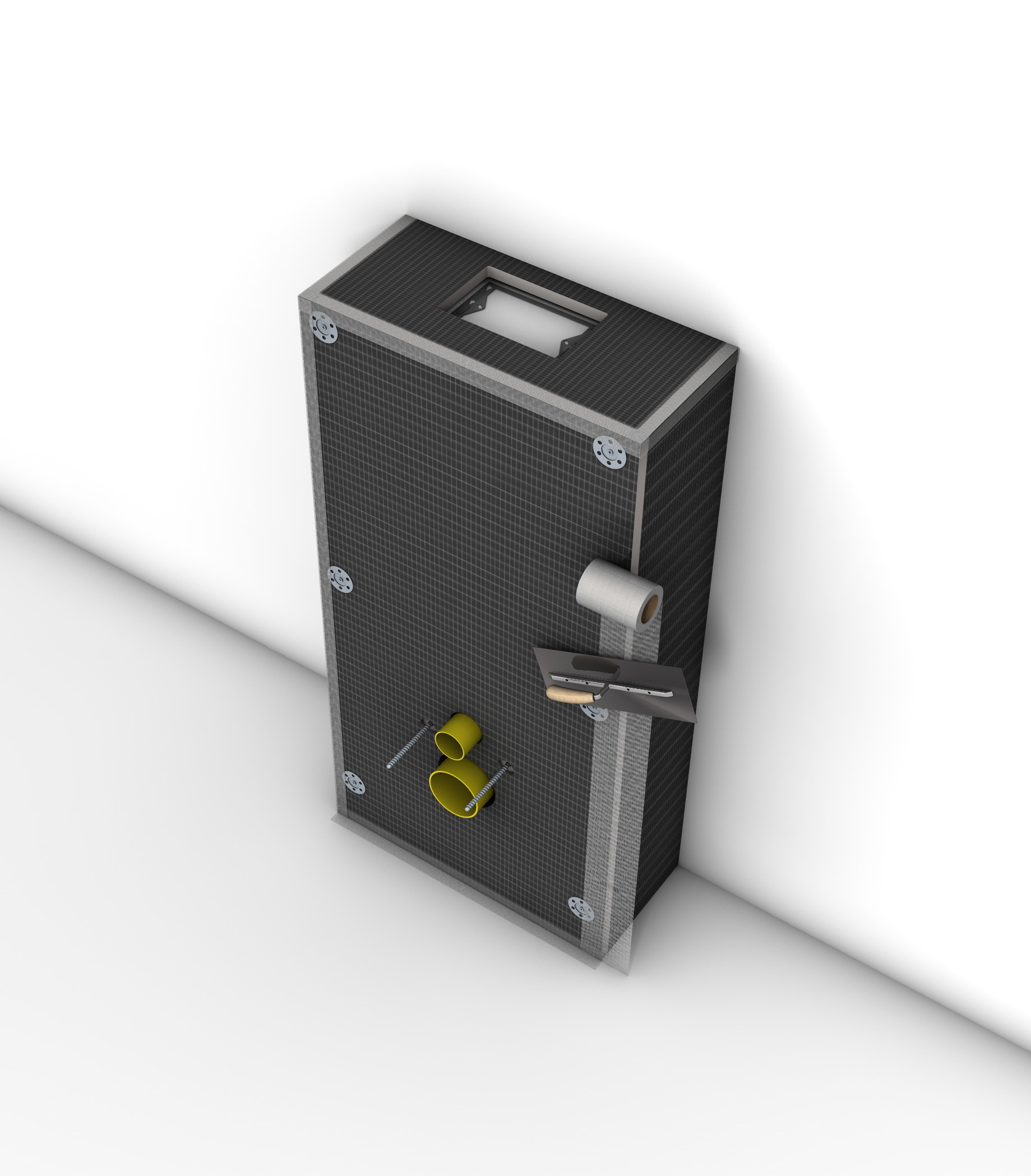

-Reinforcement strip
-Self-drilling metal screws
-Washers openwork
.
