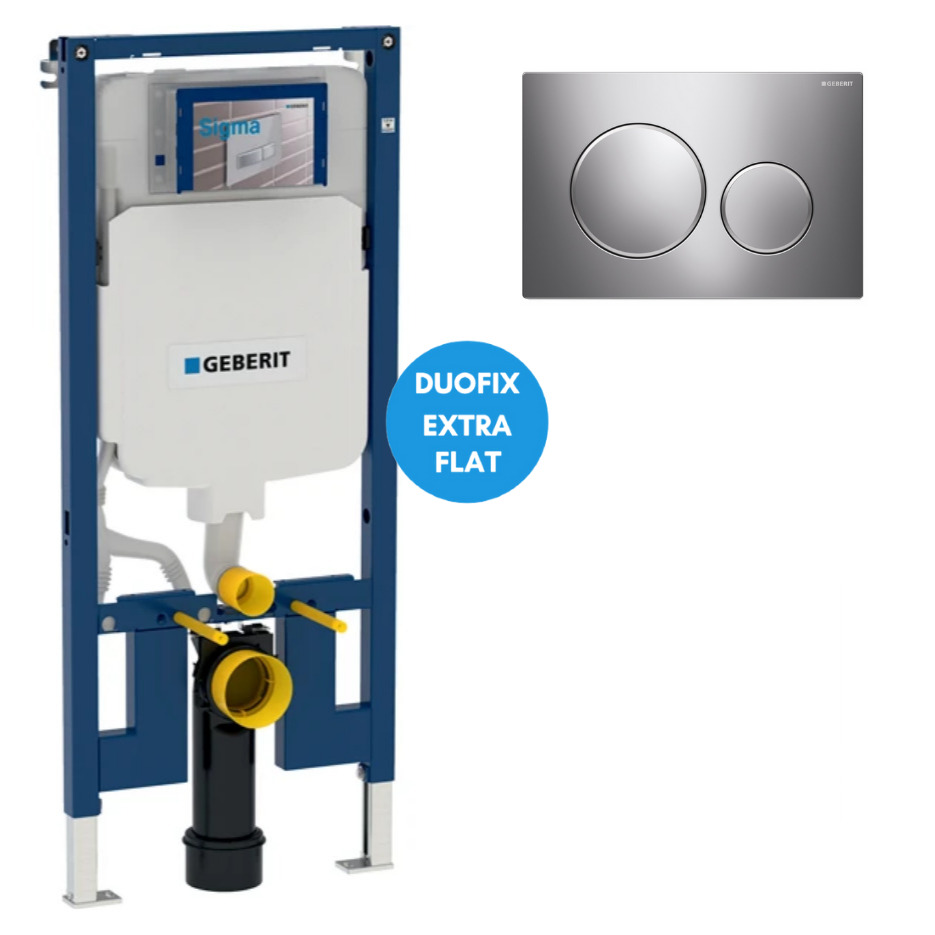

Geberit Duofix Pack Extra-flat frame 114 cm UP720, space saving + Sigma20 flush plate, Chrome (111.796.00.1-F)
- Product reference: 111.796.00.1-F
- EAN: 0750122364206
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Geberit Duofix Pack UP720 Extra-Flat Frame 114 cm + Sigma01 Dual Flush Plate, Matt Chrome (111.796.00.1-E)

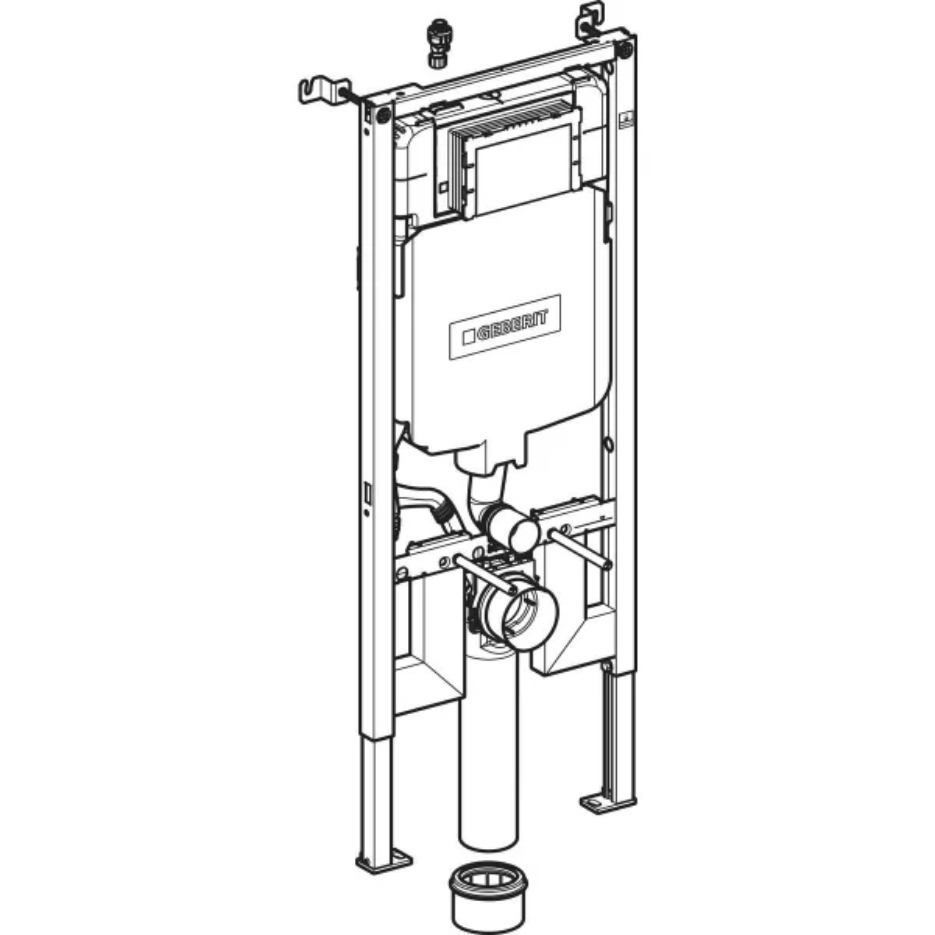

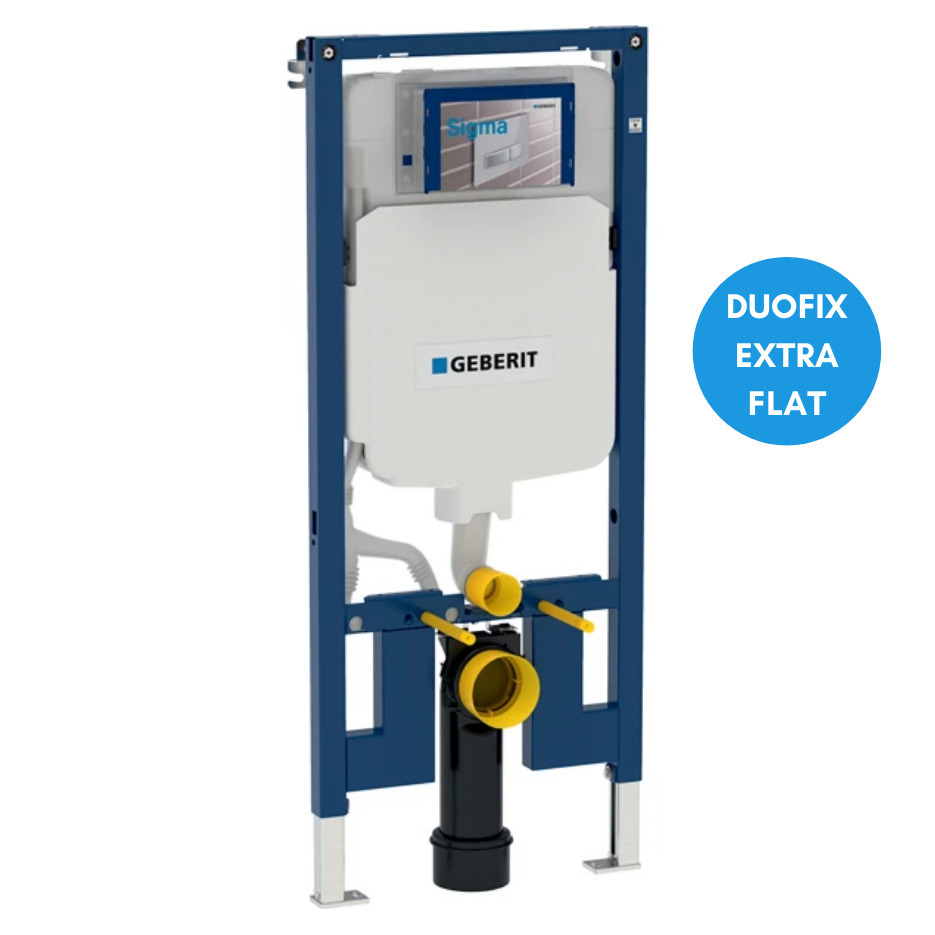

Geberit Duofix UP720 Extra-Flat Frame (111.796.00.1)

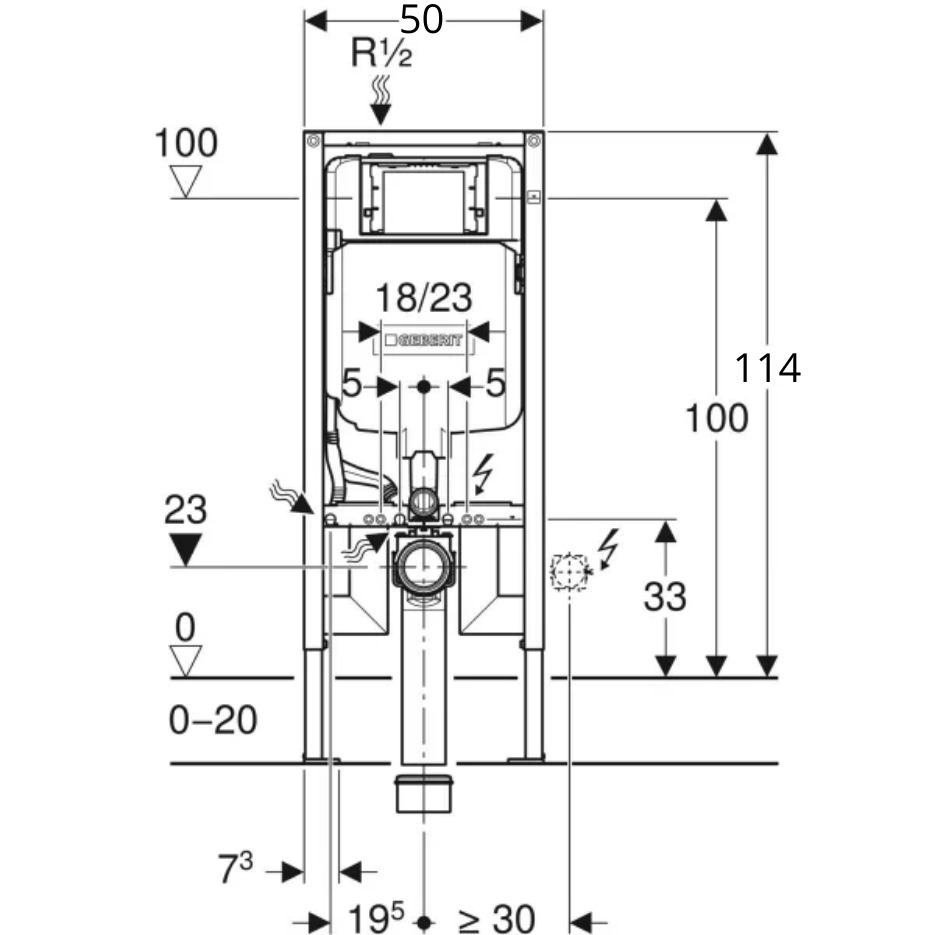

- Height: 114 cm, space-saving design
- Self-supporting powder-coated steel frame
- ø 9 mm drilling holes for fastening in wood frame construction
- Suitable for wall-hung ceramic WCs (EN 33:2011), projection up to 70 cm
- Galvanised, infinitely adjustable, non-slip support feet
- Footplate depth compatible with UW 50 profiles & Duofix system rails
- Tool-free adjustable connection bend, vertical or horizontal installation
- Extended PE-HD 90° connection bend for floor connection, sound-insulated fastening
- Concealed cistern: fully insulated against condensation
- Front actuation, immediate post-flush possible
- Tool-free maintenance, water supply top left
- Housing for service opening, cut-to-size, compatible with flush plates
- Conduit pipe included for AquaClean shower toilets
Use / Applications:
- Drywall construction, partial- or full-height prewall installations
- Room-height installation walls

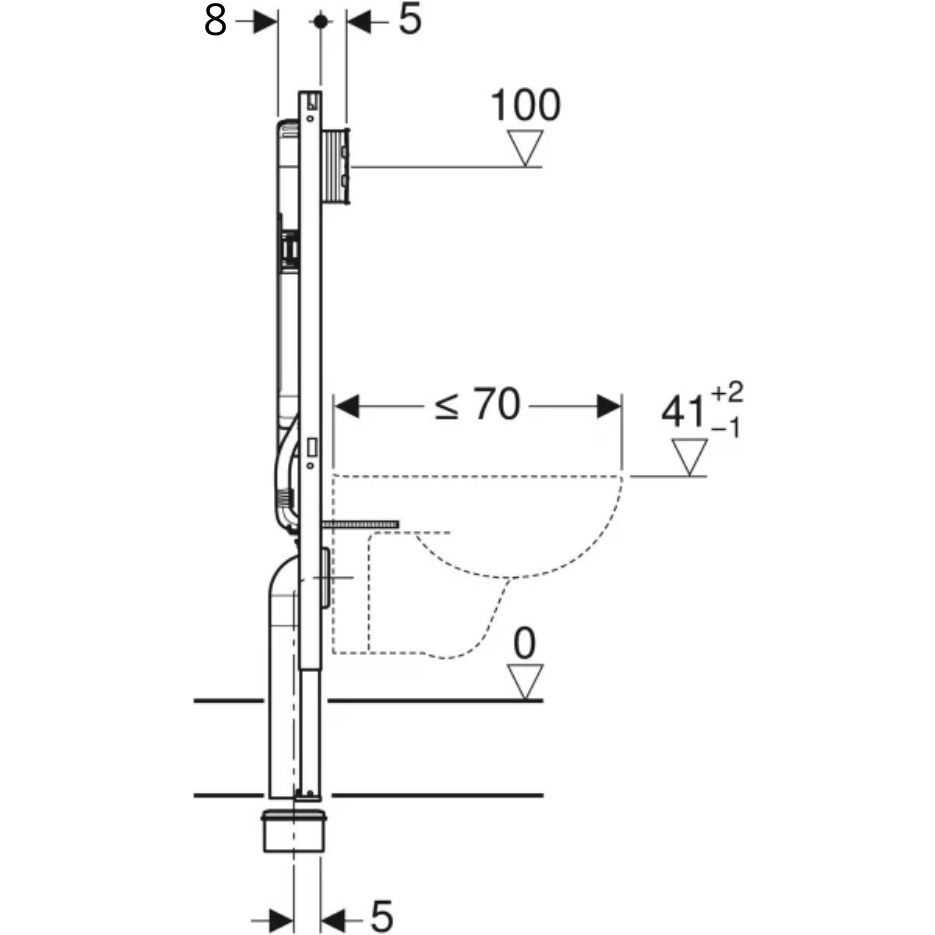

- Wall-hung WCs up to 70 cm projection
- Single flush, dual flush, or stop-and-go flush

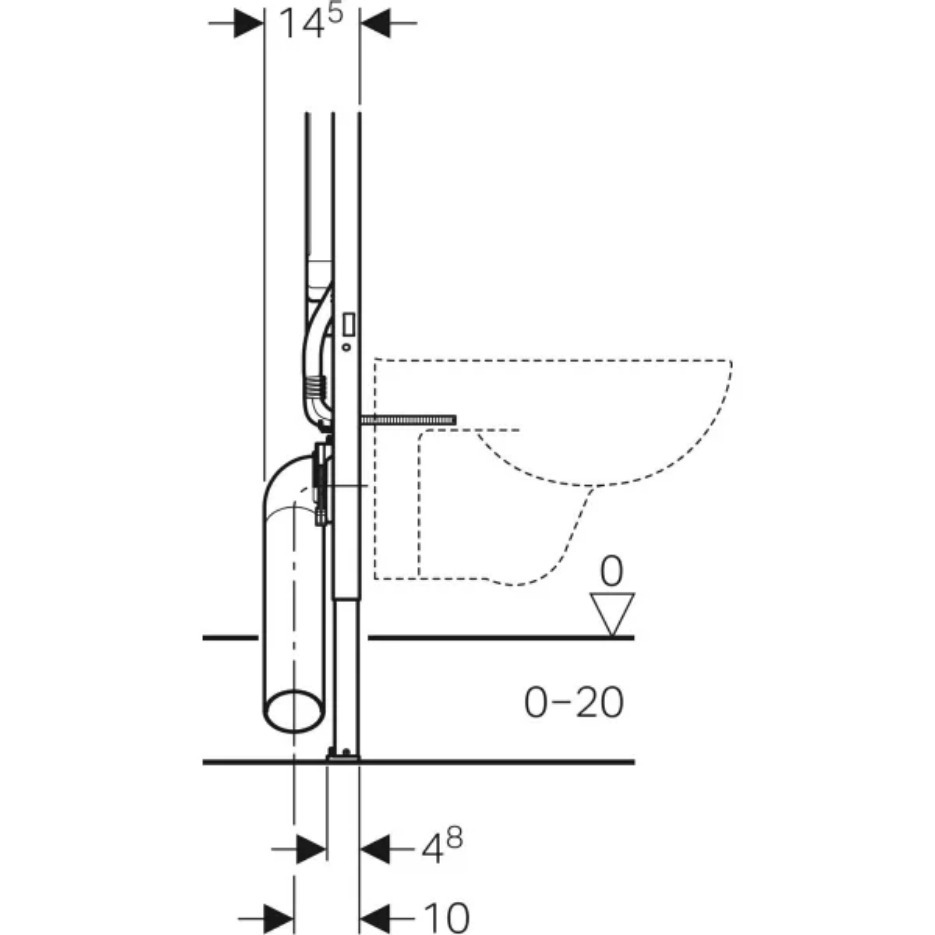

- Floor constructions 0–20 cm
Included Components:
- R 1/2" water supply connection with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall mountings
- WC connection set ø 90 mm
- 90° PE-HD connection bend ø 90 mm
- Adapter socket PE-HD ø 90/110 mm
- 2 protective caps
- 2 threaded rods M12
- Fixing material
Geberit Sigma01 Dual Flush Plate, Matt Chrome (115.770.JQ.5)
- Front actuation, dual flush
- Sound-insulated release rods, quick tool-free adjustment
- Triggering force < 20 N
- Plastic, matt chrome-coated, easy-to-clean
- Compatible with all Geberit Sigma cisterns
Attention: Check products upon delivery. Record any damage on delivery note. Claims not accepted post-delivery due to strict carrier policies.
- Material:Synthetic
- Length (cm):11
- Width (cm):117
- Height (cm):15
- Frame brand:Geberit
- Type of frame:Classic Extra-flat
- Constructor warranty:2 years
- Weight:10.00
- Depth:11
- Product type:Cistern
- Water regulations:ACS approved
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(38.70% saving)
