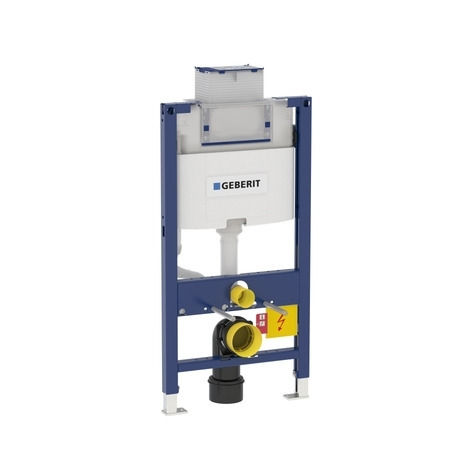

Geberit Duofix Wall-hung WC element, H: 98 cm, with Omega concealed cistern (111.030.00.1)

Applications

• for drywall construction
• for installation in partial-high pre-wall installations
• for installation in partial-high Geberit Duofix system walls
• for wall-mounted toilets with connection dimensions in accordance with DIN EN 33:2011-11
• for wall-mounted toilets with a projection of up to 62 cm
• for dual flushing
• for floor constructions: 0-20 cm

Properties

• self-supporting powder-coated frame
• frame with drilled holes Ø 9 mm for fastening in wooden uprights
• frame prepared for supporting toilet ceramics with small contact surface
• galvanised leg supports, adjustable 0-20 cm
• leg supports with slip resistance
• rotatable base plates, depth suitable for installation in UW 75 U-profiles and Geberit Duofix system rails
• connection bend can be mounted in various depth positions without tools, adjustment range: 45 mm
• connection bend bracket soundproofed
• Omega concealed cistern with top or front actuation, insulated against condensation
• immediate flushing possible with factory settings
• assembly and maintenance work on the concealed cistern without tools
• universal water connection R ½ inch offset to the side or rear left with integrated angle valve and handwheel (MeplaFix capable)
• protection for service opening protects against moisture and dirt
• protection for service opening can be cut to length
• equipped with empty conduit for water supply line for connection of Geberit AquaClean shower toilets
• 25 years of spare parts availability

Warning: DUOFIX wall mounting set not included (order no. 111.815.00.1)
