Geberit Duofix support frame 112cm + Delta01 white flush plate + wall anchors (111.154.11.1)
- Product reference: 111.154.11.1X
- EAN: 4025416802860
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Geberit Duofix Pack 112 cm Support Frame + Delta01 Dual Flush Plate, White + Wall Anchors (111.154.11.1)

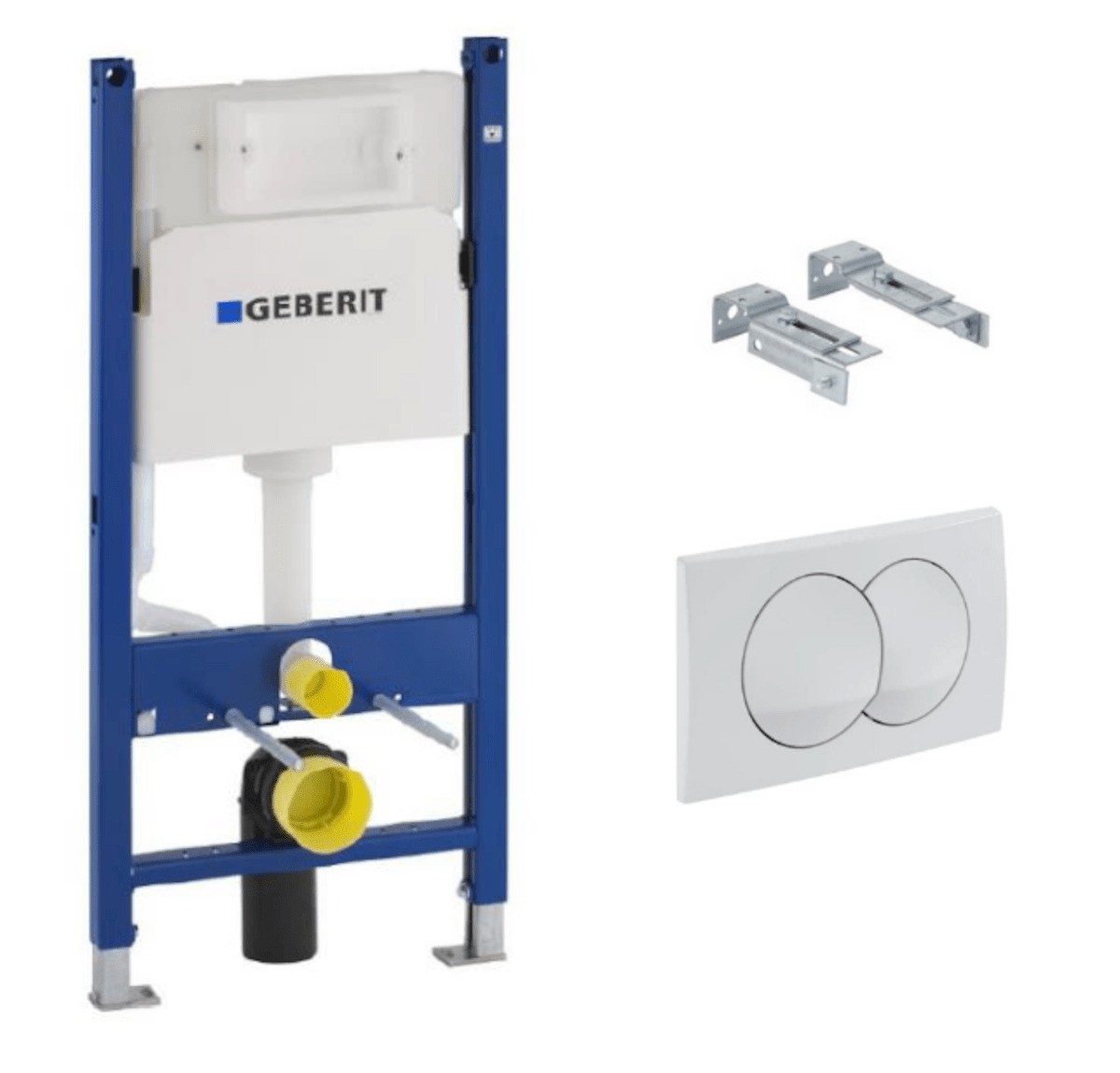

This complete installation pack includes:
- Geberit DuofixBasic support frame with Delta concealed cistern 12 cm (111.153.00.1)
- Geberit Duofix wall anchors for single installation (111.839.00.1)
- Geberit Delta01 dual flush plate, white (115.107.11.1)

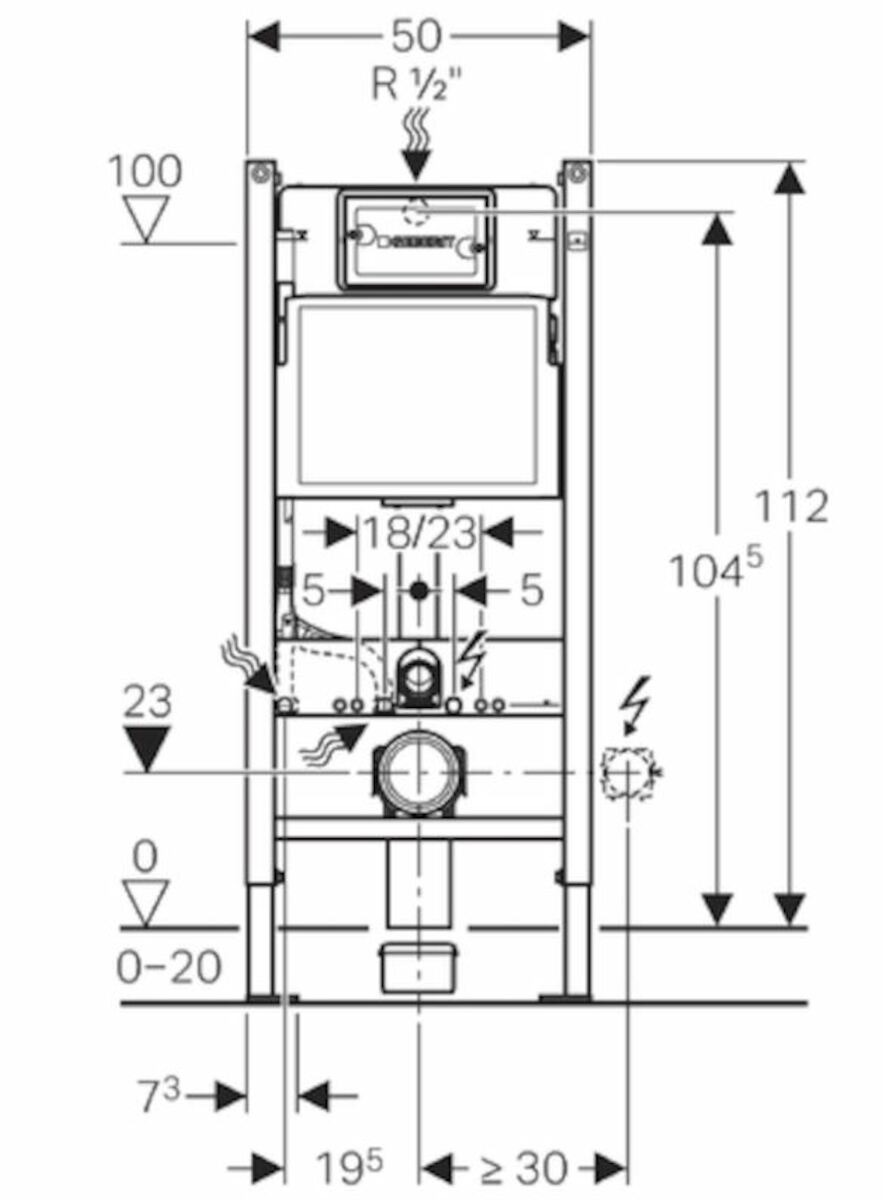

Geberit DuofixBasic Support Frame with Delta Cistern (111.153.00.1):
- Height: 112 cm, depth 12 cm
- Delta concealed cistern 12 cm (UP100), fully insulated against condensation
- Front actuation, dual flush compatible (Delta20 or Delta21 plates)
- Factory setting flush volumes: 6/3.5 L (adjustable to 4.5/3 L or 7.5/3 L)
- Adjustable large flush, small flush fixed
- Water supply connection rear or top centre
- Instantaneous flush adjustable
- Connection bend tool-free installation, ø 90 mm
- Frame with ø 9 mm drilling holes for fastening in wood construction
- Galvanised, adjustable feet (0–20 cm), plastic foot plates for UW 50 profiles
- Not suitable for concreting
- Compatible with Geberit AquaClean shower toilets
Use:
- For drywall construction, part- or room-height prewalls, or full-height installation walls
- For wall-hung ceramic WCs with EN 33:2011 dimensions
- Suitable for WCs with projection up to 62 cm
- For floor constructions 0–20 cm
Included with frame:
- 2 threaded rods M12
- Drain valve for dual flush
- Protection box for service opening
- 2 protection plugs
- Angle stop valve R 1/2" with adaptor ring
- AquaClean water supply hose
- Connection set for WC, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Adapter socket ø 90/110 mm
- Fixing material
Geberit Duofix Wall Anchors (111.839.00.1):
- Set of wall fixings for secure single installation

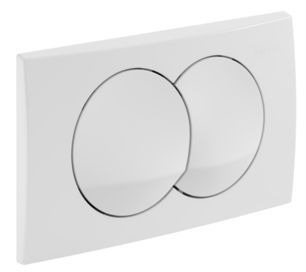

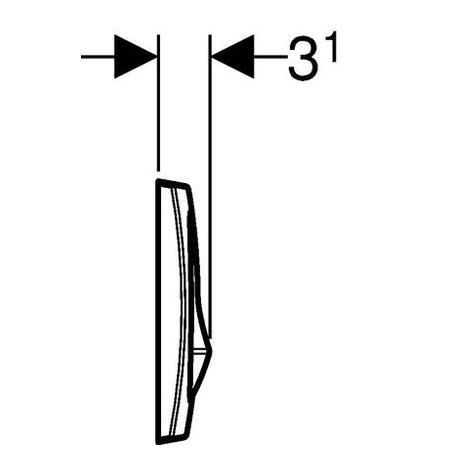

Geberit Delta01 Dual Flush Plate, White (115.107.11.1):
- Dual flush operation: 3 L (small) / 6 L (large)
- Front actuation, water-saving design
- Material: plastic, white finish
Important: Please check the goods on delivery. Always write “subject to unpacking” on the delivery note. Any damage must be reported immediately; claims cannot be accepted later.
- Colour:White
- Material:Metal/plastic
- Length (cm):15
- Width (cm):55
- Height (cm):115
- Frame brand:Geberit
- Type of frame:Standard
- Constructor warranty:2 years
- Weight:12.00
- Depth:15
- Product type:Support frame for wall-hung toilets
- Water regulations:ACS approved
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(30.08% saving)
