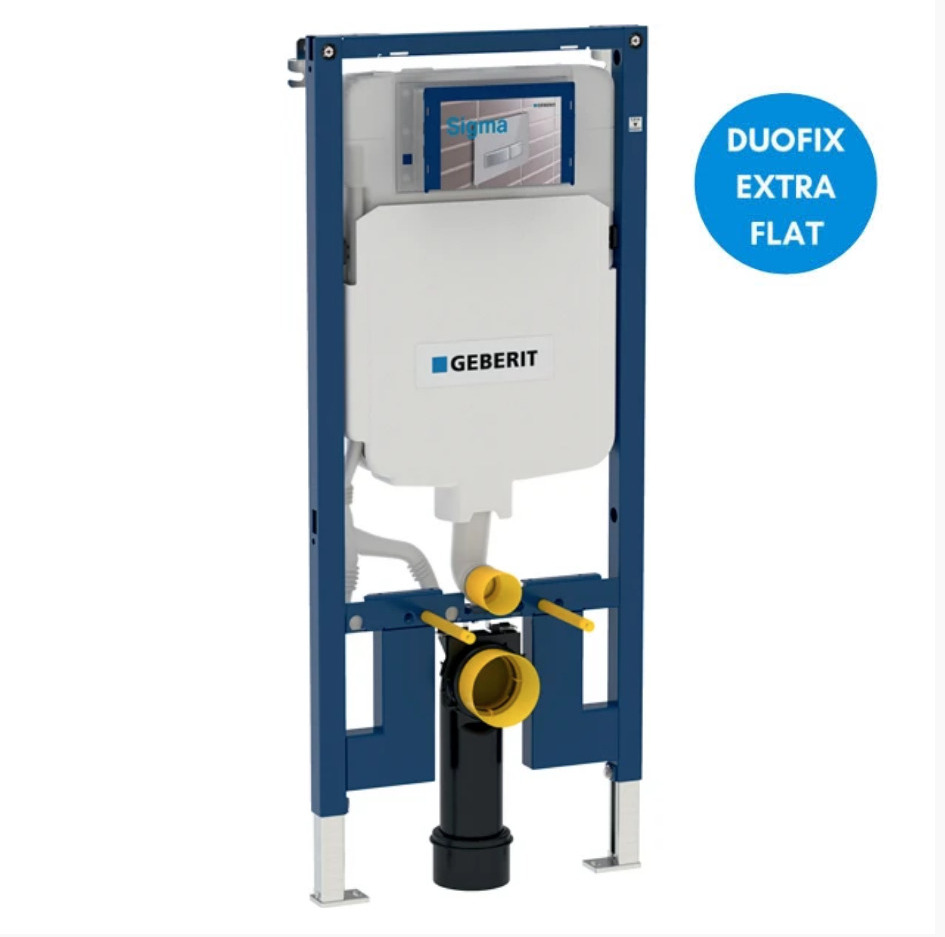

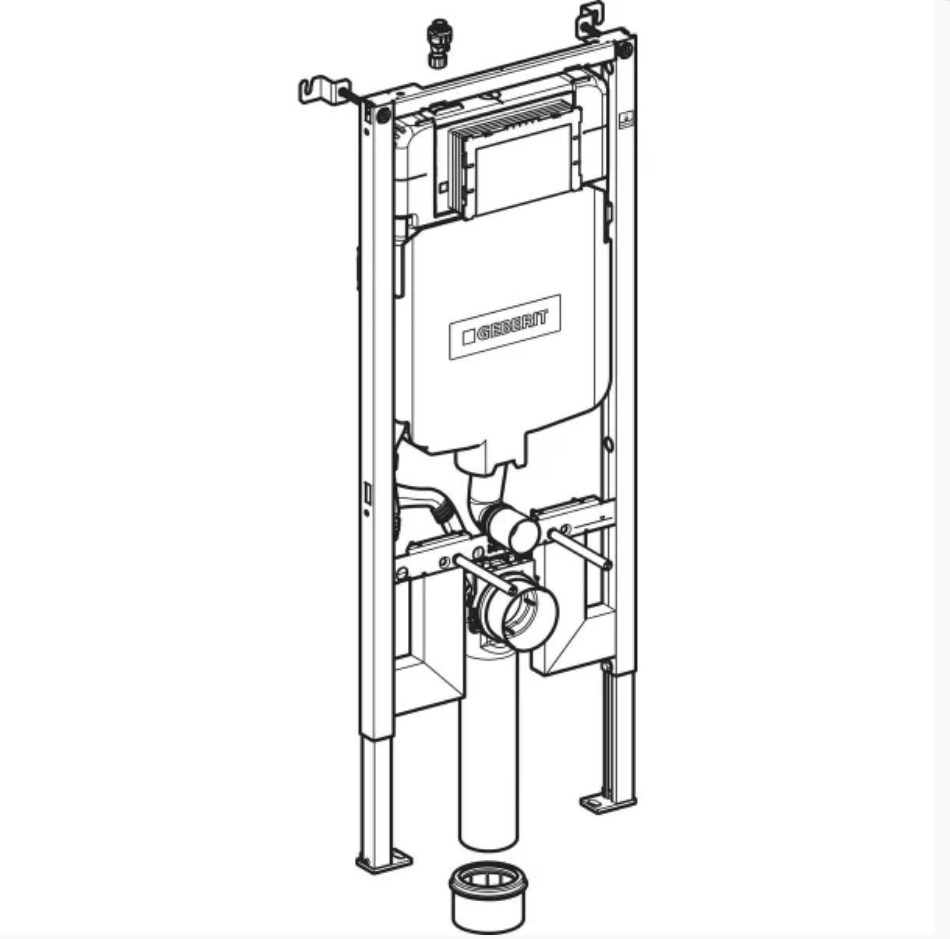

Geberit UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1)

  • Product reference: 111.796.00.1
  • EAN: 4025416351788
  • Brand:
  • Line: Duofix
Product warranty: 2 years
£
23490
TAX INCL.
£
43222
Retailed price
( 45.65% saving)
329 In stock
Shipped tomorrow
Quantity:

Features of the space-saving, extra-flat 114 cm UP720 stand with 8 cm Sigma concealed cistern, Geberit Duofix (111.796.00.1) :

  • Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
  • Galvanised, infinitely adjustable, non-slip support feet
  • Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
  • Connecting bend for different depth positions, can be mounted without tools
  • Connecting bend for depth position flush with the front for vertical installation
  • Extended connection bend, for floor connection
  • Connection bend fastening with sound insulation
  • Built-in tank with front release
  • Built-in tank insulated against condensation
  • Immediate post-flushing possible with factory setting
  • Installation and maintenance work on concealed cisterns without tools
  • Water inlet from the top left
  • Access panel housing, protects against moisture and dust
  • Access panel box, can be cut to size, suitable for flush-mounted trigger plates
  • Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
  • With fixing possibilities for electrical connection

Use :

  • For dry wall construction
  • For installation in walls at room height or partial height
  • For installation in installation walls at room height
  • For wall-hung toilets extended to 70 cm
  • For one-touch, two-touch or interruptible flushing
  • For screed heights of 0-20 cm

Scope of delivery :

  • R 1/2" supply line, MF compatible, with integrated angle valve and hand wheel
  • Reservation box for inspection hatch
  • 2 wall mountings
  • WC connection set, ø 90 mm
  • 90° PE-HD connection bend, ø 90 mm
  • Transition sleeve made of PE-HD, ø 90 / 110 mm
  • 2 protective caps
  • 2 threaded rods M12
  • Fixing material
Product technical properties
  • Type of frame:Support frame extra flat
