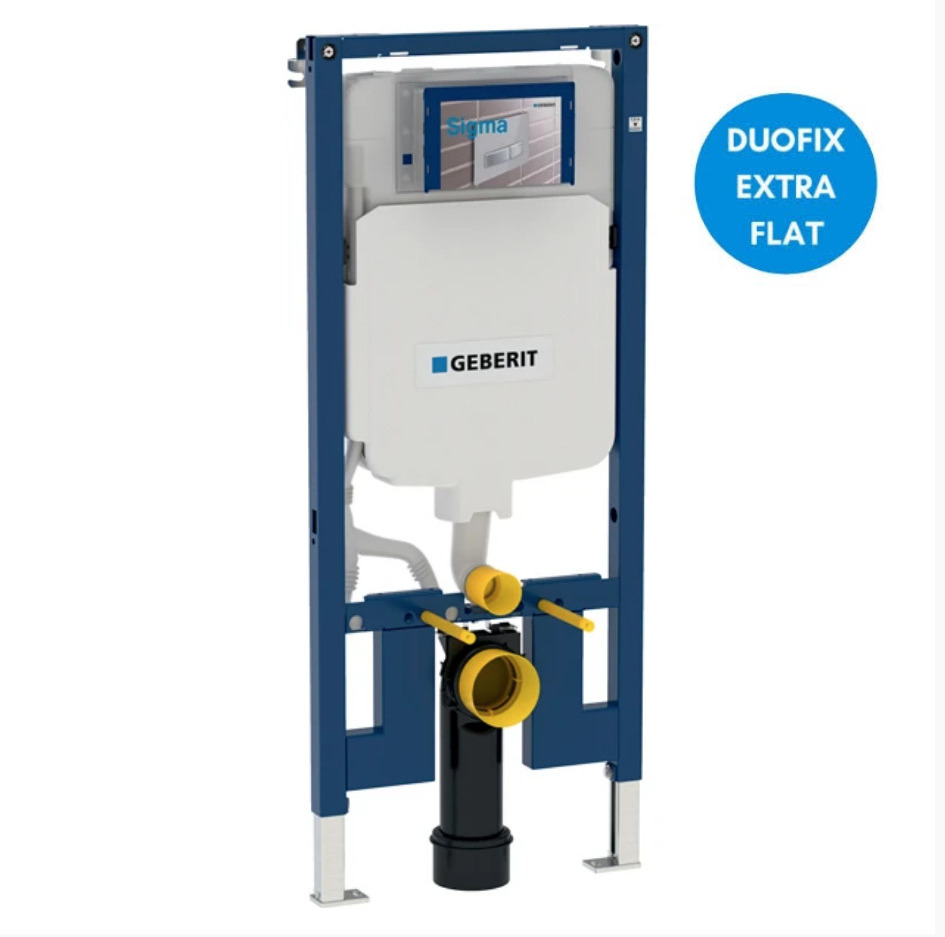

Geberit Duofix UP720 Extra-Flat Support Frame 114 cm, space-saving, with Sigma Concealed Cistern (111.796.00.1)

Features of Geberit Duofix UP720 Extra-Flat Support Frame 114 cm, space-saving, with Sigma Concealed Cistern (111.796.00.1):

• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame suitable for ceramic toilets with small contact surface (with pressure-resistant wall covering)
• Galvanised, infinitely adjustable, non-slip support feet
• Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails
• Connection bend can be installed without tools at different depths
• Connection bend can be mounted vertically with front flush
• Waste connector bend, extended, for floor connection
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation, fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection at the top, offset to left side
• Protection box for service opening can be cut to length, suitable for surface-even actuator plates
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets

Use:

• For drywall construction
• For installation in part- or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011

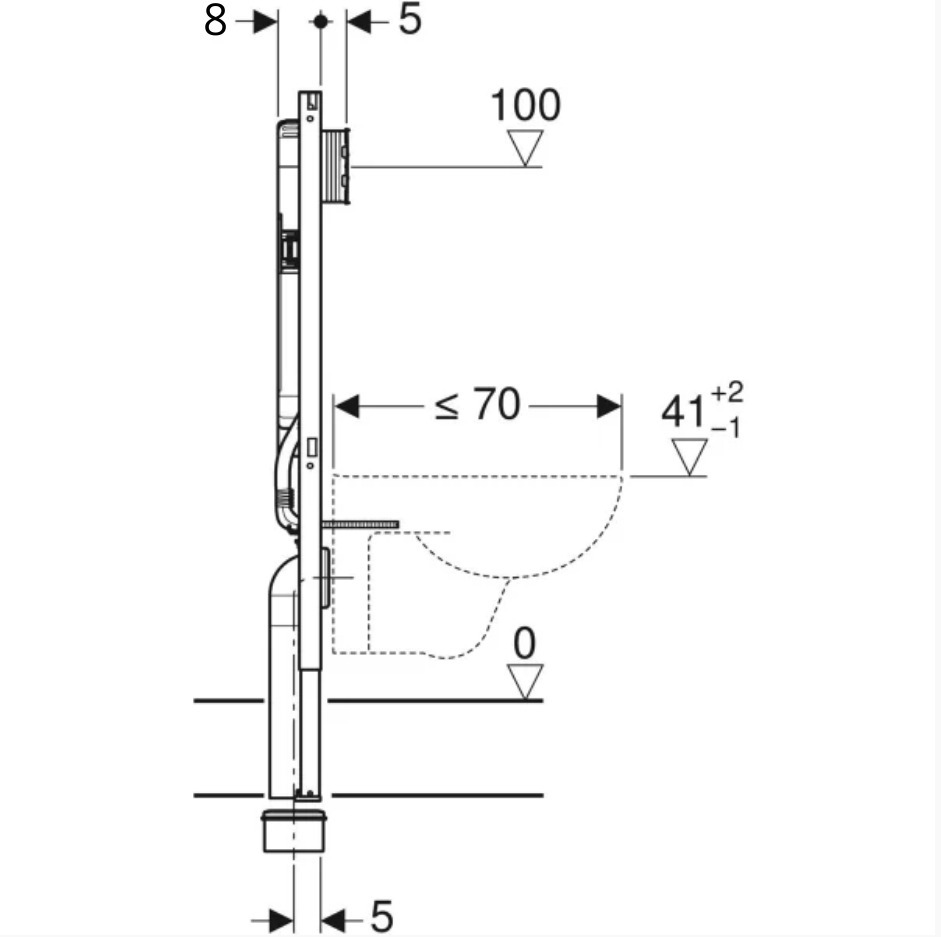

• Suitable for wall-hung WCs with projection up to 70 cm
• For single flush, dual flush or stop-and-go flush
• For floor constructions 0–20 cm

Included:

• Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchorings
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 protection plugs
• 2 threaded rods M12
• Fixing material

.
