Geberit Duofix 112cm Toilet Support Frame + Delta20 Alpine white flush plate + Wall brackets (458.134.11.3)
- Product reference: 458.134.11.3
- EAN: 4064746032615
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Pack Contents: Duofix 112cm Frame + Delta20 Flush Plate Alpine White + Wall Mounts (458.134.11.3)
- Geberit Duofix UP100 Frame Set + 112cm WC Cistern (458.103.00.2)
- Geberit Delta20 Dual Flush Actuator Plate, Alpine White (115.127.11.1)
.

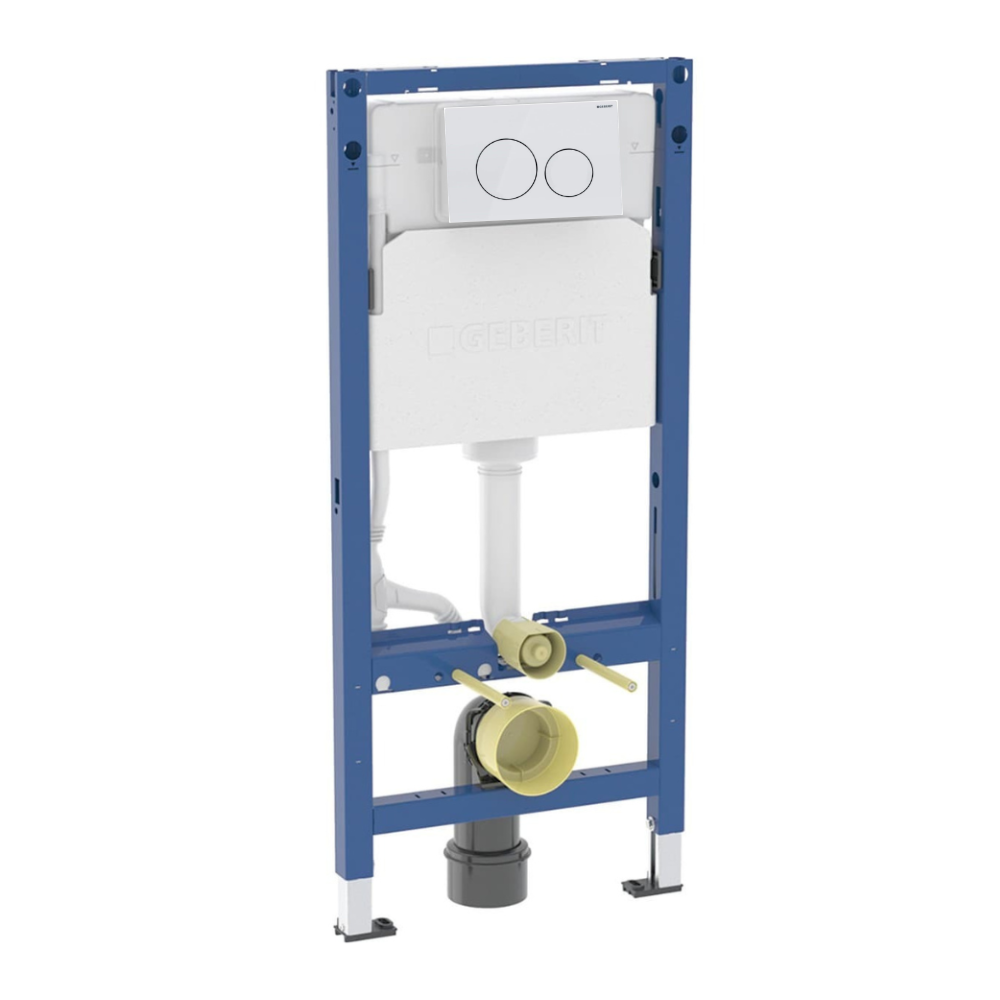

Geberit Duofix Basic UP100 Frame, 112cm, with UP100 Concealed Cistern (458.134.21.3):
Installation recommendations:
These wall-hung toilet frames are designed for the following types of installation:
- Against a load-bearing wall (concrete shell, plaster tiles, aerated concrete, bricks, breeze blocks) and on a concrete slab using the fixings provided.
- In a metal-framed partition wall made of reinforced rails (KNAUF, PLACO, etc.) at room height or with Geberit Duofix system rails and uprights at partial or room height (according to manufacturer's recommendations).
These wall-hung toilet frames cannot be installed against plasterboard partition walls with a core cardboard honeycomb, against plasterboard partitions on a metal frame or against double-skin partition walls made of plasterboard on a metal frame without additional accessories (substitution of the feet provided by self-supporting feet) or the addition of additional reinforcements (to be integrated beforehand into the partition at the level of the upper fixings).
These wall-mounted toilet support frames can be installed on wooden floors if they are placed against a load-bearing wall (see previous description) and their feet on a joist or batten using the lag screws provided.

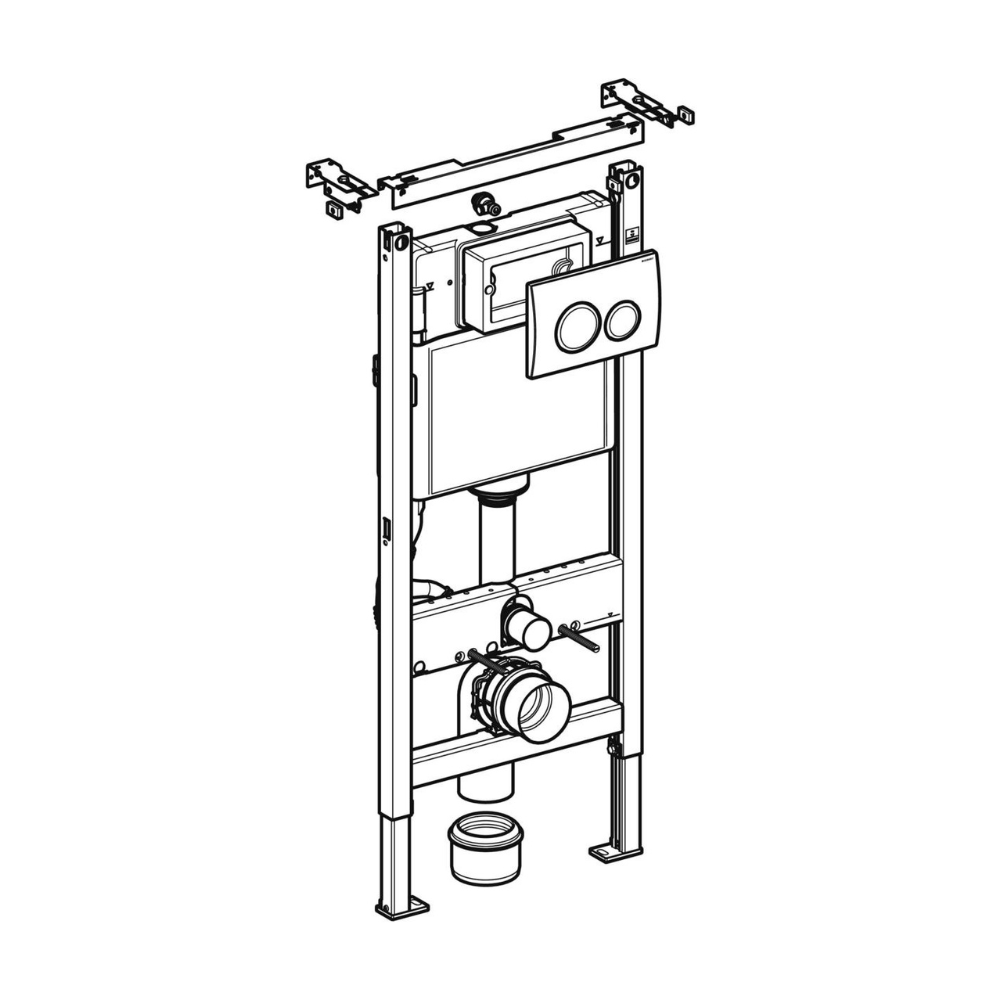

The set includes:

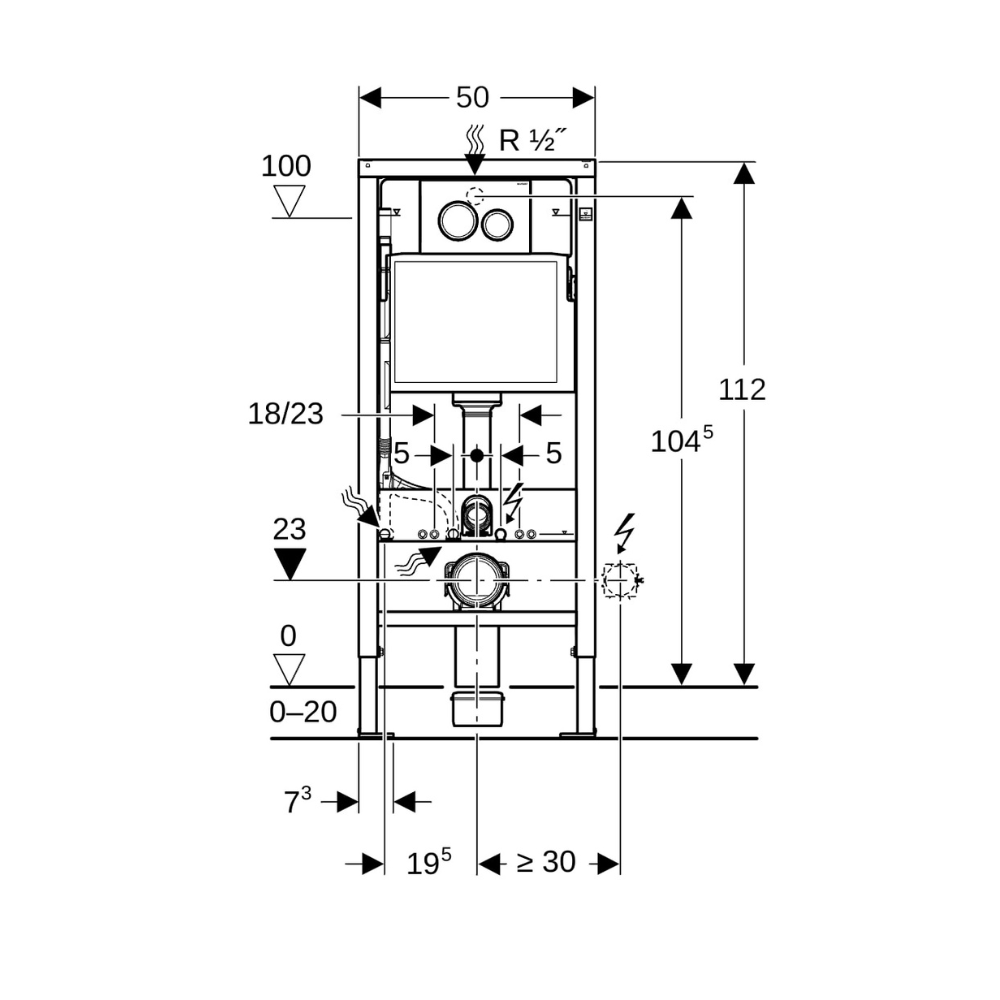

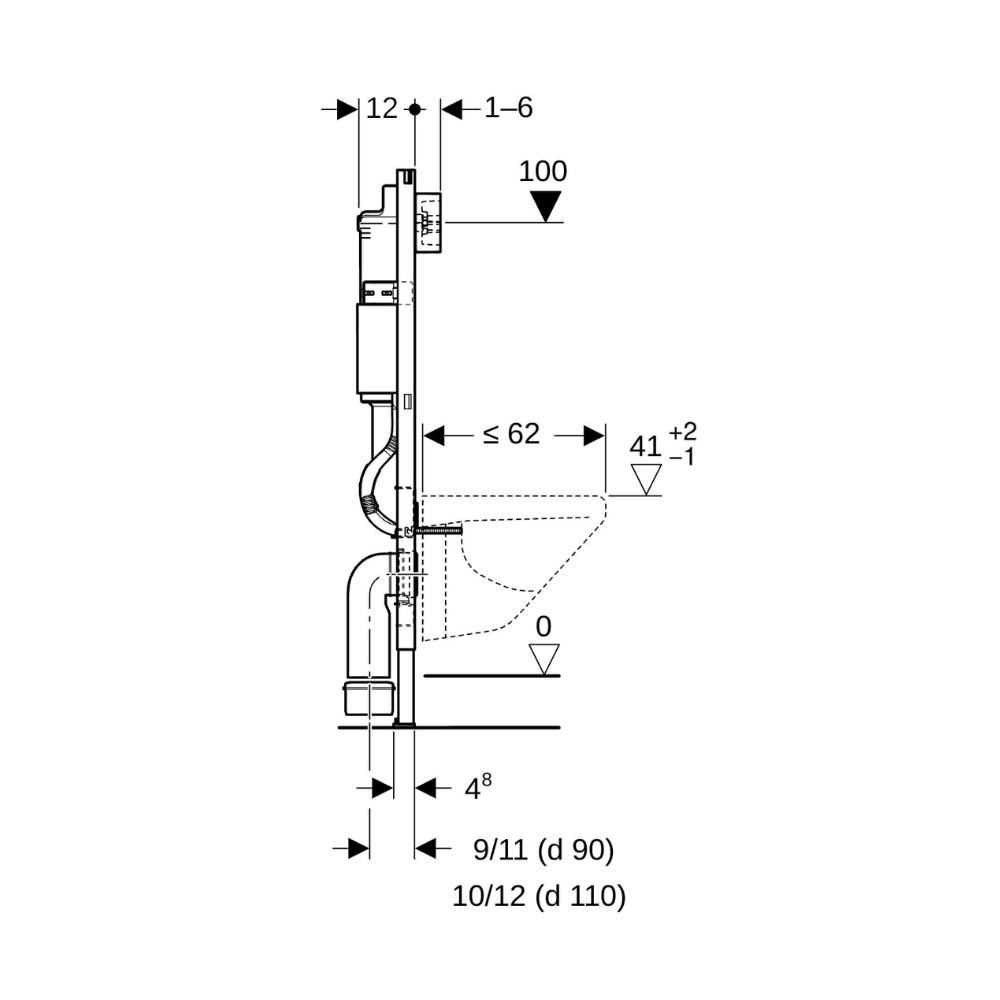

- 112 cm zinc-plated support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25-year manufacturer's warranty on spare parts)
- Pre-painted frame in Geberit blue
- Support feet with graduation markings in cm
- Swivel feet for mounting in UW50/UW75 profile
- Crosspiece for cladding support
- 2 M12 threaded rods for fixing the ceramic with intermediate distance of 18 or 23 cm
- Concealed cistern 4-6-7.5 l, insulated against condensation
- Front actuation with two flush quantities with Delta21, Delta20 or Delta50 plates
- Inlet at the rear/top
- Angle stopcock R1/2“,
- Reservation box for inspection hatch
- Styrophor construction site protection
- Drain elbow Ø 90 mm
- Cuff fitting Ø 90 mm
- Transition sleeve Ø 90/110 mm
- Fixing material

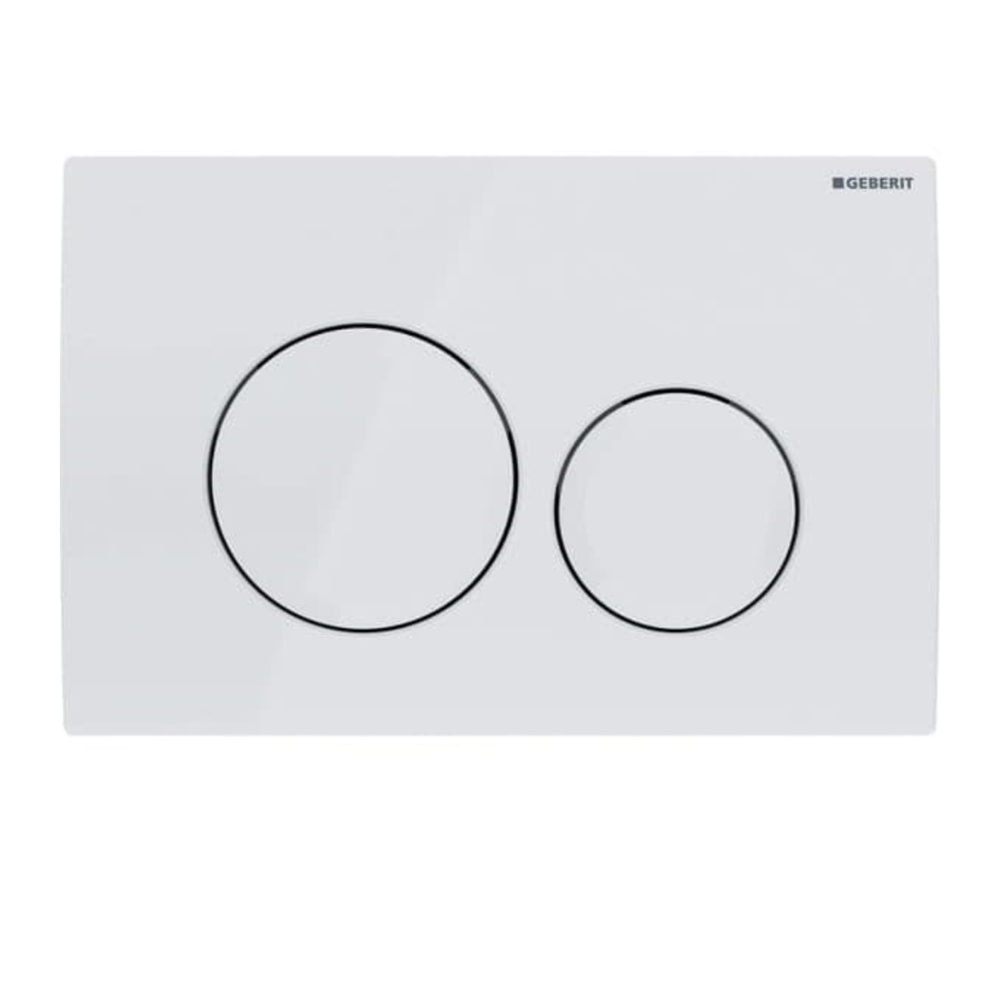

Delta20 dual flush plate, alpine white (115.127.11.1):
- Dual flush device
- Color: alpine white
- Pneumatic actuation
- Colour:White
- Material:Metal
- Length (cm):12
- Width (cm):50
- Height (cm):112
- Frame brand:Geberit
- Type of installation:Wall
- Weight:18
- Depth:12
- Product type:Support frame for wall-hung toilets
- Net weight:16.2
- Flush plate colour:WHITE
