Grohe Frame Pack Rapid SL Low-Height Support Frame 0.82 m + Brushed Hard Graphite Flush Plate + Fixings (38526000-AL0)
- Product reference: 38526000-AL0
- EAN: 8592127182339
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

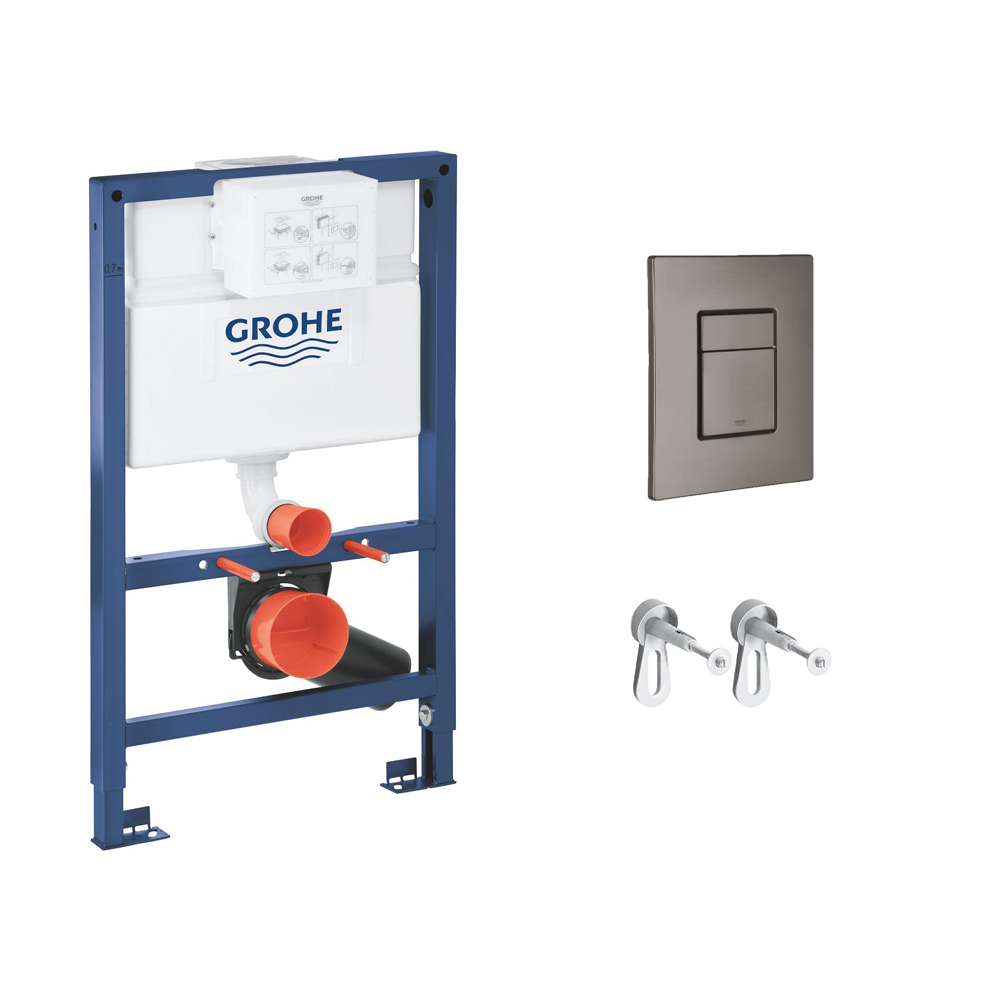

Grohe Low-Height Toilet Installation Pack – Rapid SL Frame 0.82 m + Brushed Hard Graphite Flush Plate + Front Wall Brackets (38526000-AL0-82)
This installation pack combines Grohe’s low-height Rapid SL frame (0.82 m) with a modern Brushed Hard Graphite flush plate and front wall brackets, offering a durable and space-saving solution for wall-hung toilets. Designed for under-window and low-wall applications, the system ensures reliable performance, quick installation, and long-lasting functionality.

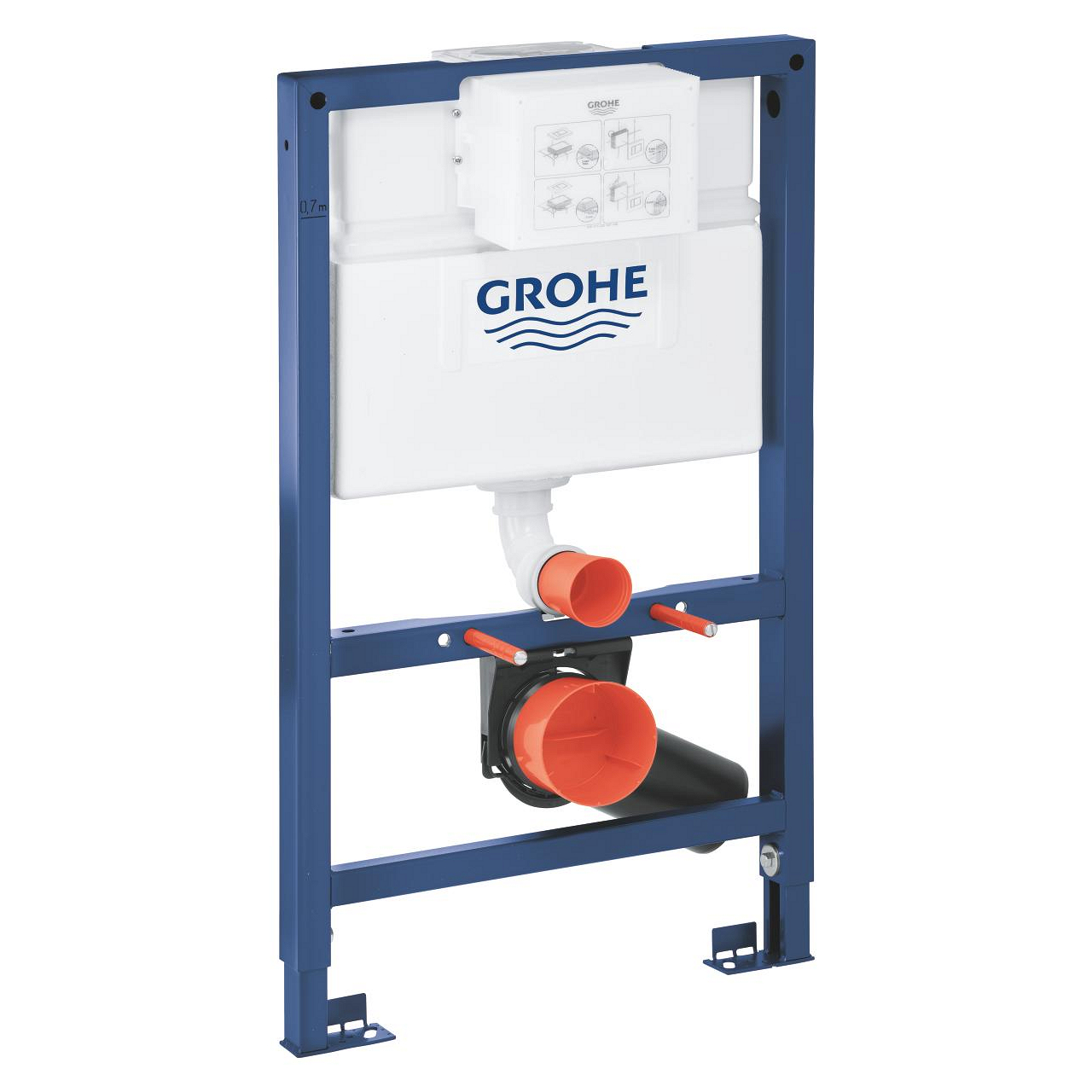

Grohe Rapid SL Low-Height Frame 0.82 m (38526000)
- Powder-coated, self-supporting steel frame, TÜV approved
- Height: 0.82 m – ideal for low-wall or under-window installations
- Dual-flush concealed cistern: 6–9 L (factory setting 3/6 L), insulated against condensation
- Water supply from left, right, or rear (½") with integrated angle valve + push-fit flexible hose union
- Includes 2 WC fixing bolts + fixing device for ceramic
- Bolt spacing: 180/230 mm
- PP outlet bend Ø 90 mm, depth adjustable
- Reducer Ø 90/110 mm supplied, with inlet/outlet connection set
- For on-the-wall or studded wall mounting
- Optional accessories: wall brackets (38 558 00M) for surface installation, revision shaft (40 950 000) for small flush plates

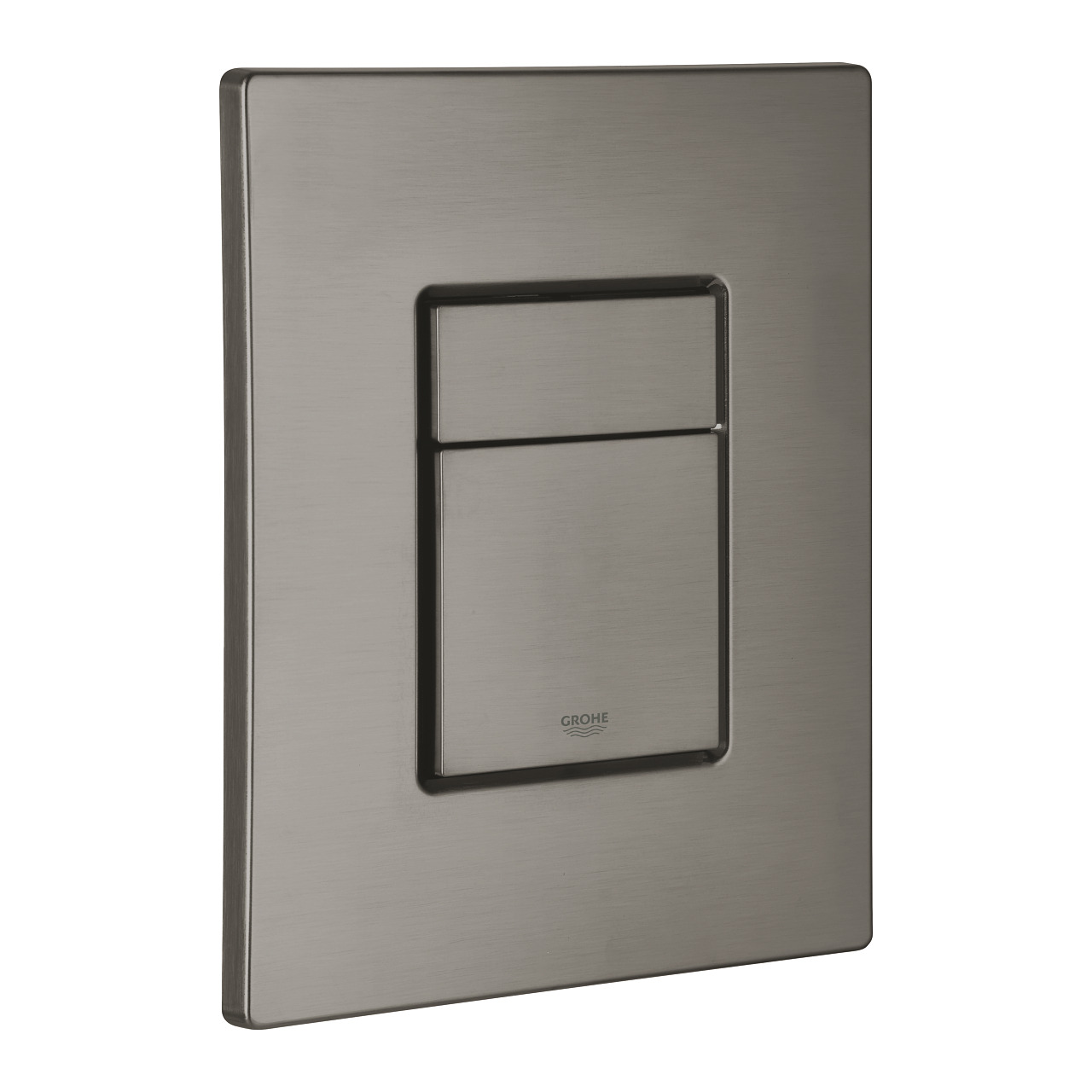

Grohe Skate Cosmopolitan Flush Plate – Brushed Hard Graphite (38732AL0)
- Compatible with Grohe pneumatic AV1 flush valve system
- Actuation type: dual flush or start/stop
- Mounting: vertical or horizontal
- Dimensions: 156 × 197 mm
- High-quality ABS with GROHE Long-Life brushed Hard Graphite finish
- GROHE EcoJoy water-saving technology – efficient flushing with reduced water use

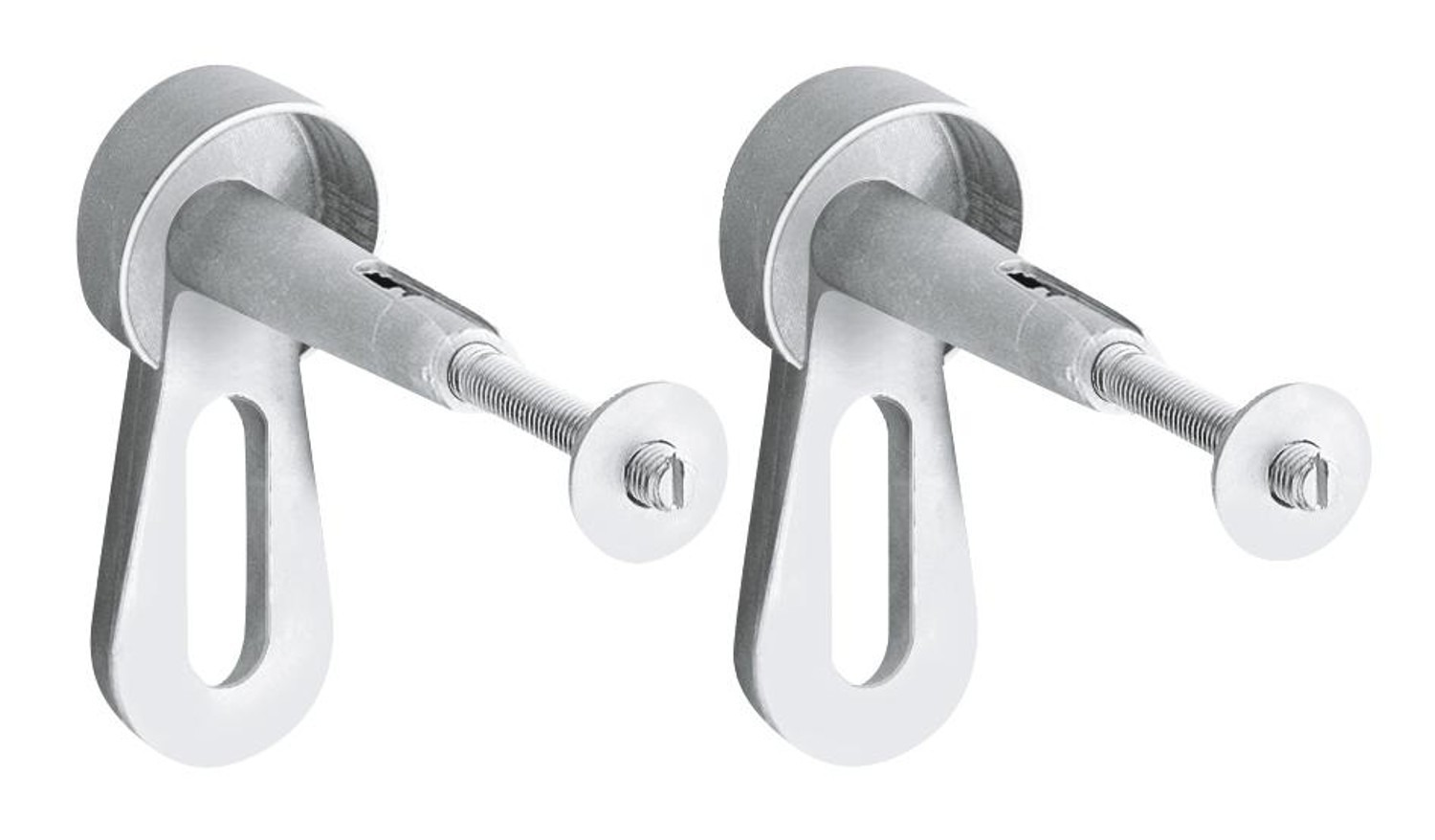

Grohe Rapid SL Front Wall Brackets (3855800M)
- For secure installation of the Rapid SL frame against solid walls or partitions
- Infinitely variable depth adjustment: 130–230 mm
- Supplied as a set of 2 with all fixing materials
Delivery note: Please always mark “subject to unpacking” on the delivery slip when receiving goods. Carriers enforce strict rules, and no claims for transport damage can be accepted afterward.
- Type of frame:Low height
- Plate colour:Brushed hard graphite
- Product type:Support frame for wall-hung toilets
- Water regulations:ACS approved
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(34.97% saving)
