Geberit Set Duofix UP320 Support frame + Sigma01 White flush plate (UP320-Sigma01-B)
- Product reference: UP320-SIGMA01-B
- EAN: 0750122358199
Brand:
Product warranty:
2
years
£
37990
TAX INCL.
£
41226
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
7.85%
saving)
14 In stock
Shipped before
the 11 November
Quantity:

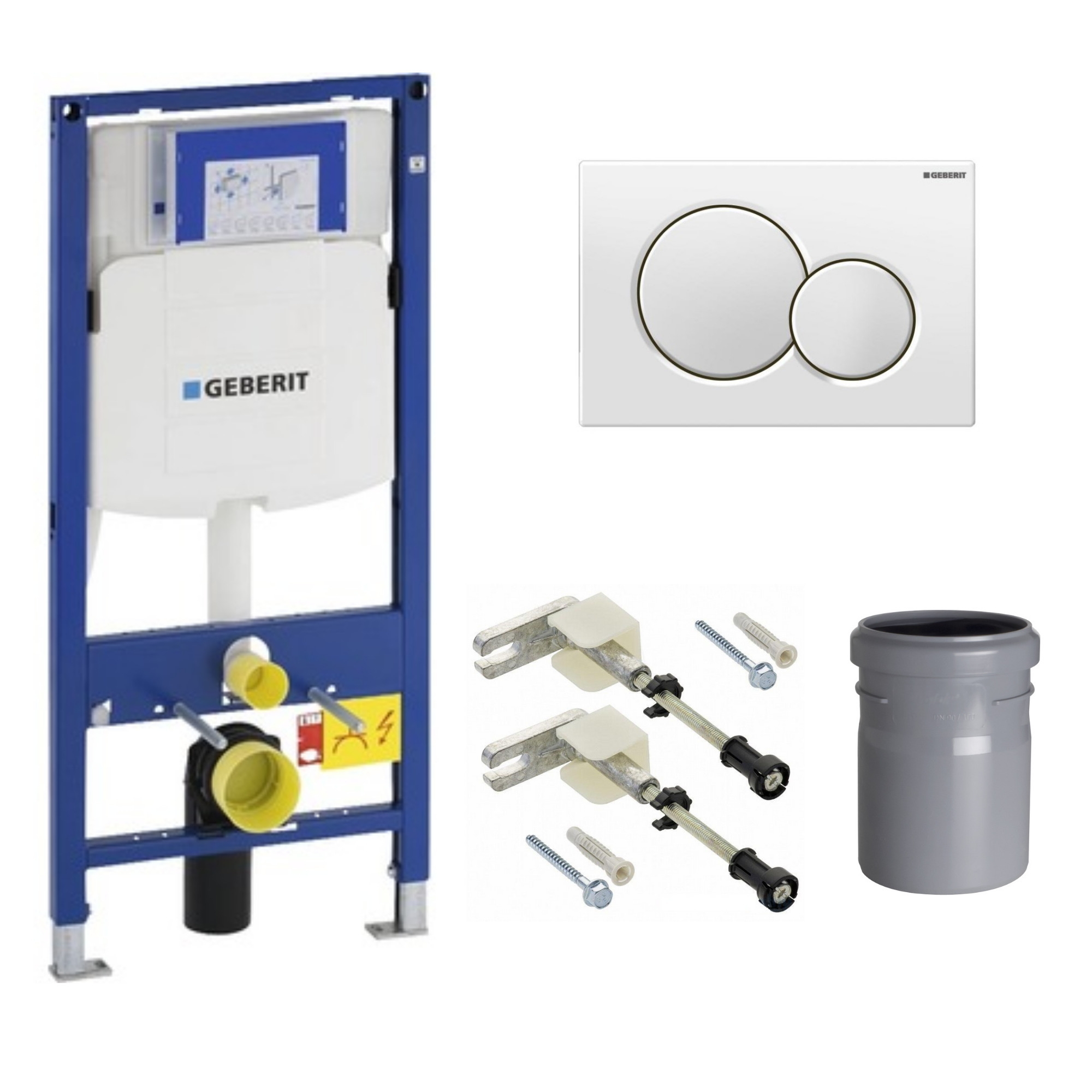

Features of the Set Duofix UP320 Support frame + Sigma01 White flush plate (UP320-Sigma01-B) :
- Duofix UP320 wall mounting frame (111.300.00.5)
- White SIGMA 01 two-touch flush plate (115.770.11.5)
- Geberit DUOFIX wall mounting set (111.815.00.1)
.

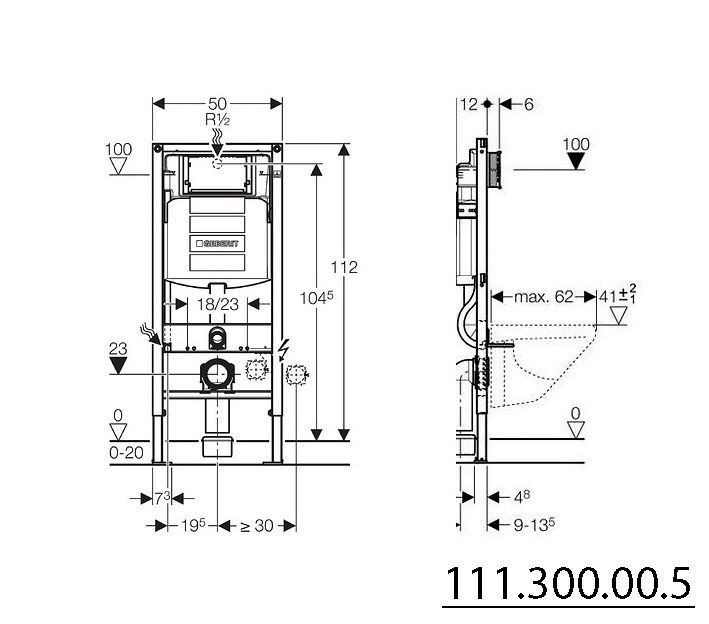

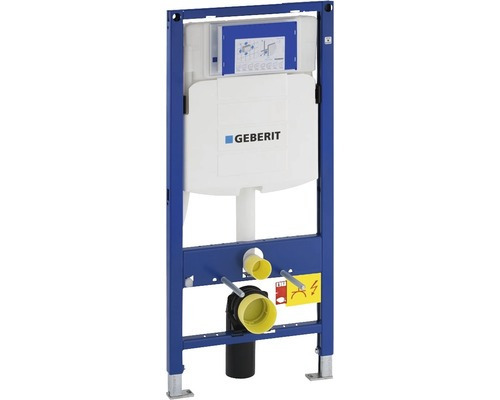

Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above
.

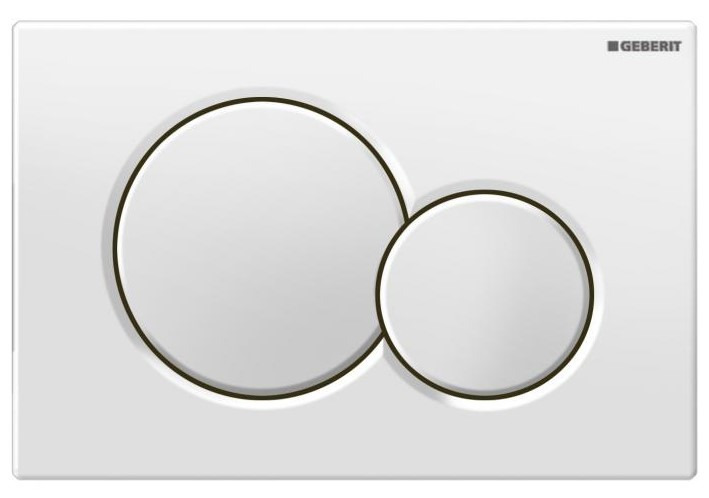

Geberit White SIGMA 01 two-touch flush plate (115.770.11.5) :
- Double button 3/6L water saving
- Made of high quality synthetic material
- Plate compatible with the blue water block diffuser
- Dimensions: 246x164 mm.

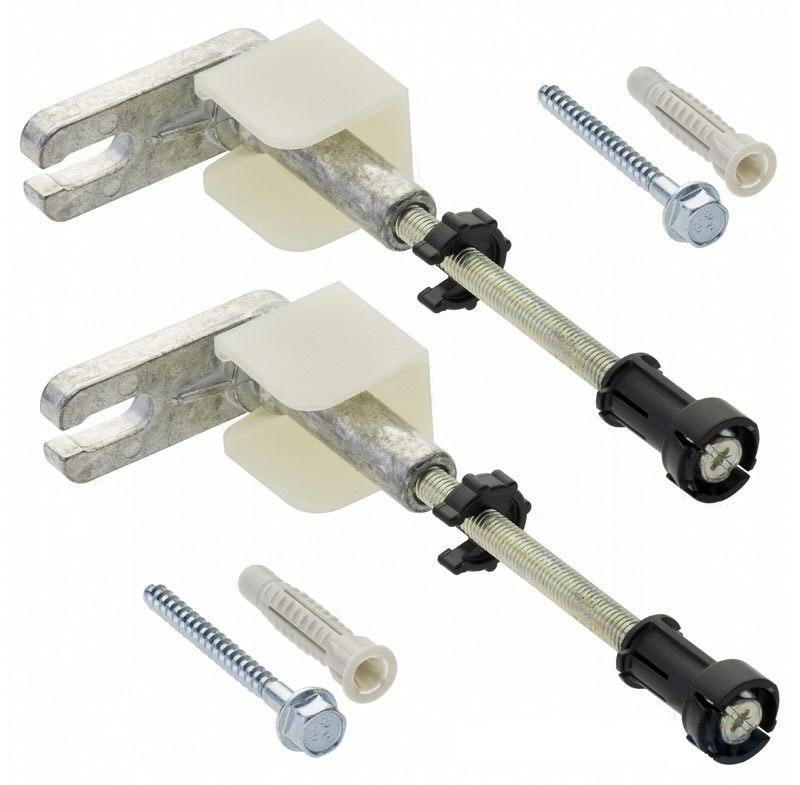

Geberit DUOFIX wall mounting set (111.815.00.1) :
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
.
Product technical properties
- Colour:White
- Material:Synthetic
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Weight:14.5
- Flush system:Dual flush
- Key shape:Round
£
