Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5)
- Product reference: 111.300.00.5
- EAN: 4025416846208
- Line:
Brand:
Product warranty:
2 years
£
22590
TAX INCL.
£
30720
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
26.46%
saving)
773 In stock
Shipped before
the 10 November
Quantity:

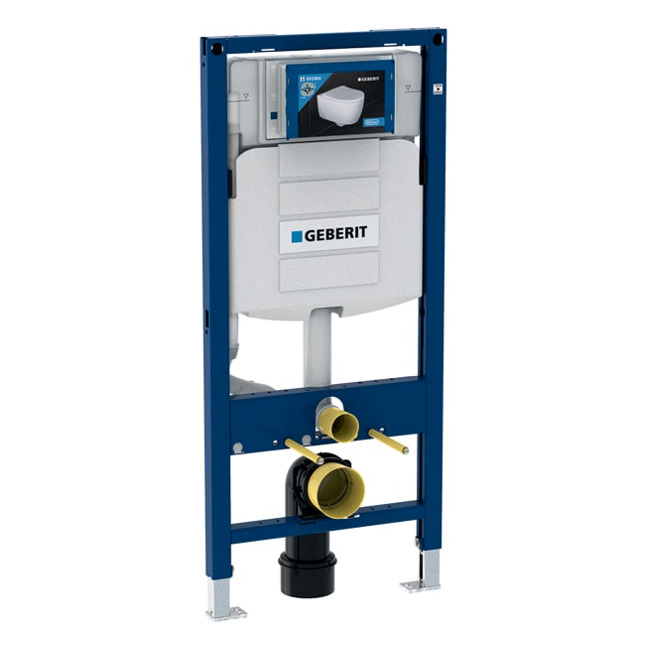

Geberit Duofix UP320 Toilet Support Frame with Concealed Cistern (111.300.00.5)
Key Features:
- Self-supporting, powder-coated frame

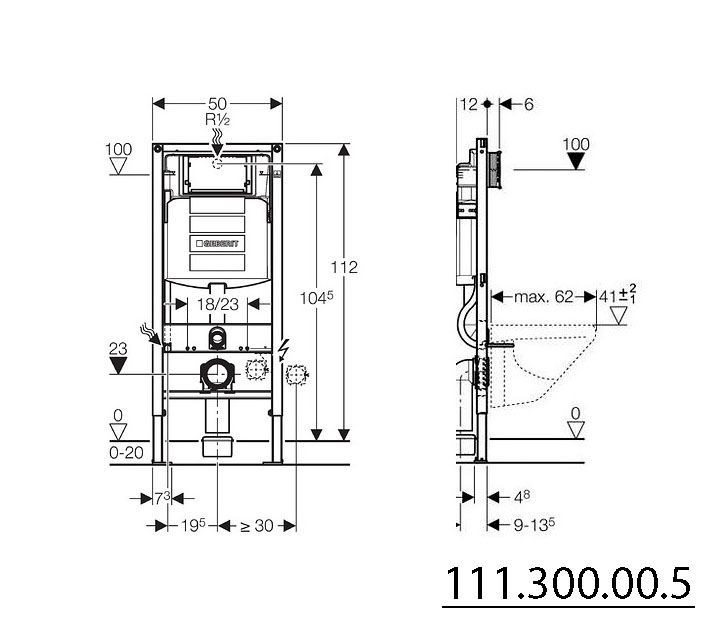

- Dimensions: 100–112 cm (H) x 50 cm (W) x 12 cm (D)
- Concealed cistern with front actuation
- Compatible with Geberit Sigma flush plates
- Fully insulated cistern prevents condensation
- Factory-set for immediate post-flush
- Tool-free installation and maintenance
- Rear or top-centre water connection
- Cut-to-length protection box for actuator plate
- Includes conduit for Geberit AquaClean feed pipe
- Electrical connection fastening option
Use:
- For drywall construction
- Suitable for part-height or full-height prewall and room-height installations
- For wall-hung WCs (EN 33:2011) with projection up to 62 cm
- Supports single, dual, or stop-and-go flushing
- For floor constructions 0–20 cm
Technical Details:
- ø 9 mm frame holes for wooden frame fixing
- Compatible with support brackets for ceramic WCs with small contact areas
- Galvanised, adjustable (0–20 cm), non-slip feet with rotatable plates
- Foot plates fit U-profiles UW 50, UW75, and Duofix rails
- Tool-free, adjustable-depth (45 mm) connection bend
- Sound-insulated fastening for connection bend
Included Components:
- R 1/2" water connection with angle valve and hand wheel (MeplaFix compatible)
- Protection box for service opening
- 2 protection plugs
- WC connection set ø 90 mm
- 90° PE-HD connection bend ø 90 mm
- PE-HD adapter socket ø 90/110 mm
- 2 threaded rods M12
- Fixing material
Does not include:
Wall bracket for load-bearing wall (111.815.00.1)
Flush plate
.
IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
Product technical properties
- Material:Metal
- Length (cm):15
- Width (cm):115
- Height (cm):52
- Constructor warranty:2 years
- Weight:14.94
- Depth:15
- Product type:Cistern
- Water regulations:ACS approved
£
