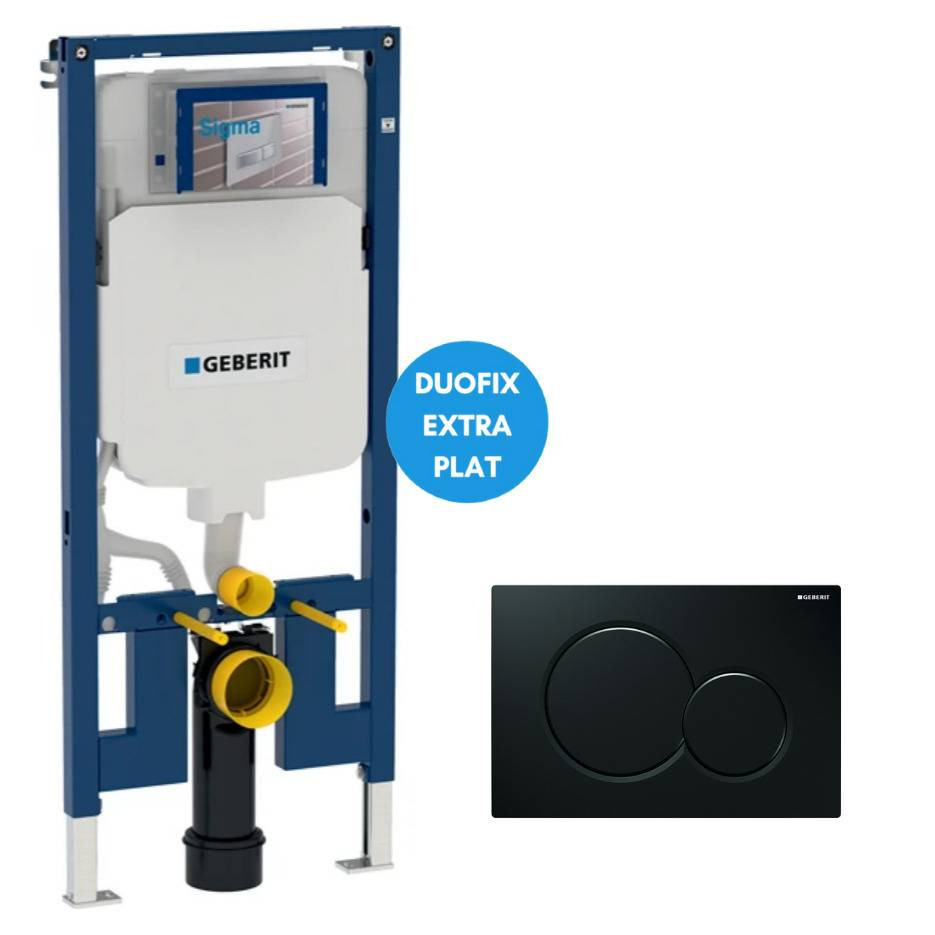

Geberit Duofix Pack UP720 Extra-Flat Frame 114 cm, space-saving + Sigma01 Dual Flush Plate, Black (111.796.00.1-A)
- Product reference: 111.796.00.1-A
- EAN: 0750122364190
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of Geberit Duofix Pack UP720 Extra-Flat Frame 114 cm, space-saving + Sigma01 Dual Flush Plate, Black (111.796.00.1-A):
- Geberit Duofix UP720 Extra-Flat Frame 114 cm with Sigma 8 cm concealed cistern (111.796.00.1)
- Geberit Sigma01 Dual Flush Plate, Black (115.770.DW.5)

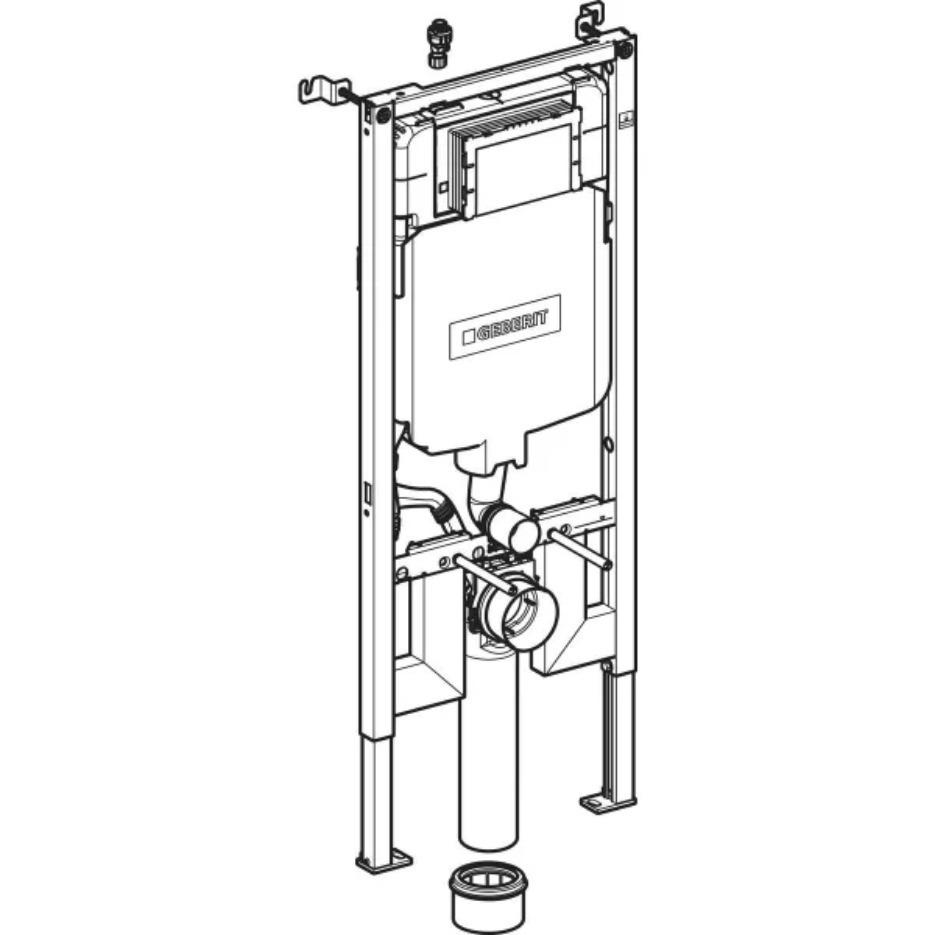

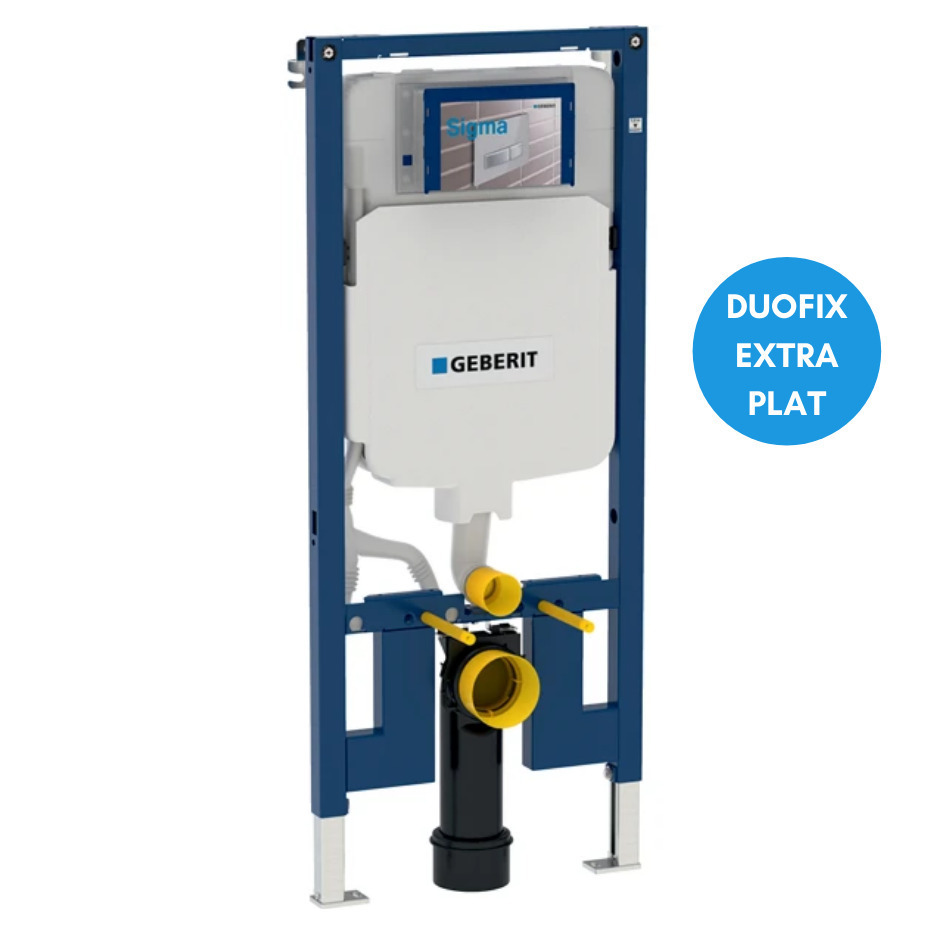

Geberit Duofix UP720 Frame + Concealed Cistern (111.796.00.1):
- Self-supporting, powder-coated frame
- Ø9 mm drilling holes for fastening in wood frame construction
- Suitable for WCs with small contact surface (with reinforced wall covering)
- Galvanised, height-adjustable, non-slip support feet
- Foot plate depth fits UW 50 profiles and Duofix system rails
- Tool-free adjustable connection bend, can be mounted vertically
- Extended PE-HD waste bend for floor connection, sound-insulated fastening
- 8 cm cistern with front actuation, insulated against condensation
- Immediate post flush possible (factory setting)
- Tool-free maintenance, top water supply connection offset left
- Protection box cut-to-size, suitable for flush actuator plates
- Conduit pipe for Geberit AquaClean shower toilets
Use:
- For drywall, part/room-height prewall or full installation walls
- For wall-hung WCs with EN 33:2011 dimensions, projection up to 70 cm
- Supports single, dual or stop-and-go flush
- For floor constructions 0–20 cm
Included:
- Water supply R 1/2 with integrated stop valve & hand wheel
- Service opening protection box
- 2 wall anchorings, fixing material
- WC connection set Ø90 mm
- PE-HD 90° bend Ø90 mm + adapter Ø90/110 mm
- 2 protection plugs, 2 M12 threaded rods

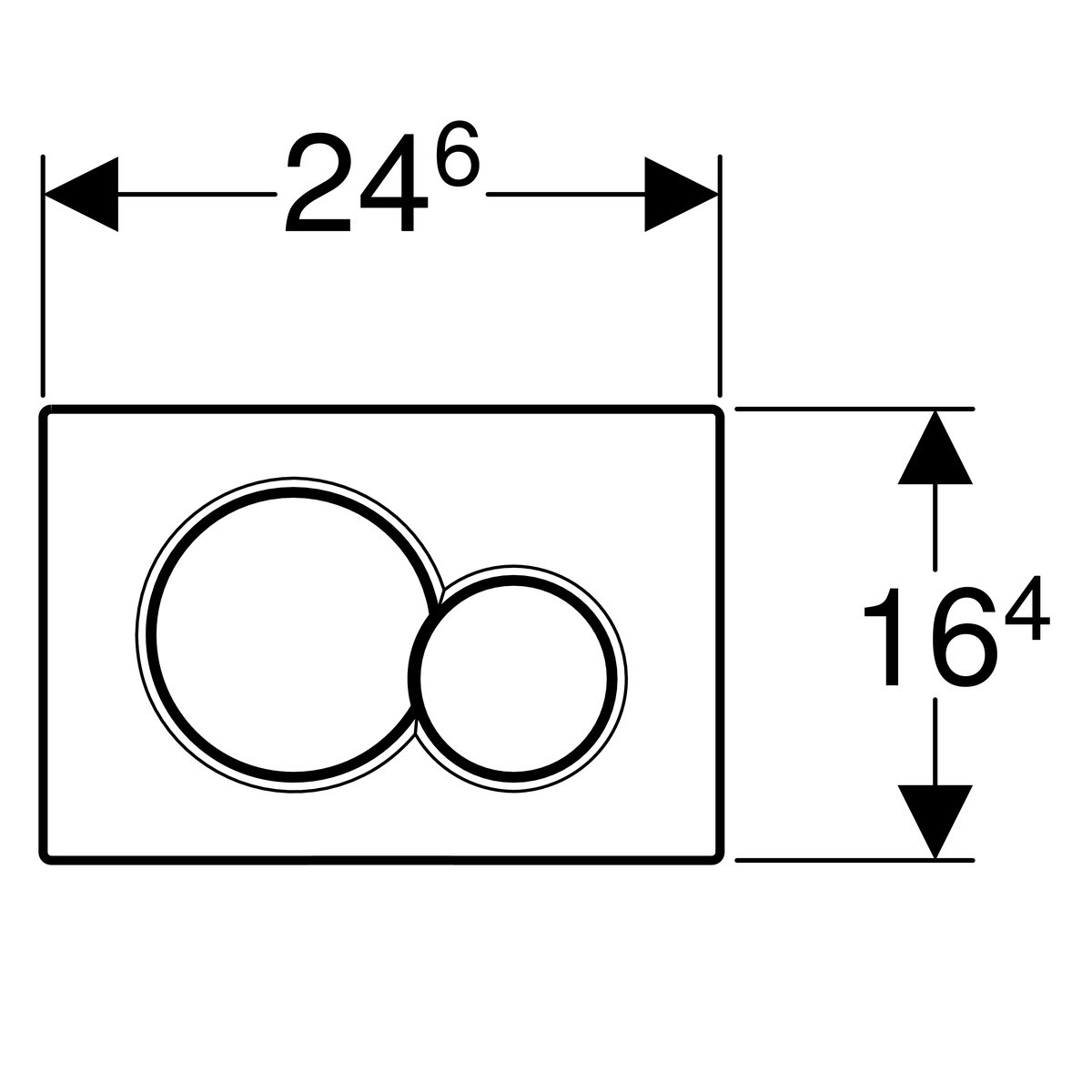

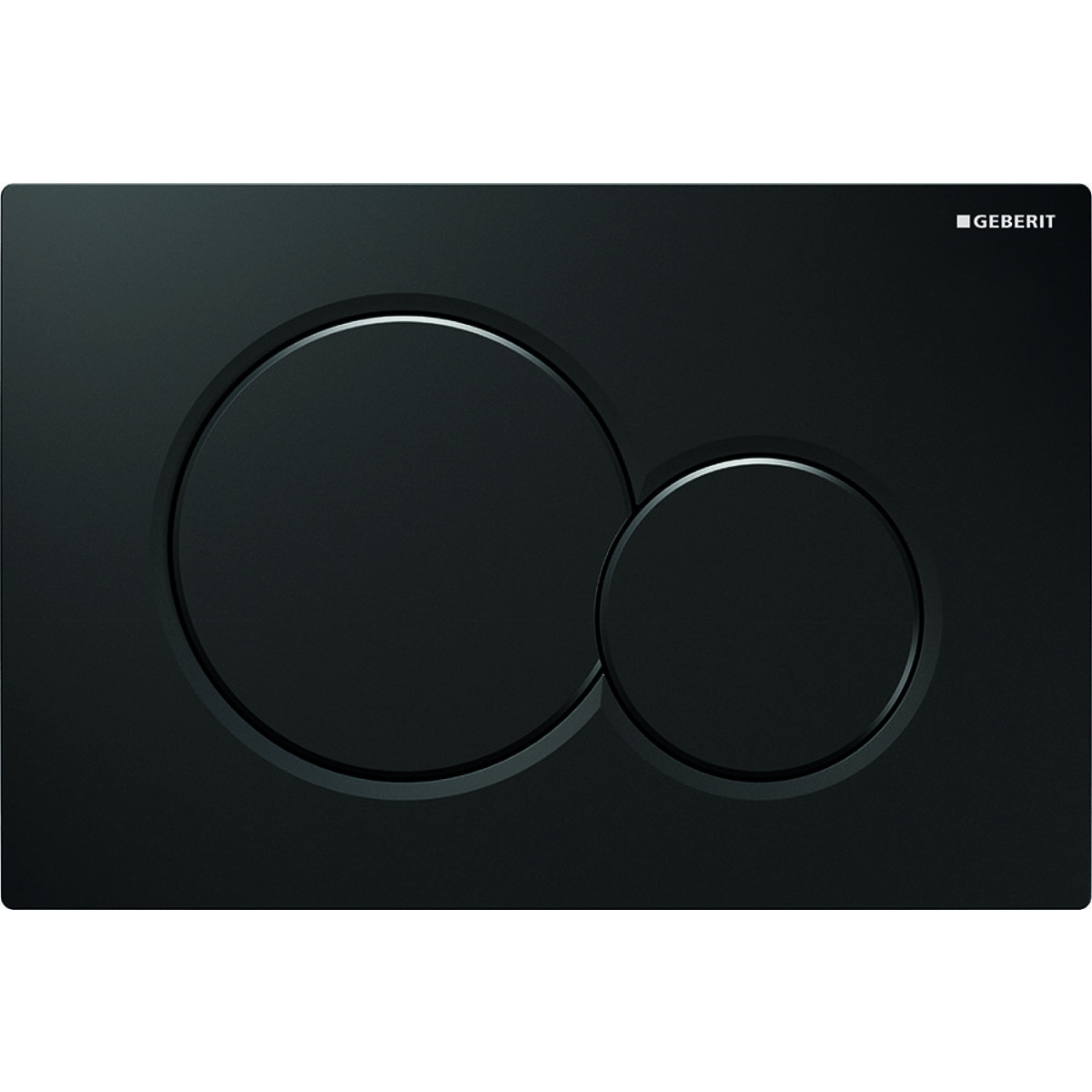

Geberit Sigma01 Flush Plate, Black (115.770.DW.5):
- Front actuation, force <20 N
- Sound-insulated release rods, quick adjustment
- Includes mounting frame, 2 actuator rods, 2 release rods
Important: Check products on delivery. Note any damage with the courier on the delivery slip. Claims cannot be accepted afterwards.
- Colour:Black
- Material:Metal/plastic
- Length (cm):11
- Width (cm):177
- Height (cm):15
- Type of frame:Classic extra-flat
- Constructor warranty:2 years
- Weight:10.00
- Depth:11
- Product type:Support frame for wall-hung toilets
- Water regulations:ACS approved
