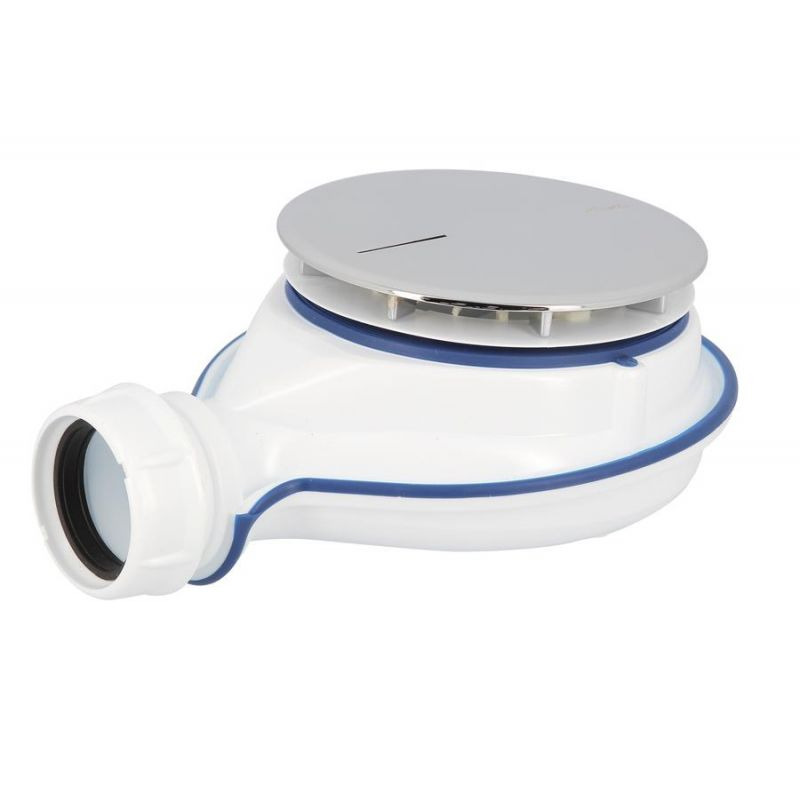

Nicoll Turboflow-XS Ultra-compact drain specifically designed for extra-flat shower trays, with MagneTech innovation (0205801)
- Product reference: ETURBO90MAGMOS
- EAN: 3309039058400
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Compactness, drainage capacity, odor control, ease of installation, cleaning, and aesthetics are the key features of this innovation.
Turboflow-XS was designed to fit all shower trays with a standard 90mm diameter drain hole.
see detailed description- Waste pipe:0.45
Features of the Nicoll Turboflow-XS Ultra-Compact Shower Drain for Extra-Flat Shower Trays, with MagneTech Innovation (0205801):
- Extra-flat shower drain for 90 mm drain hole
- Suitable for standard extra-flat shower trays
- 40 mm diameter outlet for screw or glue installation

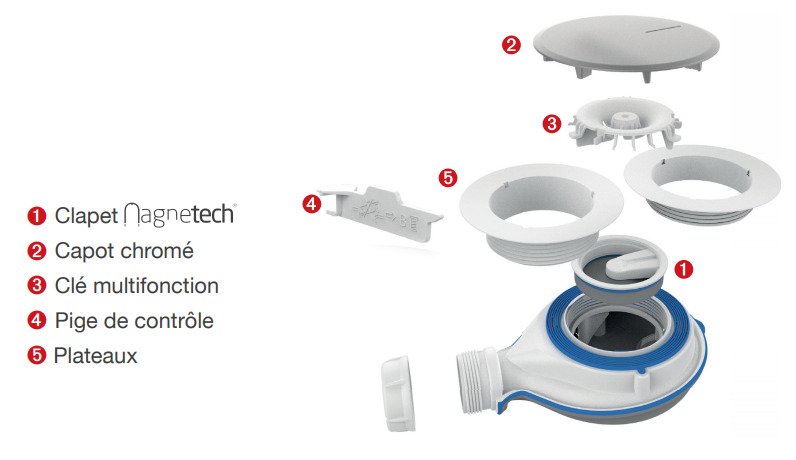

- Body: Integrated shower tray seal, bi-injection technology
- Cover: Chrome-plated metal finish
- Removable MagneTech valve + integrated 10 mm water seal
- Control pin for selecting the short or long drain plate
- Multifunction wrench
- Tightening wrench with torque limiter
- Cover support
- Materials:
- Tri-material body: polypropylene + ABS + elastomer
- Cover: chrome-plated metal
- Flap: polypropylene + overmolded magnet
- Two-material counter-flap: polypropylene + elastomer + overmolded magnet
- Dimensions:
- Height: 66 mm overall
- Connection to the pipe: screw-on G1 1/2" - solvent weld Ø 40 mm
- Clamping thickness: 1 to 25 mm
- Flow rate: - 33 l/min under 15 mm water head
- Made in France
.

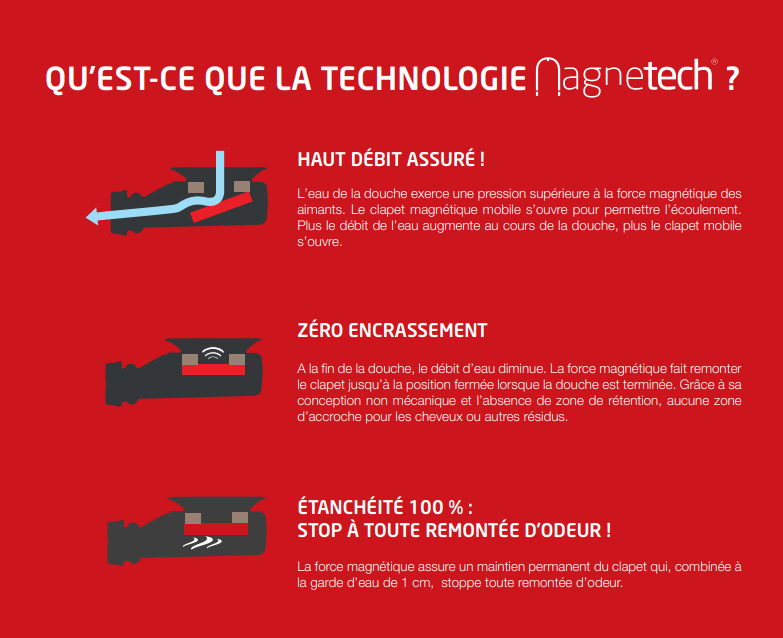

What is MagneTech technology?
Top Guaranteed flow:
The shower water exerts a pressure greater than the magnetic force of the magnets. The movable magnetic flap opens to allow the flow. The more the water flow increases during the shower, the more the movable flap opens.
Zero clogging:
At the end of the shower, the water flow decreases. The magnetic force raises the flap to the closed position when the shower is finished. Thanks to its non-mechanical design and the absence of retention areas, there are no areas for hair or other residue to catch.
100% waterproof. No more odors:
The magnetic force ensures the flap remains permanently closed, which, combined with the 1 cm water seal, prevents any odors from escaping.
