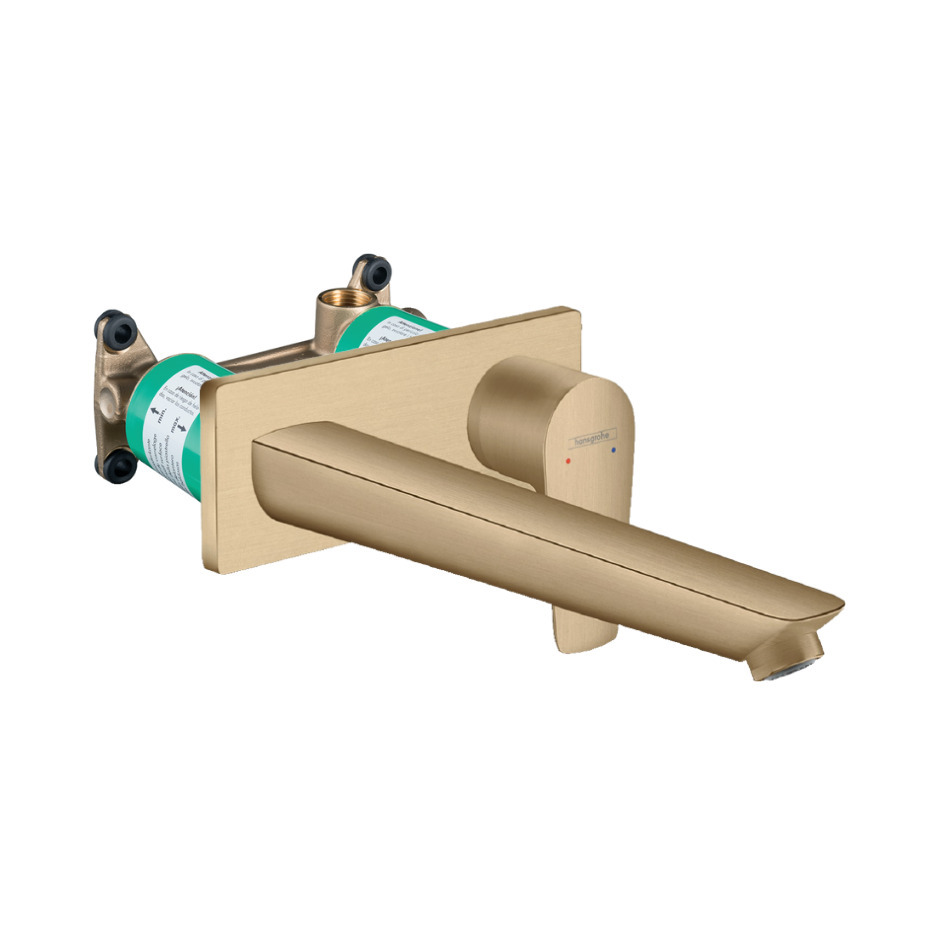

Hansgrohe Set Talis E Basin mixer for concealed installation + Free flow waste + Concealed body (71734140-SET)

Features of Set Talis E Basin mixer for concealed installation + Free flow waste + Concealed body (71734140-SET) :

• Talis E Single lever basin mixer for concealed installation with spout 22.5 cm with free flow waste Brushed bronze (71734140)
• Basic set for single lever basin mixer for concealed installation (13622180)

.

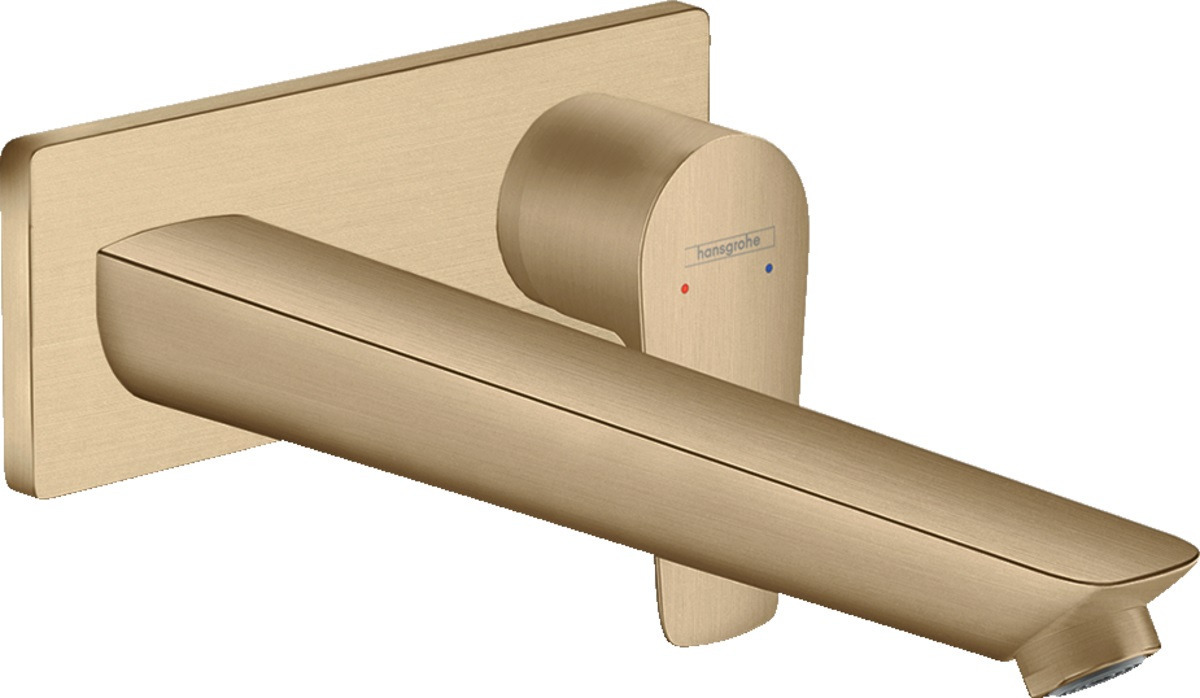

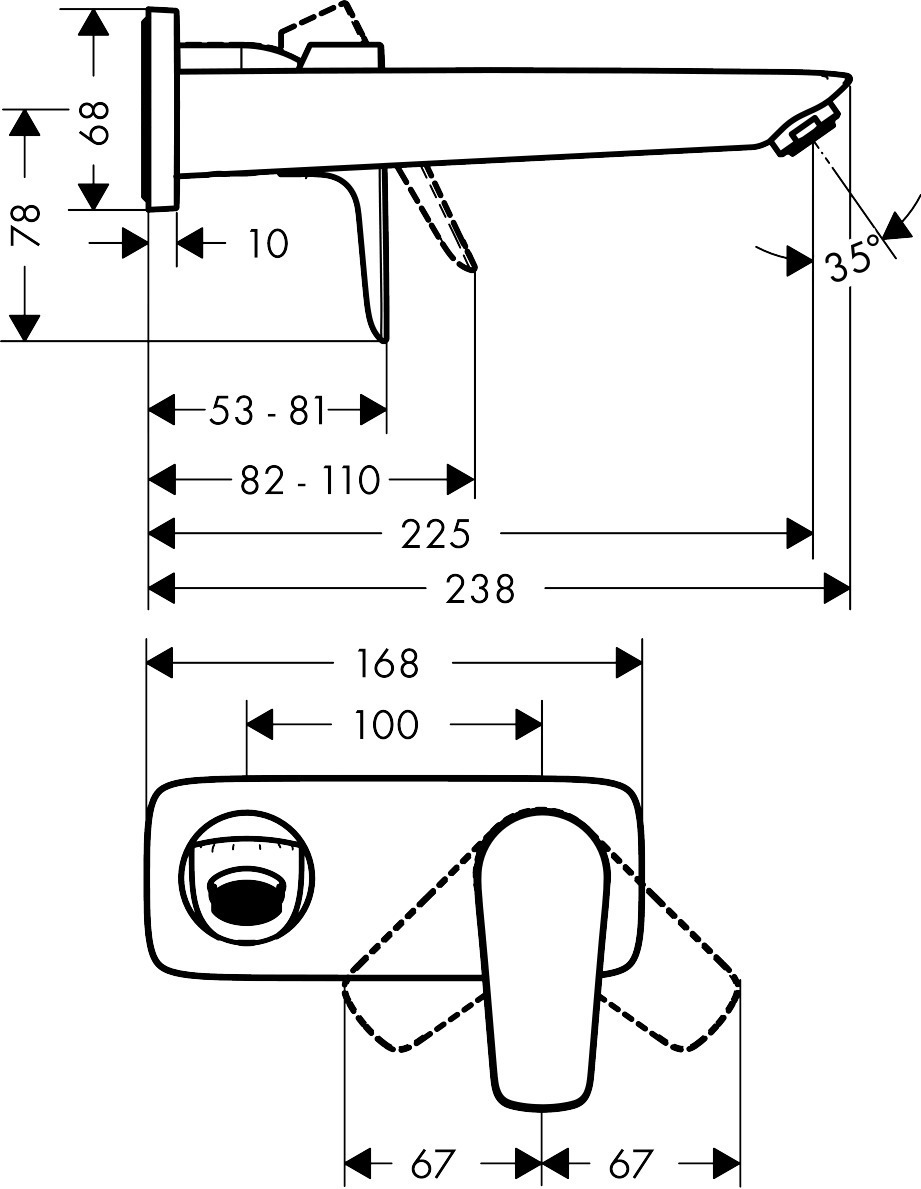

Talis E Single lever basin mixer for concealed installation with spout 22.5 cm with free flow waste Brushed bronze (71734140) :

Quick and easy adjustment of water flow rate and temperature on the lever handle. The easily accessible ceramic cartridge ensures reliable and long lasting performance.

.

Highlights :

• Significantly wider and softer drops: The water is automatically enriched with air (AirPower)
• Save water and protect the environment: the flow rate is automatically limited to 5l/min - regardless of the pressure (EcoSmart)
• Easy to clean: limescale can be removed effortlessly by wiping the spout (QuickClean)
• Increased safety: a plug keeps the drain open at all times. On a washbasin without an overflow, for example, it prevents the water from overflowing
• Versatile: compatible with instantaneous water heaters
• After-sales guarantee: Spare parts are available for up to 15 years after the range has been discontinued

.

Article features :

• Consists of: single lever basin mixer for concealed installation, waste set
• wall-mounted
• spout 225 mm long
• Spray pattern: normal spray
• Maximum flow rate (at 3 bar): 5 l/min
• ceramic cartridge
• free flow non-closing waste
• Material waste set: metal
• handle can be positioned on the right or left, depends on the basic set installation
• QuickClean technology for easy limescale removal
• operating pressure: min 1 bar / max 10 bar
• connection type: basic set
• WRAS 1705005
• WRAS 1705005

.

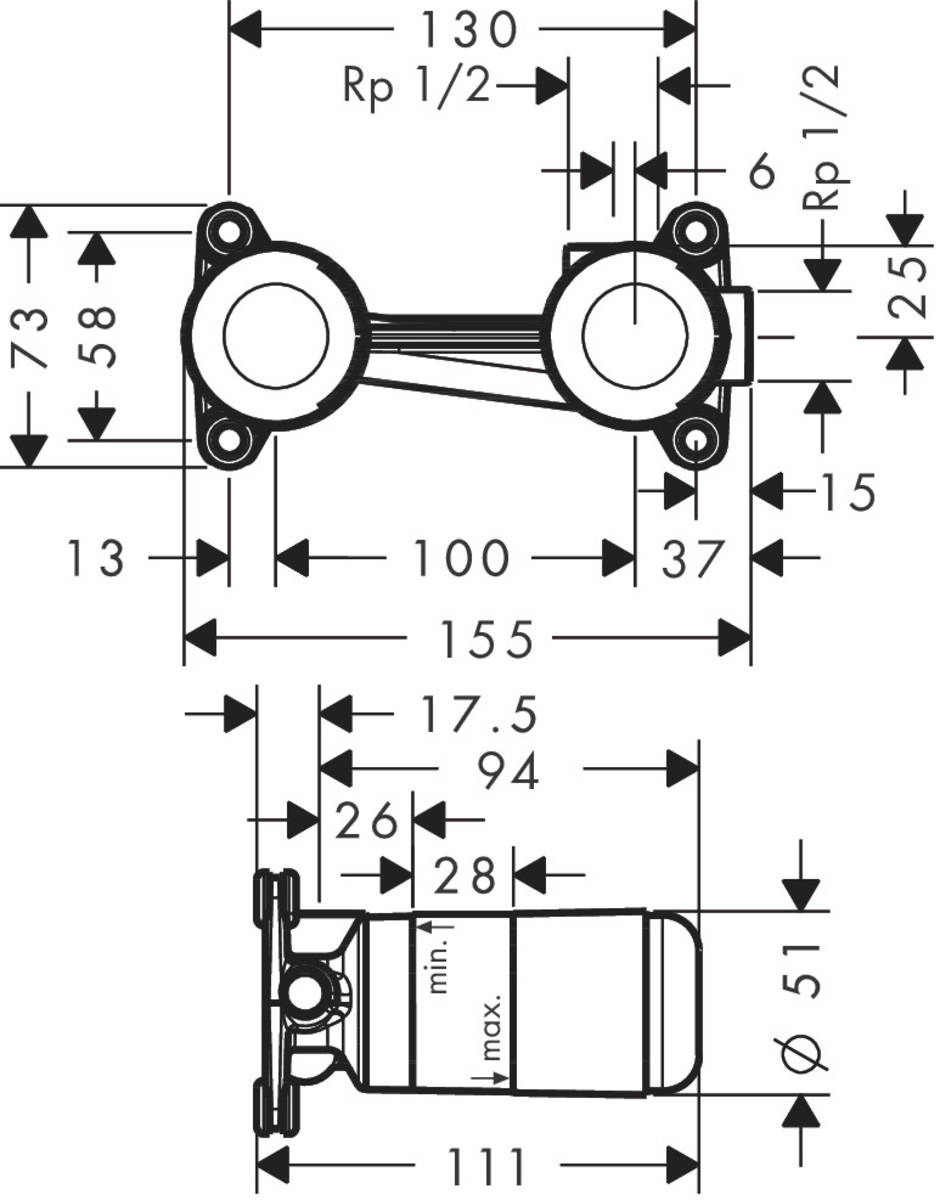

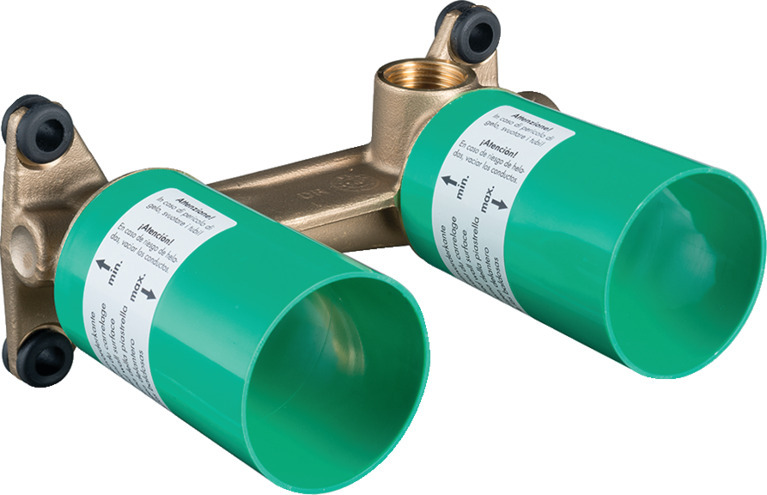

Basic set for single lever basin mixer for concealed installation (13622180) :

• Installation depth: 44 - 72 mm
• variable positioning of the mixer system, you can choose to have the spout on the left or right
• easy orientation due to support surfaces for the spirit level
• with building protection cover against contamination during assembly
• with dimension indication for exact determination of the installation depth
• with pre-mounted fastening lugs for mounting in drywall and solidwall
• sound-decoupled installation
• installation depth: from 43.5 to 71.5 mm
• WRAS 1812059
• WRAS 1812059
• WRAS 1609020
