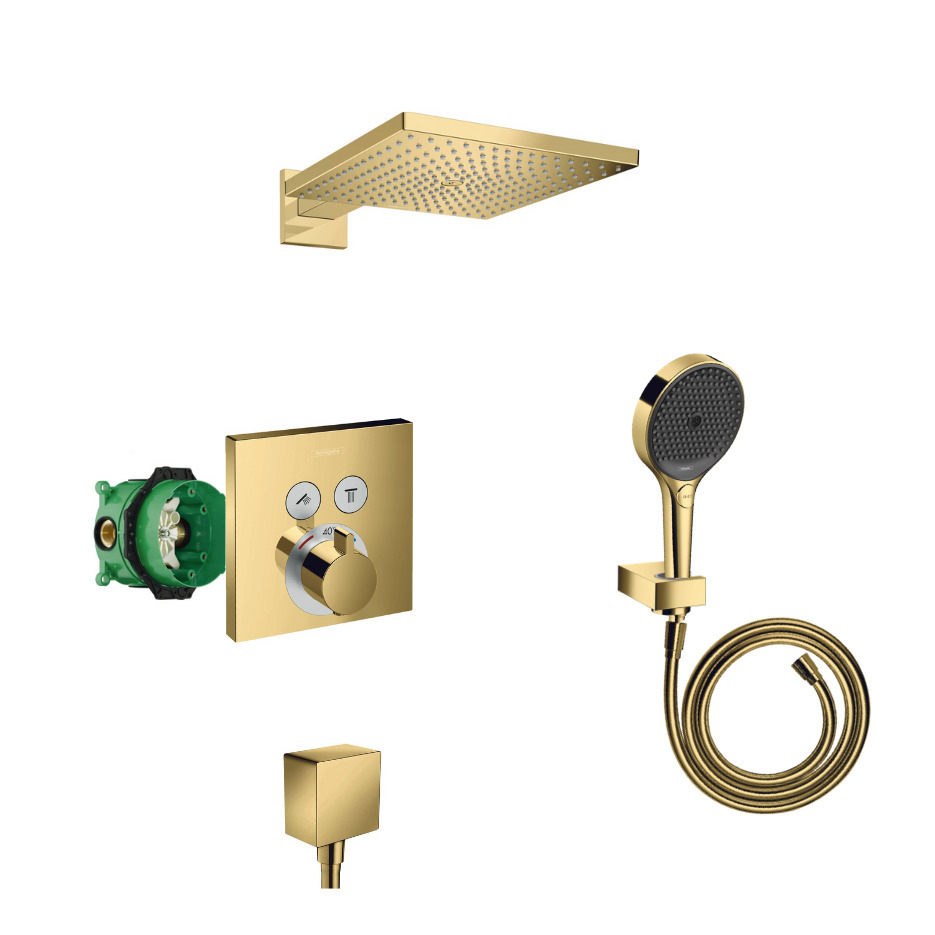

Hansgrohe ShowerSelect Shower set with Thermostatic mixer + Concealed body + Head shower + Hand shower 3 jets, Gold (15763990-SET3)

Features of ShowerSelect Shower set with Thermostatic mixer + Concealed body + Head shower + Hand shower 3 jets, Gold (15763990-SET3) :

• Hansgrohe ShowerSelect Thermostatic mixer for concealed installation for 2 outlets, Polished gold-optic (15763990)
• Hansgrohe Raindance E Overhead shower 300 1jet with shower arm, Polished gold-optic (26238990)
• Hansgrohe Rainfinity Hand shower 130 3 jets, Polished gold-optic (26864990)
• Hansgrohe Shower holder Porter E for universal hand shower, Polished gold-optic (28387990)
• Hansgrohe Isiflex Shower hose 125 cm, Polished gold-optic (28272990)
• Hansgrohe Concealed body Basic set iBox universal ½" and ¾" (01800180)
• Hansgrohe FixFit Wall outlet Square with non-return valve, Polished gold-optic (26455990)

.

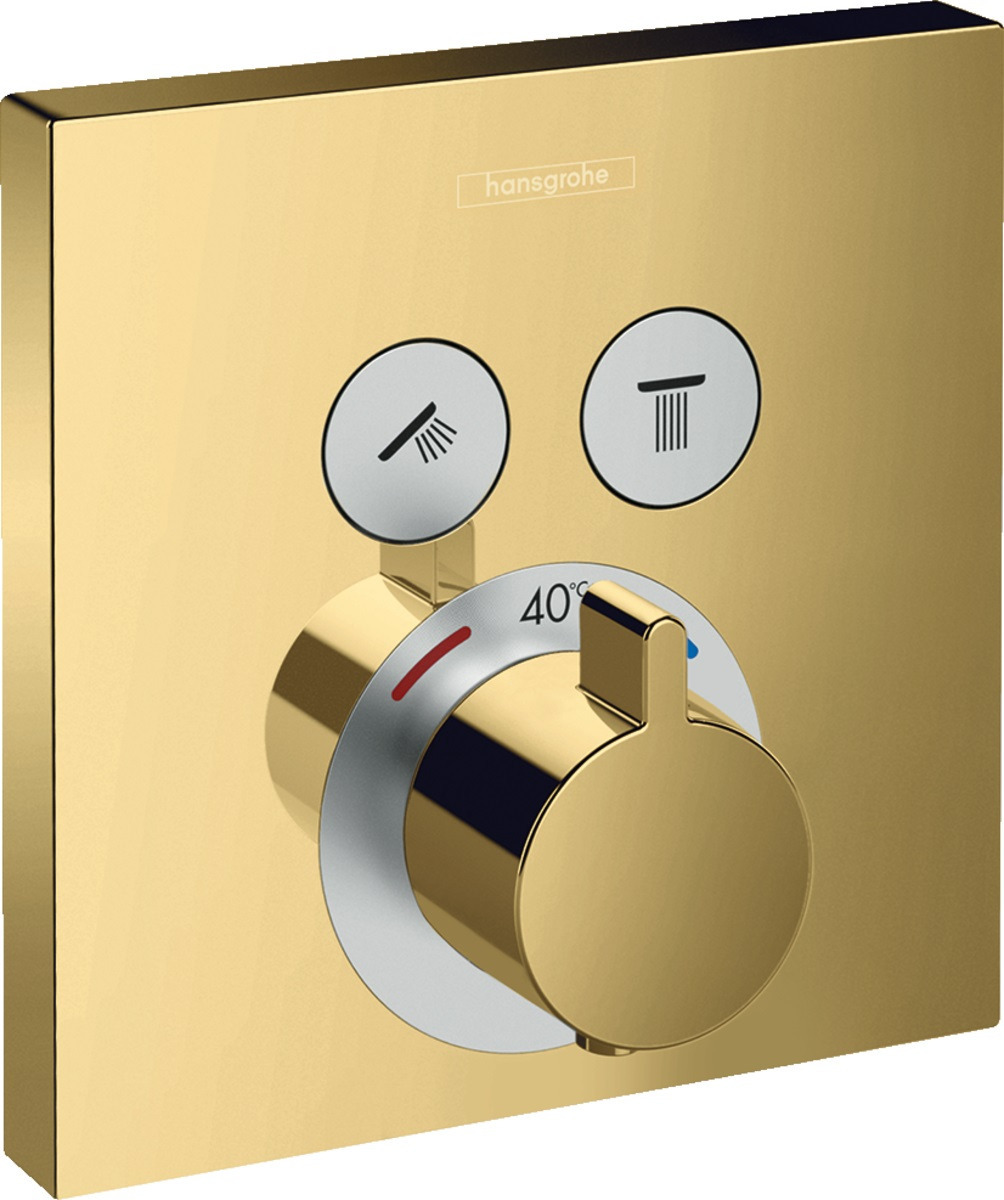

Hansgrohe ShowerSelect Thermostatic mixer for concealed installation for 2 outlets, Polished gold-optic (15763990) :

Quick and easy adjustment of water flow and temperature on the flat handle of the mixer. High comfort: the thermostatic mixer keeps the water at the desired temperature and prevents it from being too hot or too cold. Increased safety: a button on the handle releases water above 40° only on demand and prevents any disturbance of the water temperature (SafetyStop)

Highlights :

• Very safe: temperature limitation to protect against scalding, to be defined during installation
• Variable showering pleasure: Both water inlets or functions can be used at the same time

Informations techniques :

• designed to run 2 outlets
• Select push button on / off control for 2 outlets
• multiple outlets can be run simultaneously
• wall-mounted
• concealed installation
• flow rate upper outlet 25 l/min at 3 bar
• flow rate lower outlet 23 l/min at 3 bar
• thermostat cartridge, start/ stop cartridge
• safety stop at 40°C
• Maximum temperature can be adjusted on installation
• Connection type: basic set
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise class: II
• Thermostat is delivered with buttons Handshower and RainLarge
• buttons provided: hand shower and overhead shower
• winner of the iF product design award 2014
• Kiwa UK 1405706

.

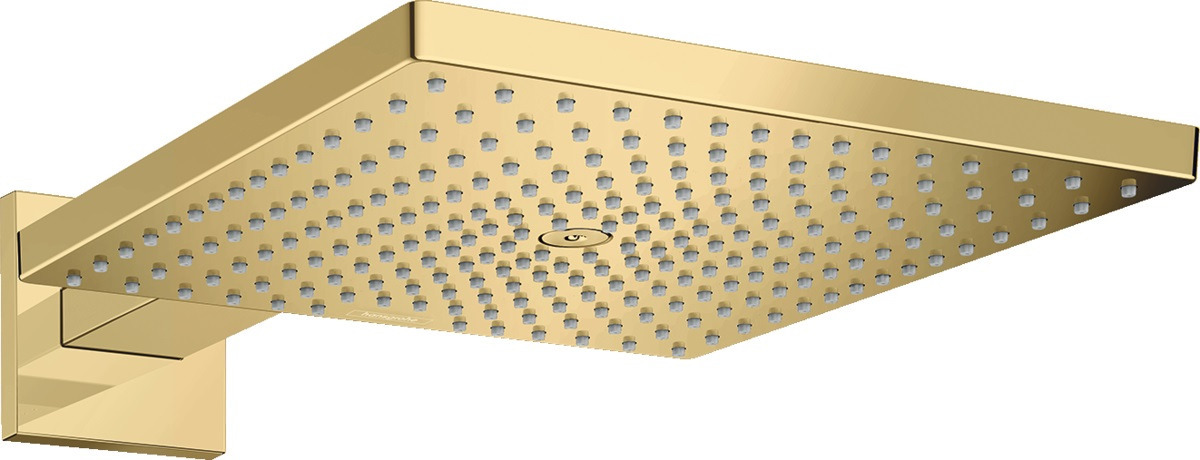

Hansgrohe Raindance E Overhead shower 300 1jet with shower arm, Polished gold-optic (26238990) :

Keeps looking like new for a long time: Its durable, quality metal spray disc is removable for easy cleaning and is dishwasher safe. The easily accessible ceramic cartridge ensures long-lasting, reliable operation (QuickClean). The shower arm is equipped with a high-quality ball-joint, which allows the head shower to be tilted by up to 6° for total showering pleasure.

Highlights :

• Properly positioned, this 390mm shower arm allows the overhead shower to be placed far enough from the wall.
• Easy to fit; attaches to existing fittings (G ½ thread; size DN15)
• Pure showering pleasure: its 300x300mm shower head distributes a generous, uniform flow of water (XXL Performance)

Article features :

• Consists of: overhead shower, shower arm
• Shower head size: 300 x 300 mm
• Spray pattern: RainAir
• Ball-joint: overhead shower angle adjustable
• Spray face: metal
• Shower arm length 390 mm
• maximum flow rate 17 l/min at 3 bar
• flow rate RainAir 17 l/min at 3 bar
• Operating pressure: min. 1.5 bar/max. 6 bar
• spray disc removable for cleaning
• Installation: wall
• Connection thread ½"
• WRAS 1809002
• WRAS 1809002

.

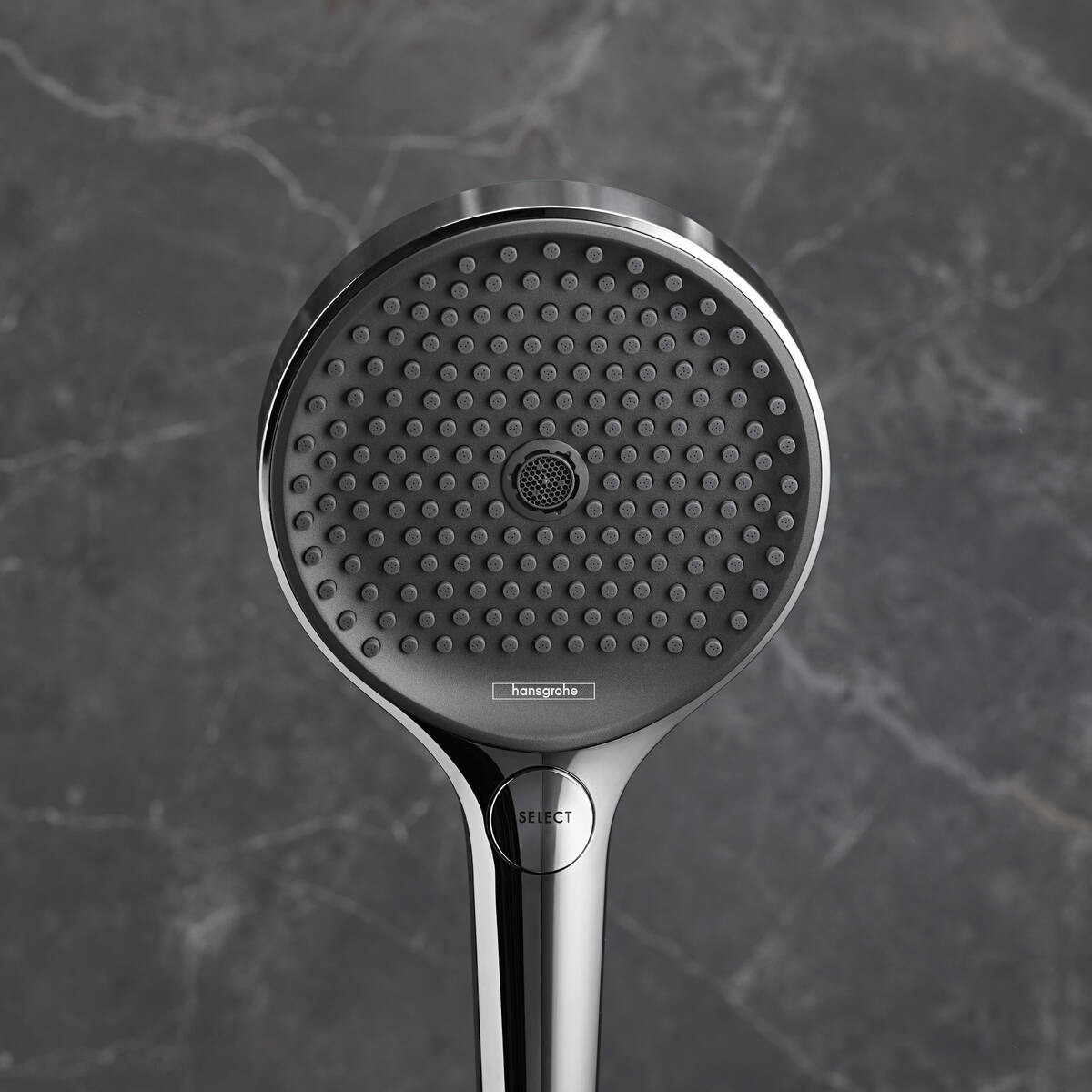

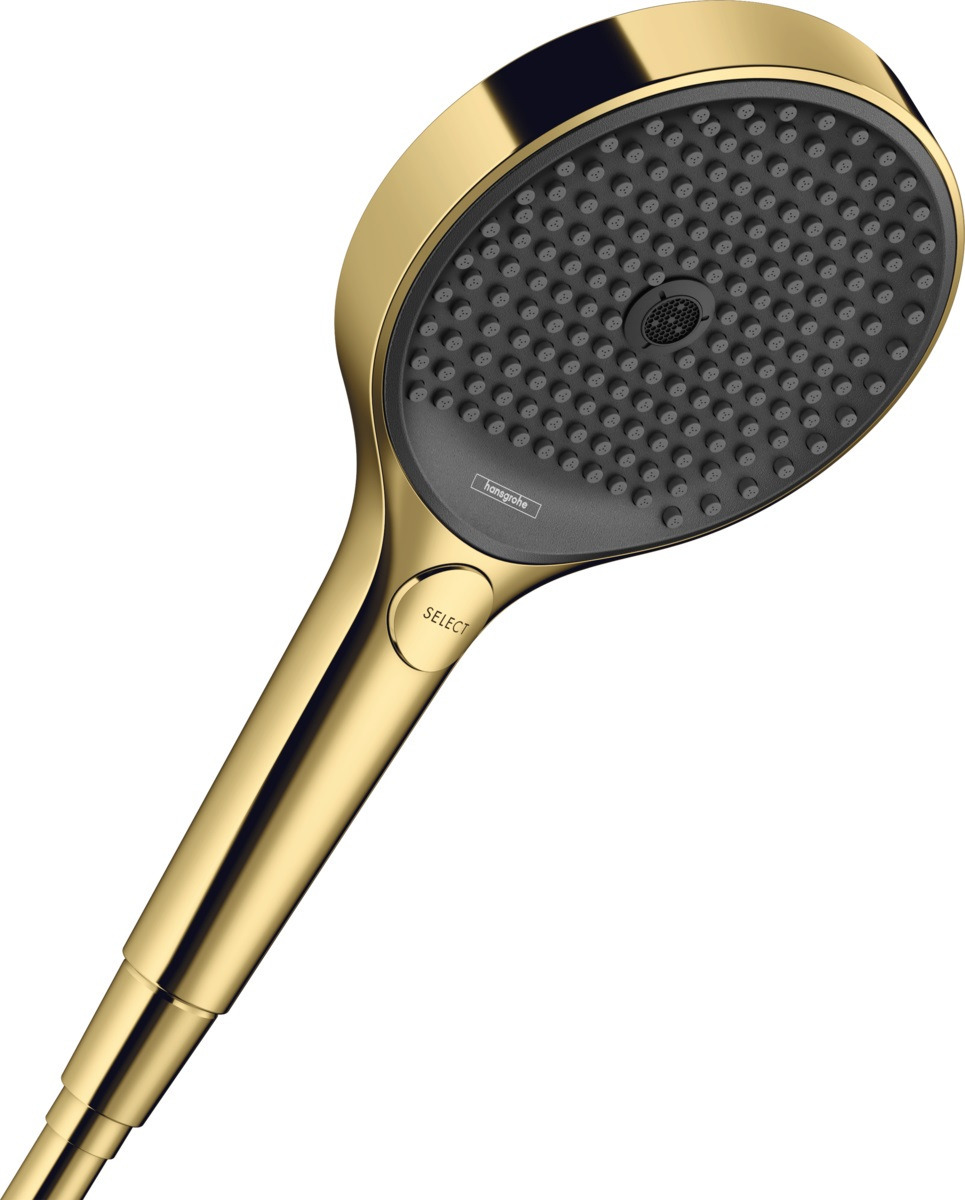

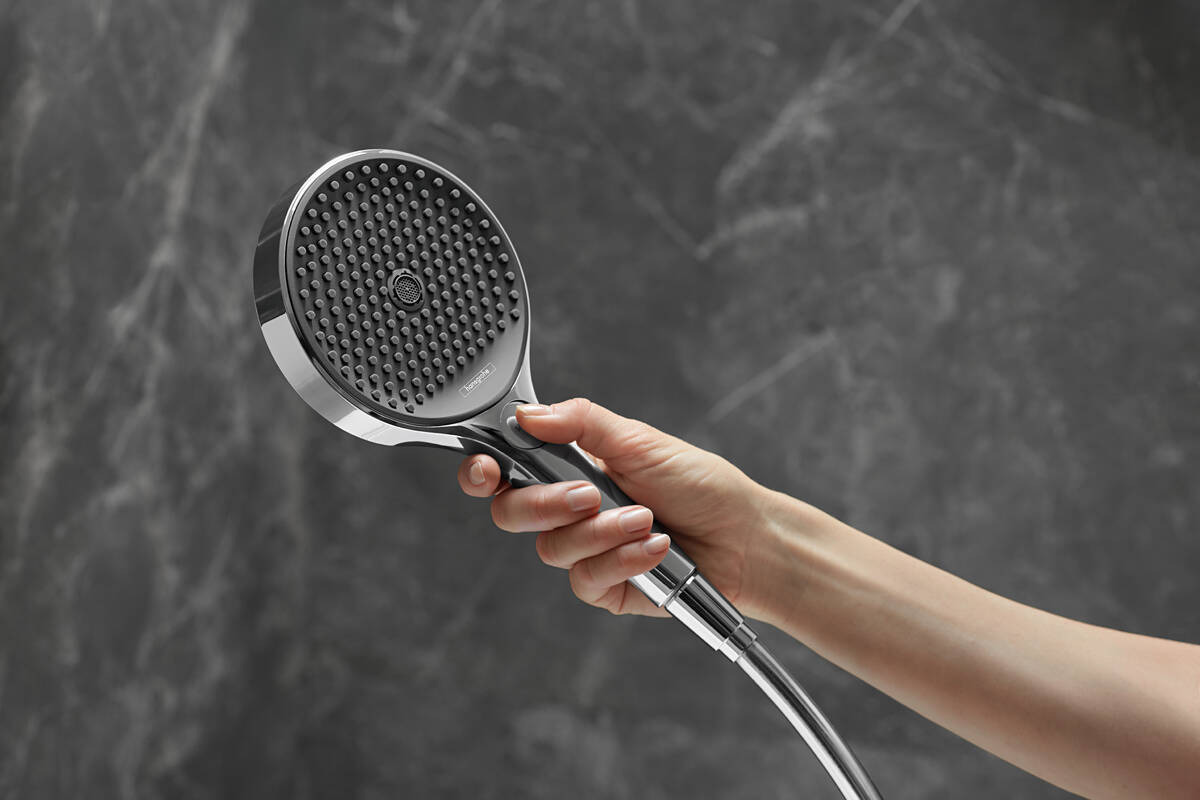

Hansgrohe Rainfinity Hand shower 130 3 jets, Polished gold-optic (26864990) :

• Shower head size: 132 mm
• Spray pattern: PowderRain, Intense PowderRain, MonoRain
• Select button to comfortably switch between spray modes
• Maximum flow rate (at 3 bar): 14 l/min
• minimum flow pressure: 1,1 bar
• Operating pressure: min. 1 bar/max. 6 bar
• with internal water conduction
• rinseable screen seal
• Connection thread ½"

.

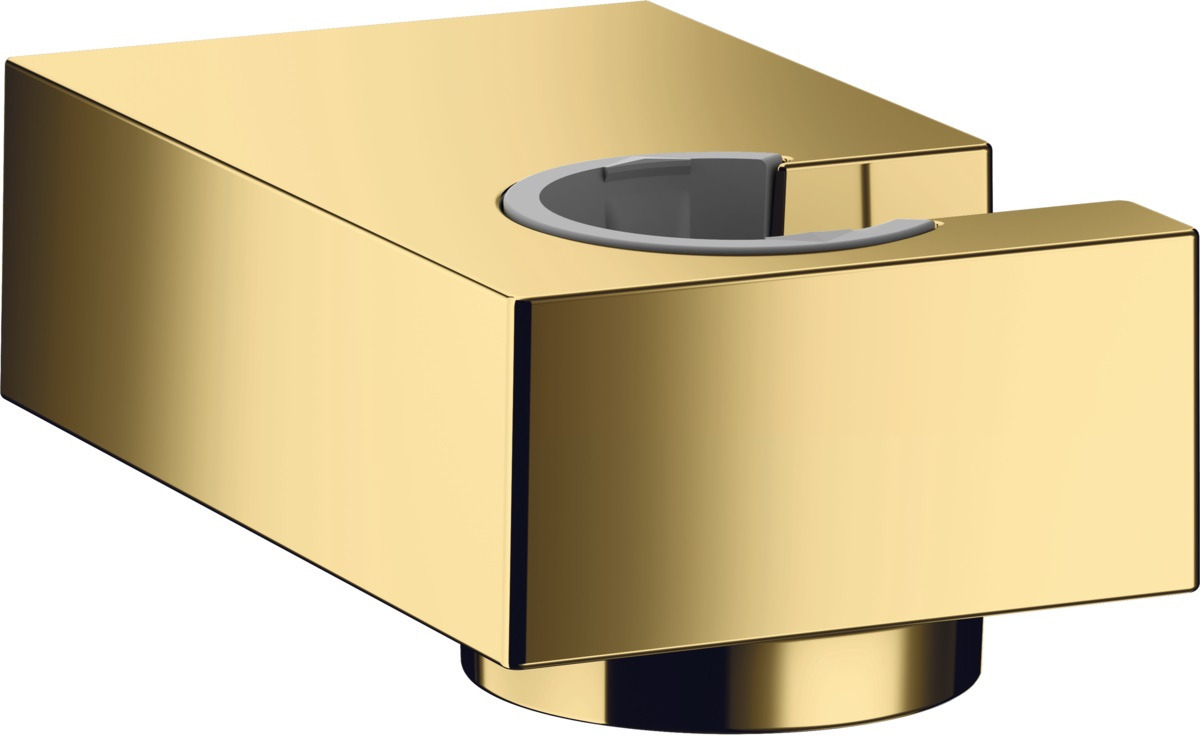

Hansgrohe Shower holder Porter E for universal hand shower, Polished gold-optic (28387990)

• fixed holding position
• Suitable for use with hoses with conical nut
• metal

.

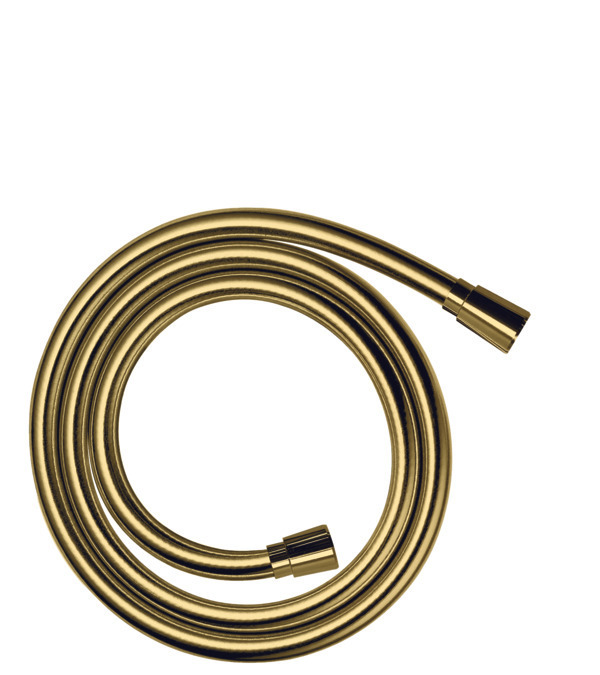

Hansgrohe Isiflex Shower hose 125 cm, Polished gold-optic (28272990) :

• high-quality shower hose
• with plastic coating, easy to clean
• Shower hose length: 1.25 m
• pivot connector prevent hose from tangling
• kink-protected
• conical nuts at both ends
• WRAS 2006014
• WRAS 2006015

.

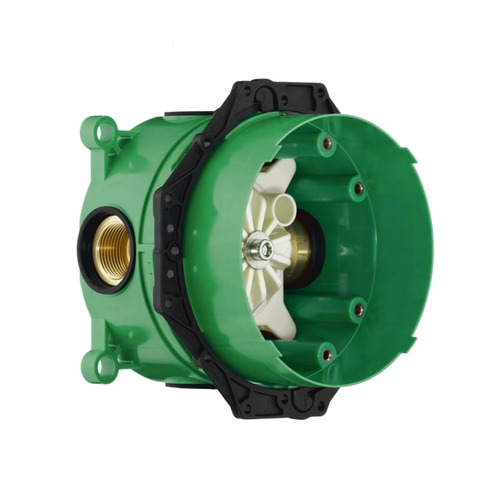

Hansgrohe Concealed body Basic set iBox universal ½" and ¾" (01800180) :

• suitable for all shower, bath and thermostat finish sets for concealed installation
• Connection thread Rp ¾
• Operating pressure: min. 1 bar/max. 10 bar
• rotationally-symmetrical installation
• installation depth: from 80 to 108 mm
• WRAS 2104049
• WRAS 1907026
• Kiwa UK 1405706

.

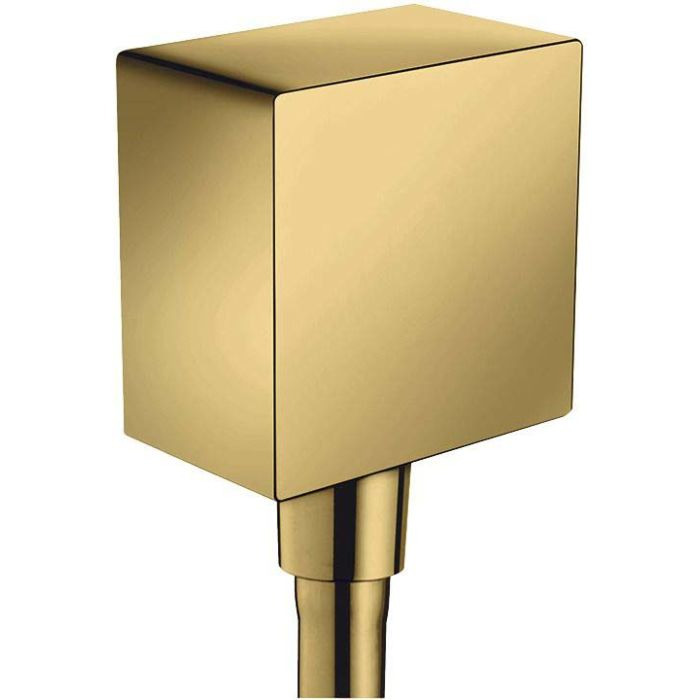

Hansgrohe FixFit Wall outlet Square with non-return valve, Polished gold-optic (26455990) :

• plastic connection angle
• non-return valve
• connection thread ½"
• Kiwa UK 1809701
