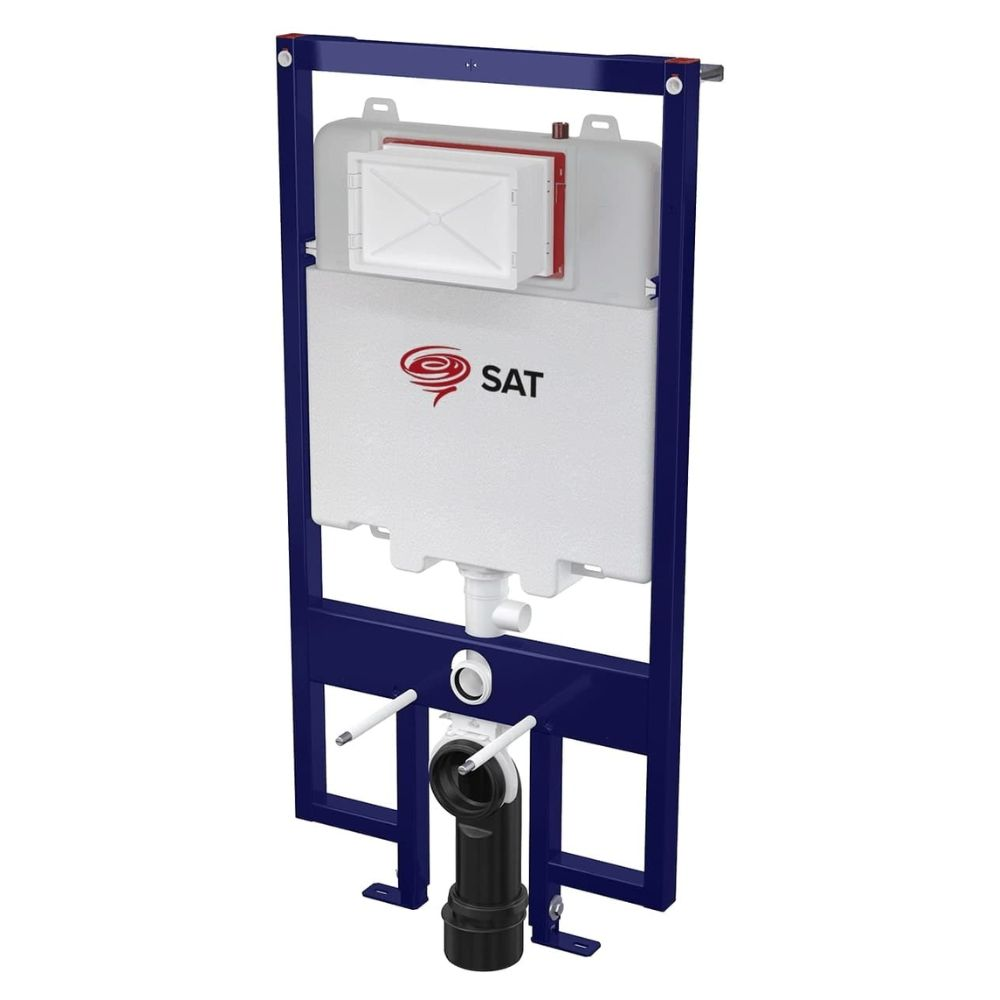

Swiss Aqua Technologies Slim floor-to-wall support frame for wall-hung toilet, dual flush 3/6 l, for lightweight partition (SATAMSKSLIM)

  • Product reference: SATAMSKSLIM
  • EAN: 8592127222226
  • Brand: Manufacturer 59
Product warranty: 5 years
£
15498
TAX INCL.
£
17990
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
( 13.85% saving)
Only 2 left In stock
Shipped before the 5 February
Quantity:

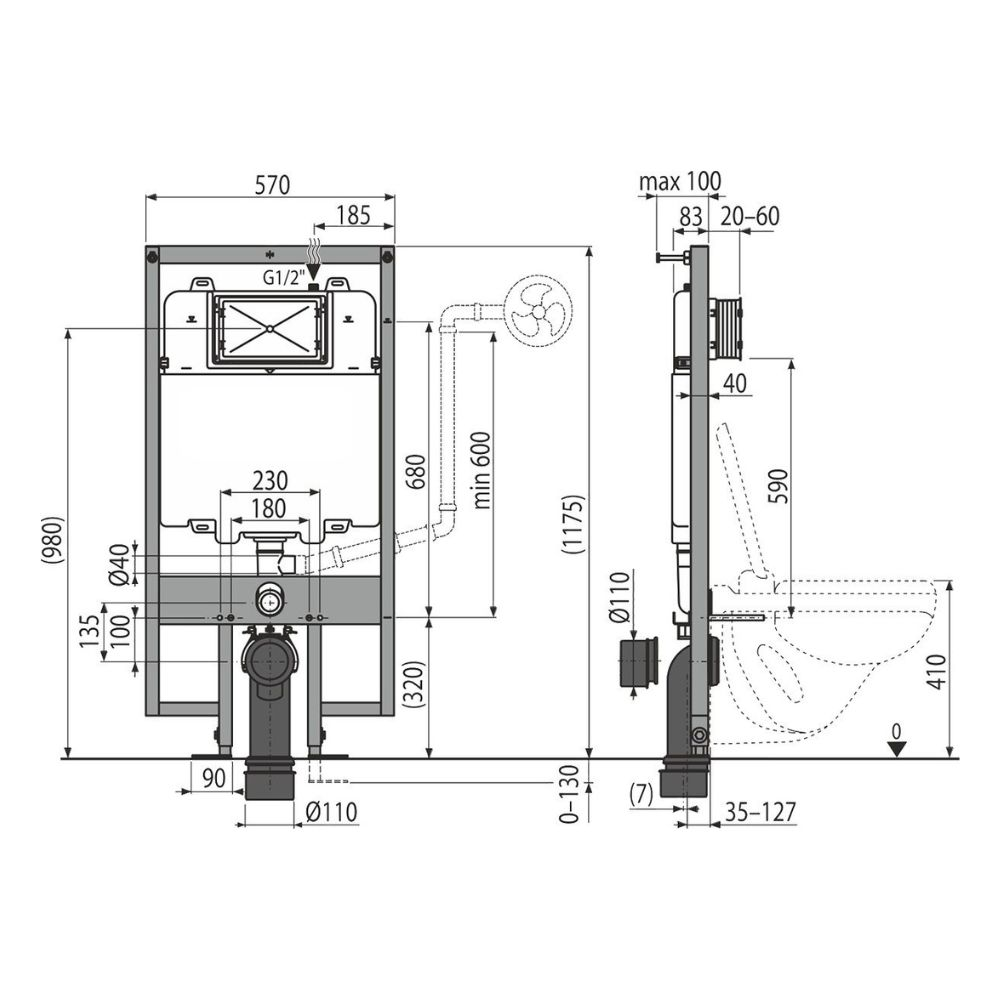

Features of the slim floor-to-wall frame for wall-hung toilets, dual flush 3/6 l, for lightweight partitions, Swiss Aqua Technologies (SATAMSKSLIM):

General characteristics:

  • Product type: slim frame for wall-hung toilets
  • Brand: Swiss Aqua Technologies
  • Width: 57 cm
  • Height: 117.5 cm
  • Depth: 8.4 cm (ultra-thin – ideal for narrow partitions)
  • Tank material: molded plastic
  • Frame material: metal
  • Thread type: G 1/2" (standard water supply connection)
  • Package weight: 16.09 kg
  • Product warranty: 5 years

Use:

  • For wall-hung toilets
  • Type Installation: in front of a load-bearing wall or in a lightweight partition (plasterboard)
  • Fixing type: floor and wall, suitable for drywall
  • Suitable for floor thicknesses from 0 to 100 mm
  • Ultra-slim construction depth: only 84 mm
  • Compact design: perfect for small spaces or renovations with depth constraints. l
  • Large flush volume: 6 l
  • Total tank water volume: 9 liters (with (optimized usable volume)
  • One-piece molded tank: 100% waterproof guarantee
  • Reinforced, powder-coated, self-supporting metal frame
  • No need for additional wall reinforcements
  • Integrated polystyrene insulation: limits condensation, dampens vibrations
  • Precise leveling (with visible markings)
  • Central angle valve compatible with Mepla systems
  • Water supply from the top or rear (center)
  • Easy maintenance without the need for tools
  • Height-adjustable feet: from 0 to 100 mm
  • Adjustable installation depth: 20 to 60 mm

Package contents:

  • Concealed cistern with flushing system
  • Self-supporting metal frame
  • Fill and drain connection
  • Integrated Schell 1/2" - 3/8" angle valve
  • Complete fixing kit supplied:
  • 8 screws Ø8×60
  • 8 wall plugs Ø12
  • Toilet bowl fixing kit supplied:
  • 2 M12 threaded rods
  • Washers, nuts, caps, thread protectors
  • Slim HT 90/110 waste elbow
  • Polypropylene supply and waste seals, inserts and glands
  • Two-part, cuttable service cover
Product technical properties
  • Waste pipe:14.481
