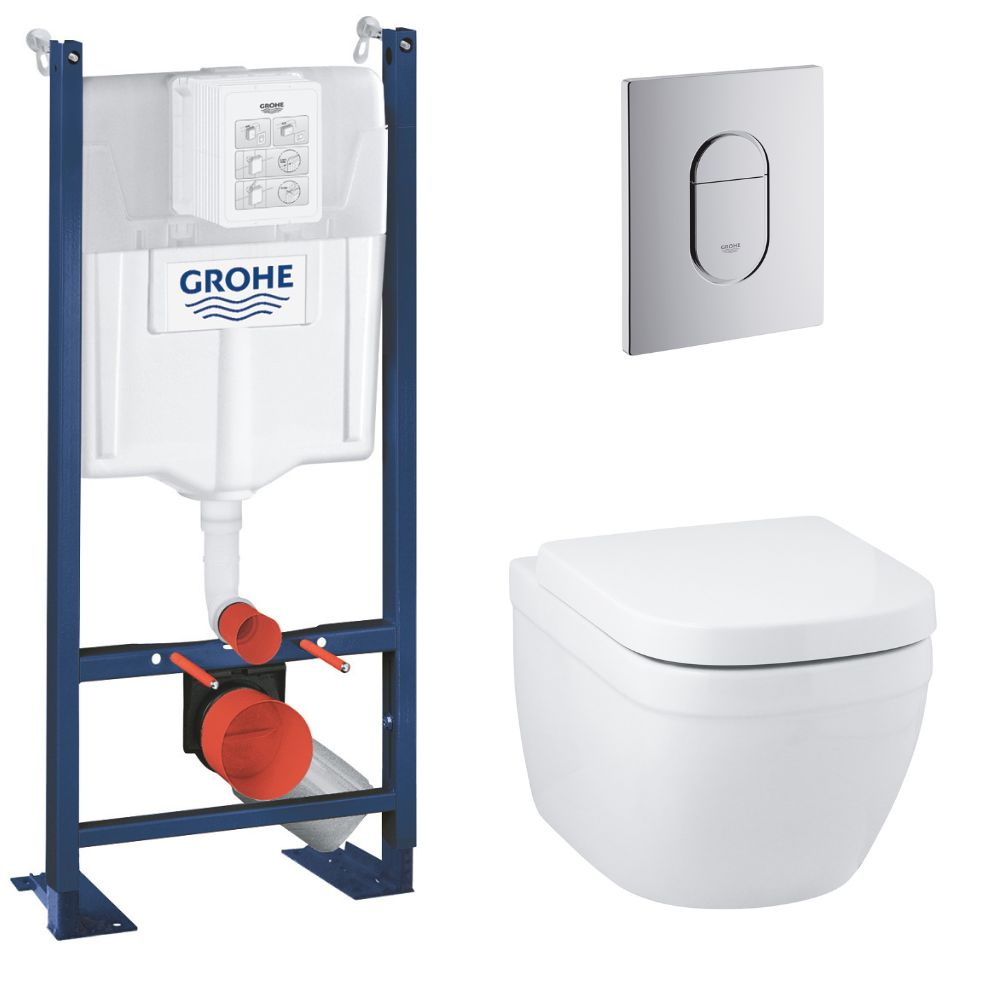

Grohe Rapid SL concealed cistern + Grohe Euro Ceramic rimless toilet bowl, White + flush plate: Chrome (39536000)
- Product reference: 39536000
- EAN: 8592127240831
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Grohe Rapid SL Wall-Hung Toilet Frame Pack + Grohe Euro Ceramic Rimless Toilet Bowl in Alpine White + Flush Plate: Chrome (39536000)
- Rapid SL Pack + Arena Chrome Flush Plate + Wall Fixings + Sound Insulation Set (RAPIDSLARENA)
- Euro Ceramic Wall-Hung Toilet Bowl, Alpine White (39328000)
- Euro Ceramic Toilet Seat, Alpine White (39330001)
- Sound Insulation Set (37131000)
Rapid SL Pack + Arena Chrome Flush Plate + Wall Fixings + Sound Insulation Set (RAPIDSLARENA):
- Rapid SL Wall-Hung Toilet Frame for Load-Bearing Walls 1.13 m (38528001)
- Arena chrome flush plate (38844000)
- Sound insulation pad
- Wall fixings (3855800M)
. style="color:#000000;">Rapid SL concealed cistern for WC for load-bearing wall 1.13 m (38528001)
- GD 2 cistern, with access hatch
- Height: 1.13 m
- Steel frame with epoxy finish
- Surface mounting on load-bearing wall or in double-stud partition walls Reinforced
- Quick height adjustment and locking up to 200 mm
- Supplied with fixing hardware
- TÜV approved
- Supplied with rods and nuts for fixing the toilet bowl, ceramic fixing
- Fixing hole spacing 180/230 mm
- PP drain elbow Ø 90 mm
- Adjustable in depth and height (200 mm)
- DN 90/110 reducing fitting
- Drain and supply fittings
- 6 - 9 l cistern
- Factory setting 3 and 6 l
- Pneumatic actuation mechanism (AV1) for single-flush (interruptible) and dual-flush (interruptible) control plates
- Side or rear water inlet
- Condensation-insulated cistern
- Water supply with angle stopcock and flexible connection
- Tool-free horizontal or vertical mounting template
.
Arena chrome flush plate (38844000)
- Dual flush or stop-start
- For AV1 pneumatic mechanism
- Vertical mounting
- 156 x 197 mm
- ABS construction
- GROHE StarLight® long-lasting shine
- GROHE EcoJoy® water saving
.

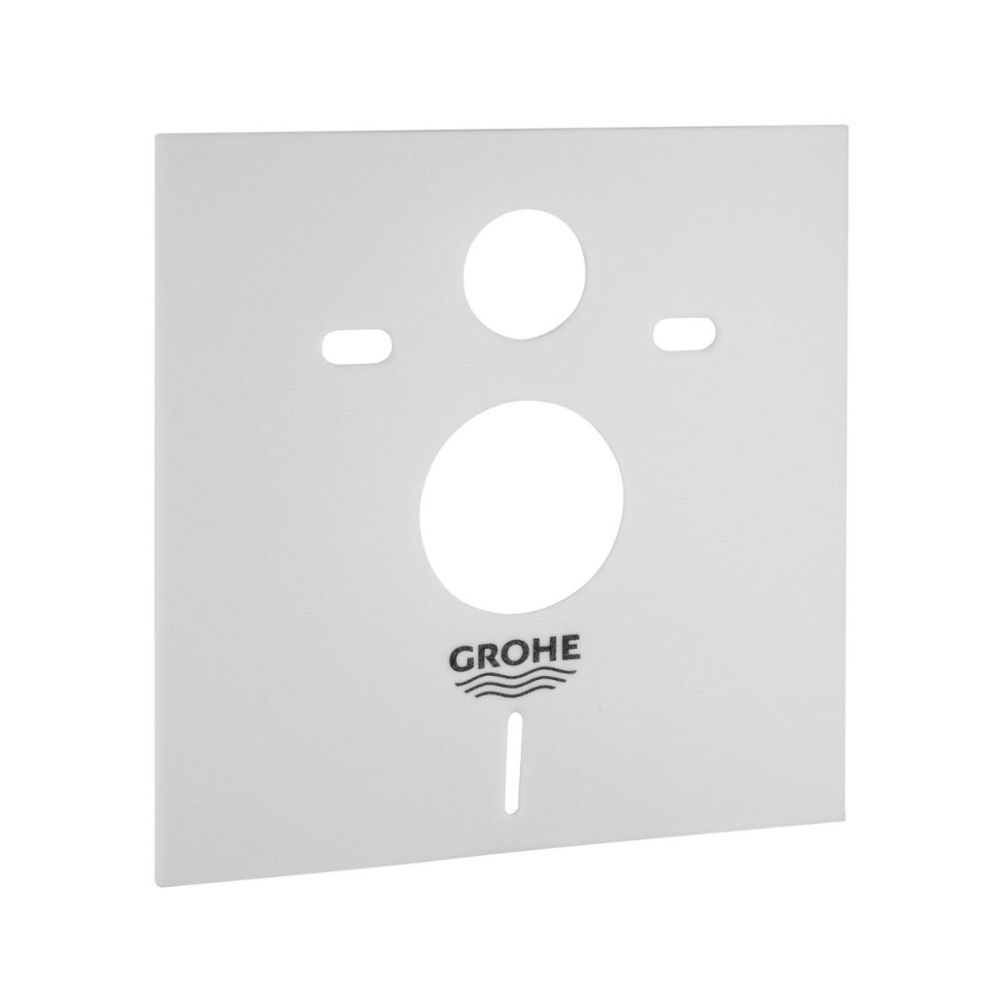

Grohe sound insulation pad
- sound insulation panel
- 2 rubber sockets
.

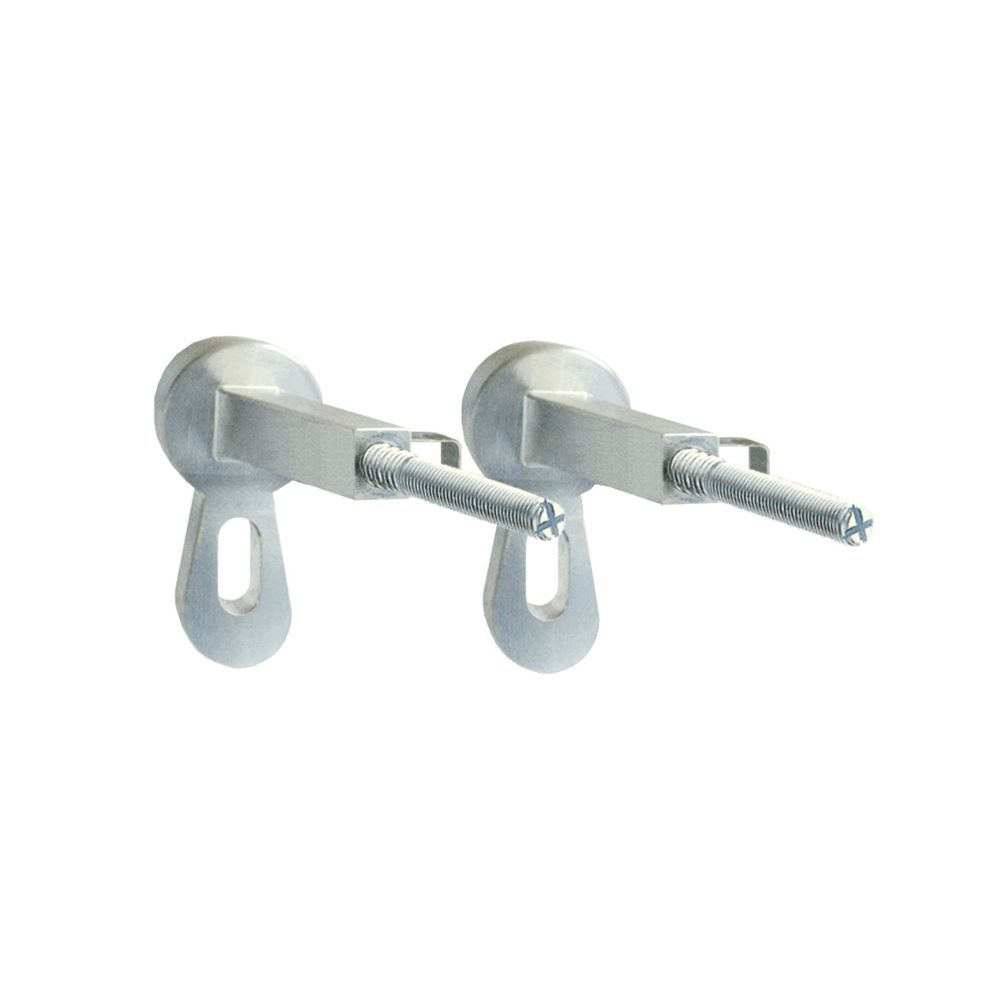

Wall fixings (3855800M)
- Rapid SL wall bracket
- For surface mounting
- For wall or partition mounting
- Continuous depth adjustment 130 - 230 mm
- Supplied with fixing hardware
- 2 pieces
Grohe Euro Ceramic Wall-Hung Toilet Bowl, Alpine White (39328000):
- For concealed cistern
- Horizontal outlet
- GROHE Triple Vortex flushing technology
- Rimless flush
- 3/5 L flush volume
- Fixing kit included
- Sanitary ware
- Fully shrouded with concealed fixings
- Finish:Alpine White
- Toilet seat not supplied, reference: 39330001
Euro Ceramic Toilet Seat, Alpine White (39330001):
Finish: Alpine White
- Euro Ceramic Toilet Seat
- Soft-close seat
- Quick installation
- Duroplast material
- Fixing kit included
- Compatible with EURO CERAMIC toilet bowls 39328000, 3932800H, 39206000 and 3920600H
Grohe Sound Insulation Set (37131000):
- Sound insulation set
- for toilets
- 2 rubber bushings
- Water saving: https://www.livea.fr/423113/pack-wc-bati-support-grohe-rapid-sl-cuvette-sans-bride-grohe-euro-ceramic-blanc-plaque-de-declenchement-chrome-39536000.jpg
- Waste pipe:40.5
- Manufacturer Warranty: https://www.livea.fr/423114/pack-wc-bati-support-grohe-rapid-sl-cuvette-sans-bride-grohe-euro-ceramic-blanc-plaque-de-declenchement-chrome-39536000.jpg
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(53.94% saving)
