Geberit Duofix toilet set + Ideal Standard Tesi Aquablade bowl + Sigma01 white flush plate (GEBAQUA-B)
- Product reference: GEBAQUA-B
- EAN: 3052351461112
Brand:
Product warranty:
5 years
£
56990
TAX INCL.
£
72121
Retailed price
(
20.98%
saving)
69 In stock
Shipped before
the 4 December
Quantity:

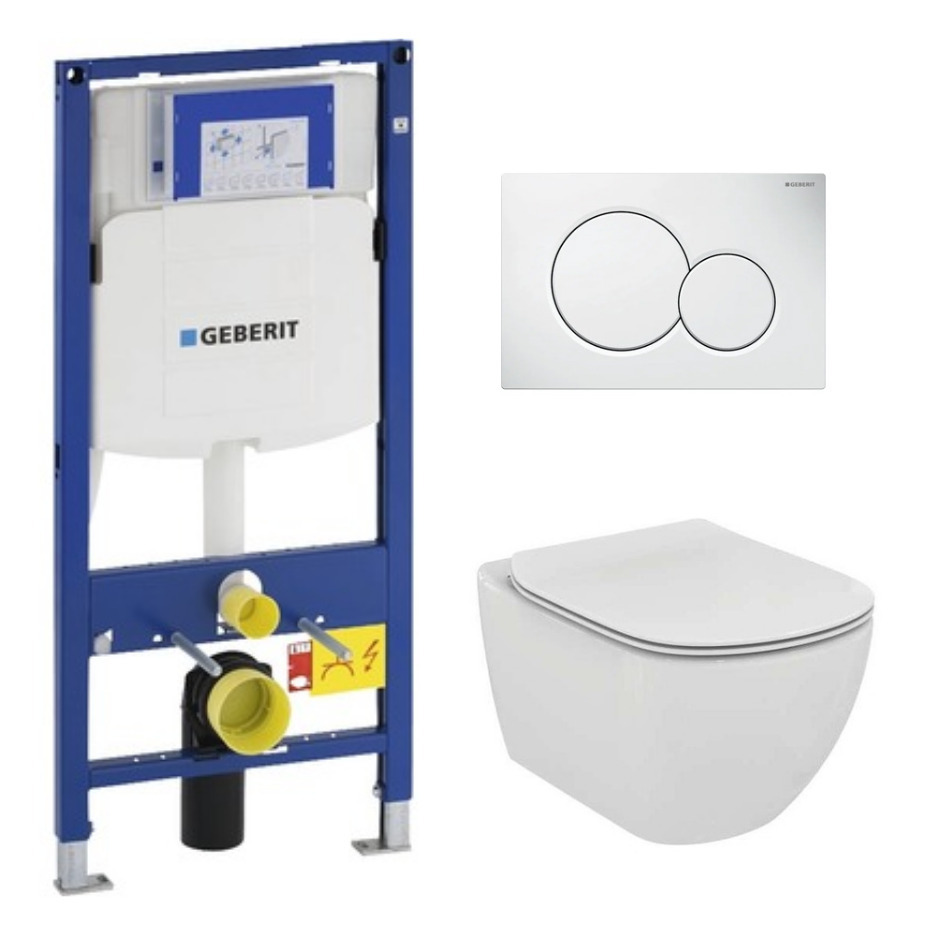

Features of the Geberit Duofix toilet set + Ideal Standard Tesi Aquablade bowl + Sigma01 white flush plate (GEBAQUA-B) :
- Geberit Duofix UP320 support for installation on a load-bearing wall or reinforced partition (Ref. 111.300.00.5)
- Ideal Standard Tesi AquaBlade toilet bowl and ultra-thin softclose seat (Ref. T354601)
- Geberit wall mounting kit (Ref: 111.815.00.1)
- Geberit Sigma01 white control plate (Ref. 115.770.11.5)
.

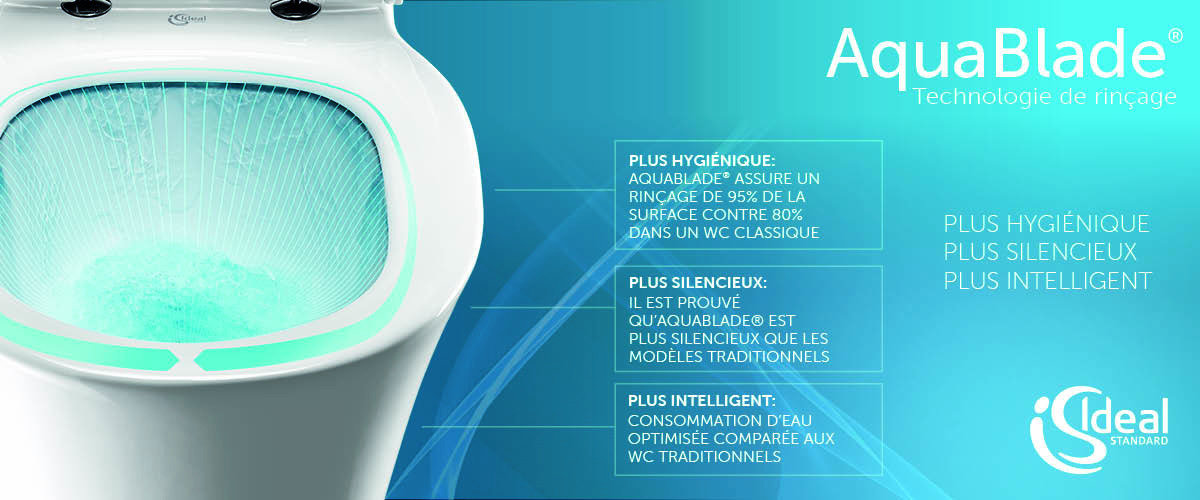

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601) :
- Ideal Standard TESI Rimless porcelain sanitary ware toilet bowl (T007901)
- Ideal Standard TESI Toilet seat with soft close system (T352701)
.
Features:

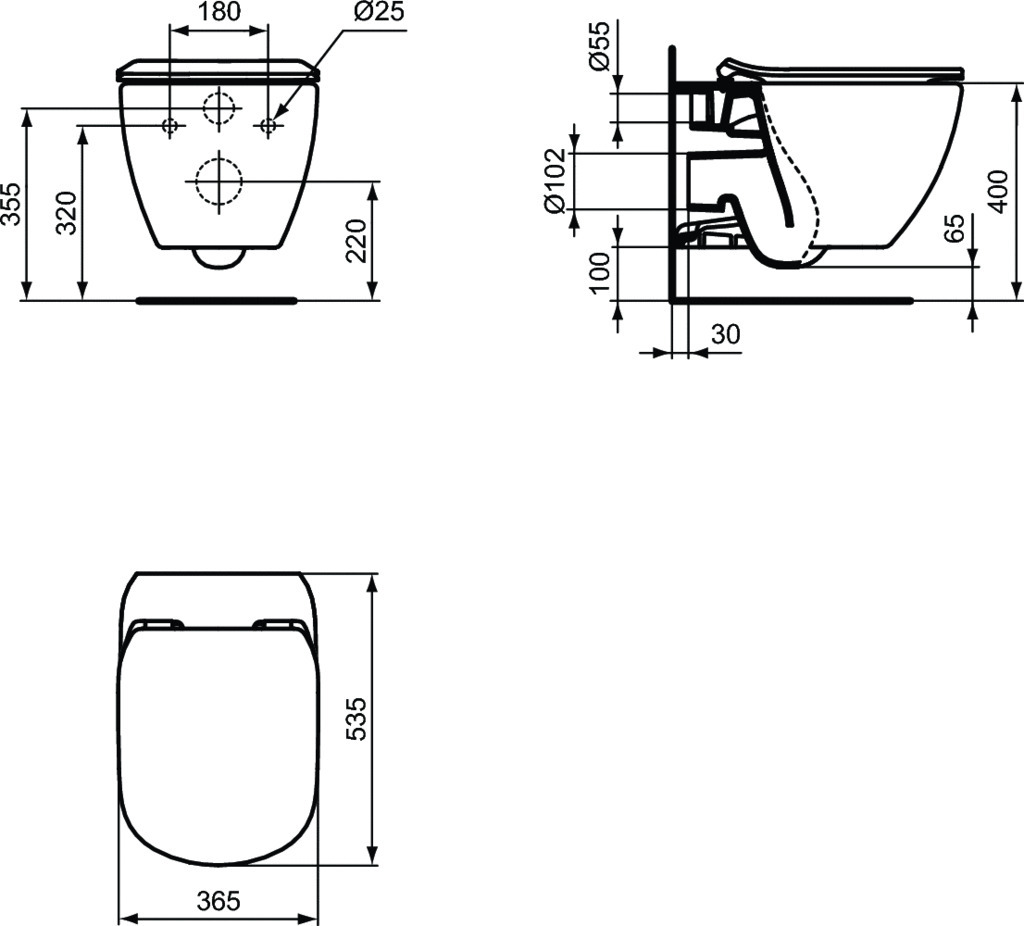

- Dimensions (WxDxH): 365 x 535 x 355 mm
- Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
- Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
- Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
- Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
- Elegantly designed hanging bowl with no protrusions
- Width of the back wall: 285 cm
- Bowl made without flange, fully enamelled for easy cleaning

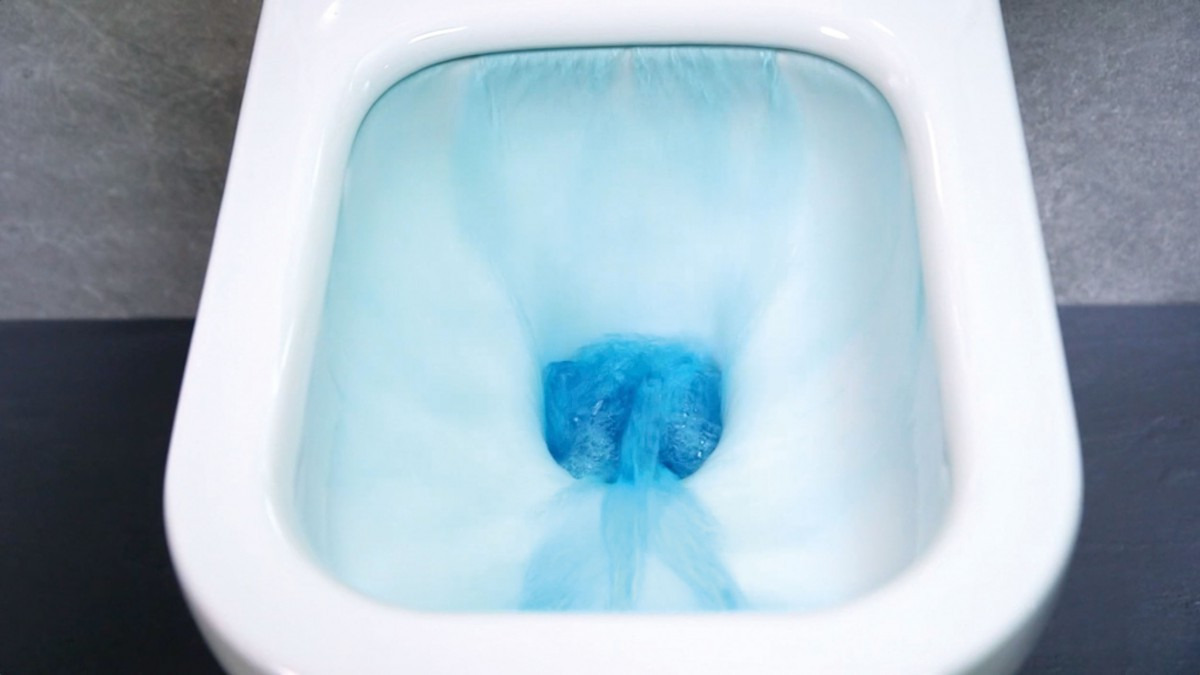

- Water passes through two open side channels and a central hole
- Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
- Distance between fixings: 180mm
- The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
- In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm

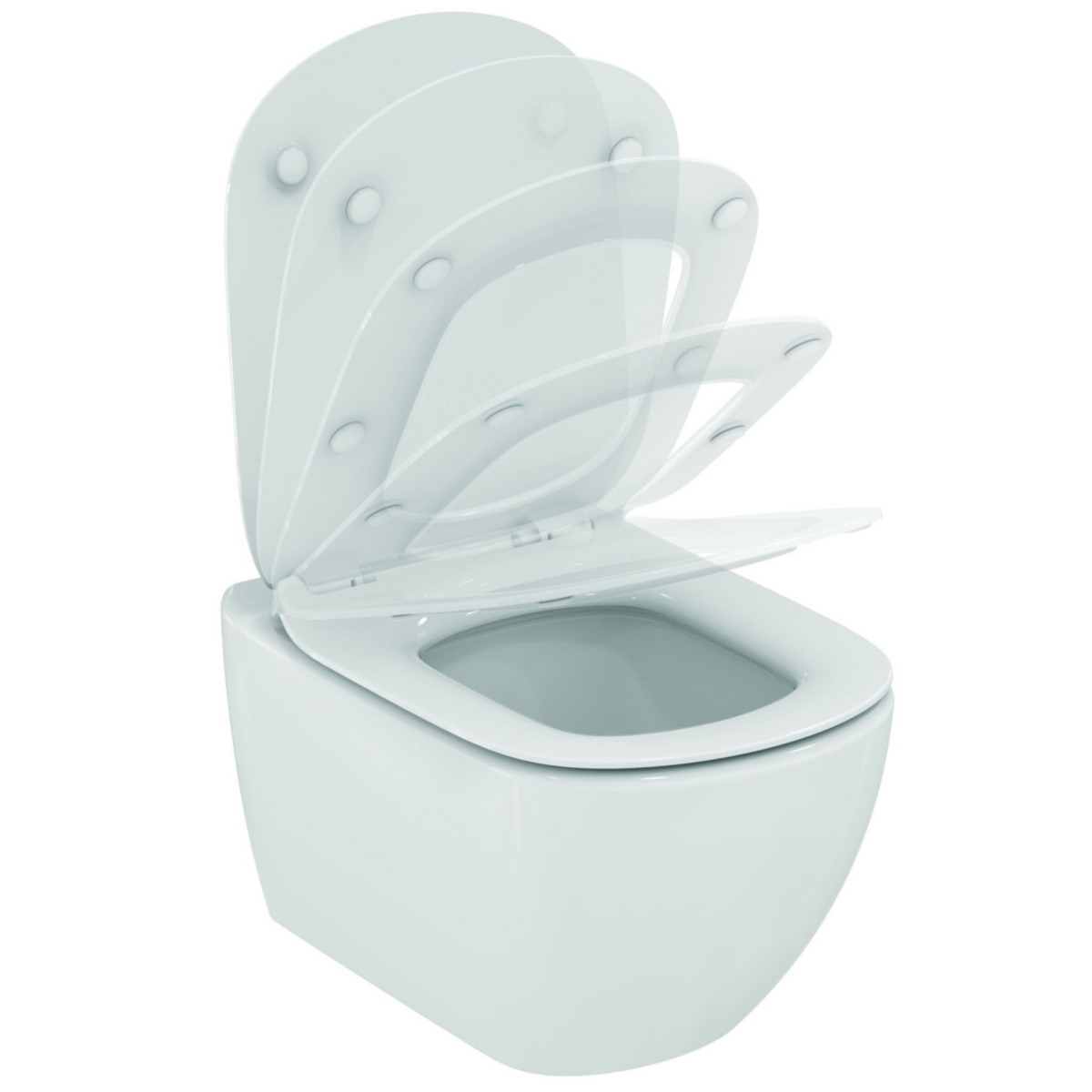

- The toilet bowl is equipped with a specific drop-brake seat
- The manufacturer's name appears in full on the product
- Complies with the standard: EN 997 & EN 33
Sound insulation set SP 156SET not included. Not mandatory but strongly recommended.
.
Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above
.
DUOFIX wall mounting set (111.815.00.1) :
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
.

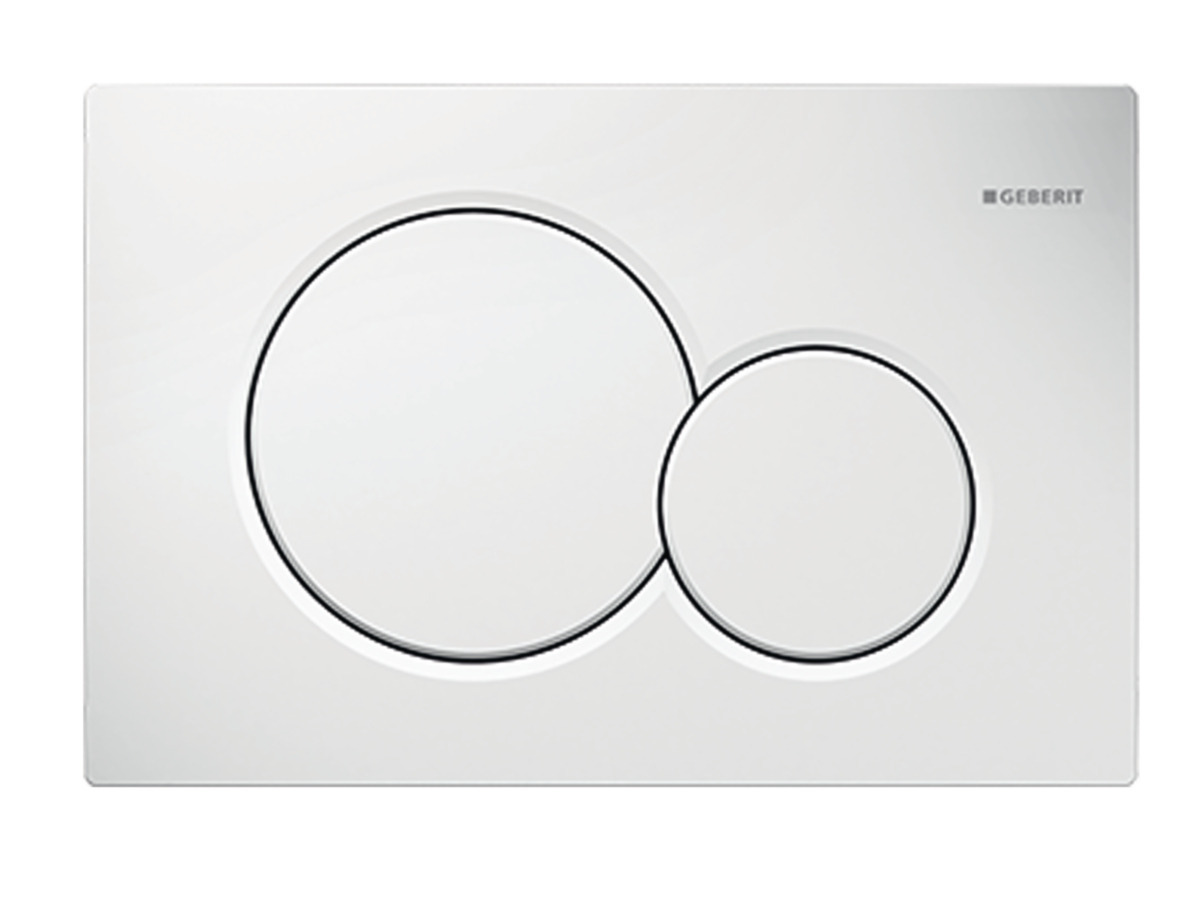

White SIGMA 01 two-touch flush plate (115.770.11.5) :
Trigger plate with two circular buttons.
- Double button 3/6L water saving
- Made of high quality synthetic material
- Plate compatible with the blue water block diffuser
- Dimensions: 246x164 mm.
.
Attention! When the parcel is delivered, please mention "subject to unpacking" on the delivery note and accept the parcel.
No claims can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
Product technical properties
- Toilet bowl brand:Ideal Standard
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Constructor warranty:5 years
- Bowl colour:White
- Invisible fixings:Yes
£
