Geberit Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1)
- Product reference: 458.103.00.1
- EAN: 4025416758877
- Line: Duofix

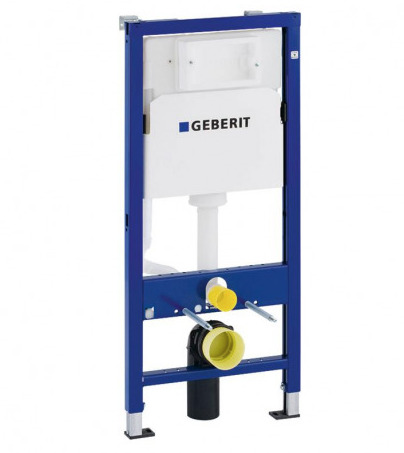

Geberit Duofix basic UP100, 112 cm, with concealed water tank UP100
Attention: Only the Geberit Delta21, Delta20 or Delta50 flush plate is compatible
The set includes :
- 112 cm galvanised support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25-year manufacturer's warranty on spare parts)
- pre-painted frame in Geberit blue
- support feet with cm scale marking
- swivel feet for mounting in UW50/UW75 profile
- crossbar for cladding support
- 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
- concealed cistern 4-6-7.5 l, insulated against condensation
- two-stage front operation with Delta21, Delta20 or Delta50 plates
- supply from the back/top
- angle stop valve R1/2",
- housing for inspection hatch
- construction protection made of styrophor
- drain elbow Ø 90 mm
- sleeve fitting Ø 90 mm
- transition sleeve Ø 90/110 mm
- fixing material
This set does not include :
Wall bracket for load-bearing wall 111.815.00.1
Delta21, Delta20 or Delta50 plates are not included
- Length (cm):112
- Width (cm):20
- Height (cm):20
- Constructor warranty:2 years
